Robot-Gripper Signal Combiners & Series Control Boards, A7C / XF

Robot-Gripper Signal Combiners & Series Control Boards, A7C / XF

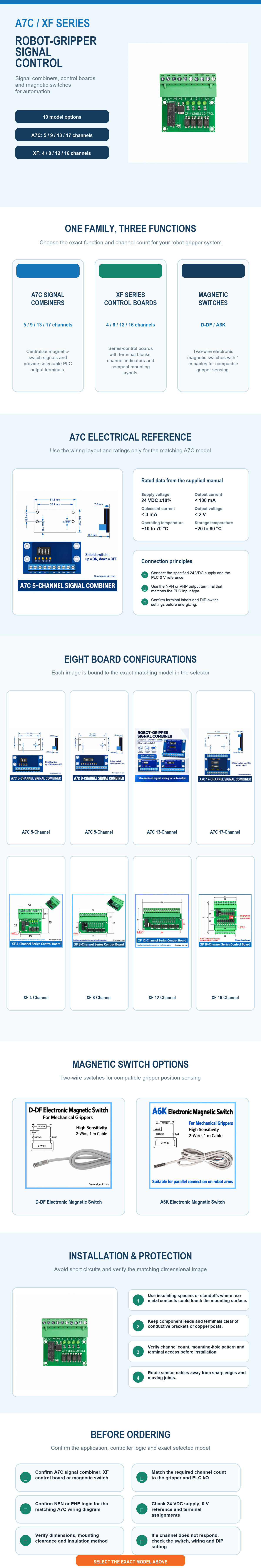

Signal combiners, series control boards and magnetic switches for robot-gripper sensing and centralized signal control.

Model selection

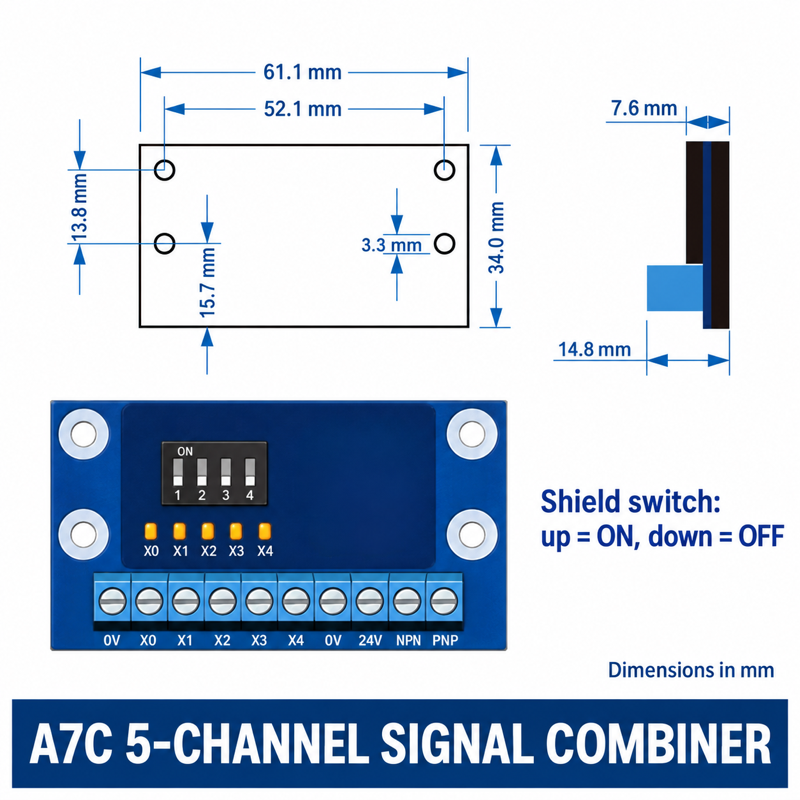

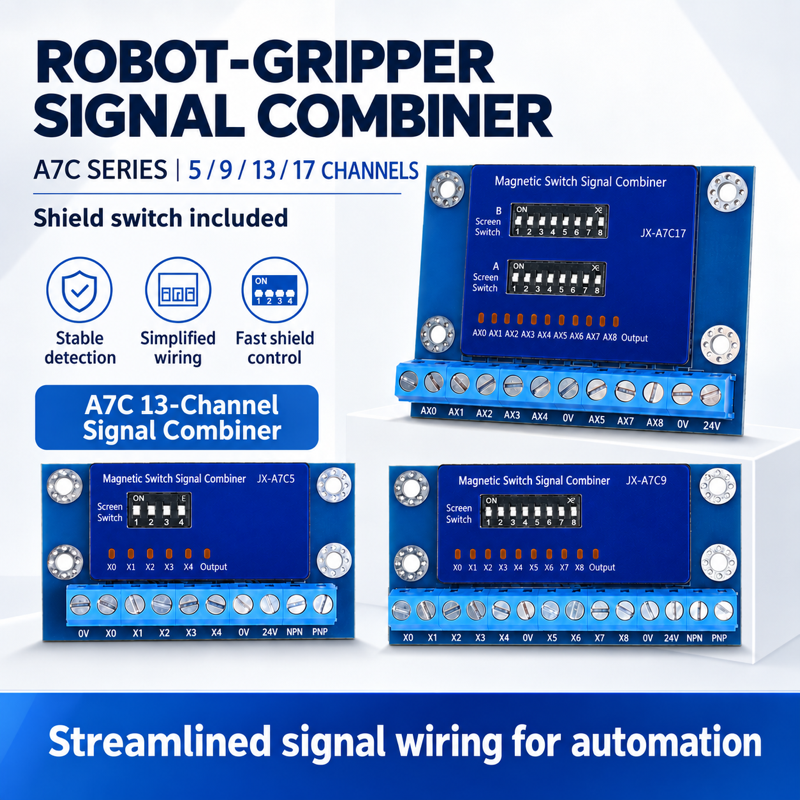

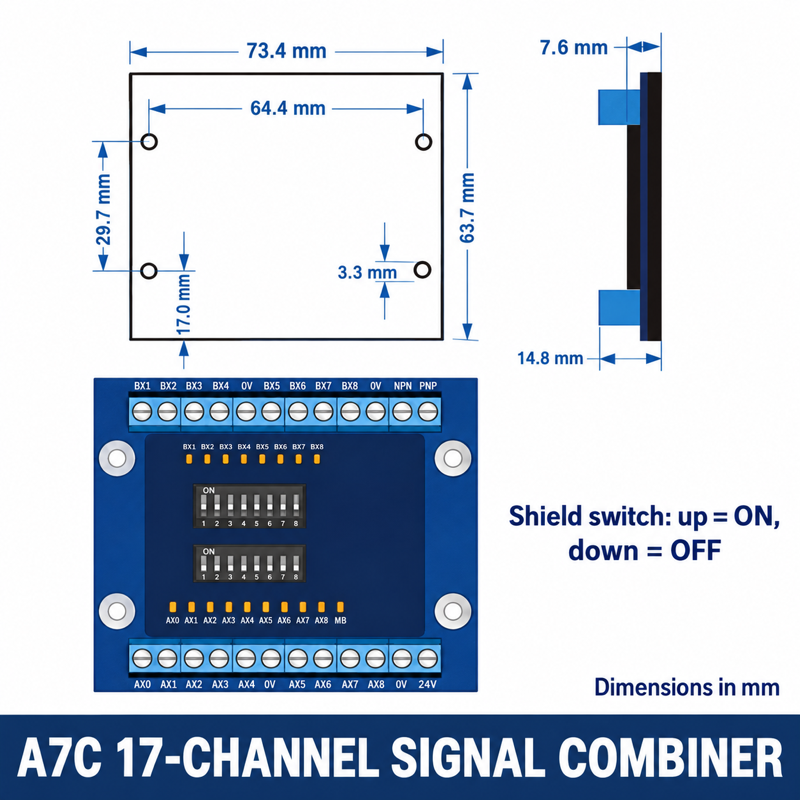

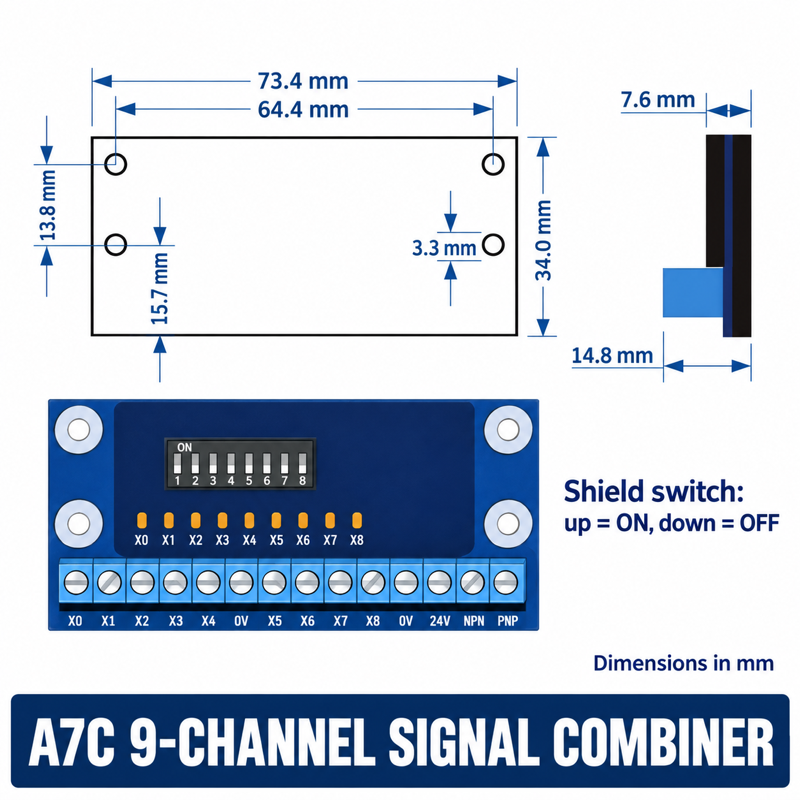

• A7C signal combiners are available in 5-, 9-, 13- and 17-channel configurations.

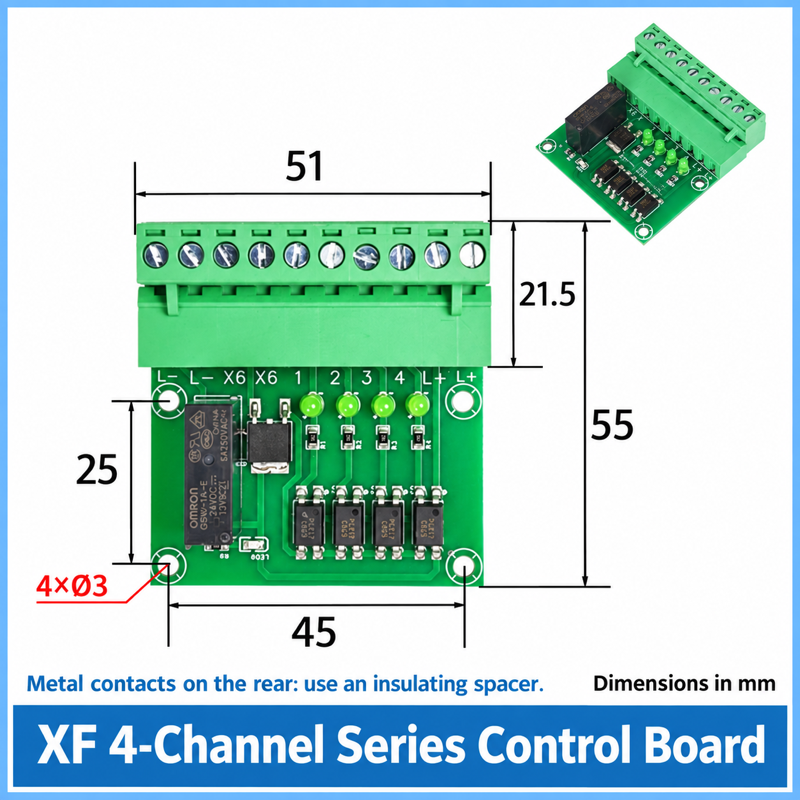

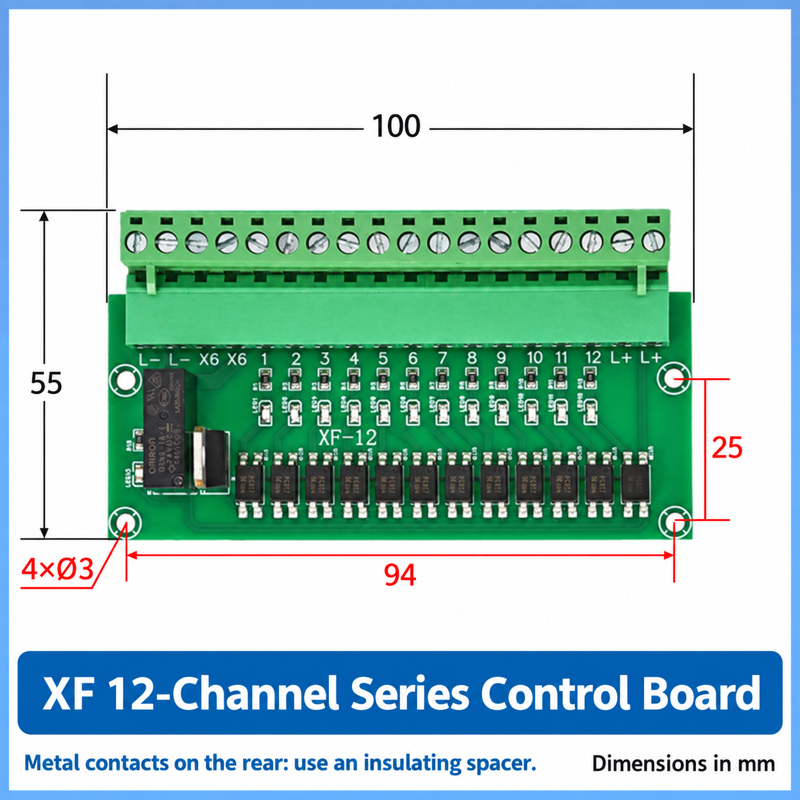

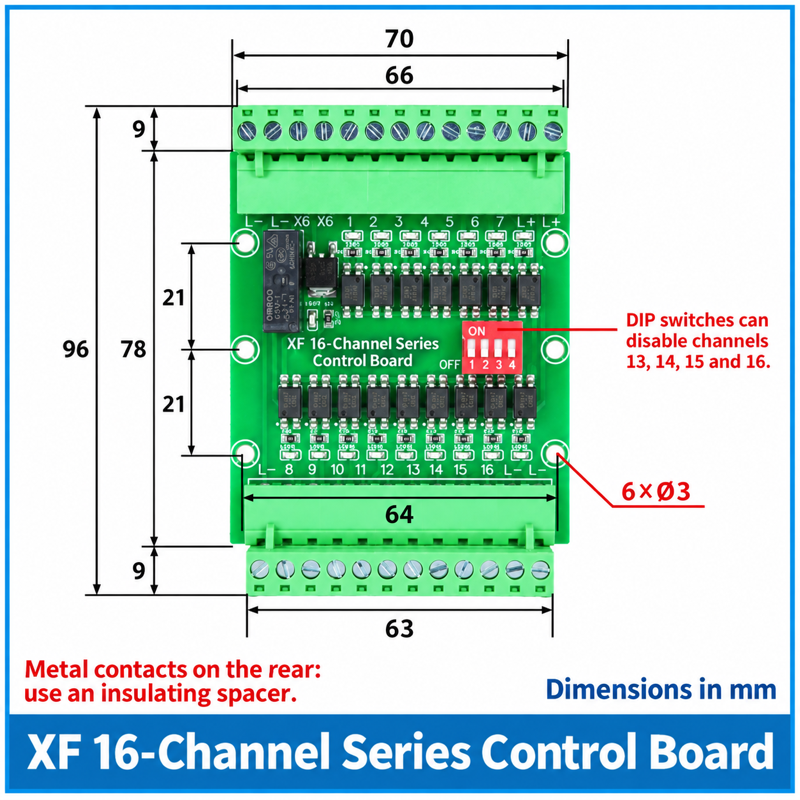

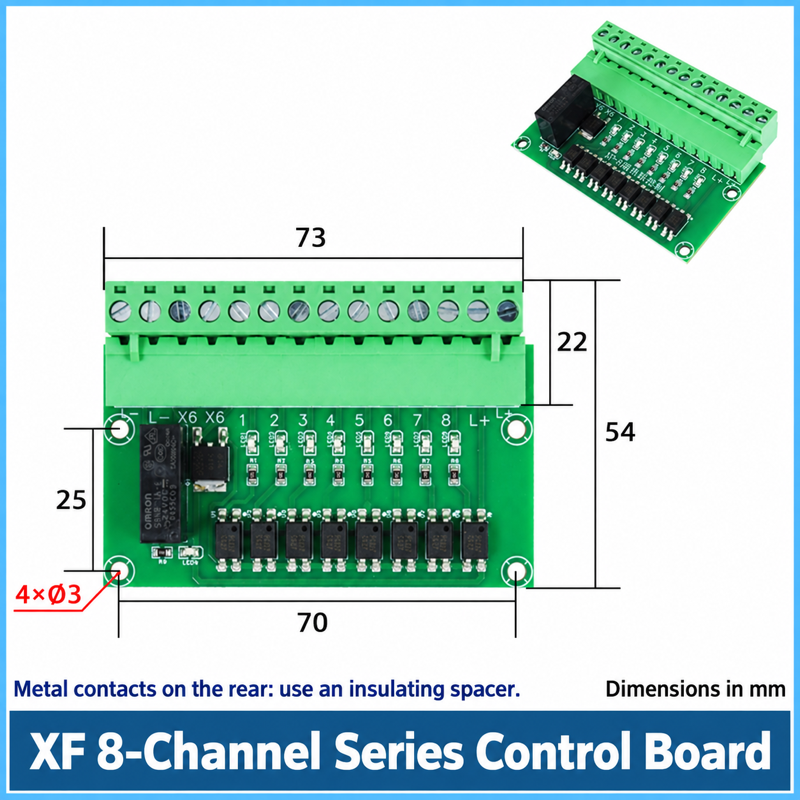

• XF series control boards are available in 4-, 8-, 12- and 16-channel configurations.

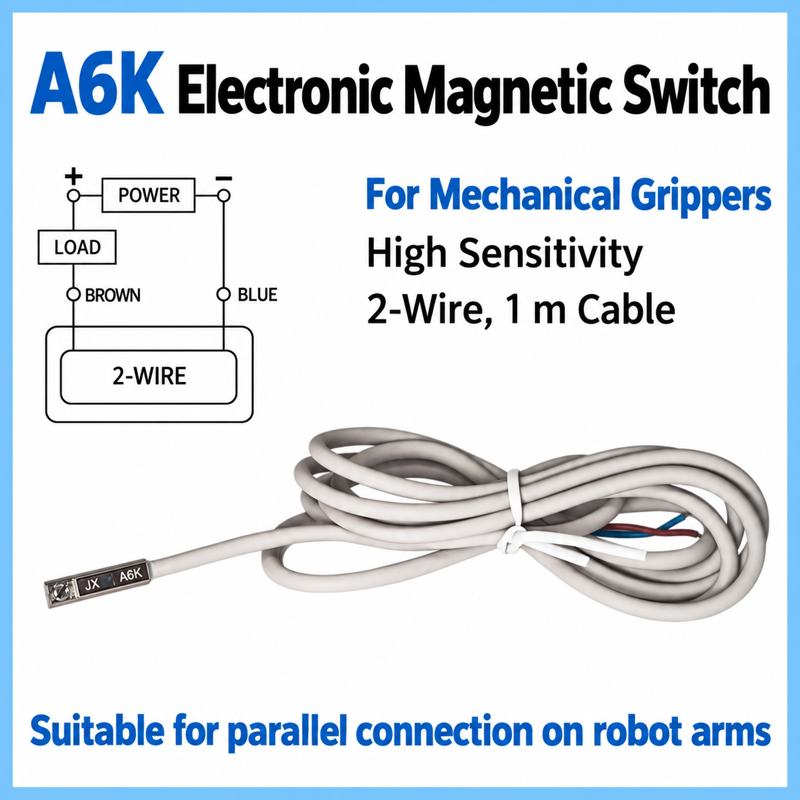

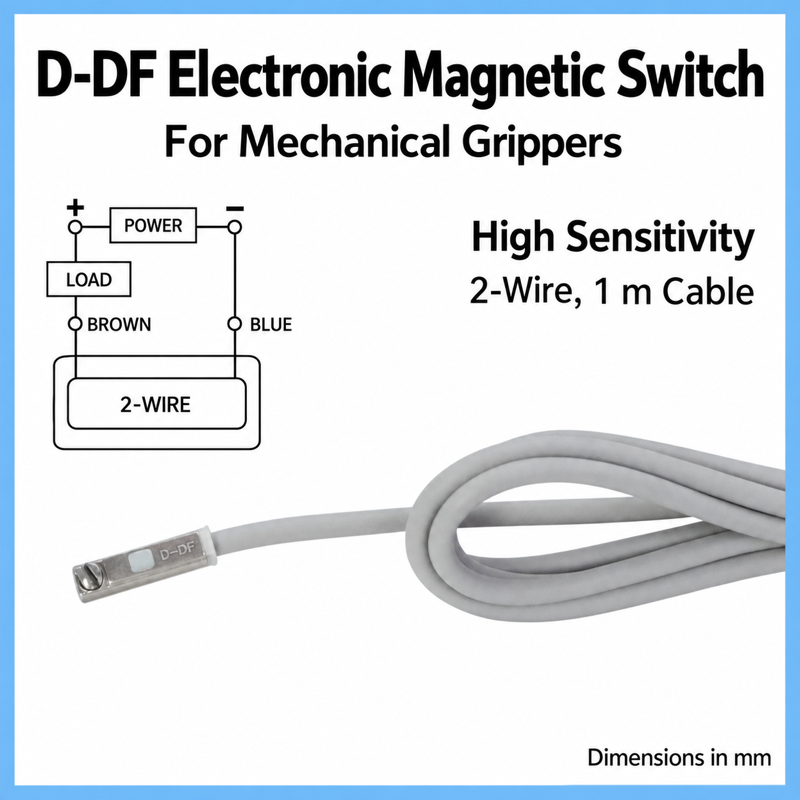

• D-DF and A6K are two-wire electronic magnetic switches with 1 m cables.
• Select the exact model shown in the selector and review its corresponding image.

Ordering and installation

• Verify the channel count, terminal layout, dimensions, mounting-hole pattern and wiring logic before ordering.
• Use an insulating spacer where rear metal contacts could touch the mounting surface.
• Confirm supply voltage, output type, load, cable routing and system compatibility before installation.
• Include any application-specific requirements in the order requirements field.
