MINI-B Side-Inlet Pneumatic Grippers, Standard and Silicone-Padded Jaws

MINI-B side-inlet pneumatic grippers

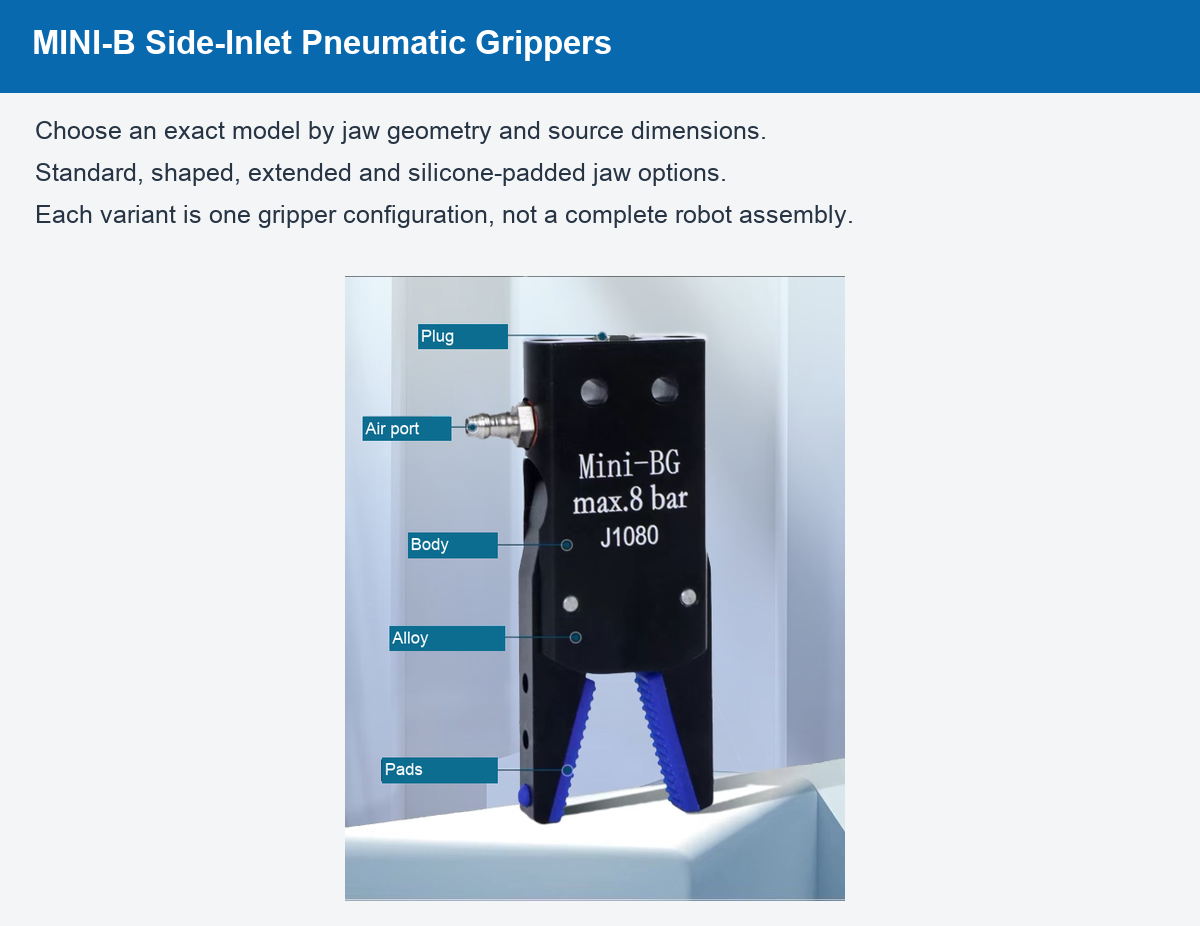

Select the exact jaw configuration for your automation fixture. Standard, shaped, extended and silicone-padded variants are available. Each option is a separate gripper configuration, not a complete robot fixture.

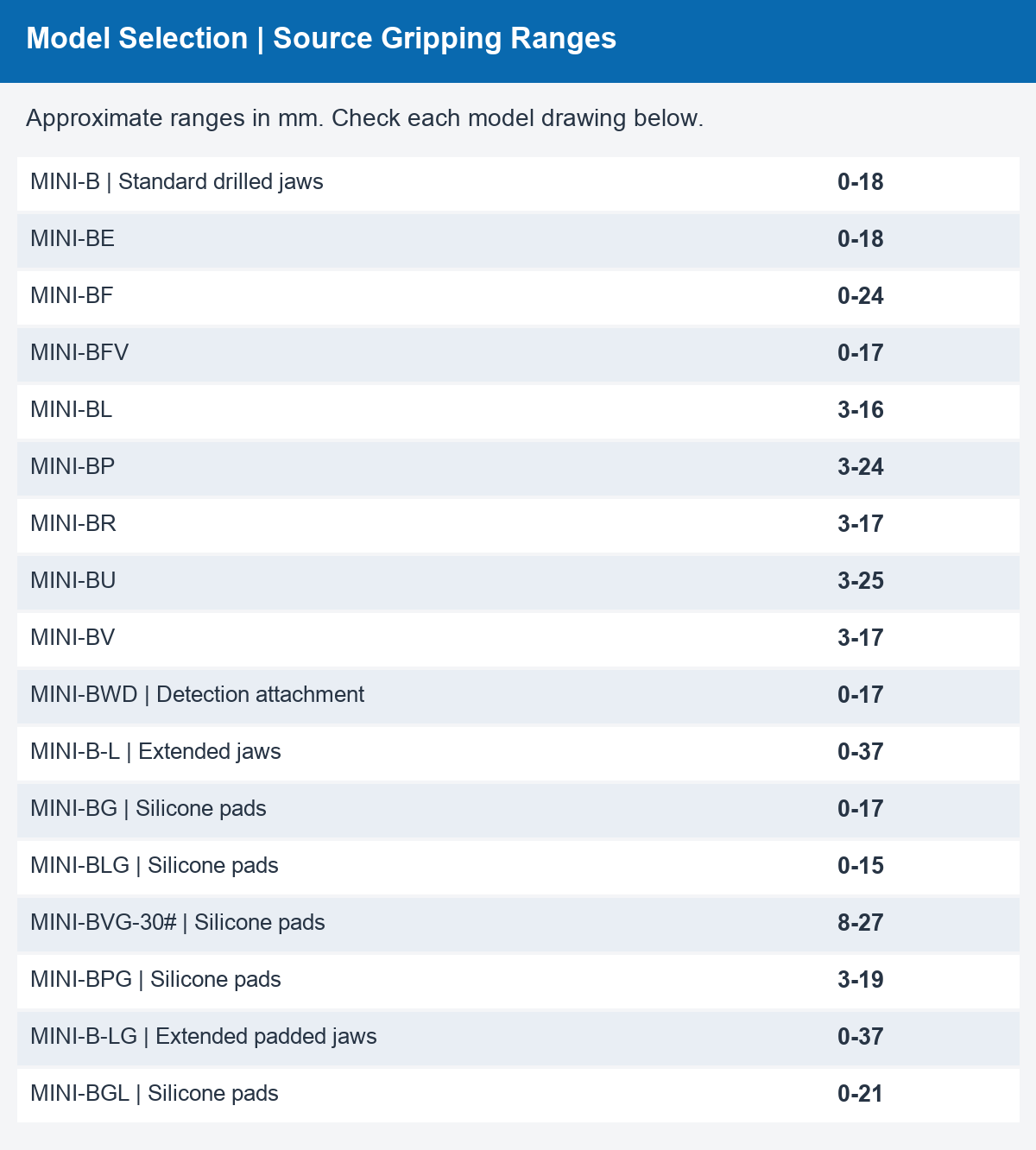

Selection and source specifications

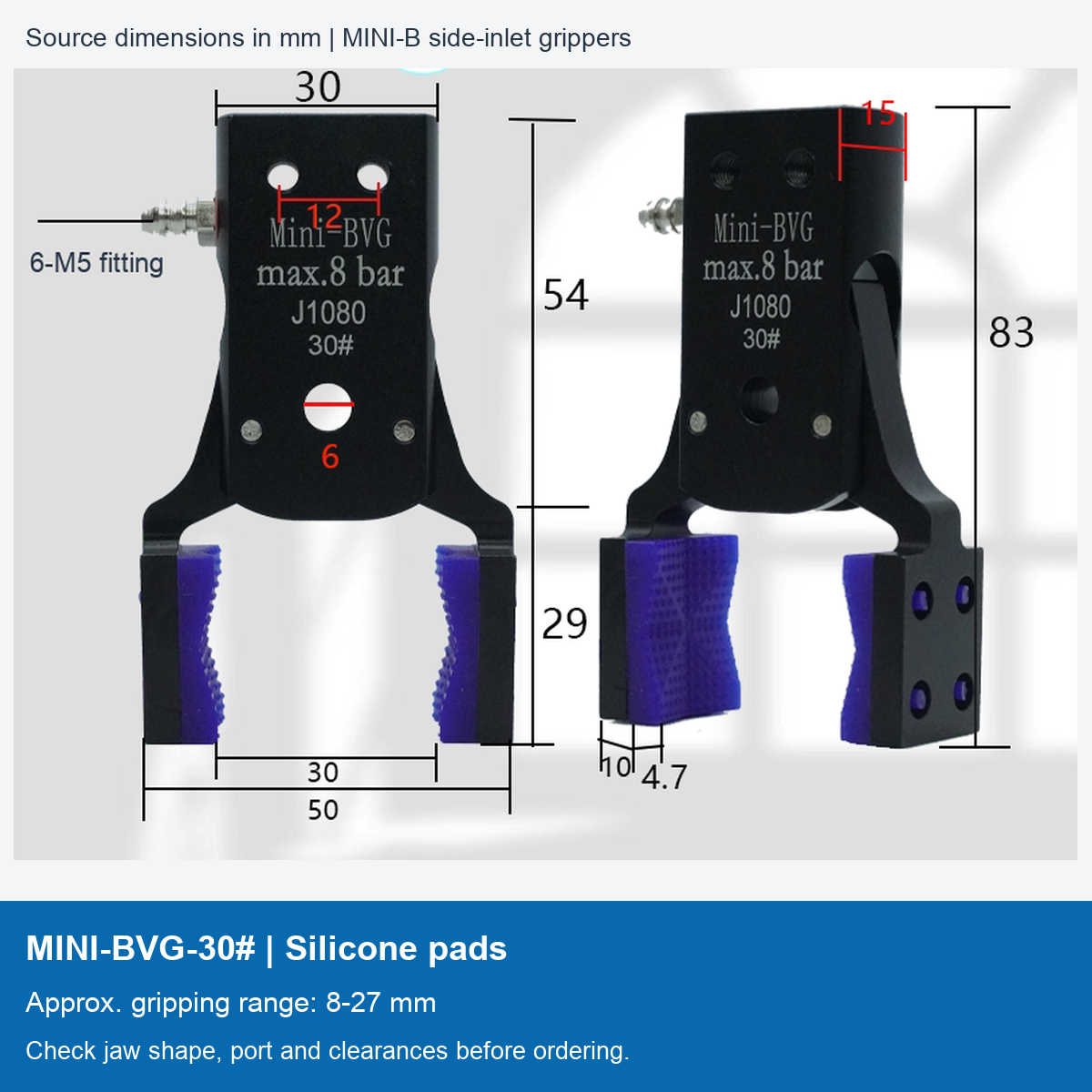

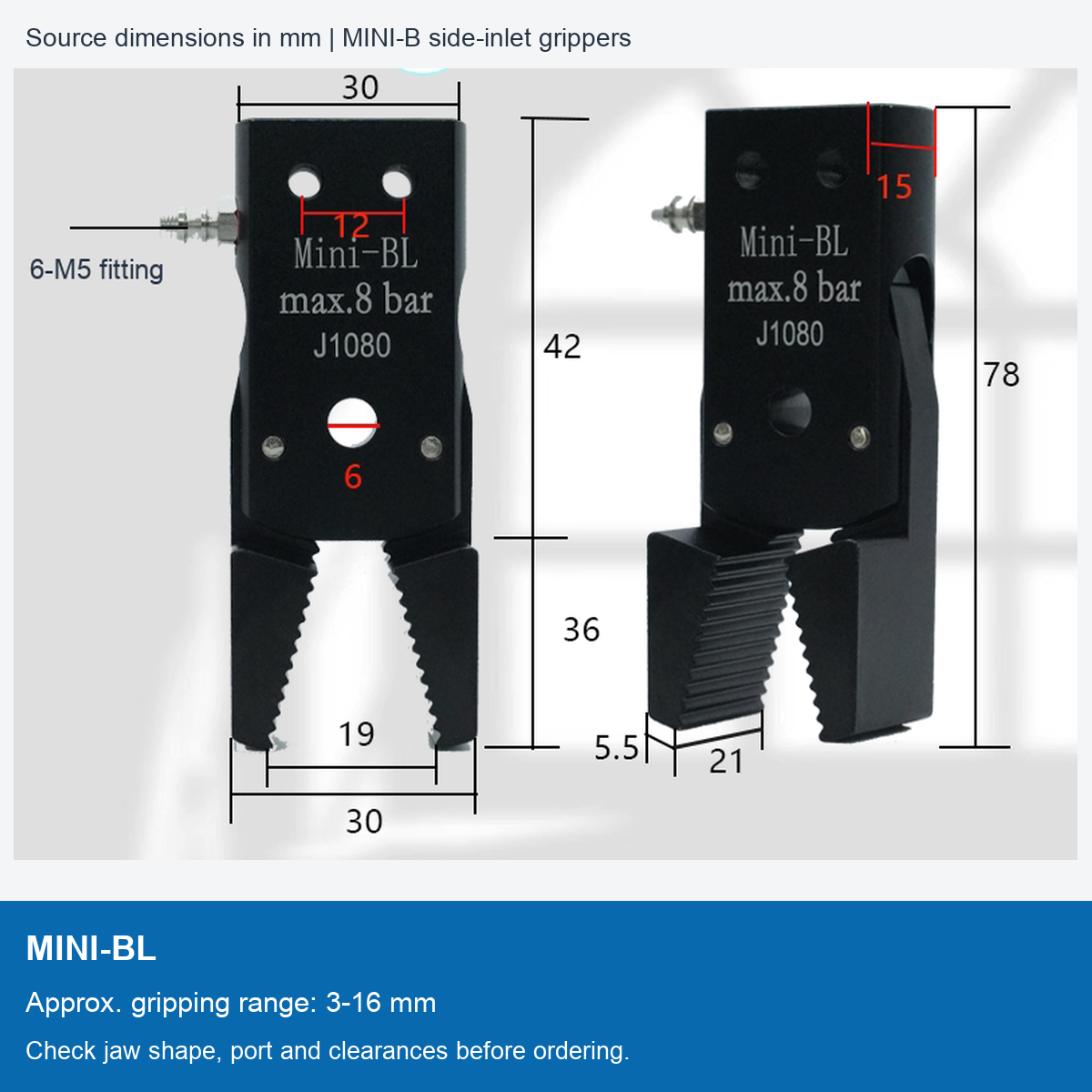

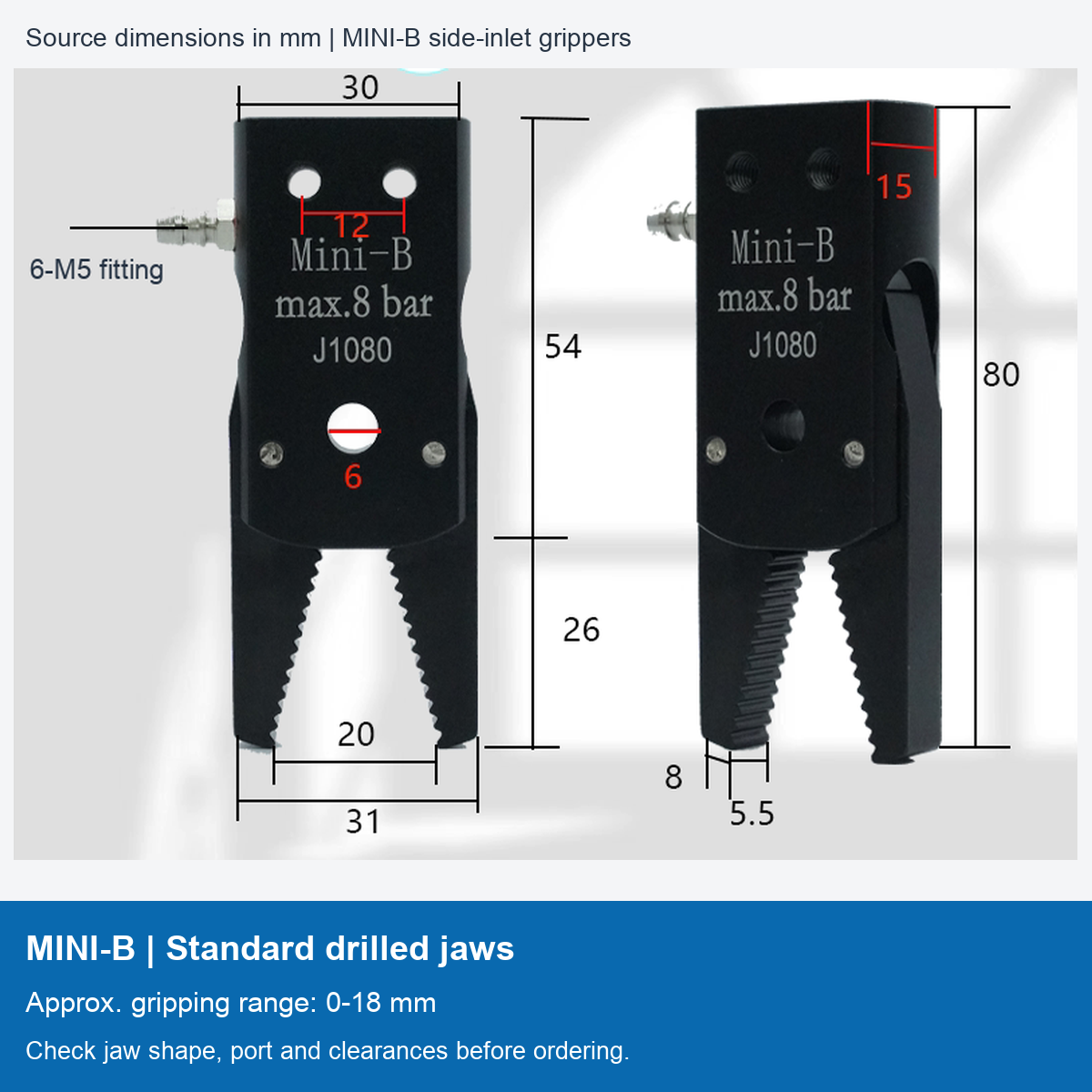

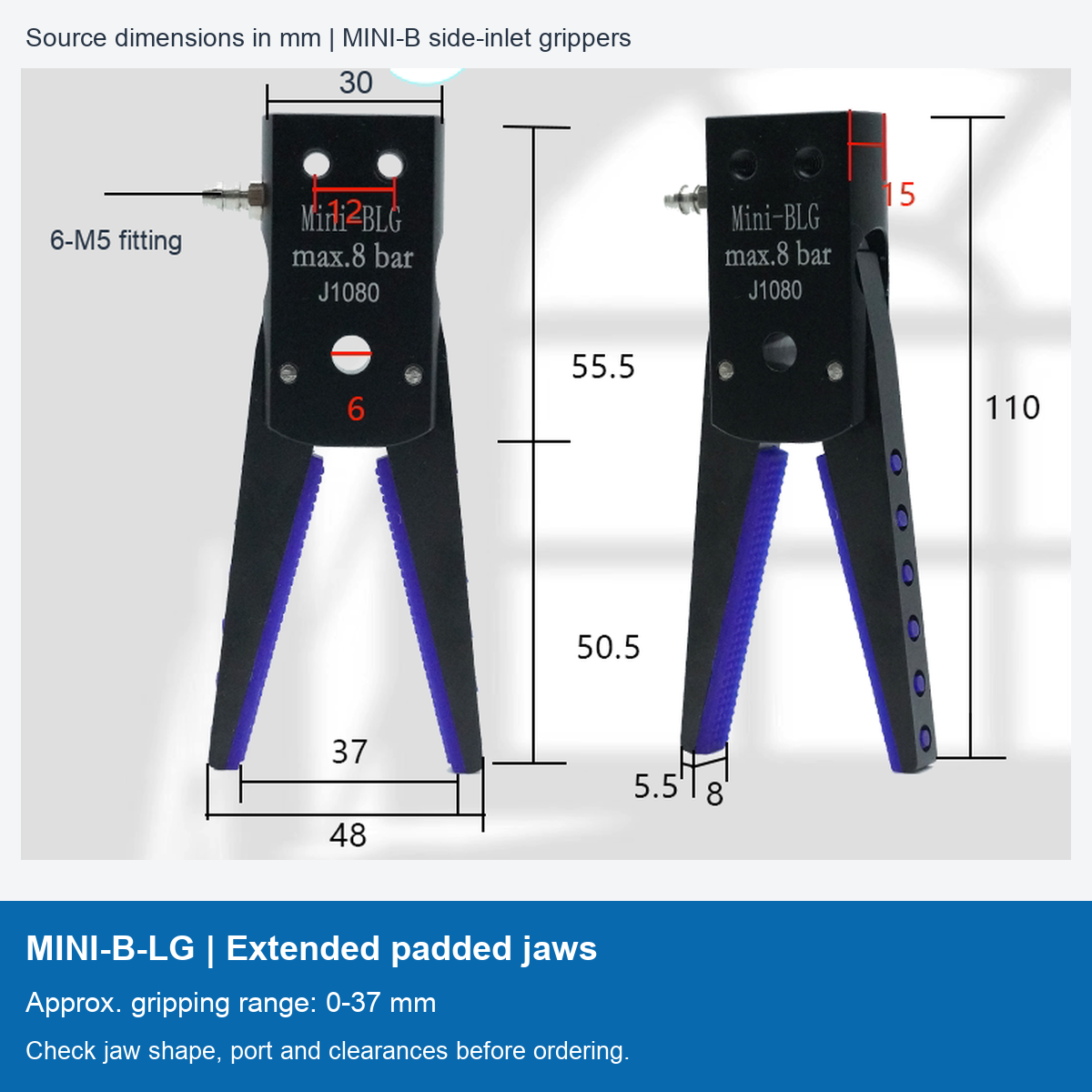

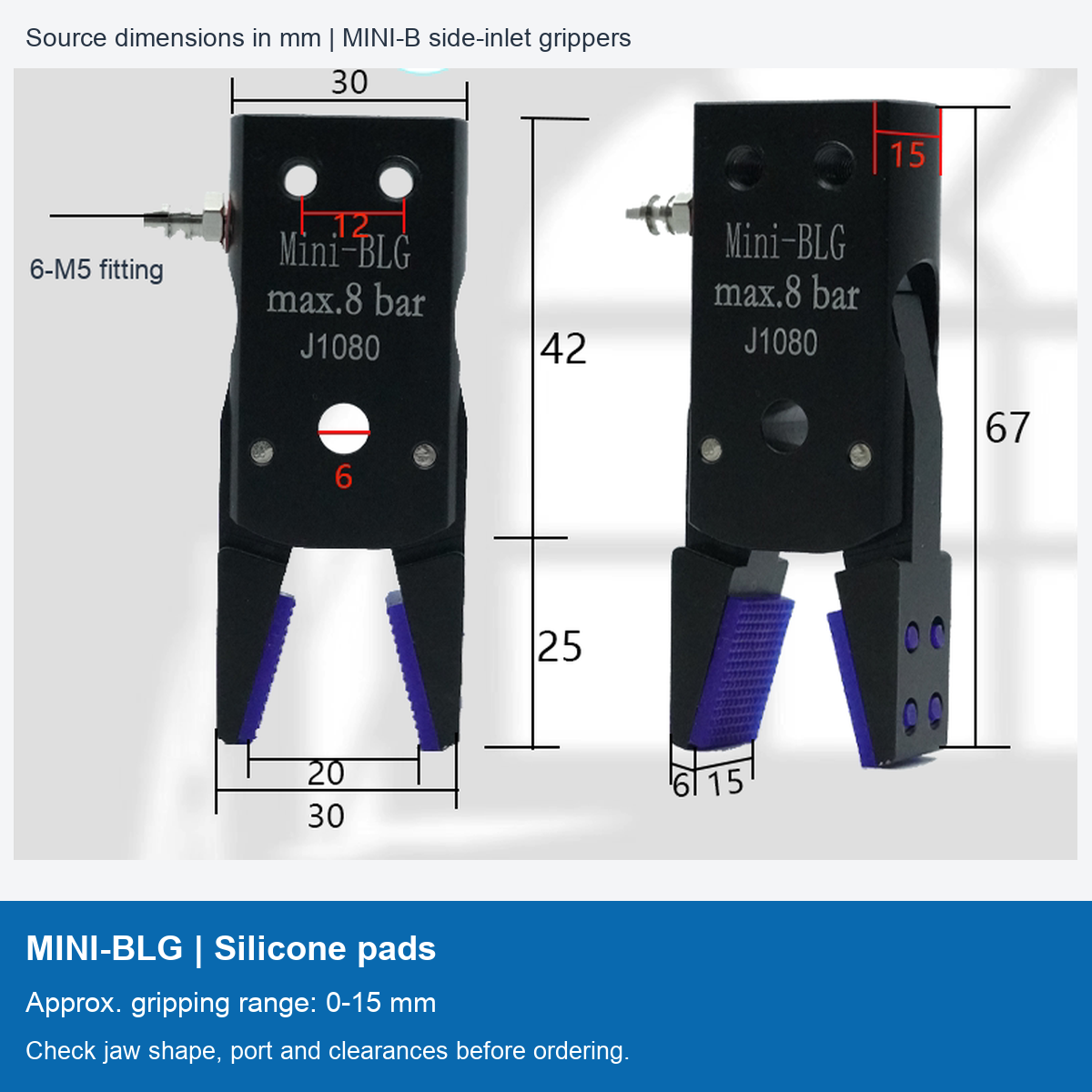

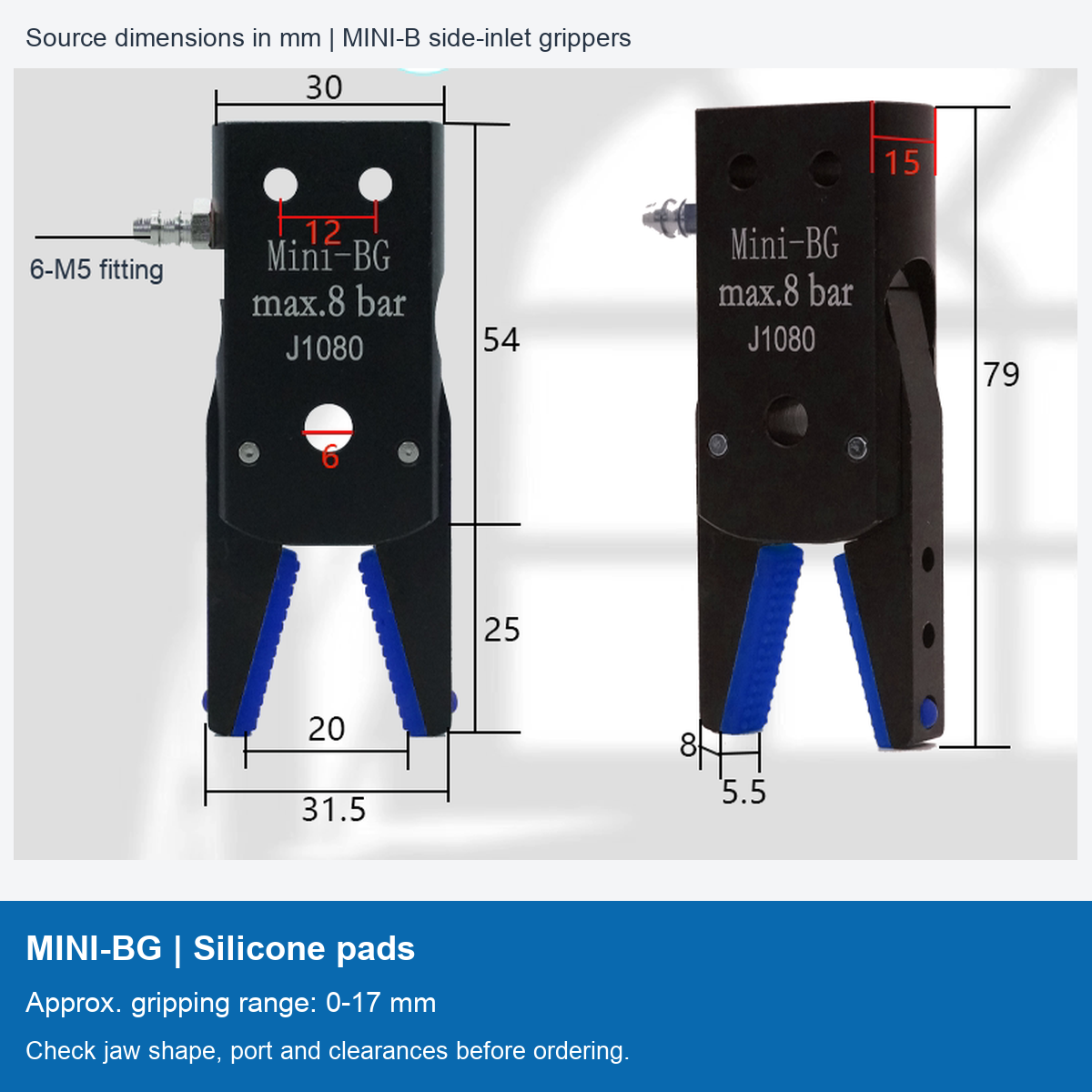

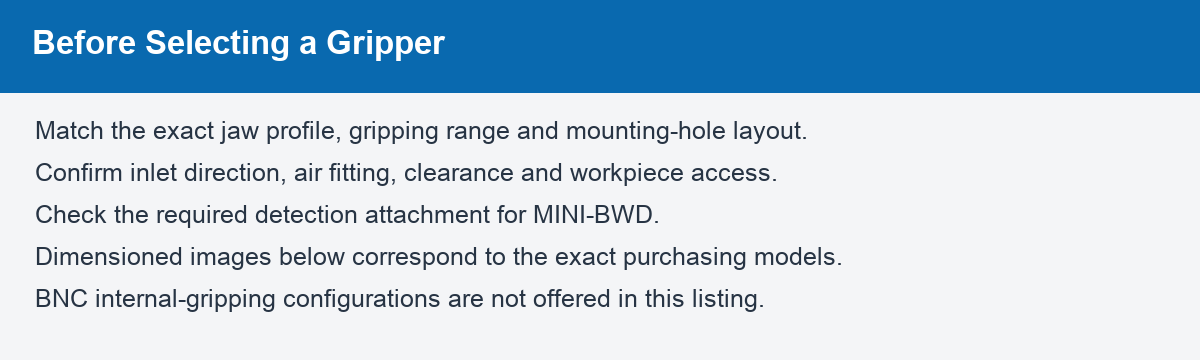

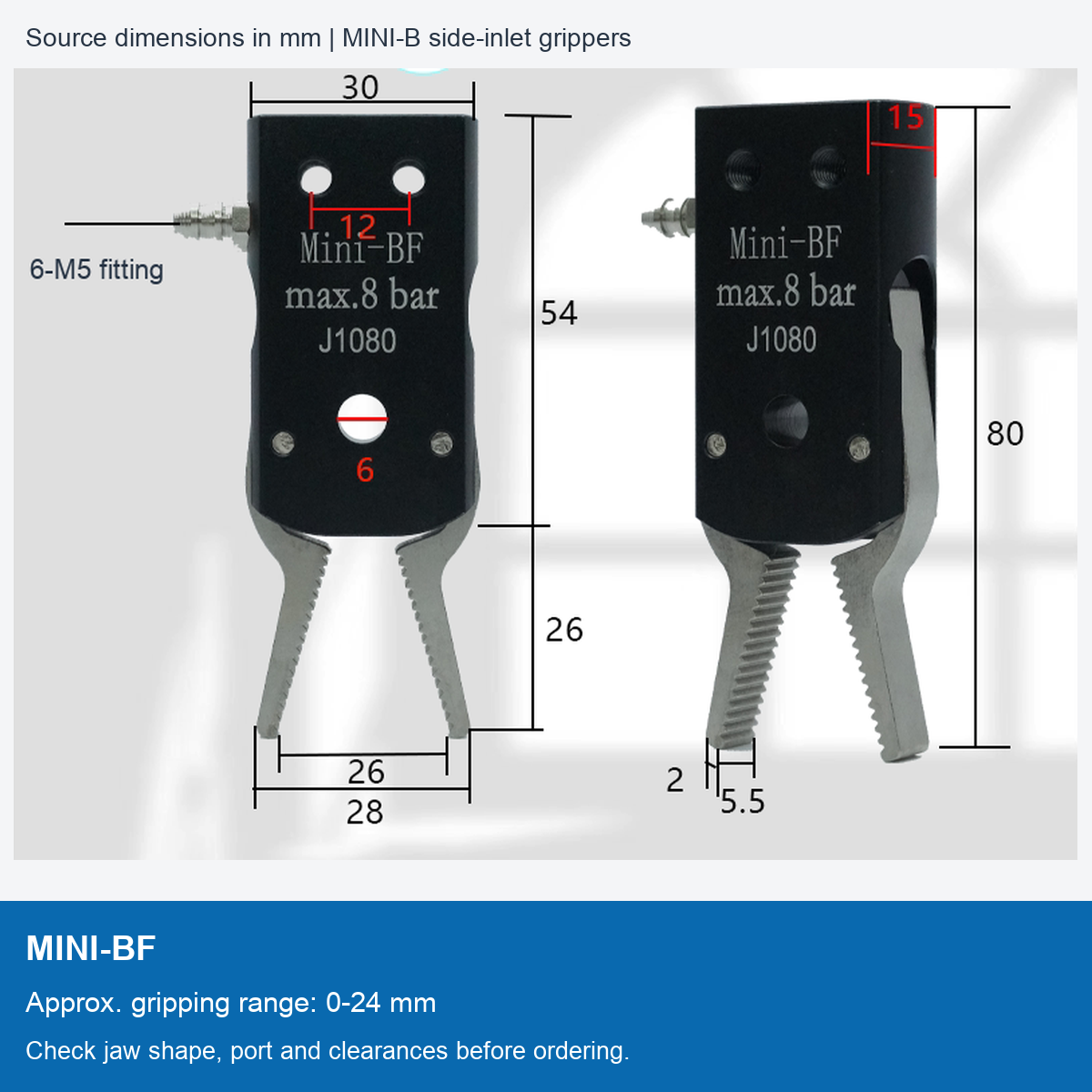

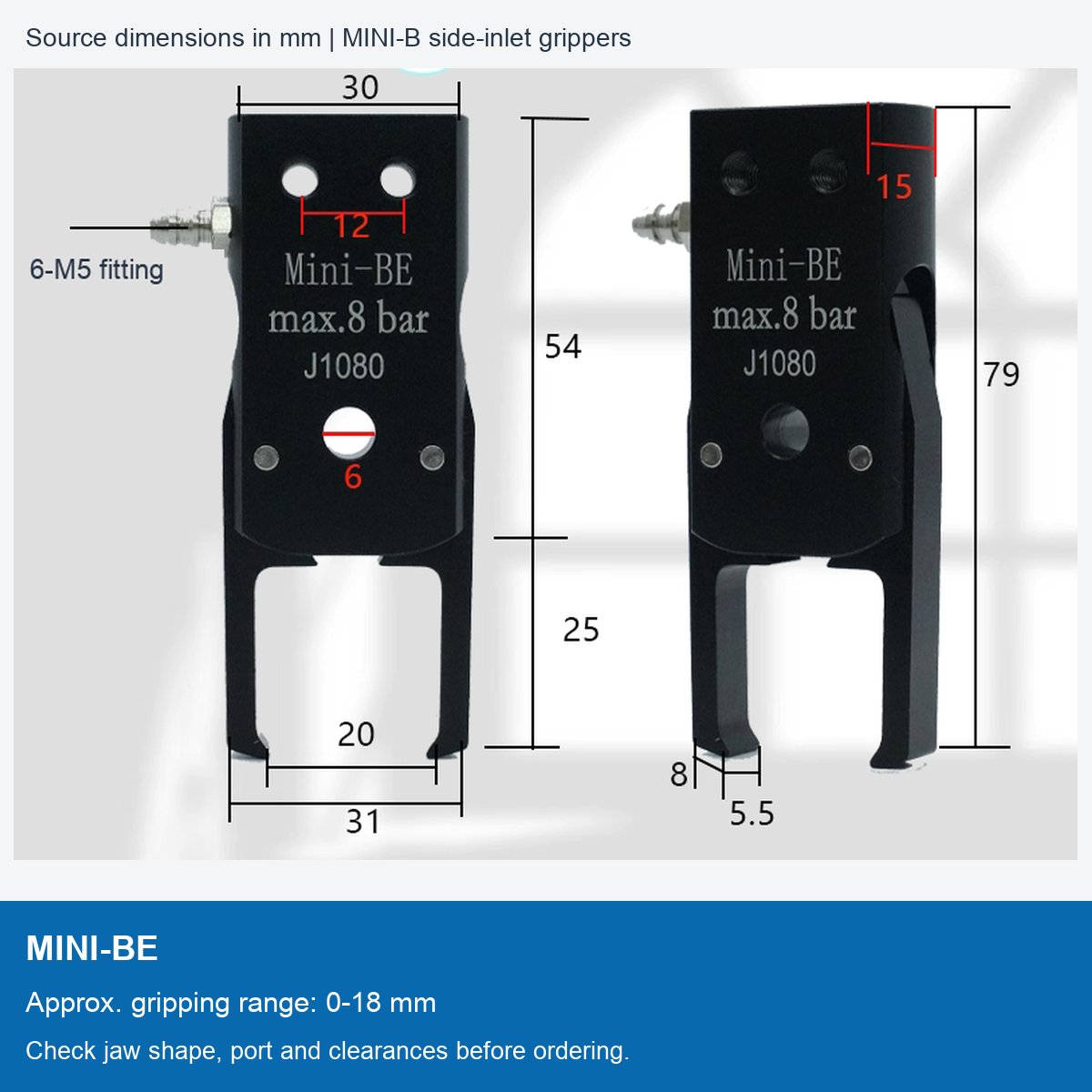

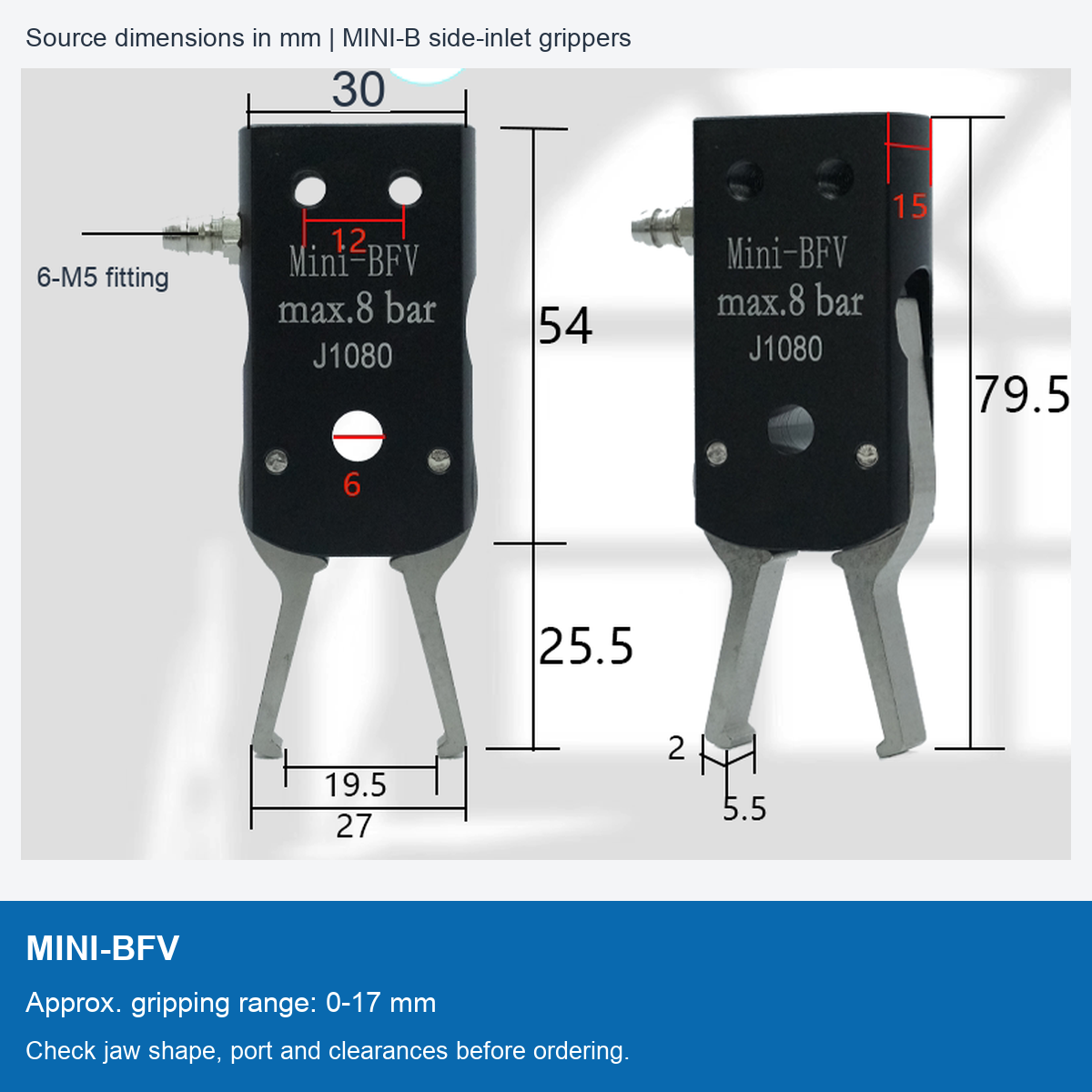

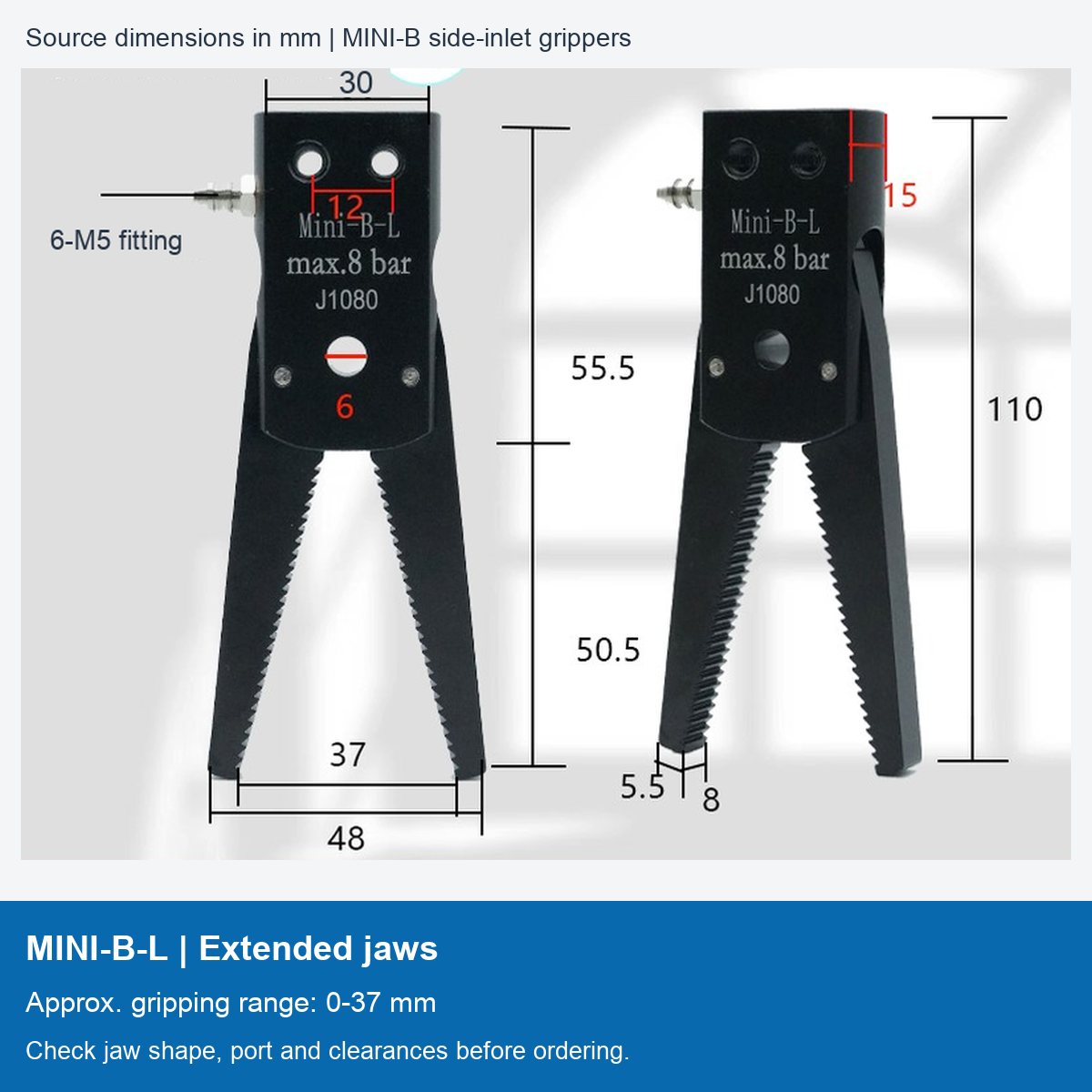

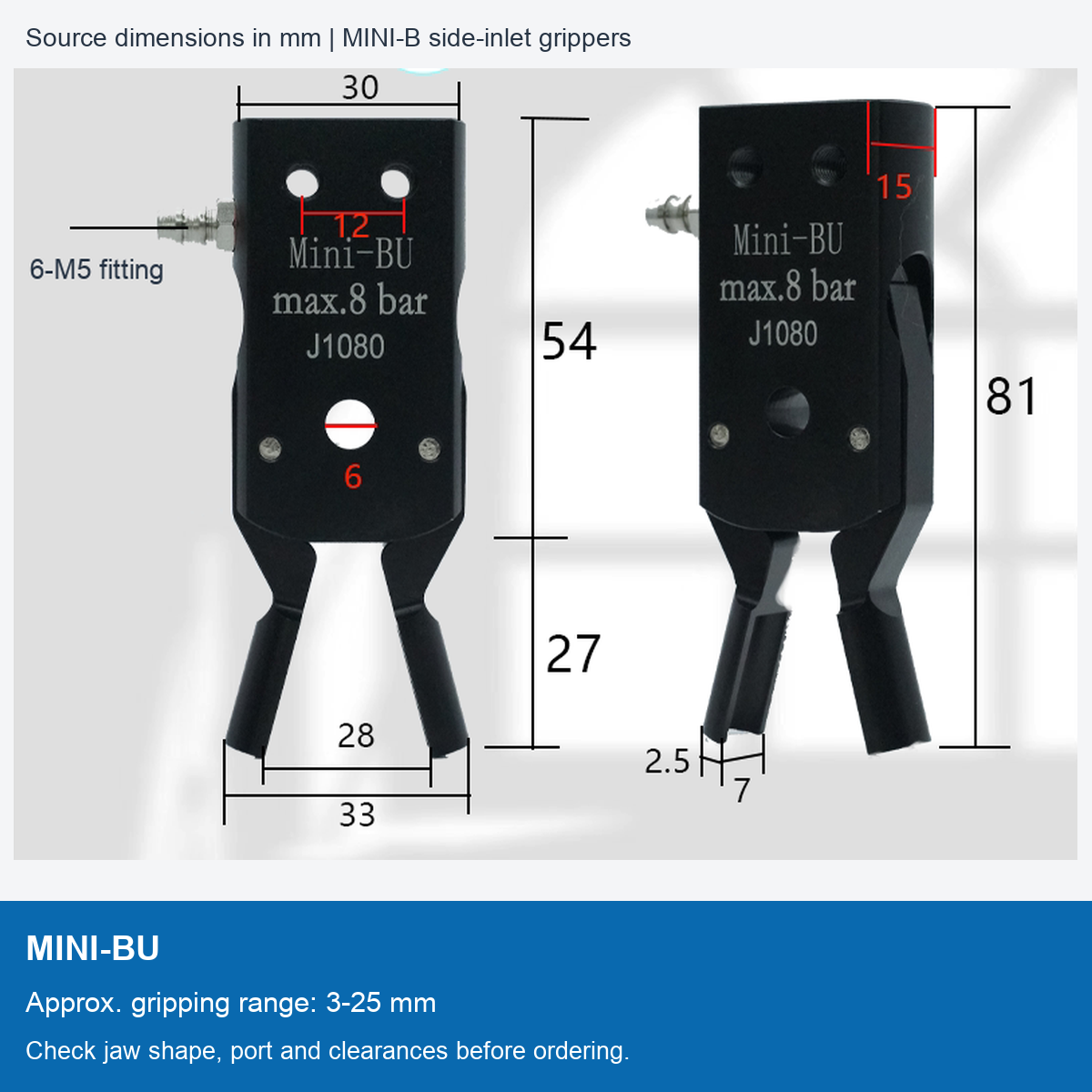

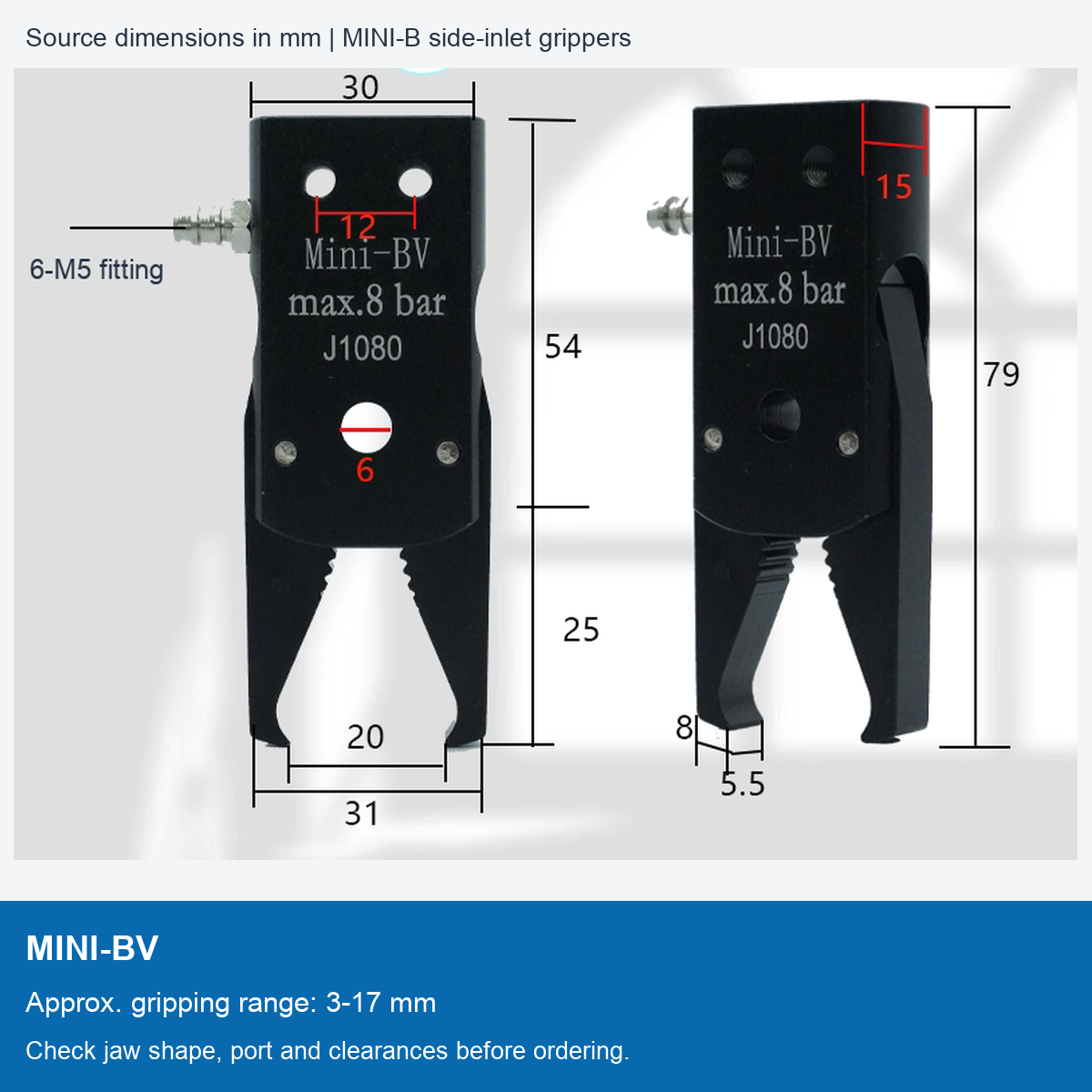

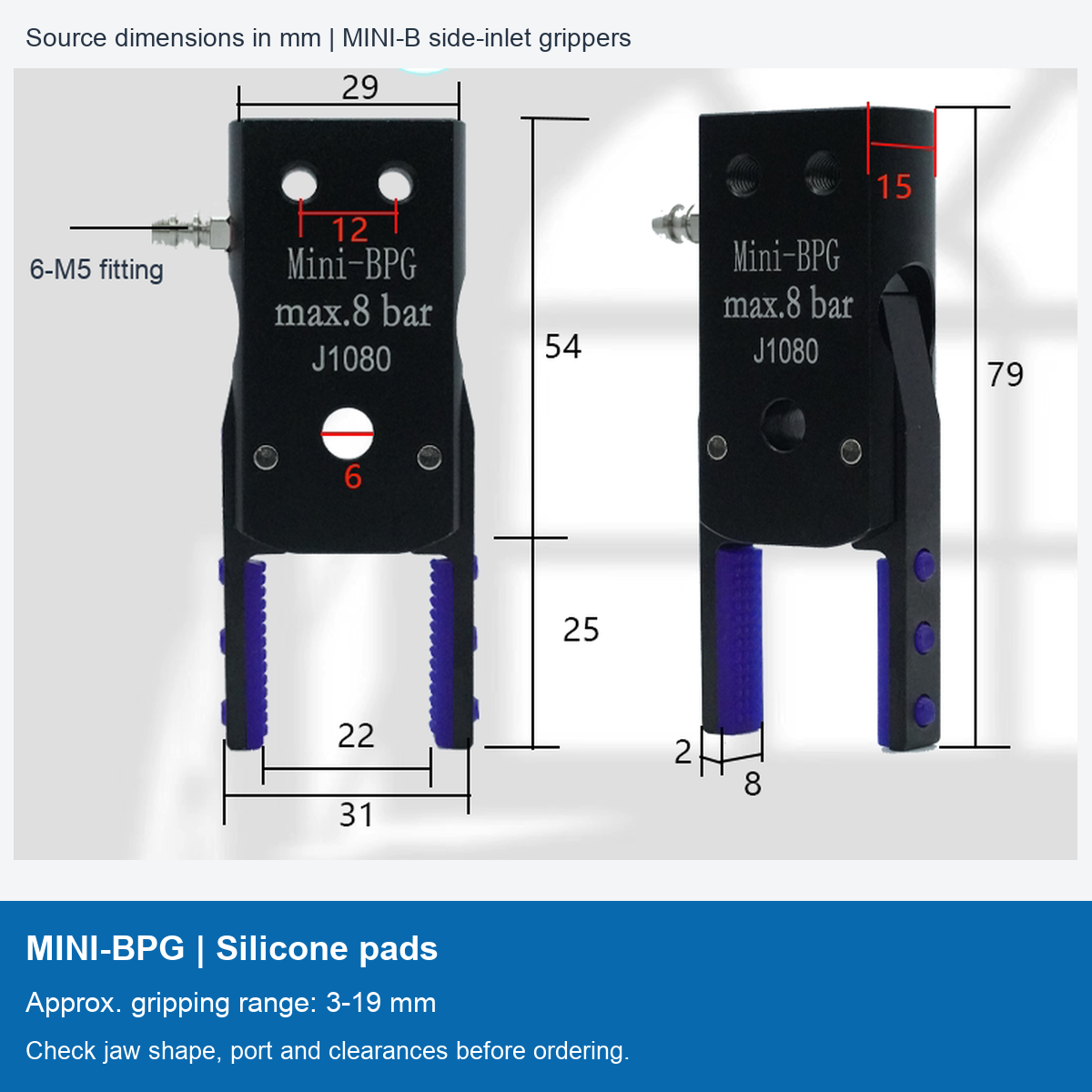

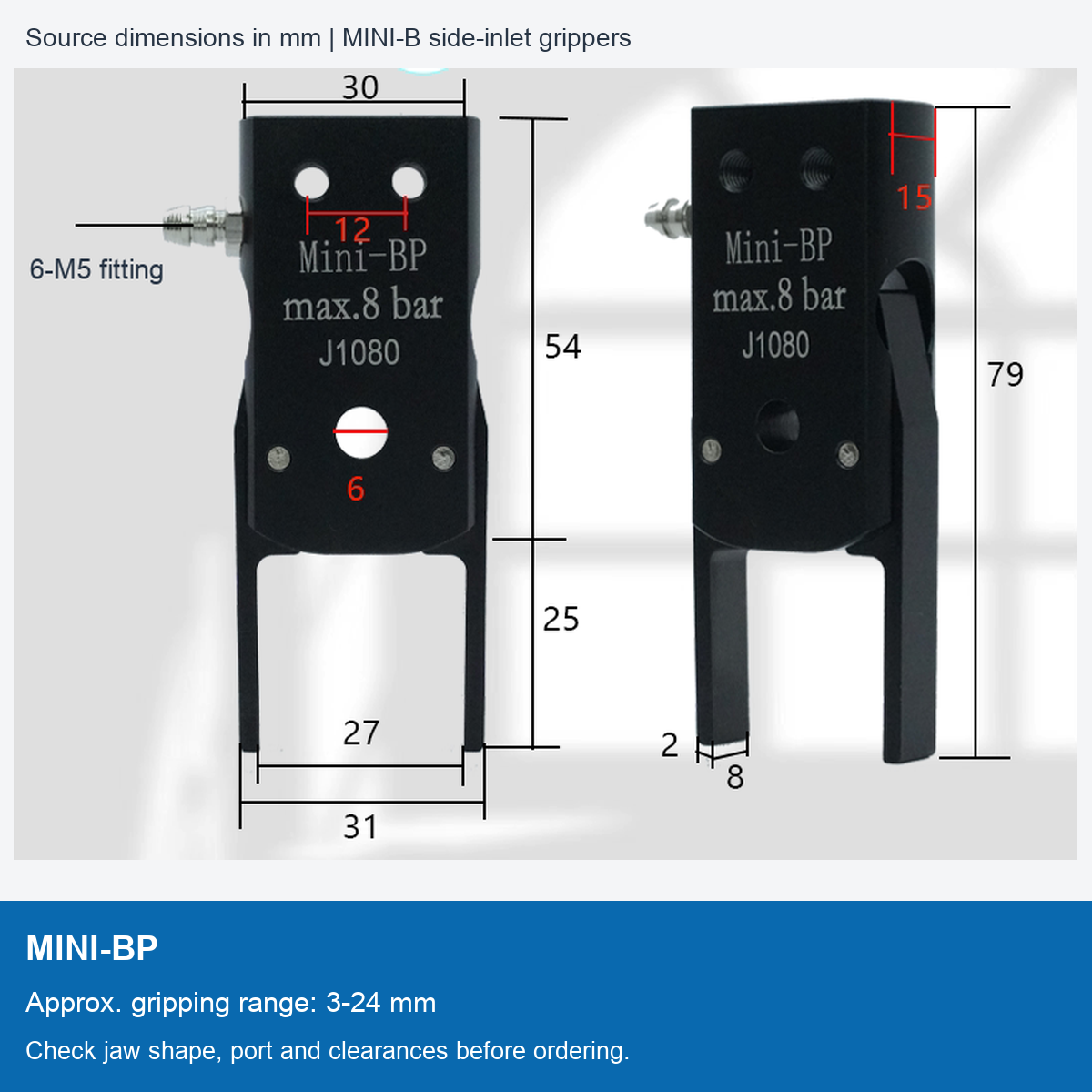

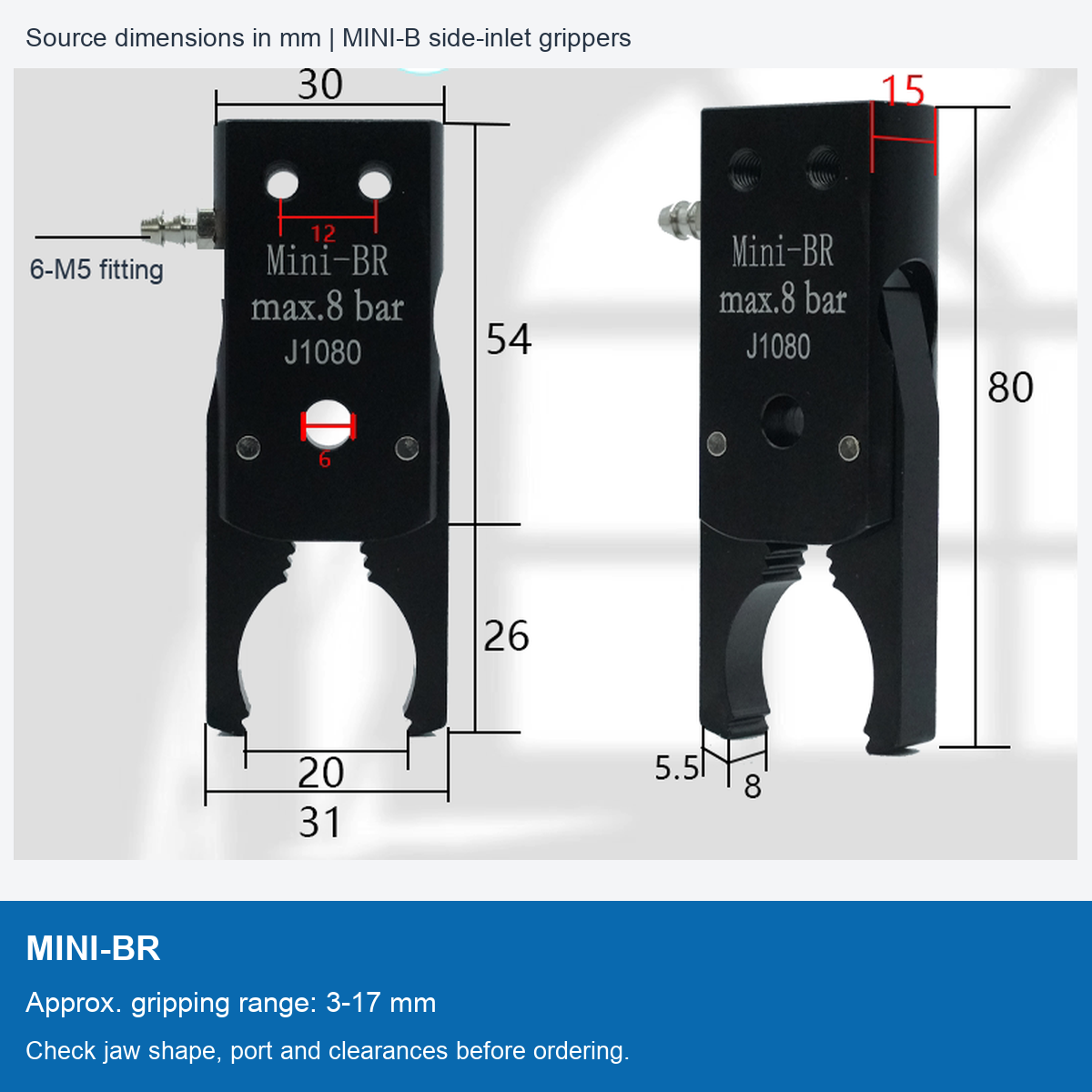

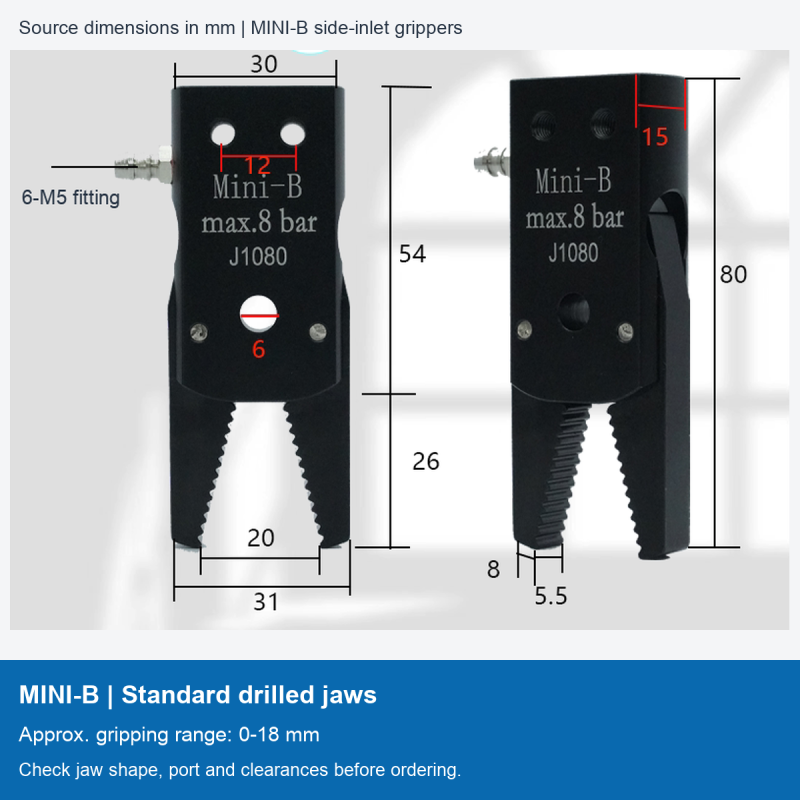

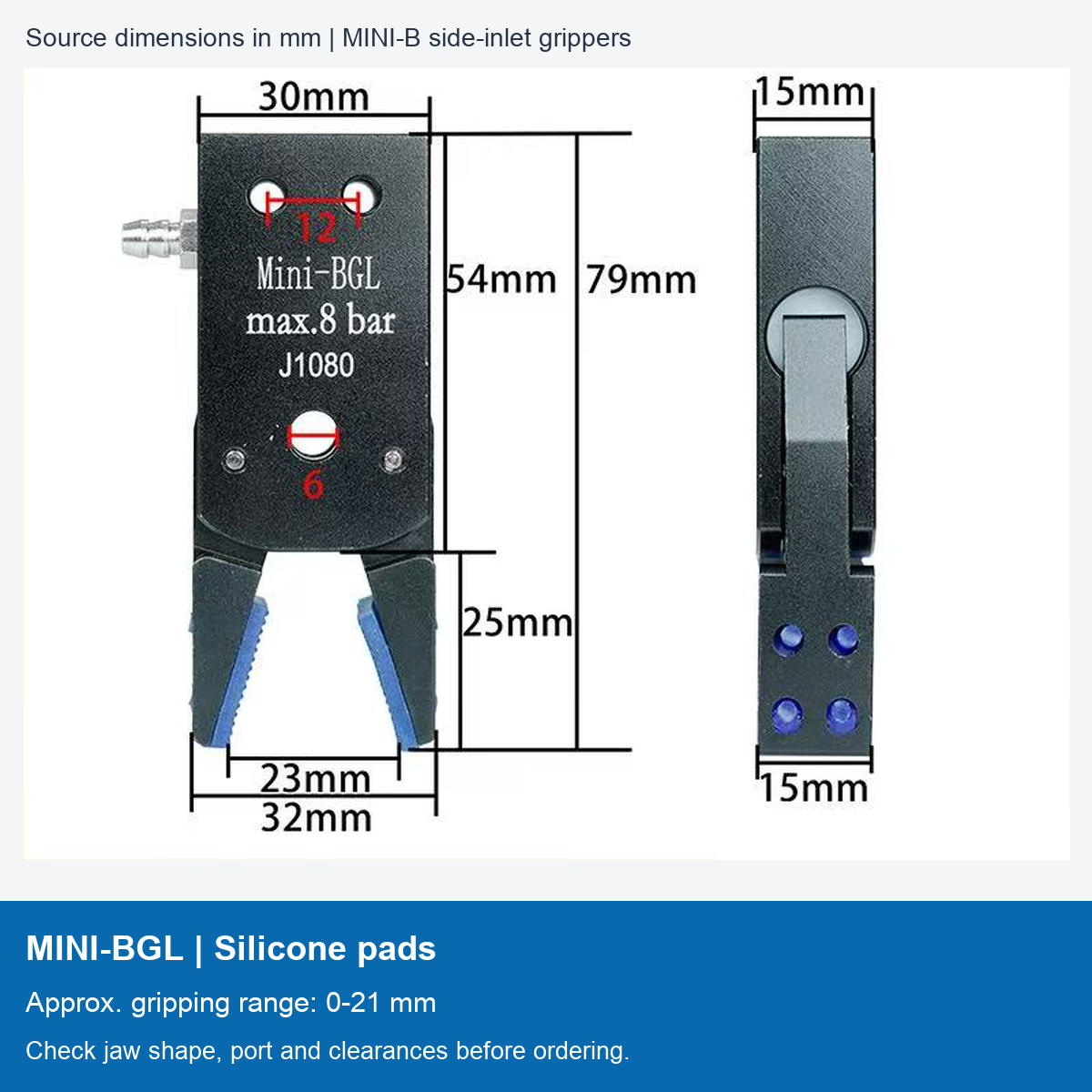

Dimensions are in millimeters. Gripping ranges are approximate source values, not independently verified tolerances. The dimensional card for each model is bound to its purchasing option and repeated below. Check mounting holes, jaw clearance, inlet direction and workpiece geometry before ordering.

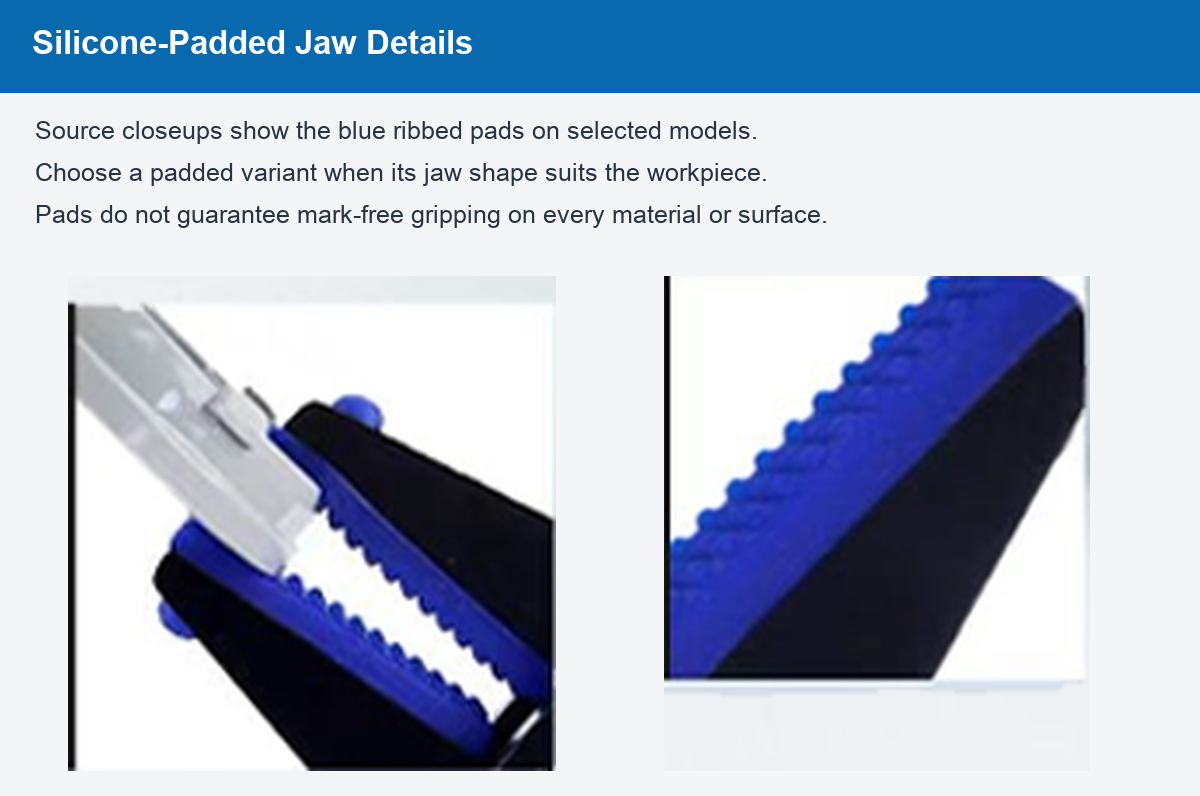

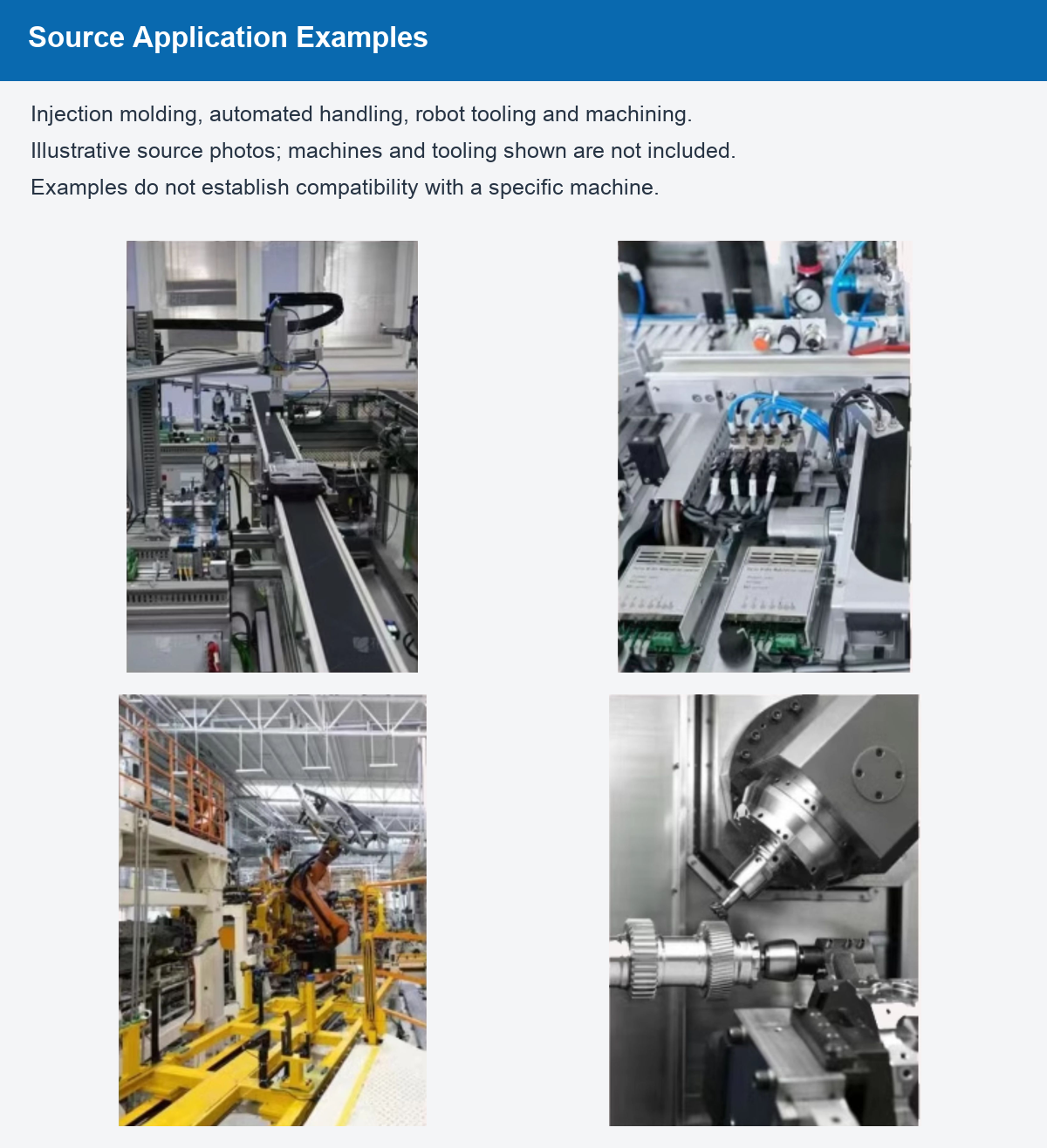

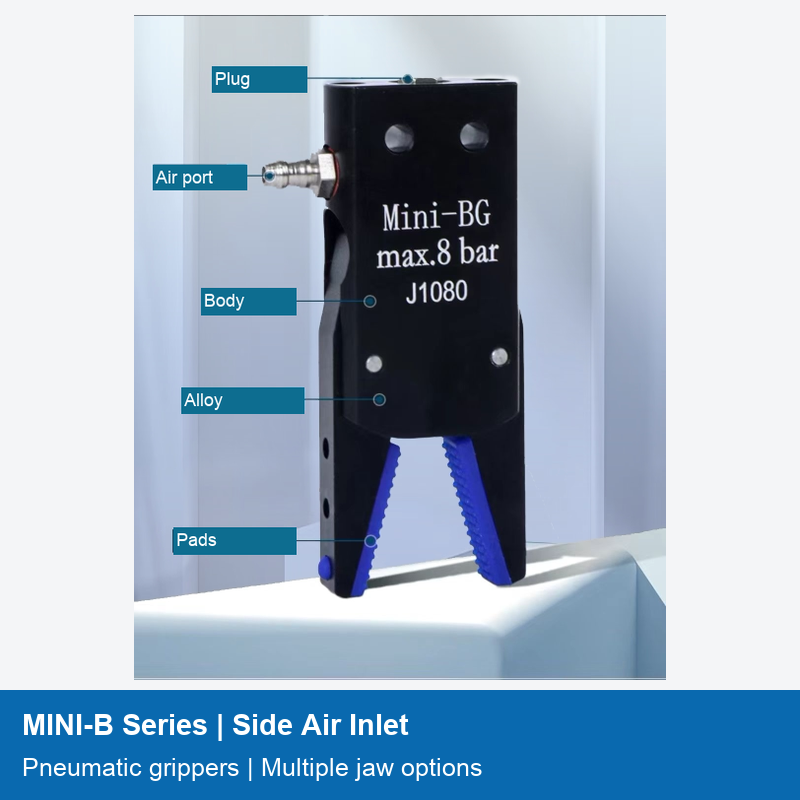

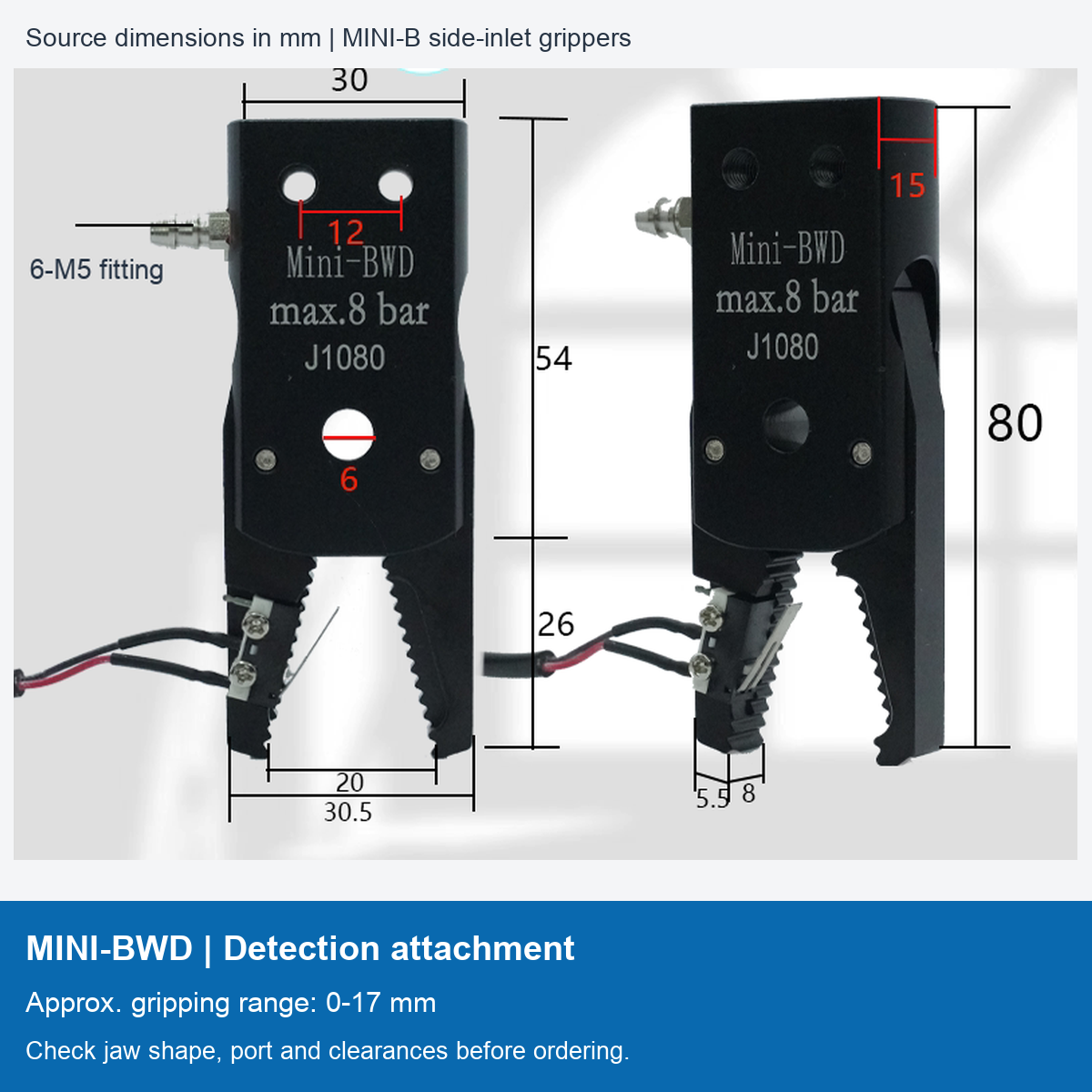

Supplied photos show an aluminum-alloy body and an 8 bar maximum marking. Silicone pads are present only on the identified padded configurations. MINI-BWD has a source-shown detection attachment; confirm your required interface. Air fitting/tube details and the actual operating conditions should be confirmed for the selected model. Equipment shown in application photographs is illustrative and is not included.
