GPR / GPR-CH Pneumatic Bottle-Preform Grippers, Sensor & Standard, 18-95 mm

GPR / GPR-CH Pneumatic Bottle-Preform Grippers, Sensor & Standard, 18-95 mm

Aluminum-alloy curved-jaw pneumatic grippers for injection-molding robots, bottle-preform handling and industrial end-of-arm tooling.

Model selection

• GPR8-20, GPR8-30 and GPR8-40 use a male-thread mounting style and include the illustrated detection switch.
• GPR-CH-30 through GPR-CH-90 include the illustrated detection switch and cable.

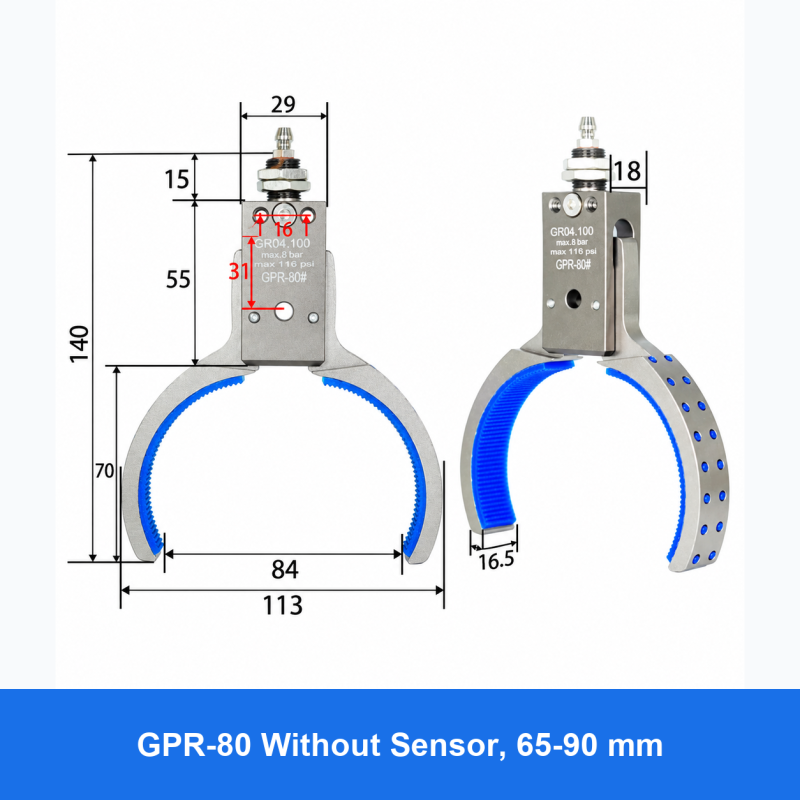

• GPR-30 through GPR-90 are standard versions without a detection switch or cable.
• Available gripping ranges span 18-95 mm; choose the exact model shown in the selector.

Ordering and installation

• Verify the gripping range, dimensions, mounting thread and pneumatic connection shown in the selected model image.
• Confirm workpiece geometry, mounting clearance, operating pressure and the required safety factor before installation.
• Include any application-specific requirements in the order requirements field.
