ZPX-HB Heavy-Duty Side-Port Vacuum Cup Assemblies – 32–125 mm, Silicone/NBR

ZPX-HB Heavy-Duty Side-Port Vacuum Cup Assemblies

Integrated vacuum cup and holder assemblies for industrial automation, robotic end-of-arm tooling and material-handling equipment. The side vacuum port supports compact hose routing where top access is limited.

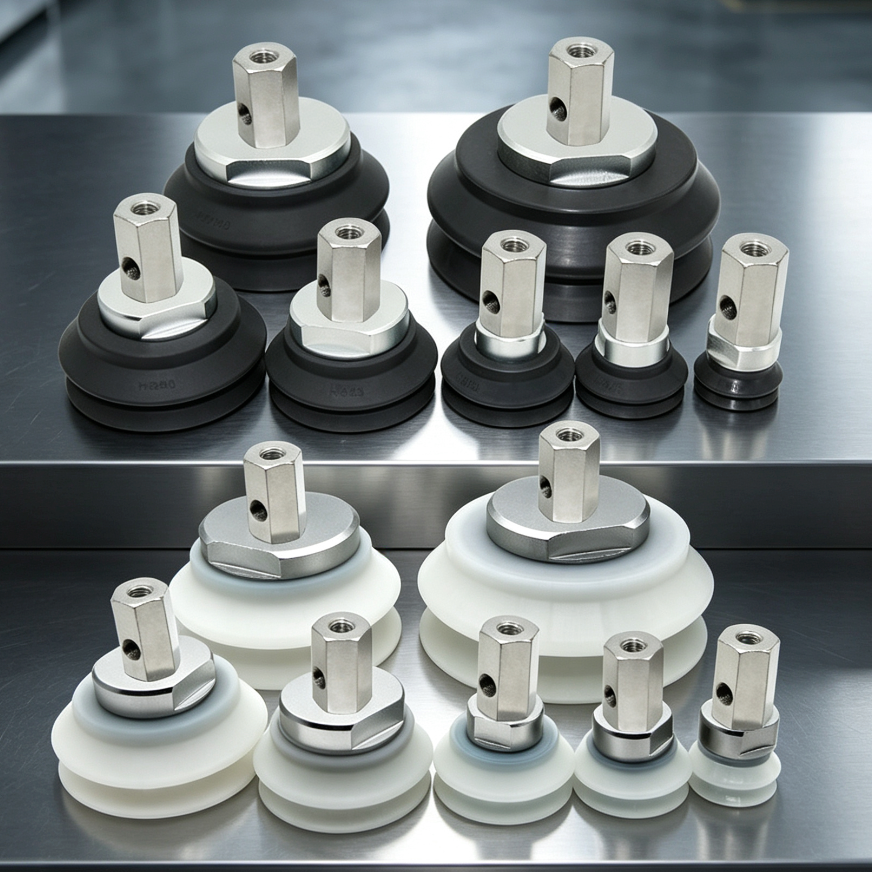

• 28 selectable configurations across seven cup diameters
• Cup diameters: 32, 40, 50, 63, 80, 100 and 125 mm
• White silicone and black NBR cup materials
• B8, B10 and B12 connector options with M8 x 1.25, M10 x 1.5 and M12 x 1.75 mounting threads
• G1/8 side vacuum port

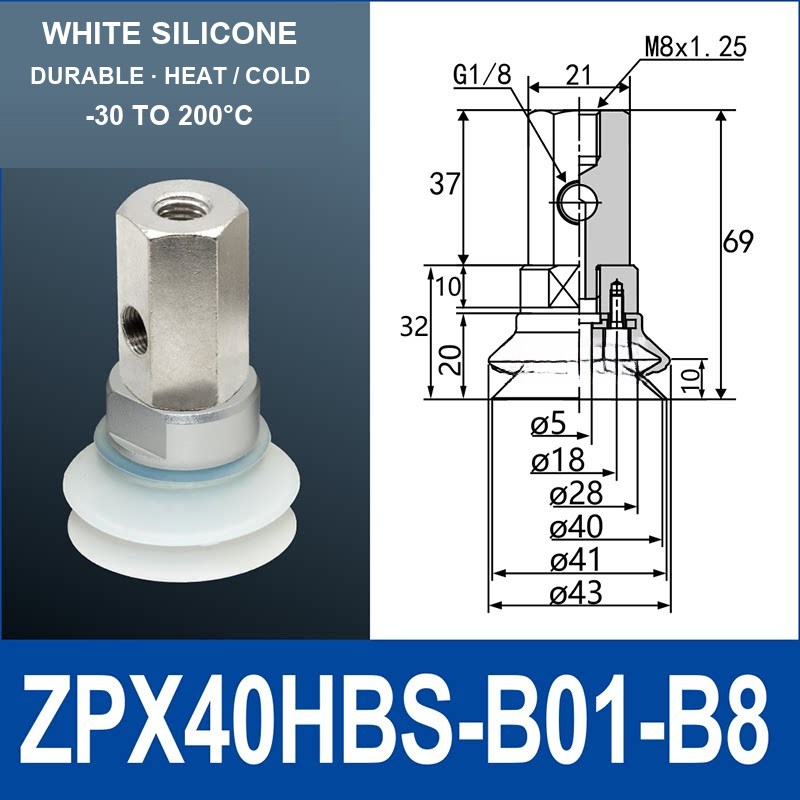

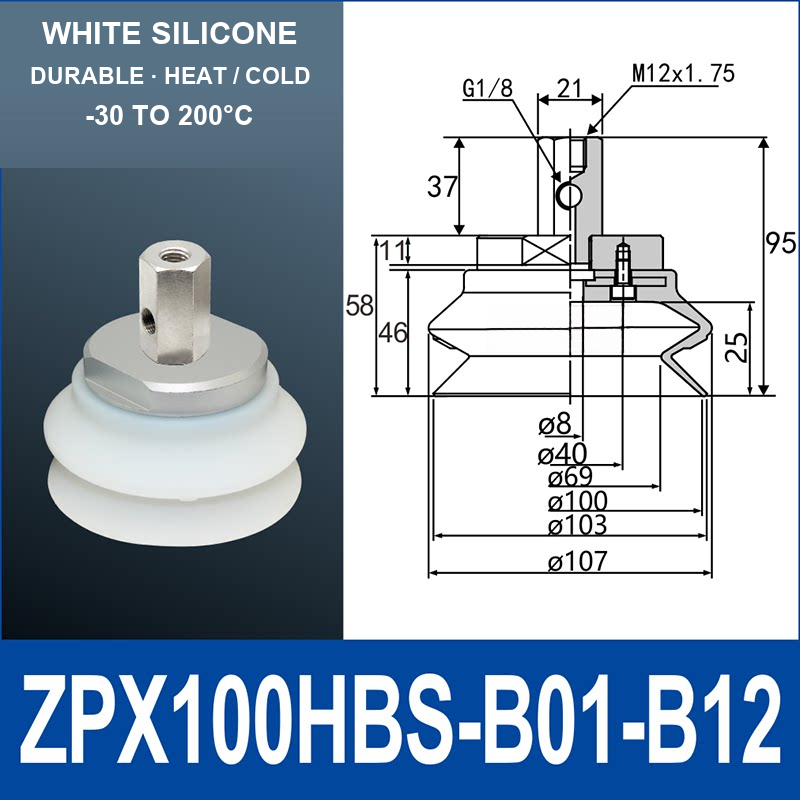

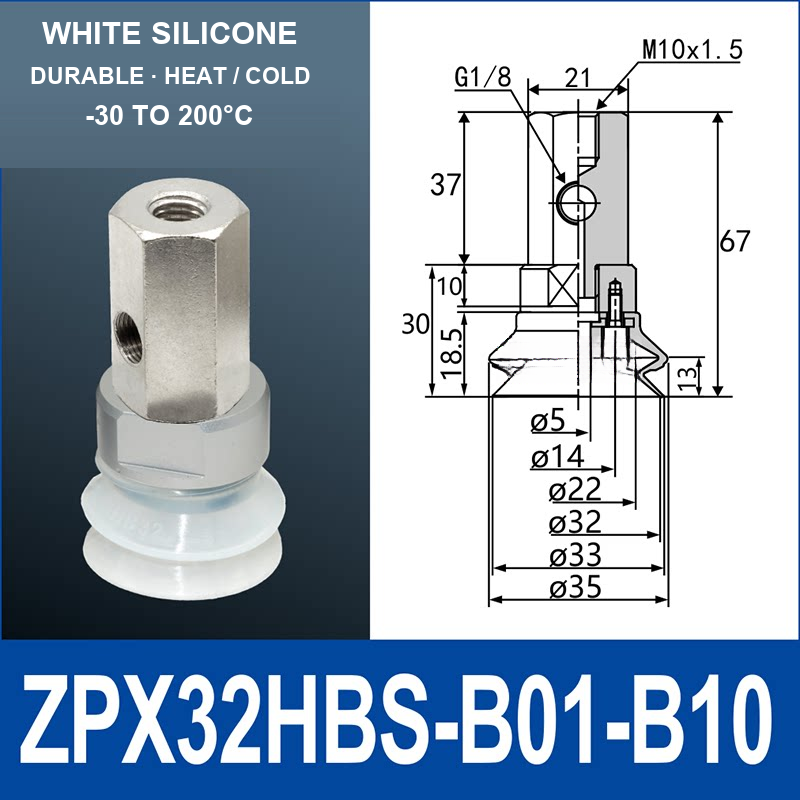

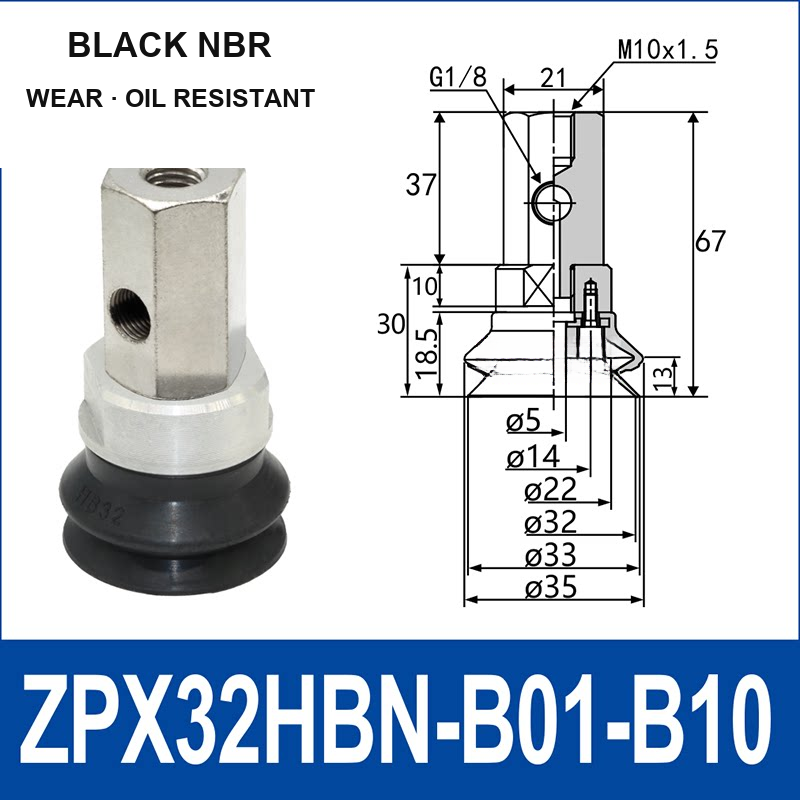

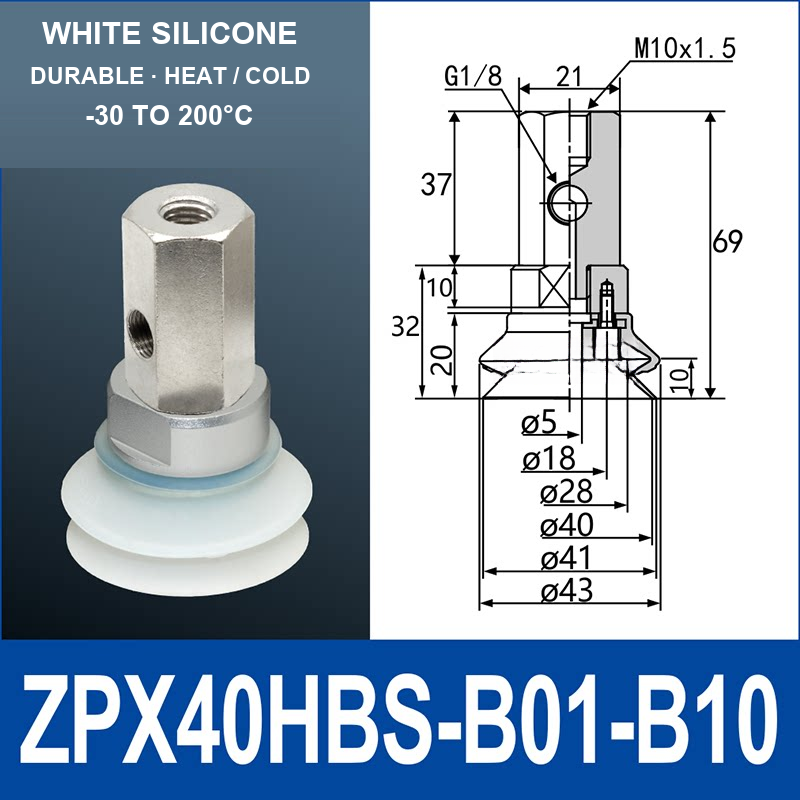

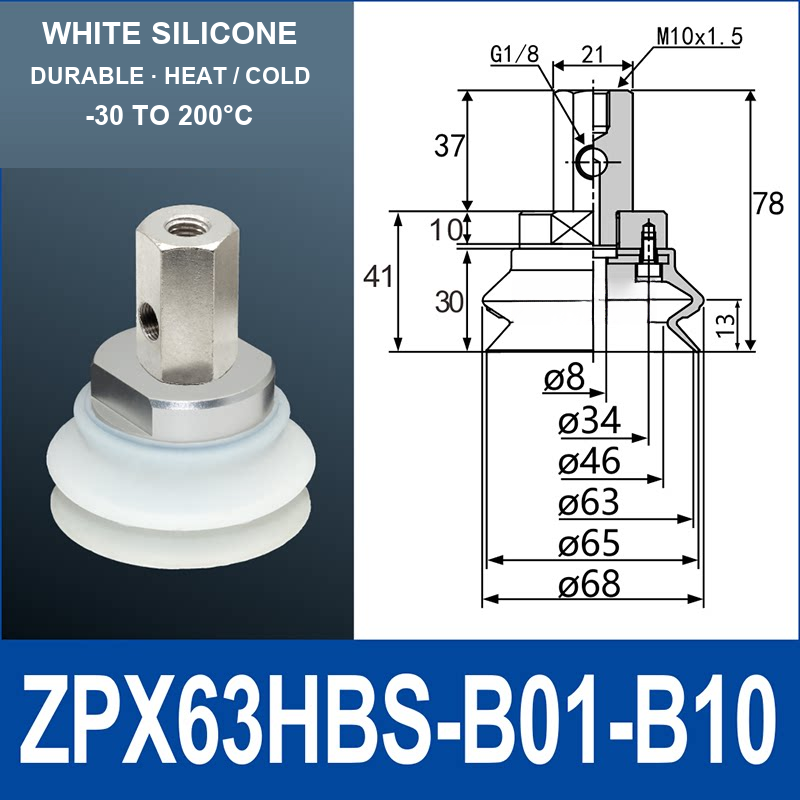

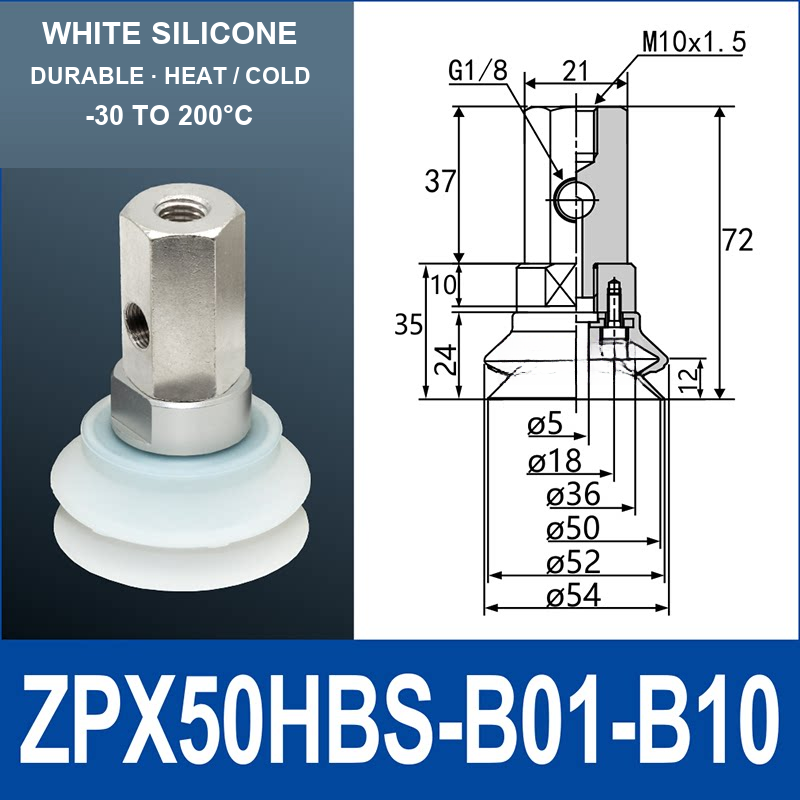

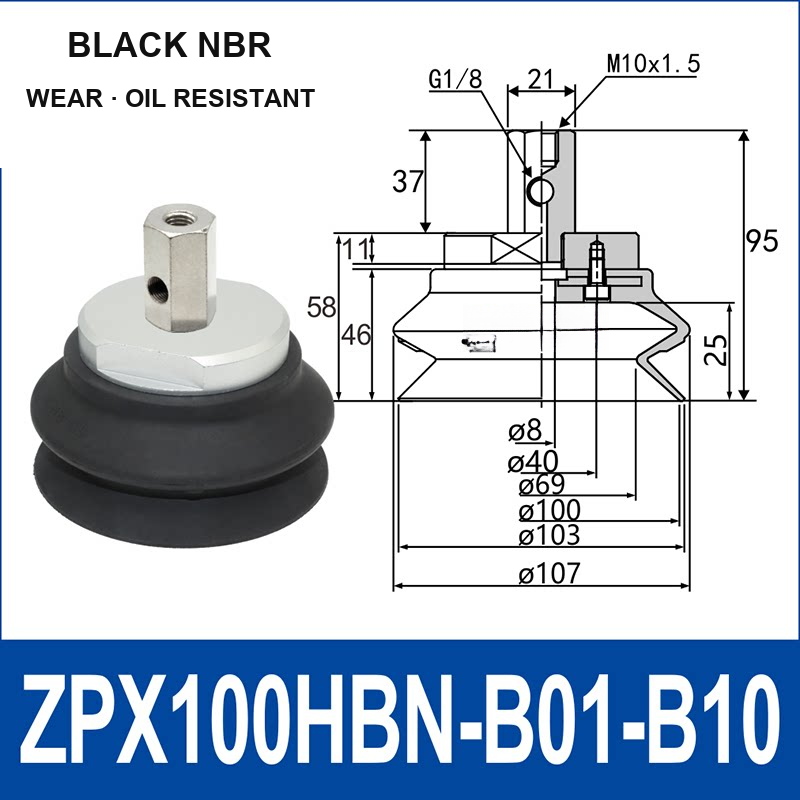

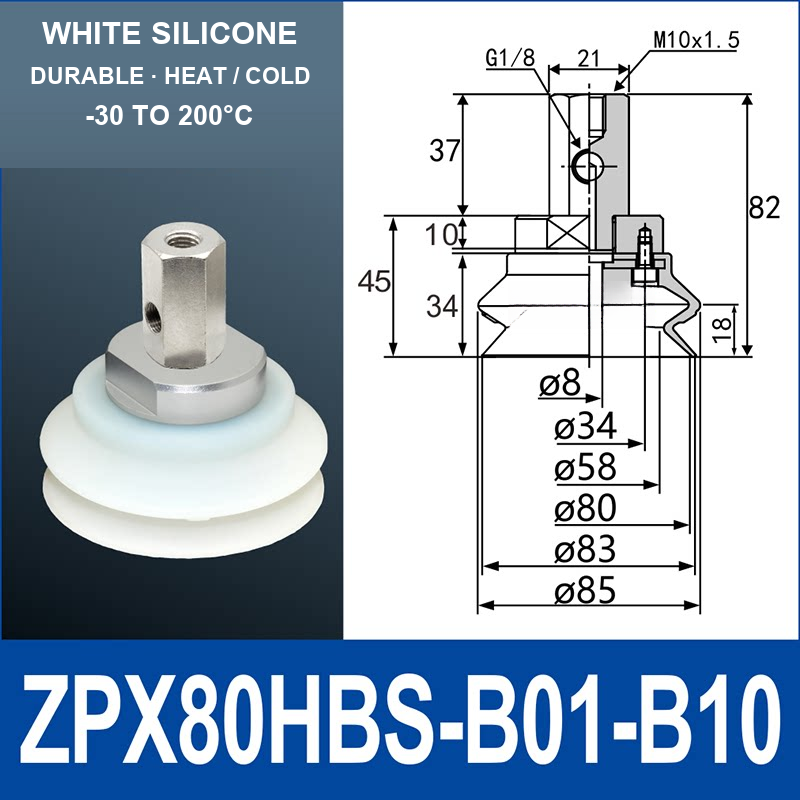

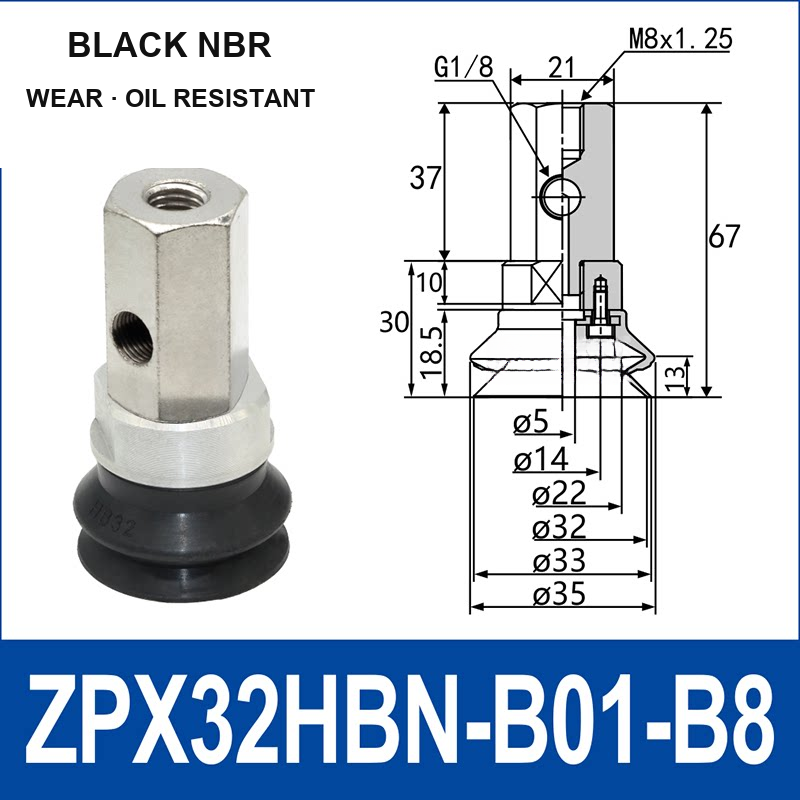

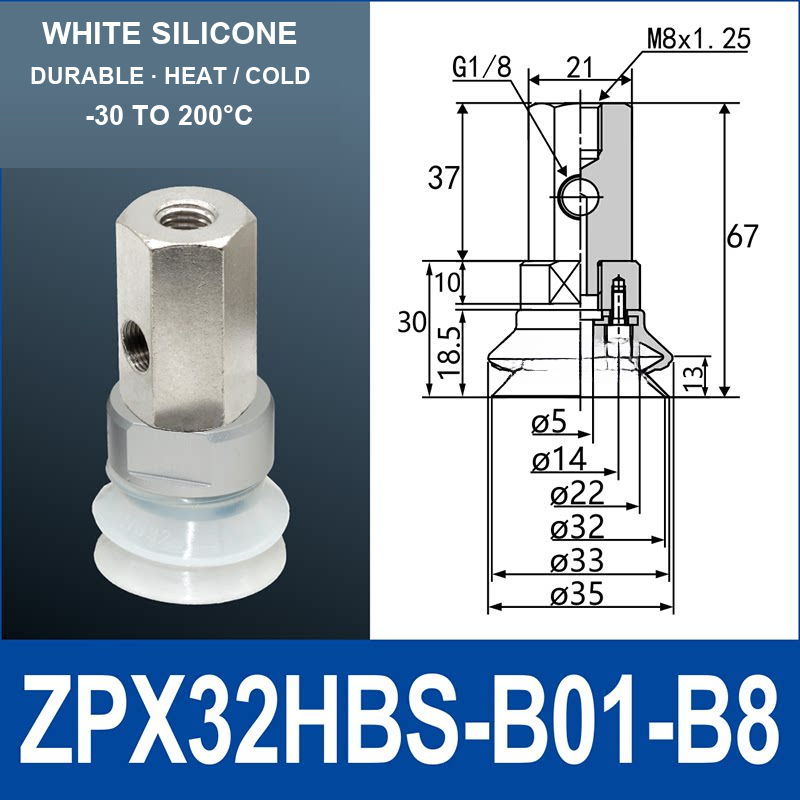

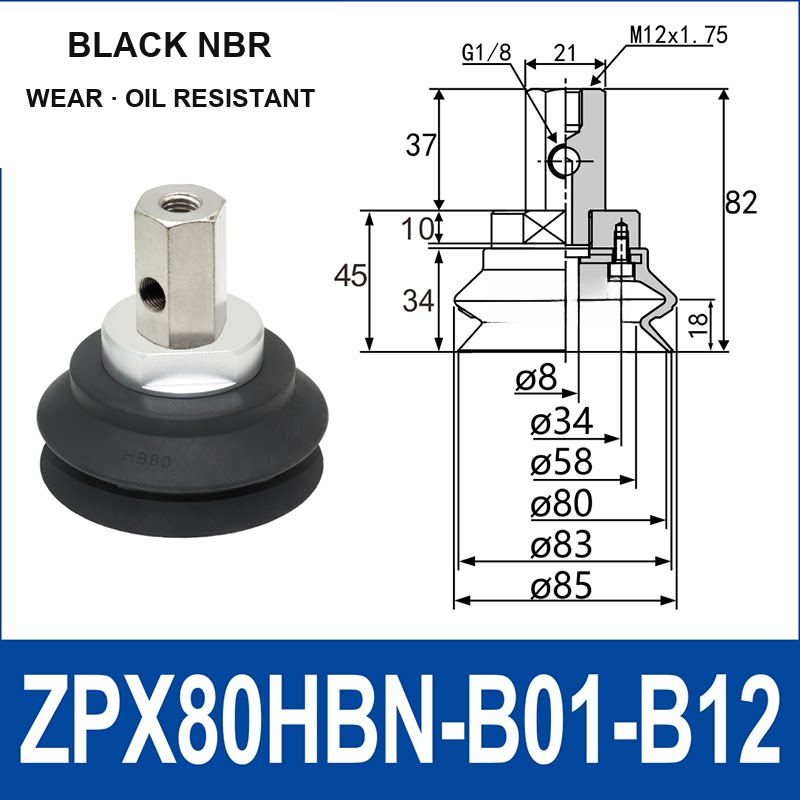

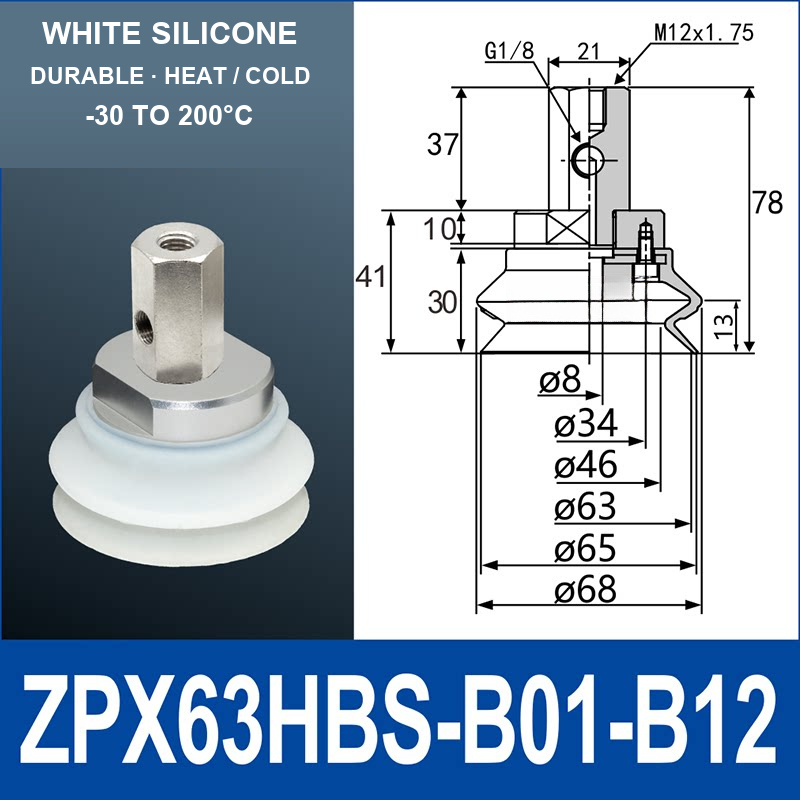

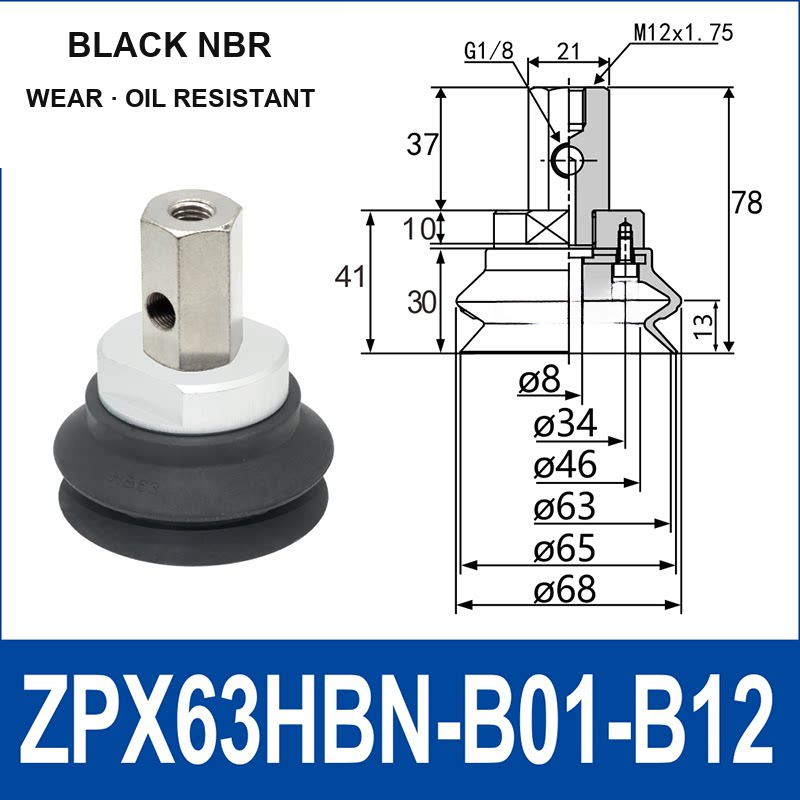

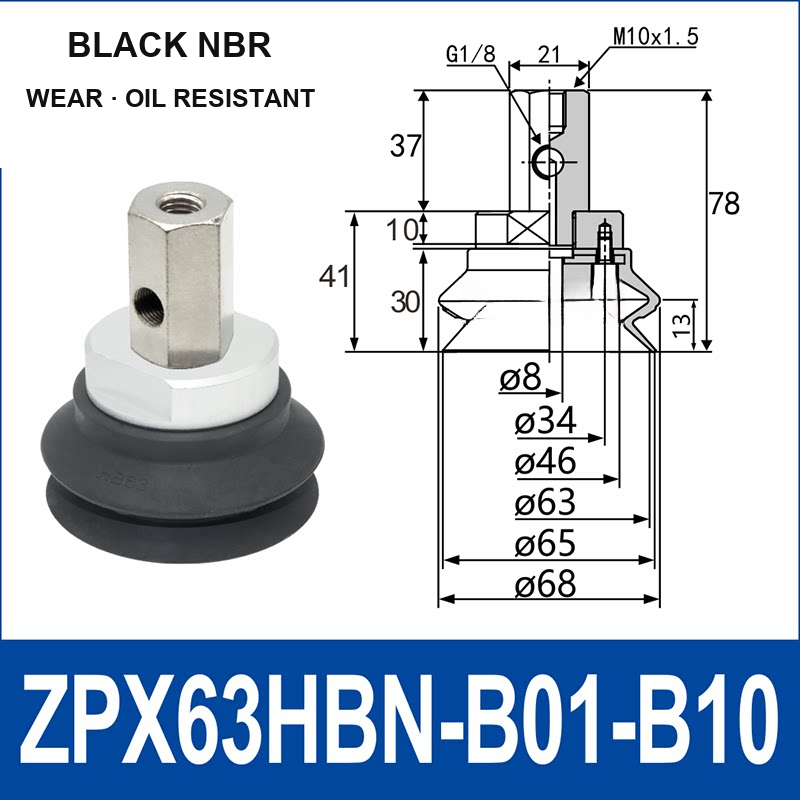

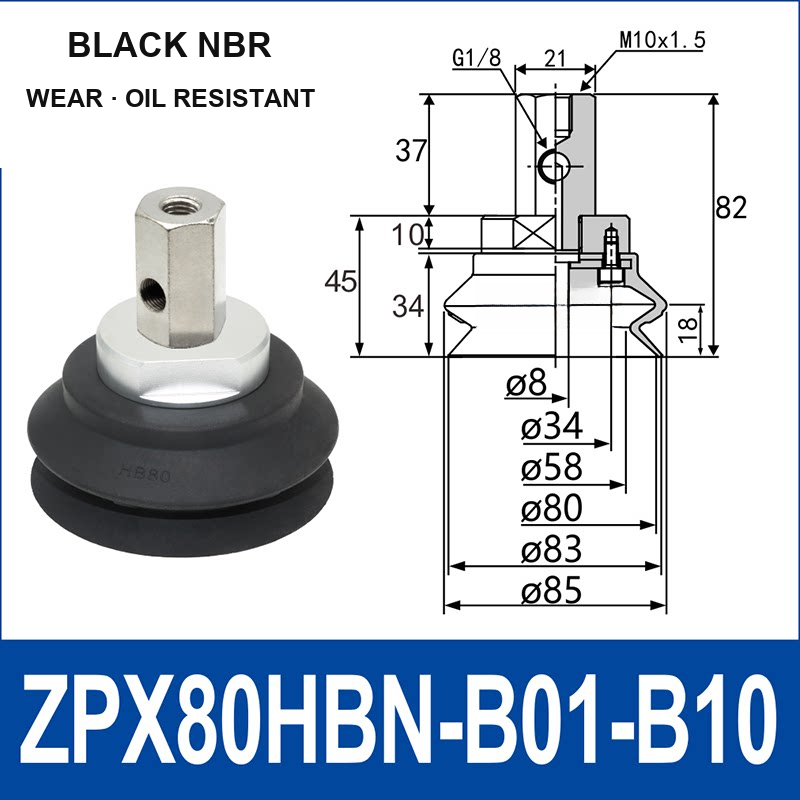

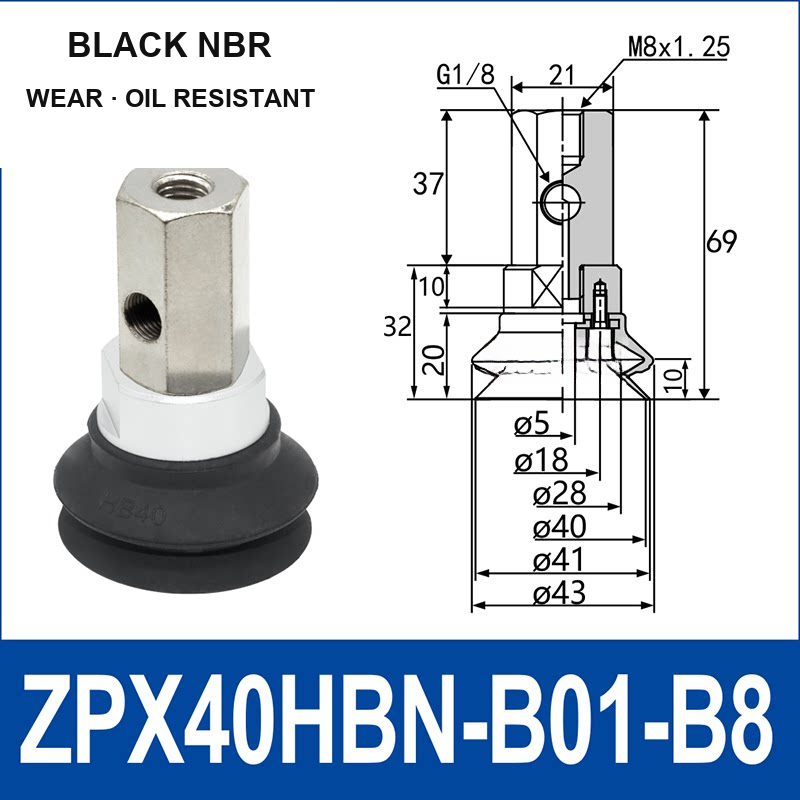

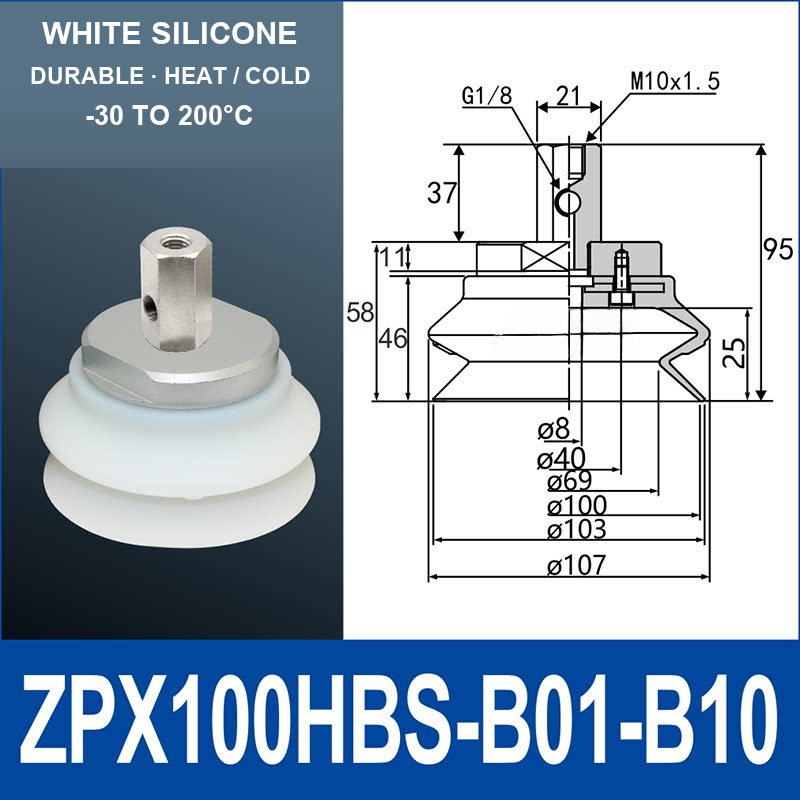

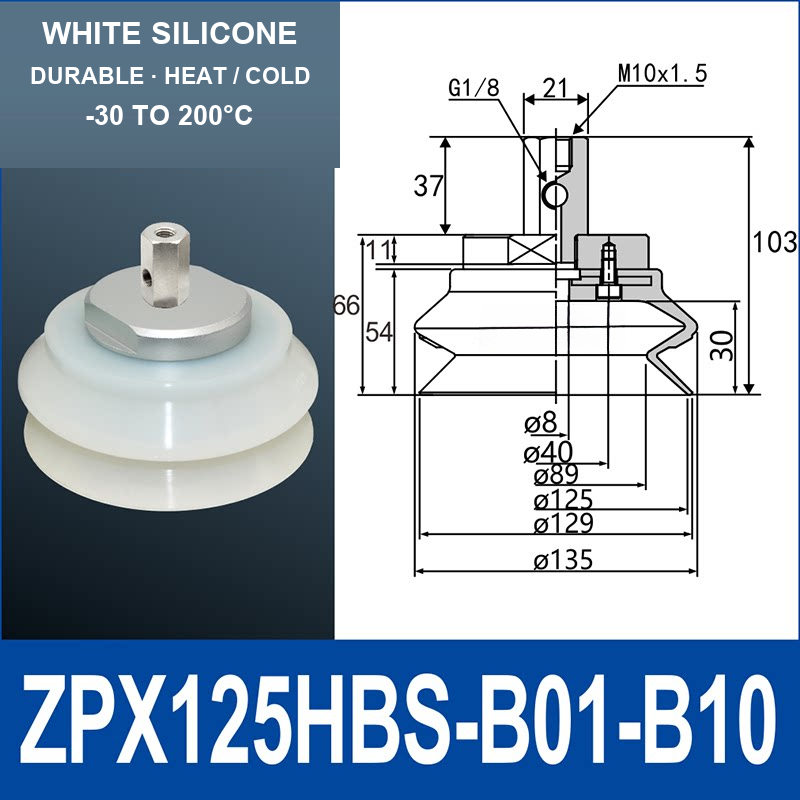

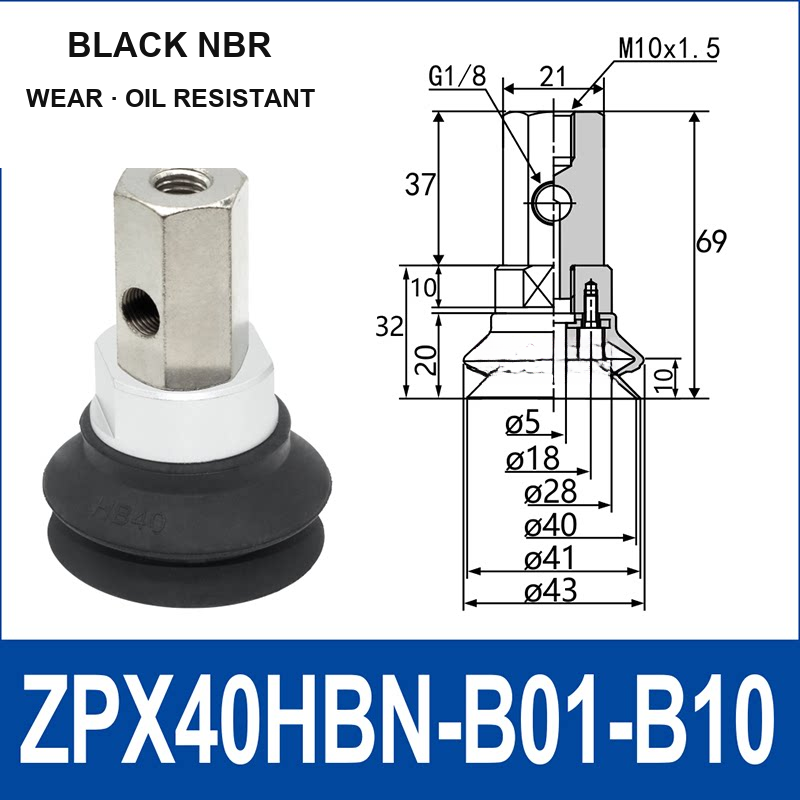

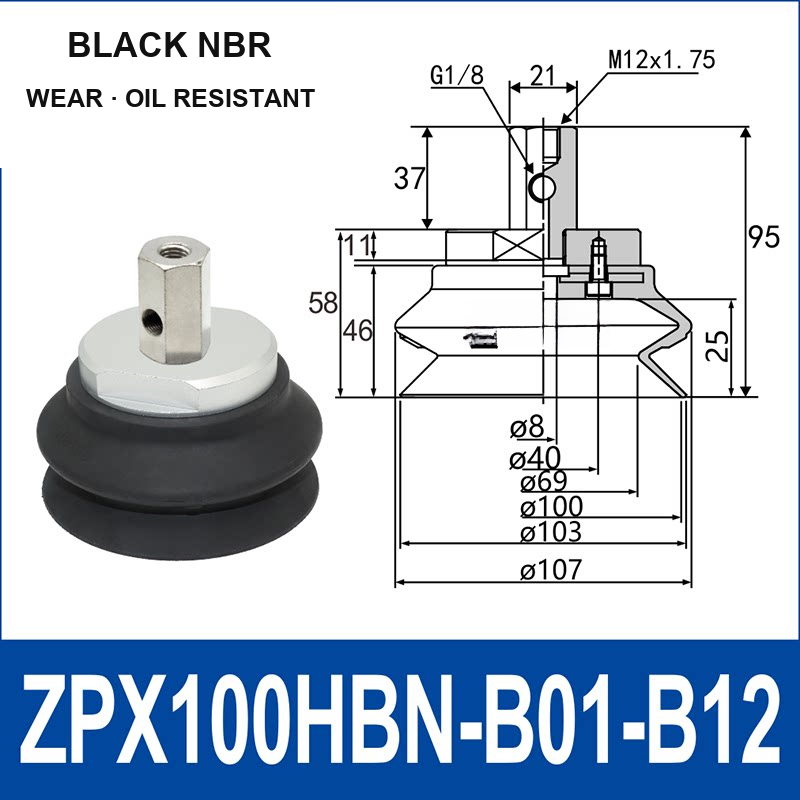

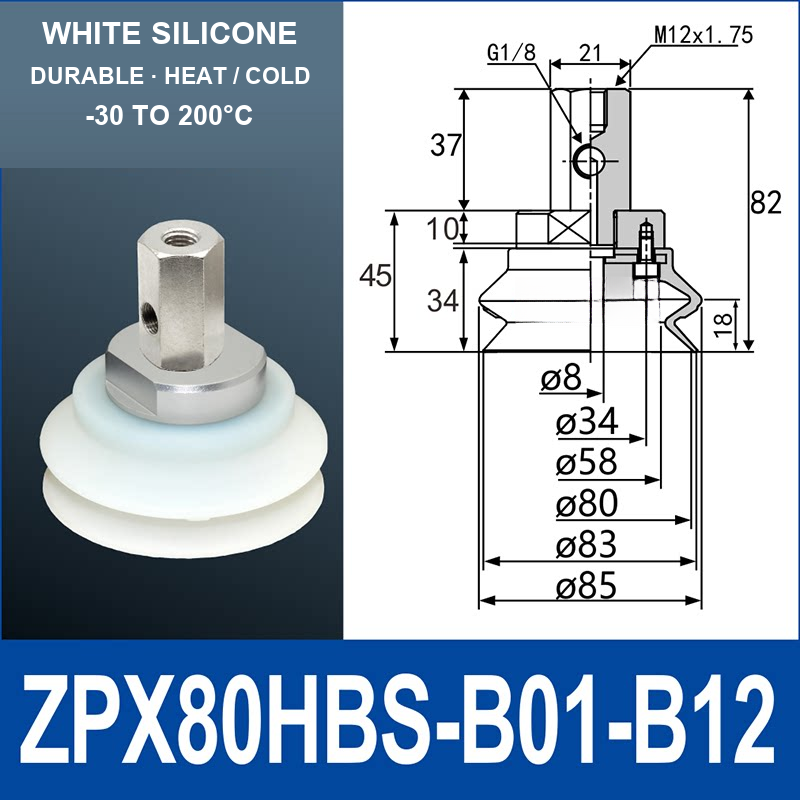

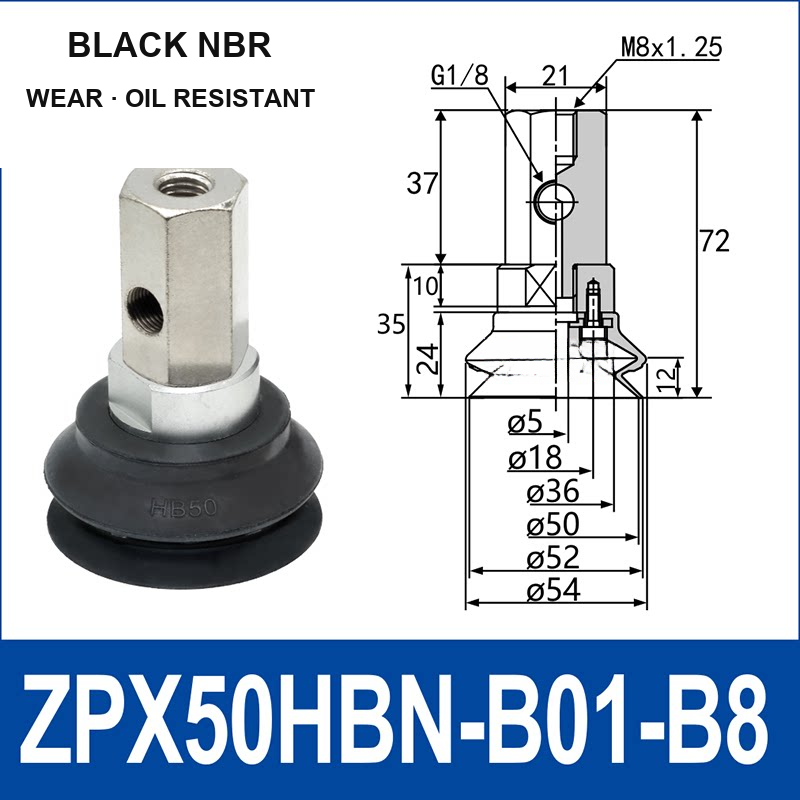

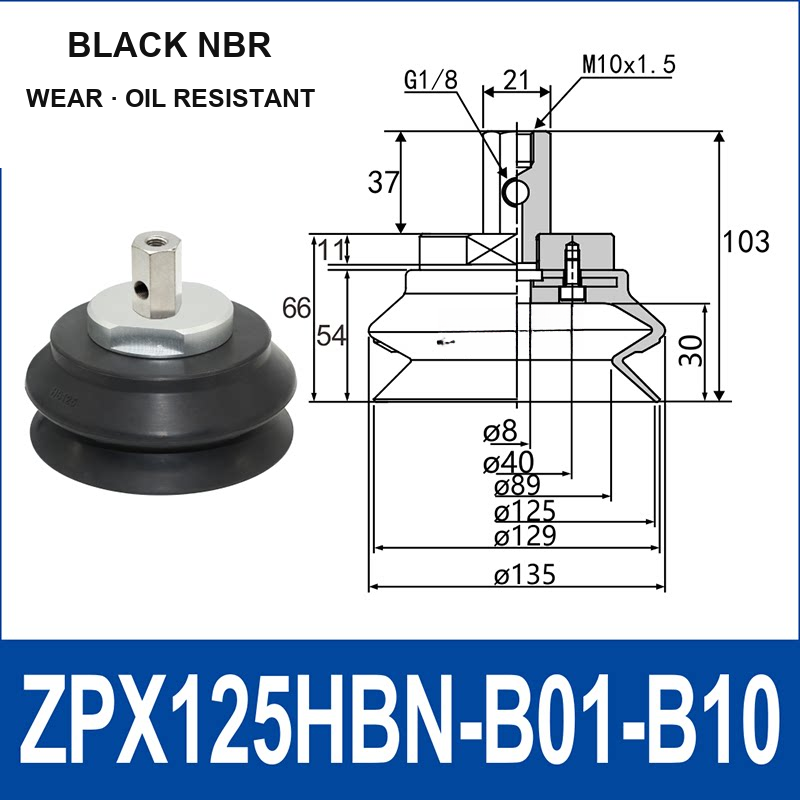

• Model drawings show the overall height, mounting thread and cup dimensions
• White silicone specification lists a -30 to 200 degrees C temperature range
• Black NBR specification lists wear and oil resistance

Applications / Suitable For

• Robotic pick-and-place and automated transfer
• Sheet, panel and component handling with compatible surface conditions
• Packaging, loading, unloading and general industrial automation

Confirm the selected model code, cup diameter, material, mounting thread, workpiece surface, vacuum level, payload, acceleration and operating environment before use. No food-contact, medical, lifting-safety or regulatory certification is claimed.
