ZPX-HB Heavy-Duty Side Air-Inlet Vacuum Cup Assemblies (32–125 mm)
ZPX-HB Heavy-Duty Side Air-Inlet Vacuum Cup Assemblies

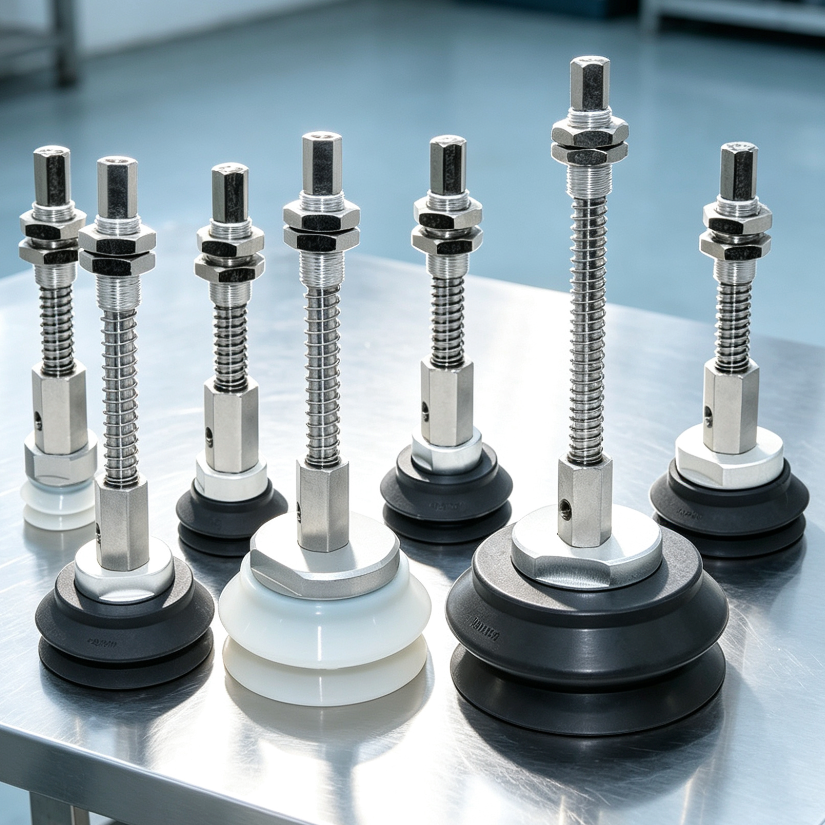

Heavy-duty vacuum cup assemblies with spring-buffer mounts and side air inlets for compatible industrial vacuum systems, robotic end-effectors and automated handling equipment. Select the full product code by cup diameter, rubber material and J-series buffer configuration.
Quick selection
- Choose cup diameter: select 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm or 125 mm to suit the workpiece and installation envelope.
- Choose cup material: S is white silicone rubber; N is black nitrile rubber. Confirm material compatibility with the workpiece and operating environment.
- Choose J25, J50 or J75: select the required buffer configuration only after comparing spring travel and installation clearance in the selected drawing.
- Confirm the full drawing: check mounting dimensions, thread interfaces, cup size, side inlet arrangement and surrounding clearance before ordering.
Product-code guide

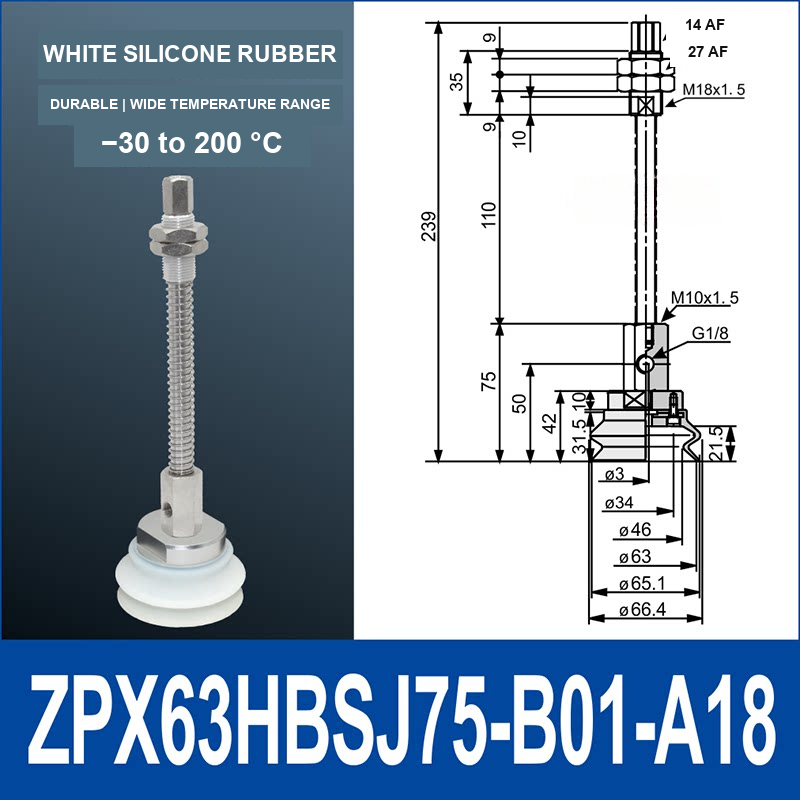

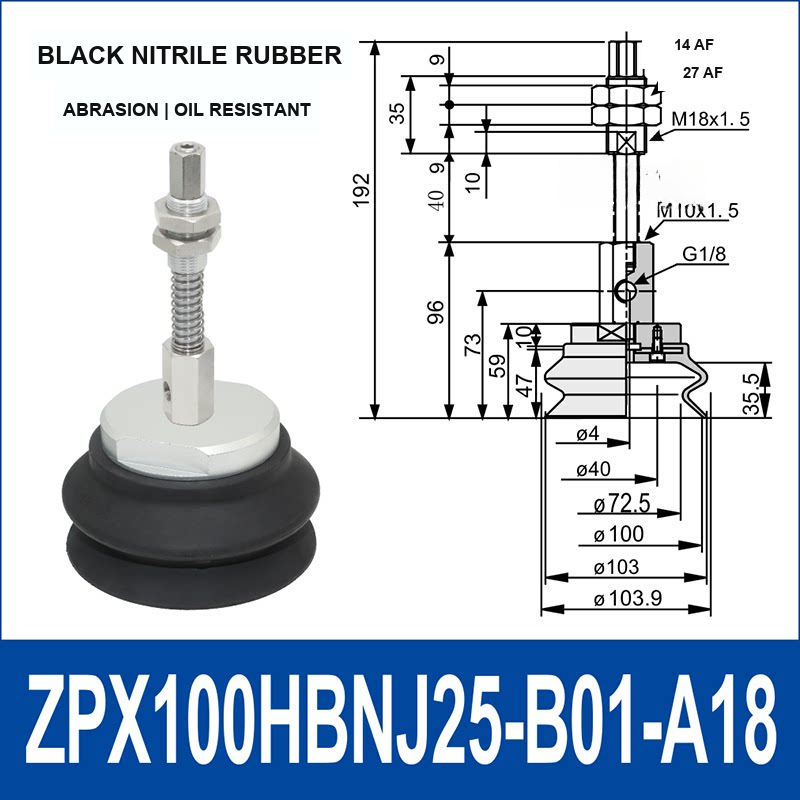

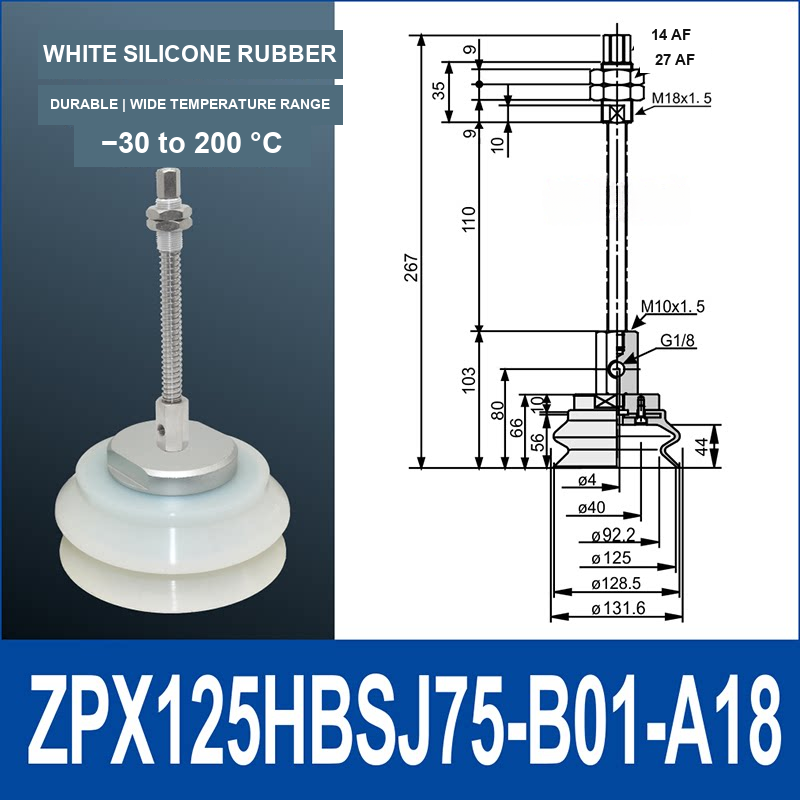

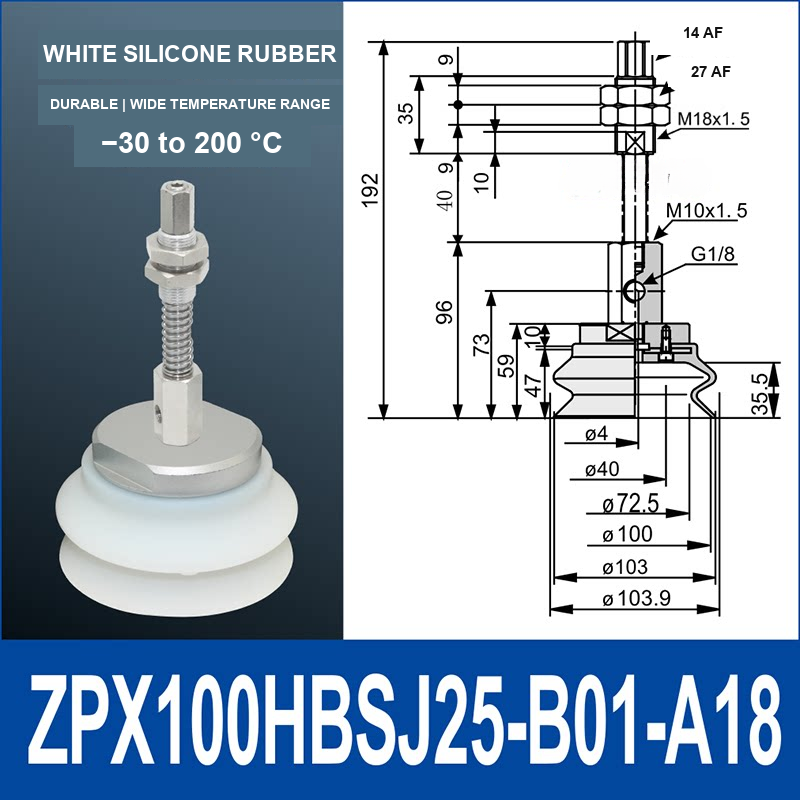

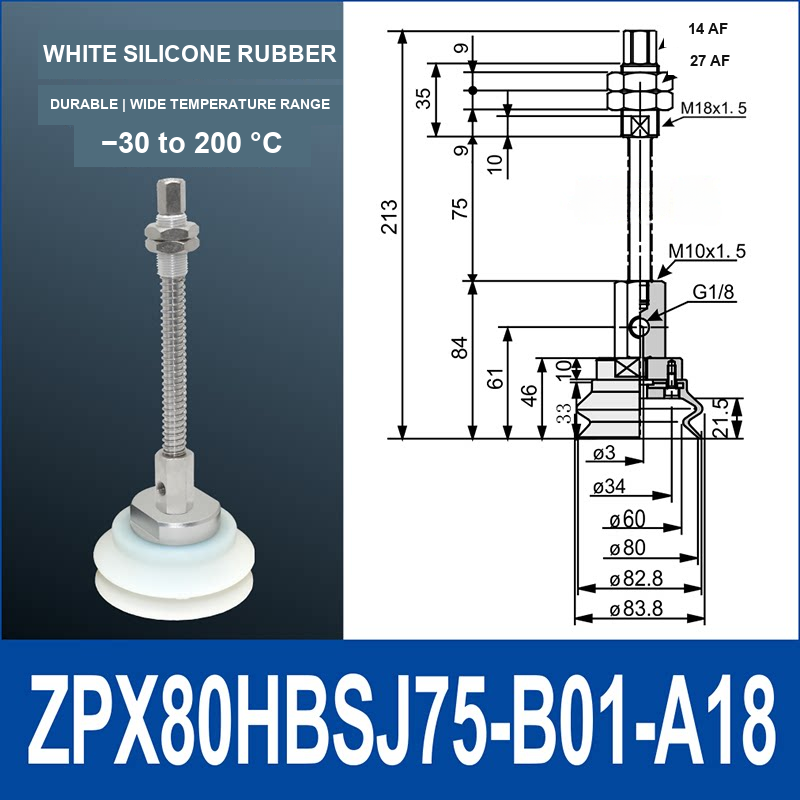

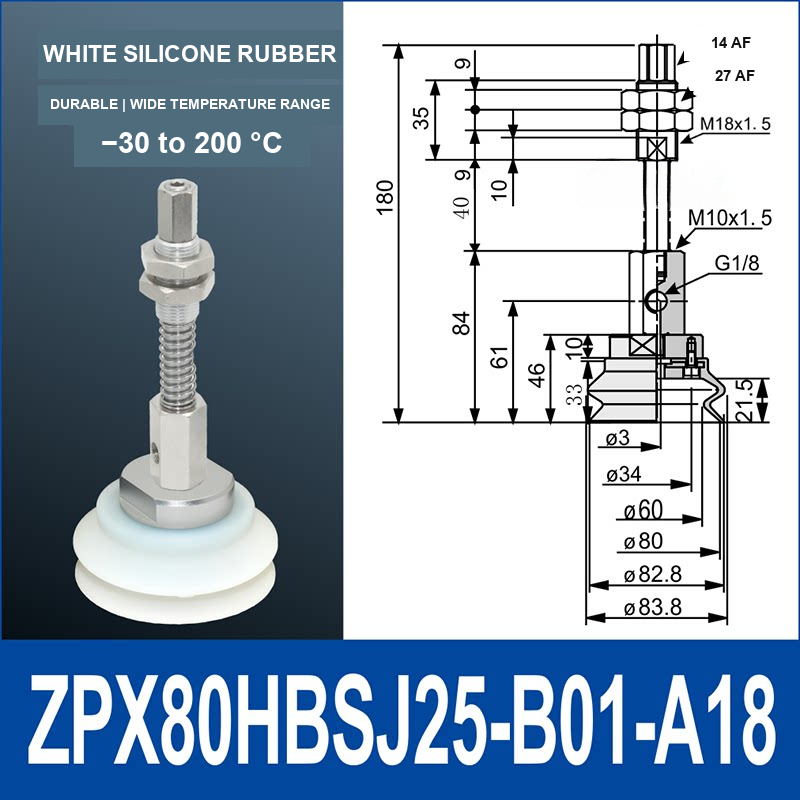

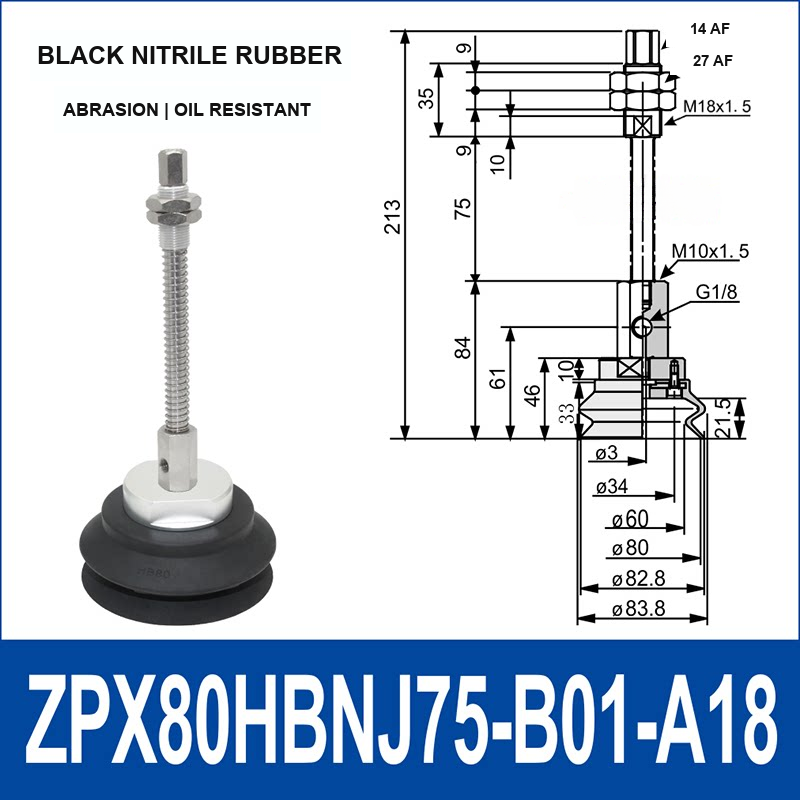

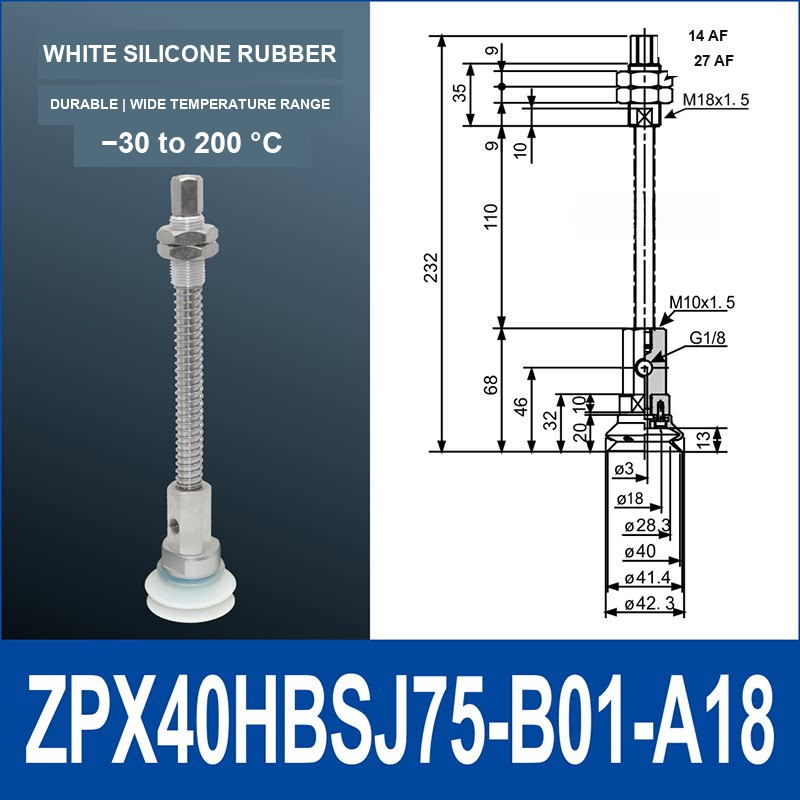

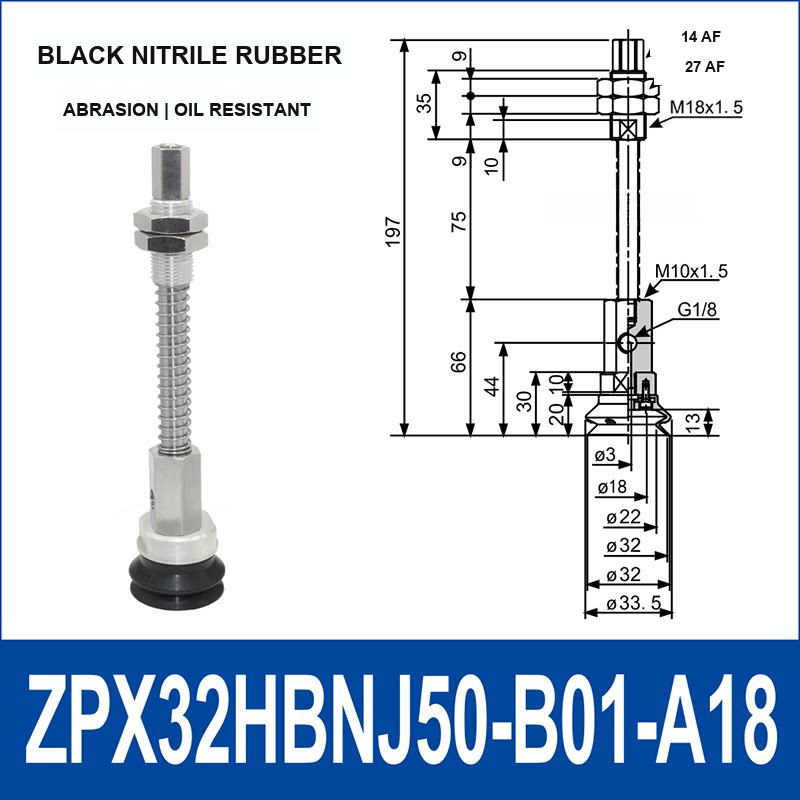

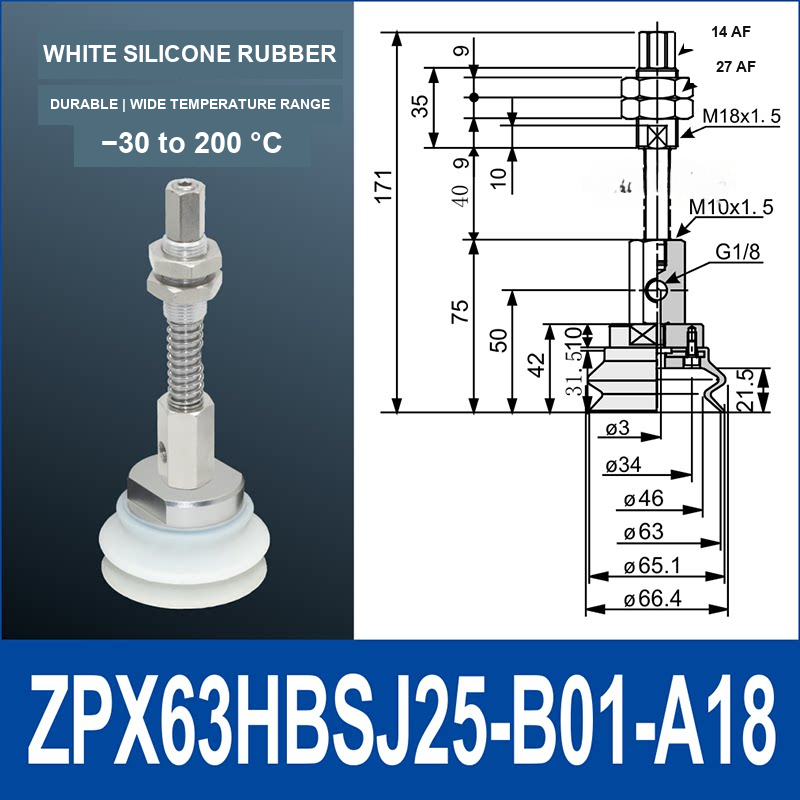

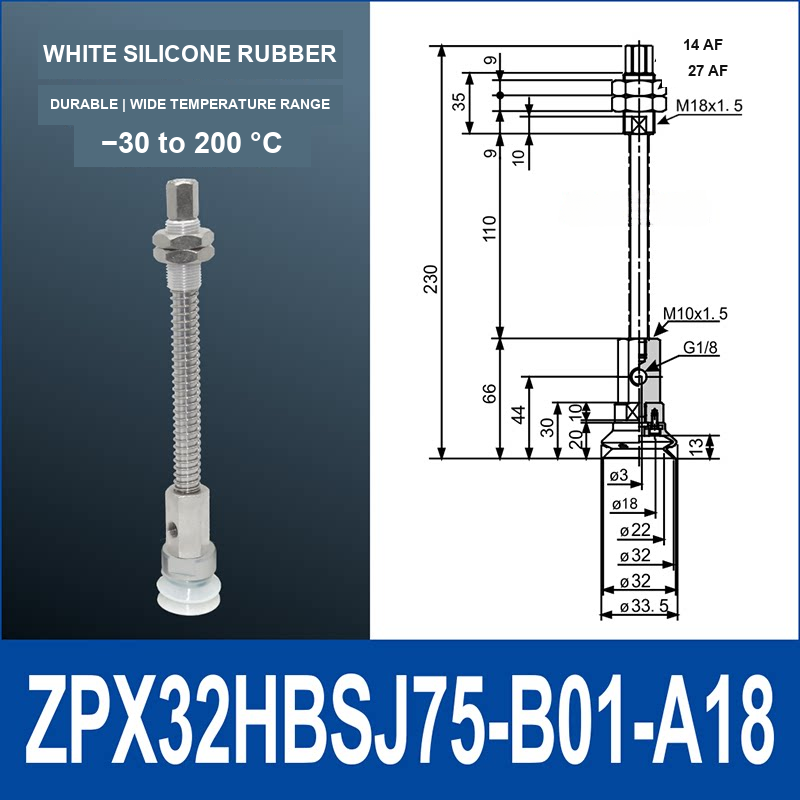

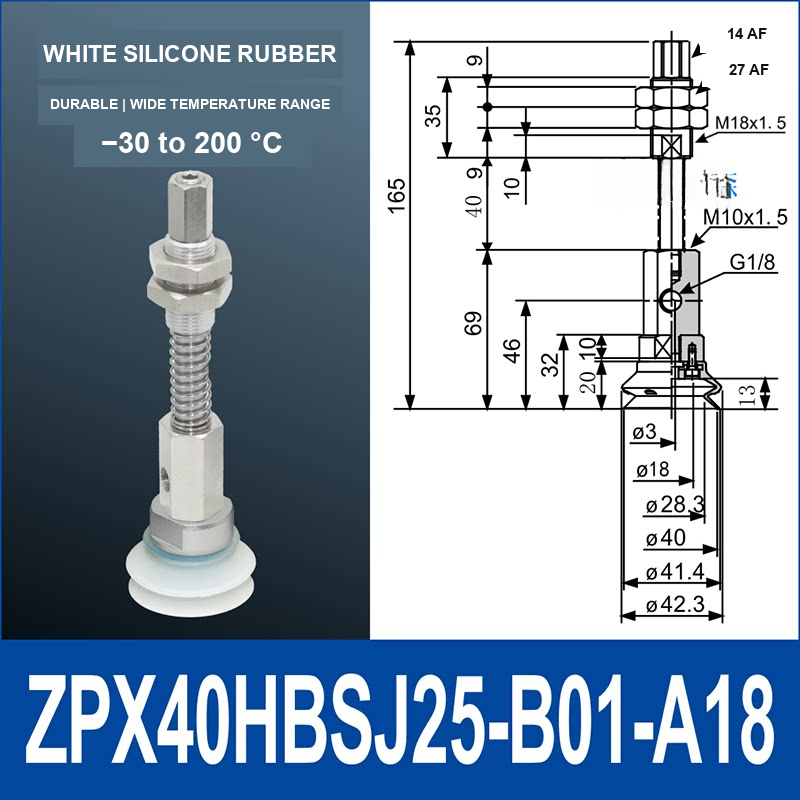

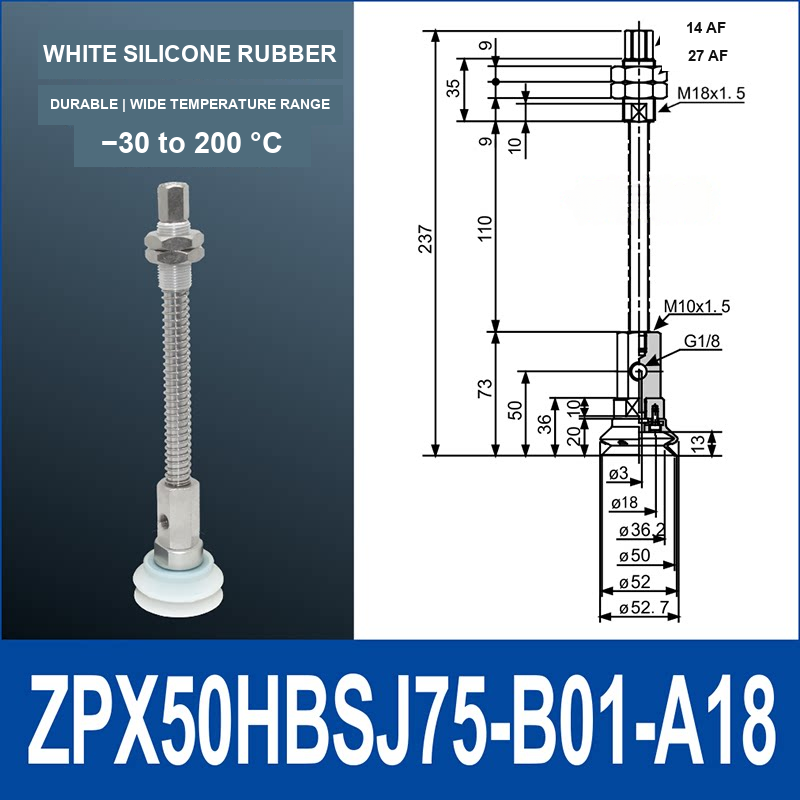

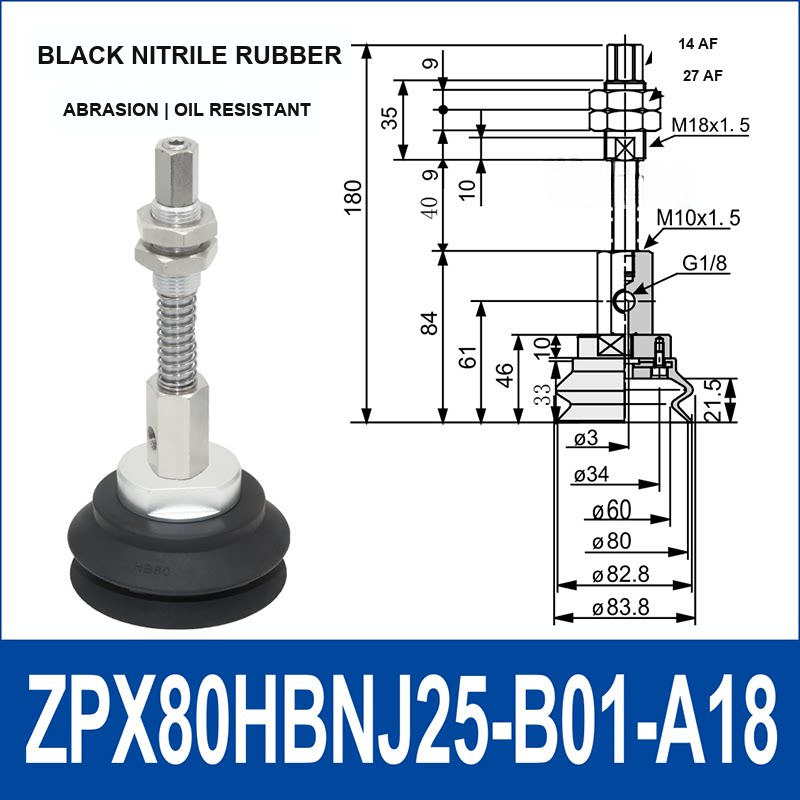

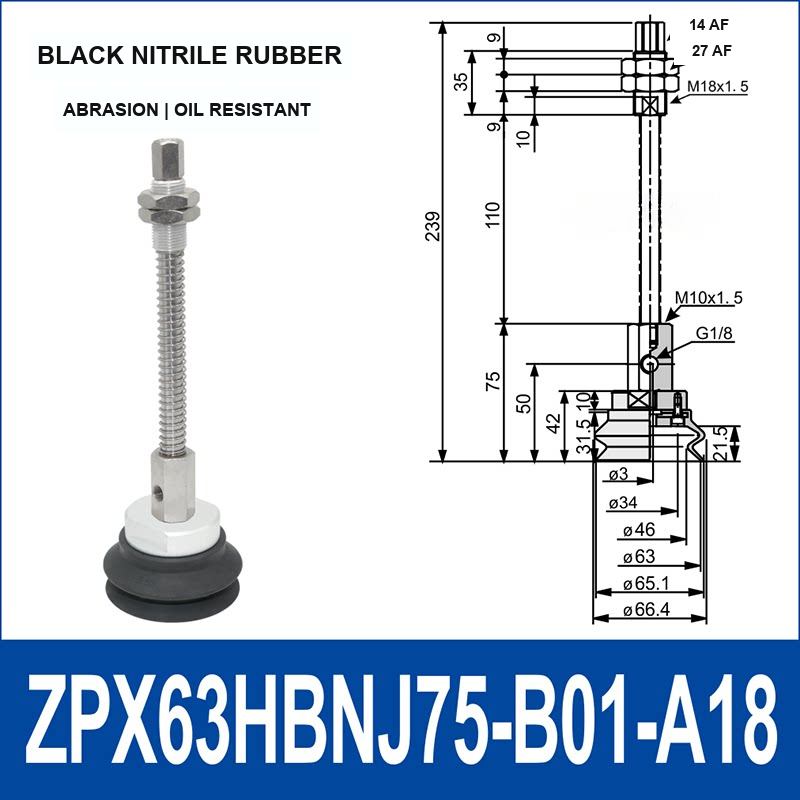

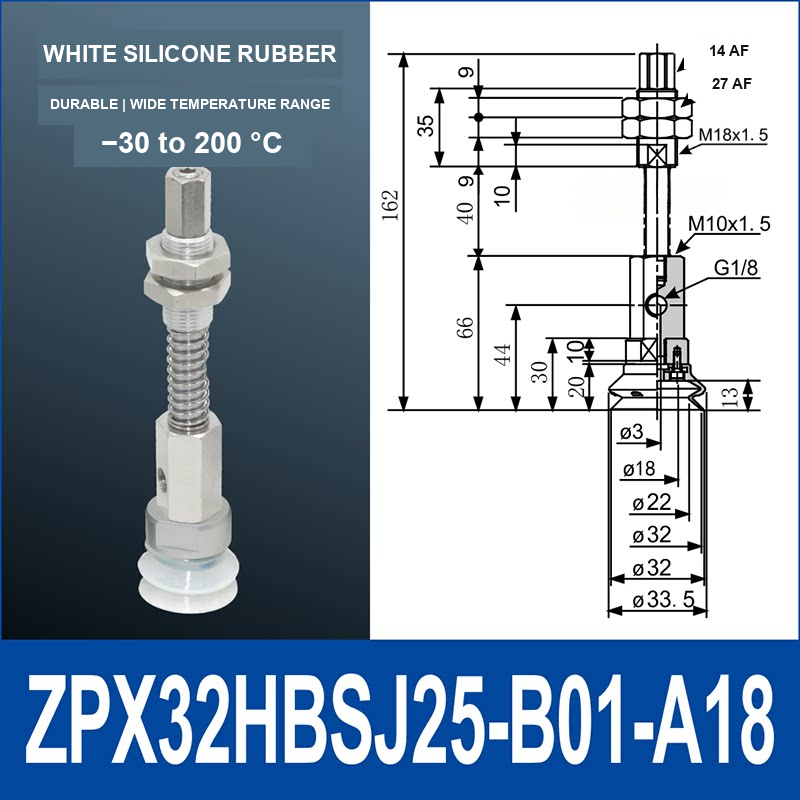

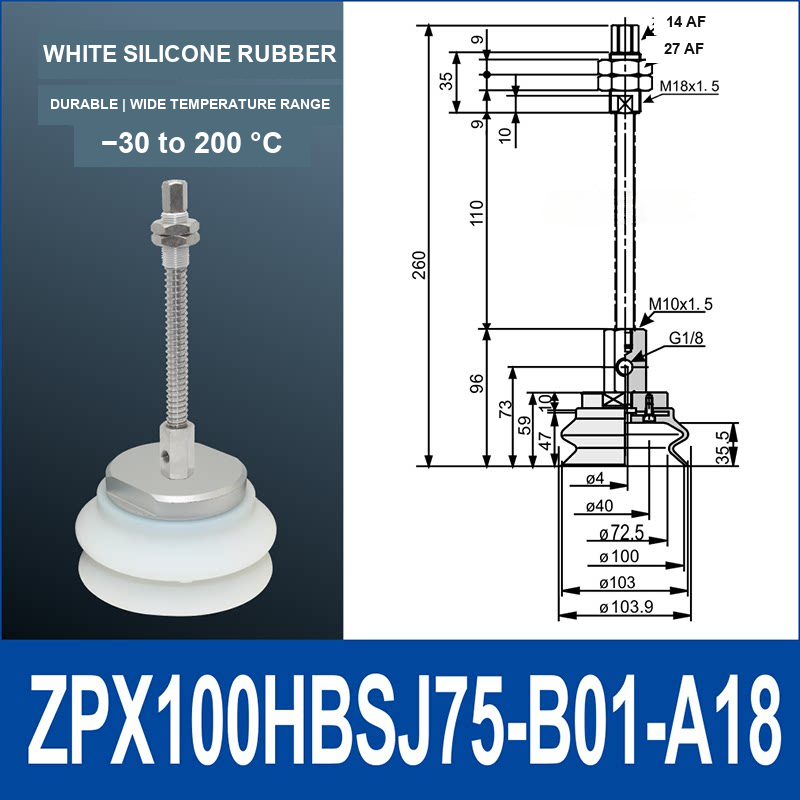

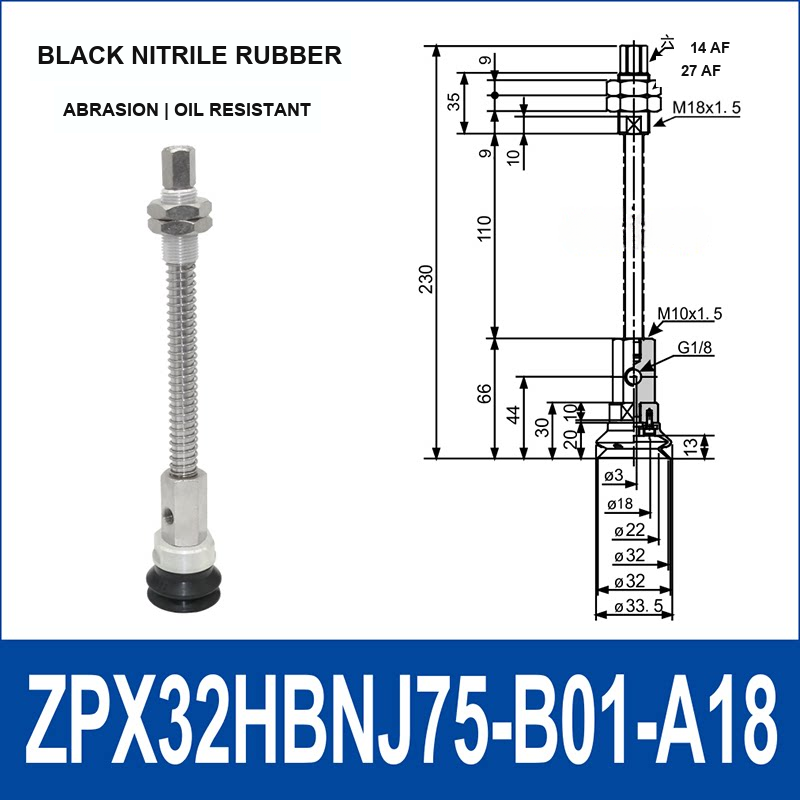

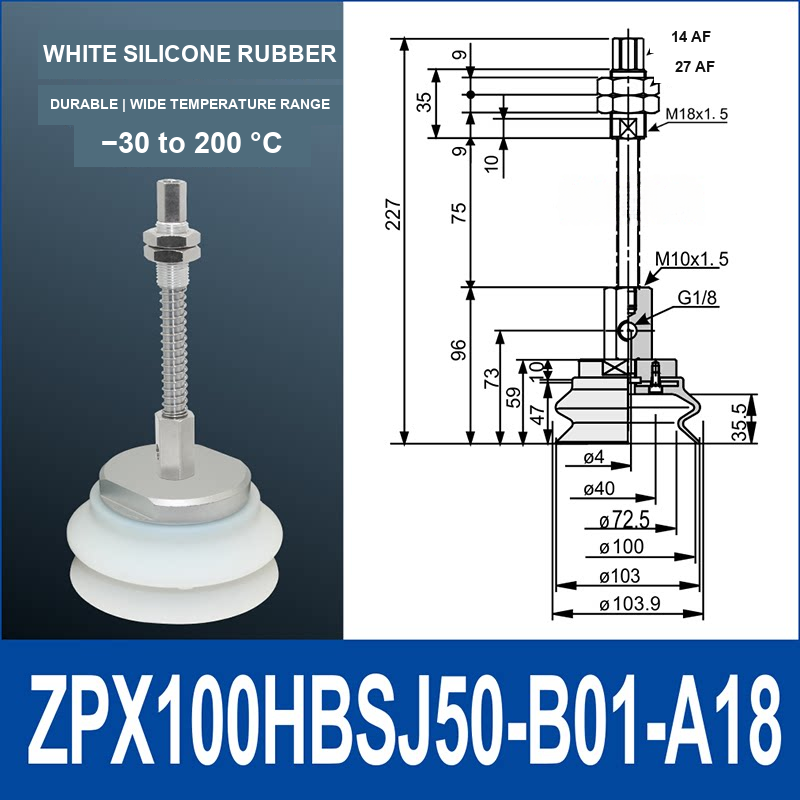

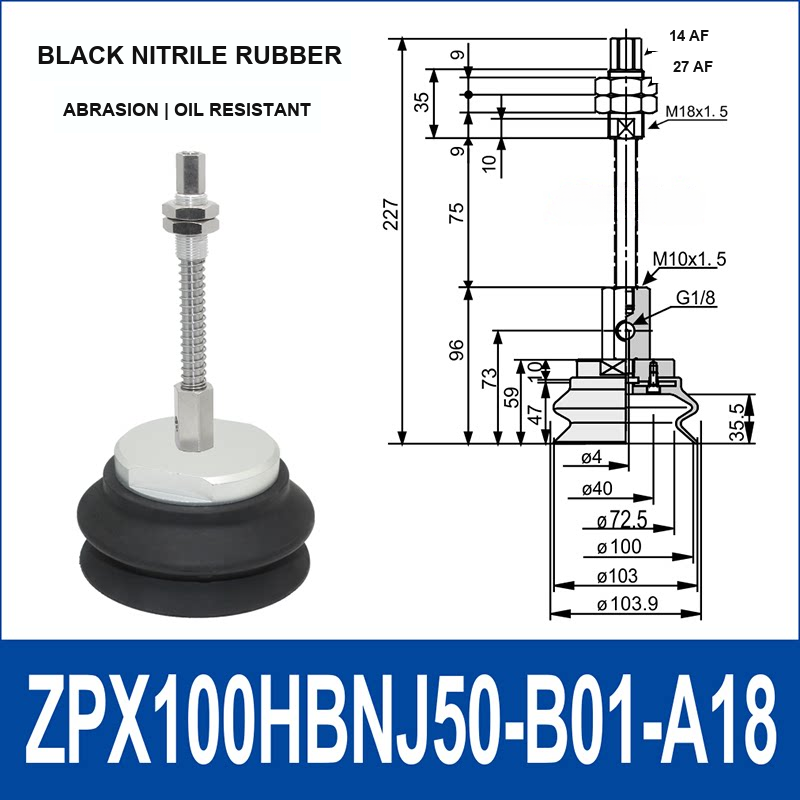

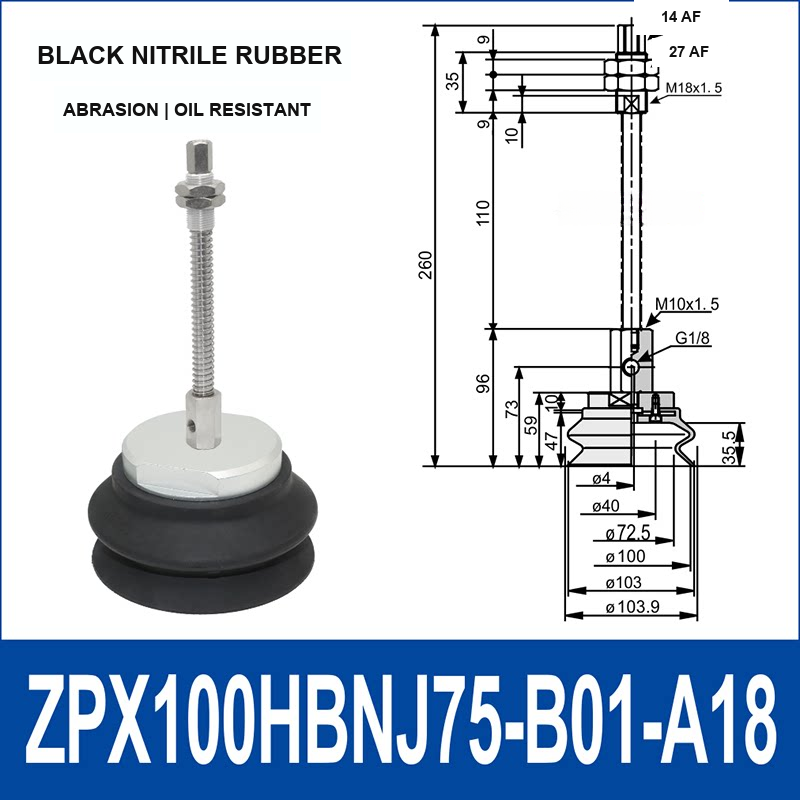

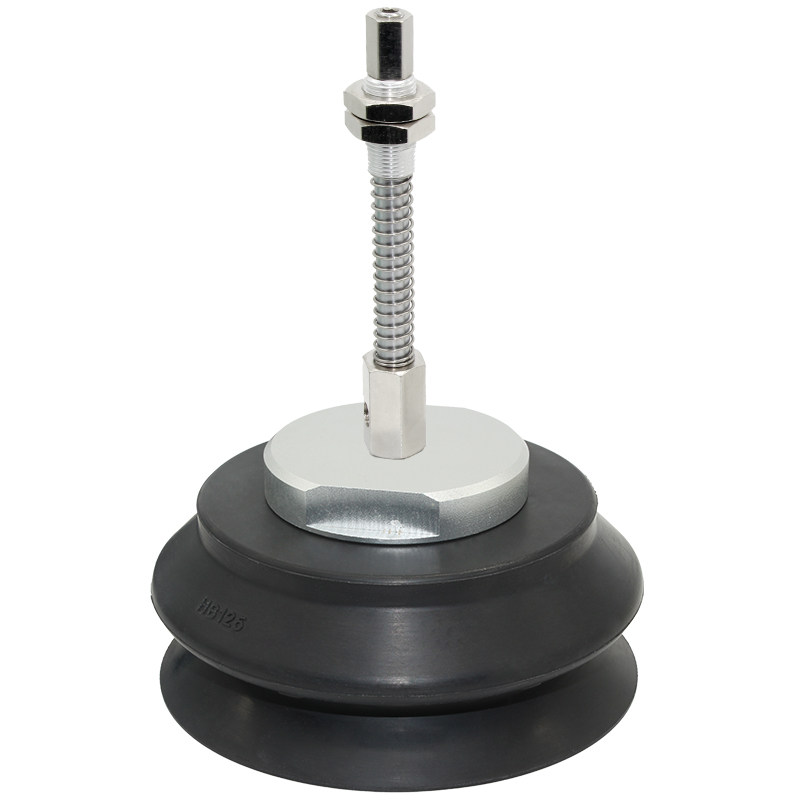

ZPX[diameter]HB[S/N]-J[25/50/75]-B01-A18: cup diameter in millimetres, S for white silicone or N for black nitrile, followed by the J-series buffer configuration. Product images show the corresponding assembly and dimensional drawing.
Suitable for
- Industrial vacuum pick-and-place and packaging automation
- Robot end-effectors that require spring compliance
- Handling smooth, flat or gently contoured workpieces after compatibility checks
- Replacement and configuration work for compatible vacuum assemblies
Before use
Confirm the full selected product code, drawing, cup material, mounting thread, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
FAQ
Which material should I choose? Select white silicone or black nitrile according to the application and material compatibility requirements. Can I interchange J25, J50 and J75? Check the selected drawing, mounting clearance and required compliance before treating configurations as interchangeable.
