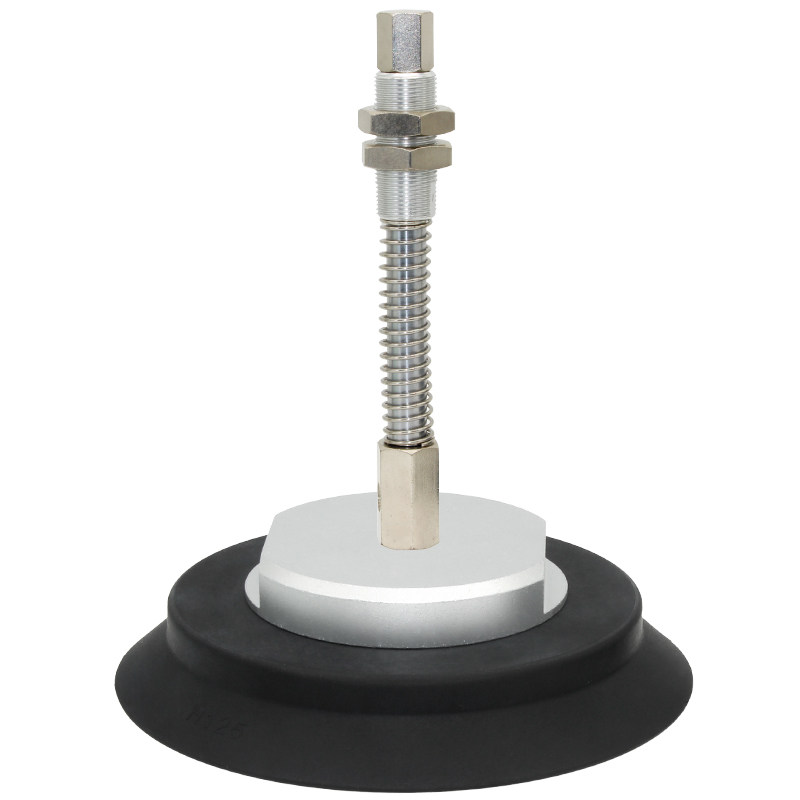

ZPX-H Heavy-Duty Vacuum Cups with Spring Buffer Mounts, B01-A22 (63–125 mm)

ZPX-H Heavy-Duty Vacuum Cups with Spring Buffer Mounts, B01-A22

Heavy-duty single-layer vacuum cups with spring buffer mounts for compatible industrial vacuum systems, robotic end-effectors and automated handling equipment. Select the complete model by cup diameter, buffer stroke and cup material.

Quick selection

1. Choose cup diameter: select 63 mm, 80 mm, 100 mm or 125 mm to suit the workpiece and installation envelope.
2. Choose buffer stroke: select J25, J50 or J75 according to the required spring travel and installation clearance.
3. Choose cup material: HS is white silicone; HN is black NBR. Confirm material compatibility with the workpiece and operating environment.
4. Confirm the drawing: check the full model code, mounting dimensions, M22 × 1.5 and G1/8 interfaces, vacuum-cup size and clearance before ordering.

Model-code guide

ZPX[63/80/100/125][HS or HN]J[25/50/75]-B01-A22: cup diameter, material code and nominal spring-buffer stroke. Each option displays its matching product view and dimensional drawing.

Suitable for

• Industrial vacuum pick-and-place and packaging automation
• Robot end-effectors that require spring compliance
• Handling smooth, flat or gently contoured workpieces after compatibility checks
• Replacement and configuration work for compatible vacuum assemblies

Before use

Confirm the full selected model code, drawing, cup material, mounting thread, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.

FAQ

Which material should I choose? Select white silicone or black NBR according to the application and material compatibility requirements. Can I interchange the J25, J50 and J75 versions? Check the selected drawing, mounting clearance and required compliance before treating models as interchangeable.
