ZPT3 / ZPT4 Anti-Rotation Vacuum Cup Buffer Mounts & Components

ZPT3 / ZPT4 Anti-Rotation Vacuum Cup Buffer Mounts & Components

ZPT3 and ZPT4 buffer mounts and B8 components for industrial vacuum gripping, automated handling and robotic end-effectors. Select the complete model code and confirm the matching dimensional drawing before ordering.

Quick Model Finder

1. Choose the series: select ZPT3 or ZPT4 exactly as required by the compatible vacuum cup and mounting arrangement.
2. Choose the listed mount code: select the complete J or K model with 10, 20, 30 or 50 as shown. Do not combine elements from different codes.
3. Choose B01 or B5 exactly: these are separate selectable configurations. Confirm the selected drawing rather than inferring a configuration from the code alone.

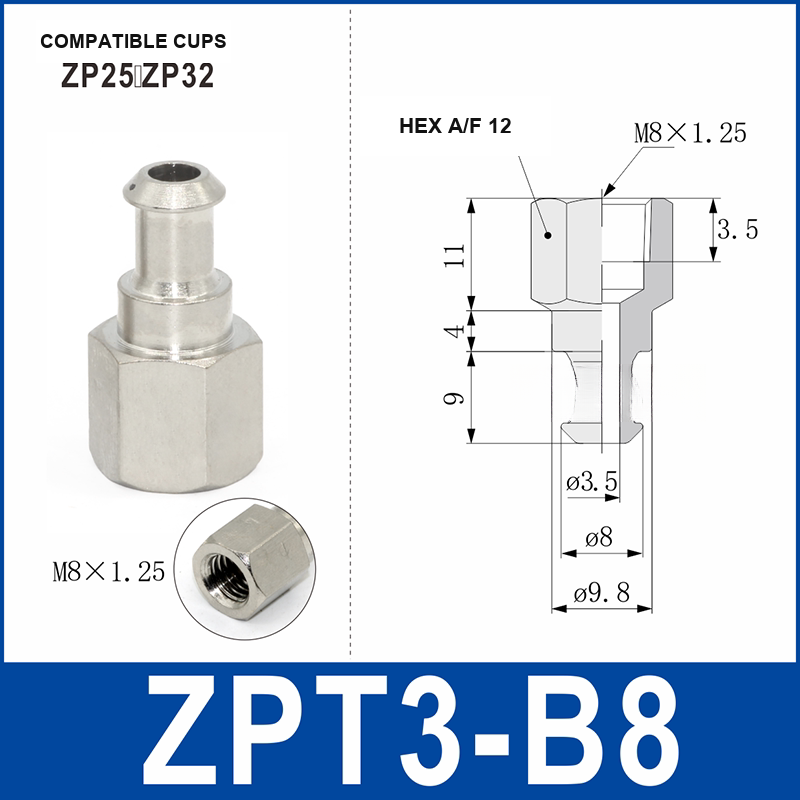

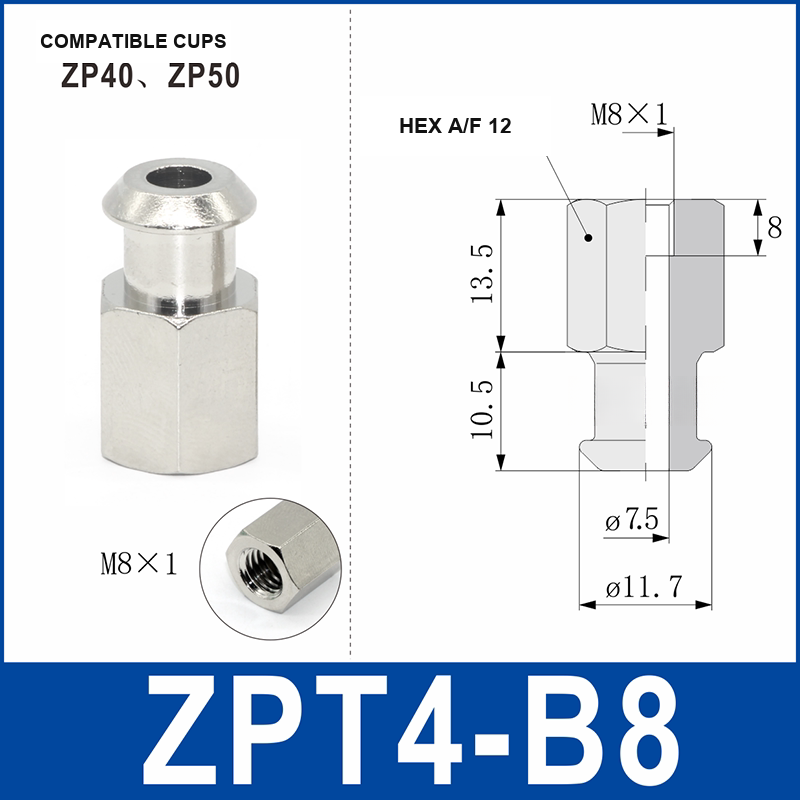

4. Choose a B8 component when needed: ZPT3-B8 and ZPT4-B8 are separately listed components with their own drawings.

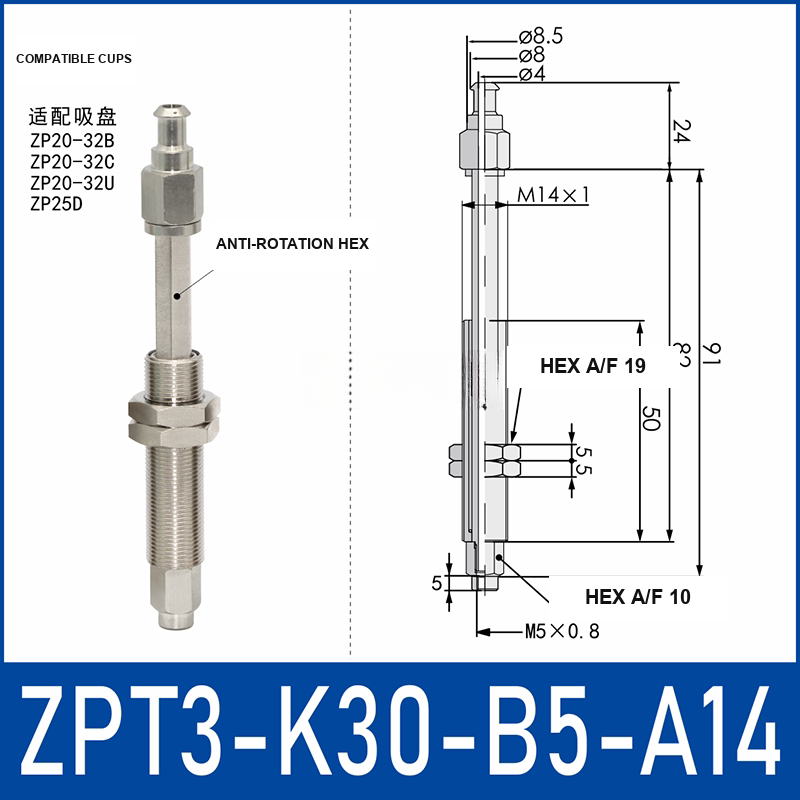

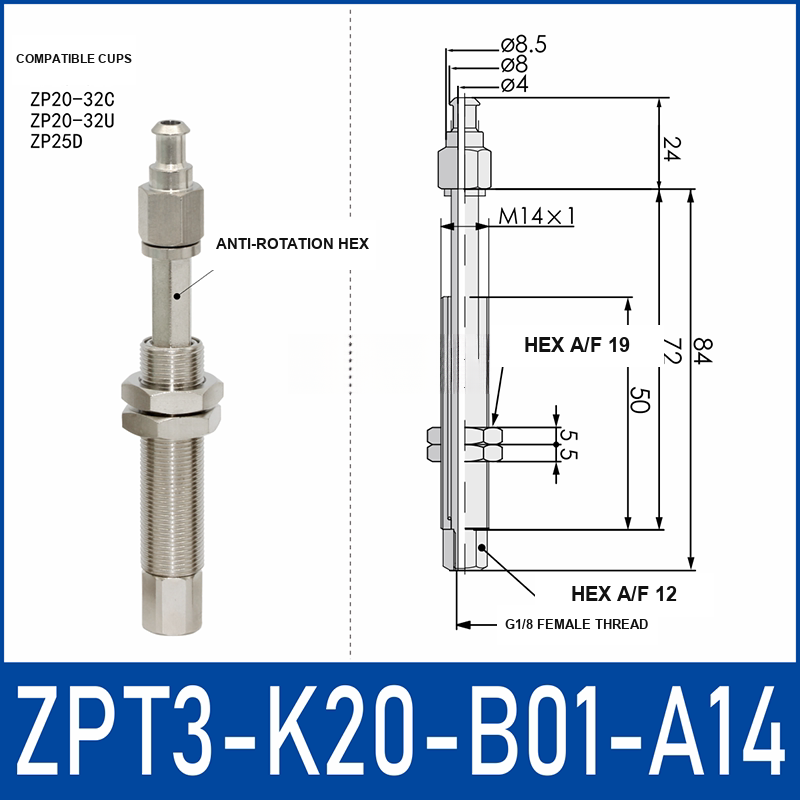

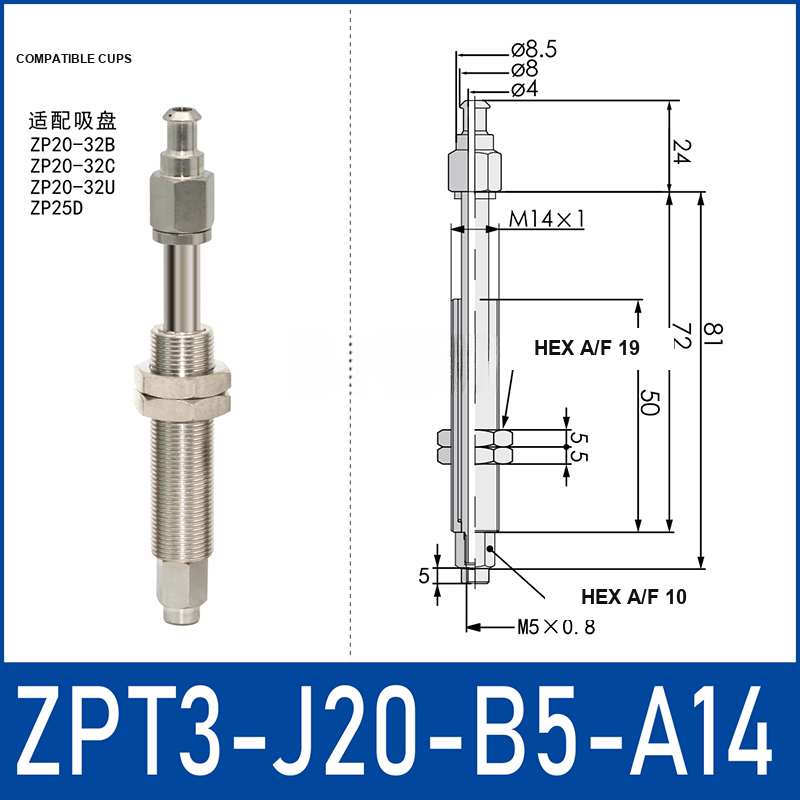

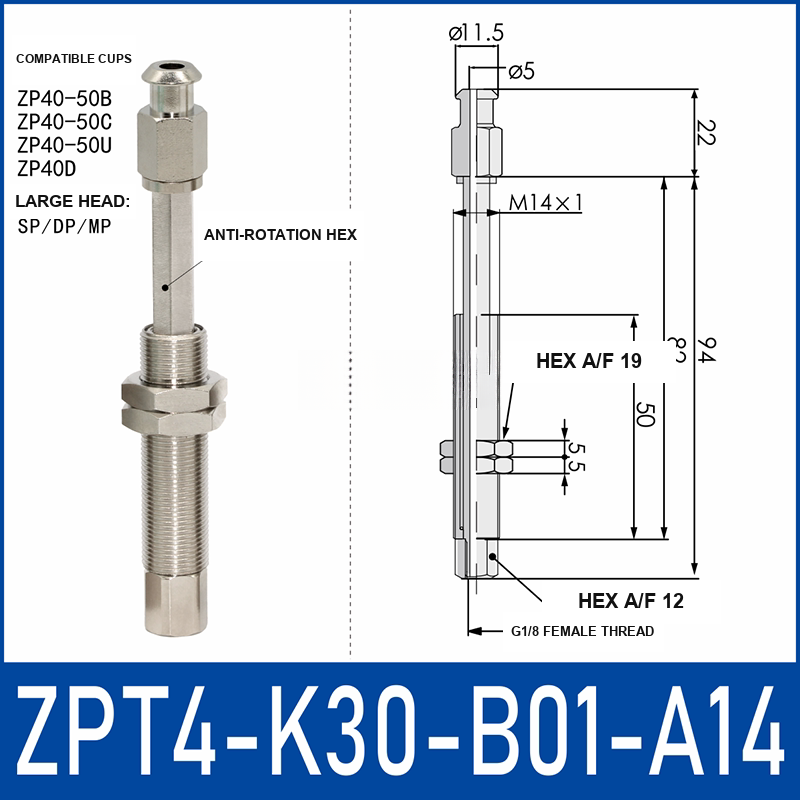

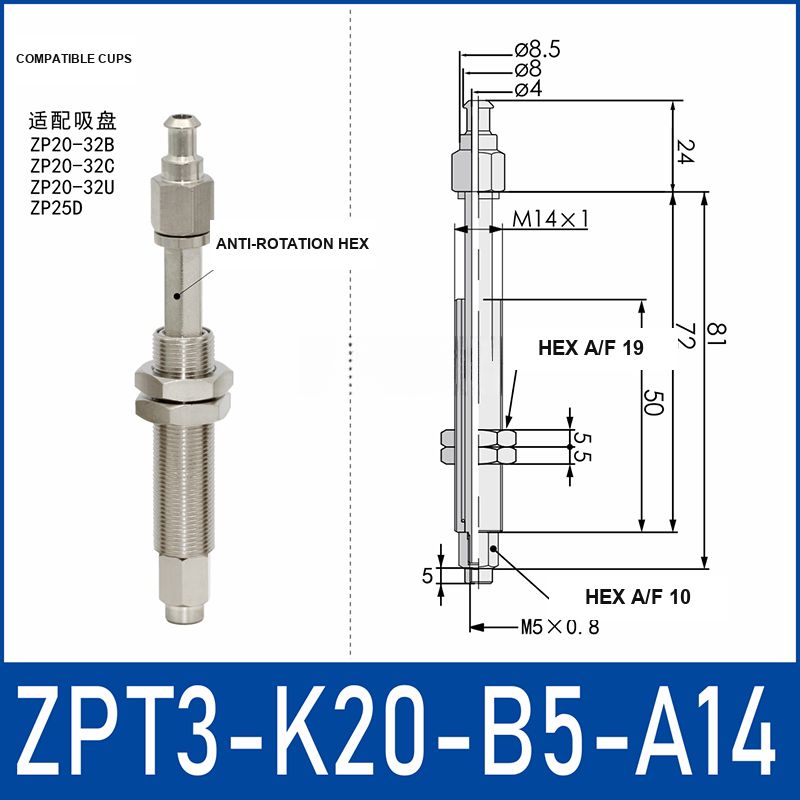

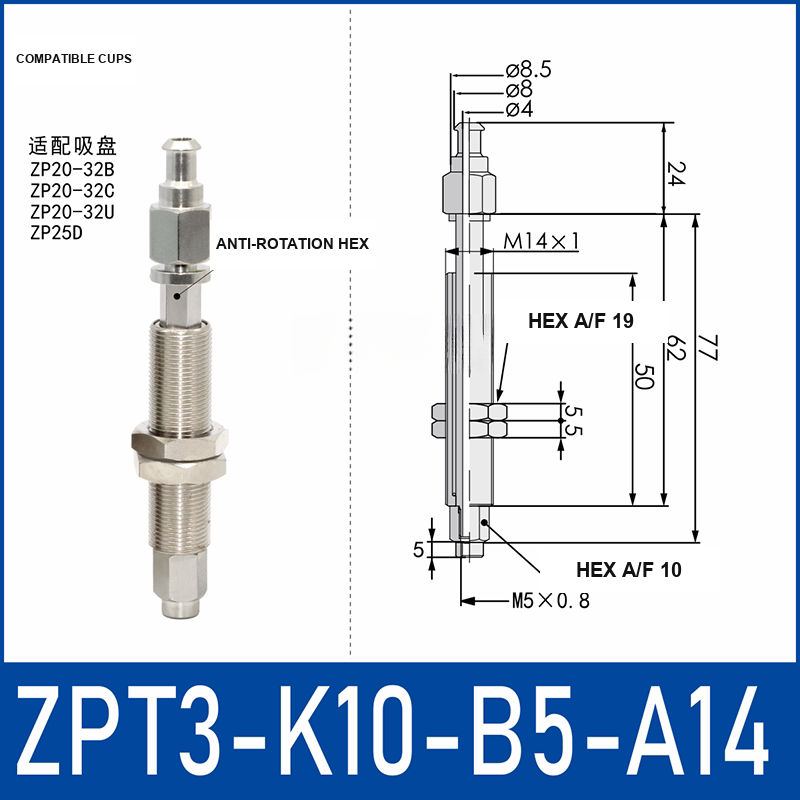

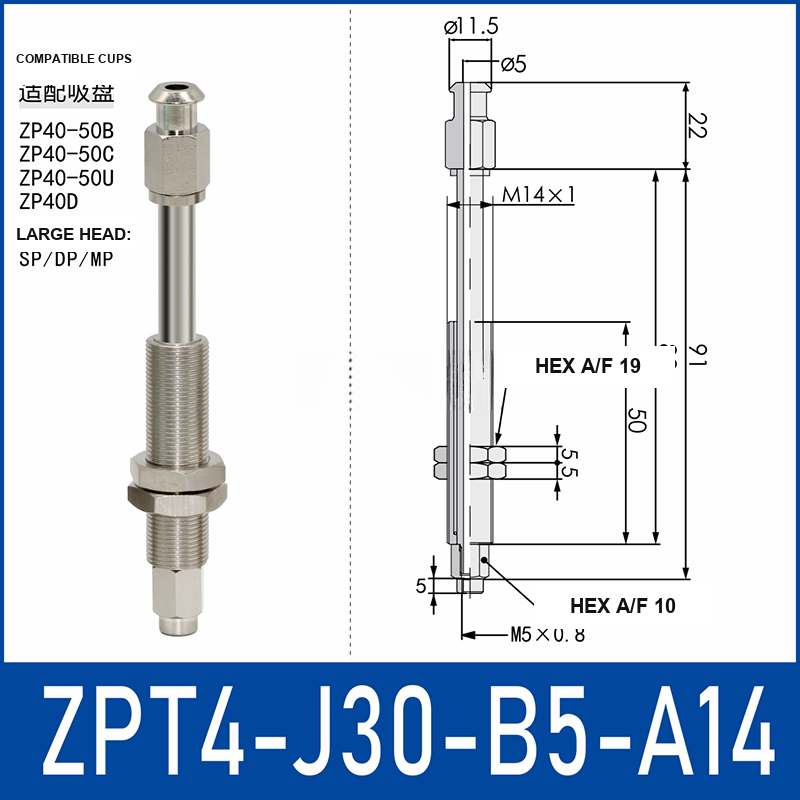

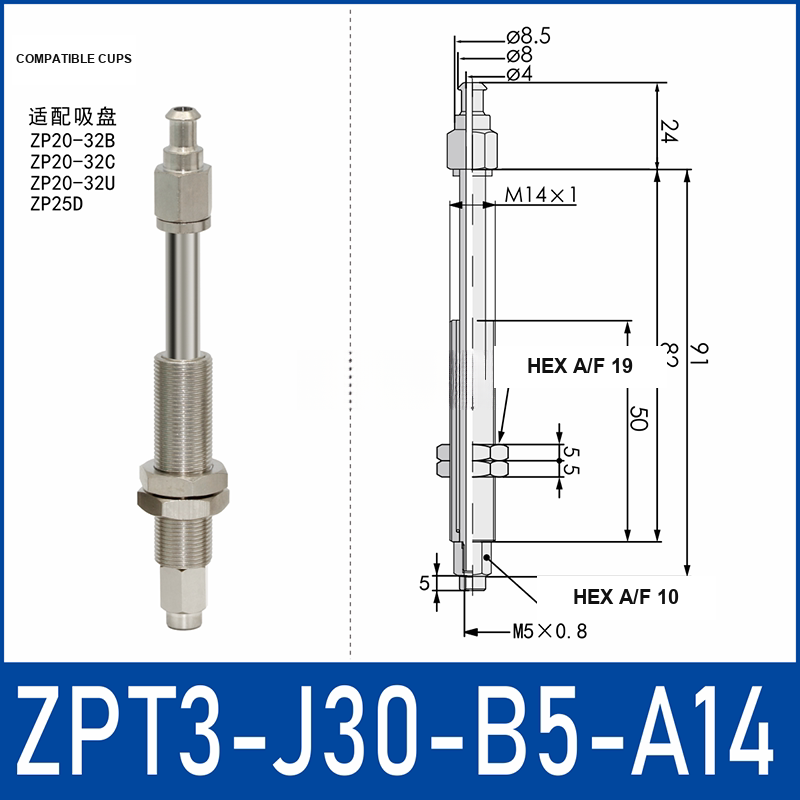

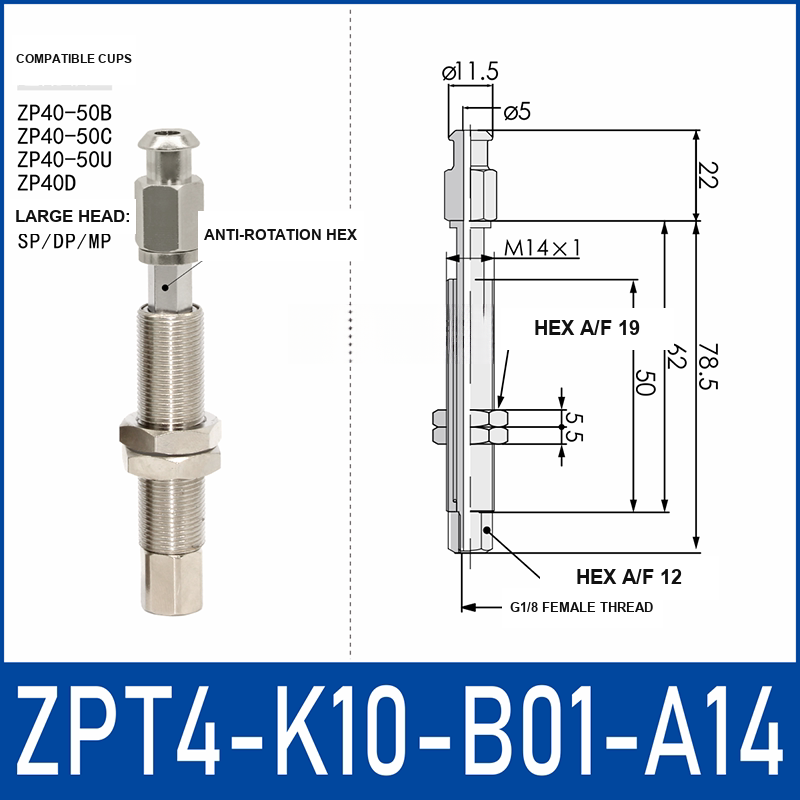

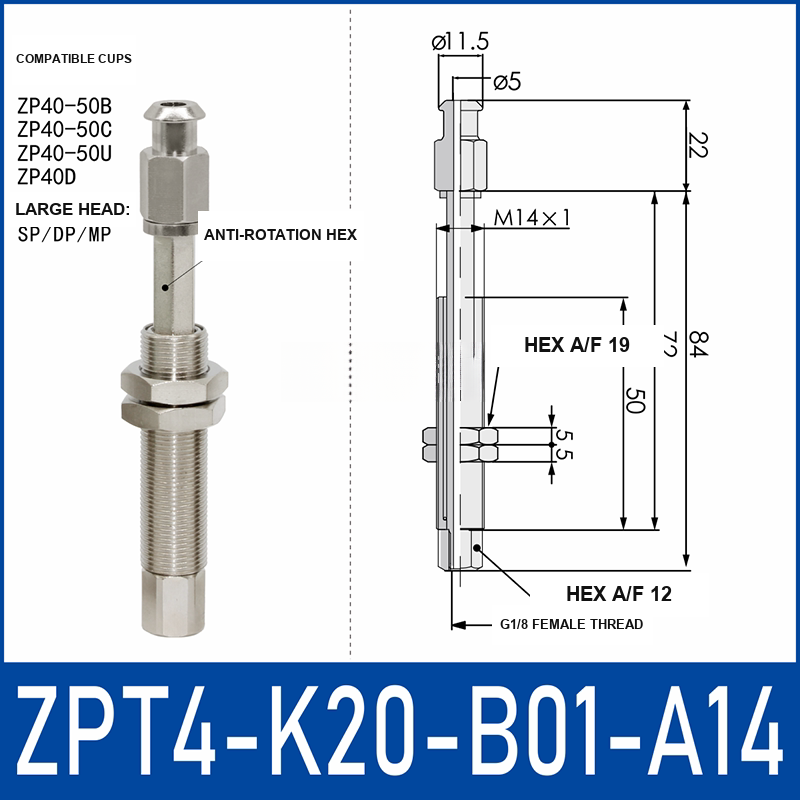

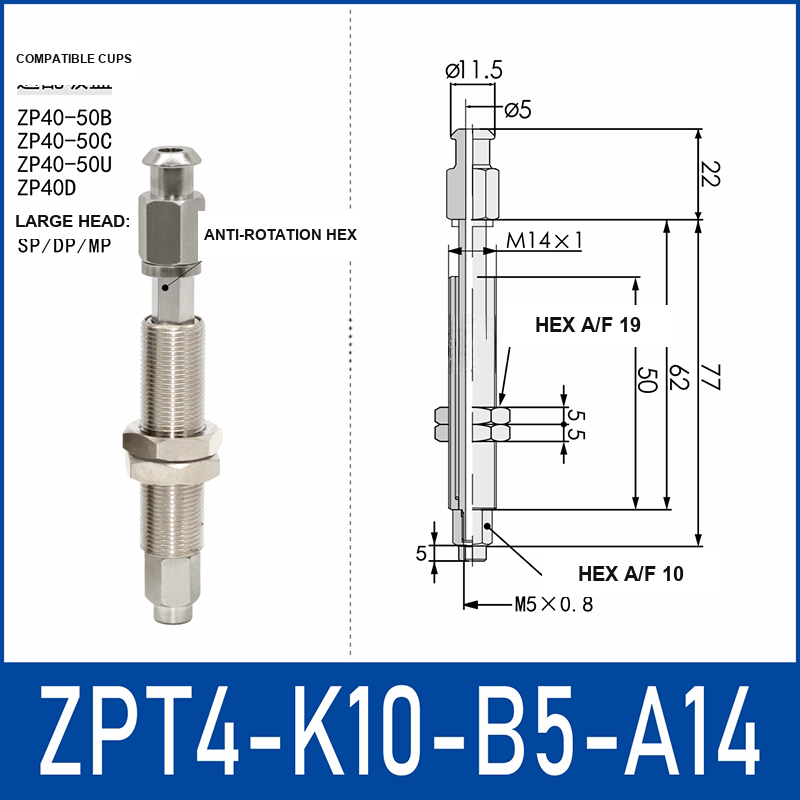

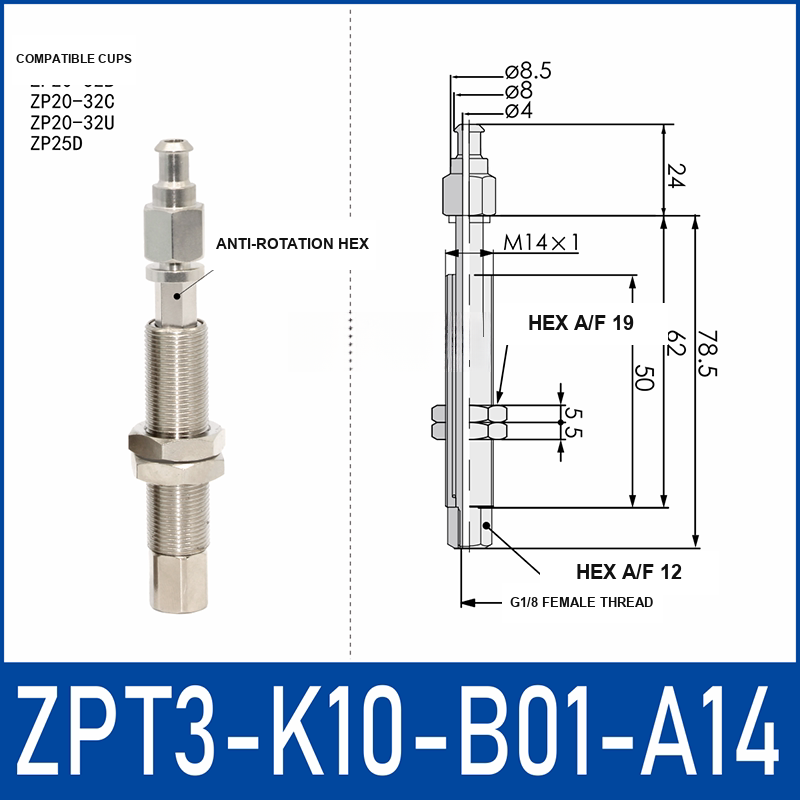

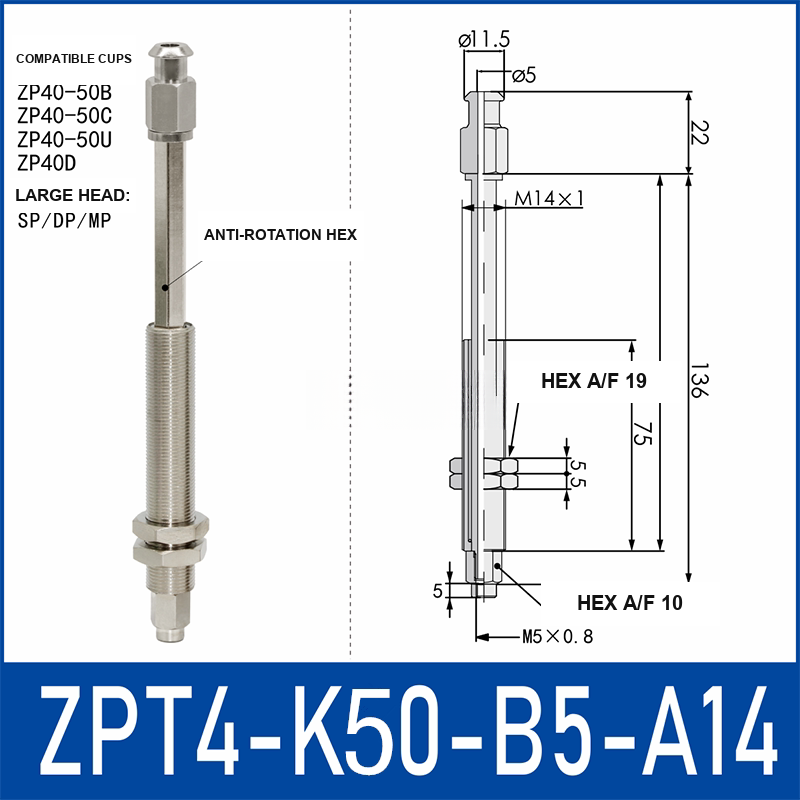

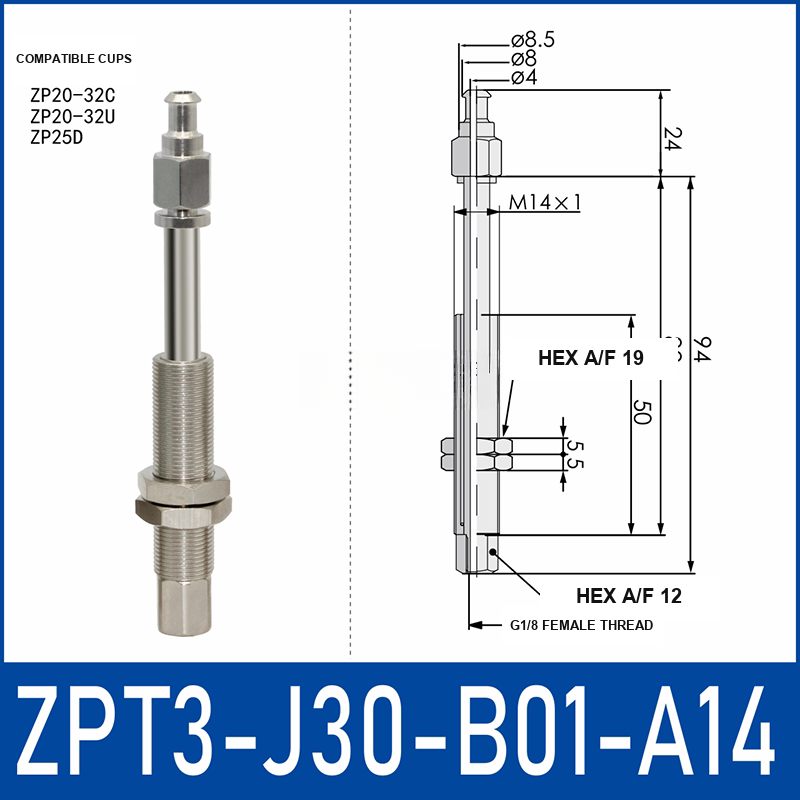

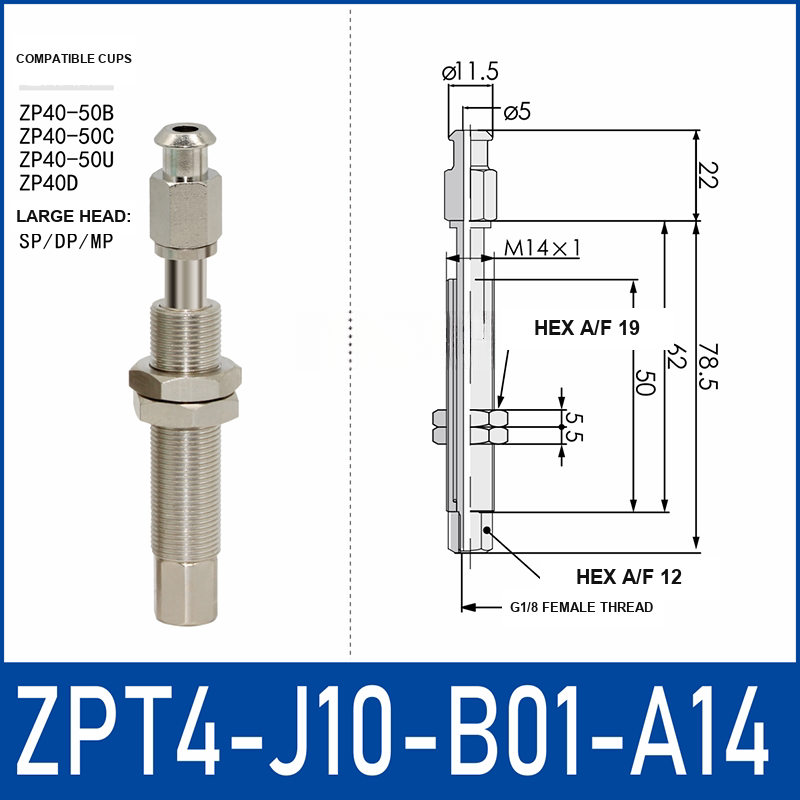

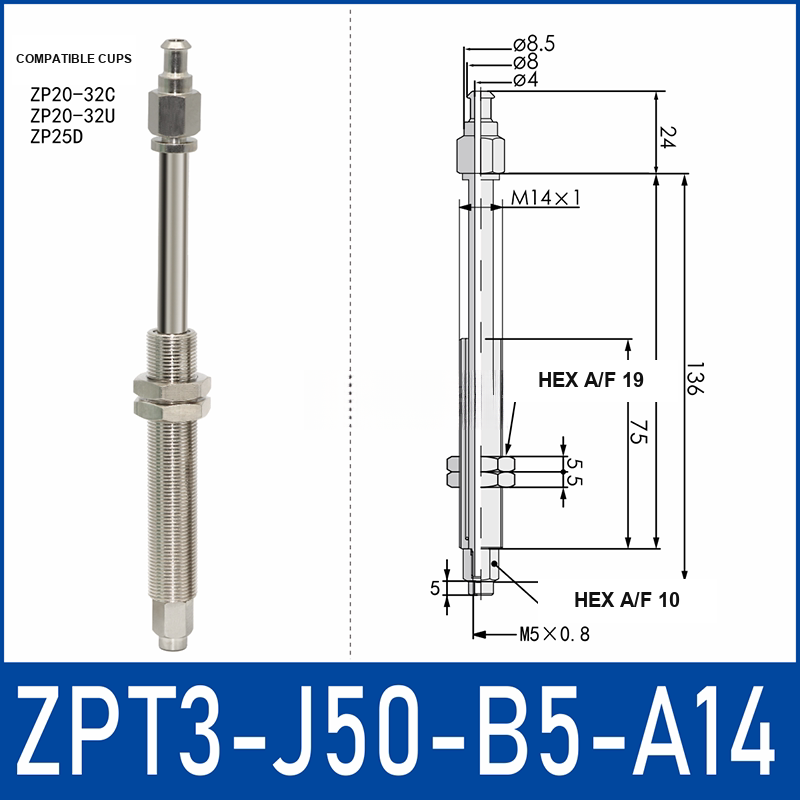

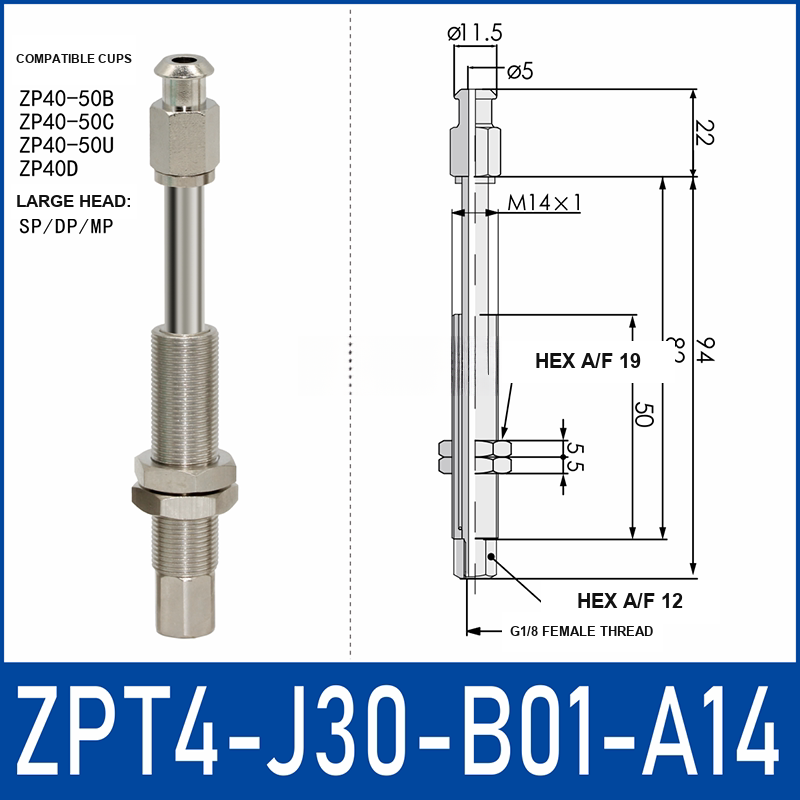

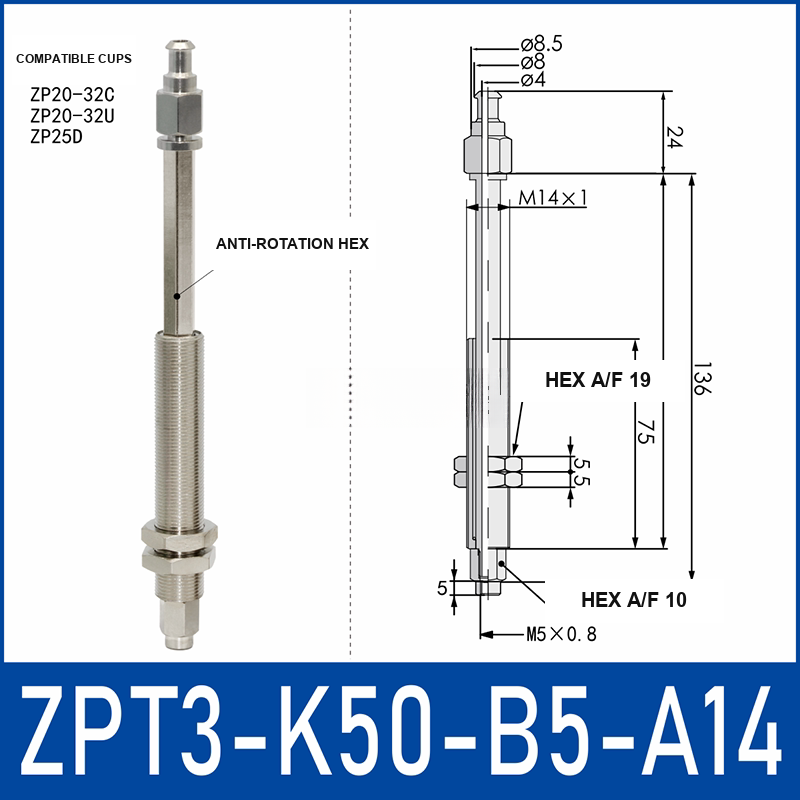

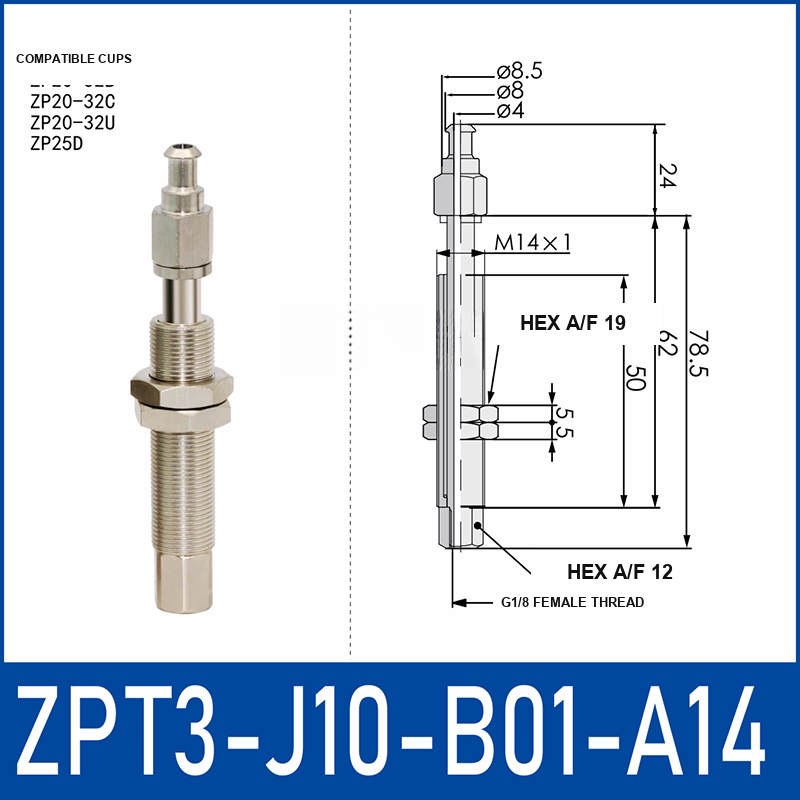

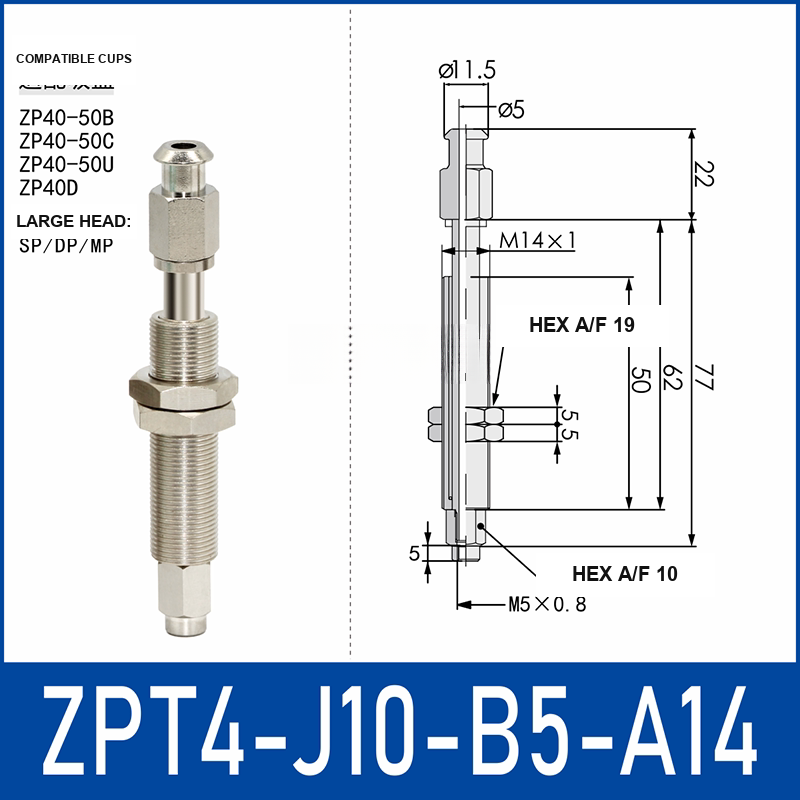

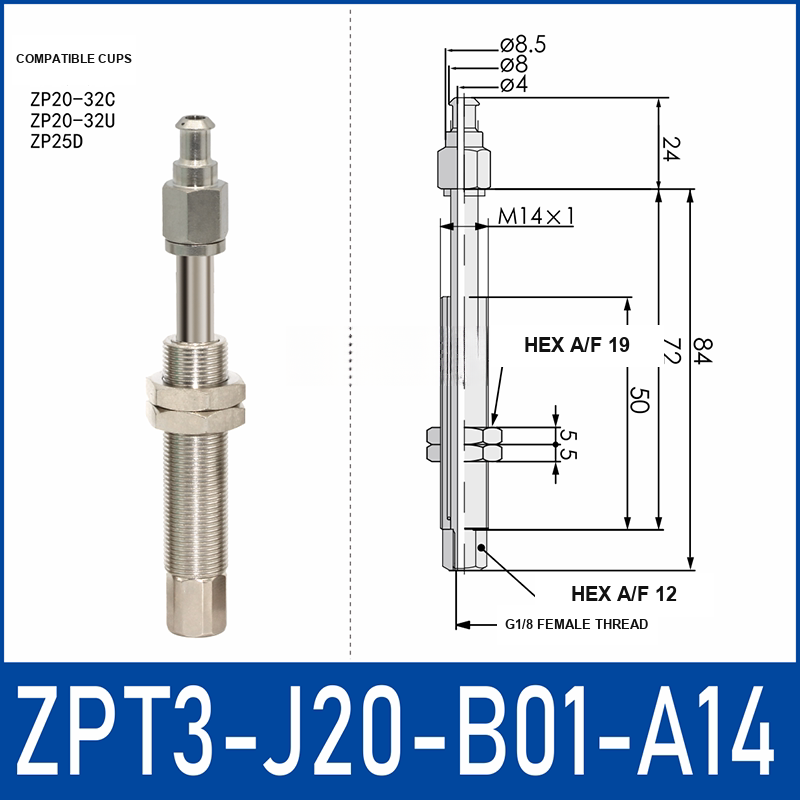

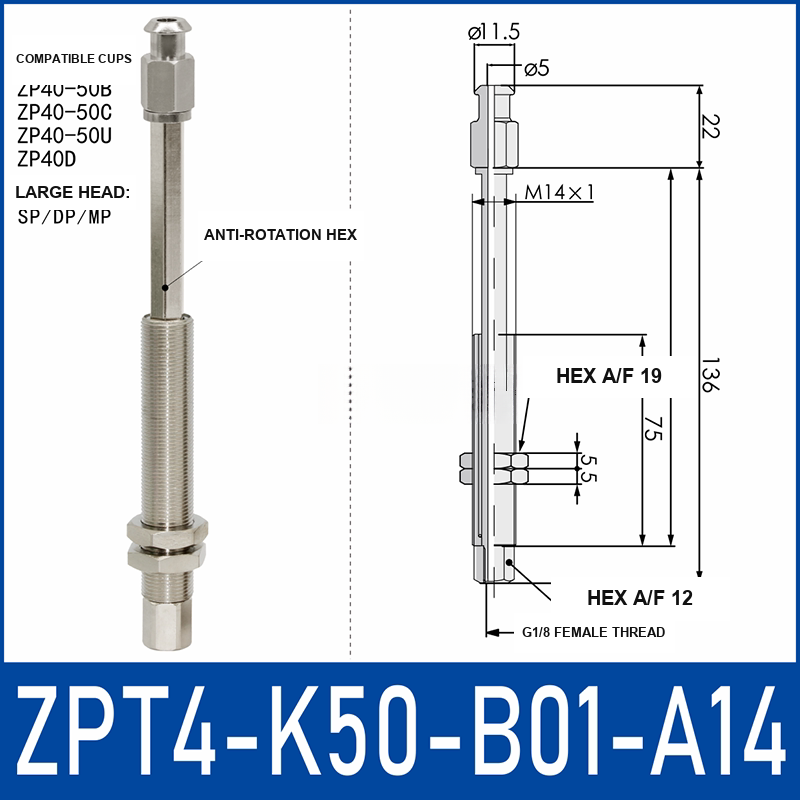

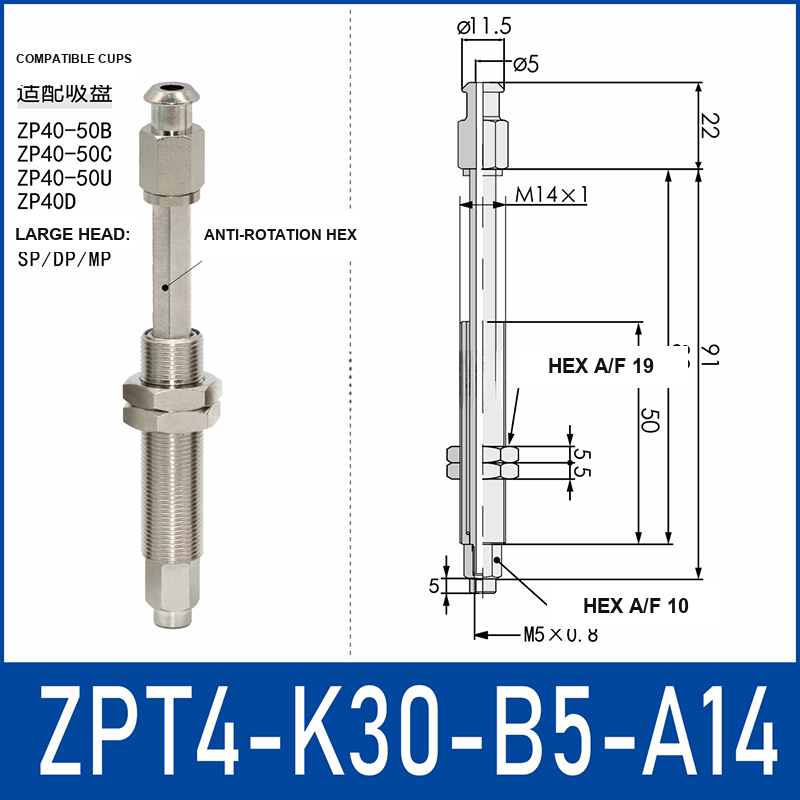

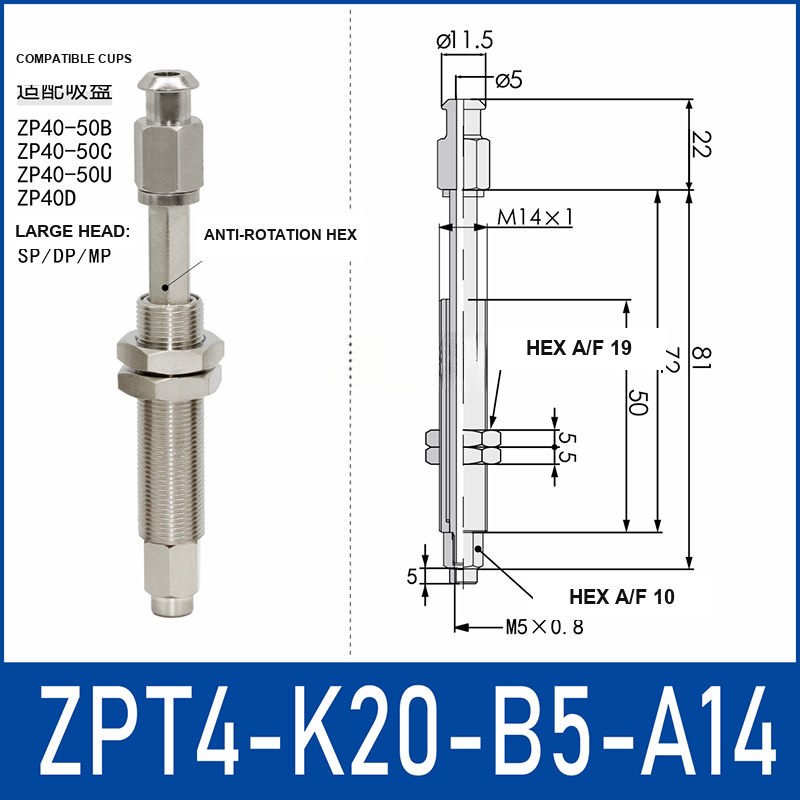

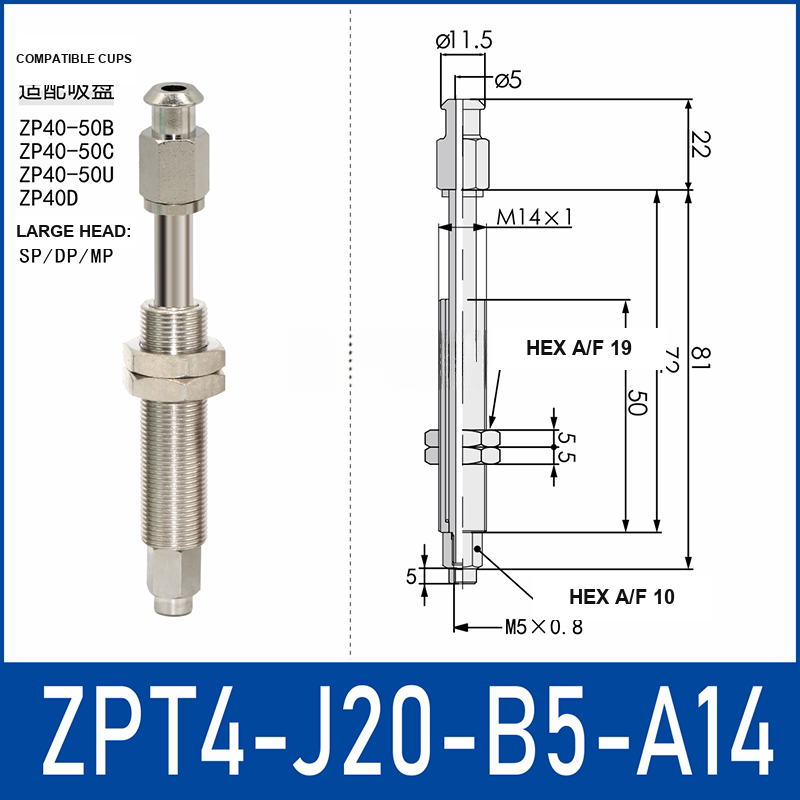

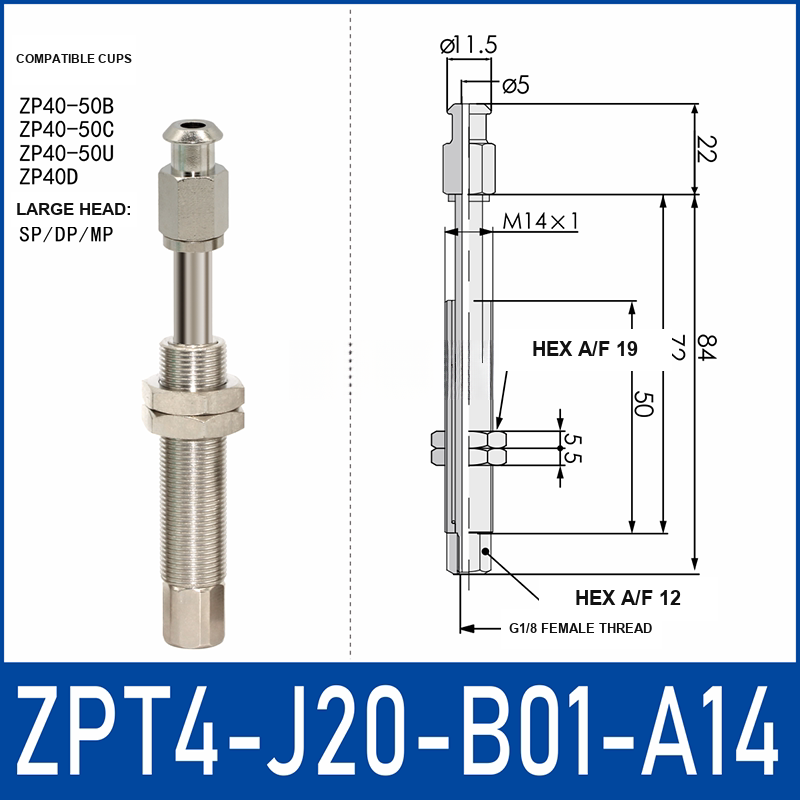

5. Confirm installation dimensions: review the matching product image for thread, across-flat, mounting and overall dimensions before purchase.

Model-code guide

ZPT[3 or 4]-[J or K][10/20/30/50]-[B01 or B5]-A14 identifies a complete buffer-mount selection. ZPT3-B8 and ZPT4-B8 identify the separately selectable components. Select the full code exactly as displayed.

Suitable for

• Industrial vacuum pick-and-place and packaging automation
• Robotic end-effectors and vacuum gripping fixtures
• Replacement work where the complete model and mounting dimensions are confirmed

Before use

Confirm the complete model code, selected drawing, compatible cup, mounting interface, thread, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
