ZPT Heavy-Duty Bellows Vacuum Suction Cups
Heavy-duty bellows vacuum cups with integrated threaded fittings for industrial automated handling.
- White heat-resistant silicone and black oil-resistant nitrile rubber options
- 32–150 mm sizes with B8, B10, B12 and B16 threaded fittings

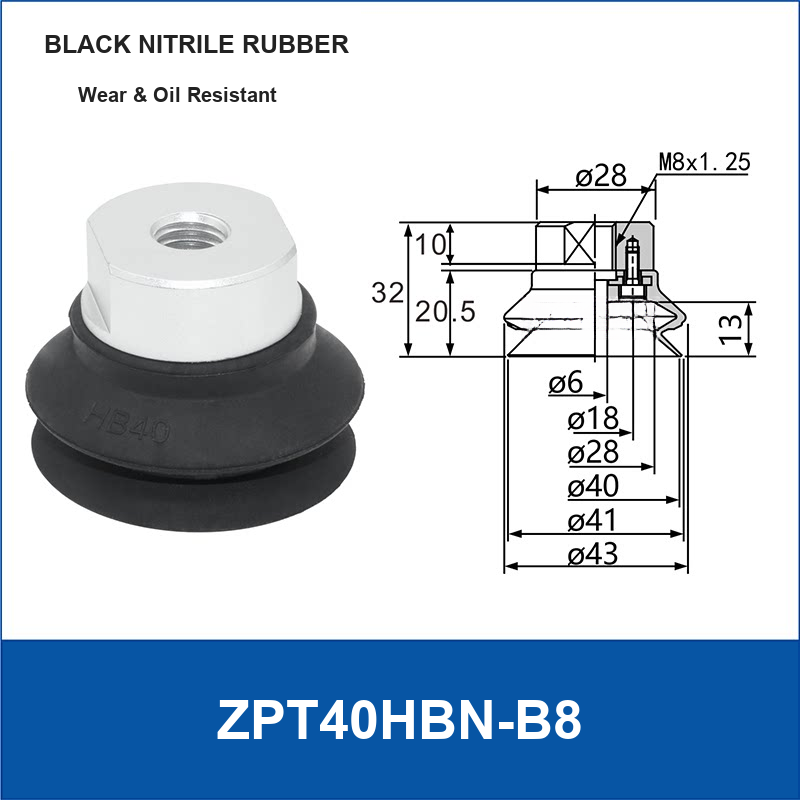

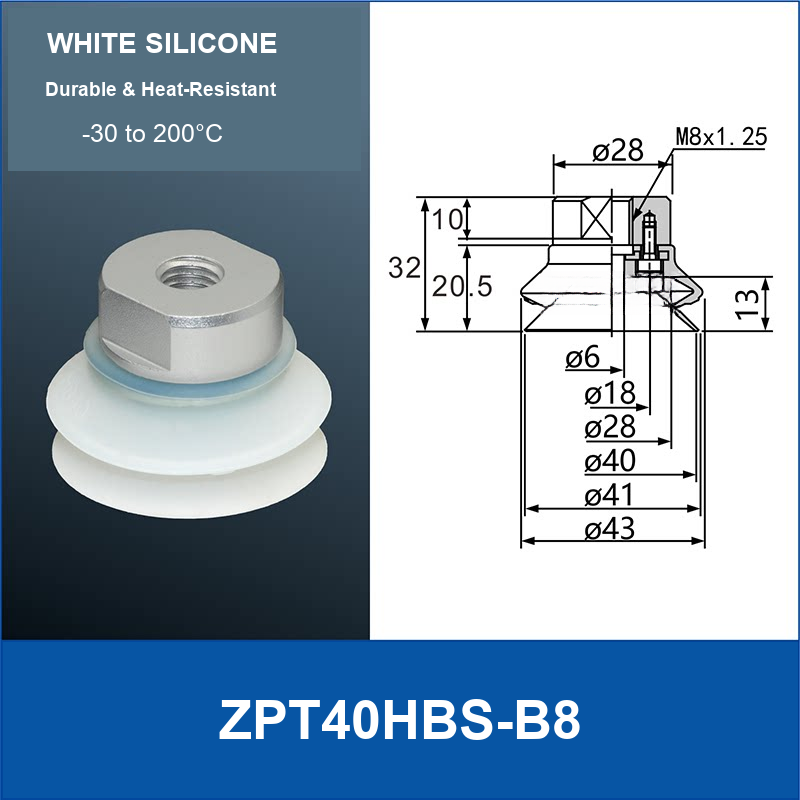

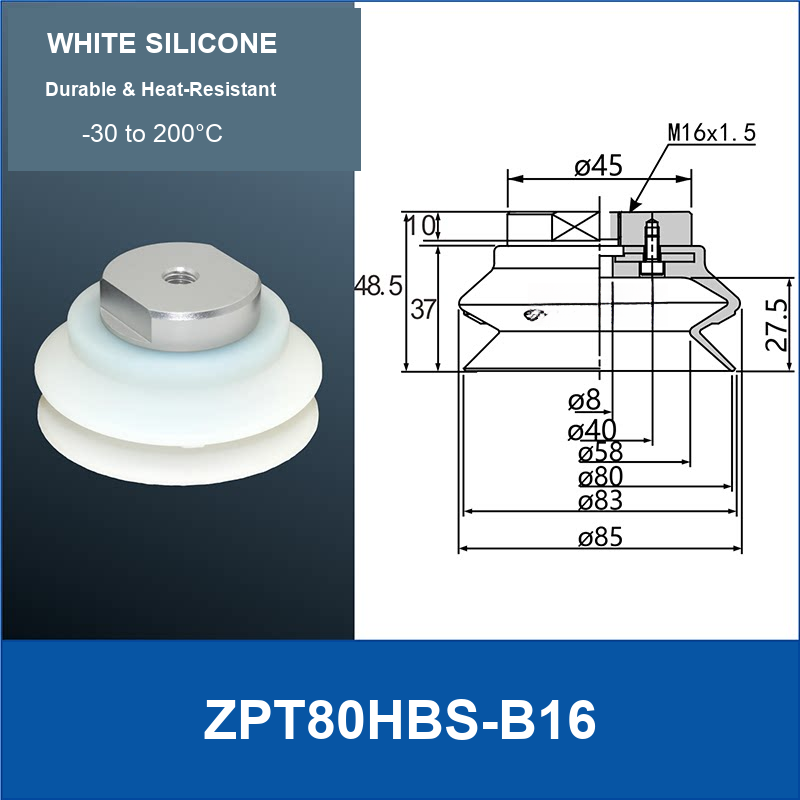

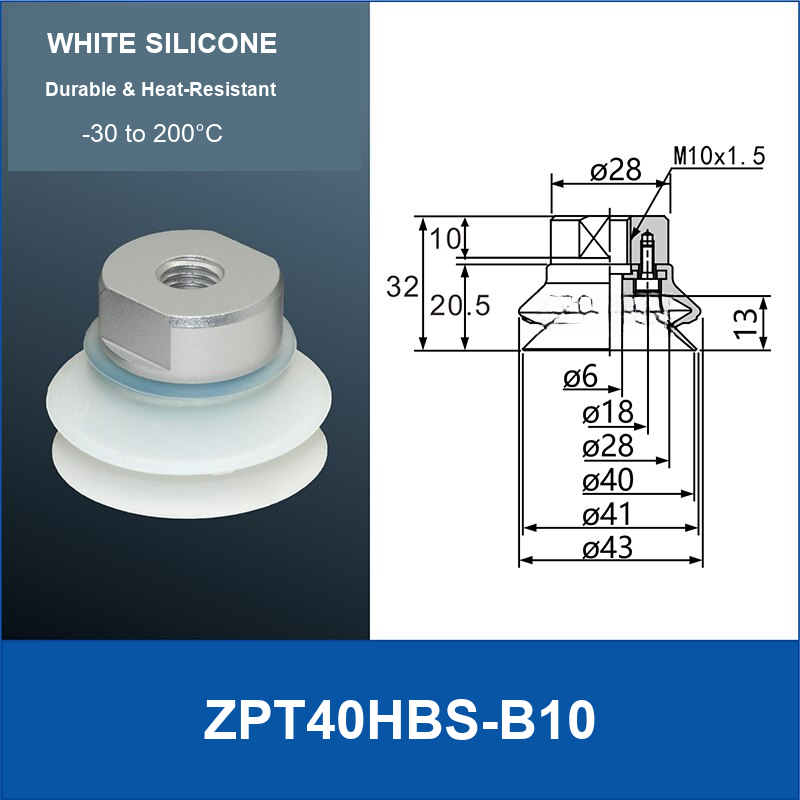

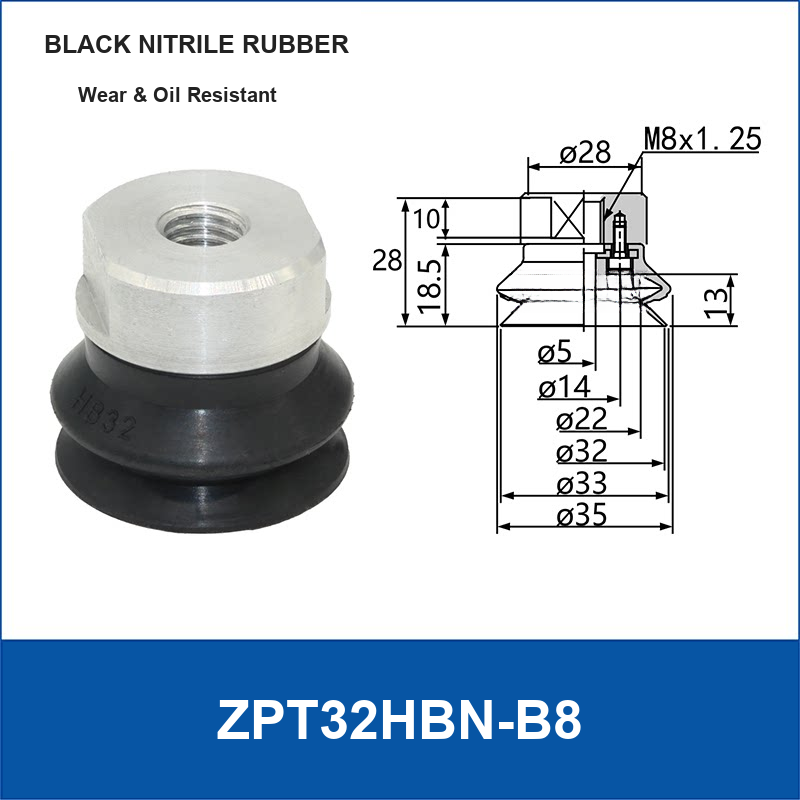

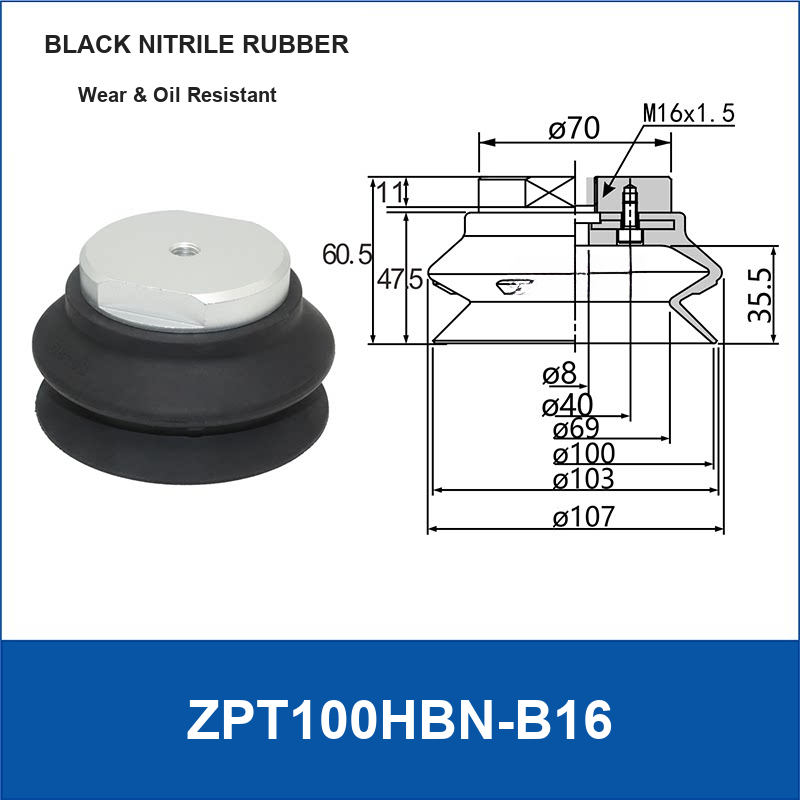

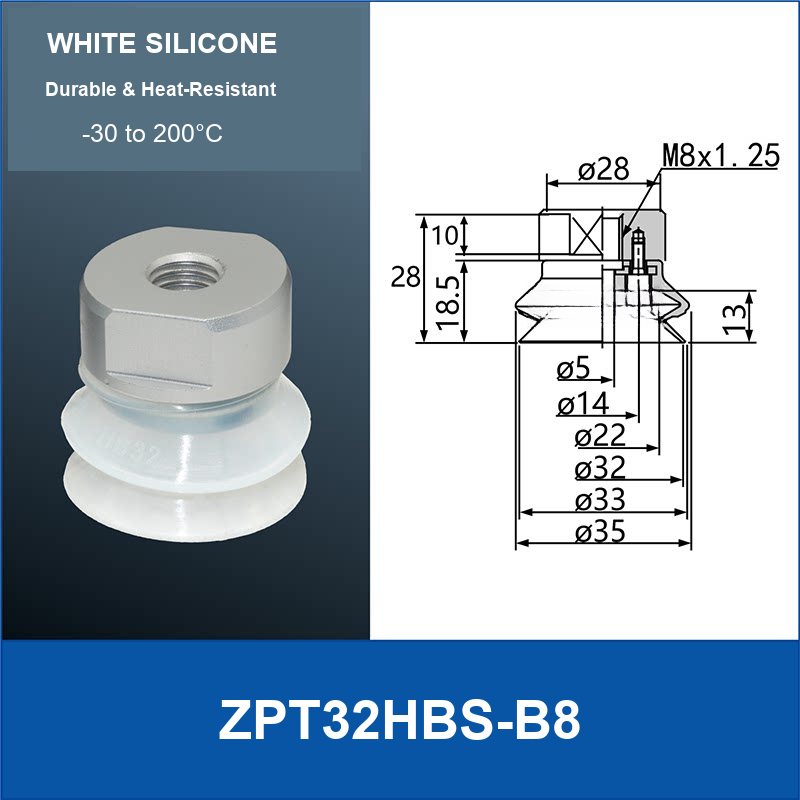

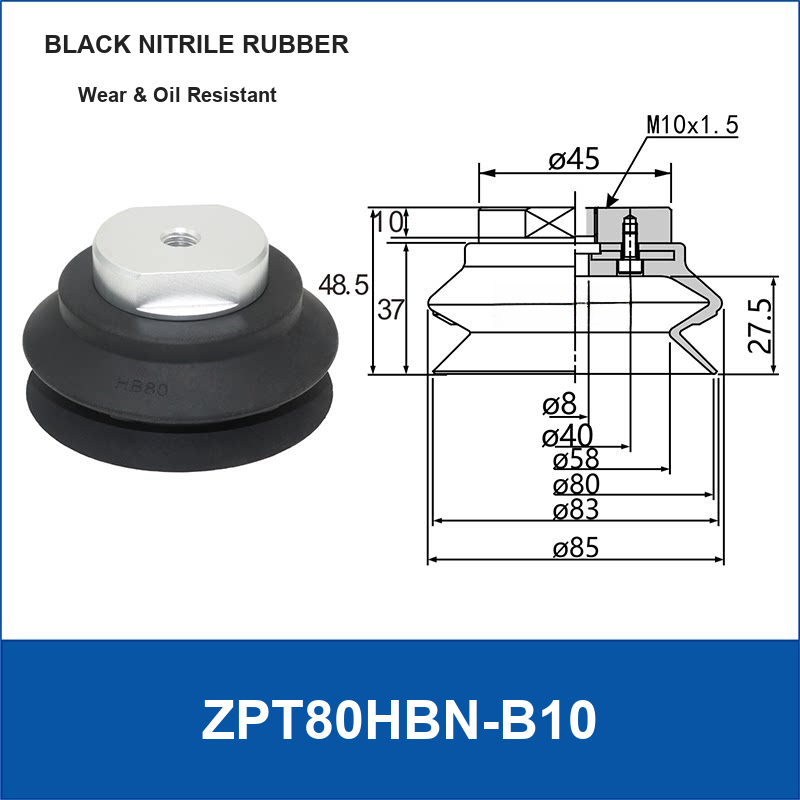

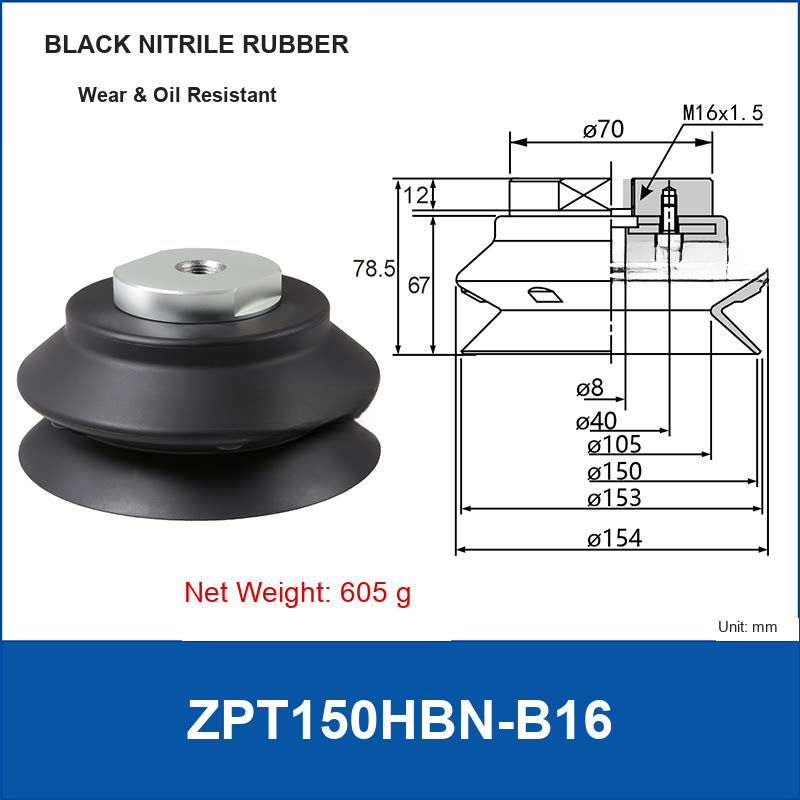

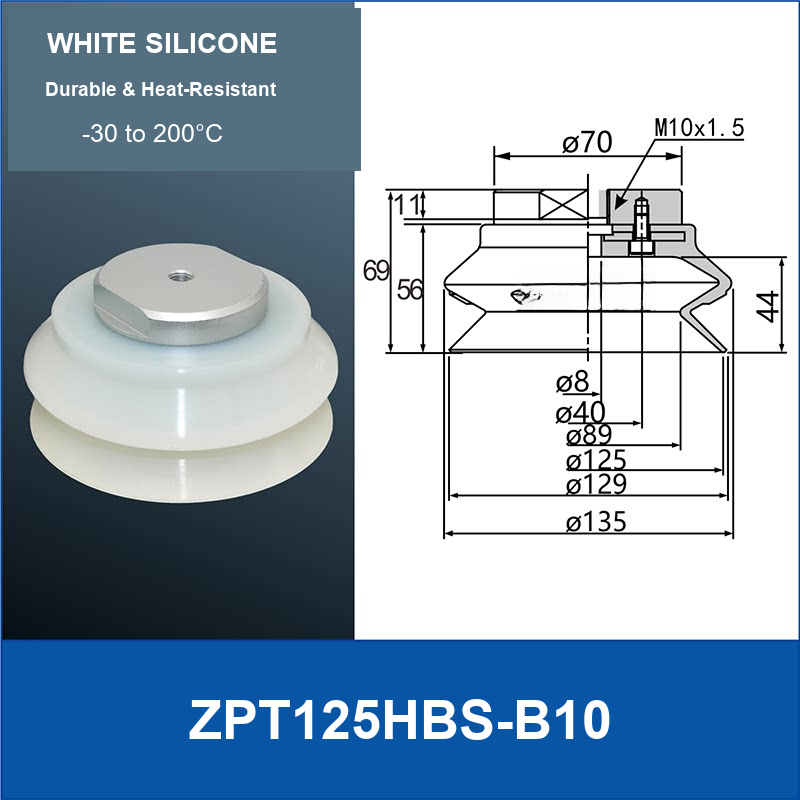

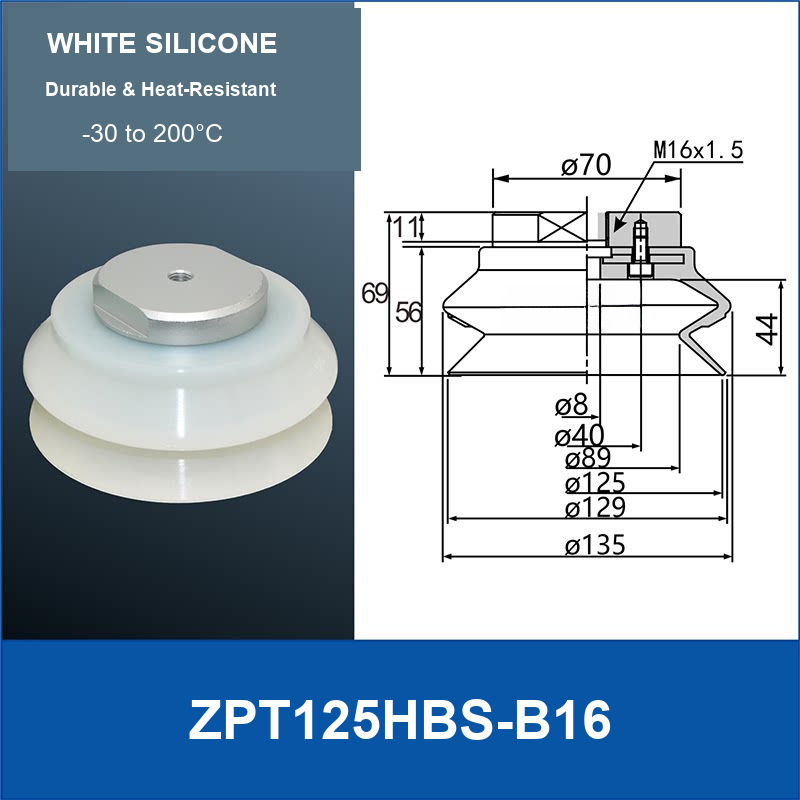

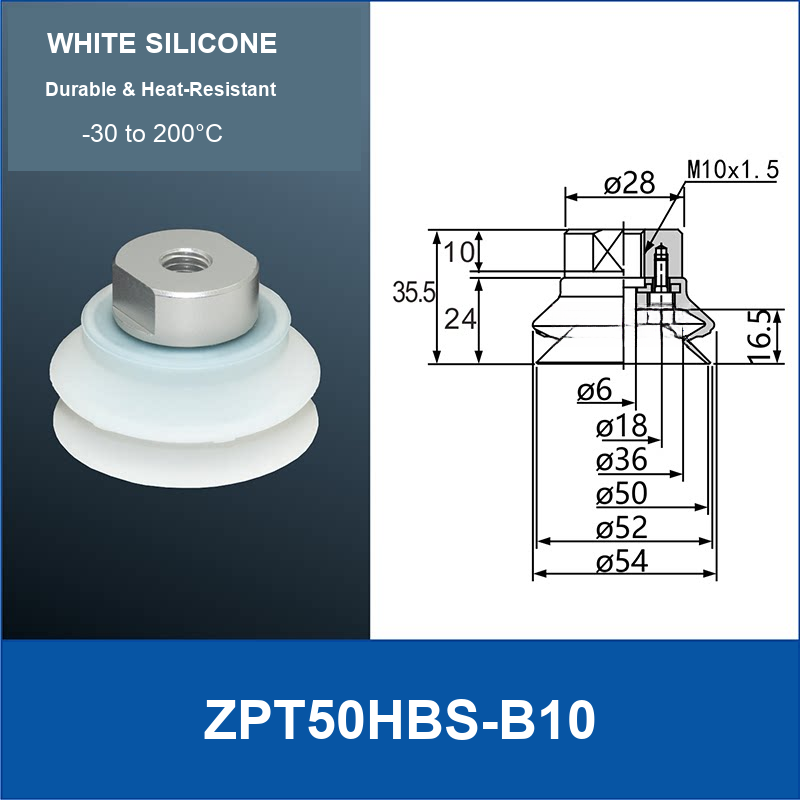

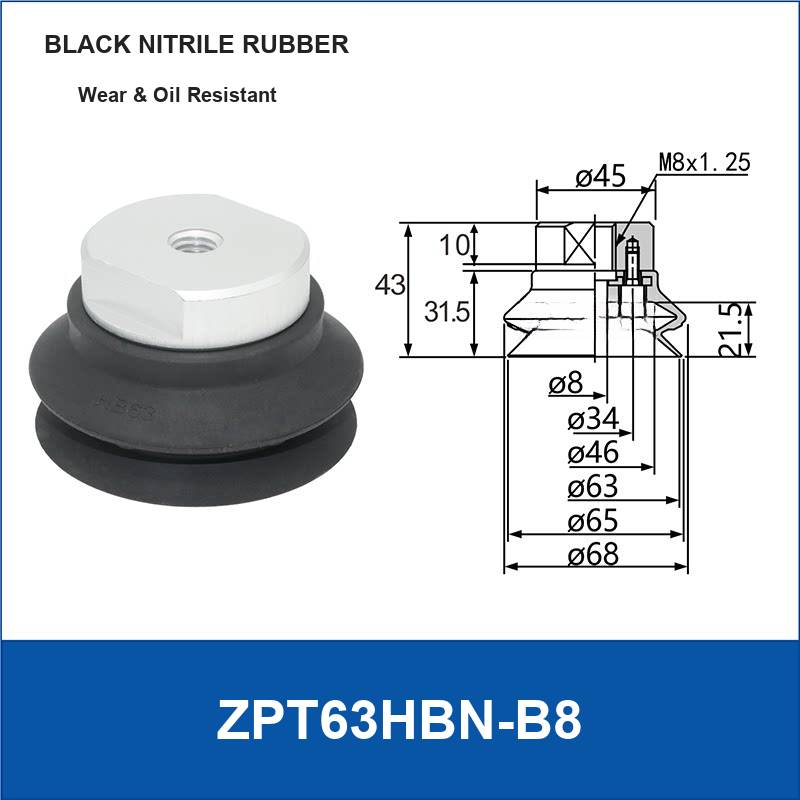

- Model images show model-specific dimensions and technical details
Applications and Suitable Workpieces

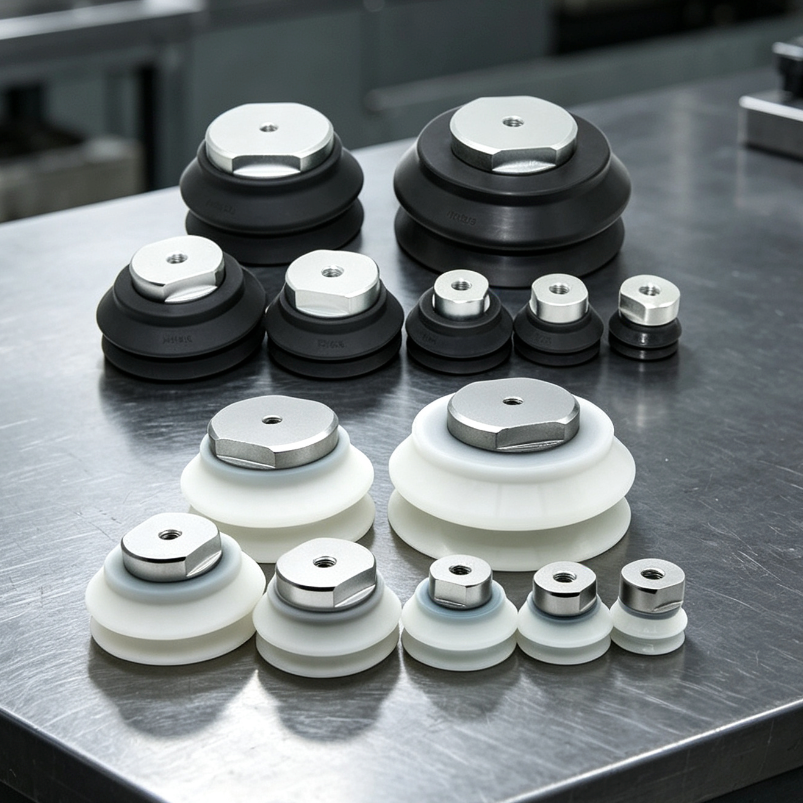

ZPT Heavy-Duty Bellows Silicone and Nitrile Rubber Vacuum Suction Cups: These large or high-rigidity cups are intended for heavy, large or curved workpieces requiring a strong body and stable machine connection.
Recommended applications
- Large sheet-metal panels, automotive bodies, glass panels, rigid plastic parts, wood panels and other heavy non-porous workpieces.
- Robotic transfer, machine loading, panel handling, palletizing and high-load industrial automation.
- Bellows versions for curved or height-varying parts and flatter versions for stable positioning on broad flat surfaces.
Model and selection notes
- ZPT32 through ZPT150 identify diameter; HBS and HBN identify silicone and nitrile-rubber heavy-duty bellows versions, with B8/B10/B12/B16 connections.
- Choose diameter and thread size according to the available sealing area, workpiece mass and dynamic load.
- Use multiple cups and a structural support arrangement for large panels; do not rely on one cup without a verified safety calculation.
- Actual capacity depends on vacuum level, center-of-gravity offset, lateral acceleration, surface finish and safety factor.
Model / configuration / SKU

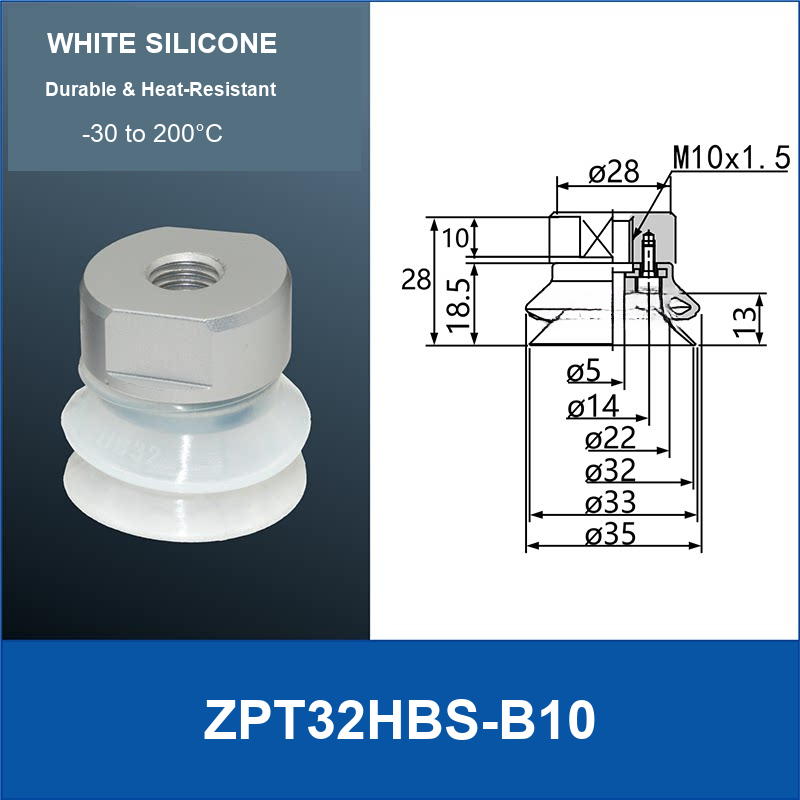

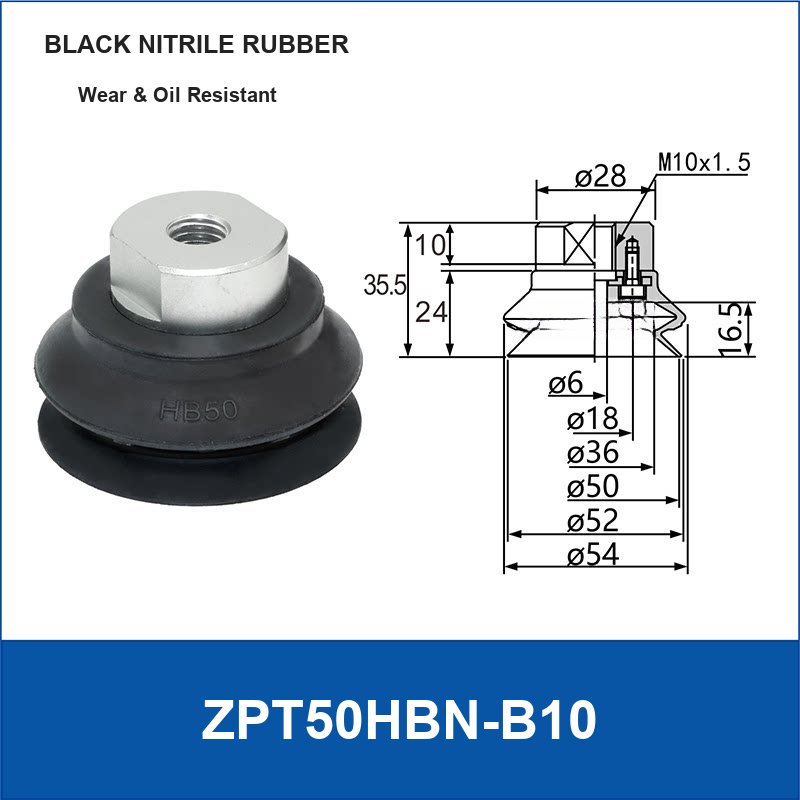

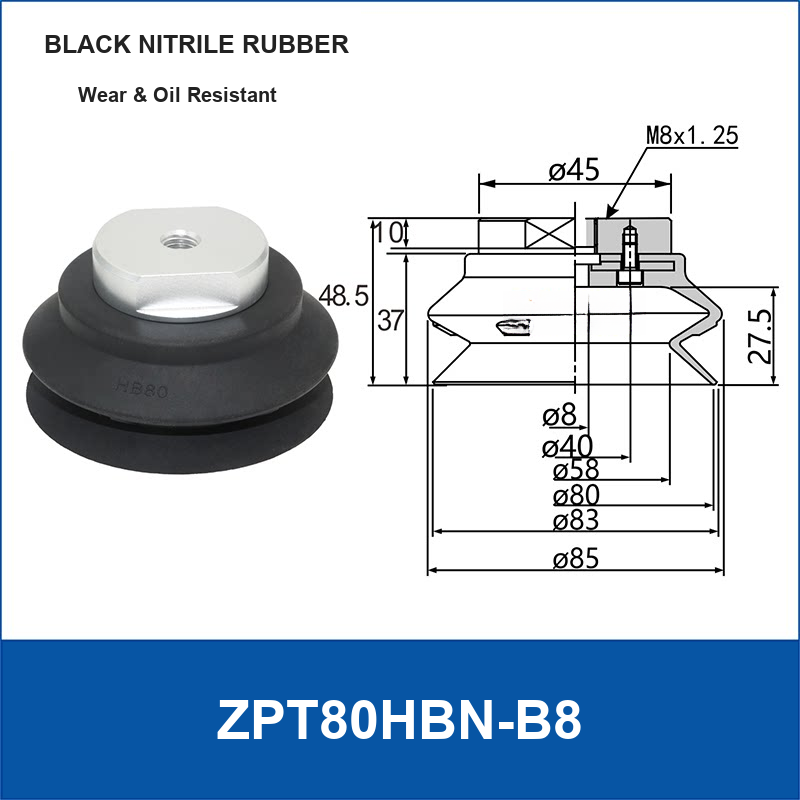

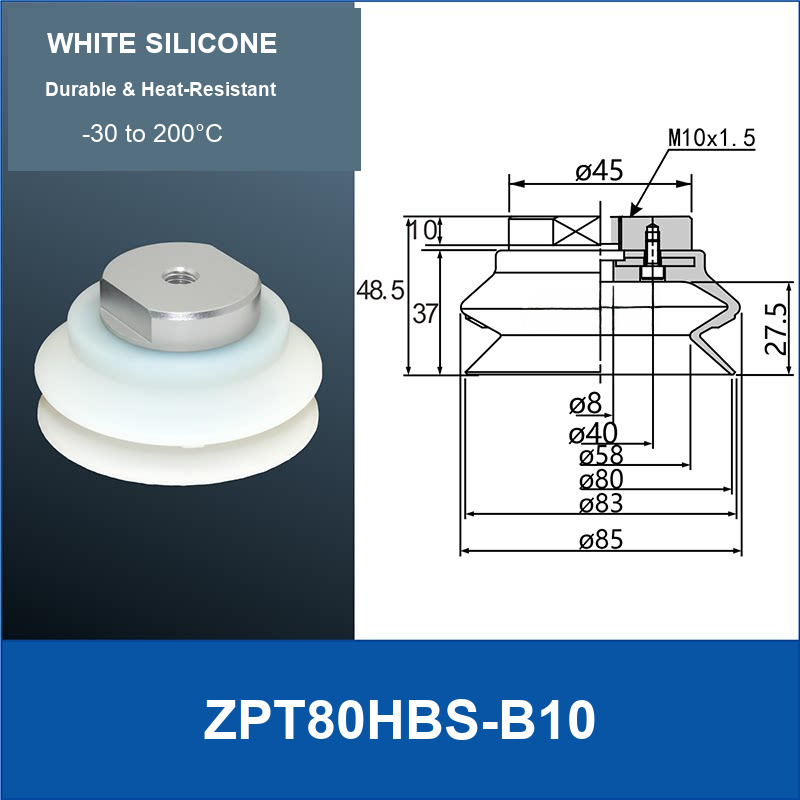

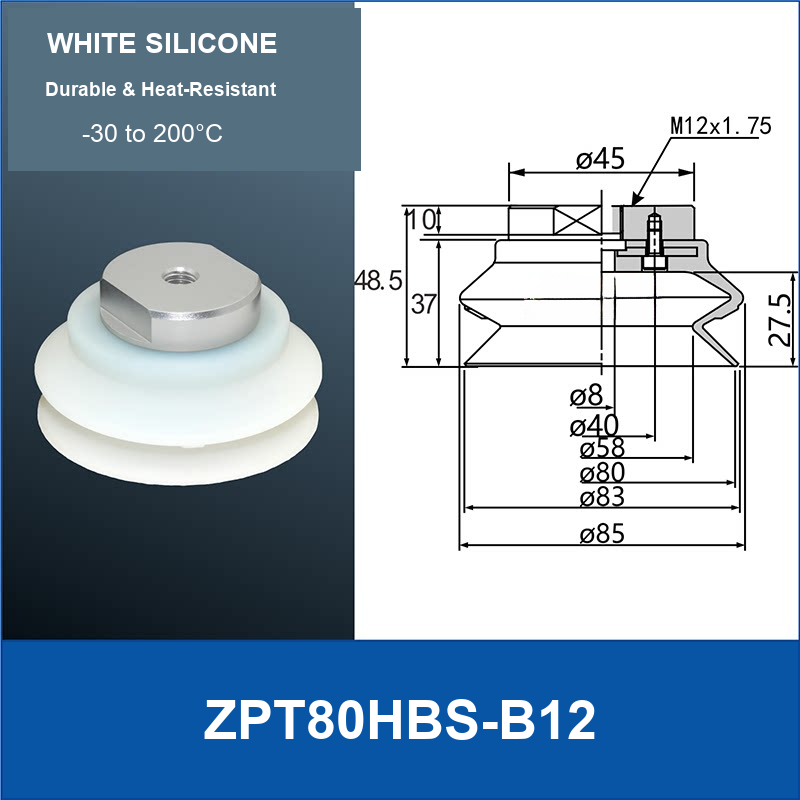

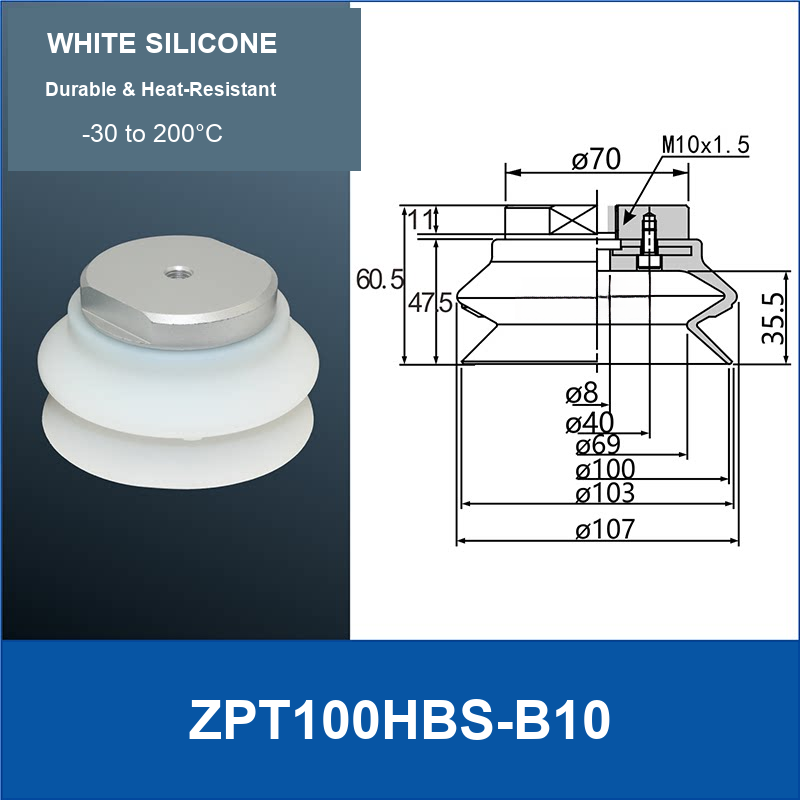

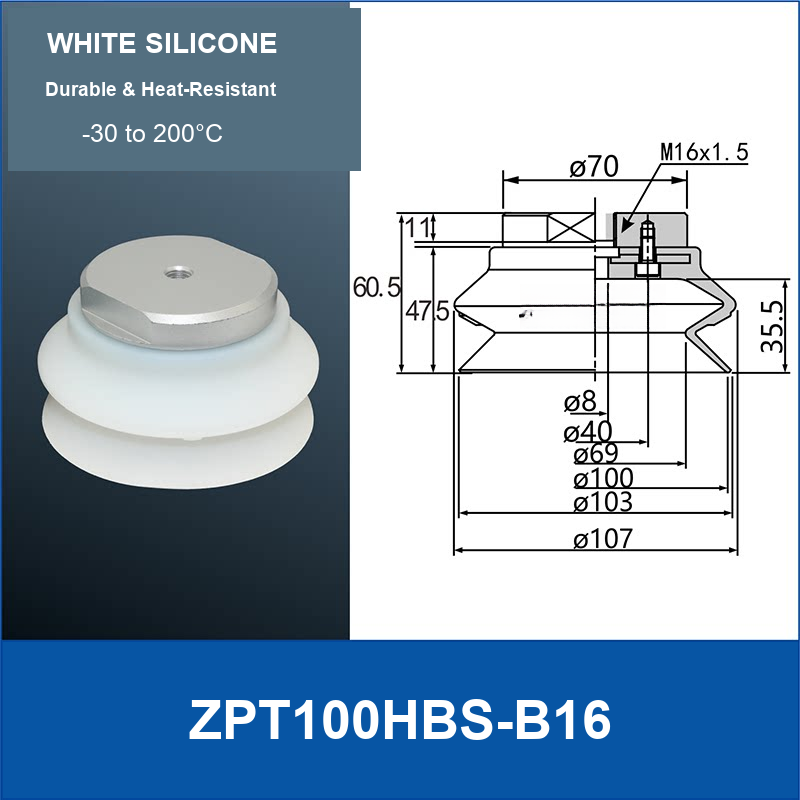

| Model / configuration | SKU |
|---|---|
| ZPT32HBS-B8 | 5109806347419 |
| ZPT32HBN-B8 | 5109806347420 |
| ZPT32HBS-B10 | 5109806347421 |
| ZPT32HBN-B10 | 5109806347422 |
| ZPT40HBS-B8 | 5109806347423 |
| ZPT40HBN-B8 | 5109806347424 |
| ZPT40HBS-B10 | 5109806347425 |
| ZPT40HBN-B10 | 5109806347426 |
| ZPT40HBS-B12 | 5109806347427 |
| ZPT40HBN-B12 | 5109806347428 |
| ZPT50HBS-B8 | 5109806347429 |
| ZPT50HBN-B8 | 5109806347430 |
| ZPT50HBS-B10 | 5109806347431 |
| ZPT50HBN-B10 | 5109806347432 |
| ZPT50HBS-B12 | 5109806347433 |
| ZPT50HBN-B12 | 5109806347434 |
| ZPT63HBS-B8 | 5109806347435 |
| ZPT63HBN-B8 | 5109806347436 |
| ZPT63HBS-B10 | 5109806347437 |
| ZPT63HBN-B10 | 5109806347438 |
| ZPT63HBS-B12 | 5109806347439 |
| ZPT63HBN-B12 | 5109806347440 |
| ZPT63HBS-B16 | 5109806347441 |
| ZPT63HBN-B16 | 5109806347442 |
| ZPT80HBS-B8 | 5109806347443 |
| ZPT80HBN-B8 | 5109806347444 |
| ZPT80HBS-B10 | 5109806347445 |
| ZPT80HBN-B10 | 5109806347446 |
| ZPT80HBS-B12 | 5109806347447 |
| ZPT80HBN-B12 | 5109806347448 |
| ZPT80HBS-B16 | 5109806347449 |
| ZPT80HBN-B16 | 5109806347450 |
| ZPT100HBS-B10 | 5109806347451 |
| ZPT100HBN-B10 | 5109806347452 |
| ZPT100HBS-B12 | 5109806347453 |
| ZPT100HBN-B12 | 5109806347454 |
| ZPT100HBN-B16 | 5109806347455 |
| ZPT100HBS-B16 | 5109806347456 |
| ZPT125HBN-B10 | 5109806347457 |
| ZPT125HBS-B10 | 5109806347458 |
| ZPT125HBS-B12 | 5109806347459 |
| ZPT125HBN-B12 | 5109806347460 |
| ZPT125HBS-B16 | 5109806347461 |
| ZPT125HBN-B16 | 5109806347462 |
| ZPT150HBS-B12 White Silicone | 5197632789408 |
| ZPT150HBN-B12 Black Nitrile Rubber | 6264153366312 |
| ZPT150HBS-B16 White Silicone | 6264153366313 |
| ZPT150HBN-B16 Black Nitrile Rubber | 6264153366314 |
