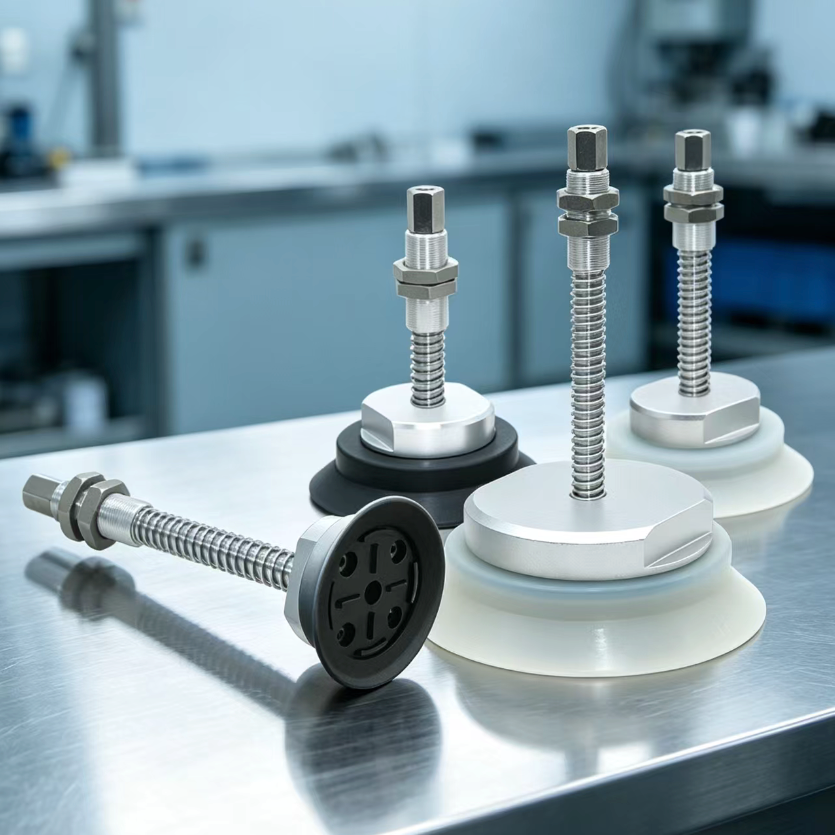

ZPT-H Heavy-Duty Vacuum Cup Holders, 63–125 mm, 25–75 mm Stroke

ZPT-H Heavy-Duty Vacuum Cup Holders

Spring-loaded heavy-duty vacuum cup holders for compatible industrial pick-and-place, robotic end-of-arm tooling and pneumatic material-handling assemblies. Select the exact model by cup diameter, material and stroke.

• 24 selectable configurations with dedicated model images
• Cup diameters: 63, 80, 100 and 125 mm
• Spring strokes: 25, 50 and 75 mm
• White silicone and black nitrile rubber cup options
• White silicone options with a stated -30 to 200 degrees C range
• Black nitrile options specified for abrasion and oil resistance

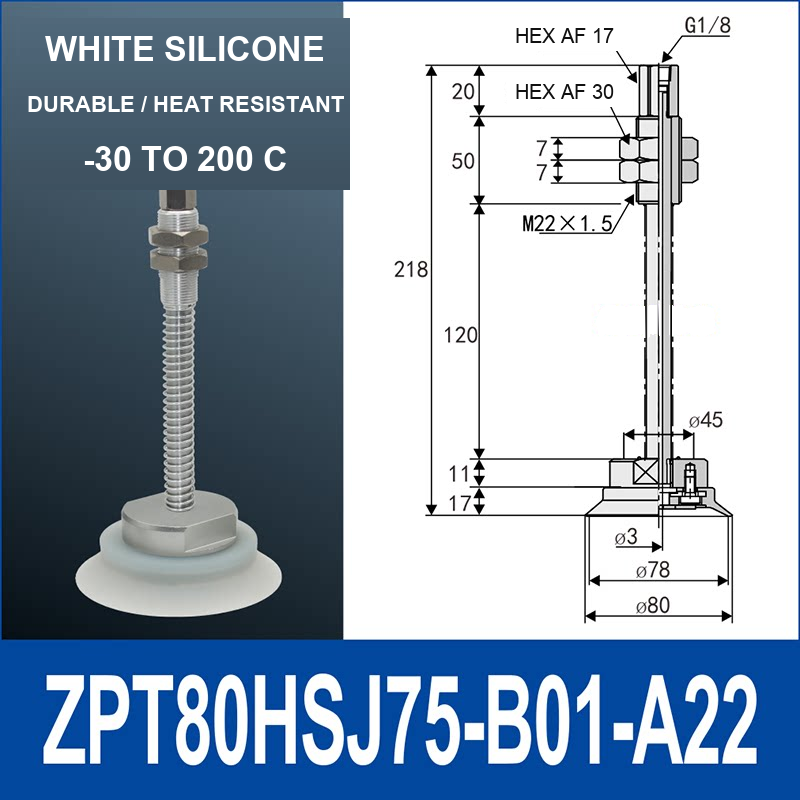

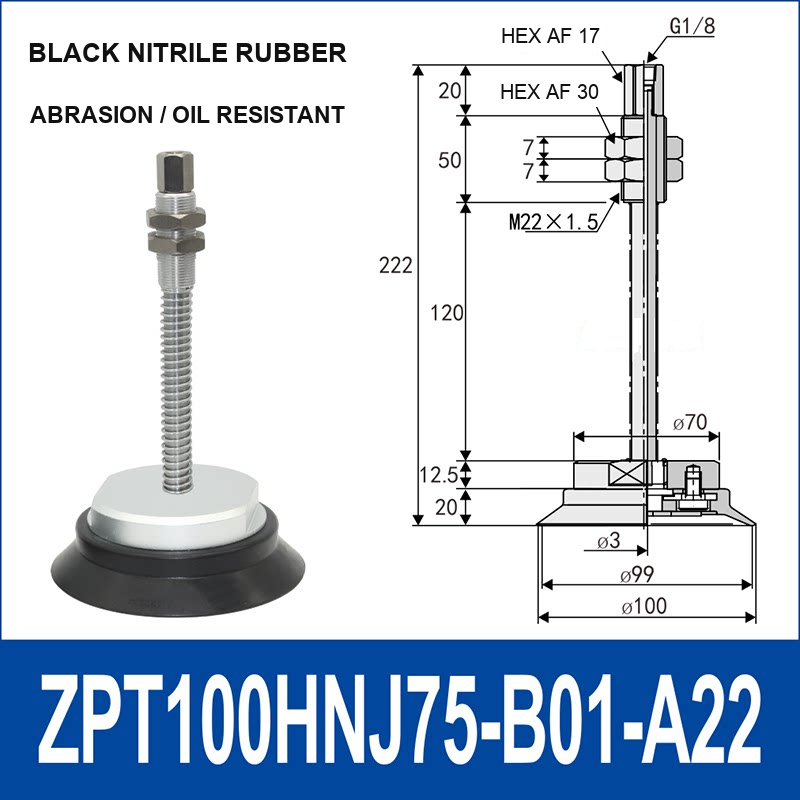

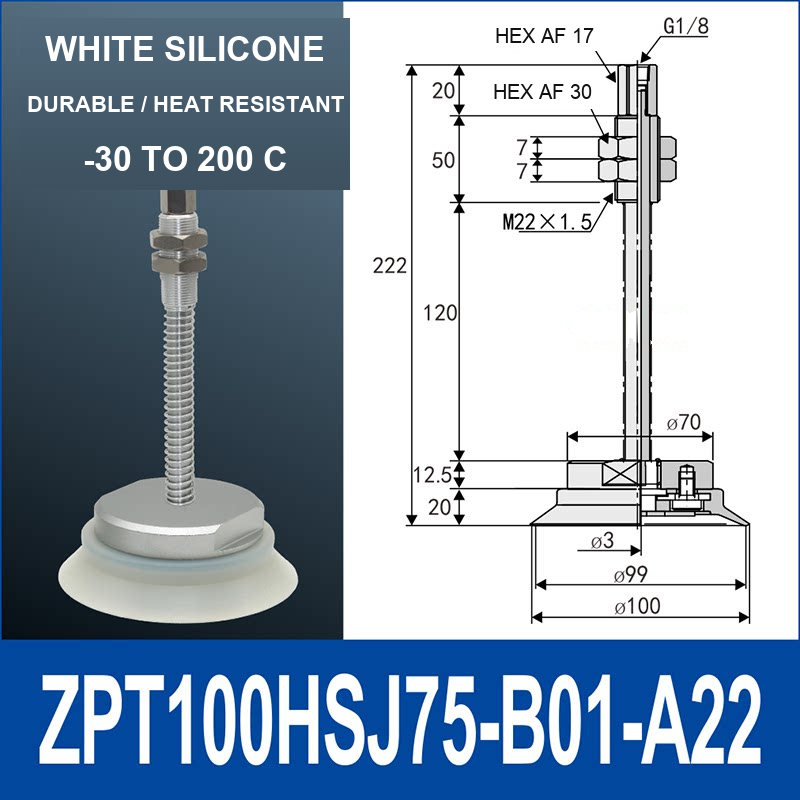

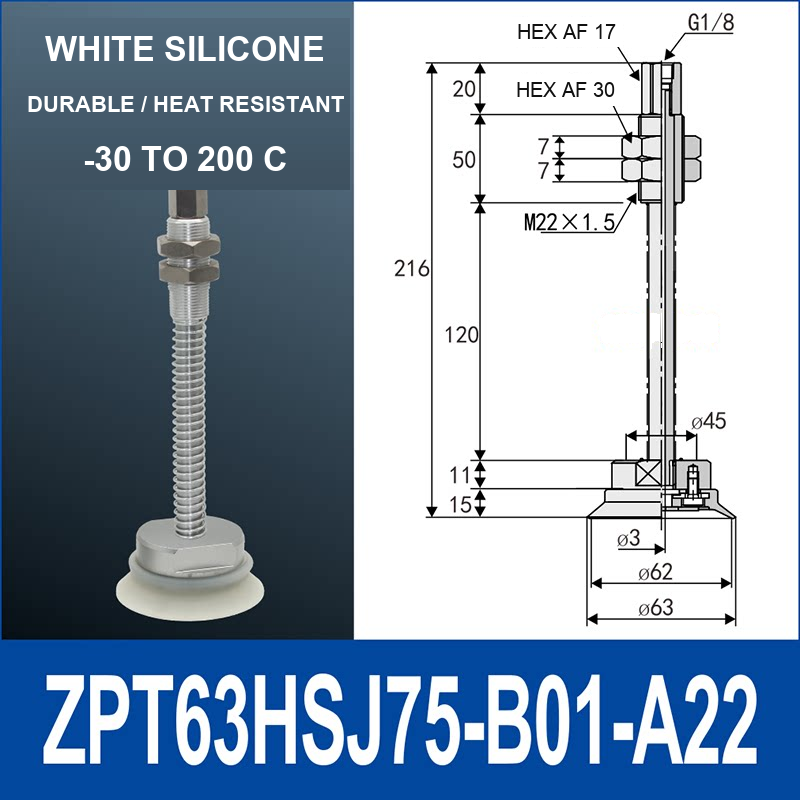

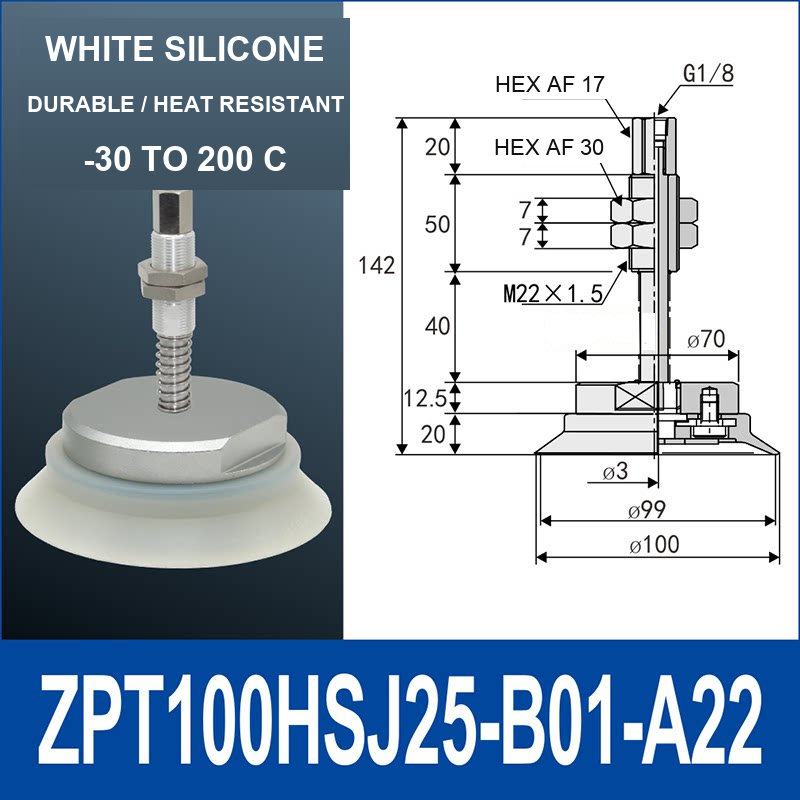

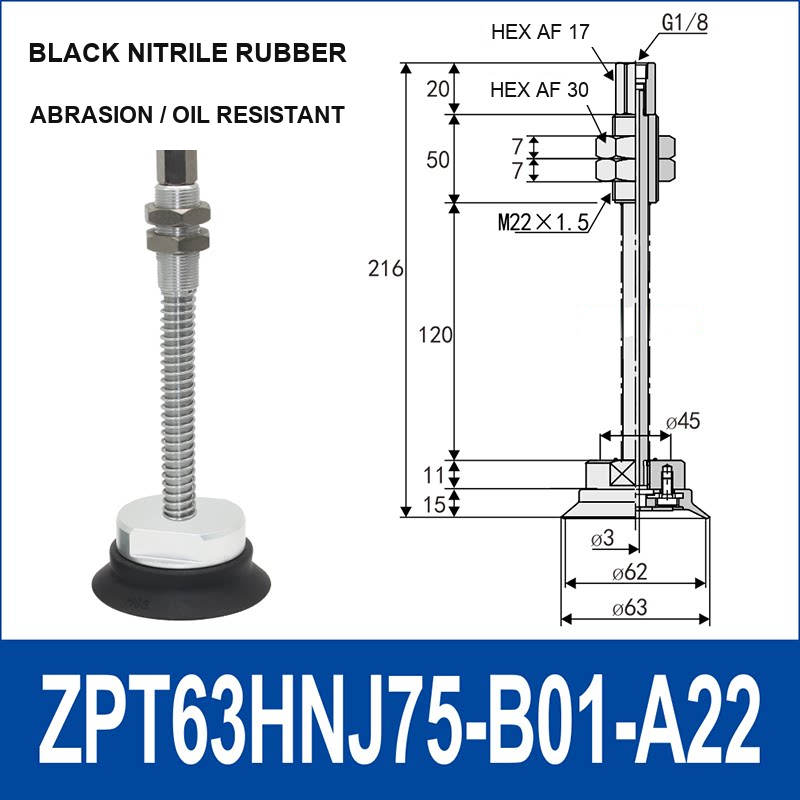

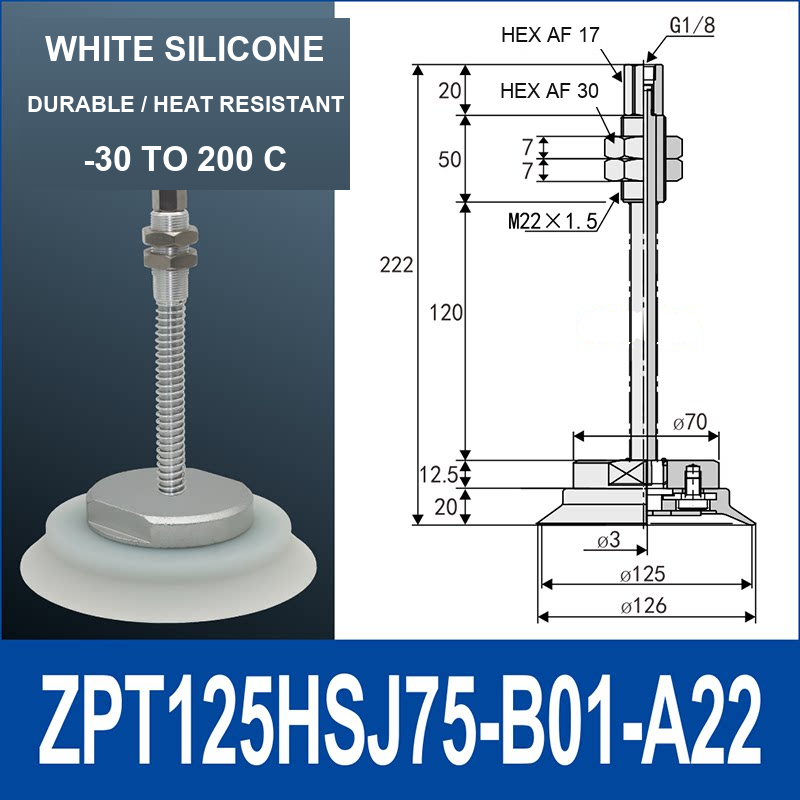

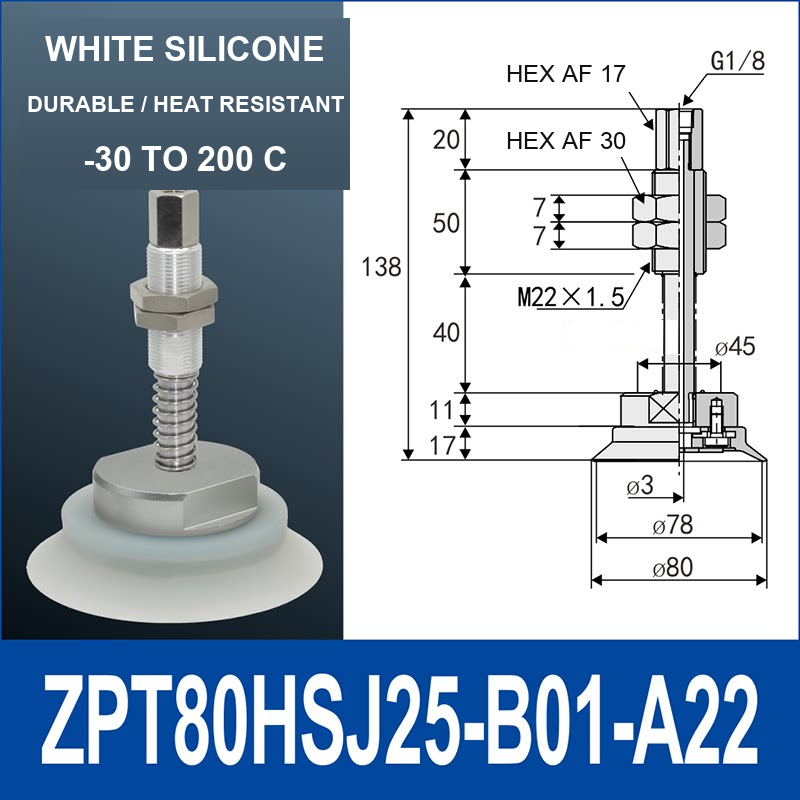

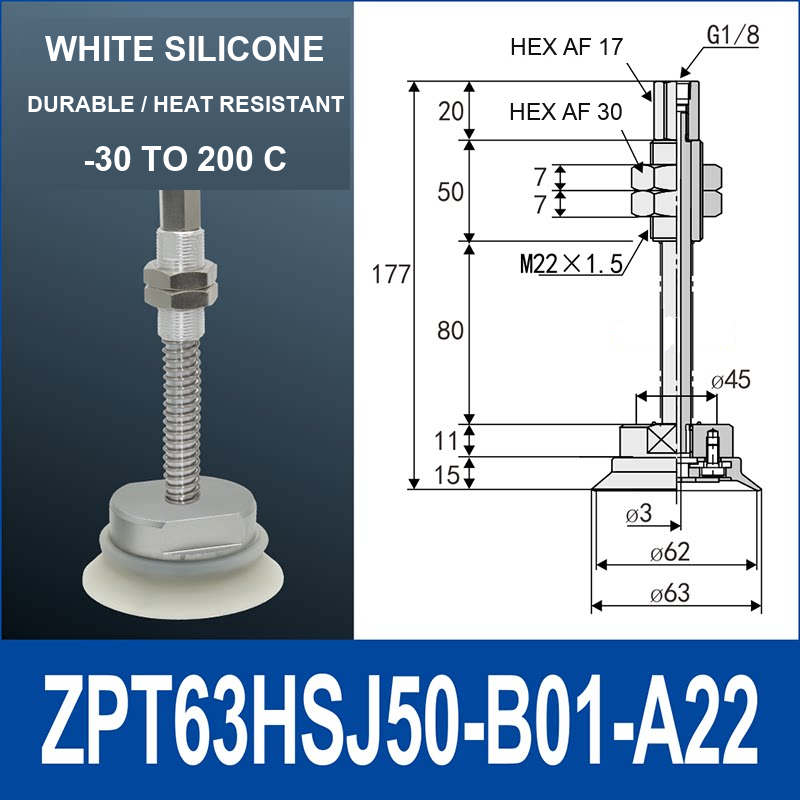

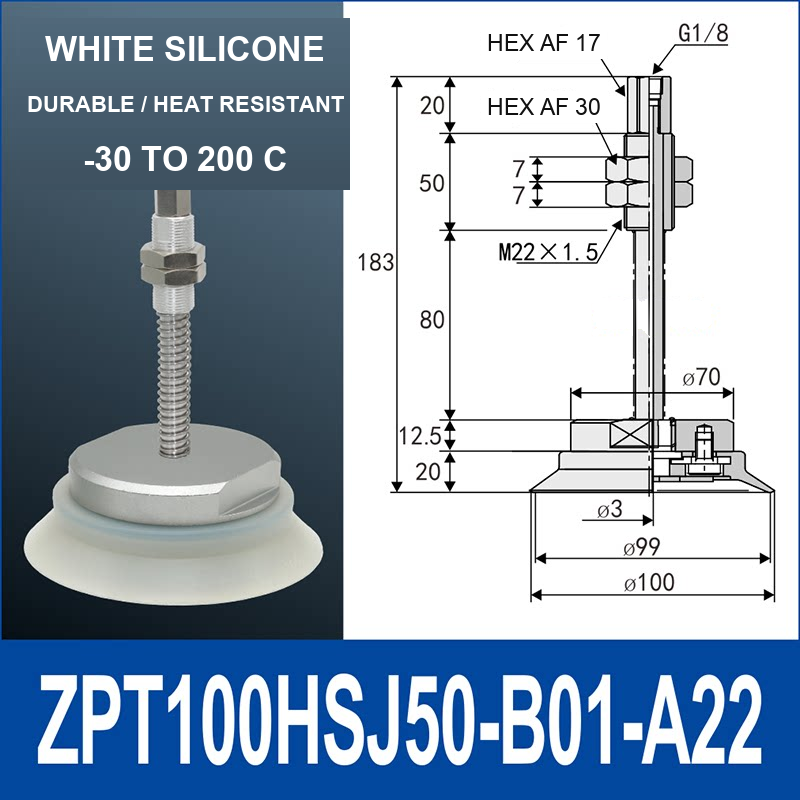

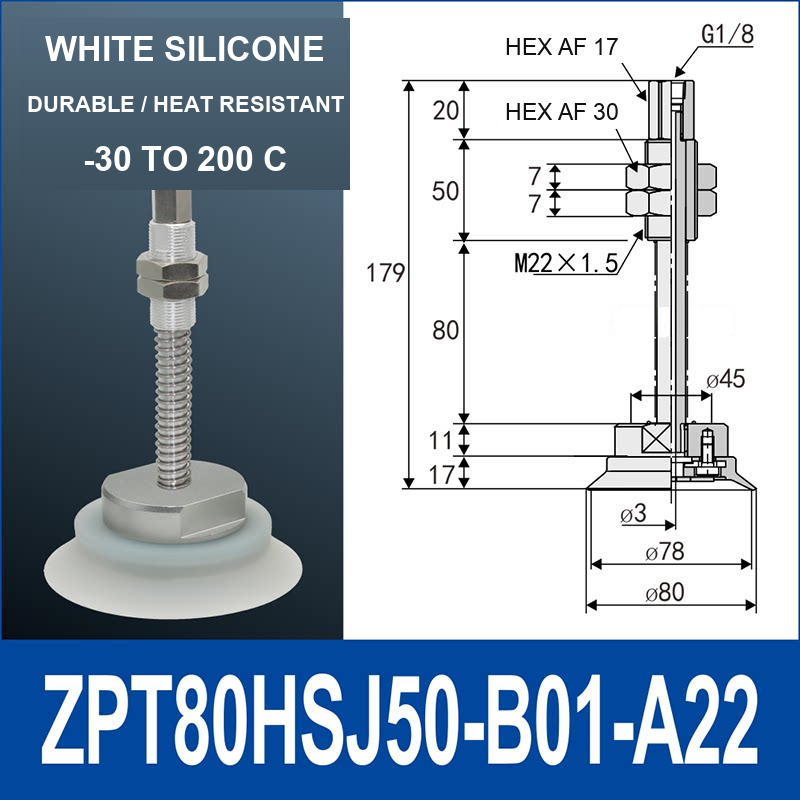

• Model drawings show G1/8, M22 x 1.5, HEX AF 17 and HEX AF 30 callouts
• Each selected model retains its own product photograph and technical dimensions

Applications / Suitable For

• Industrial pick-and-place, transfer and positioning equipment
• Robotic end-of-arm tooling requiring compliant spring travel
• Sheet, panel and compatible flat-surface handling after application testing

Confirm the selected model code, drawing, cup diameter, material, stroke, thread interfaces, workpiece surface, vacuum level, payload, acceleration and operating environment before use. No lifting-safety, food-contact, medical or regulatory certification is claimed.
