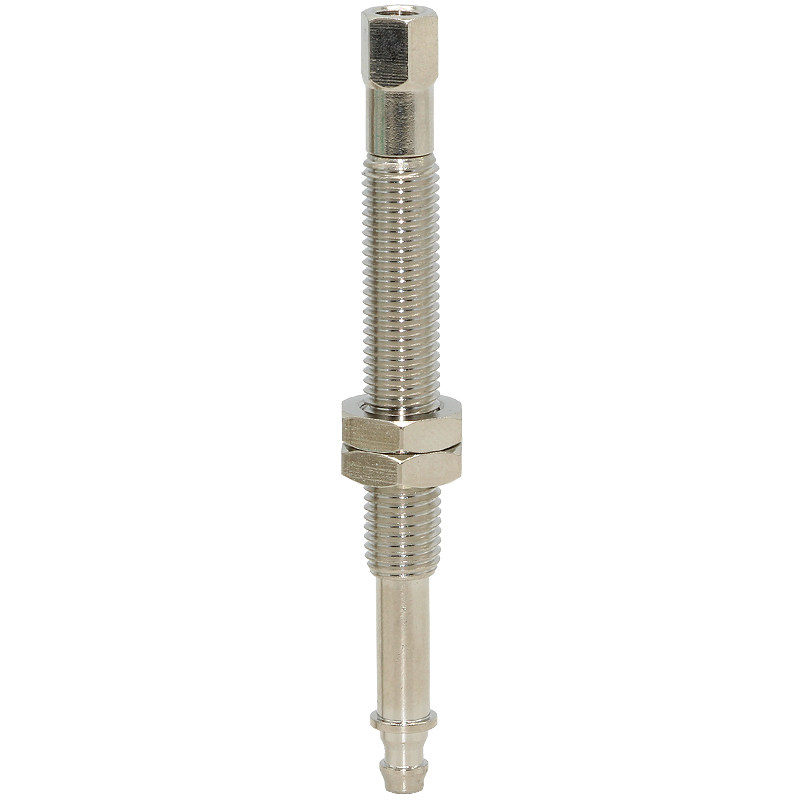

ZPB1 Mini Vacuum Cup Buffer Mounts & Adapters — M3/M5/M8

ZPB1 Mini Vacuum Cup Buffer Mounts & Adapters

Compact M3, M5 and M8 vacuum-cup buffer mounts and matching adapters for industrial automation, end effectors and replacement installations. Select the complete model code to match the connection and dimensional drawing.

Quick Model Finder

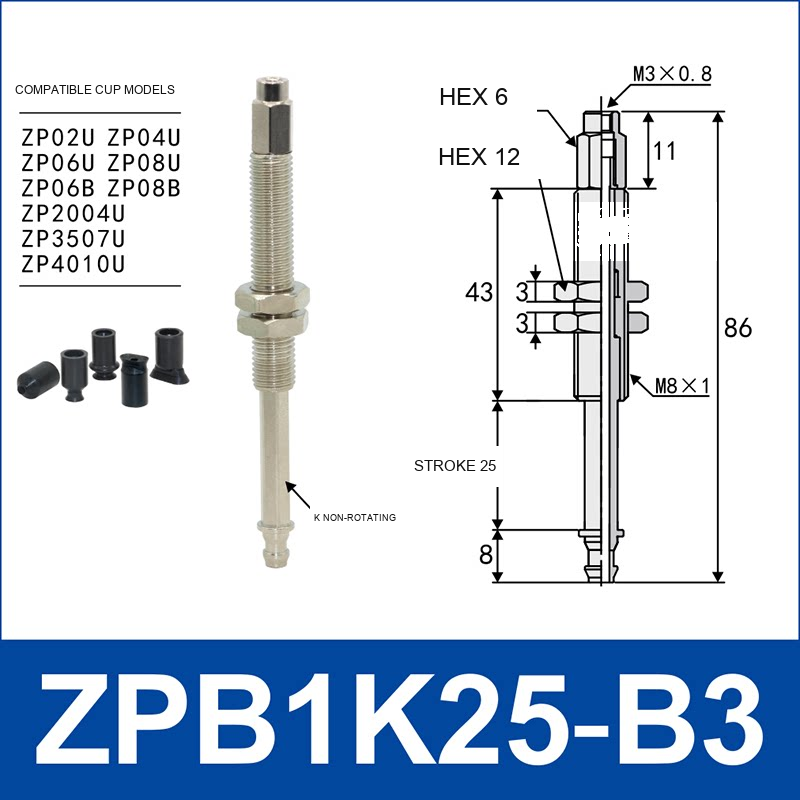

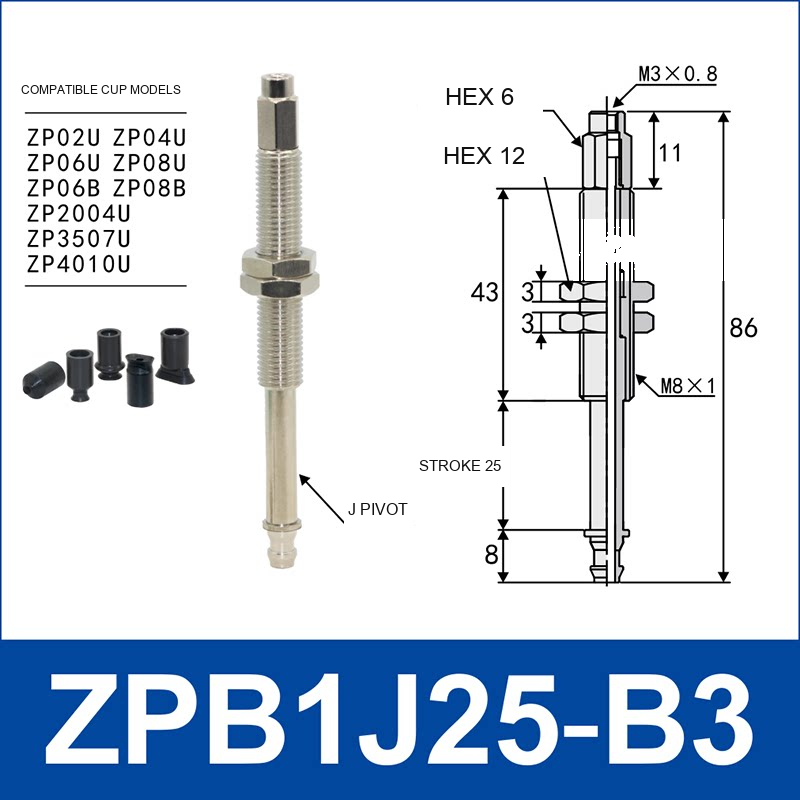

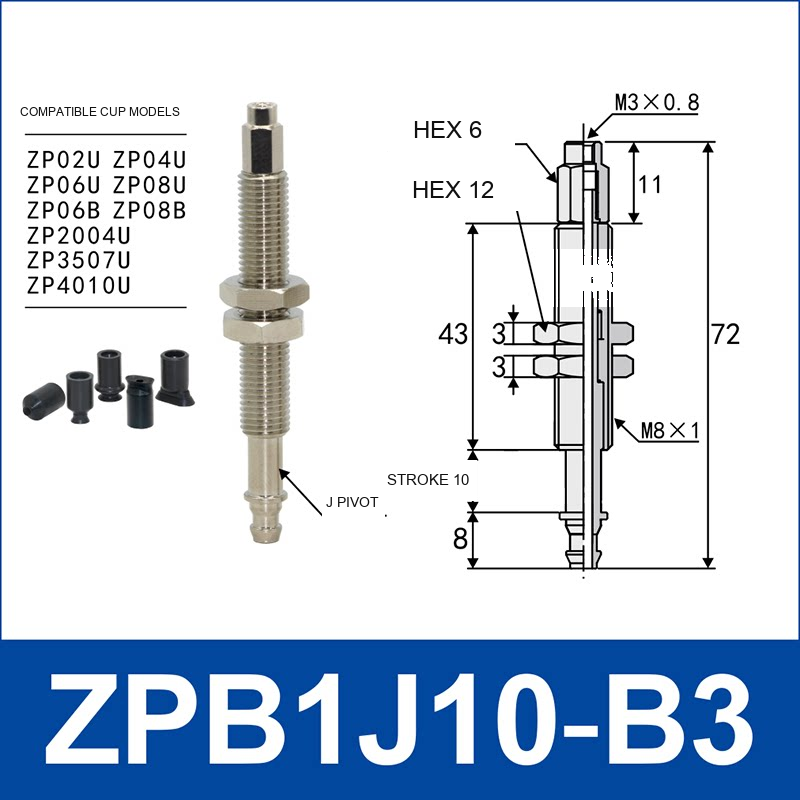

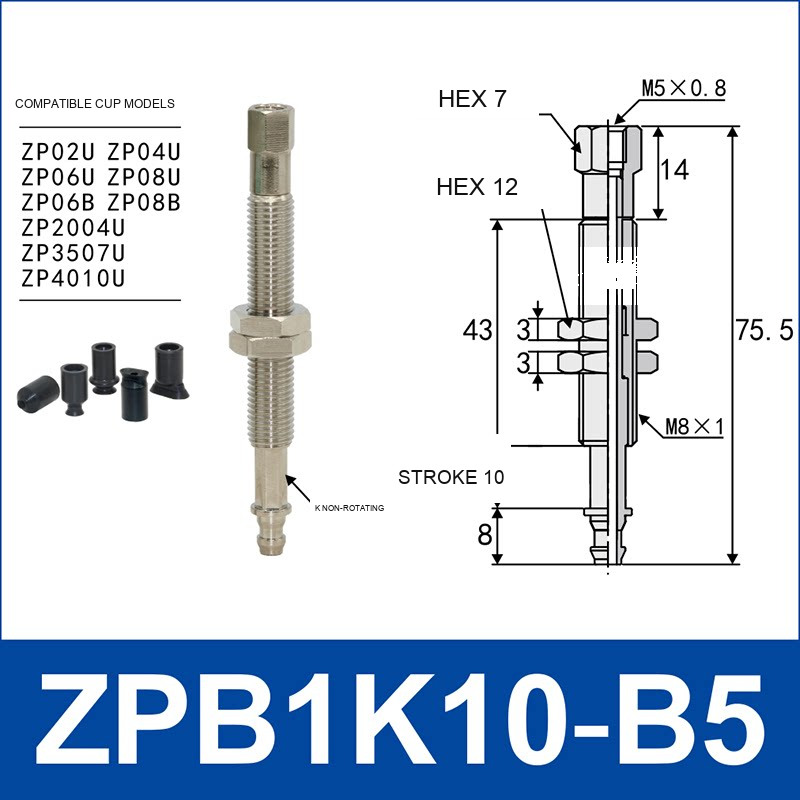

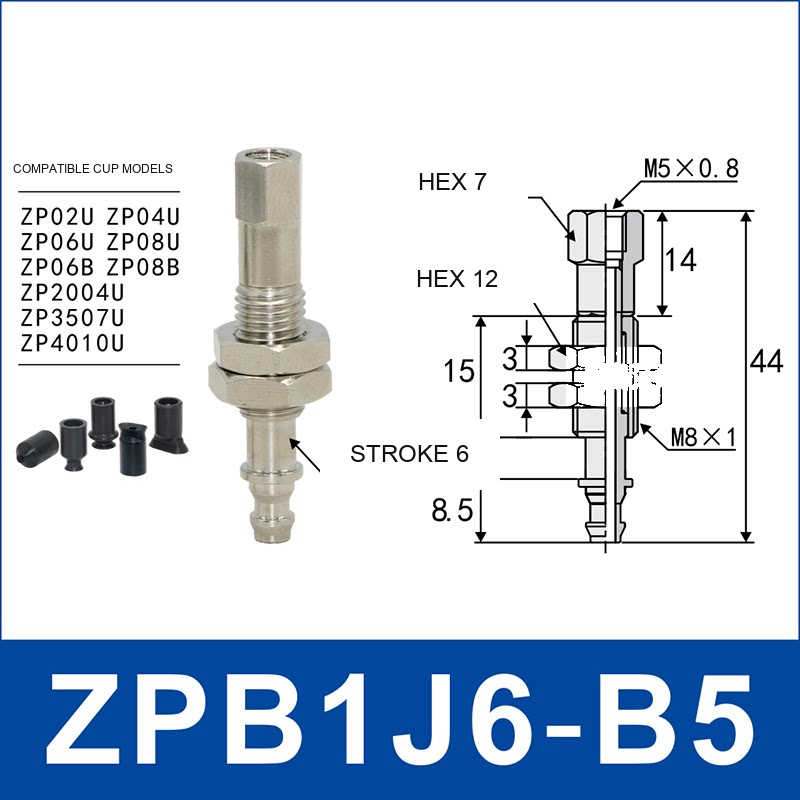

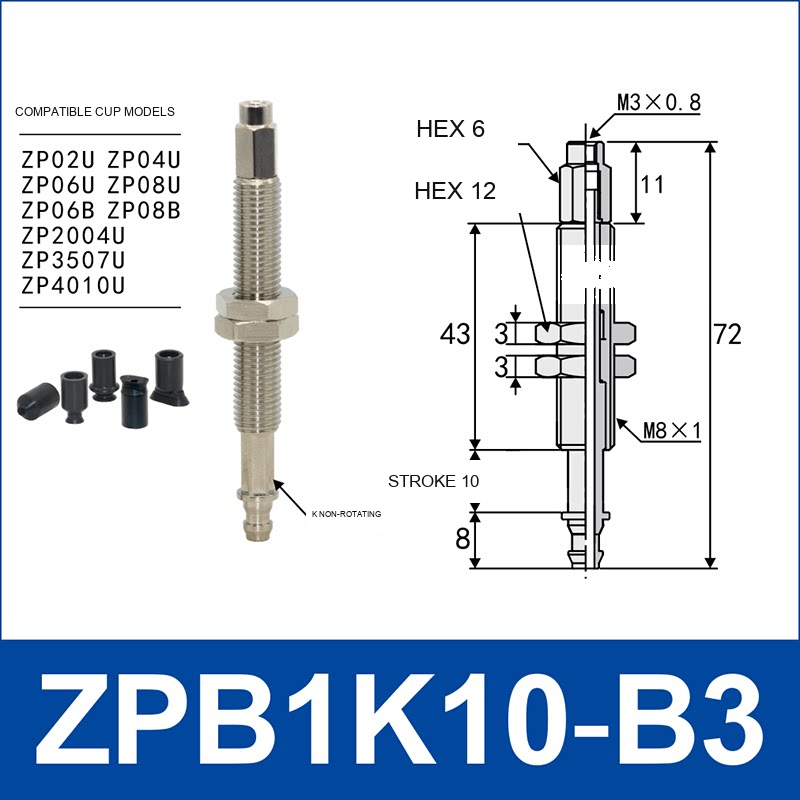

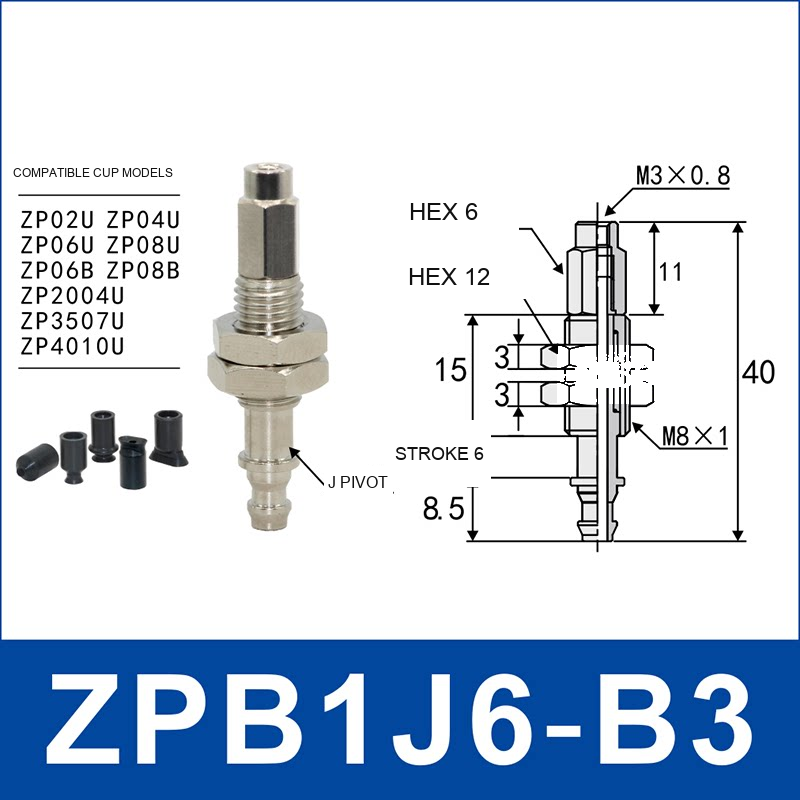

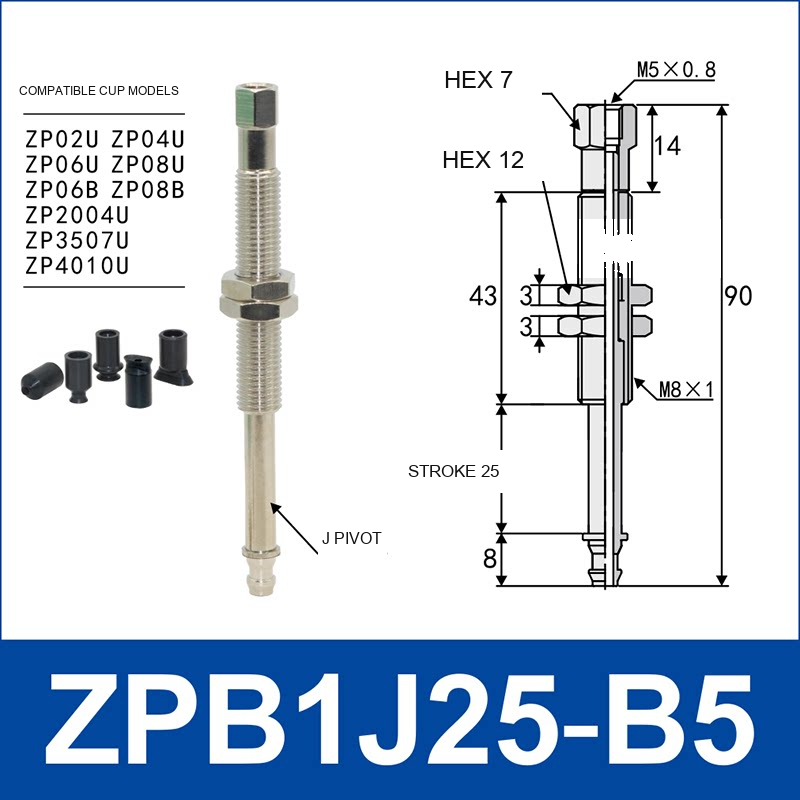

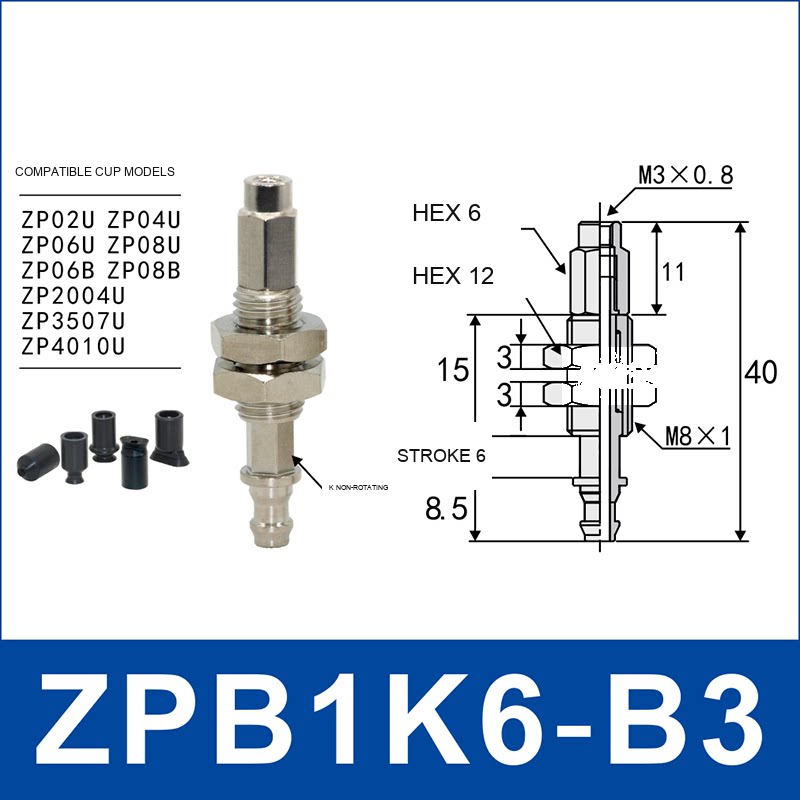

1. Choose the ZPB1 family: J models are the pivot configuration shown in the drawing; K models are the non-rotating configuration. B3 and B5 are distinct listed variants.
2. Check the stroke and threads: use the selected image to confirm the shown stroke, M-thread, hex size, overall dimensions and cup-side interface.

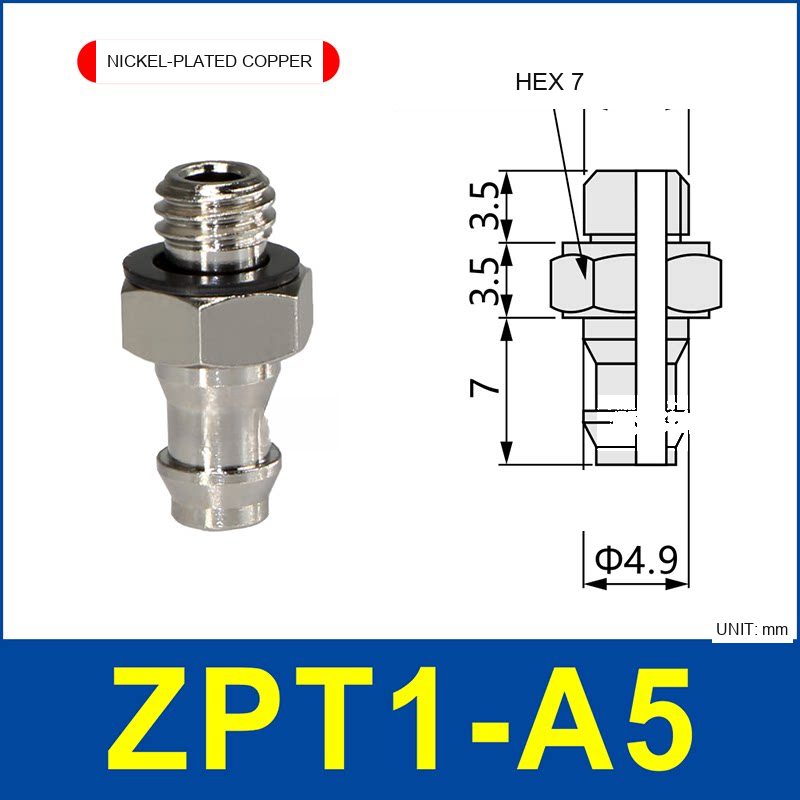

3. Select special adapters by the full code: M8-L61 Anti-Rotation, ZPT1-A5 and ZPT06UGSK25-06-A8 are separate configurations and must not be substituted by a nearby ZPB1 code.
4. Confirm fit before ordering: compare the complete code and dimensional drawing with the existing cup, holder, bracket and mounting clearance.

Suitable for

• Industrial vacuum cup mounting and compact buffering
• Robot end effectors, pick-and-place fixtures and automation tooling
• Replacement installations where the exact thread and dimensions are confirmed

Before use

Verify the complete model code, drawing, thread interfaces, cup compatibility, mounting clearance, vacuum level, workpiece, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
