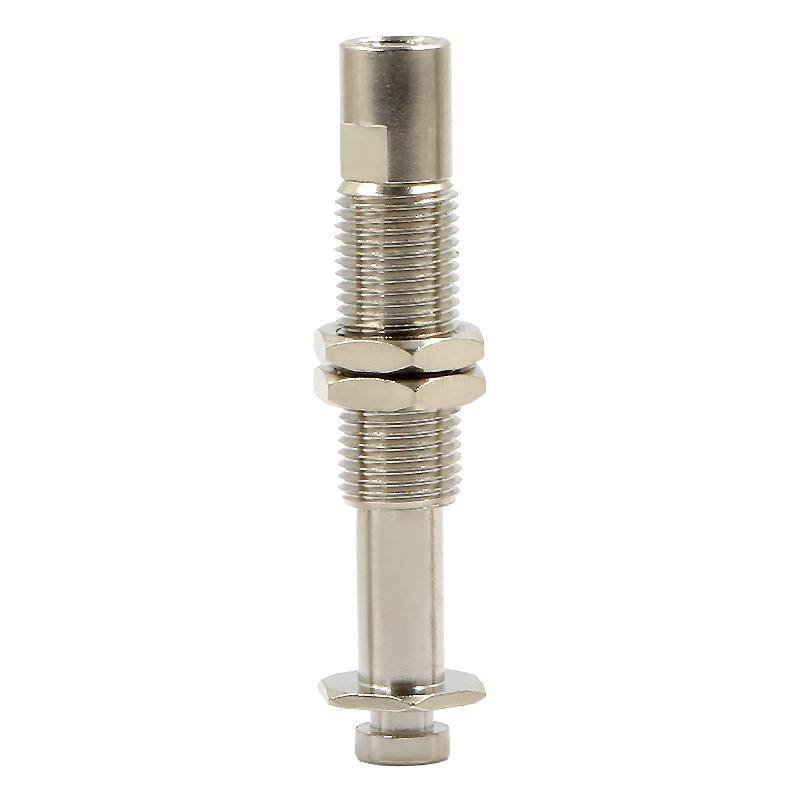

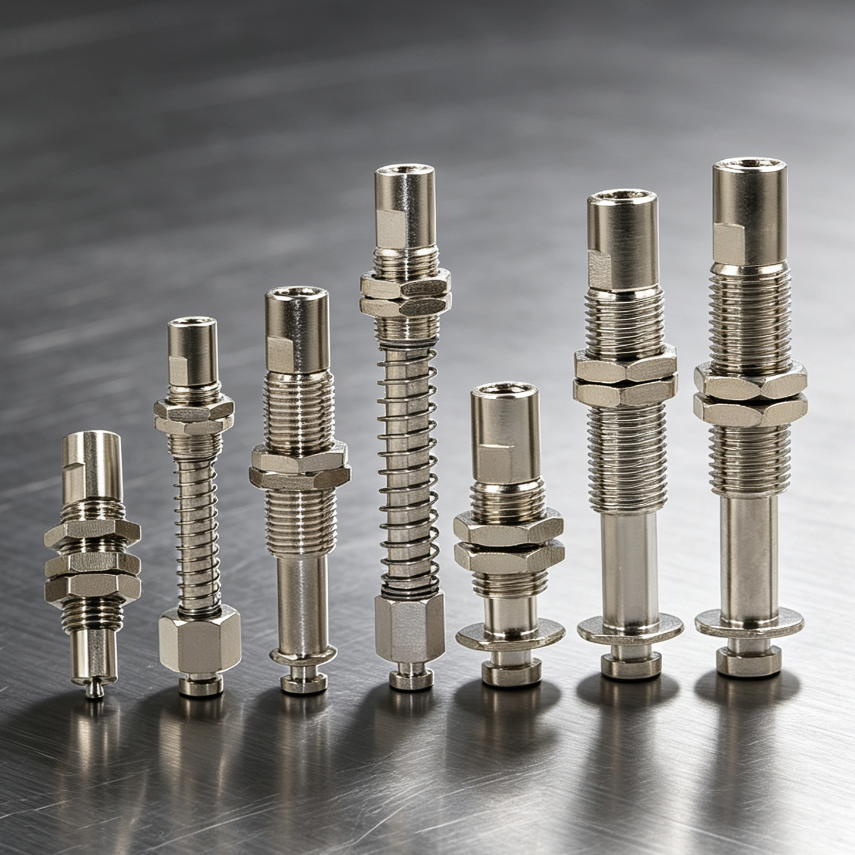

ZP3B Series Nickel-Plated Brass Vacuum Cup Holders – Standard and Anti-Rotation

ZP3B Series Vacuum Cup Holders

Compact nickel-plated brass holders for mounting compatible ZP3 miniature vacuum cups in industrial pick-and-place systems, robotic end-of-arm tooling and pneumatic handling assemblies.

• 25 selectable ZP3B configurations
• T1 models with M3 x 0.5 upper connection

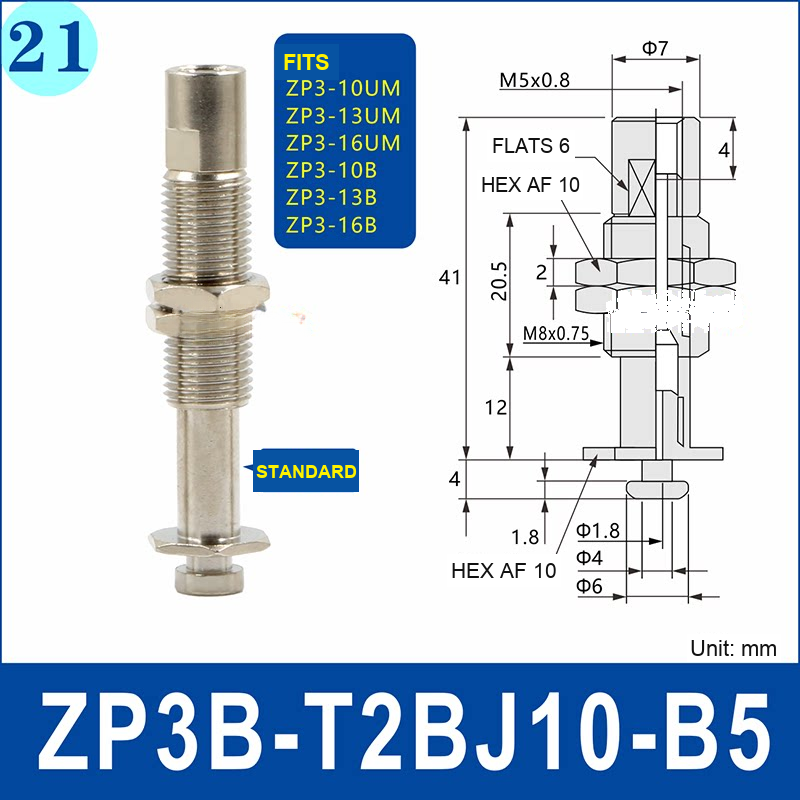

• T2A and T2B models with M5 x 0.8 upper connection
• M8 x 0.75 mounting thread

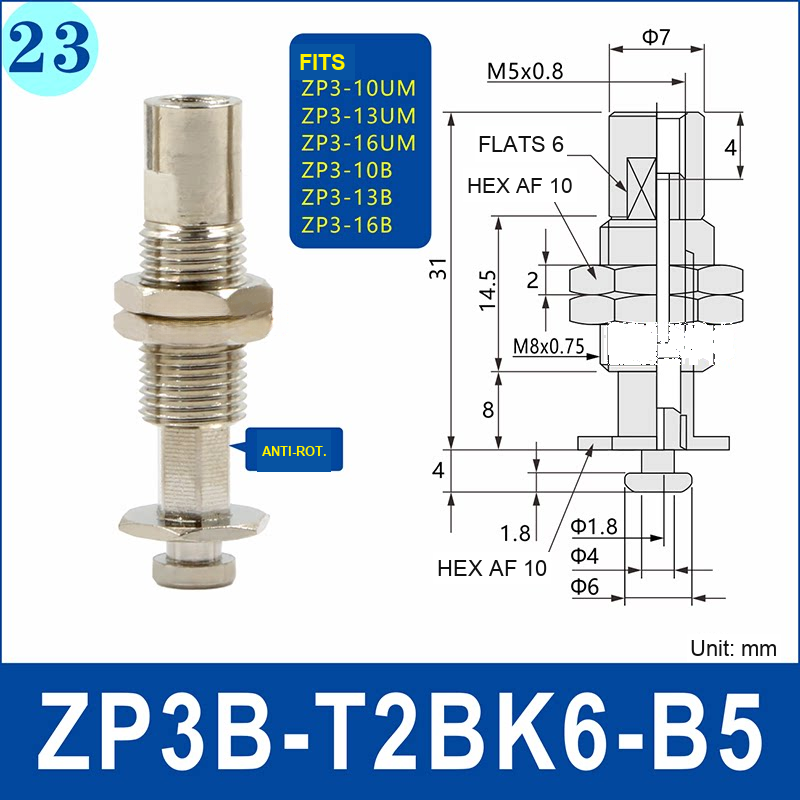

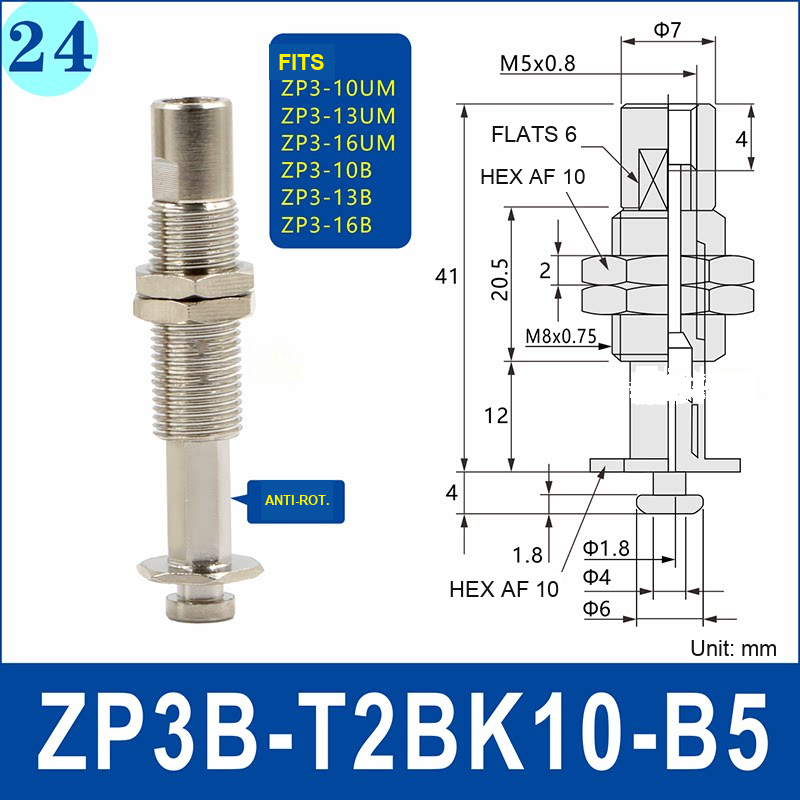

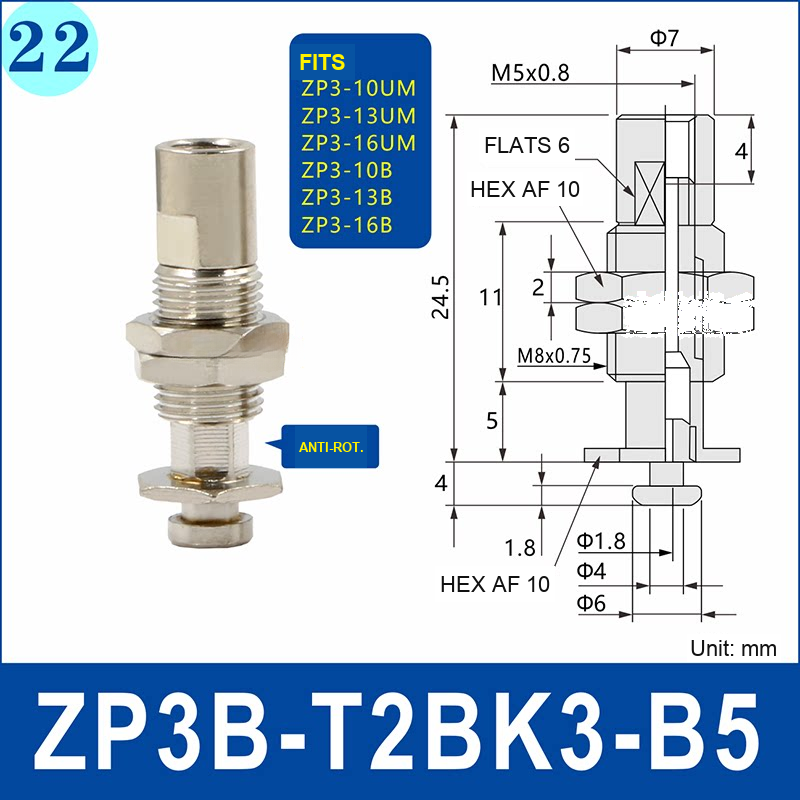

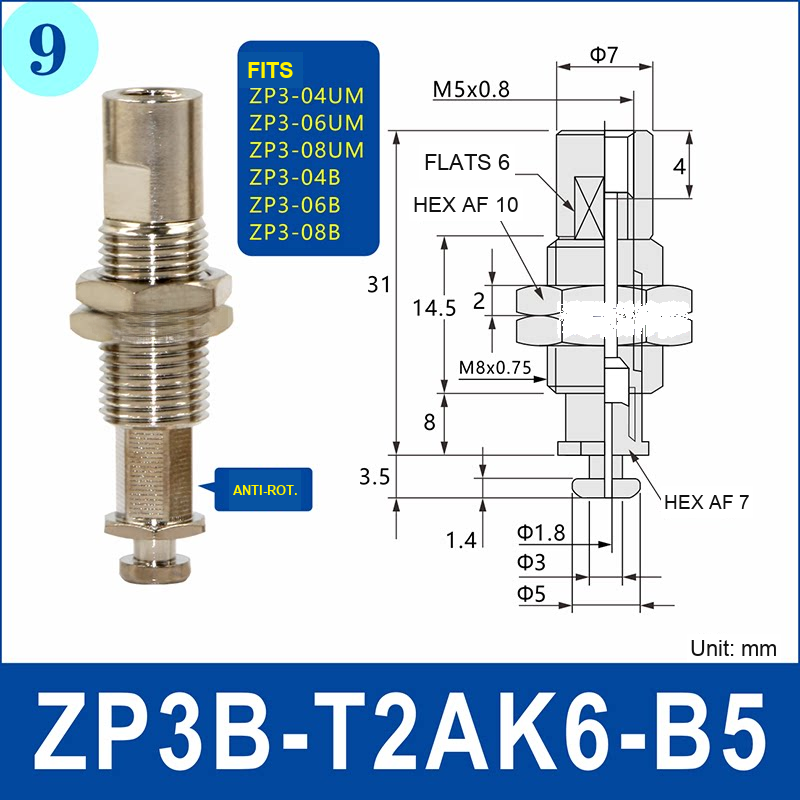

• Standard J configurations and anti-rotation K configurations
• Nickel-plated brass construction
• Compatible cup families, thread callouts and dimensions are shown for the applicable models

Applications / Suitable For

• Small-part pick-and-place and component transfer
• Robotic end-of-arm tooling with compact vacuum-cup mounting
• Packaging, assembly, sorting and general industrial automation

Confirm the selected model code, thread size, rotation configuration, cup compatibility, vacuum level, payload, acceleration and operating environment before use. No food-contact, medical, lifting-safety or regulatory certification is claimed.
