ZP3 UMS, UMN and UMGS Vacuum Cups with A5/B5 M5 Mounts, 4–16 mm

ZP3 UMS, UMN and UMGS Vacuum Cups with A5/B5 M5 Mounts

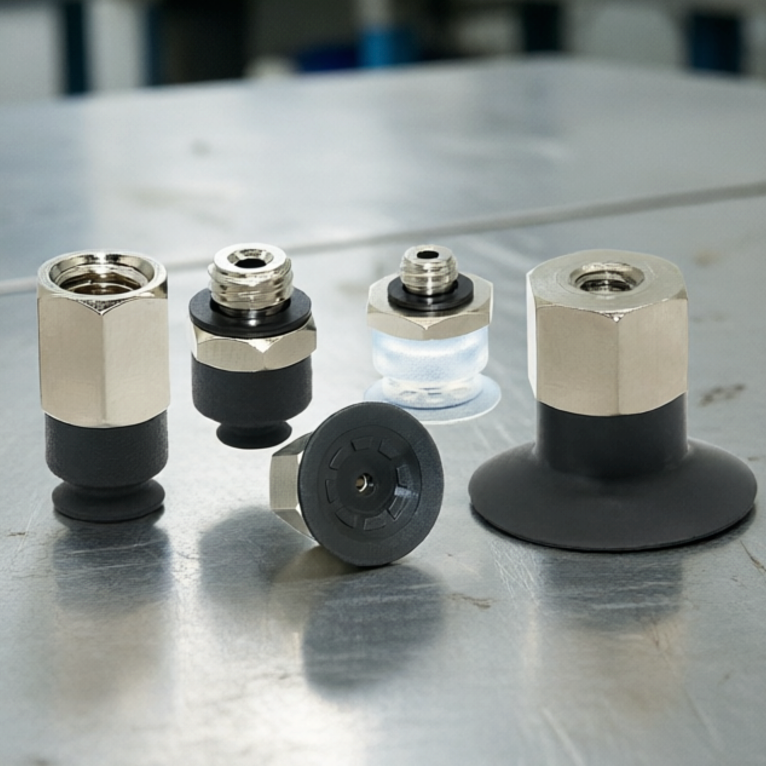

Compact bellows-style vacuum cups with integrated A5 male or B5 female M5 x 0.8 mounts for compatible industrial pick-and-place, robotic end-of-arm tooling and pneumatic handling assemblies.

• Pad diameters: 4, 6, 8, 10, 13 and 16 mm
• A5 male M5 x 0.8 and B5 female M5 x 0.8 mounting options
• Across-flat sizes: 7 mm for 4-8 mm pads and 10 mm for 10-16 mm pads
• UMS white silicone variants with a specified -30 to 200 degrees C range
• UMN black nitrile rubber variants specified for abrasion and oil resistance
• UMGS conductive silicone rubber variants
• Mark-free black nitrile A5 options in 6 mm and 16 mm pad sizes

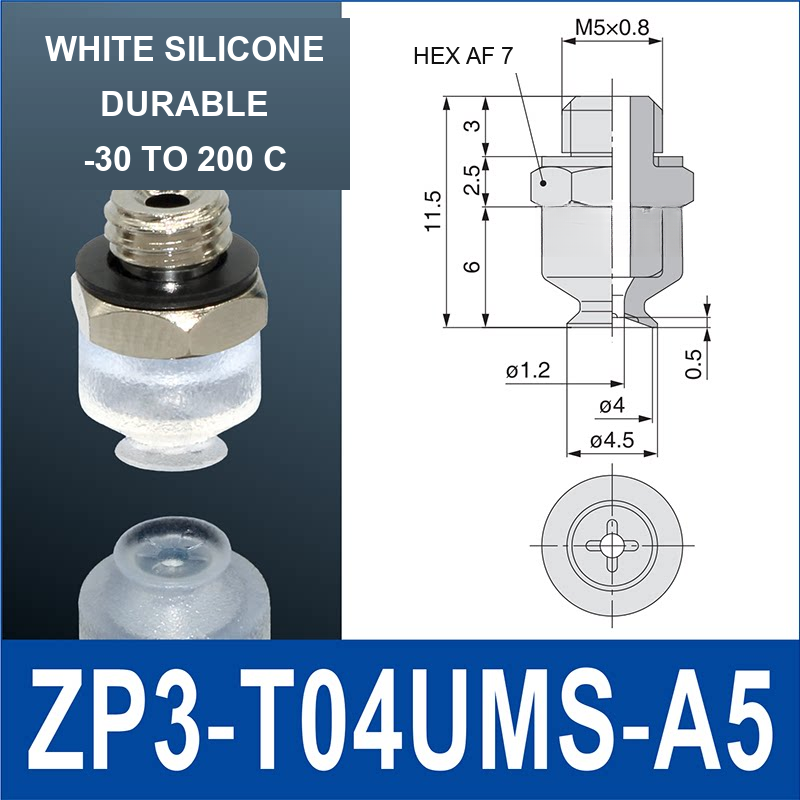

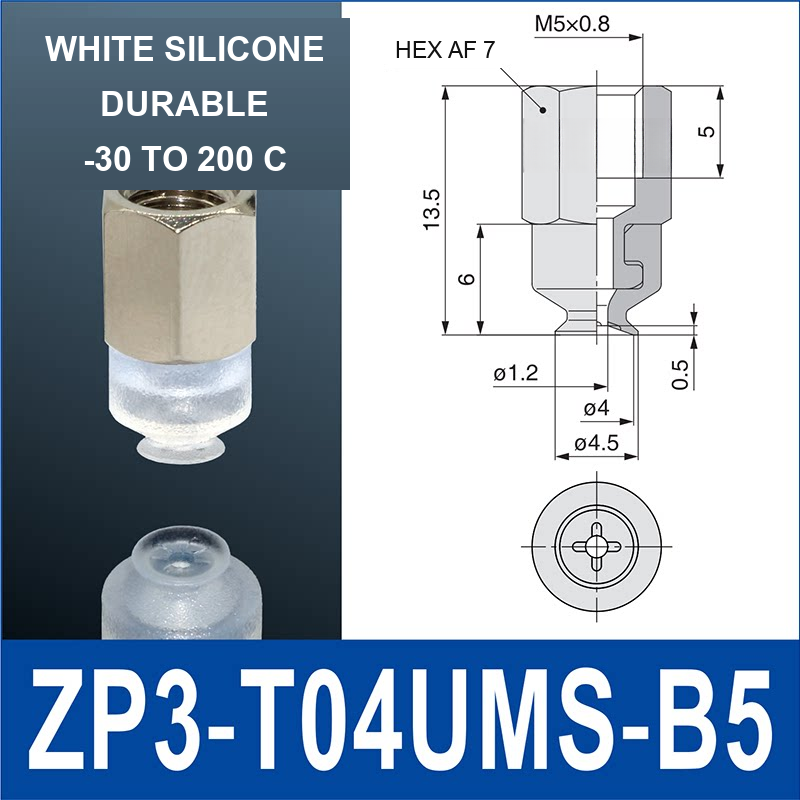

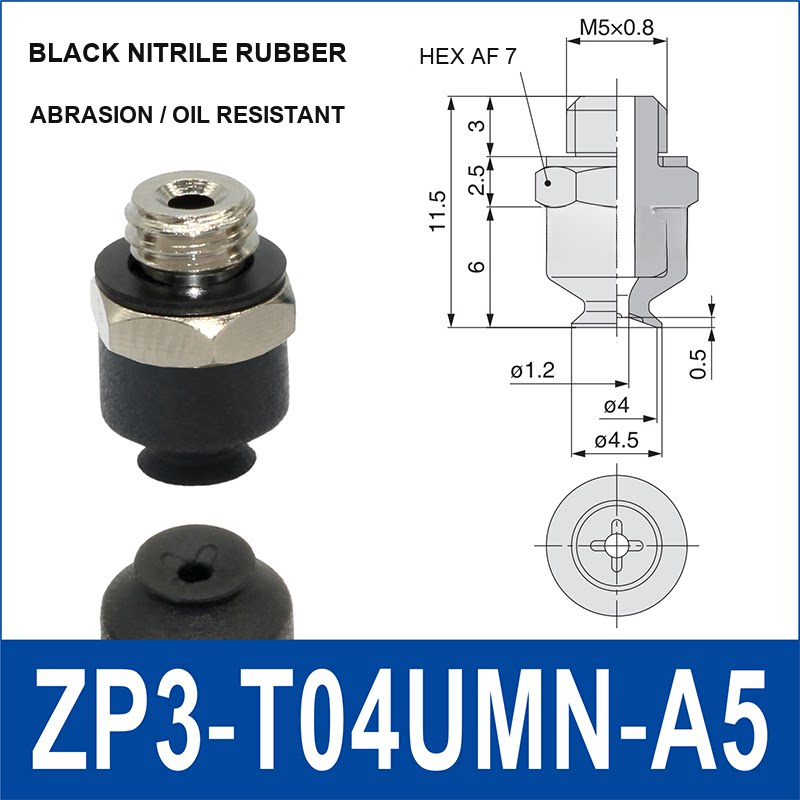

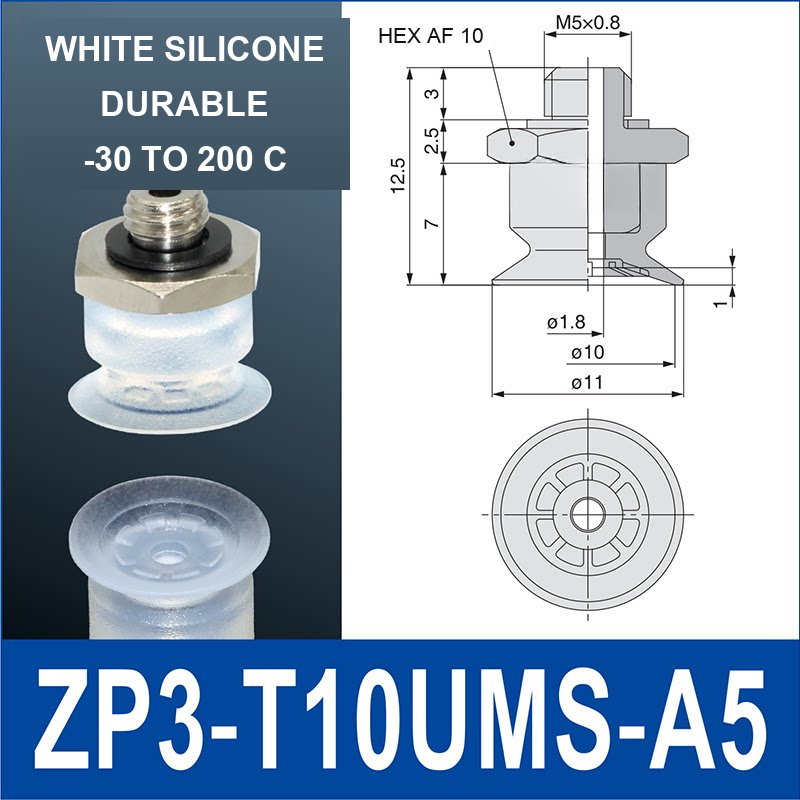

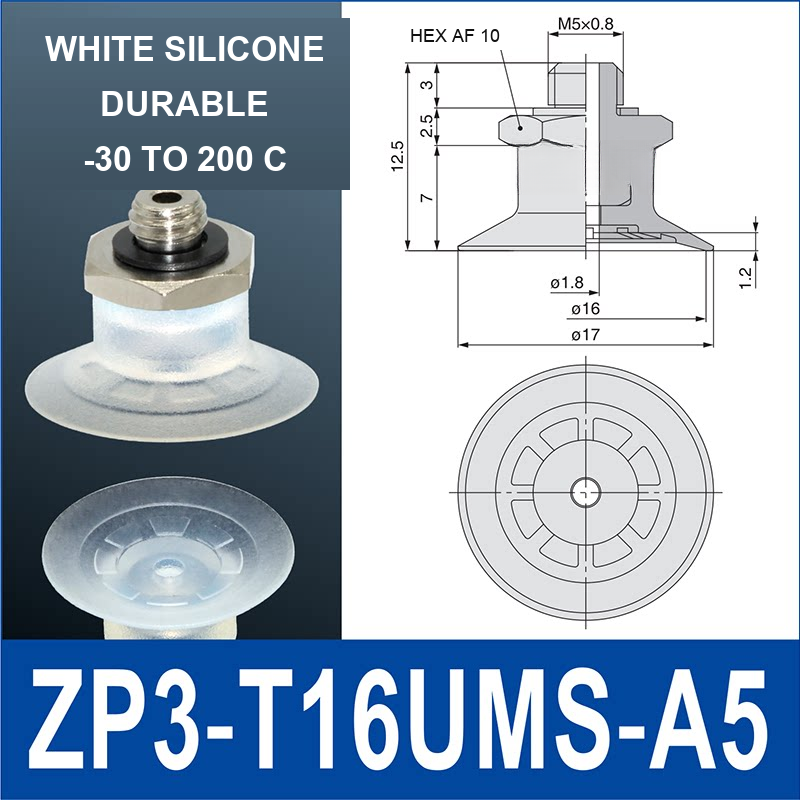

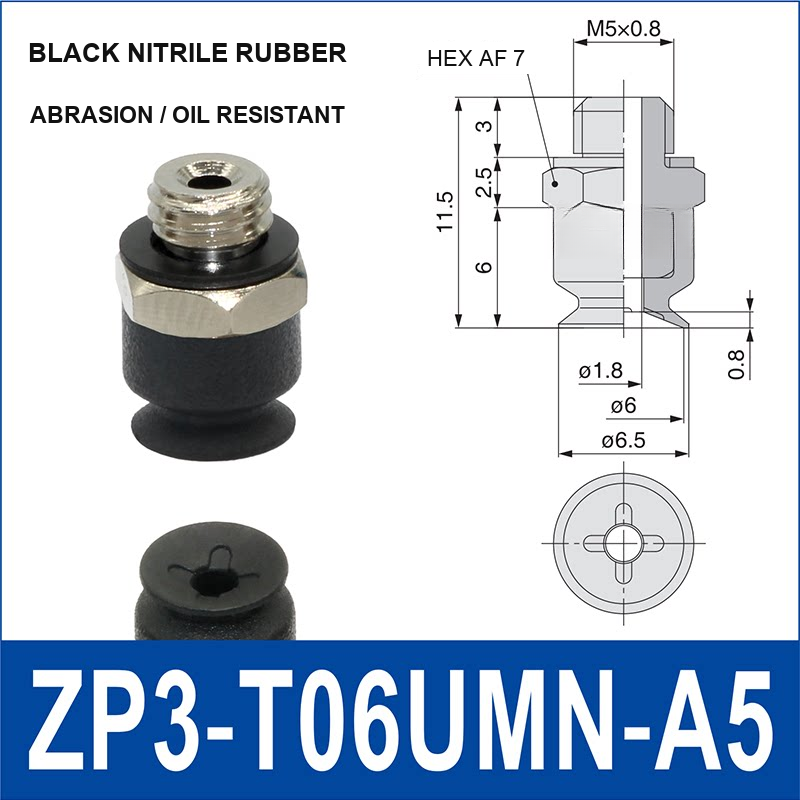

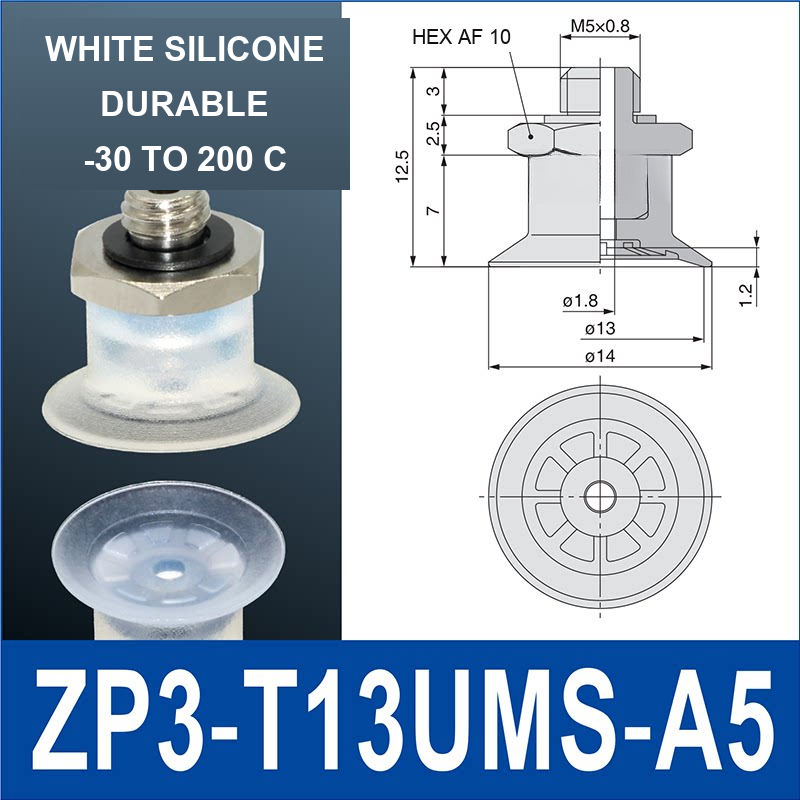

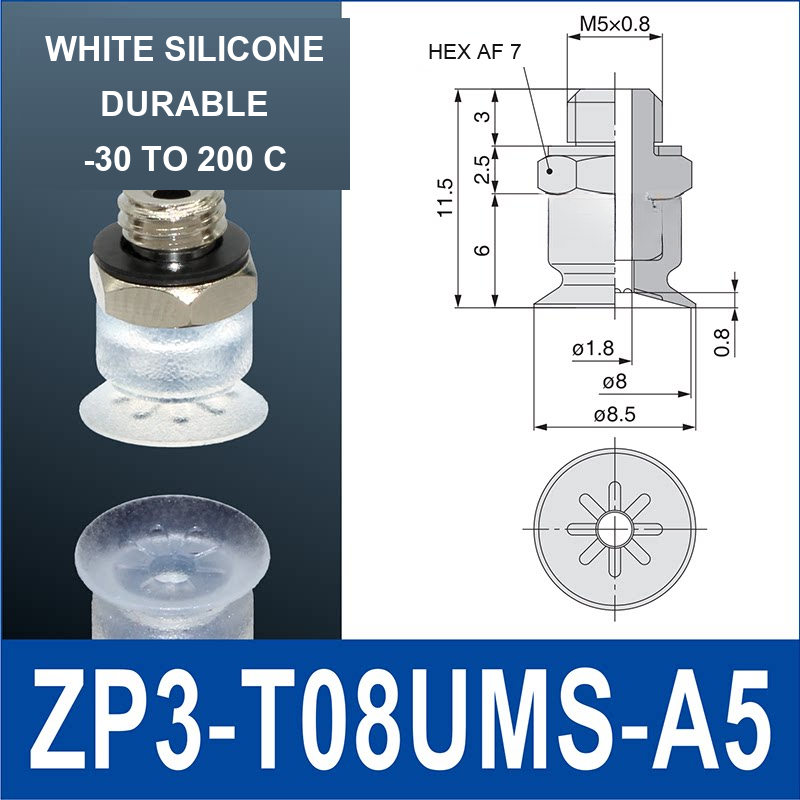

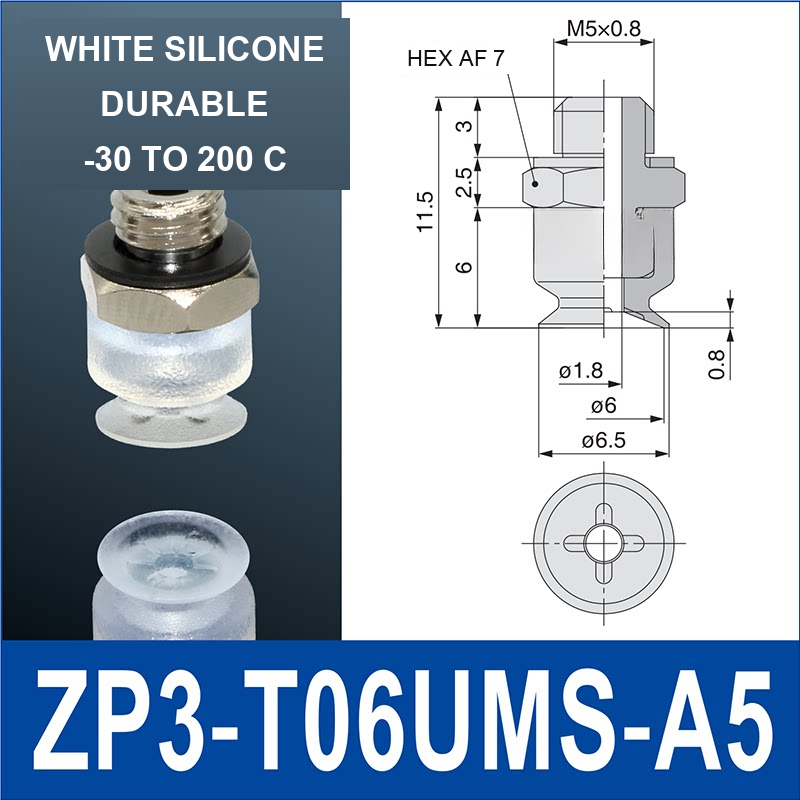

• Model images show the selected code, mounting form and applicable dimensions

Applications / Suitable For

• Small-part pick-and-place, sorting and transfer equipment
• Compact robotic end-of-arm tooling and pneumatic handling systems
• Packaging, electronics assembly and light industrial automation
• Workpieces suited to small bellows cups after application testing

Confirm the selected model code, drawing, pad diameter, material, mounting thread, mating hardware, workpiece surface, vacuum level, payload, acceleration and operating environment before use. Conductive material naming does not state a resistance range or provide ESD certification. Mark-free naming does not guarantee suitability for every surface. No food-contact, medical, lifting-safety or regulatory certification is claimed.
