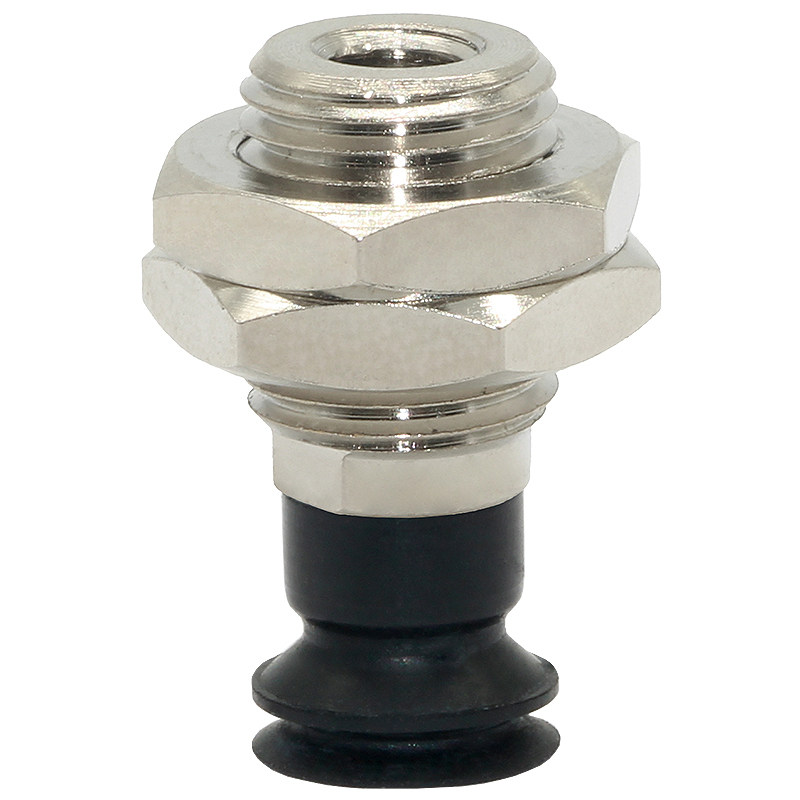

ZP3-T Vacuum Cups with A10/A12 Mounting Base — 4–16 mm
ZP3-T Vacuum Cups with A10/A12 Mounting Base
Compact vacuum cups for compatible industrial vacuum systems, automated handling equipment and robotic end-effectors. Choose the full model according to cup diameter, cup material and mounting-base size.
Quick selection
- Choose cup diameter: 4 mm, 6 mm, 8 mm, 10 mm, 13 mm or 16 mm.
- Choose material: BS is white silicone; BN is black nitrile rubber.
- Choose mounting base: A10 or A12 as stated in the selected model code and drawing.
- Confirm dimensions: check the complete model code, thread callouts, mounting dimensions, workpiece surface and installation clearance before ordering.
Model code guide

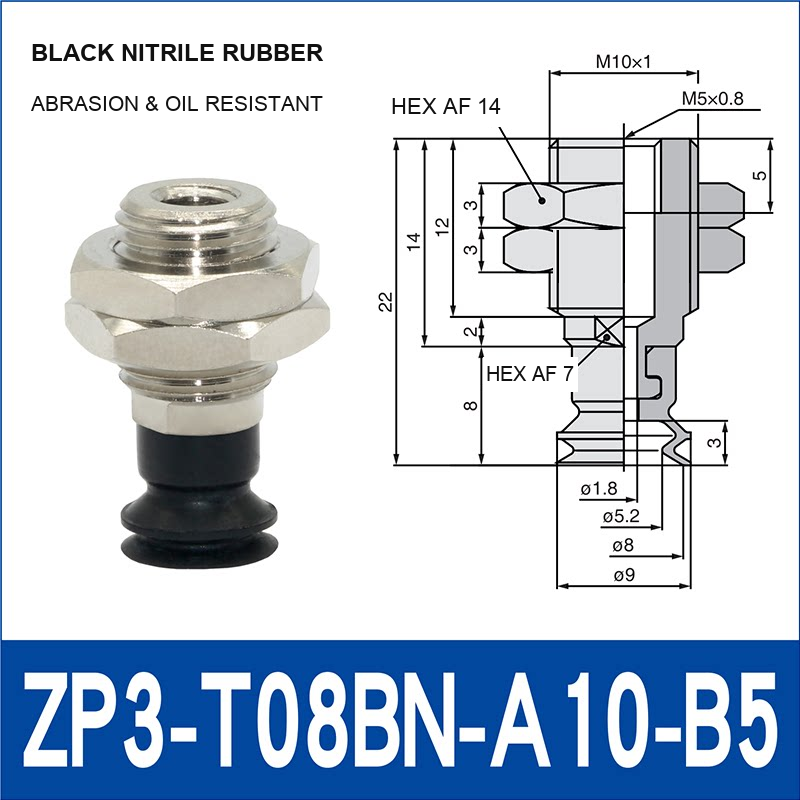

ZP3-T[diameter]B[S or N]-[A10 or A12]-B5: cup diameter, material code, mounting-base size and connection configuration. Each option displays its matching product view and dimensional drawing.
Suitable for
- Compact industrial vacuum pick-and-place applications
- Robotic end-effectors and automated handling equipment
- Small smooth or gently contoured workpieces after compatibility checks
- Replacement and configuration work for compatible vacuum assemblies
Before use
Confirm the selected model code, drawing, cup material, thread interfaces, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
FAQ
Which material should I choose? Select white silicone or black nitrile rubber according to the workpiece and operating environment. Can I interchange A10 and A12 versions? Confirm the selected drawing and mounting dimensions before treating models as interchangeable.
