ZP3-T UMS/UMN/UMGS/UMGN Vacuum Cups with A10/A12 Base (4–16 mm)

ZP3-T UM/UMG Vacuum Cups with A10/A12 Mounting Base

Compact vacuum cup assemblies for compatible industrial vacuum systems, automated handling equipment and robotic end-effectors. Select the full product code by cup diameter, material profile and mounting-base size.

Quick selection

1. Choose cup diameter: select 4 mm, 6 mm, 8 mm, 10 mm, 13 mm or 16 mm to suit the workpiece and installation envelope.
2. Choose material profile: UMS is white silicone, UMN is black nitrile rubber, UMGS is conductive silicone rubber, and UMGN is conductive NBR.
3. Choose mounting base: select A10 or A12 only after comparing the selected drawing and mounting clearance.
4. Confirm the complete model: check thread interfaces, dimensions, cup diameter, workpiece surface and surrounding clearance before ordering.

Product-code guide

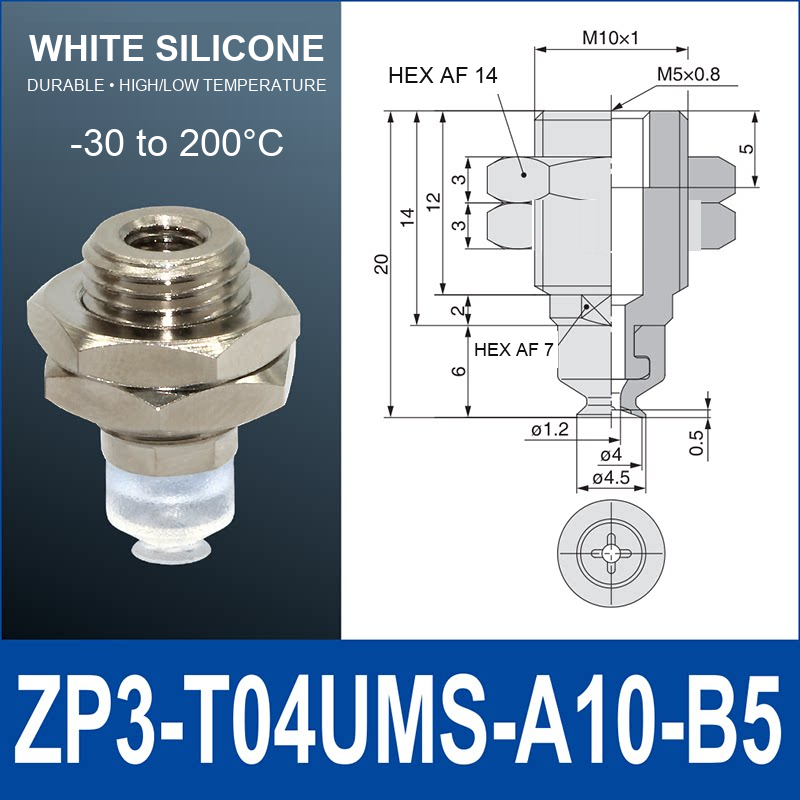

ZP3-T[04/06/08/10/13/16][UMS/UMN/UMGS/UMGN]-[A10/A12]-B5: cup diameter, material profile, mounting-base size and connection configuration. Product images show the corresponding assembly and dimensional drawing.

Suitable for

• Compact industrial vacuum pick-and-place applications
• Robotic end-effectors and automated handling equipment
• Small smooth or gently contoured workpieces after compatibility checks
• Replacement and configuration work for compatible vacuum assemblies

Before use

Confirm the selected model code, drawing, cup material, thread interfaces, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.

FAQ

Which profile should I choose? Select the material profile according to the workpiece, operating environment and any conductivity requirement. Can I interchange A10 and A12 versions? Confirm the selected drawing and mounting dimensions before treating models as interchangeable.
