ZP3 Mini Vacuum Cups and ZP3A Mounting Fittings, 4–16 mm

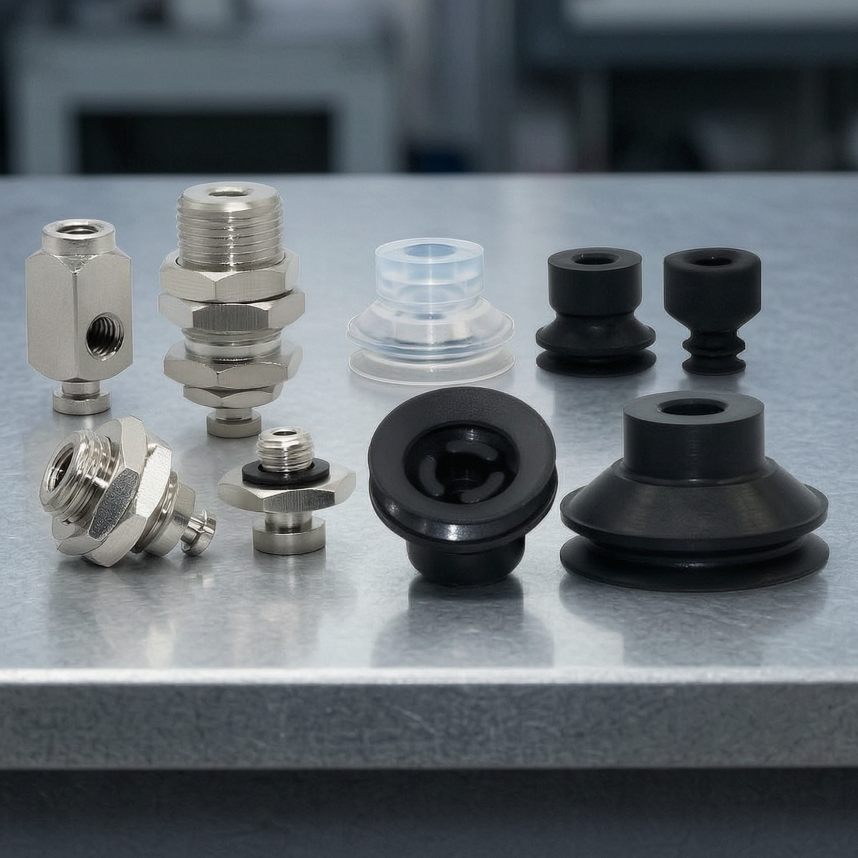

ZP3 Mini Vacuum Cups and ZP3A Mounting Fittings

Compact bellows-style vacuum cups and matching fittings for compatible industrial pick-and-place, robotic end-of-arm tooling and pneumatic handling assemblies. Choose the required cup material and diameter, or select a ZP3A fitting for the intended thread and tube connection.

• Mini vacuum cup diameters: 4, 6, 8, 10, 13 and 16 mm

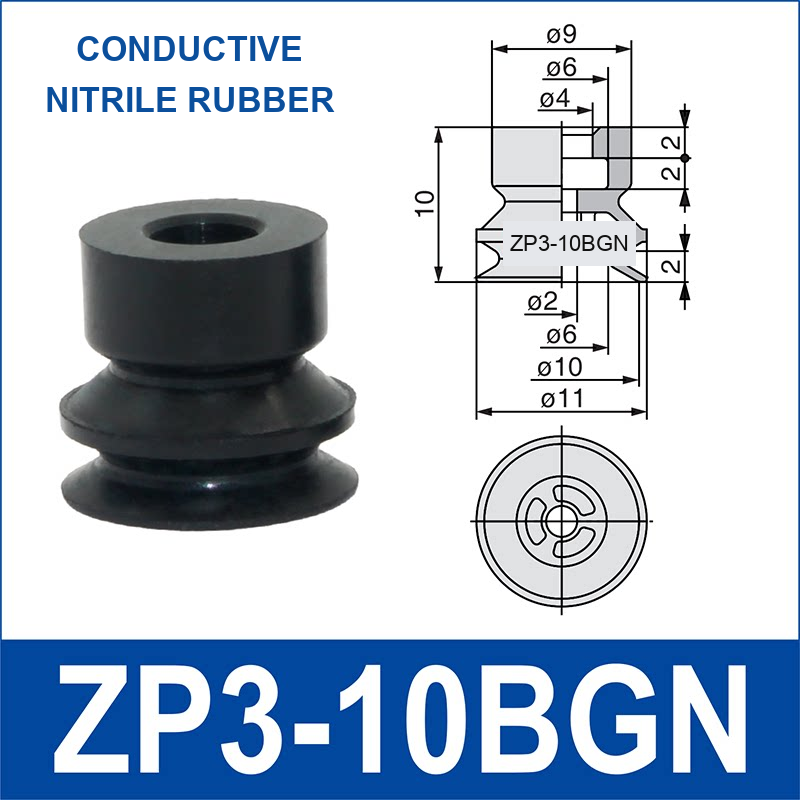

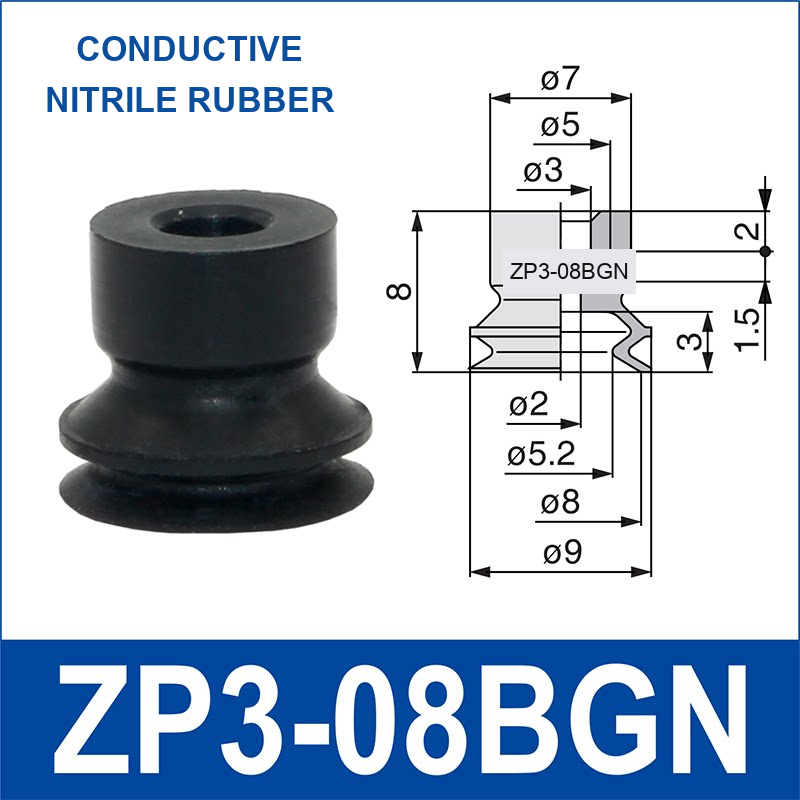

• White silicone, black nitrile rubber, conductive silicone rubber and conductive nitrile rubber cup options

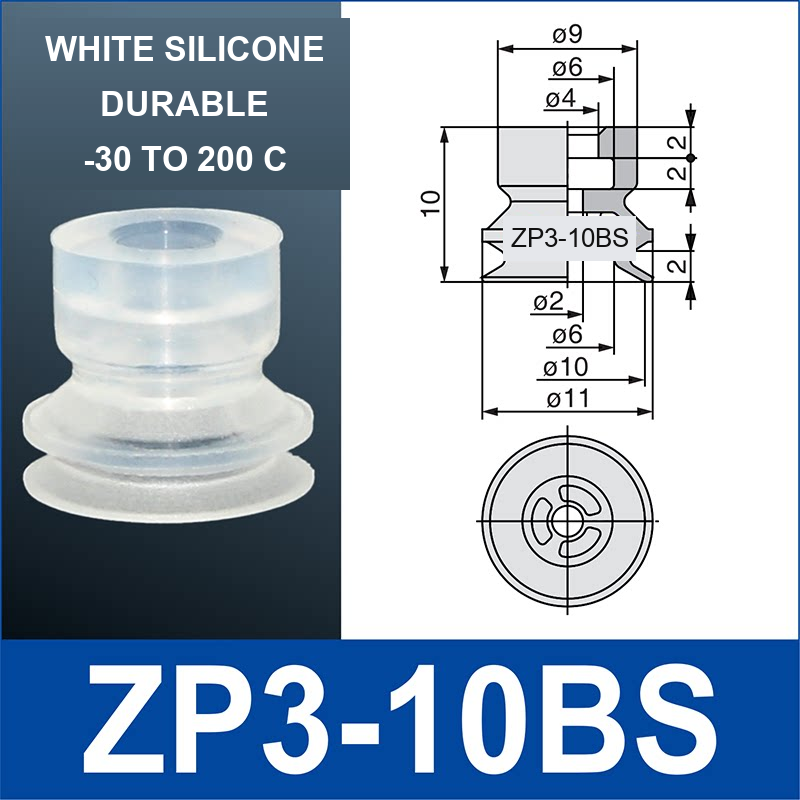

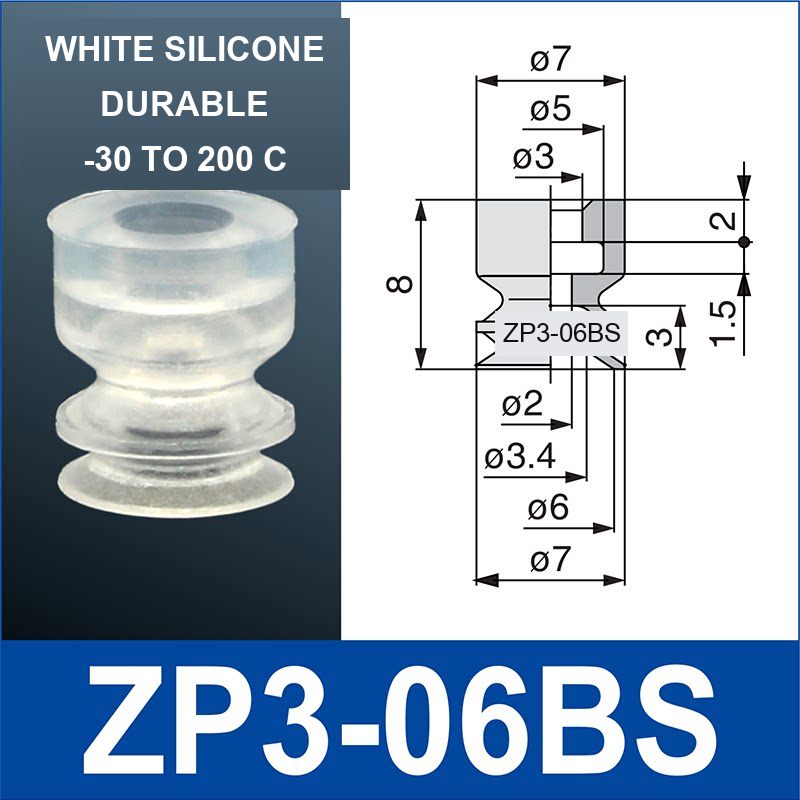

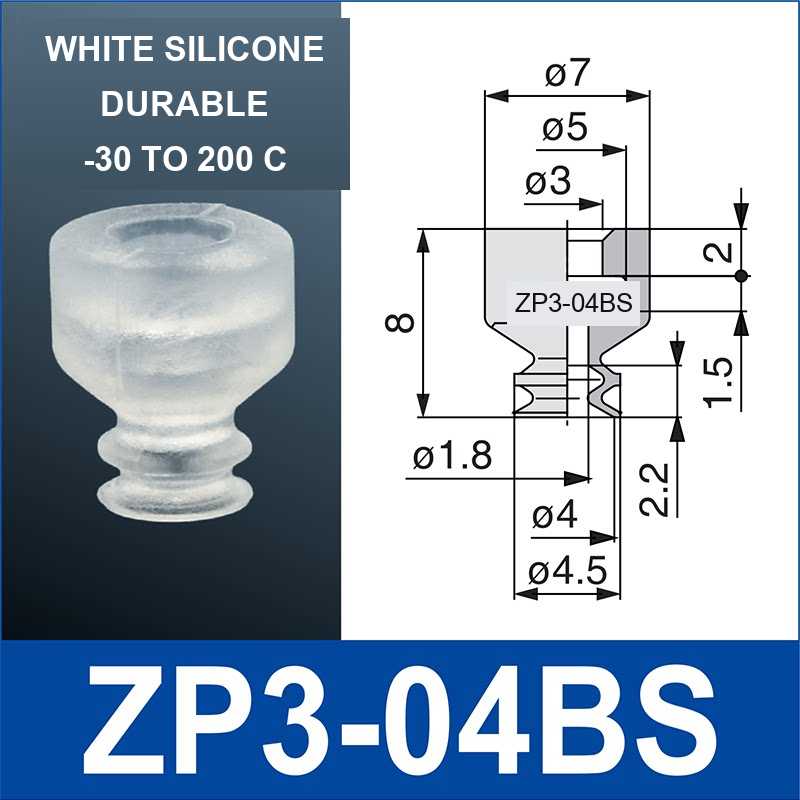

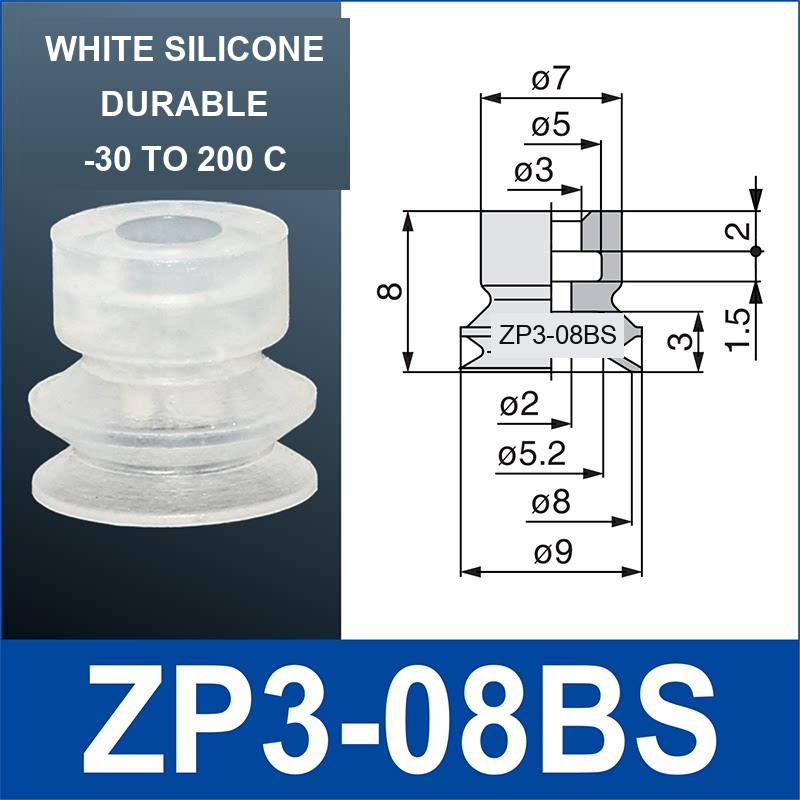

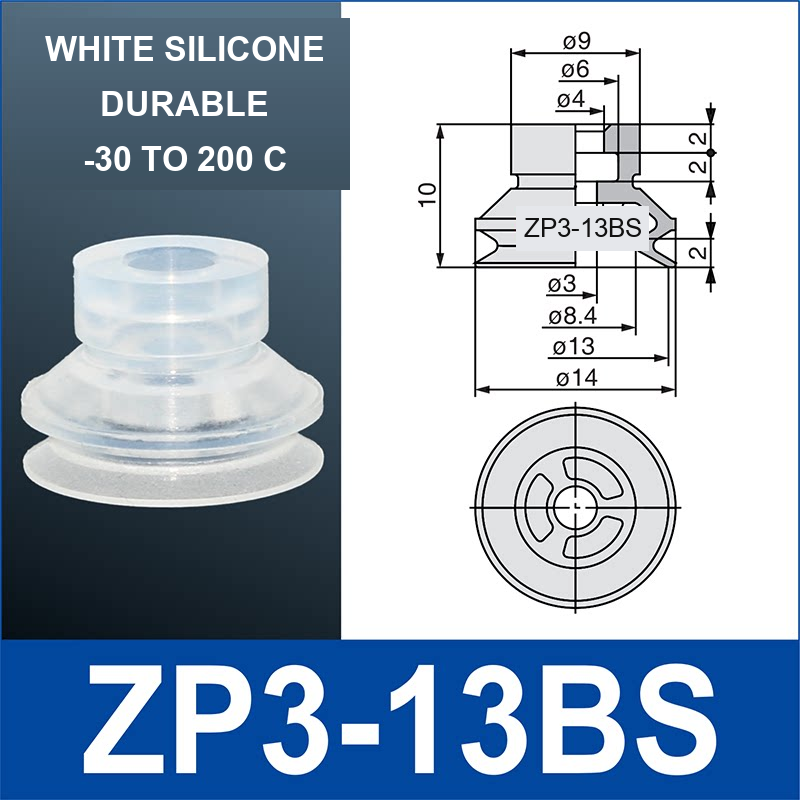

• White silicone specification shown as -30 to 200 degrees C

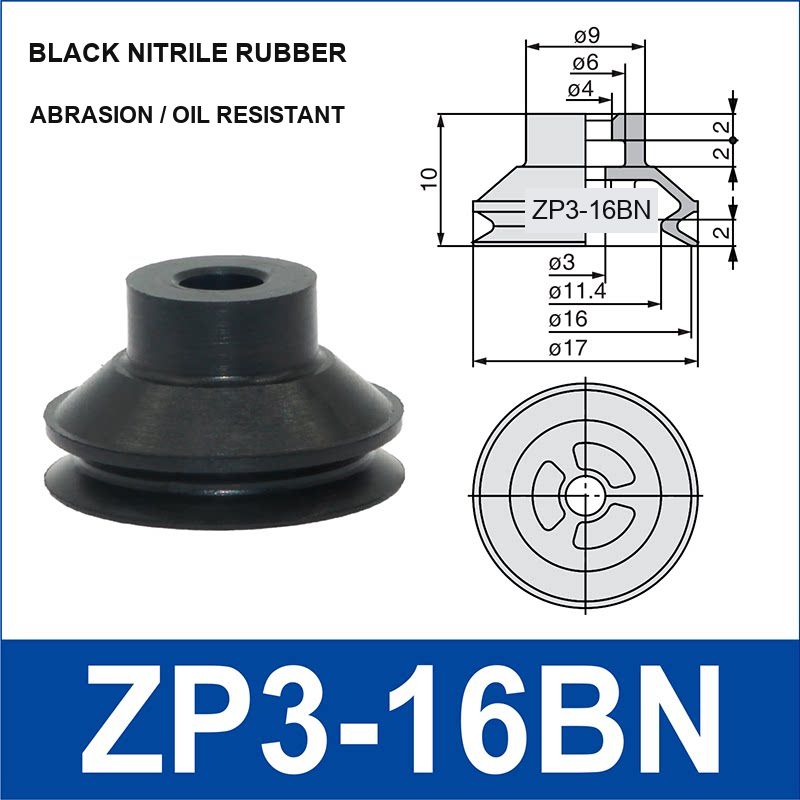

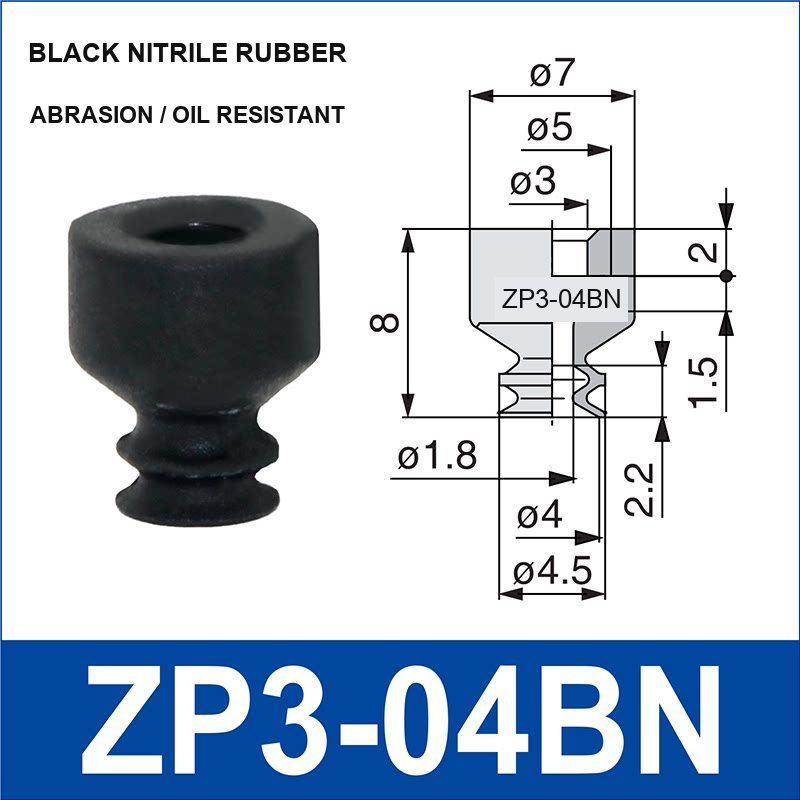

• Black nitrile rubber specified for abrasion and oil resistance
• ZP3A M5 x 0.8 male and female fittings
• M10 x 1 and M12 x 1 adapter configurations
• Side-port fittings and 4 mm or 6 mm tube-connection options

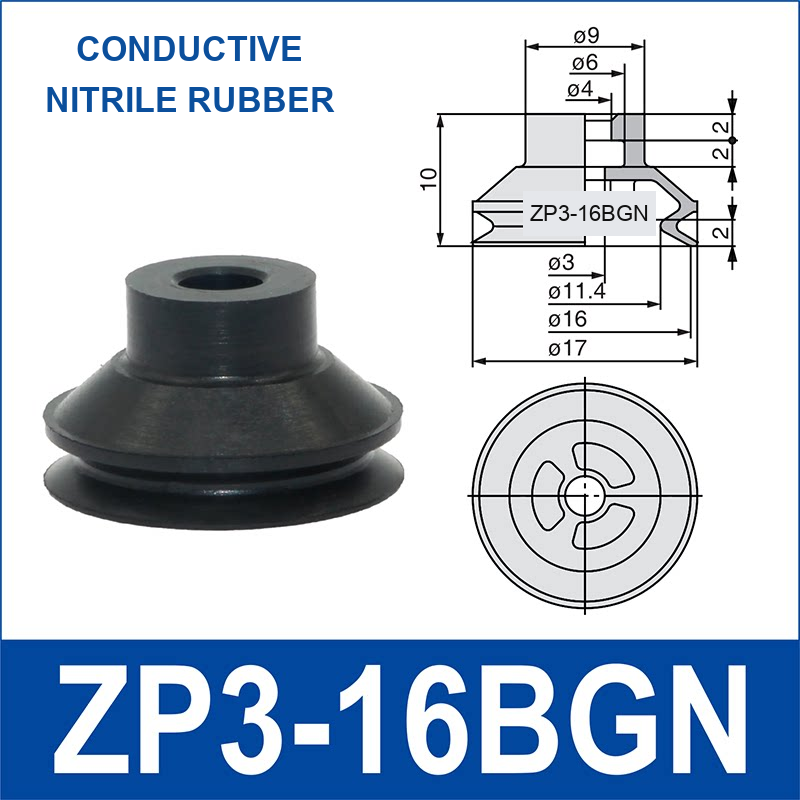

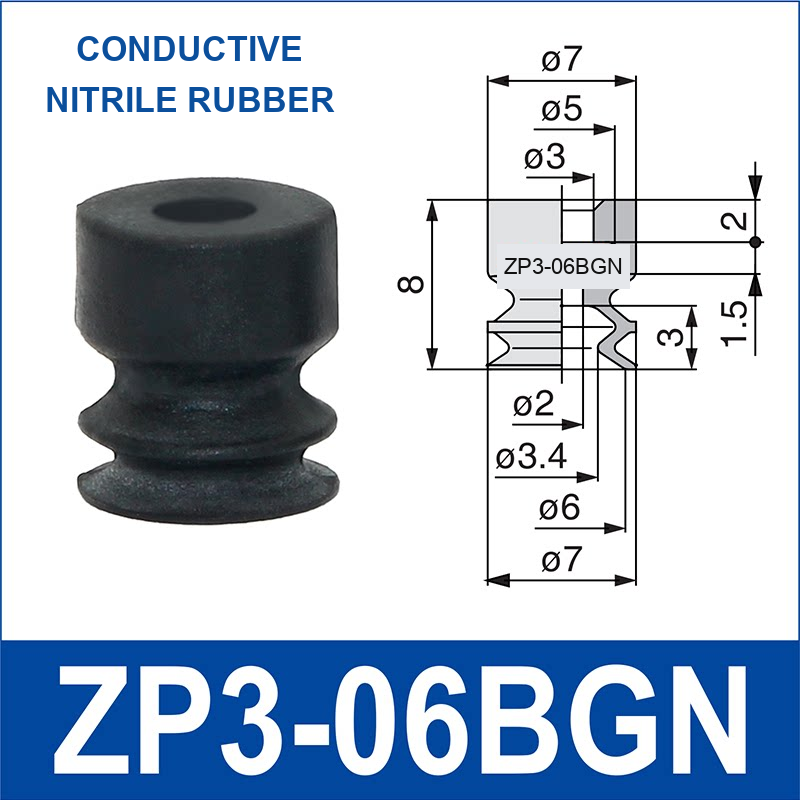

• Product geometry, thread callouts and key dimensions are shown for the applicable model

Applications / Suitable For

• Small-part pick-and-place, sorting and transfer equipment
• Compact robotic end-of-arm tooling and pneumatic handling systems
• Packaging, electronics assembly and light industrial automation

Confirm the selected model code, cup diameter, material, thread, tube connection, mating hardware, workpiece surface, vacuum level, payload, acceleration and operating environment before use. Conductive material names do not state a resistance range or provide ESD certification. No food-contact, medical, lifting-safety or regulatory certification is claimed.
