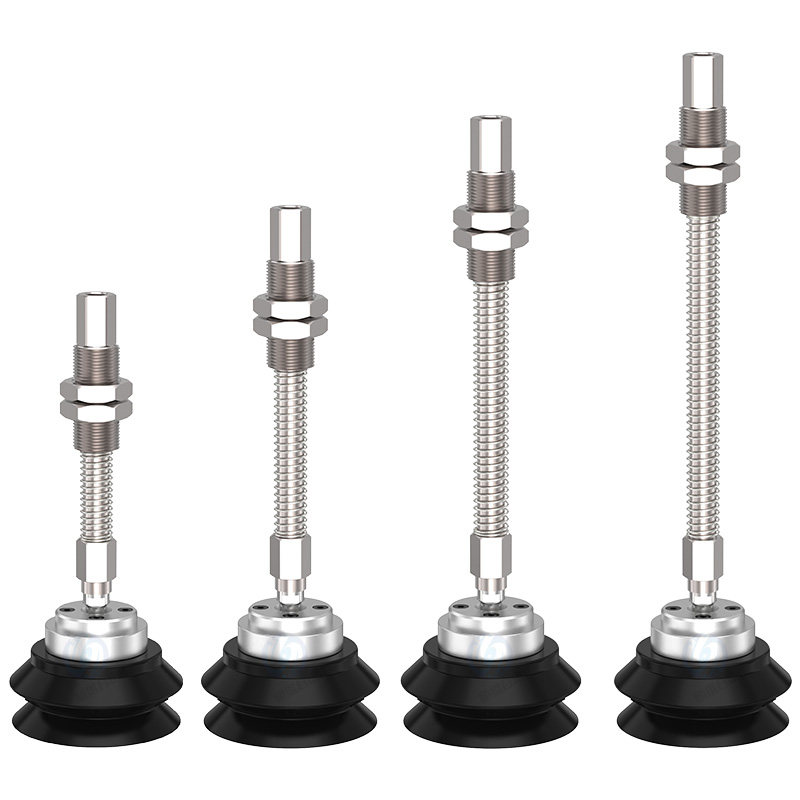

ZP2-TF Swivel Spring-Loaded Vacuum Cup Assemblies, 32–150 mm
Selected Select options
ZP2-TF Swivel Spring-Loaded Vacuum Cup Assemblies
Swivel spring-loaded vacuum cup assemblies for compatible industrial robotic end-of-arm tooling, automated handling and pick-and-place systems. Select the exact configuration by cup diameter, elastomer, body thread and spring stroke.
70 selectable configurations
Cup diameters: 32, 40, 50, 63, 80, 100, 125 and 150 mm
White silicone rubber and black nitrile rubber cup options
Spring strokes: 25, 50, 75 and 100 mm, depending on model
M18 or M22 body thread, depending on model
Rc1/8 vacuum port
Swivel cup connection for compliant contact with compatible workpieces

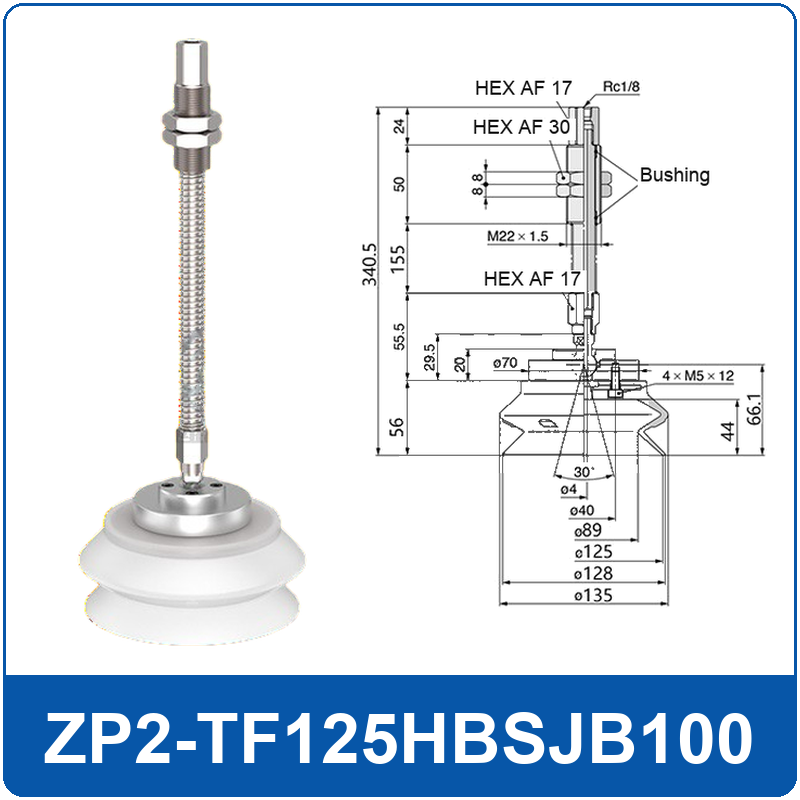

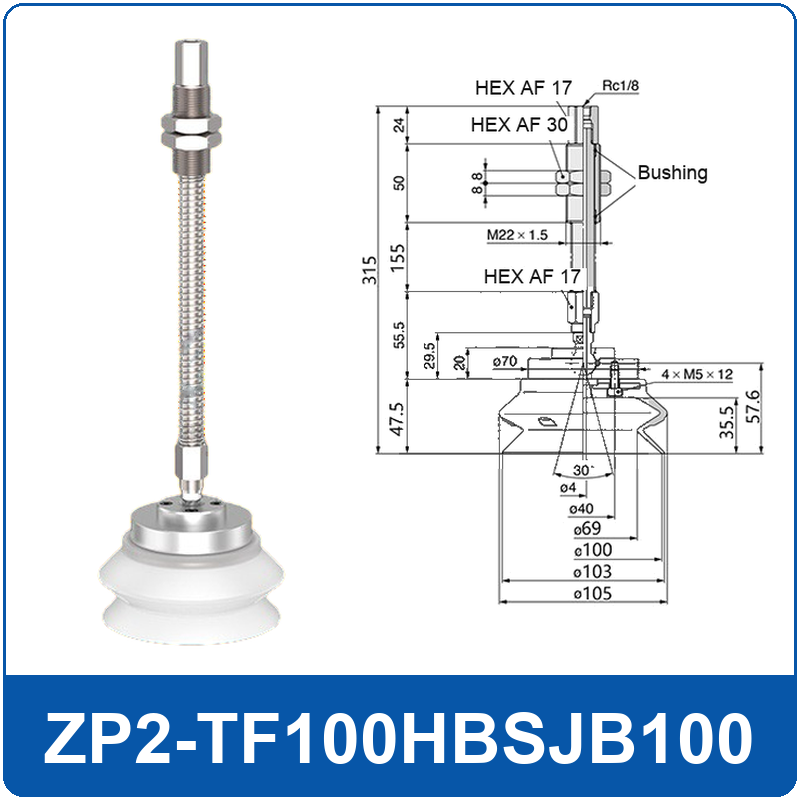

Each selectable model includes its matching product photograph, model code and technical drawing
Applications / Suitable For
Robotic pick-and-place and packaging automation
Vacuum end-of-arm tooling requiring spring compliance
Transfer of dimensionally and materially compatible workpieces
Replacement assemblies for dimensionally compatible systems
Confirm the selected model code, drawing, cup diameter, elastomer, thread, stroke, mating hardware, workpiece surface, vacuum level, payload, acceleration and operating environment before use. No food-contact, medical, lifting-safety or regulatory certification is claimed.
