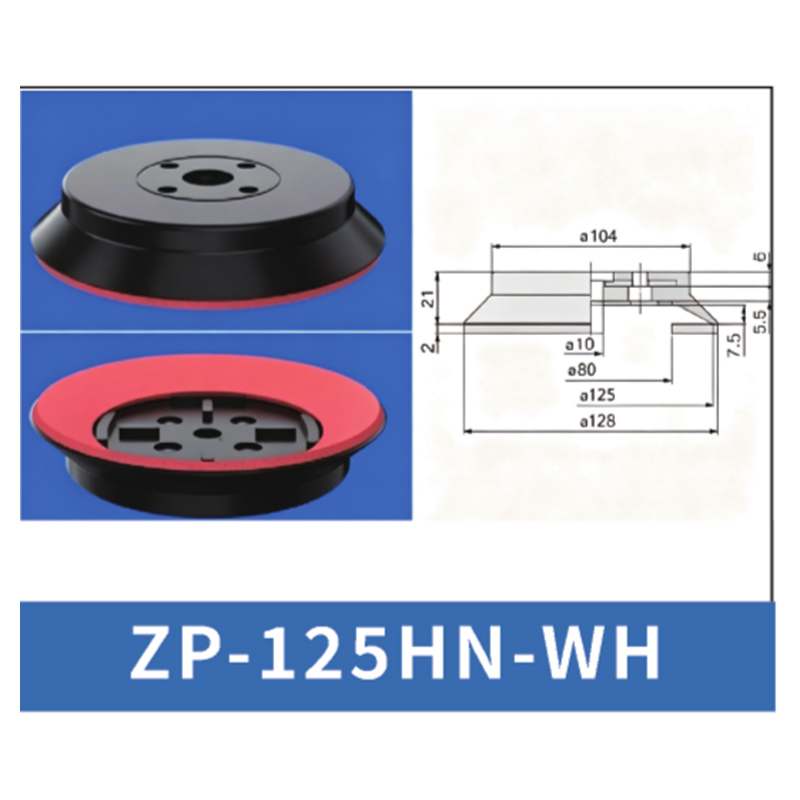

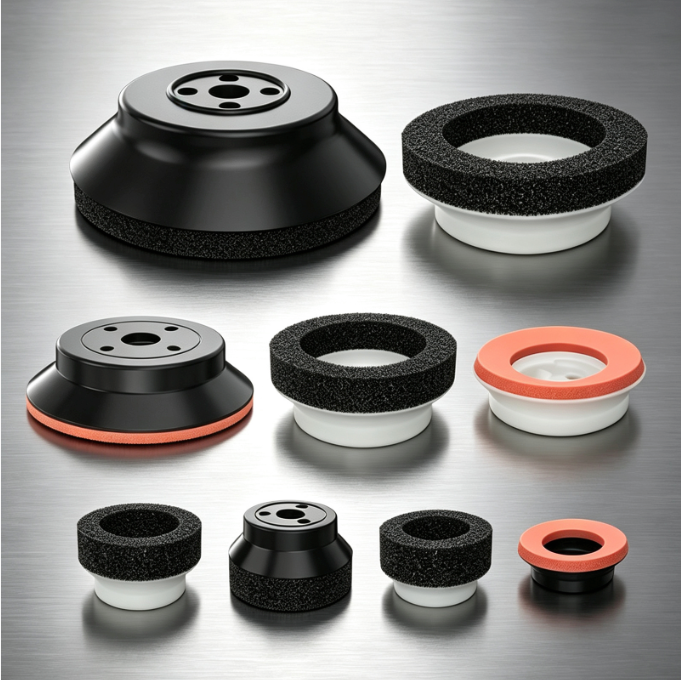

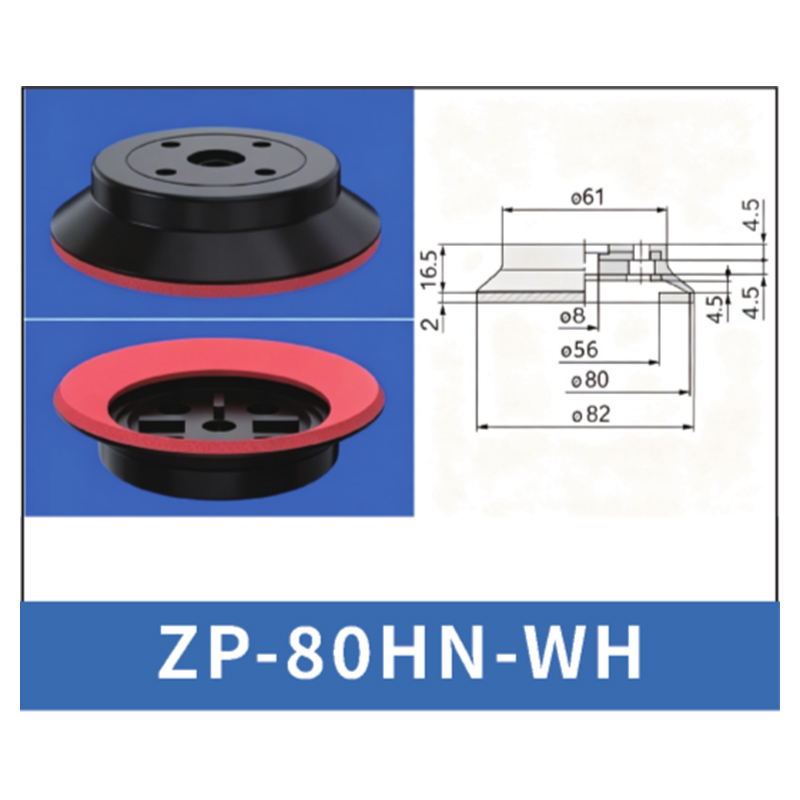

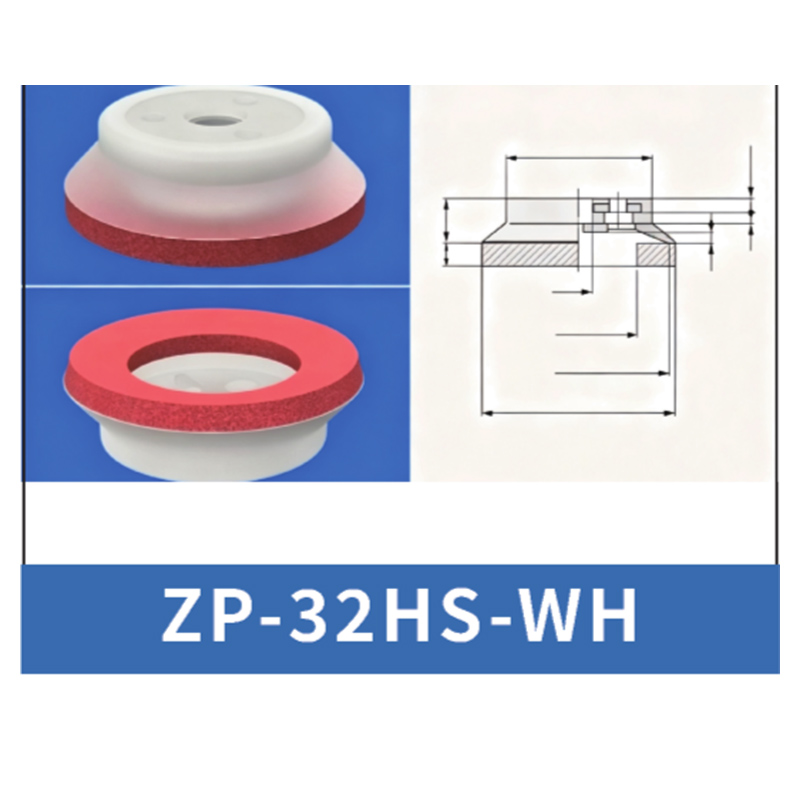

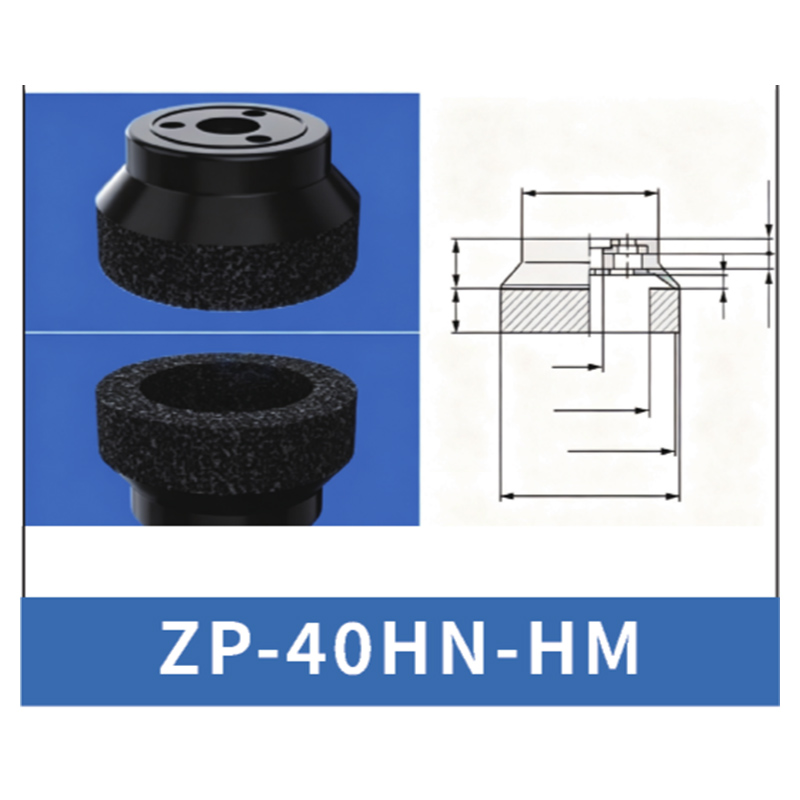

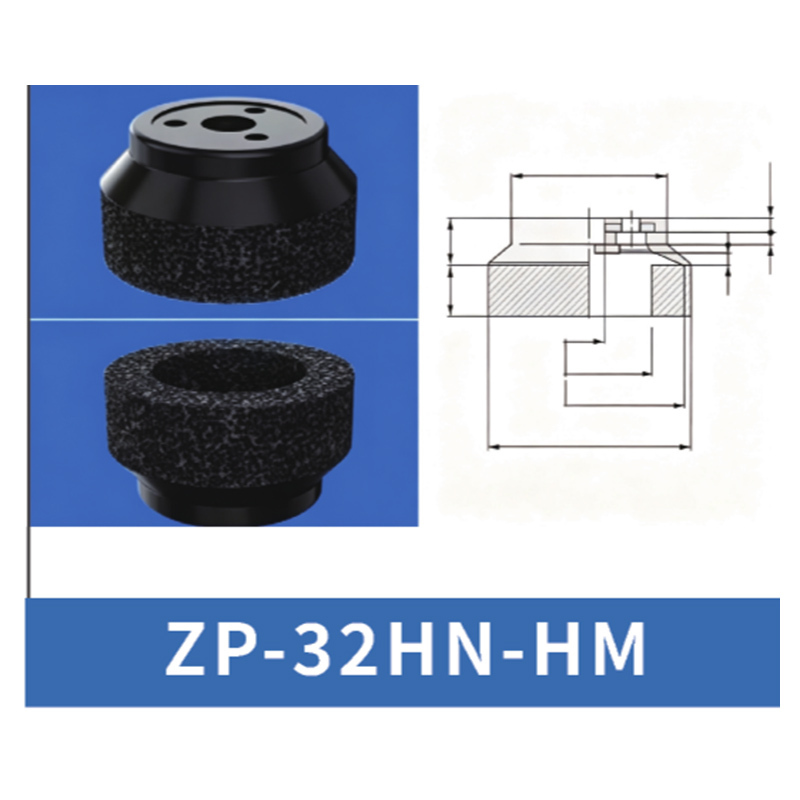

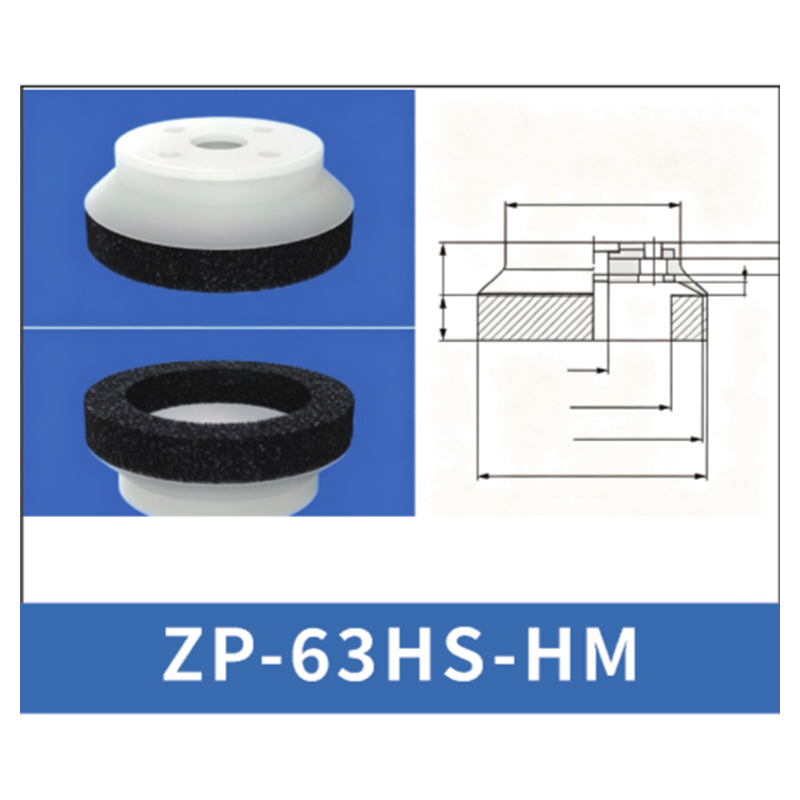

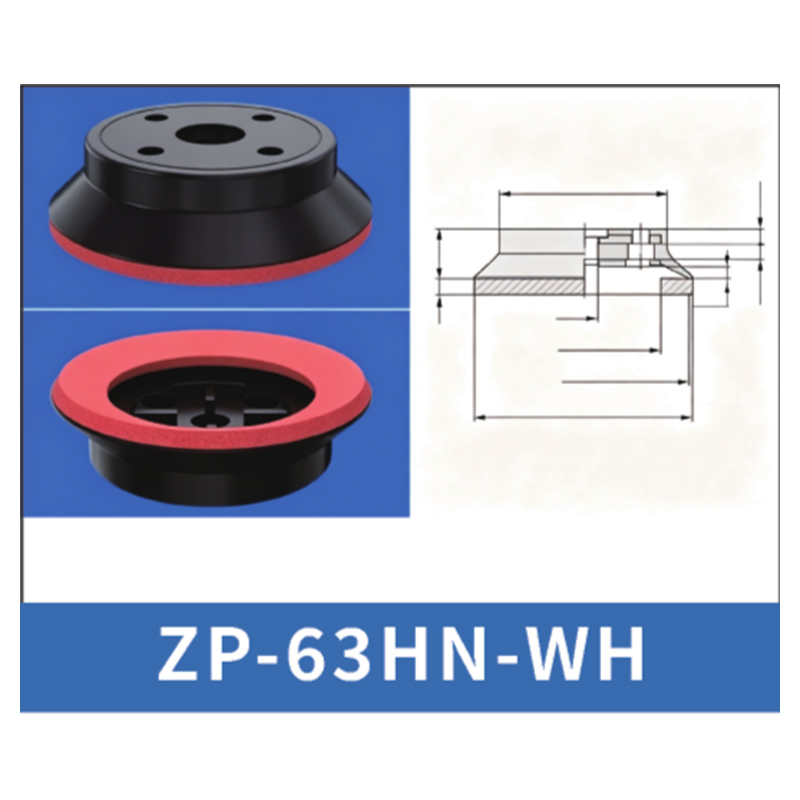

ZP HN/HS Foam Vacuum Suction Cups | Black & Red

Applications and Suitable Workpieces

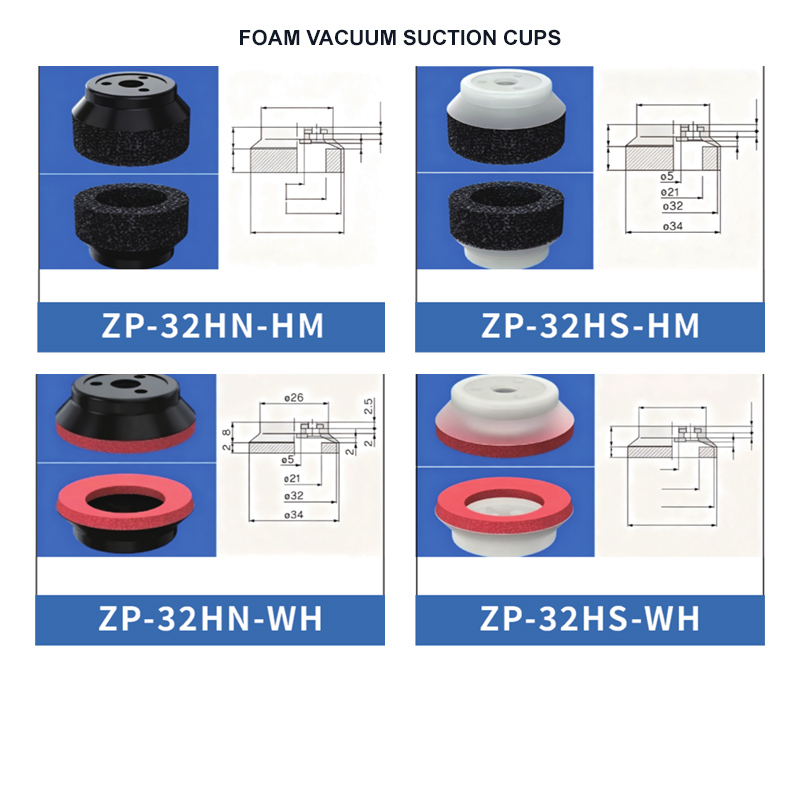

ZP HN/HS Foam Vacuum Suction Cups | Black & Red: These large or high-rigidity cups are intended for heavy, large or curved workpieces requiring a strong body and stable machine connection.

Recommended applications

• Large sheet-metal panels, automotive bodies, glass panels, rigid plastic parts, wood panels and other heavy non-porous workpieces.
• Robotic transfer, machine loading, panel handling, palletizing and high-load industrial automation.
• Bellows versions for curved or height-varying parts and flatter versions for stable positioning on broad flat surfaces.

Model and selection notes

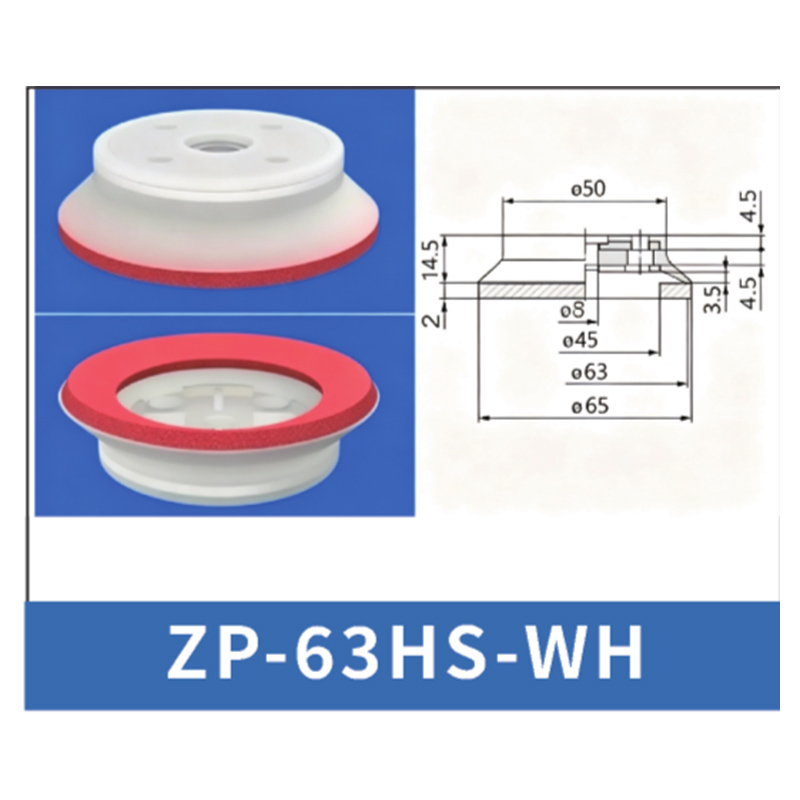

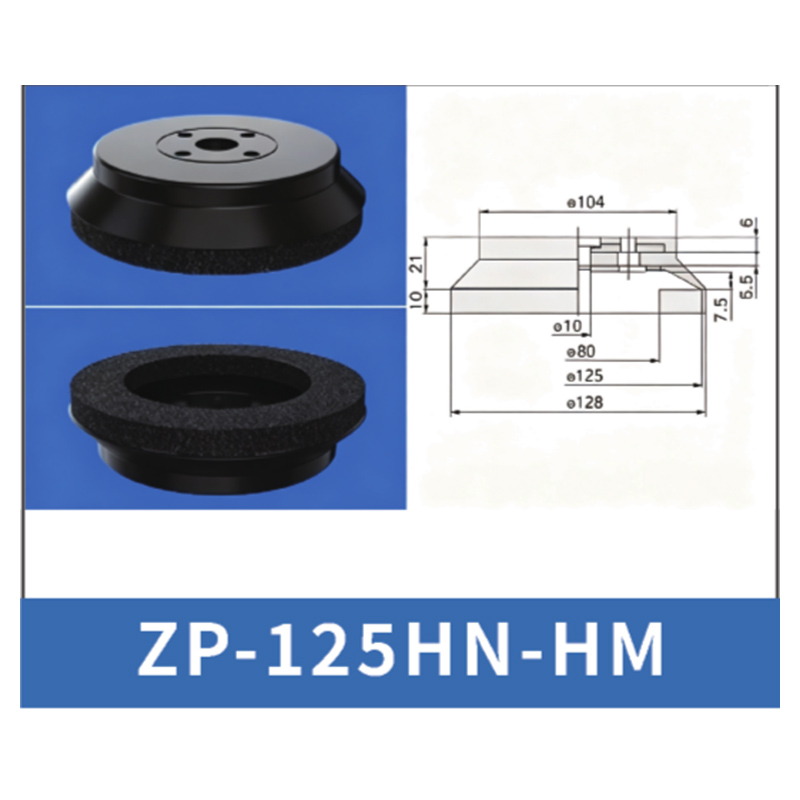

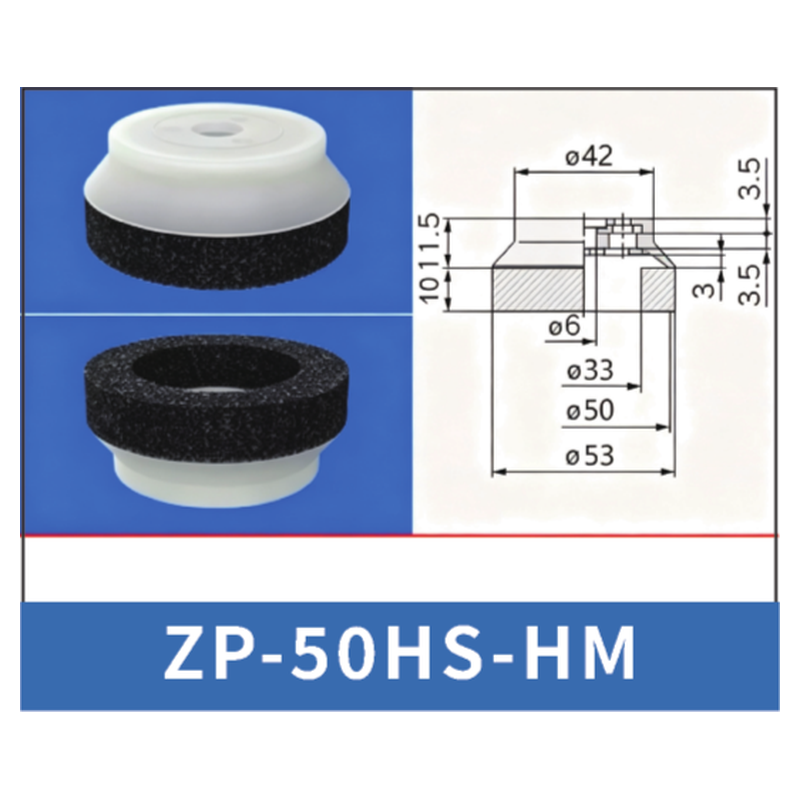

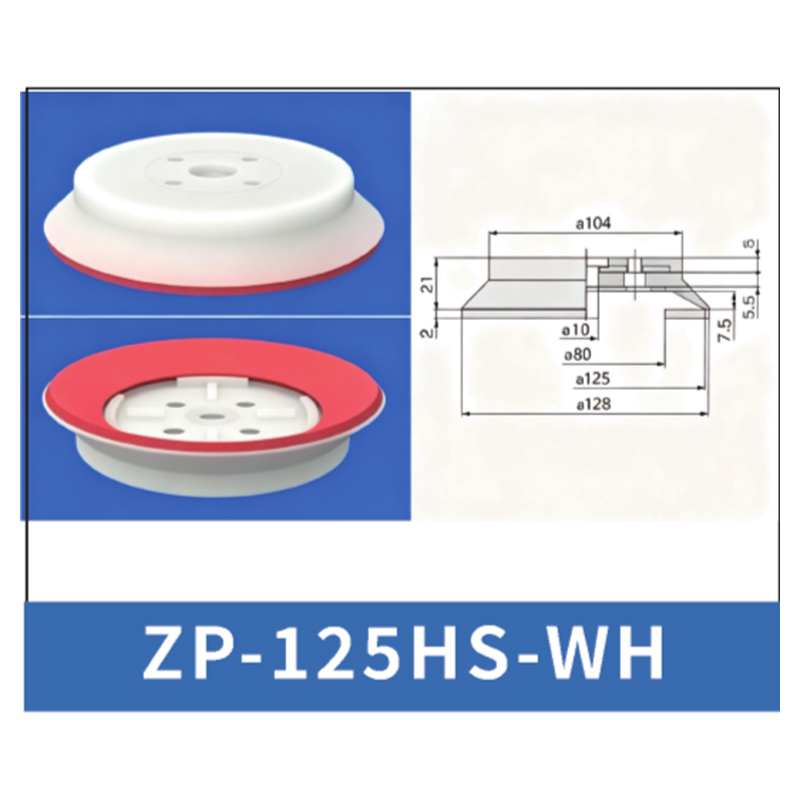

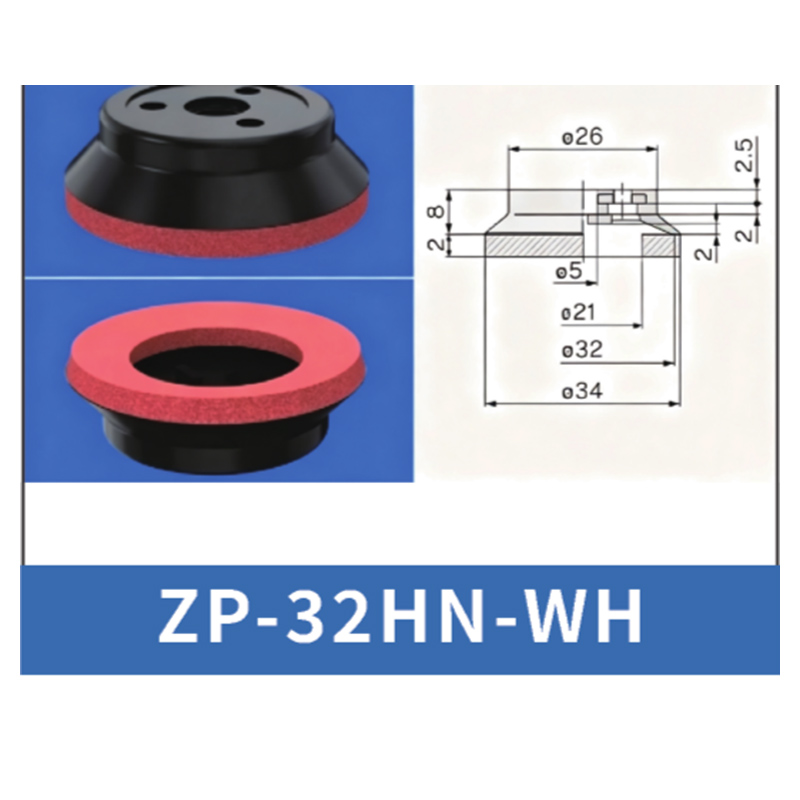

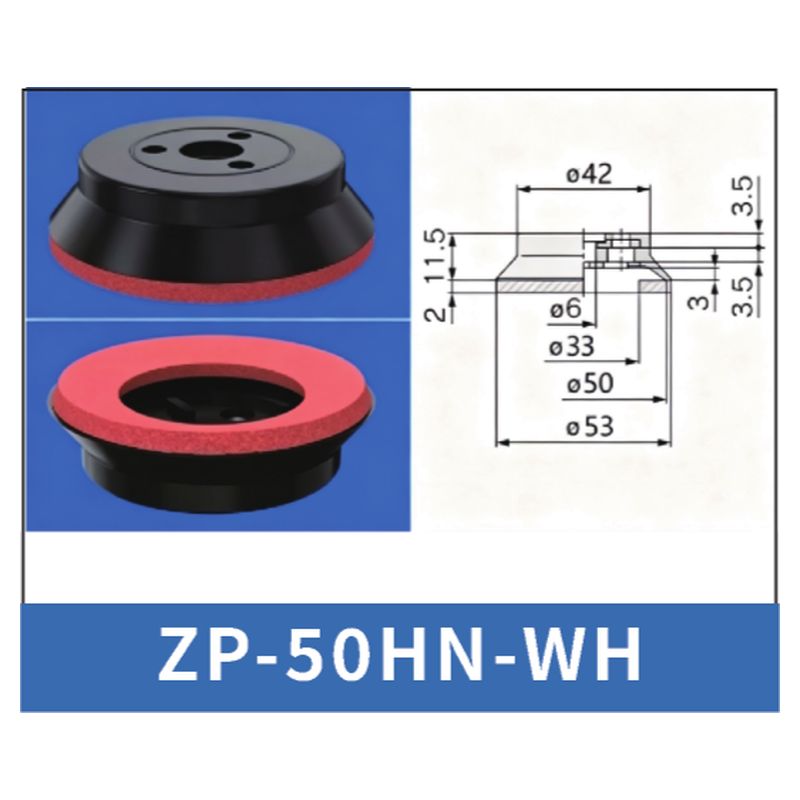

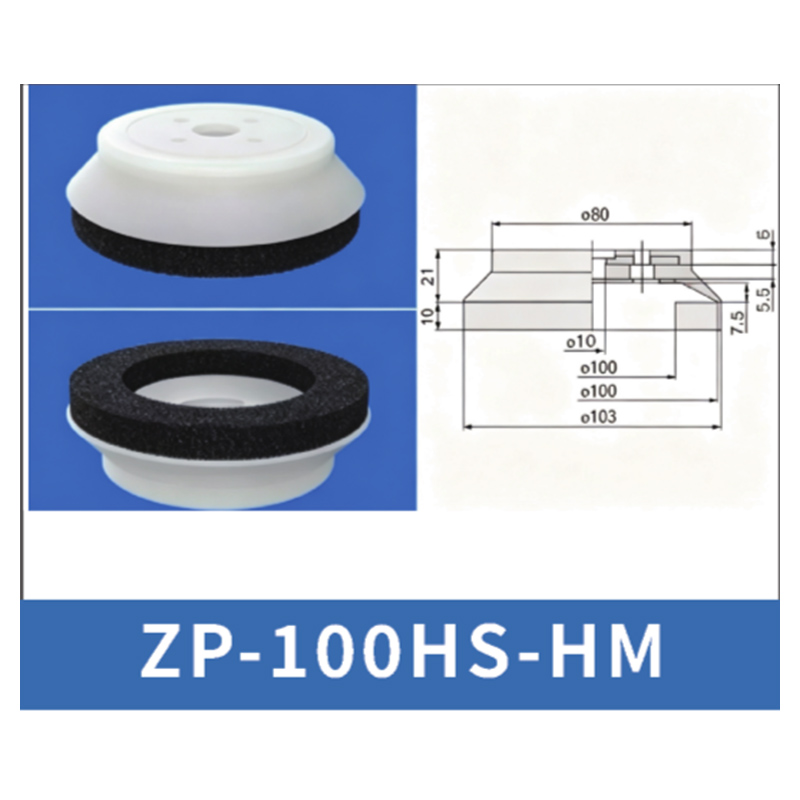

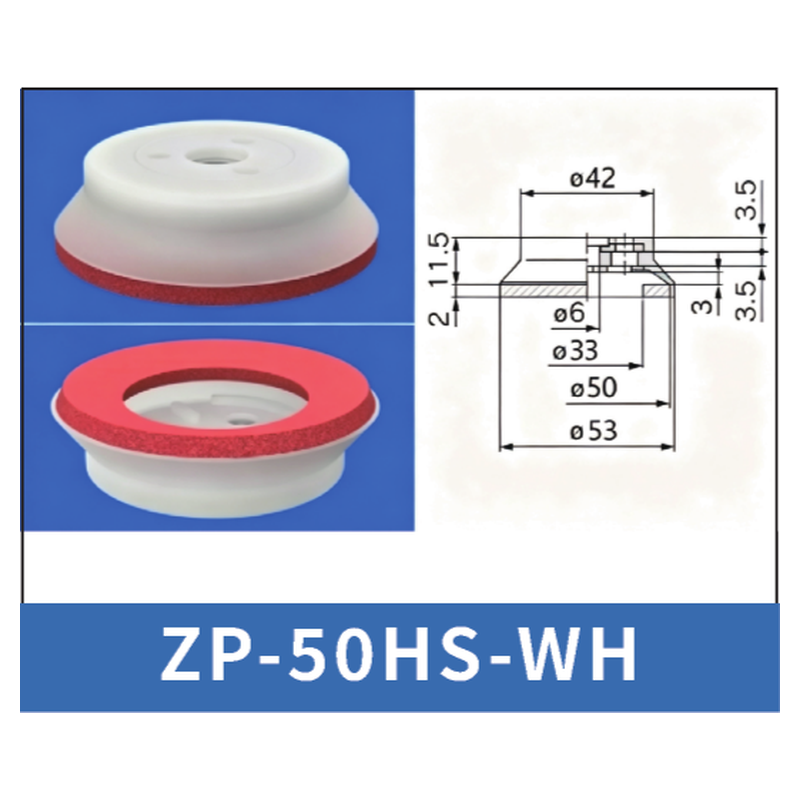

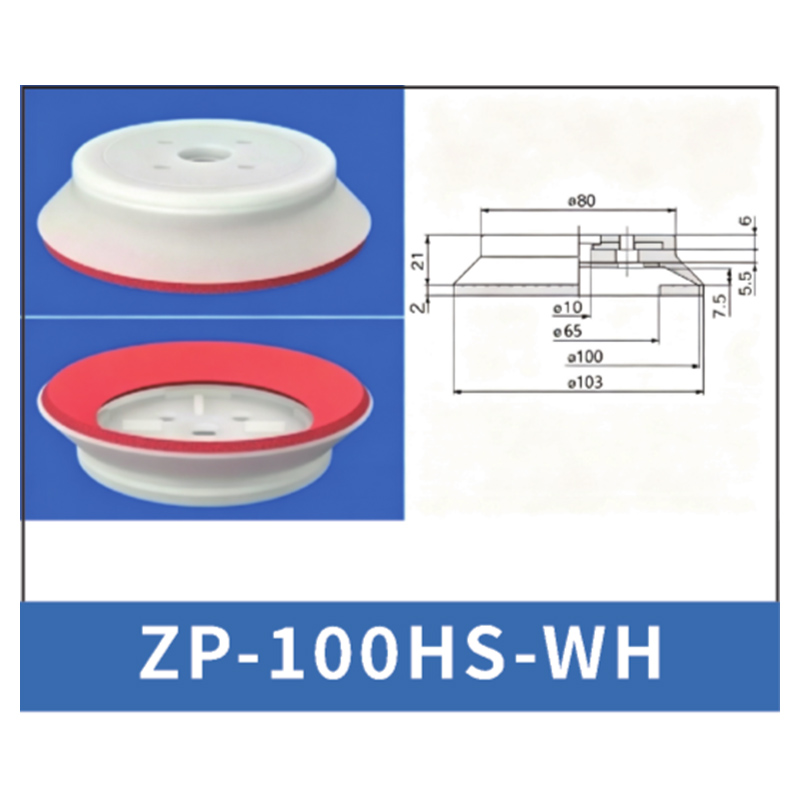

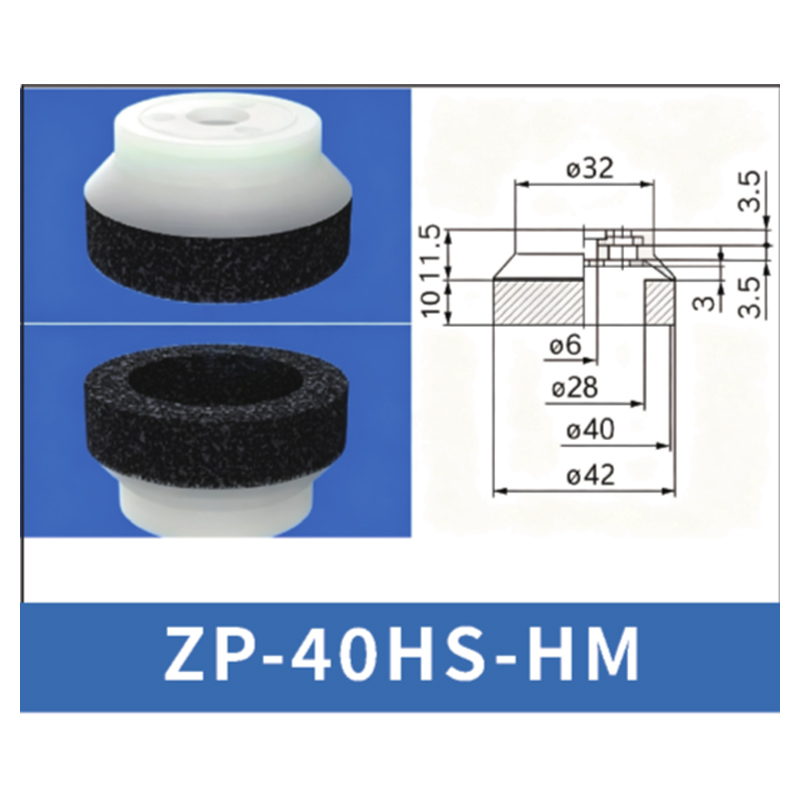

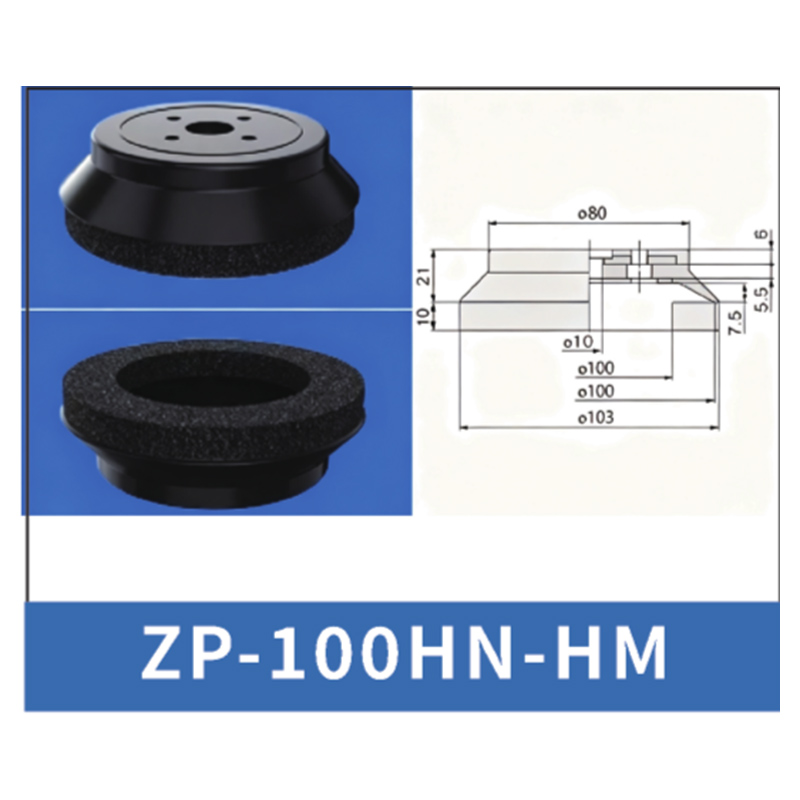

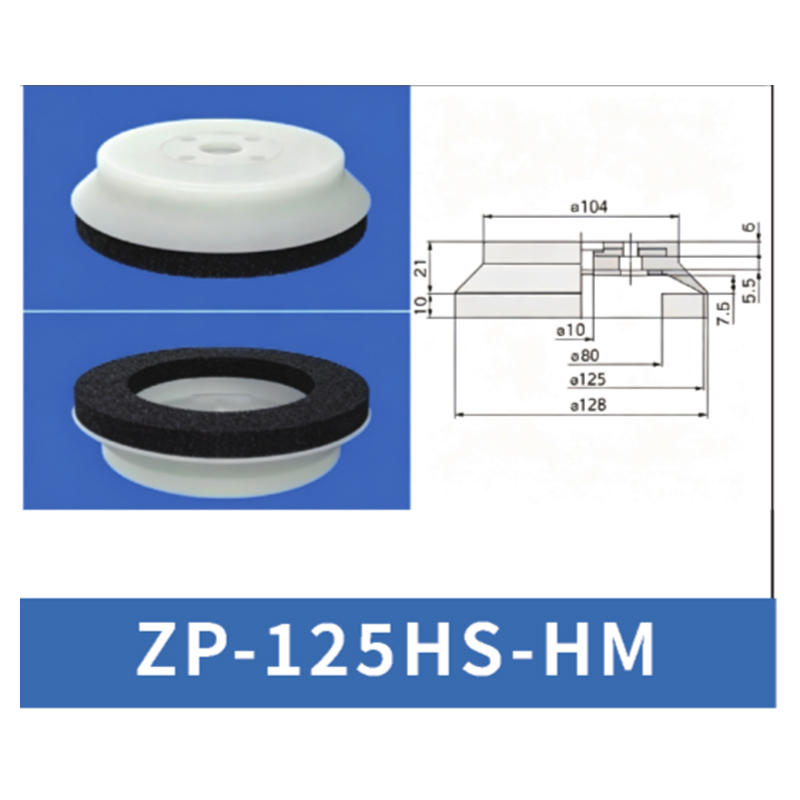

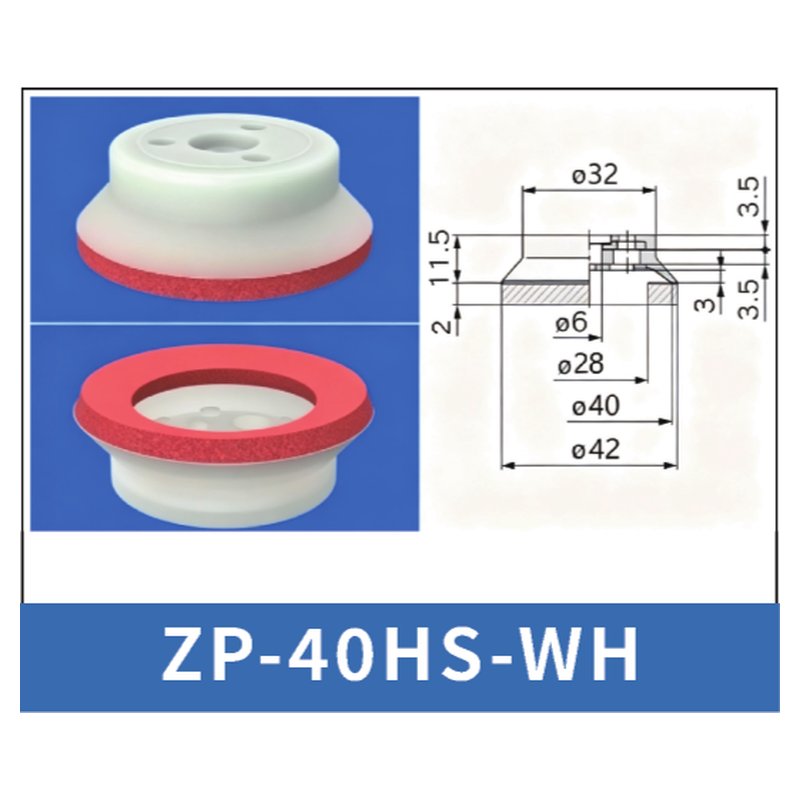

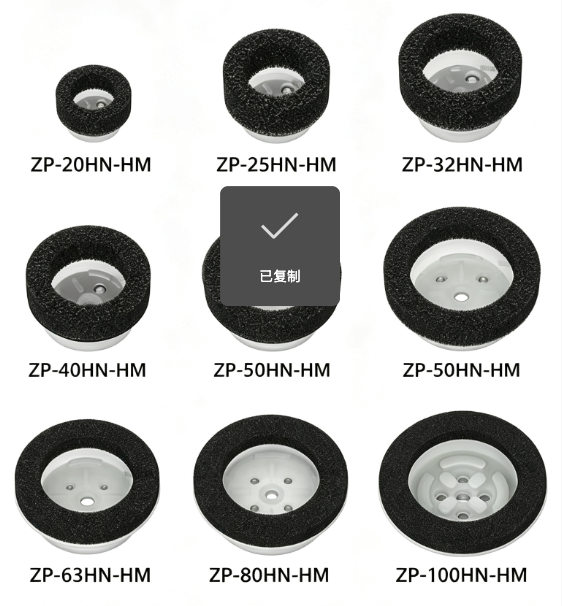

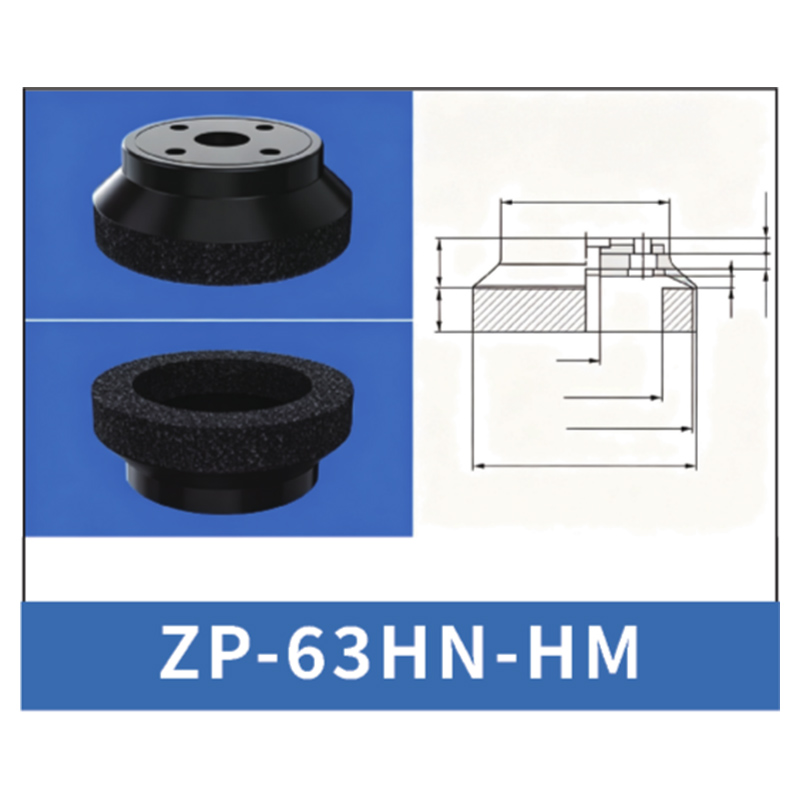

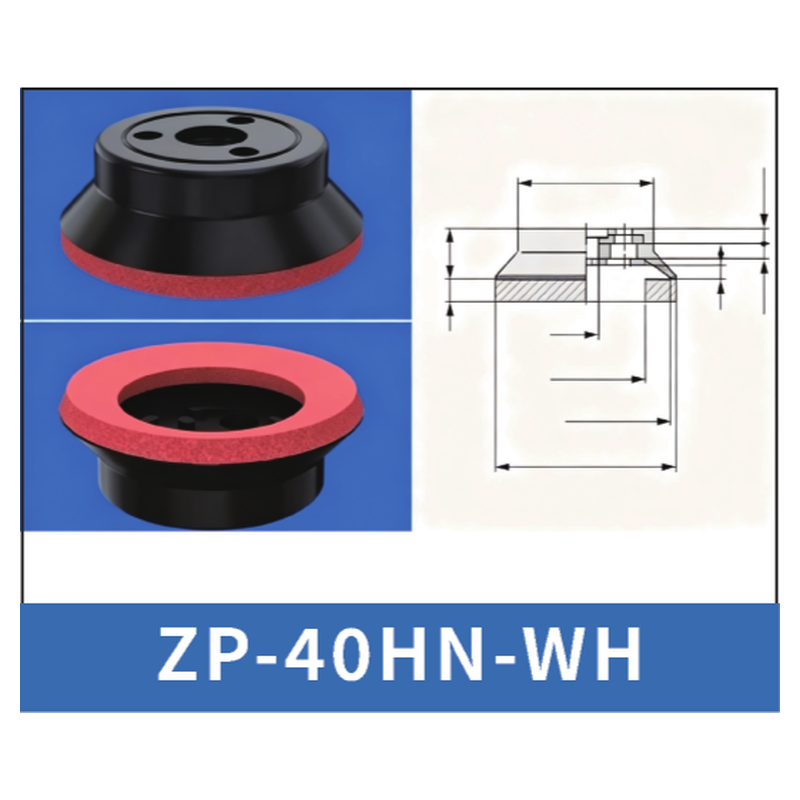

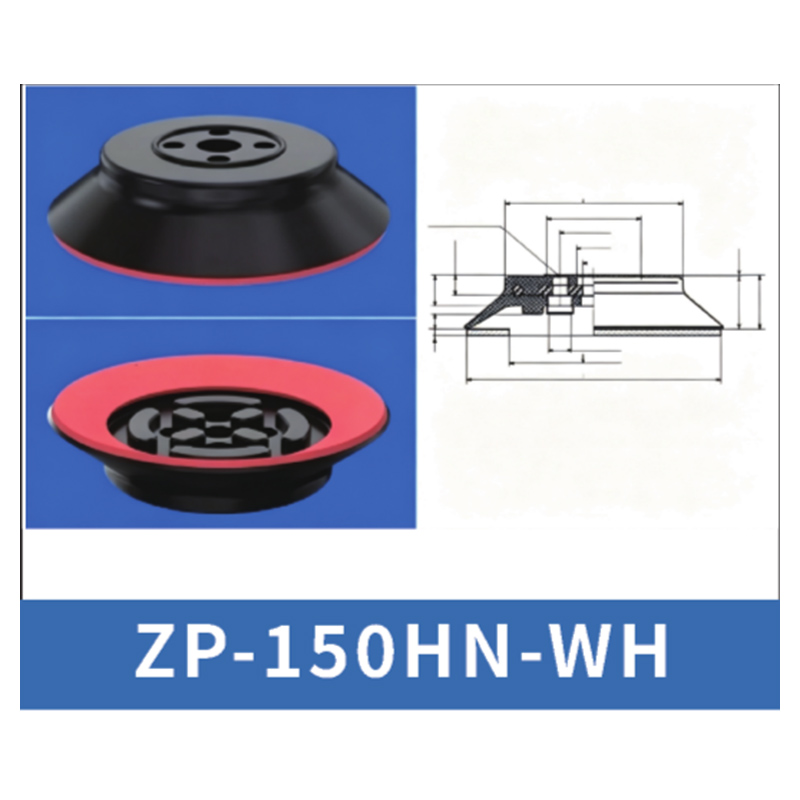

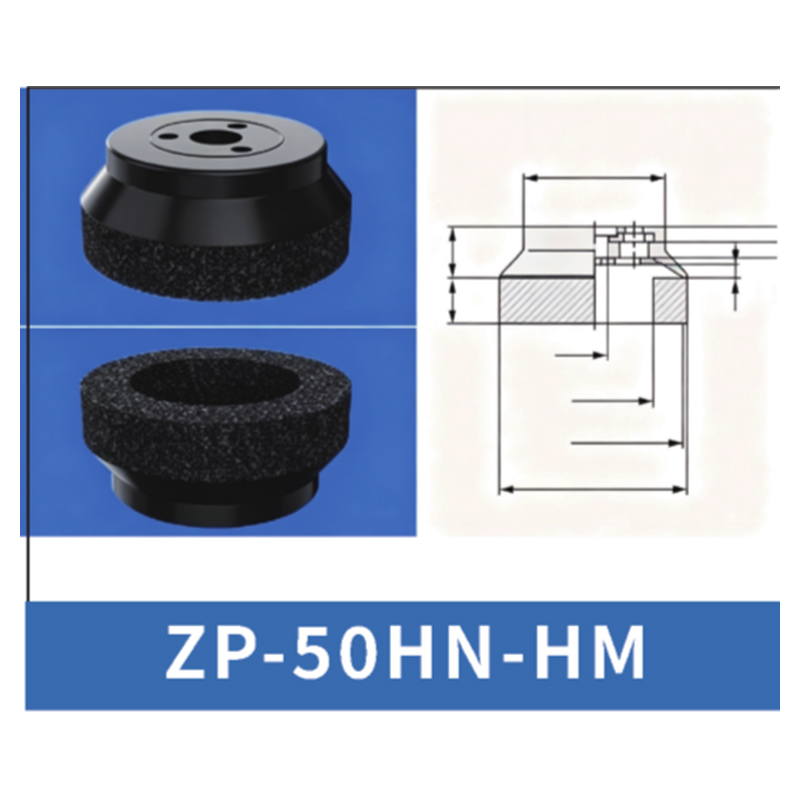

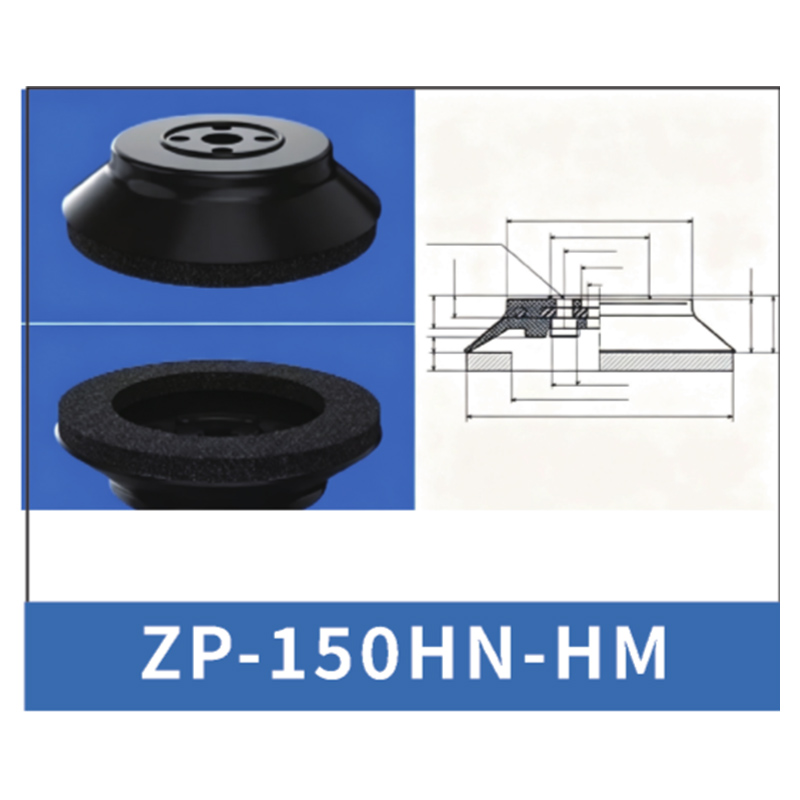

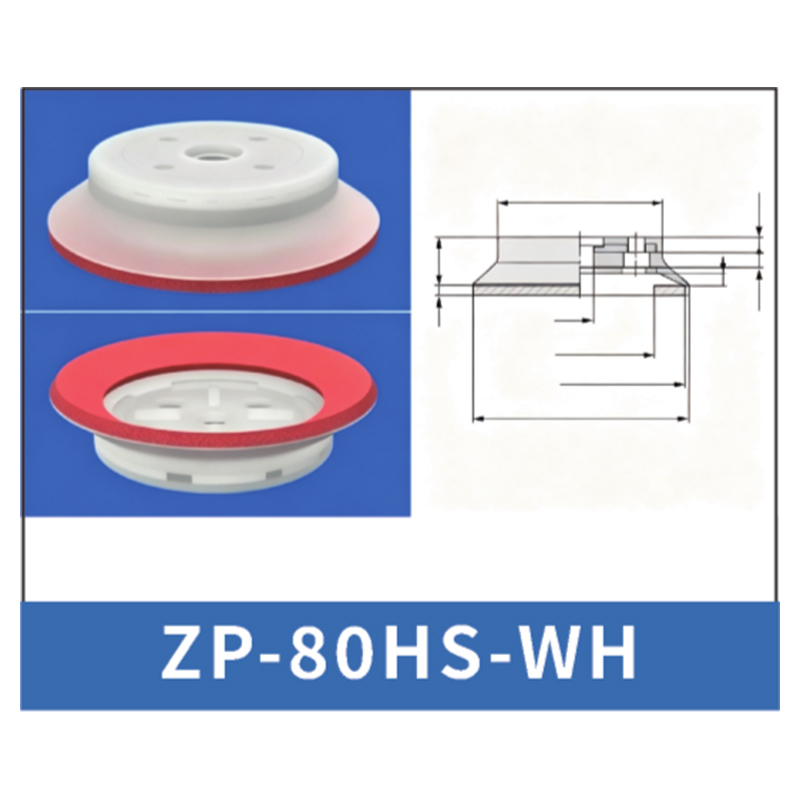

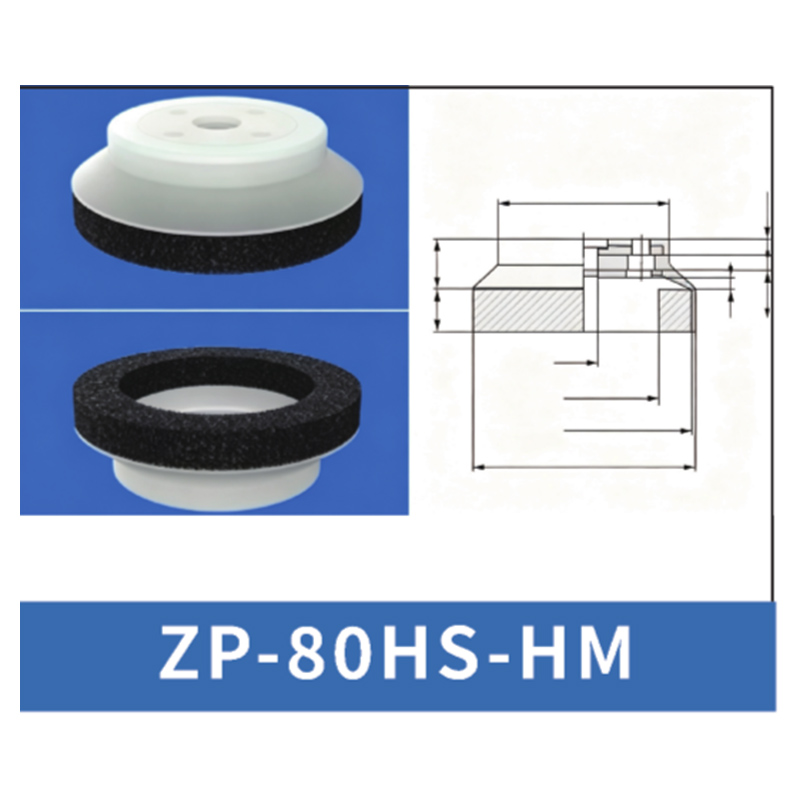

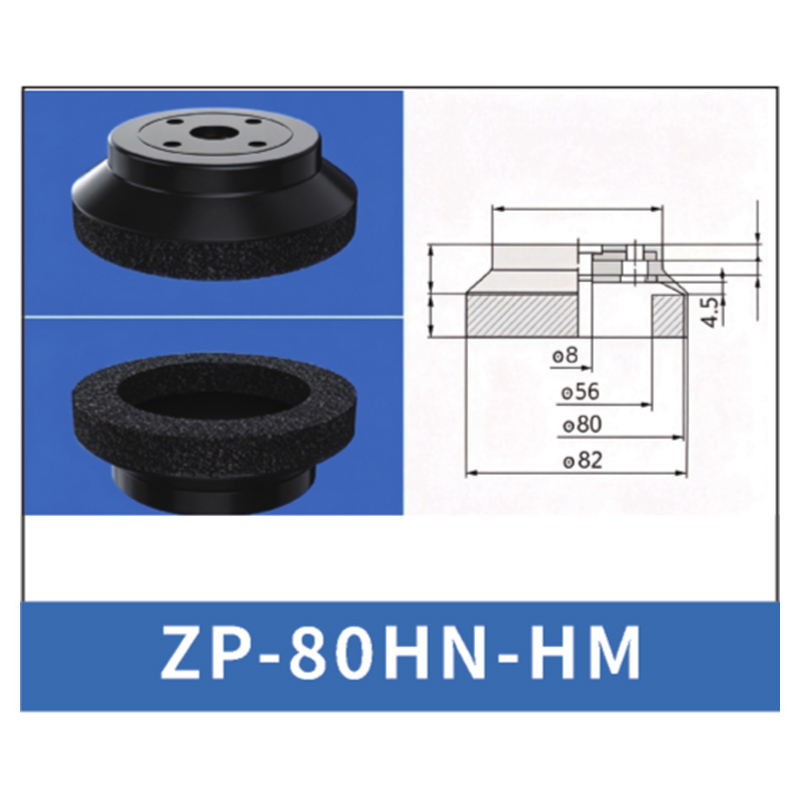

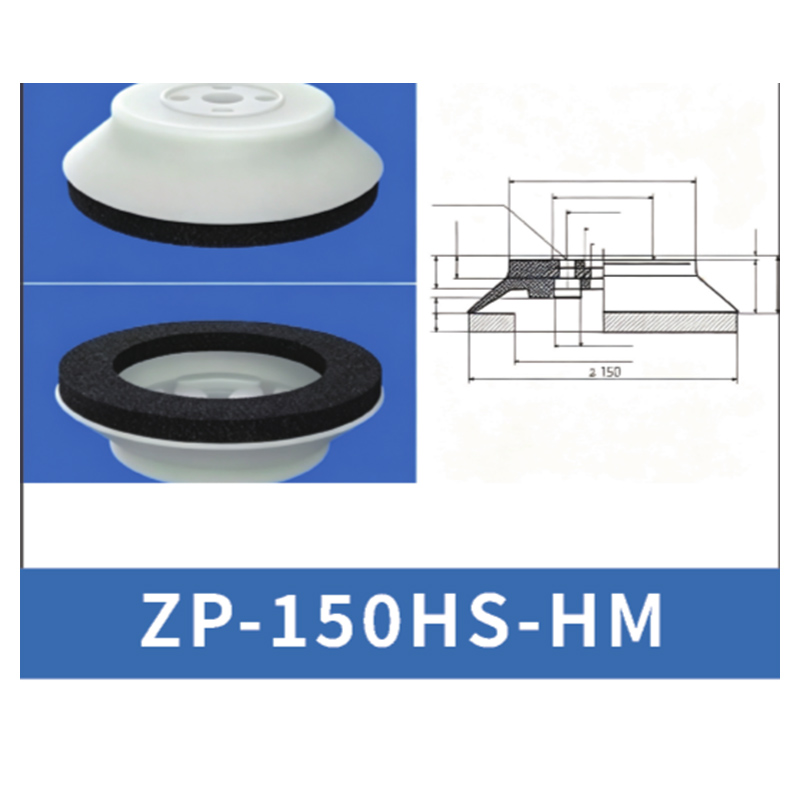

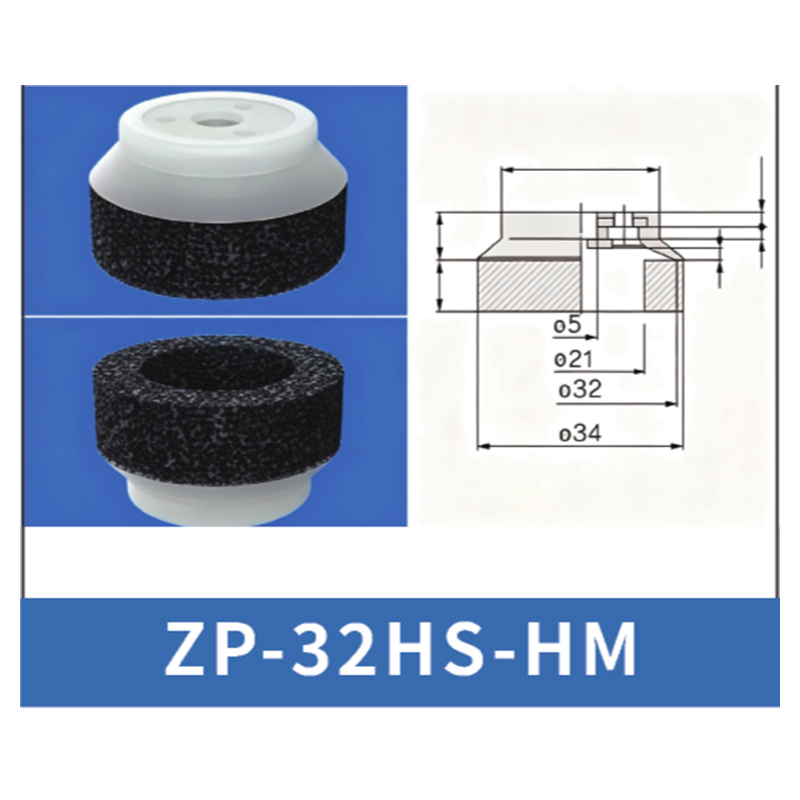

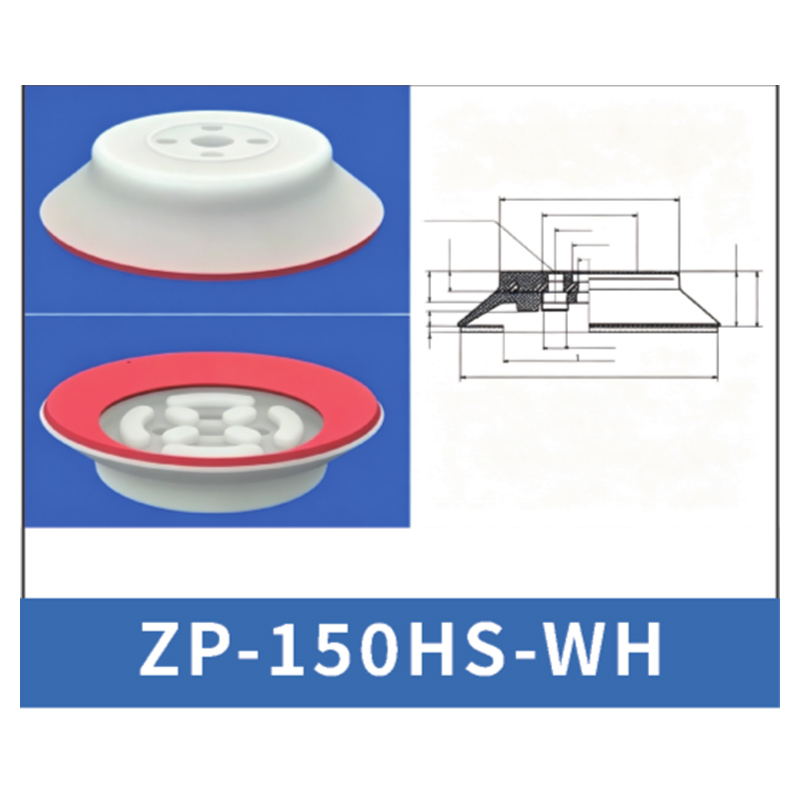

• HN and HS identify different heavy-duty body profiles; HM and WH identify the listed black or red contact version. Match the exact model drawing.
• Choose diameter and thread size according to the available sealing area, workpiece mass and dynamic load.
• Use multiple cups and a structural support arrangement for large panels; do not rely on one cup without a verified safety calculation.
• Actual capacity depends on vacuum level, center-of-gravity offset, lateral acceleration, surface finish and safety factor.
