ZH10–ZH40 X185 High-Flow Vacuum Conveyors and Complete Set

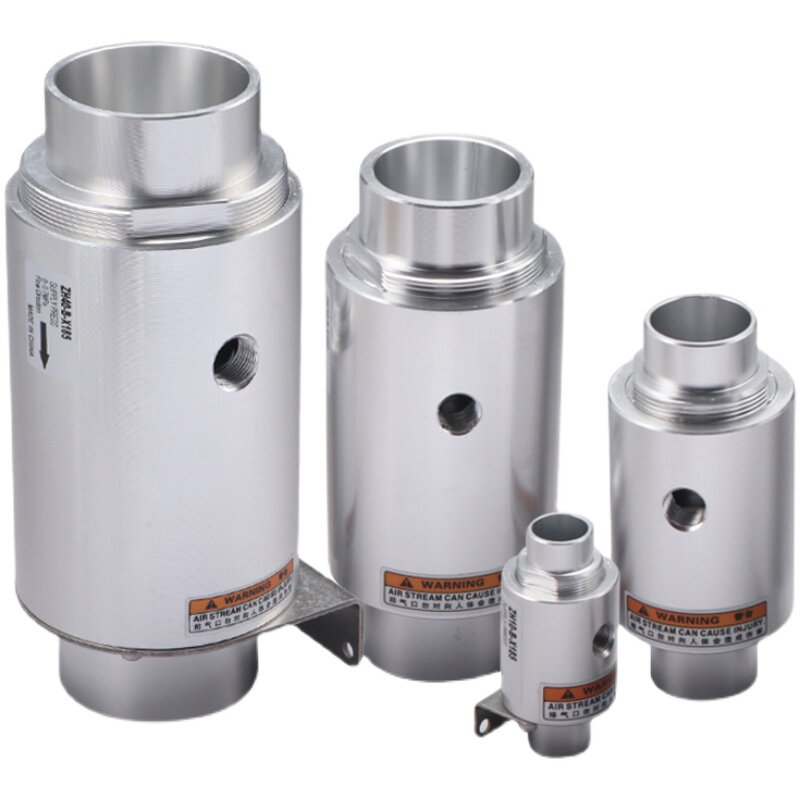

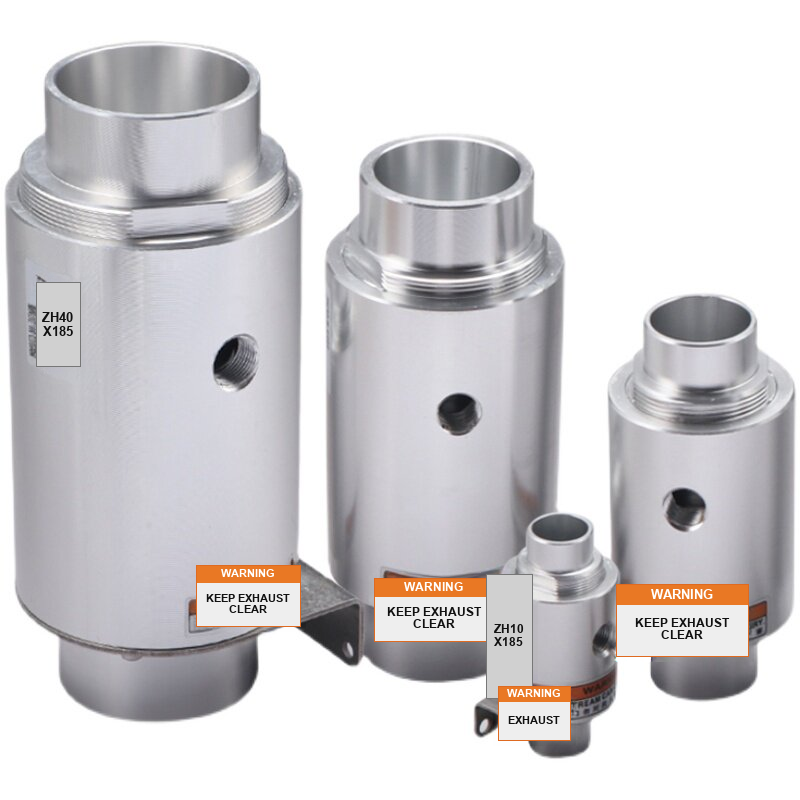

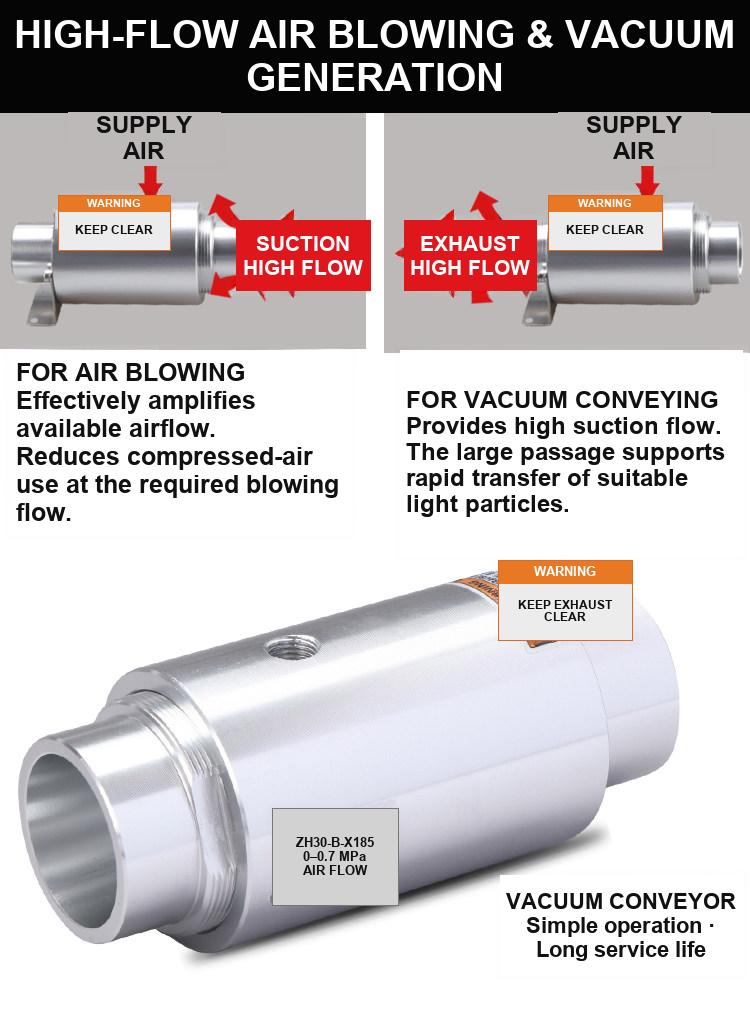

ZH10–ZH40 X185 High-Flow Vacuum Conveyors

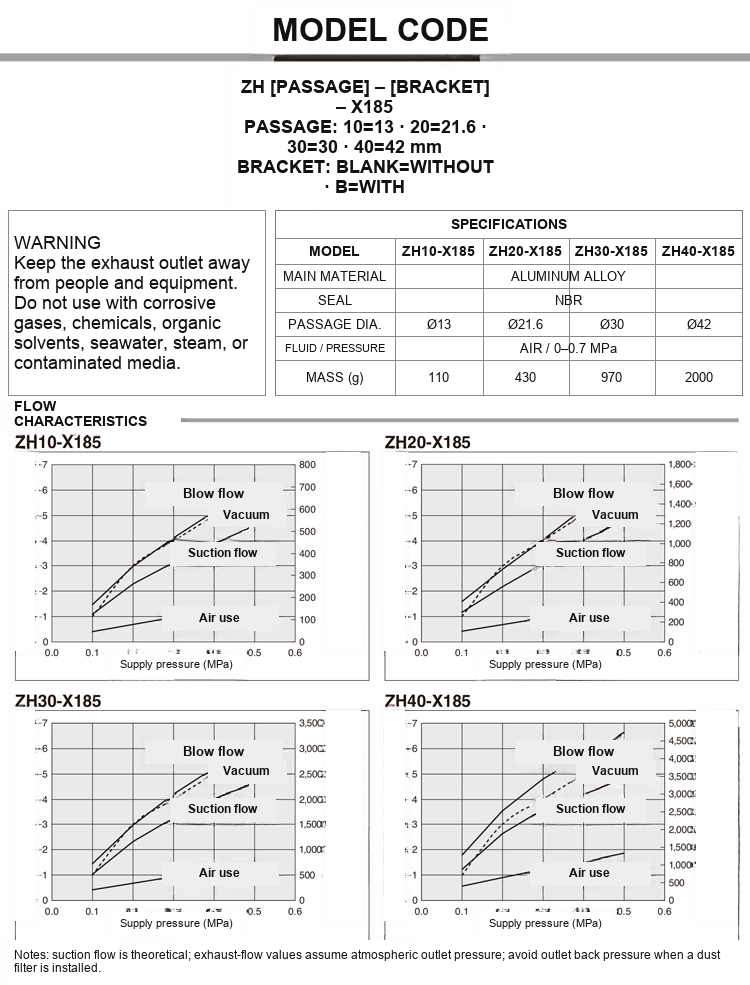

Aluminum-alloy pneumatic vacuum conveyors for compatible industrial transfer and material-handling systems. The listed range uses compressed air and is rated for a supply-pressure range of 0–0.7 MPa.

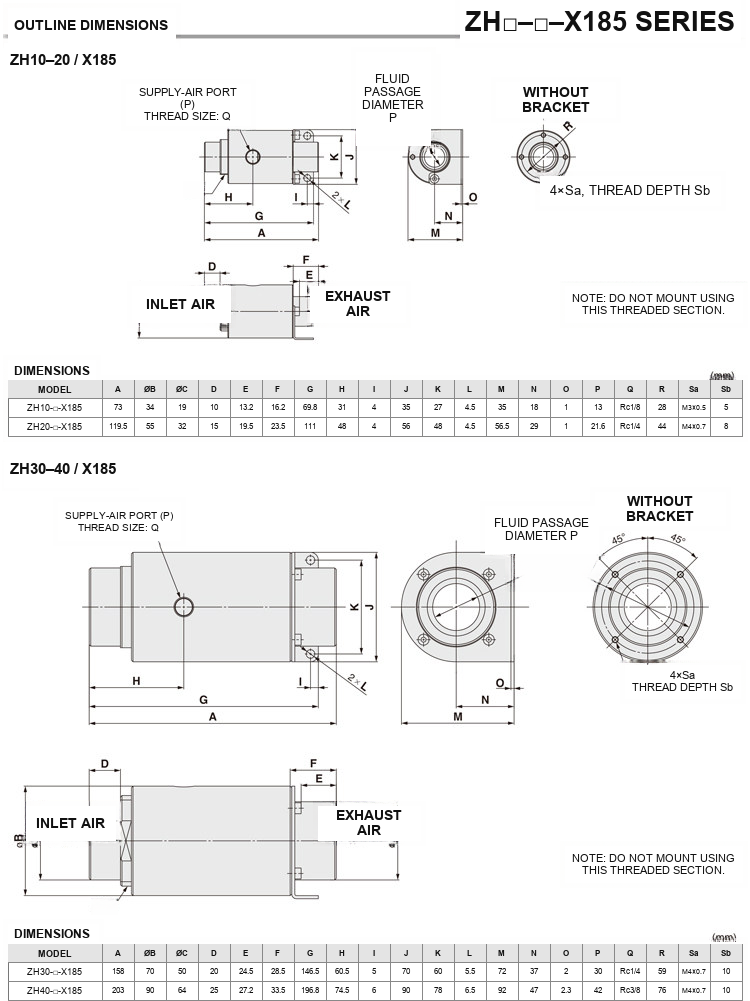

Quick Model Finder

• ZH10: 13 mm passage, G1/8 connection and 19 mm across flats.
• ZH20: 21.6 mm passage, G1/4 connection and 32 mm across flats.
• ZH30: 30 mm passage, G1/4 connection and 50 mm across flats.
• ZH40: 42 mm passage, G3/8 connection and 64 mm across flats.

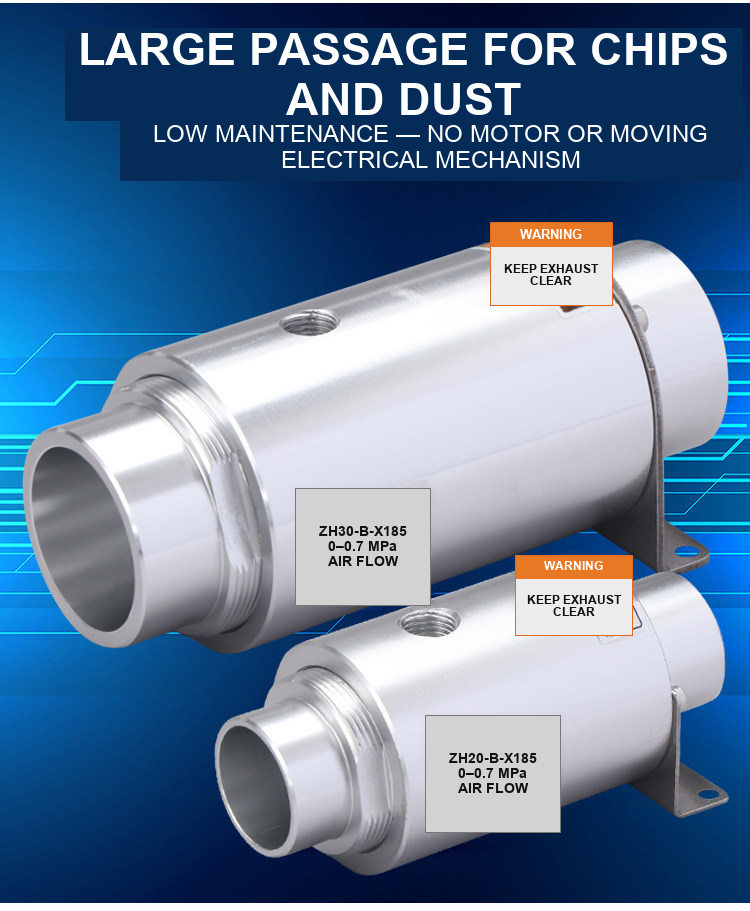

• B suffix: version supplied with a mounting bracket. Models marked Upgraded use the corresponding upgraded configuration shown in the selected image.
• Complete Set: 60 mm feather-style vacuum cup, Type A, combined with a ZH20-B-X185 conveyor.

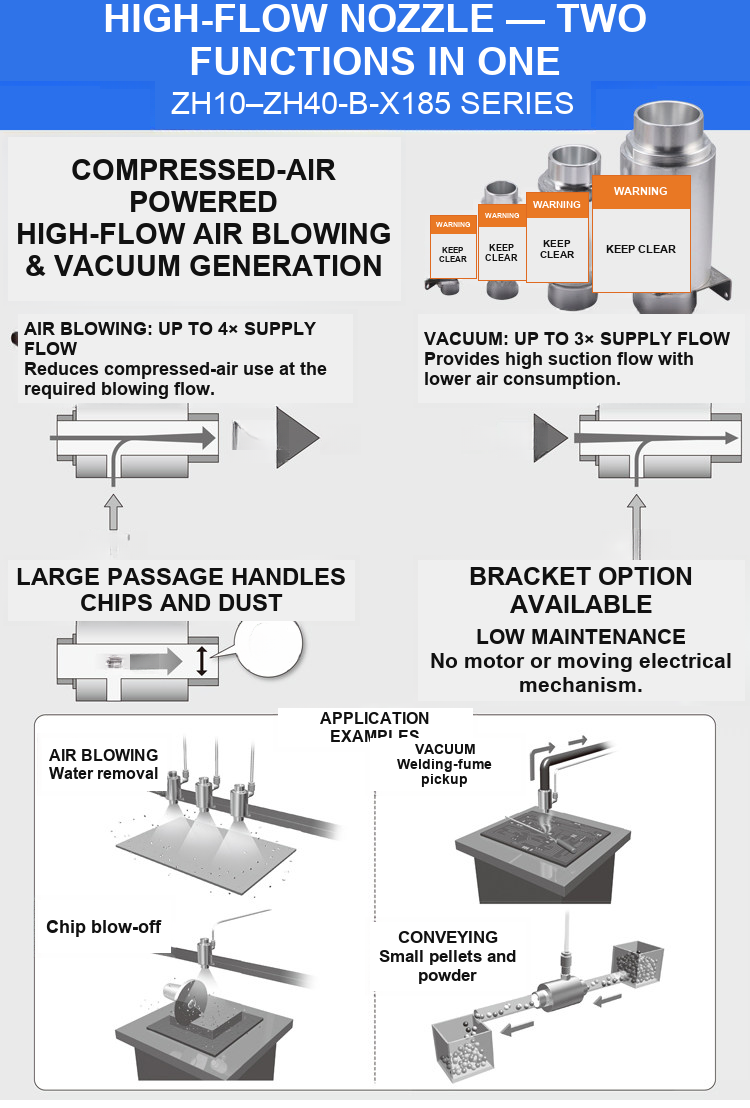

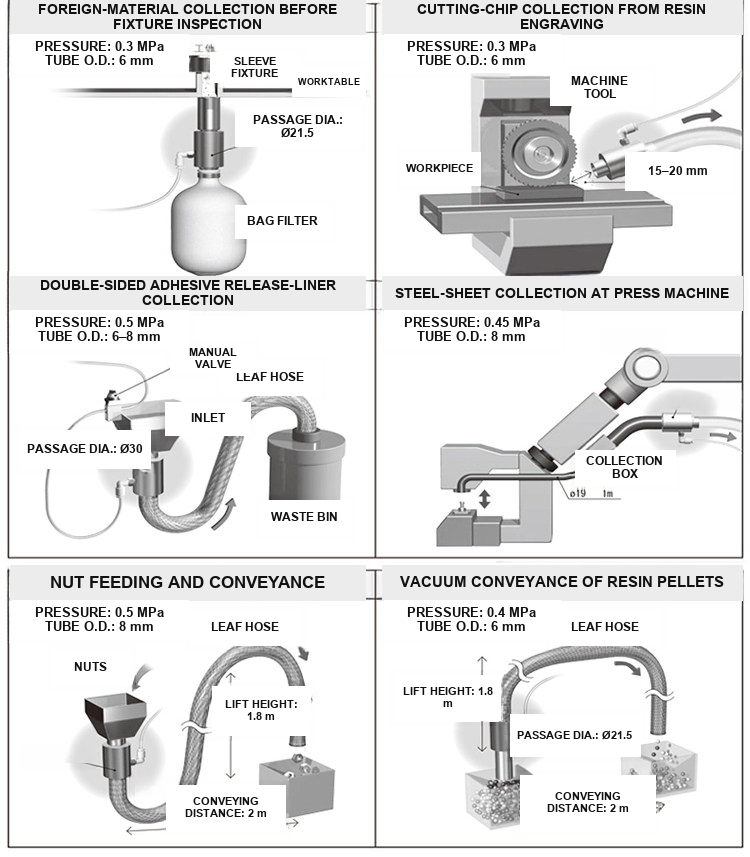

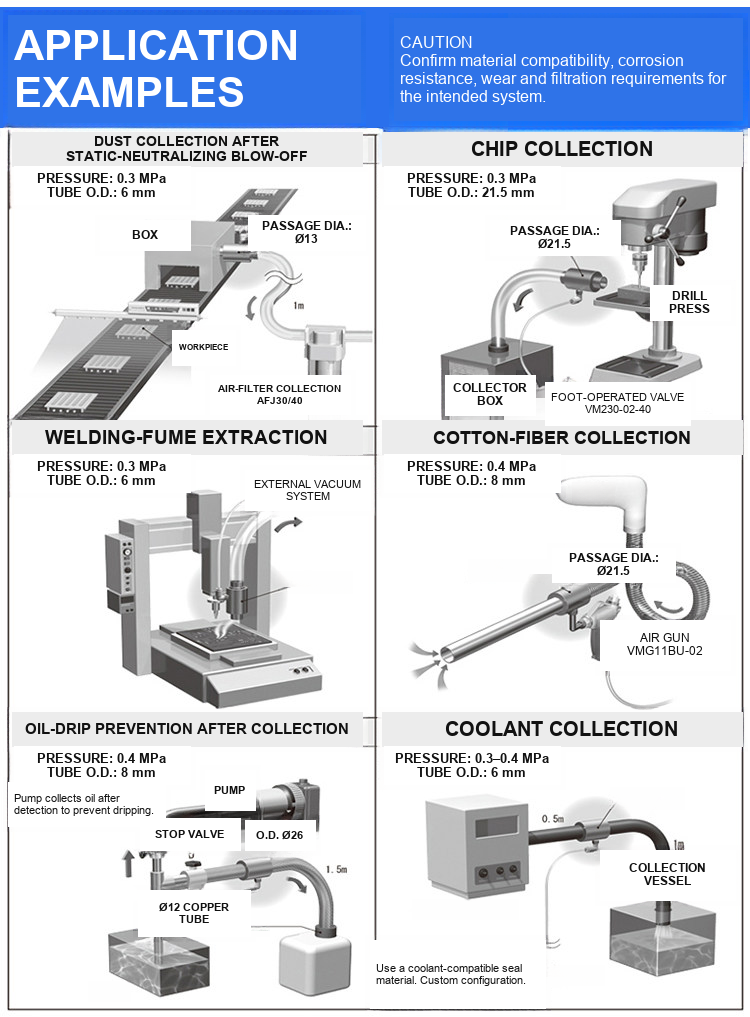

Typical Uses

• Pneumatic material transfer and feeding equipment
• Compatible packaging and automation systems
• Industrial handling of suitable particles and work materials

Before Ordering

Confirm the complete model, selected dimensions, passage diameter, connection, bracket requirement, compressed-air capacity, supply pressure, conveyed material, particle size, piping, installation orientation and operating environment. The complete set and individual conveyor models are separate selections. No food-contact, medical, lifting-safety or regulatory certification is claimed.
