BOLTTE ZH05–ZH13 Tube Vacuum Generators — High Vacuum and High Flow
Compact pneumatic tube vacuum generators for compatible industrial vacuum systems, automated handling equipment and robotic end-effectors. Select the complete model code to match the required performance class and connection configuration.
Quick Model Finder

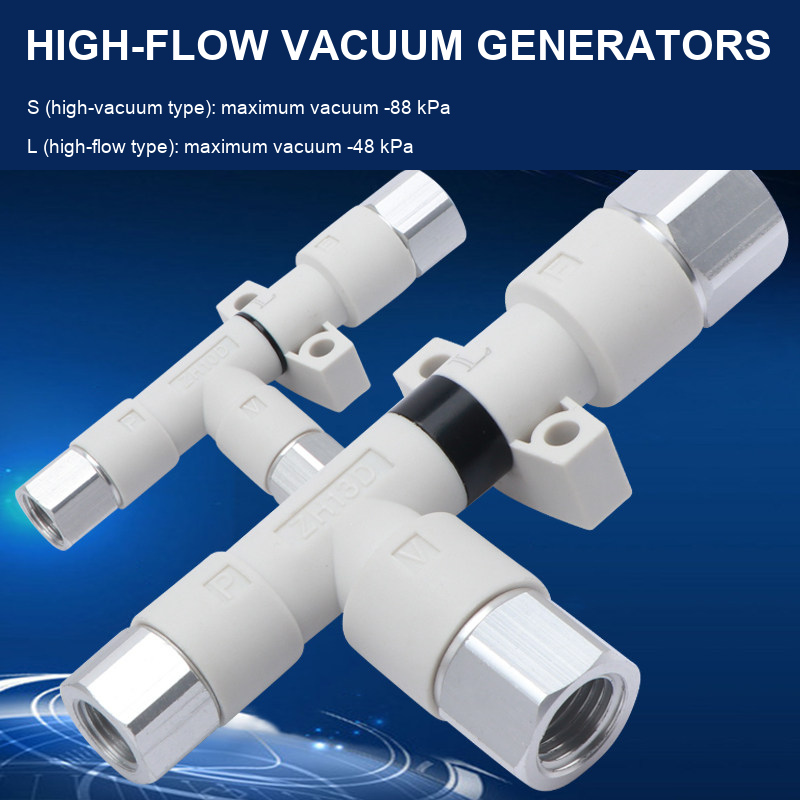

- S series: high-vacuum configuration for applications prioritizing vacuum level.
- L series: high-flow configuration for applications prioritizing airflow.

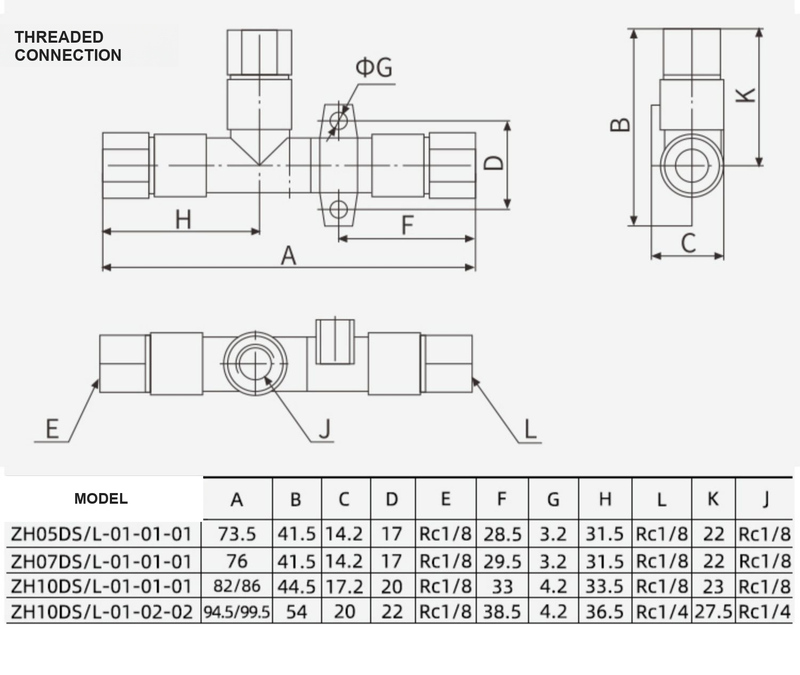

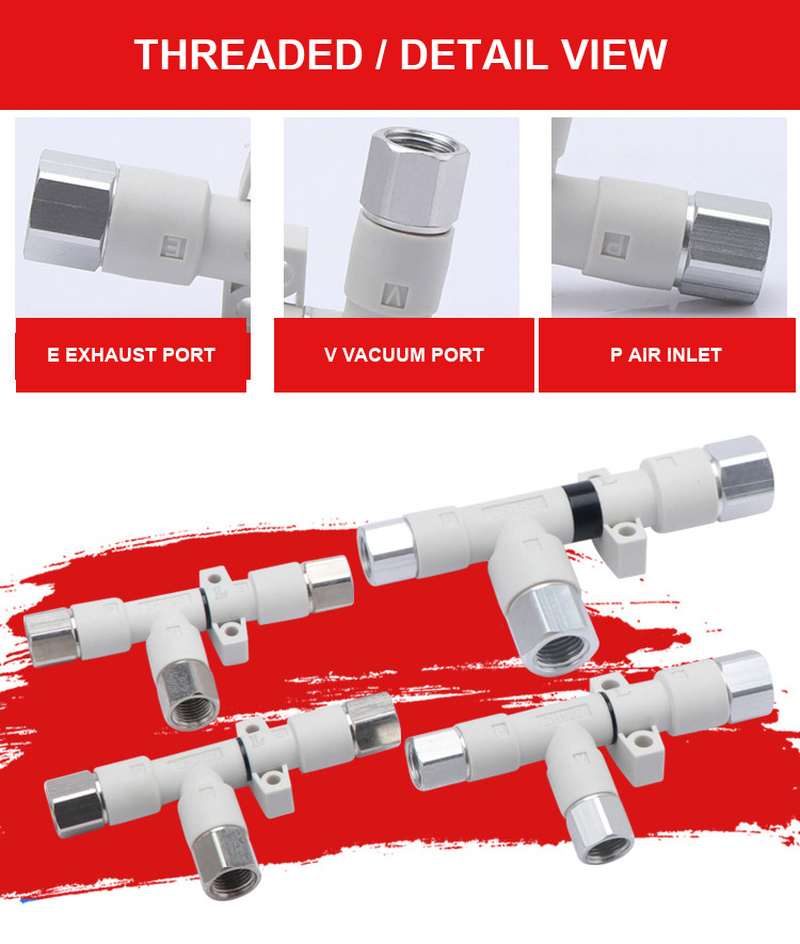

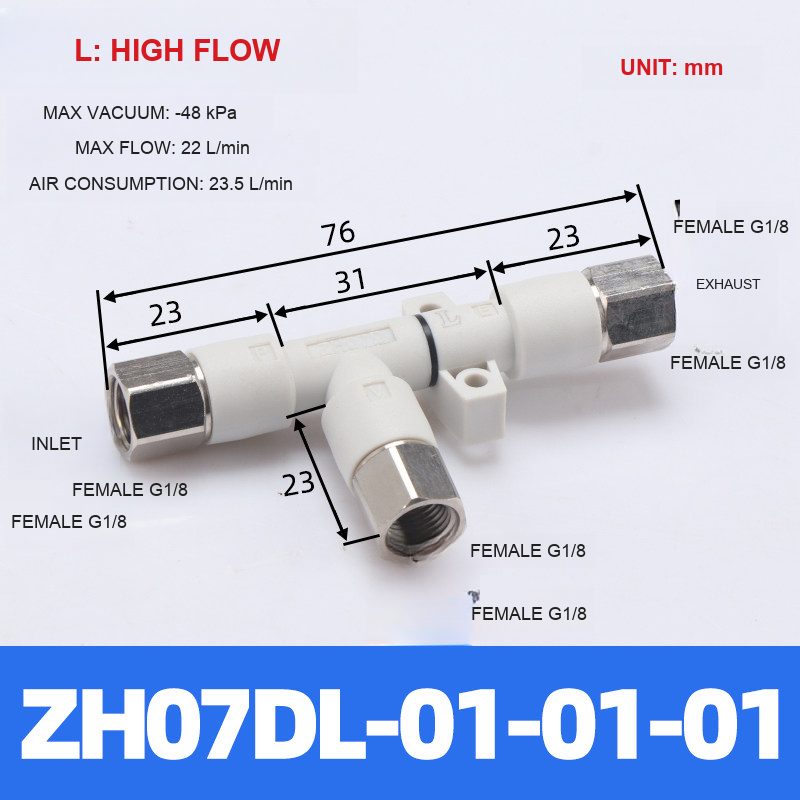

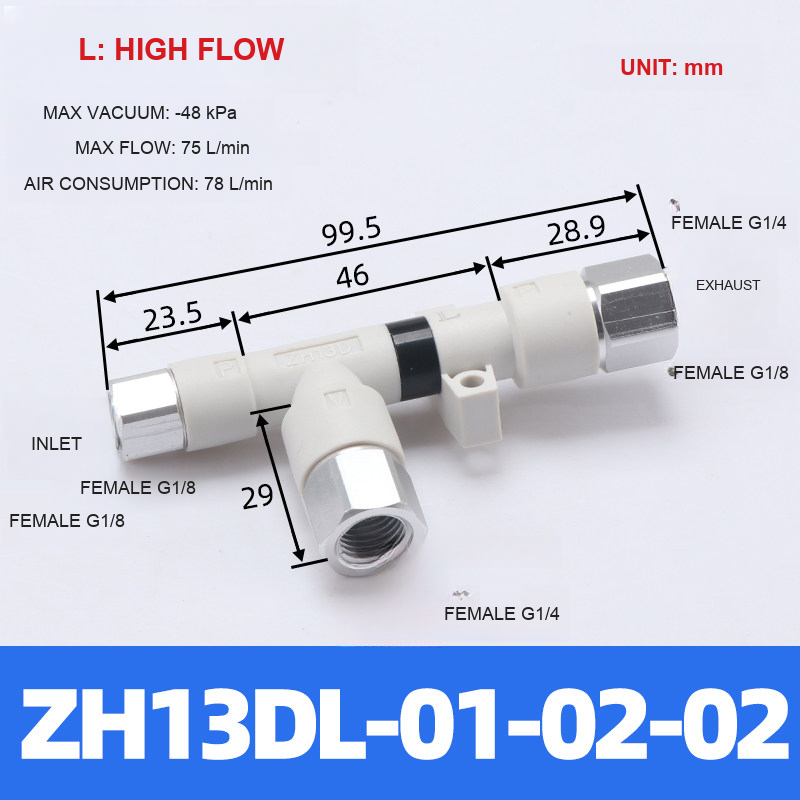

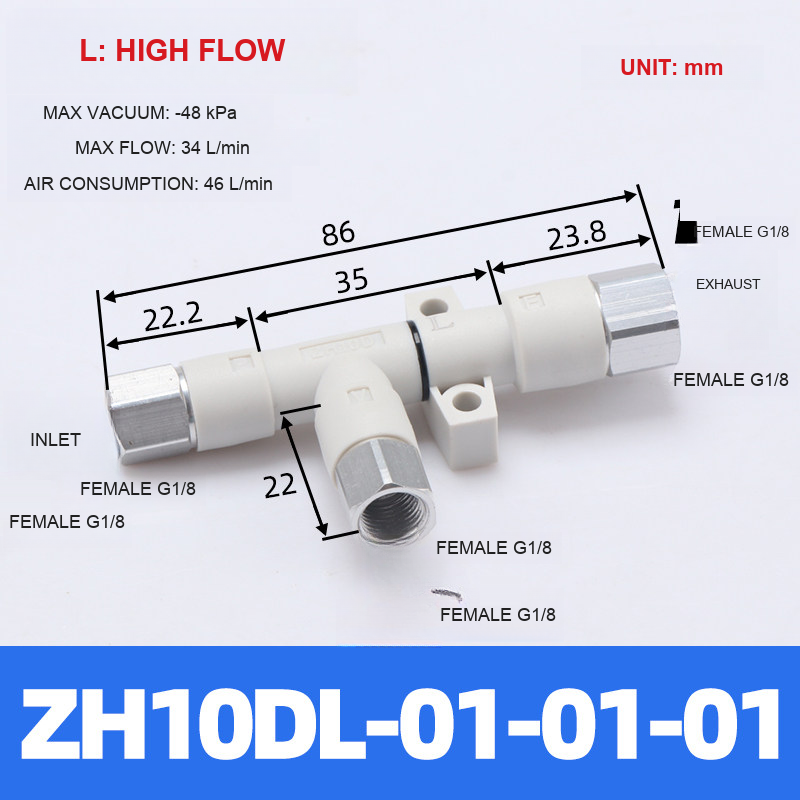

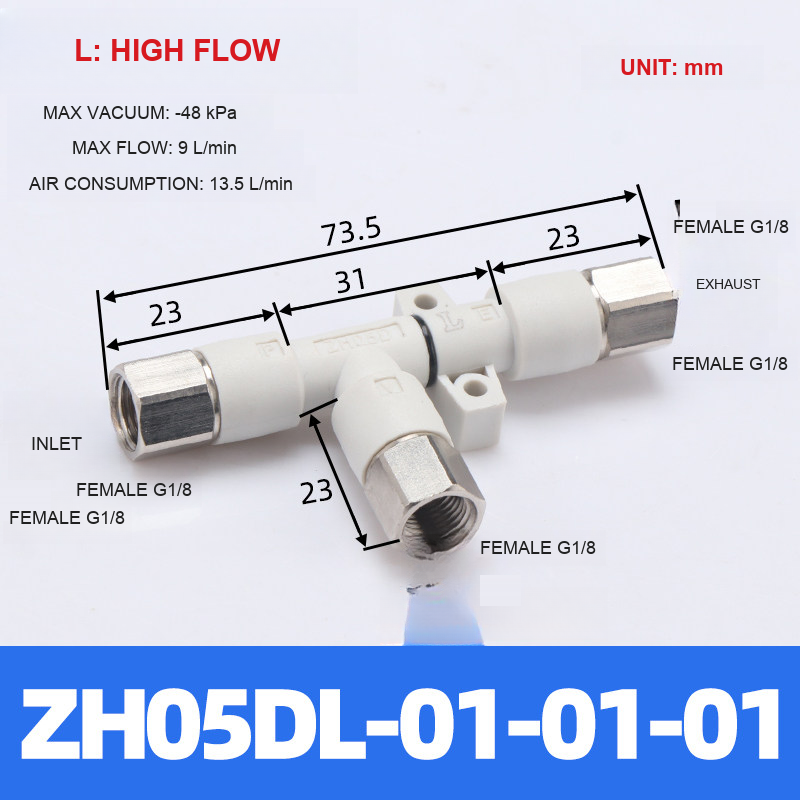

- 01/02 connection models: threaded ports shown in the corresponding drawing.

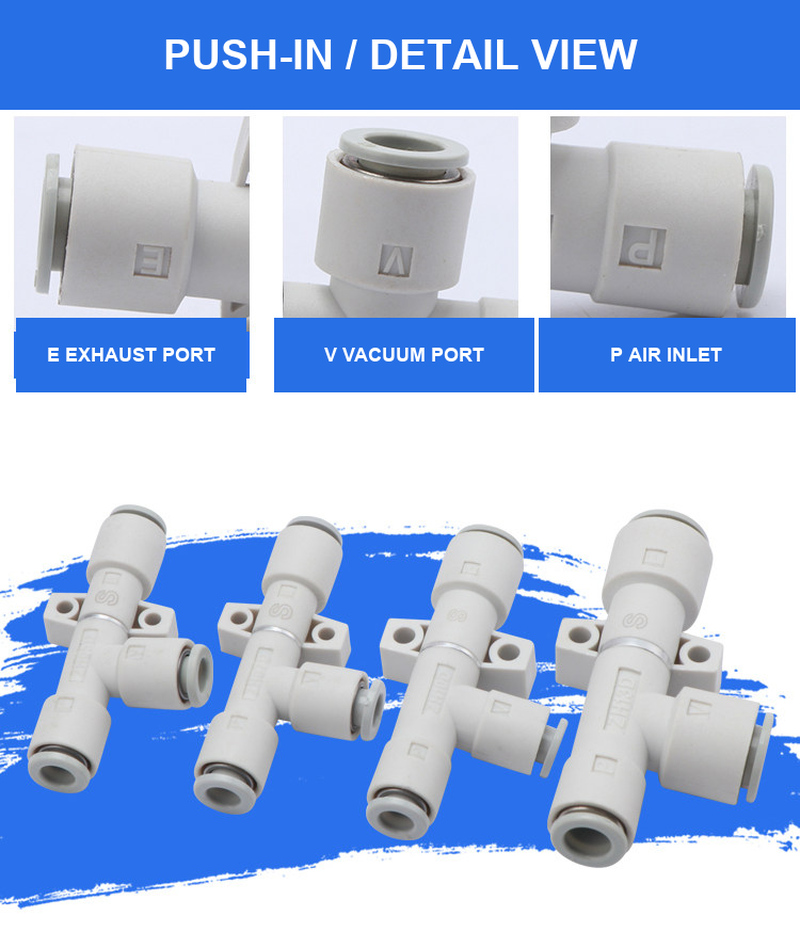

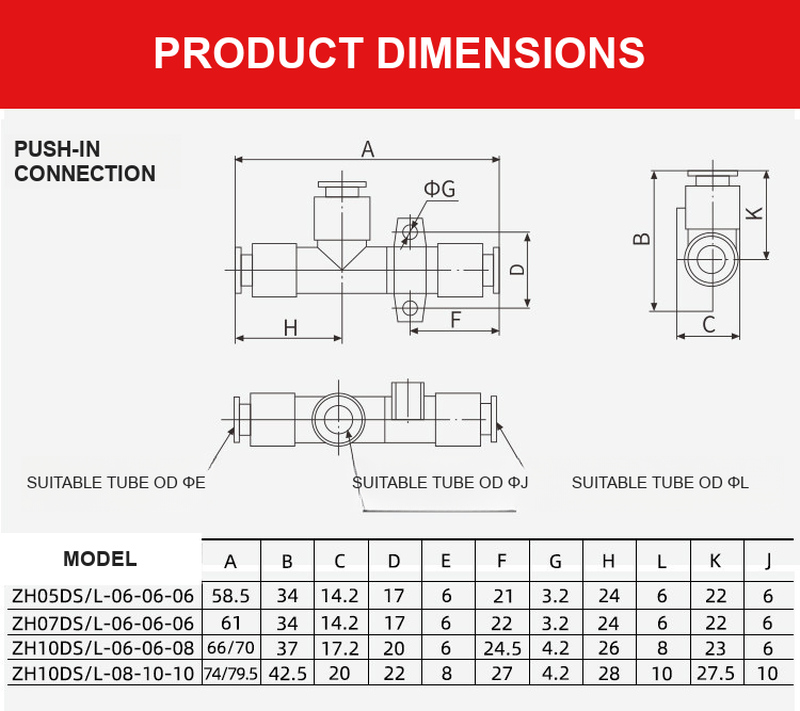

- 06/08/10 connection models: push-in ports shown in the corresponding drawing.
- Select the exact ZH05, ZH07, ZH10 or ZH13 model code and confirm all connection suffixes before ordering.
Applications
- Industrial pick-and-place and robotic vacuum tooling
- Automated packaging, sorting and material handling
- Compatible pneumatic vacuum circuits requiring compact inline generation
- Replacement and configuration work for compatible vacuum assemblies
Before Use
Confirm the complete selected model code, drawing, port type and size, vacuum level, airflow, workpiece surface, payload, acceleration, temperature and operating environment before installation. Actual performance depends on the complete pneumatic system and application conditions.

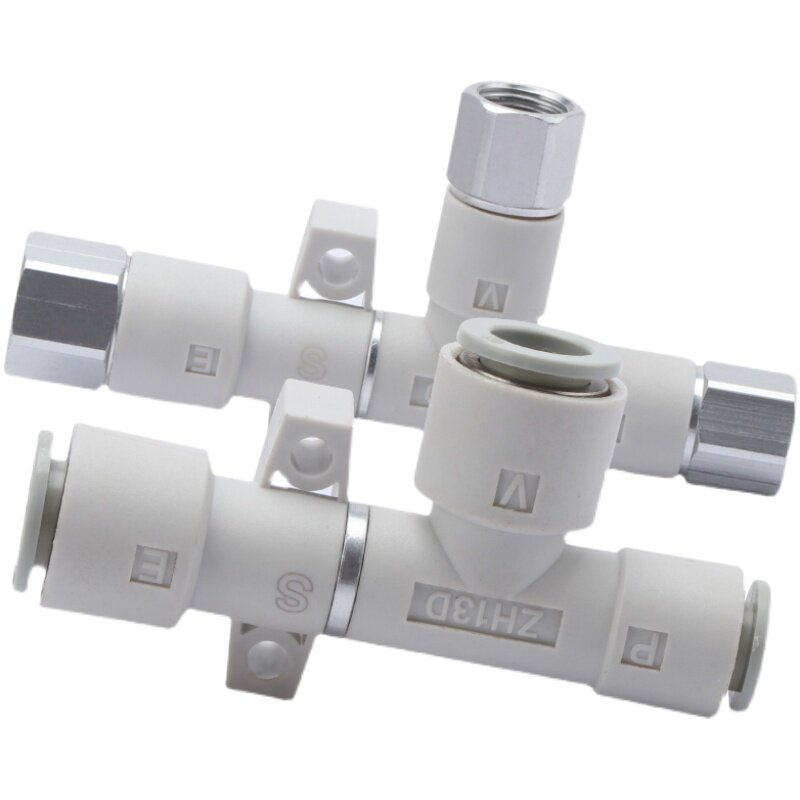

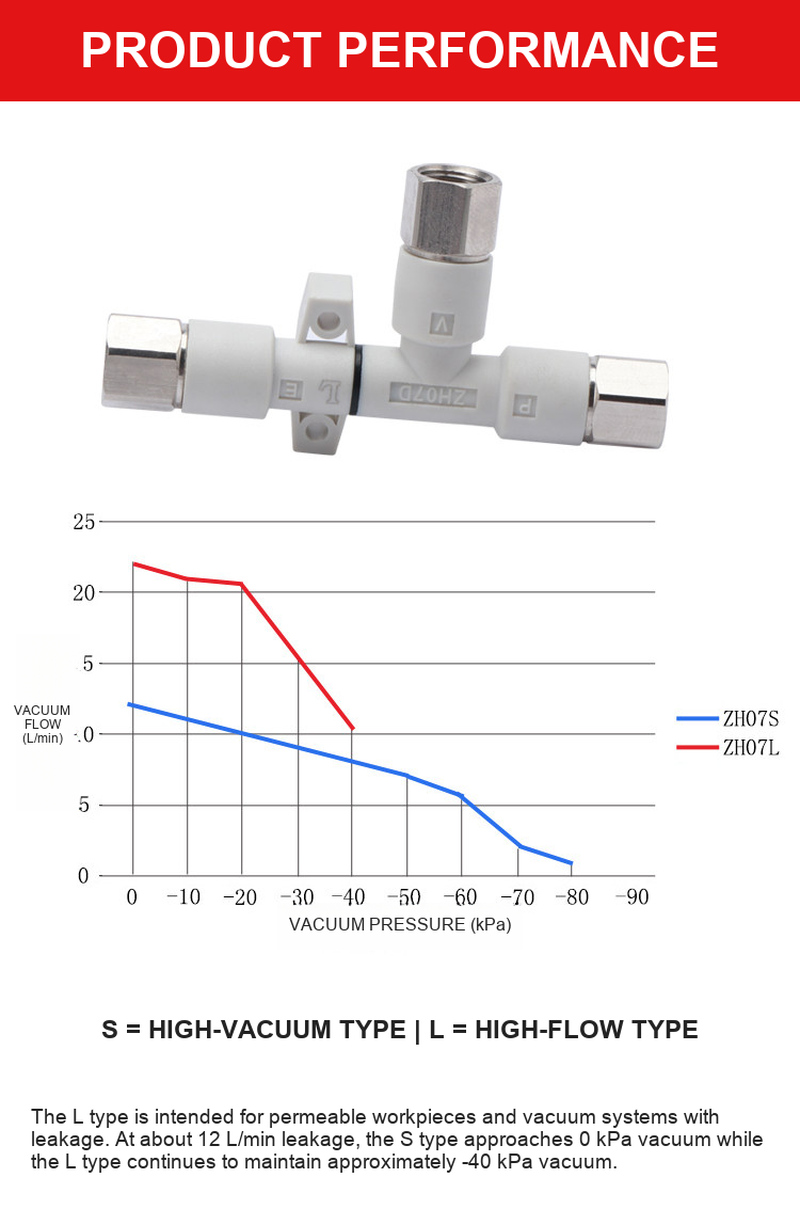

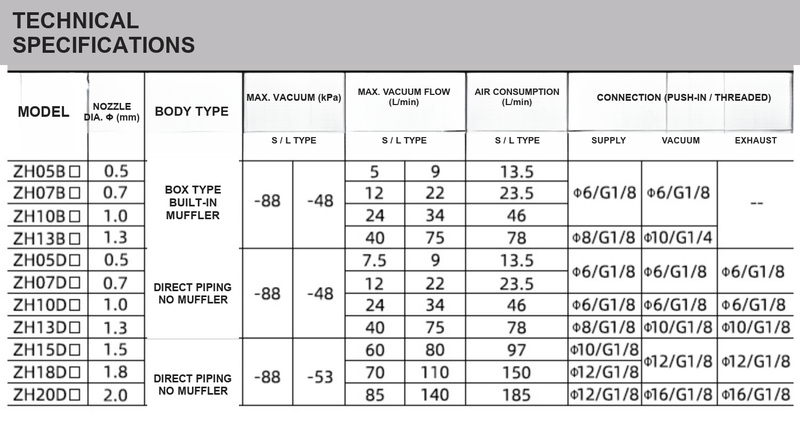

Product Overview, Performance and Dimensions
