Y Series Side-Entry Vacuum Cup Holders and Buffer Mounts (M11/M14)
Y Series Side-Entry Vacuum Cup Holders and Buffer Mounts

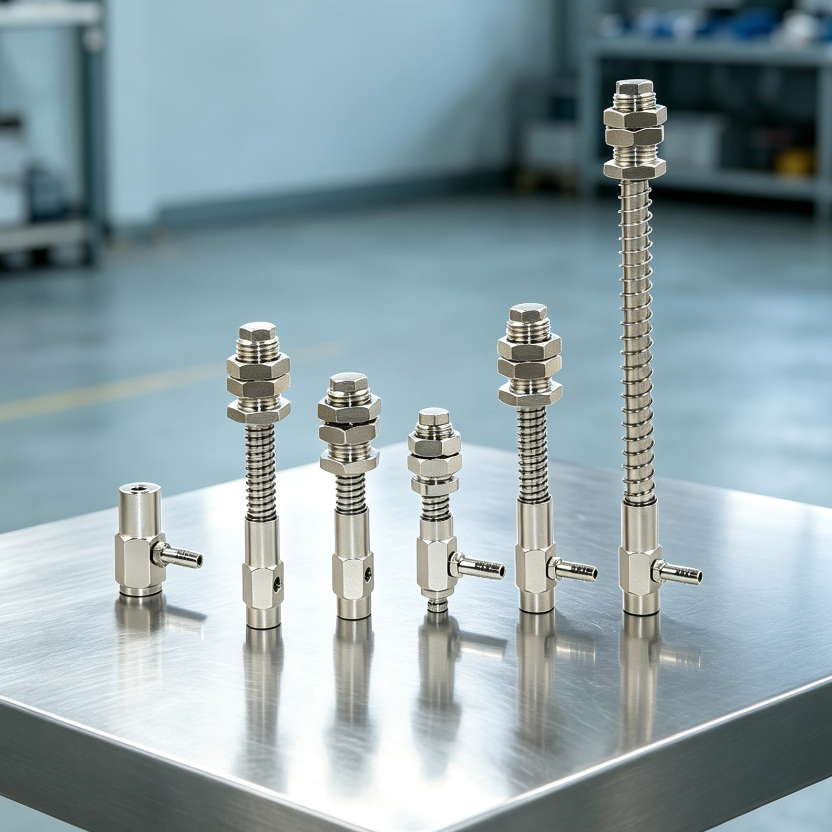

Nickel-plated brass side-entry holders and M11/M14 spring-buffer mount selections for compatible industrial vacuum cup systems, robotic end-effectors and automated handling equipment.
Quick selection

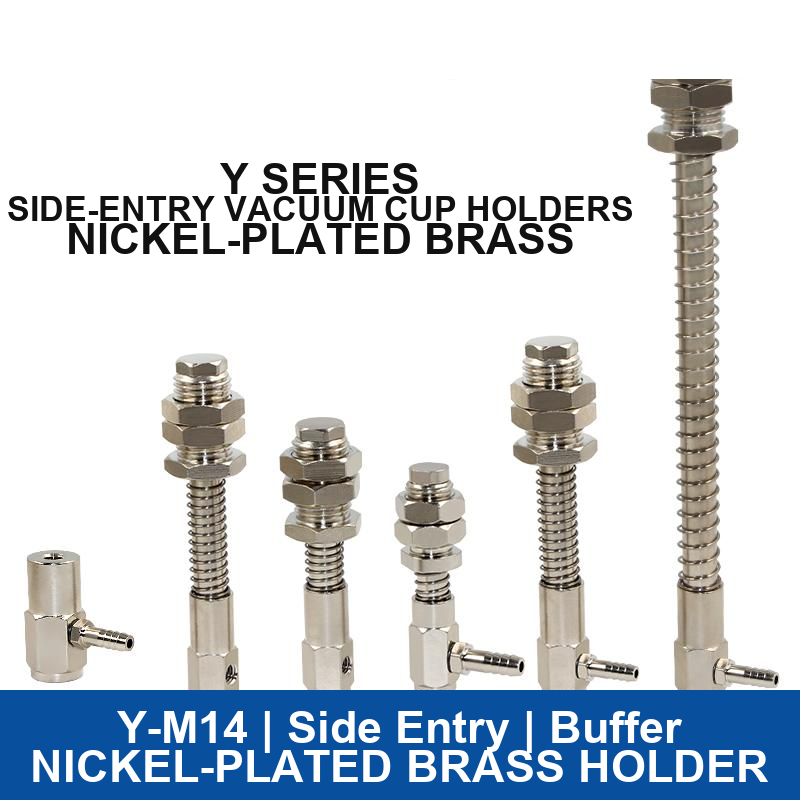

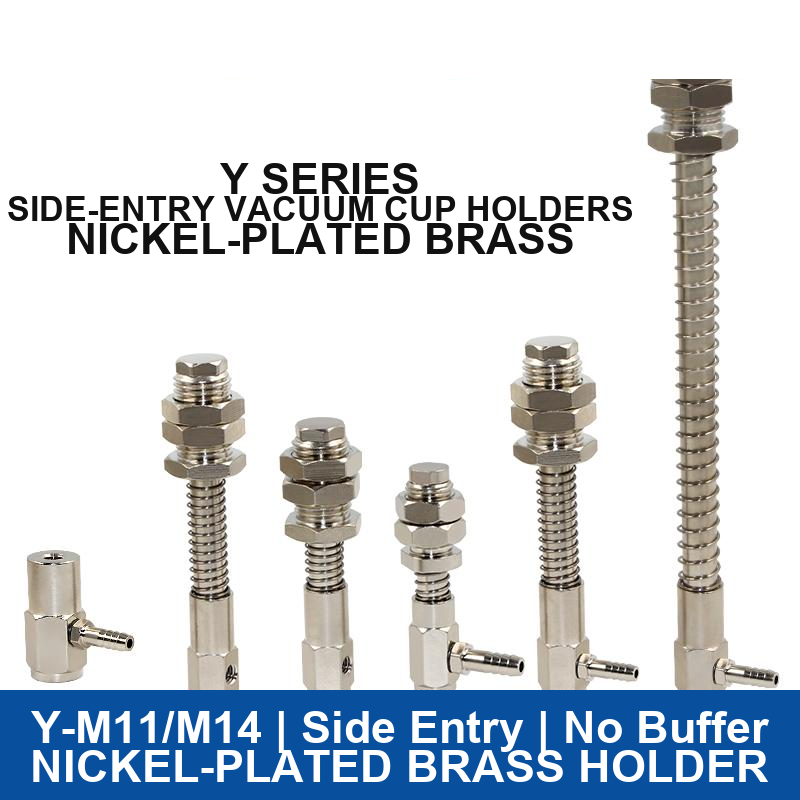

- Choose the configuration group: select the no-buffer overview for a side-entry holder without a spring buffer, or select the M11 or M14 group for a side-entry buffer mount.

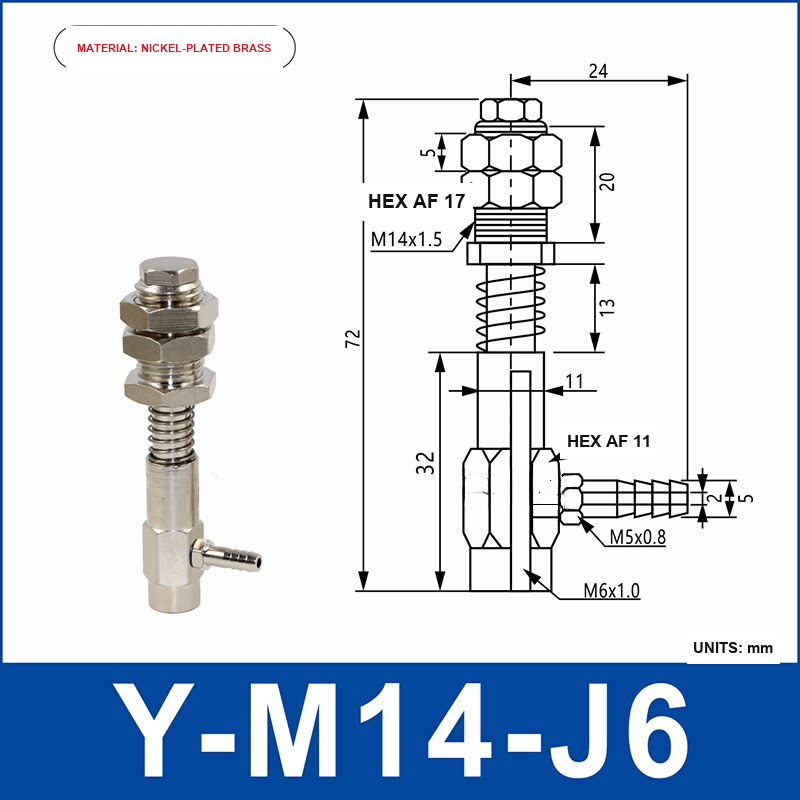

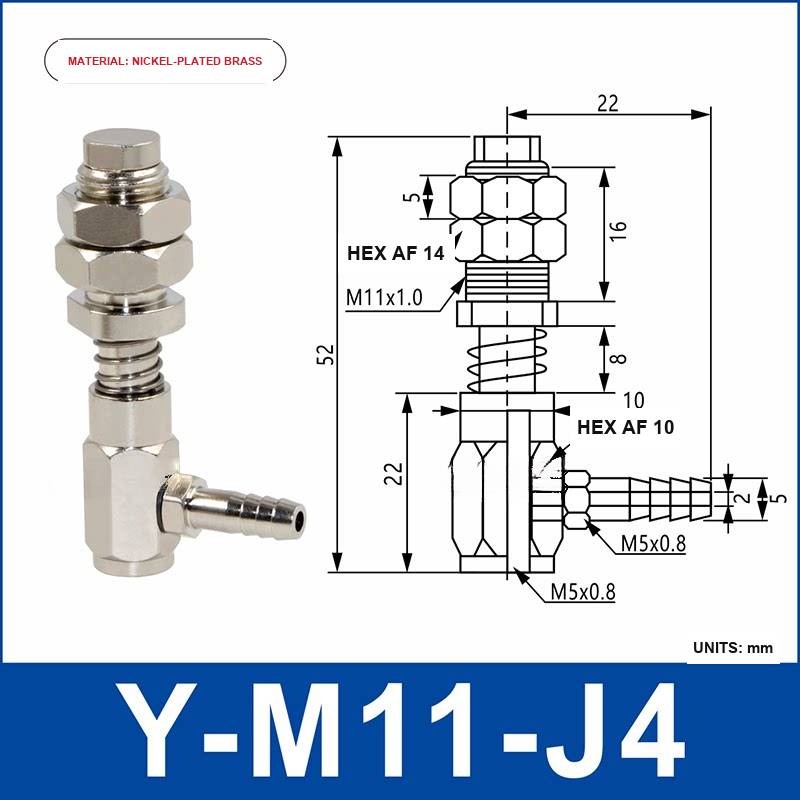

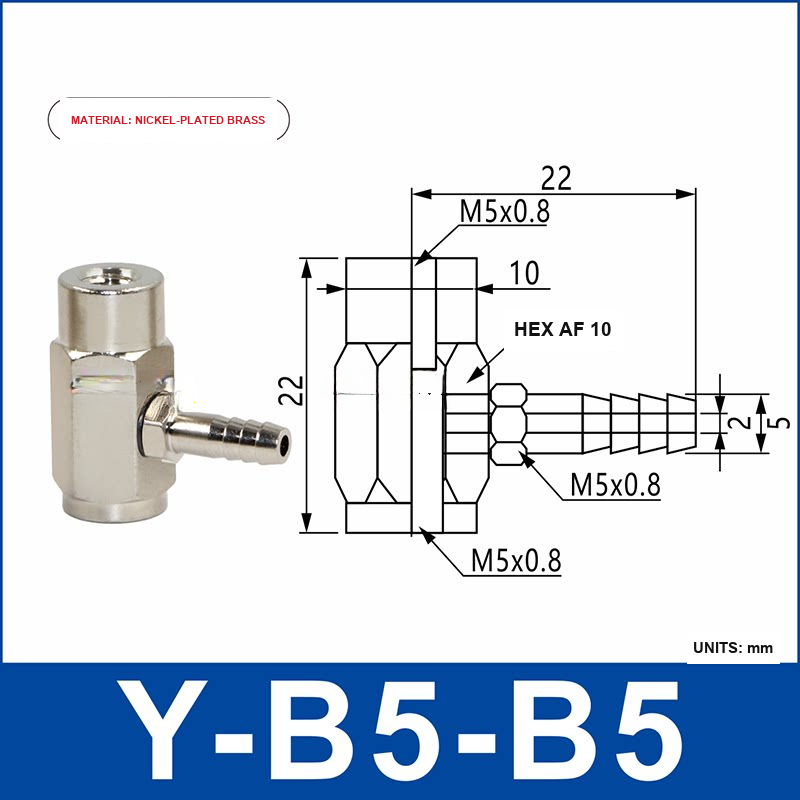

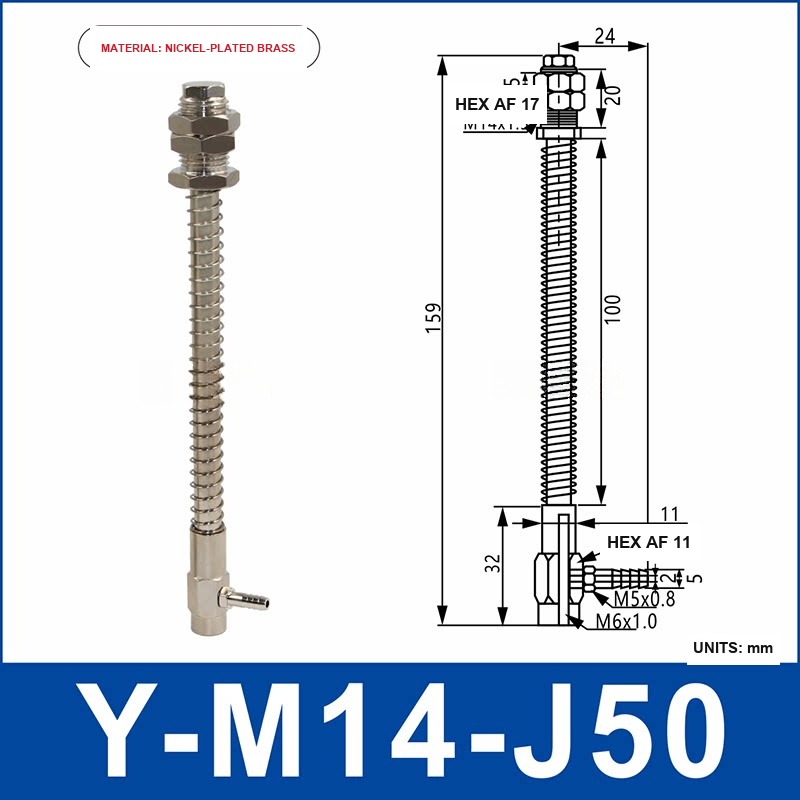

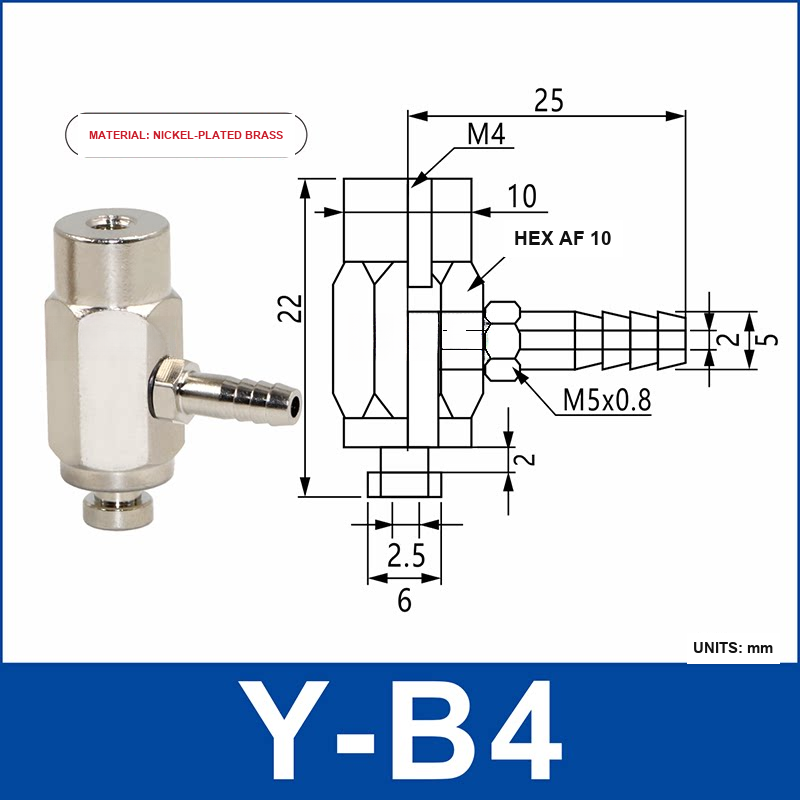

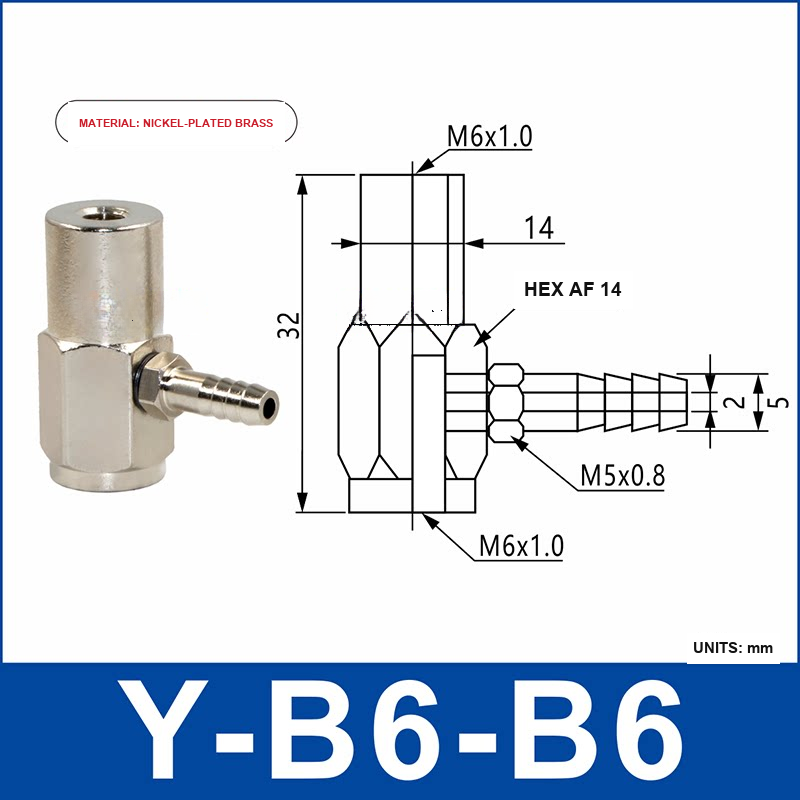

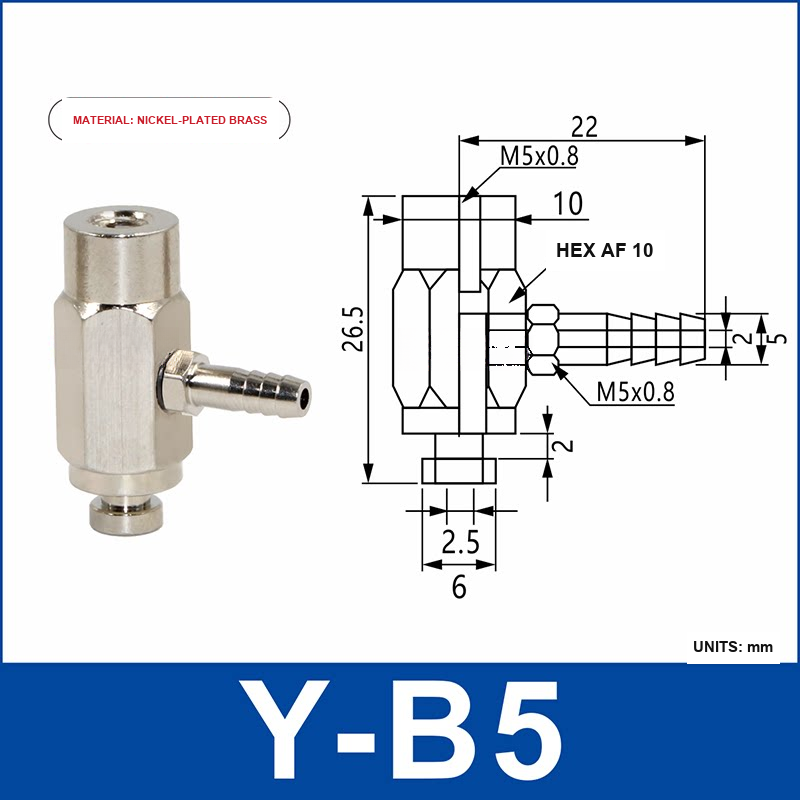

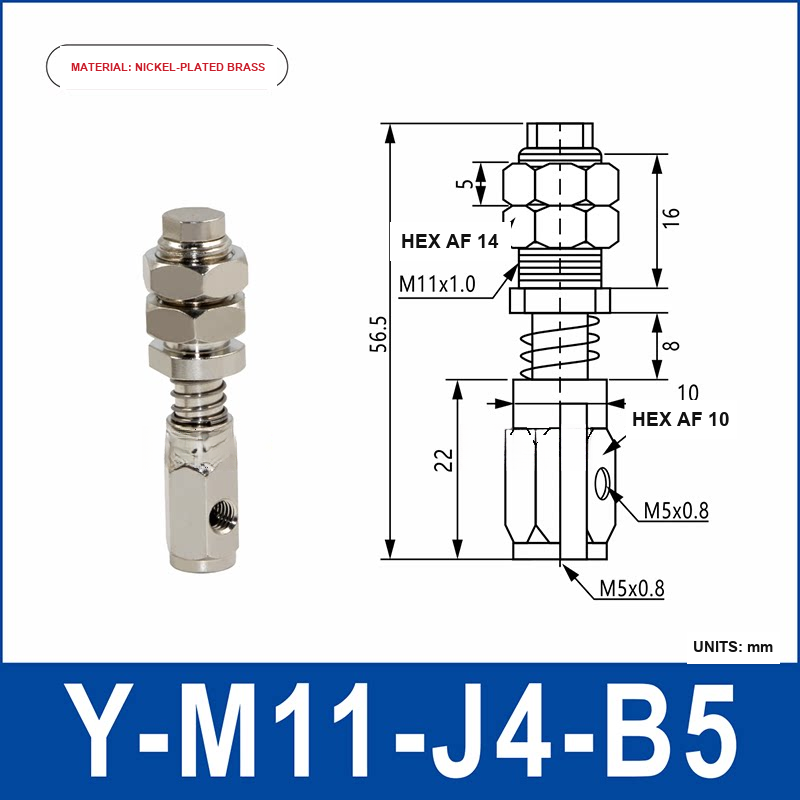

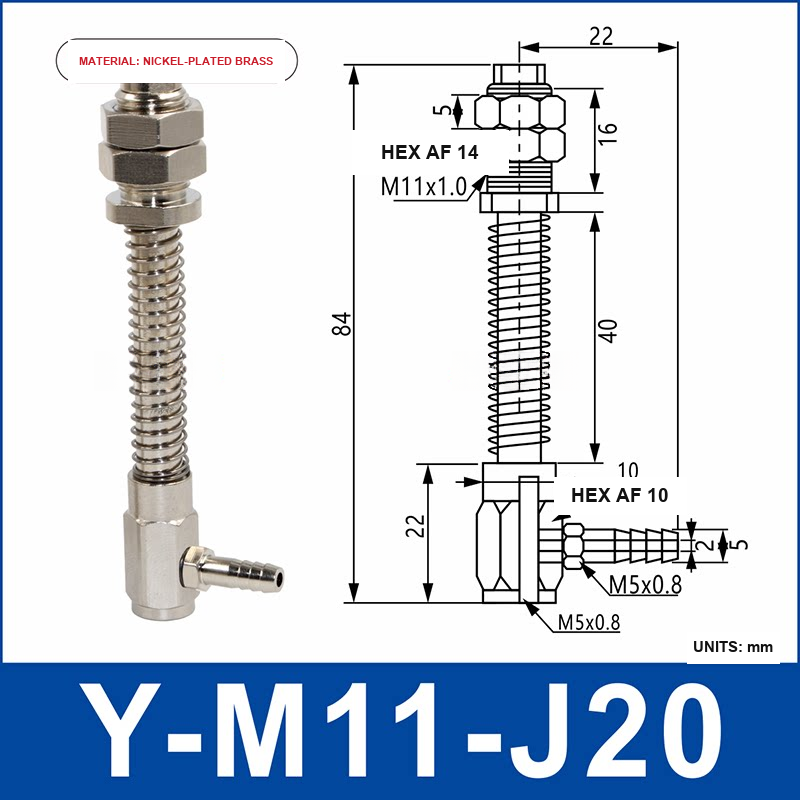

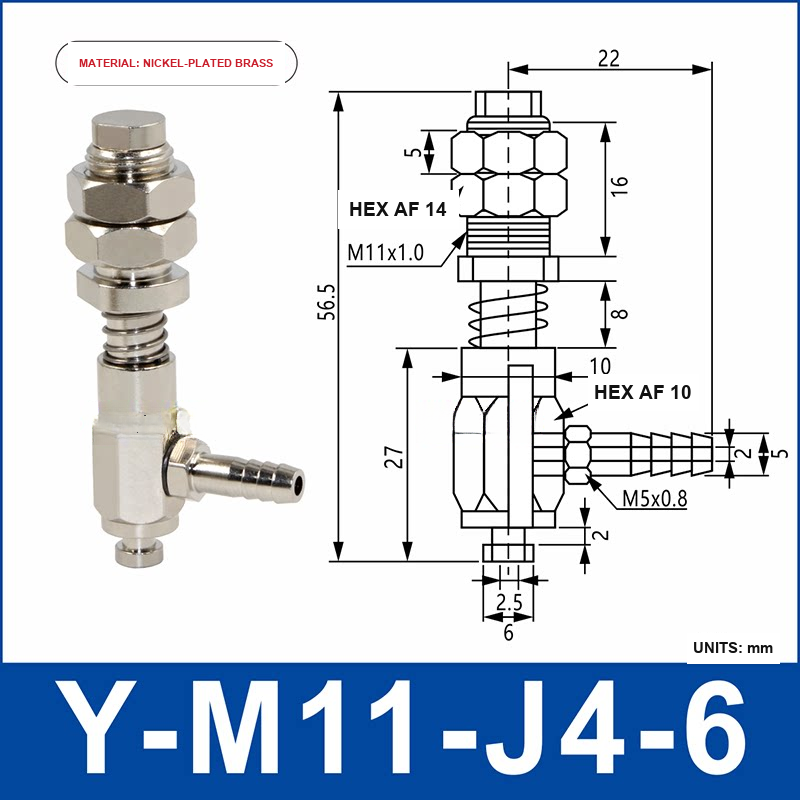

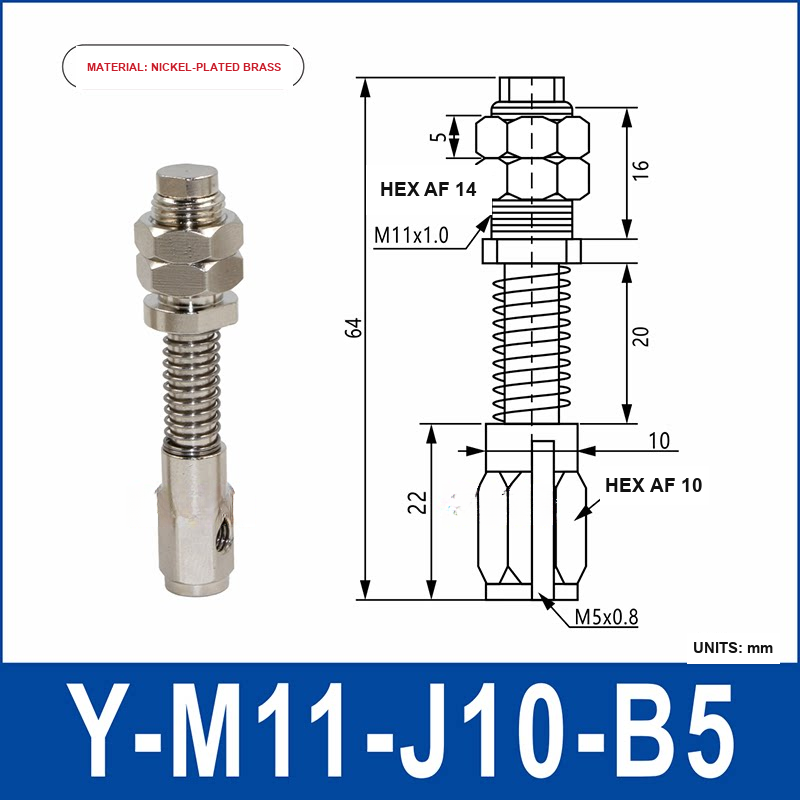

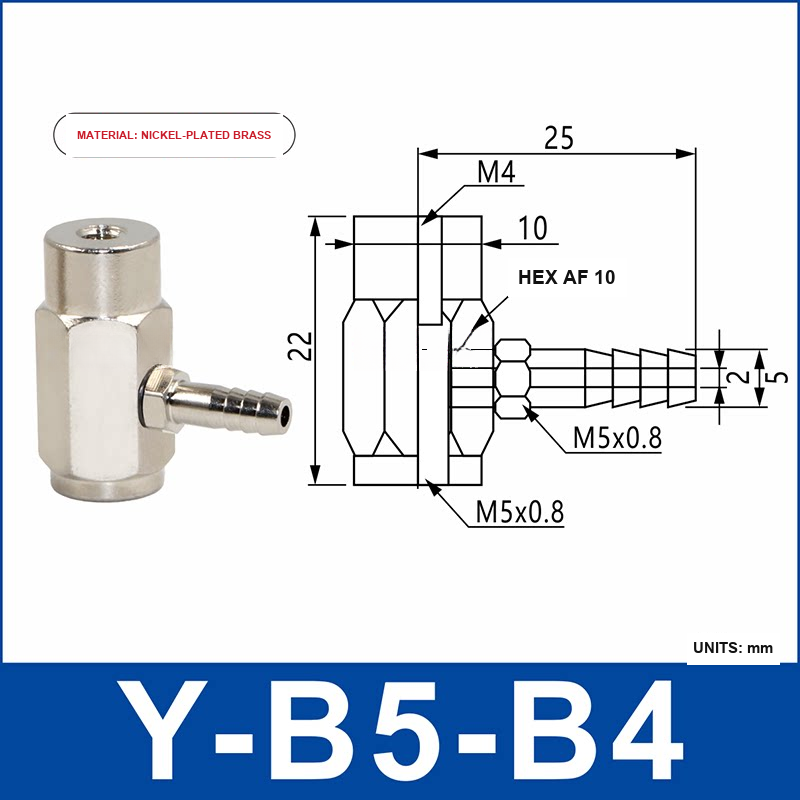

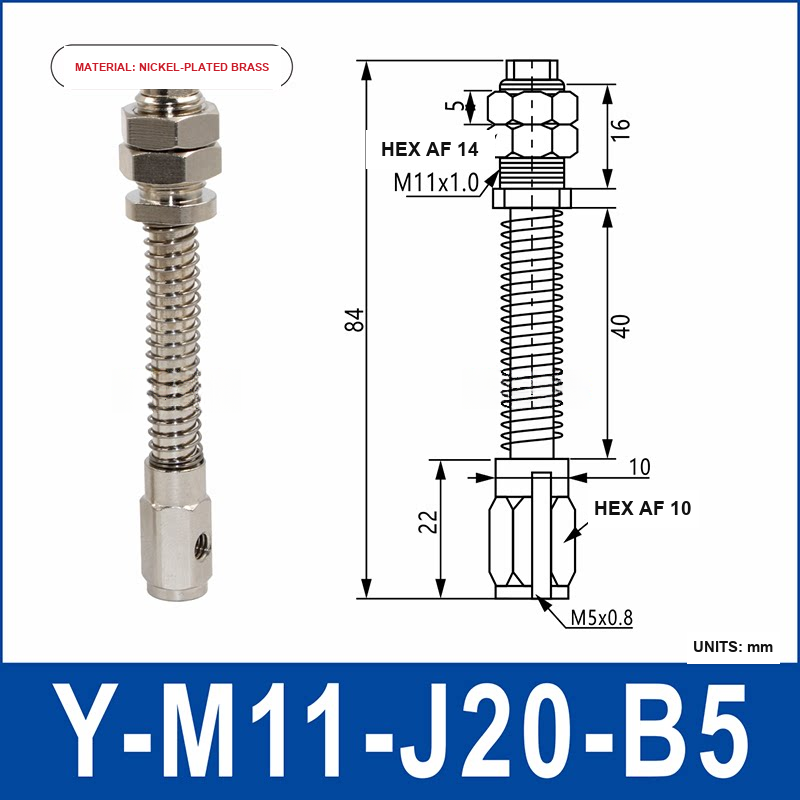

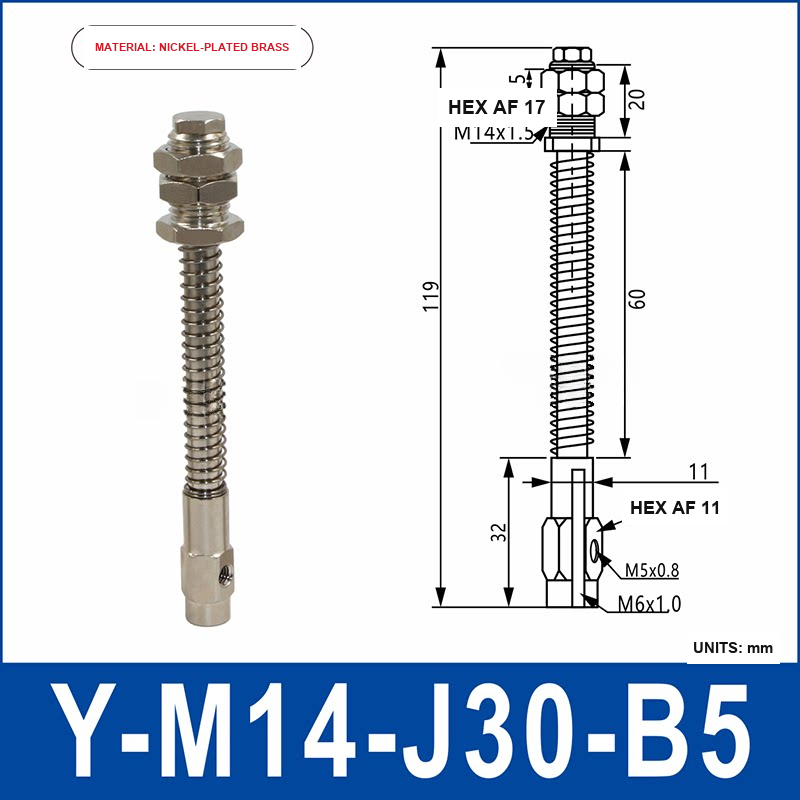

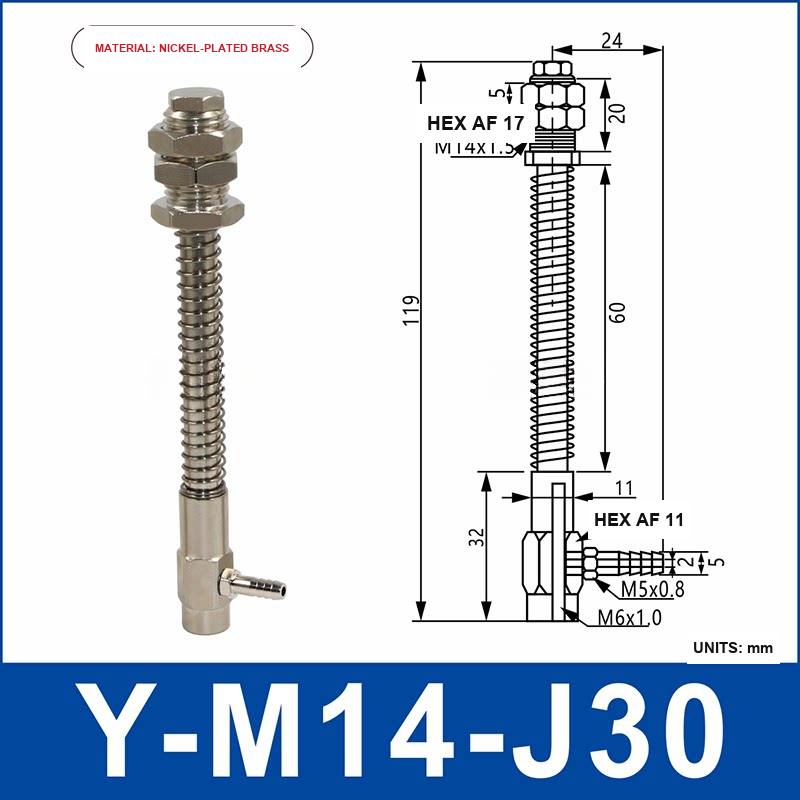

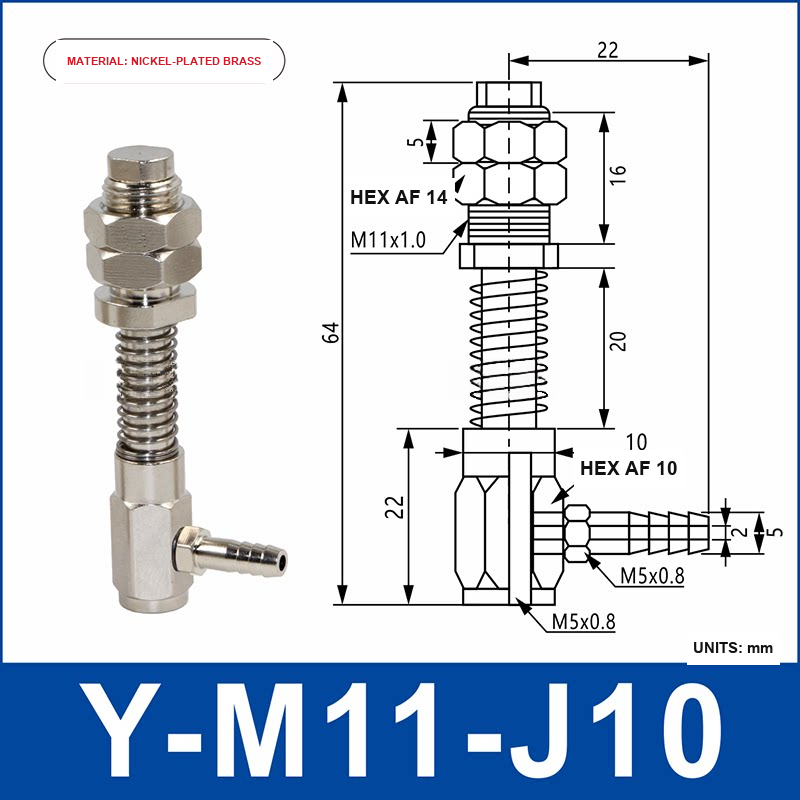

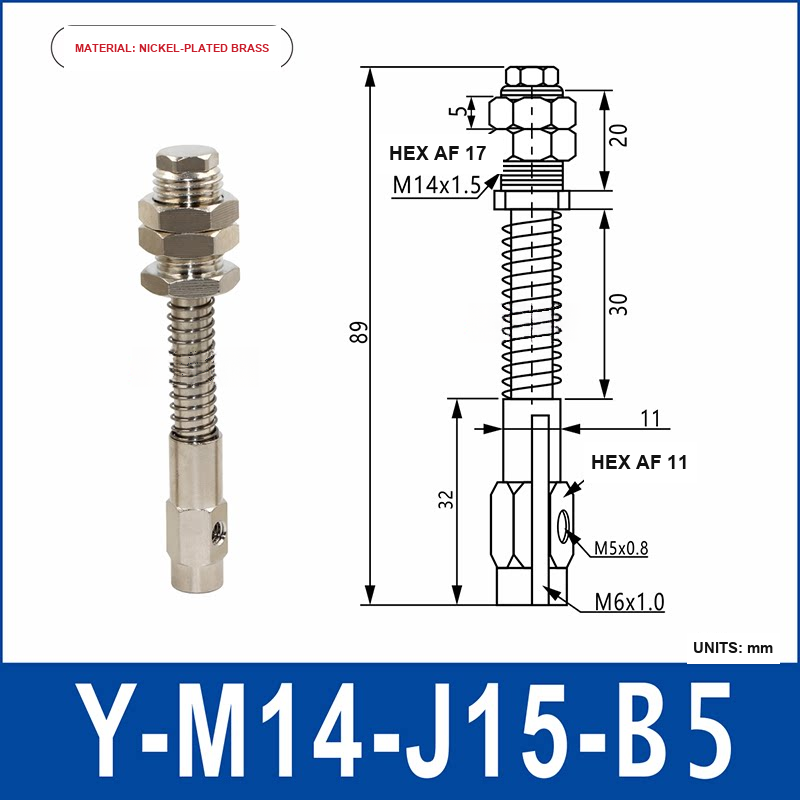

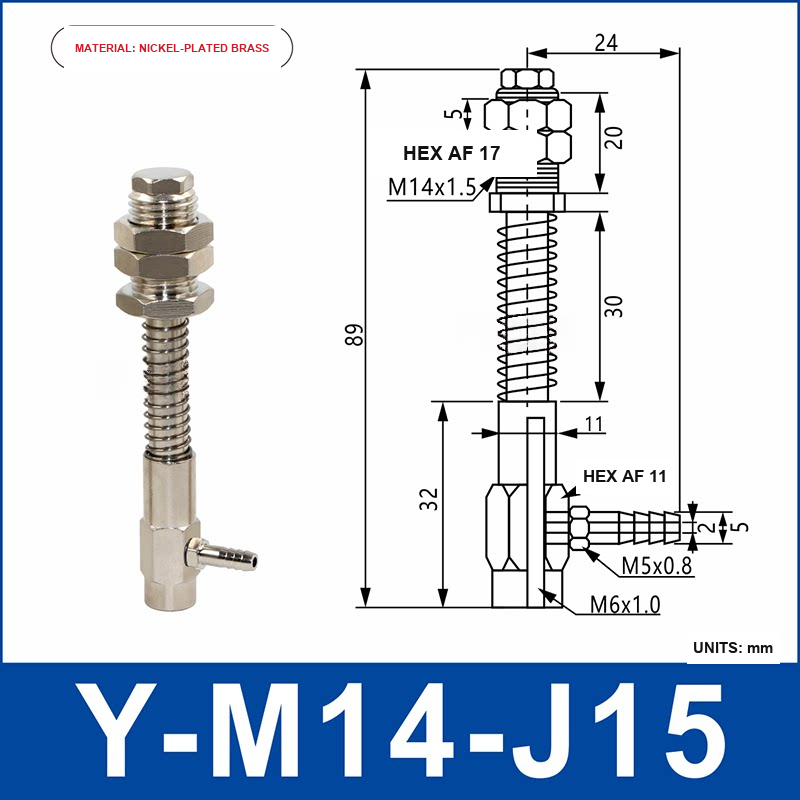

- Choose the exact code: Y-B4, Y-B5 and Y-B6-B6 identify compact holder configurations. Y-M11 and Y-M14 codes identify the listed buffer-mount size and stroke selections.

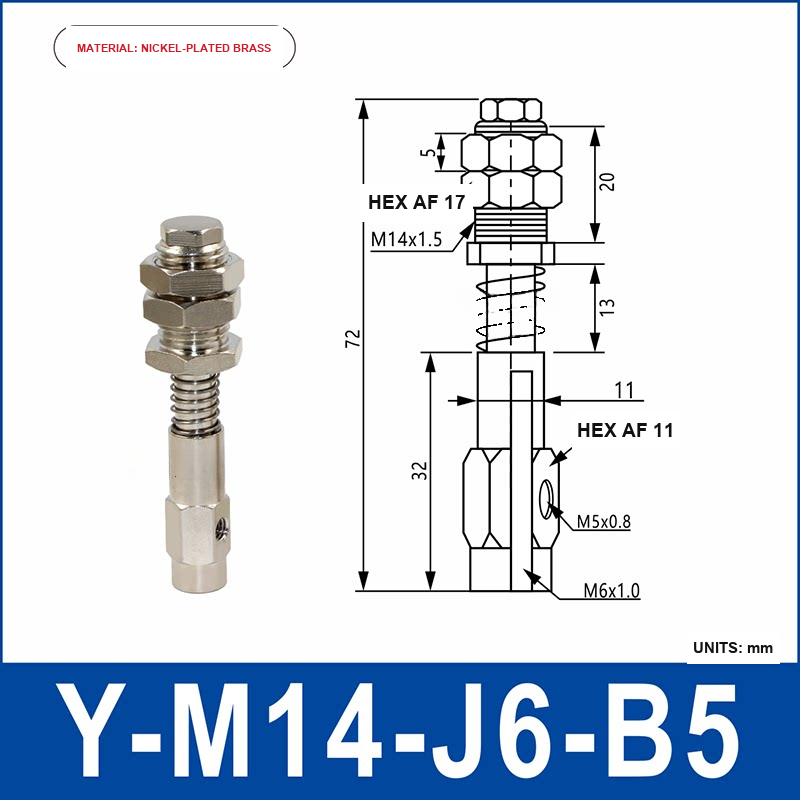

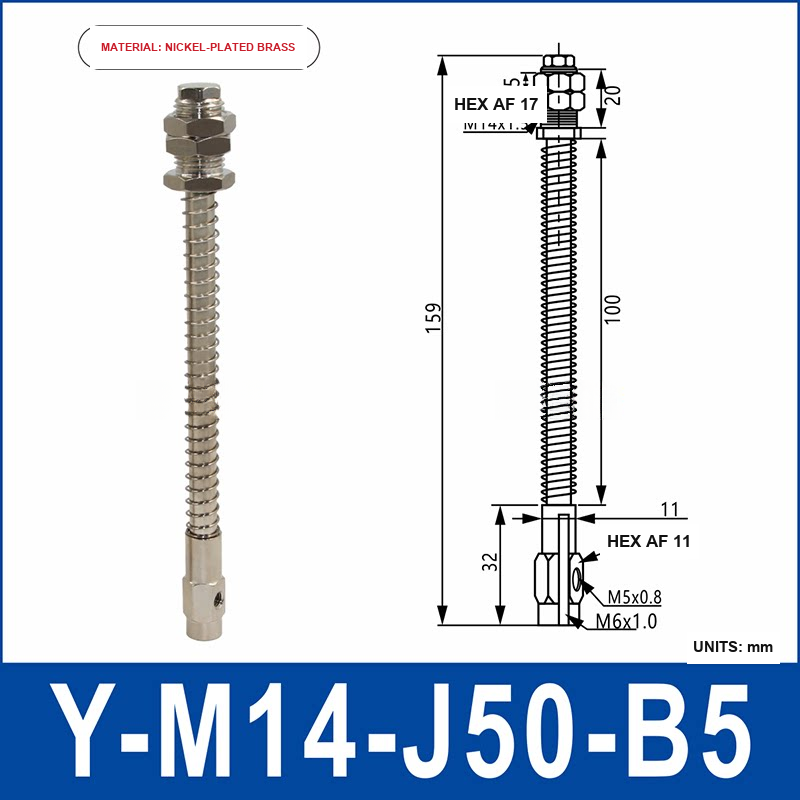

- Confirm the complete suffix: B4, B5, J4, J6, J10, J15, J20, J30 and J50 are separate listed selections. Use the full selected code rather than combining suffixes between images.
- Check the drawing: compare the selected image for thread, across-flats, overall dimensions, side-entry direction and installation clearance before ordering.
Model-code guide
Y-B identifies a compact side-entry holder. Y-M11 and Y-M14 identify the listed buffer-mount thread families. The selected product image shows the matching product view and dimensional drawing.
Suitable for
- Industrial vacuum pick-and-place equipment
- Robotic end-effectors requiring a side-entry holder or spring-buffer mount
- Replacement and configuration work for compatible vacuum cup systems
- Automation installations after interfaces, dimensions and clearance have been checked
Before use
Confirm the complete model code, thread interfaces, dimensional drawing, mounting clearance, cup compatibility, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
FAQ
How do I choose M11 or M14? Select the listed thread family that matches the required installation interface and then compare the selected drawing. Can I substitute a different J or B suffix? Treat each listed code as a separate selection and compare its image and drawing before substituting.
