WEA/WEN Blue Silicone Vacuum Cup Holder Assemblies

WEA/WEN Blue Silicone Vacuum Cup Holder Assemblies

Blue silicone vacuum cup holder assemblies for industrial pick-and-place, vacuum grippers and automation fixtures. The range includes compact WEA01 holders and WEN01–WEN04 assembly configurations with straight or side-port connections.

Quick Model Finder

• WEA01: compact holders in 18 mm, 26 mm and 33 mm cup diameters.
• WEN01: straight assembly with a vacuum connection fitting.
• WEN02: side-port assembly configuration.

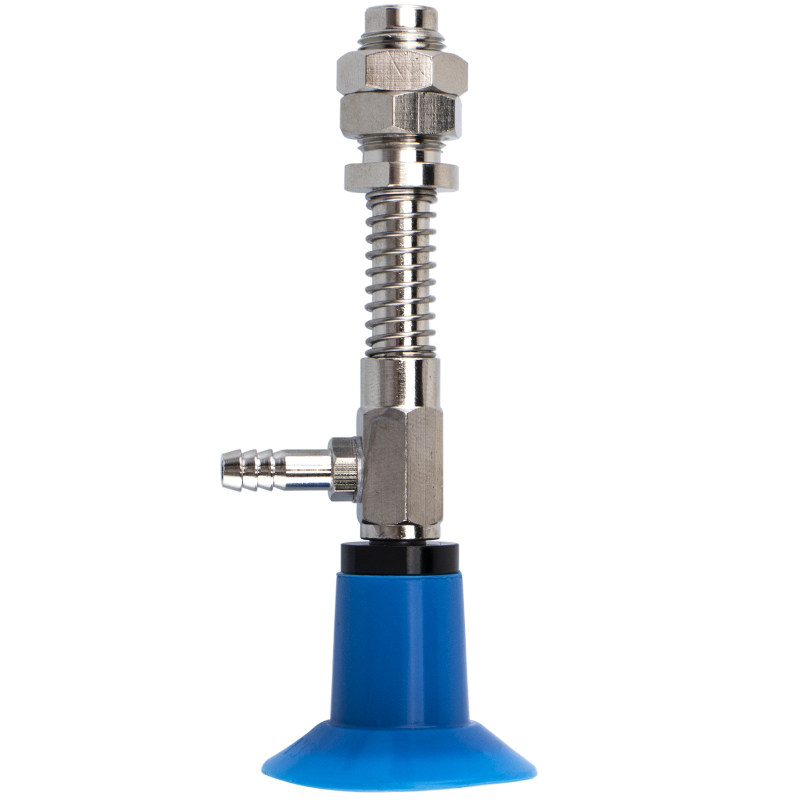

• WEN03 / WEN04: spring-stroke assembly options; choose the 4 mm or 10 mm stroke shown in the selected model.
• Use the selected model image and dimensional drawing to confirm cup diameter, thread, connection direction and installed height.

Suitable for

• Industrial robotic pick-and-place
• Packaging and automated handling equipment
• Compatible vacuum end-effectors and gripper fixtures

Before use

Confirm the complete model, selected drawing, cup material, mounting thread, vacuum connection, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
