VA-DBD Multi-Port NBR Vacuum Cups (100–130 mm)
VA-DBD Multi-Port NBR Vacuum Cups
NBR vacuum cups with 100 mm and 130 mm configurations for compatible industrial vacuum handling equipment. Each option includes its matching product view and dimensional drawing for installation checks.
Quick selection
- Choose the complete model: select the model exactly as listed, rather than only the diameter.

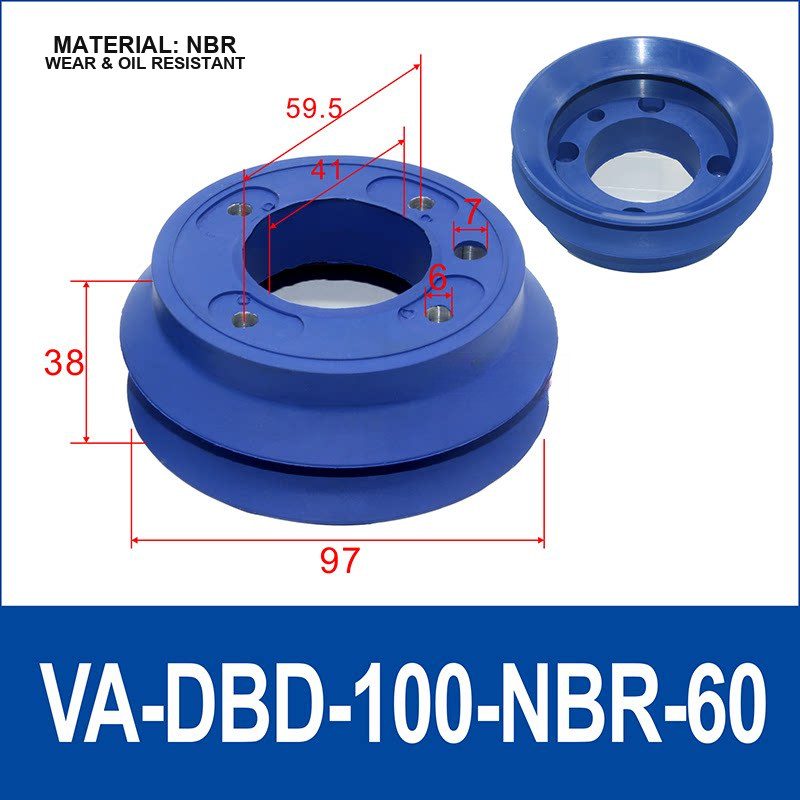

- Choose the mounting configuration: standard configurations and 8-hole configurations are separate options. Confirm the mounting pattern from the selected drawing.
- Check the dimensions: verify outside diameter, height, internal dimensions, hole spacing and connection details shown in the selected image before ordering.
- Confirm material suitability: the listed models use NBR and are marked as wear- and oil-resistant. Confirm compatibility with the workpiece and operating environment.
Model guide

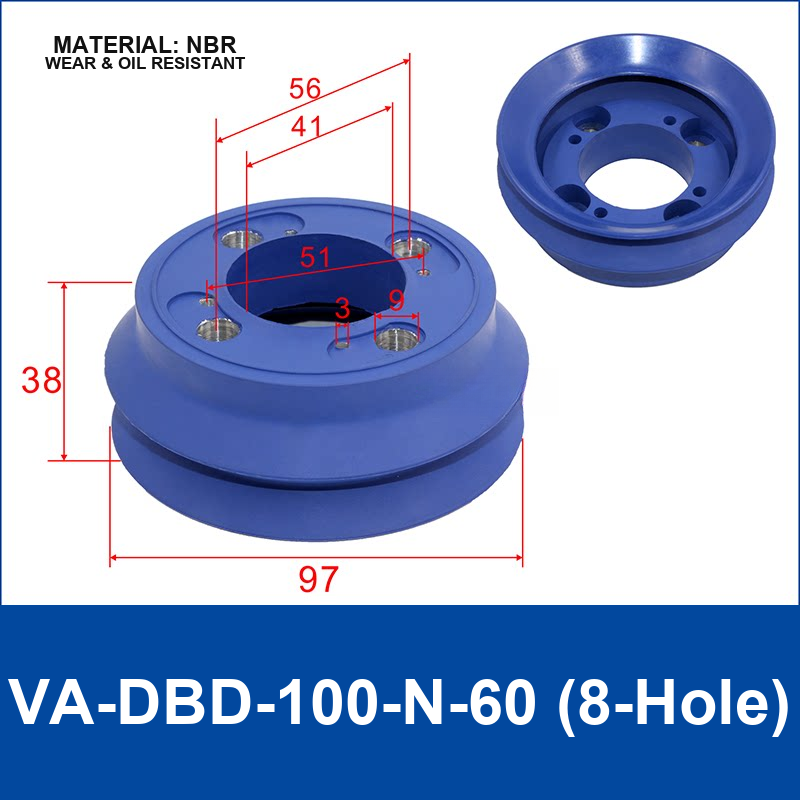

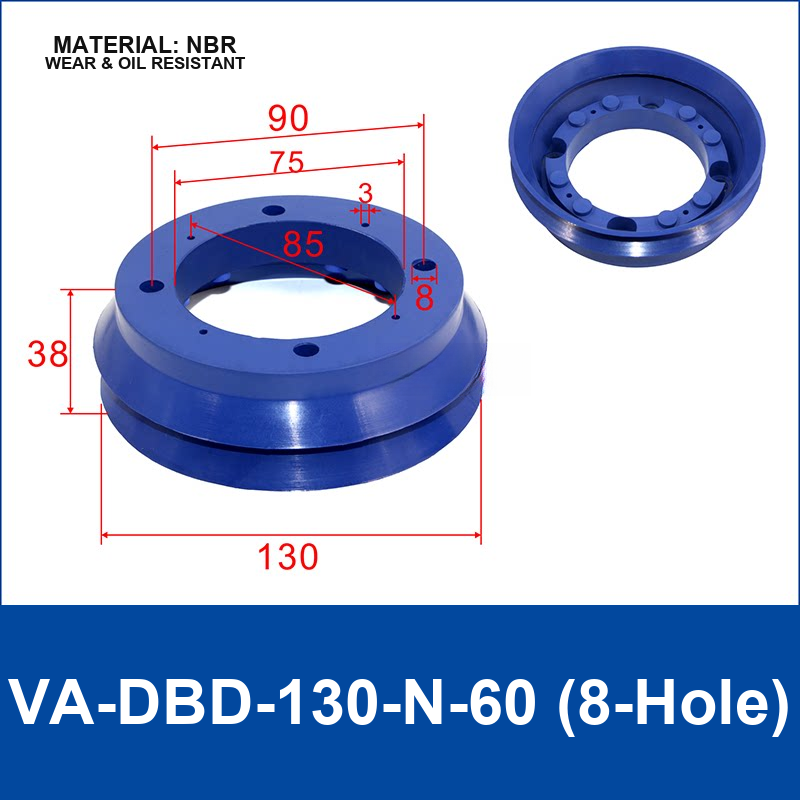

100 and 130 indicate the nominal size family. 8-Hole identifies the dedicated eight-hole mounting configuration. The full option name and its drawing together define the configuration.
Suitable for
- Industrial vacuum handling and automated pick-and-place equipment
- Compatible fixtures requiring the shown multi-port mounting pattern
- Replacement or configuration work after dimension and connection checks
Before use
Confirm the complete model, mounting pattern, dimensions, connection details, material suitability, workpiece surface, vacuum level, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
FAQ
What does 8-Hole mean? It identifies the separate eight-hole mounting configuration shown in that model image. Can I substitute the 100 mm and 130 mm versions? Treat them as different configurations and compare the complete drawing before replacing a part.
