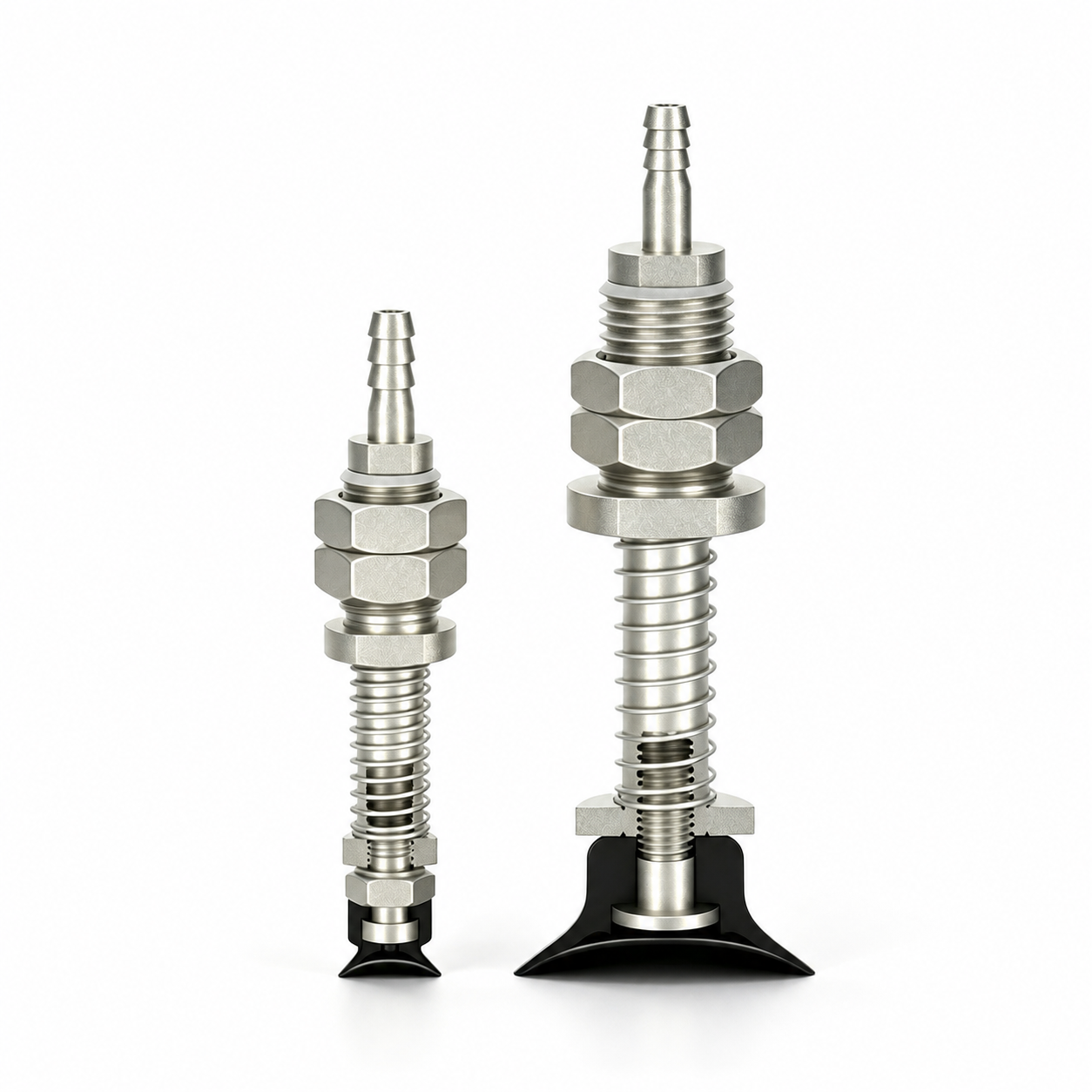

V-WEH11 / V-WEH12 Vacuum Cups with Rear-Entry Spring Holders — M5–M16, D2–D95
Selected Select options
V-WEH11 / V-WEH12 Vacuum Cups with Rear-Entry Spring Holders — M5–M16, D2–D95
V-WEH rear-entry spring vacuum cup assemblies for industrial vacuum gripping, automation fixtures and compatible replacement work. Select the complete code by material, cup diameter and drawing dimensions before ordering.
Quick Model Finder
Choose the material: V-WEH11 uses black nitrile rubber; V-WEH12 uses white silicone rubber.
Choose the nominal cup diameter: select D2, D3.5, D5, D6, D8, D10, D15, D20, D25, D30, D35, D40, D50, D60, D80 or D95 according to the selected drawing and gripping requirement.
Confirm the rear-entry interface: check the individual drawing for the M5–M16 thread, AF dimensions, vacuum connection, overall height and installation clearance.
Select the complete code: choose one listed V-WEH11 or V-WEH12 model exactly as shown; do not combine dimensions or attributes from different variants.
Model-code guide

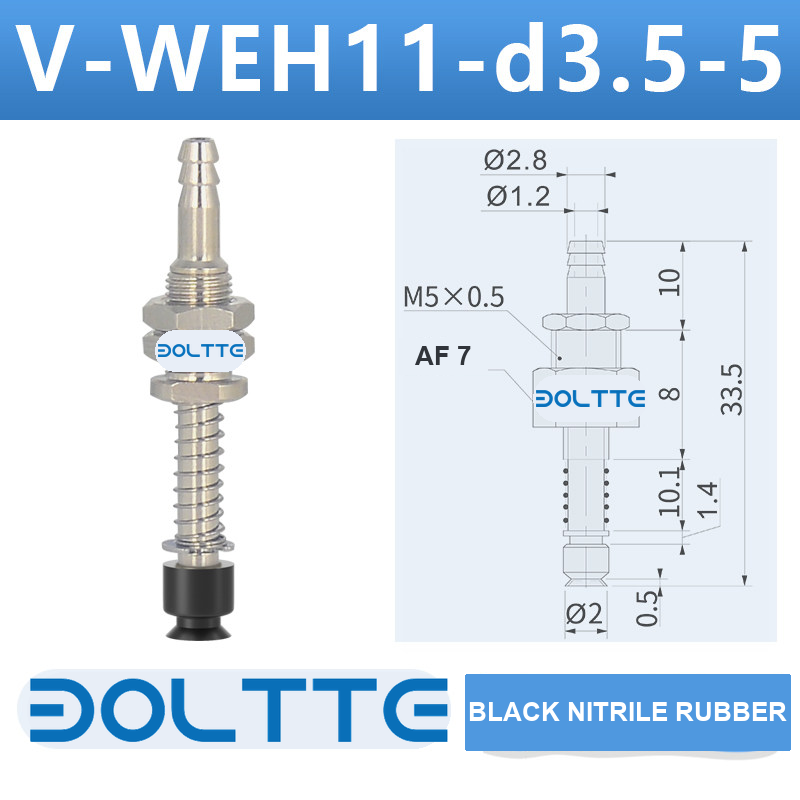

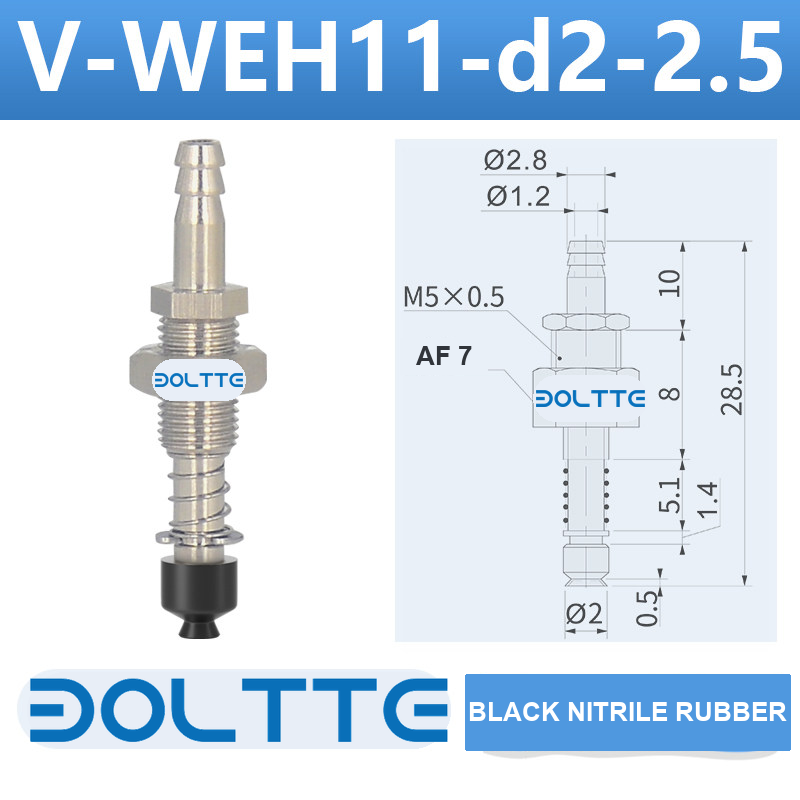

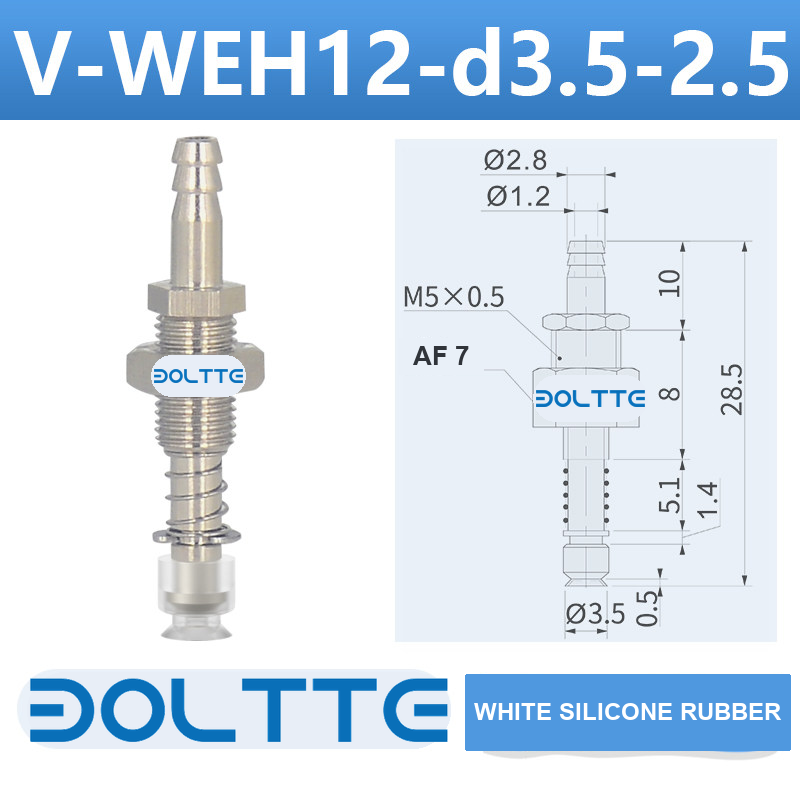

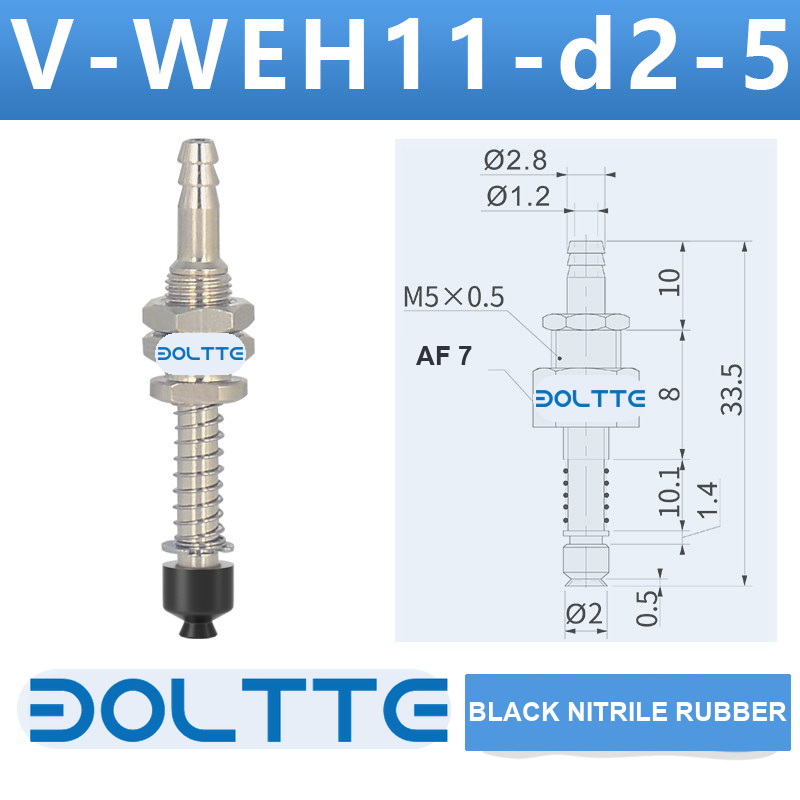

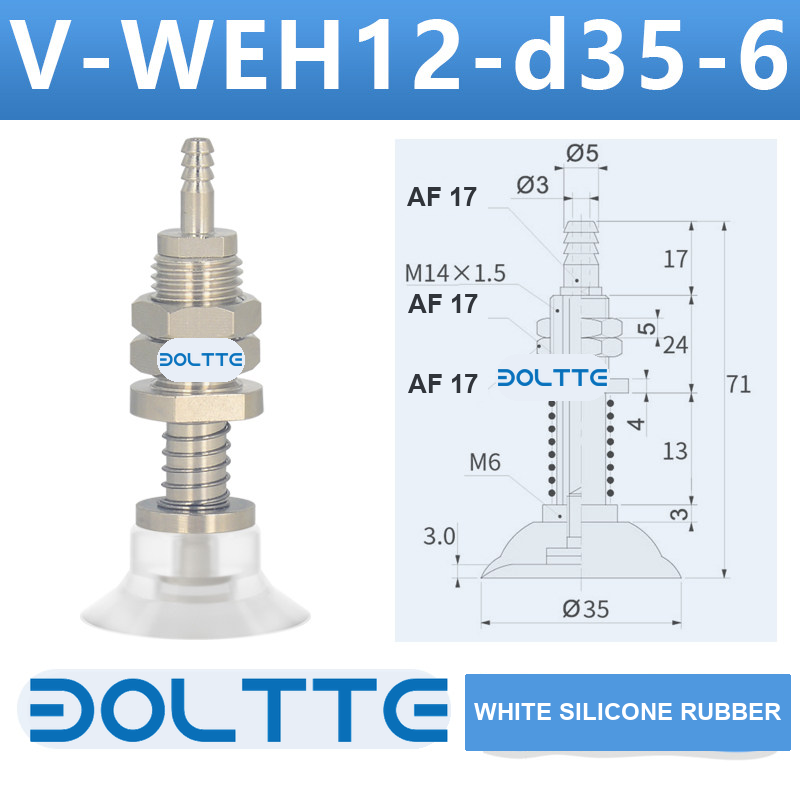

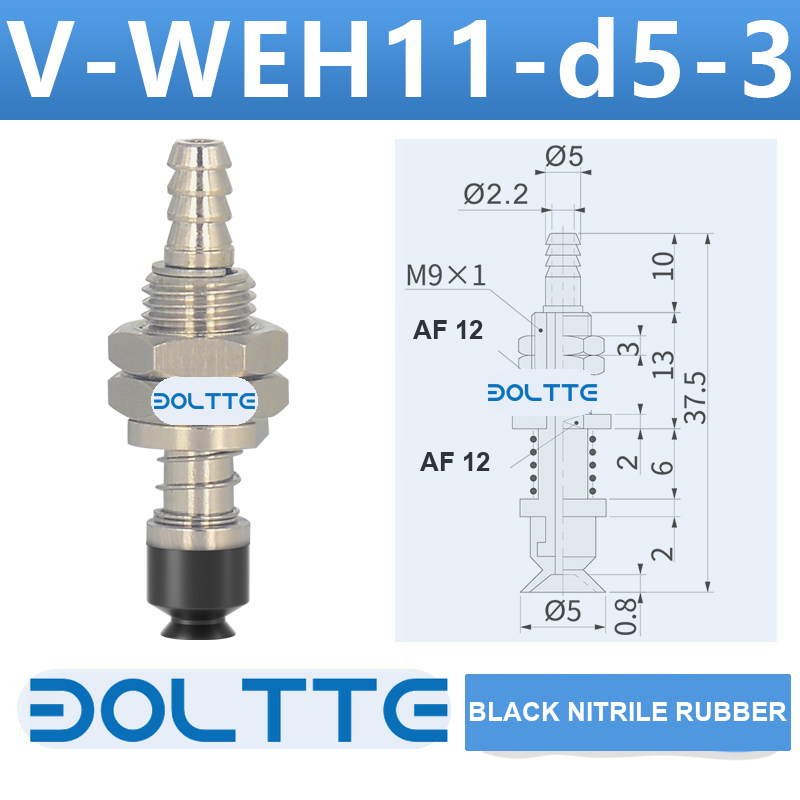

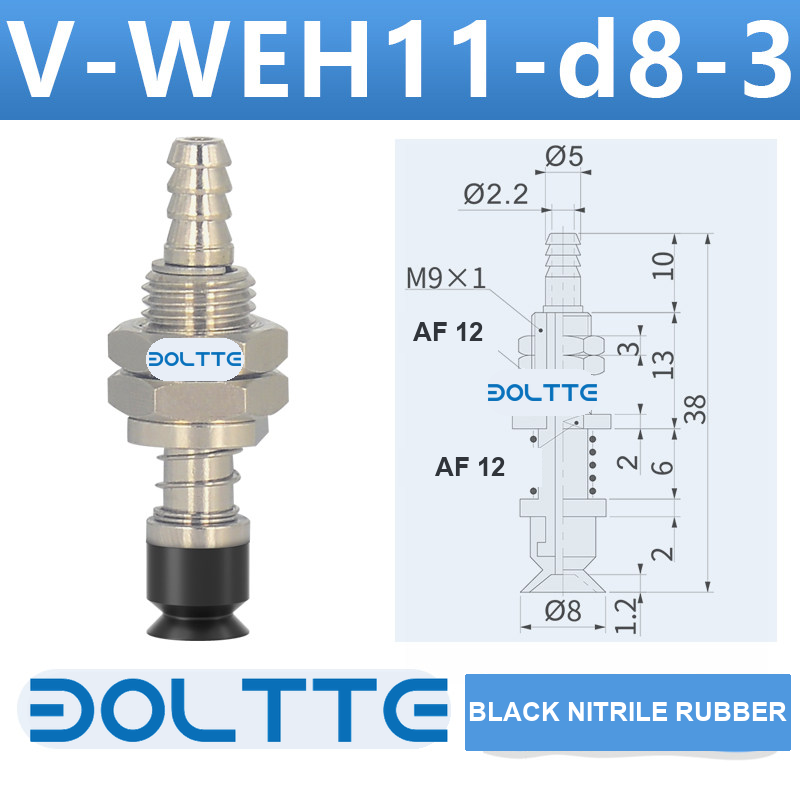

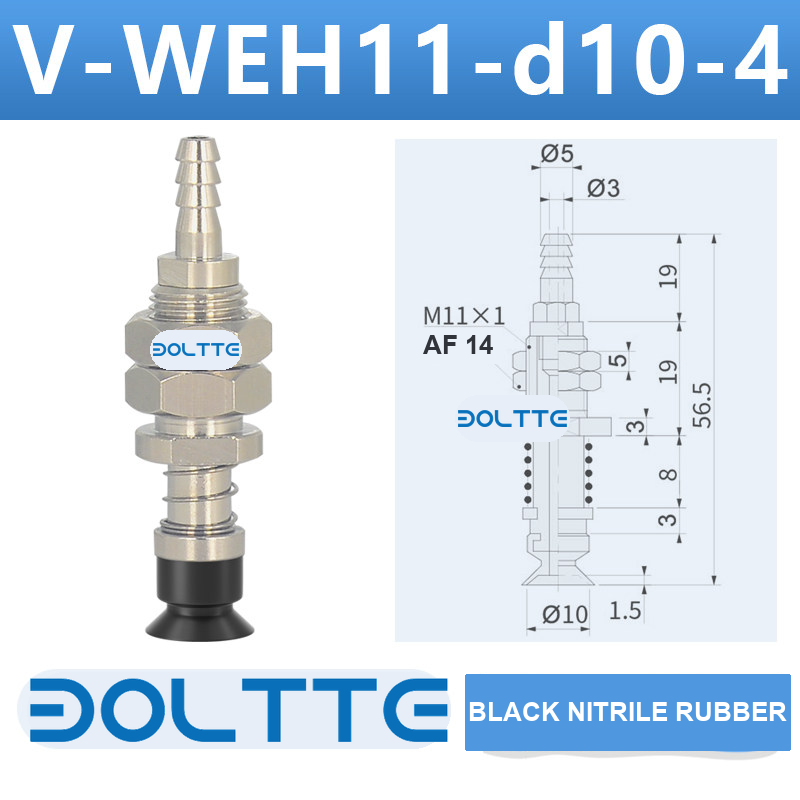

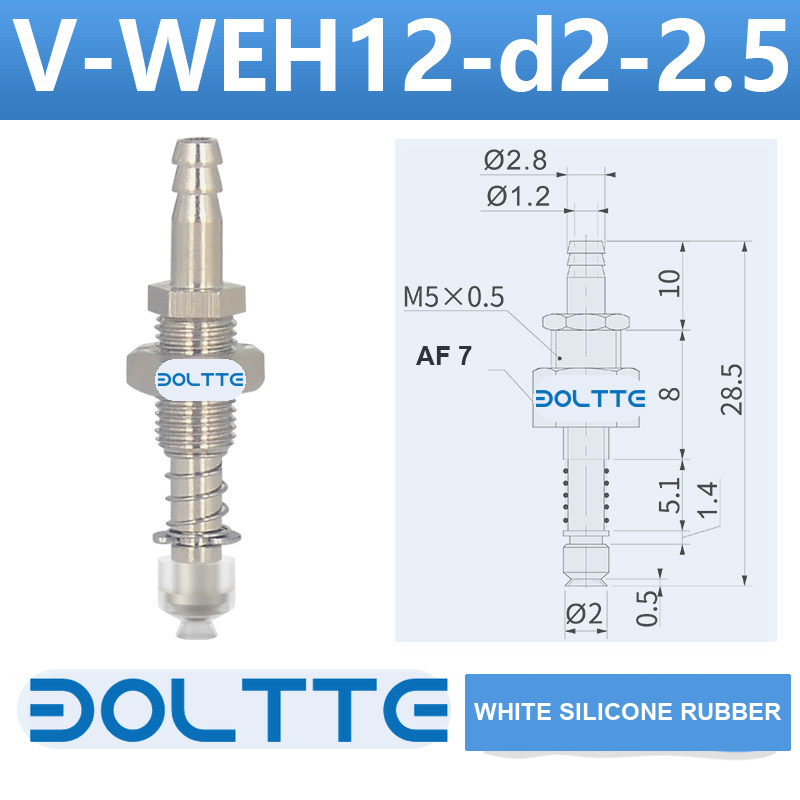

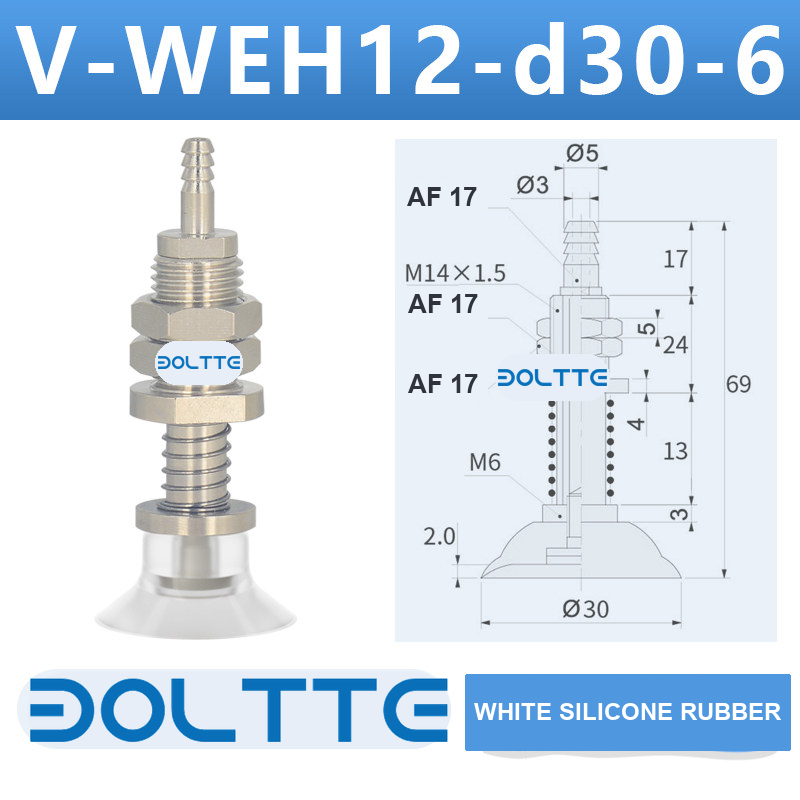

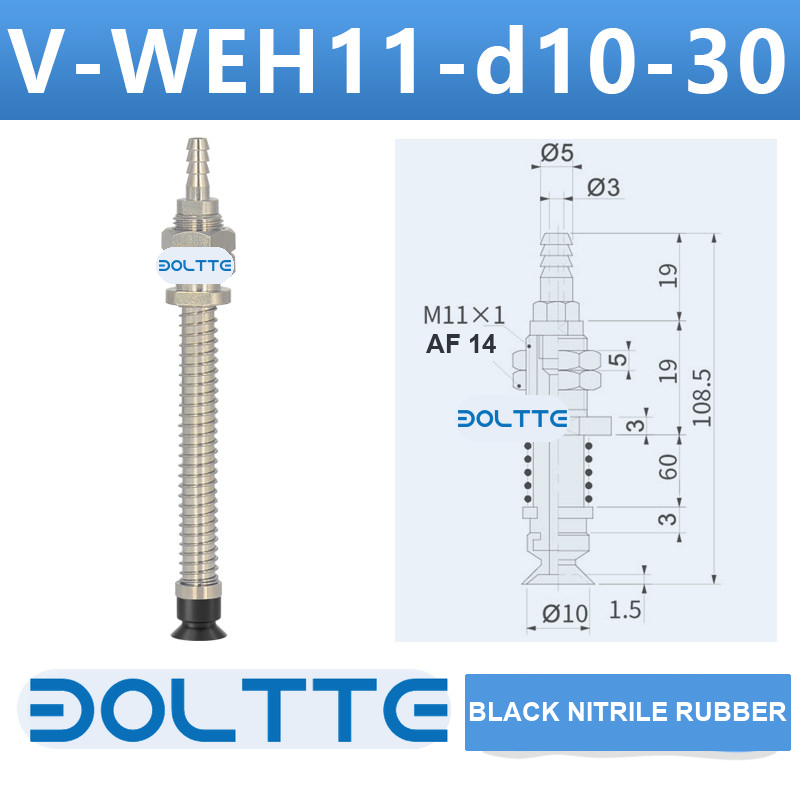

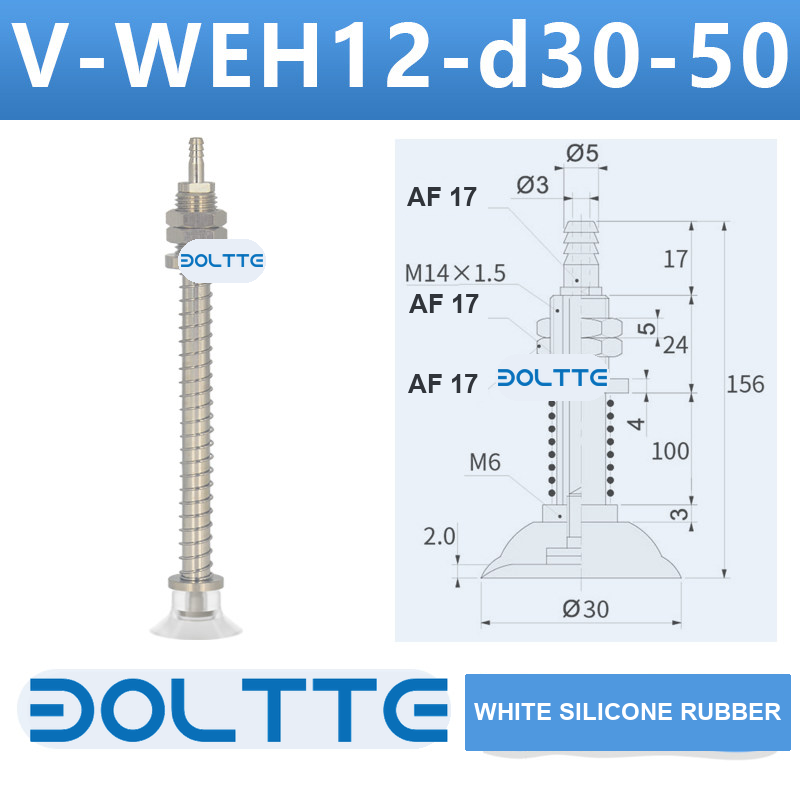

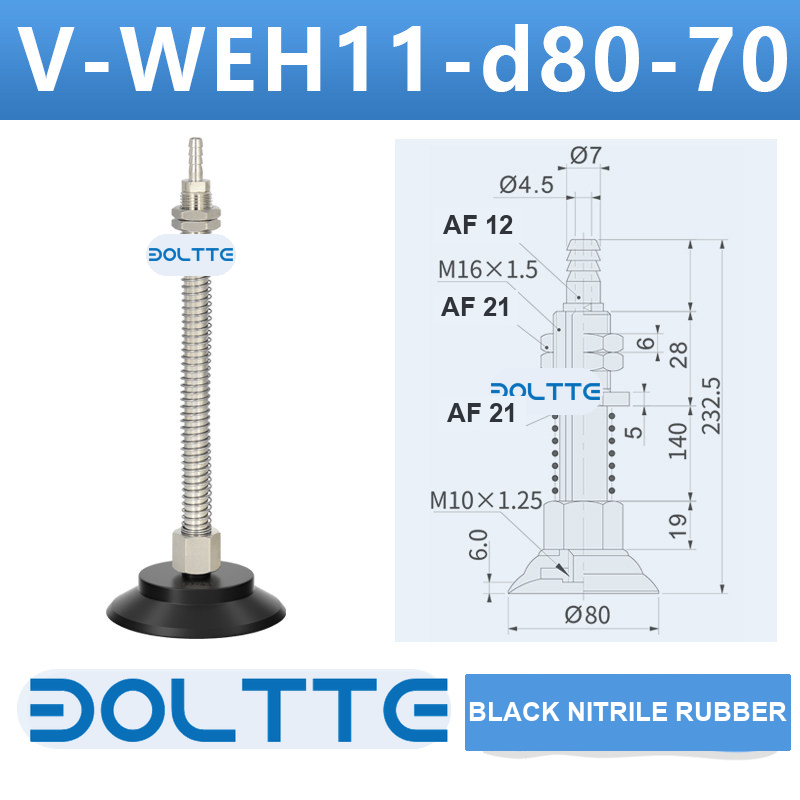

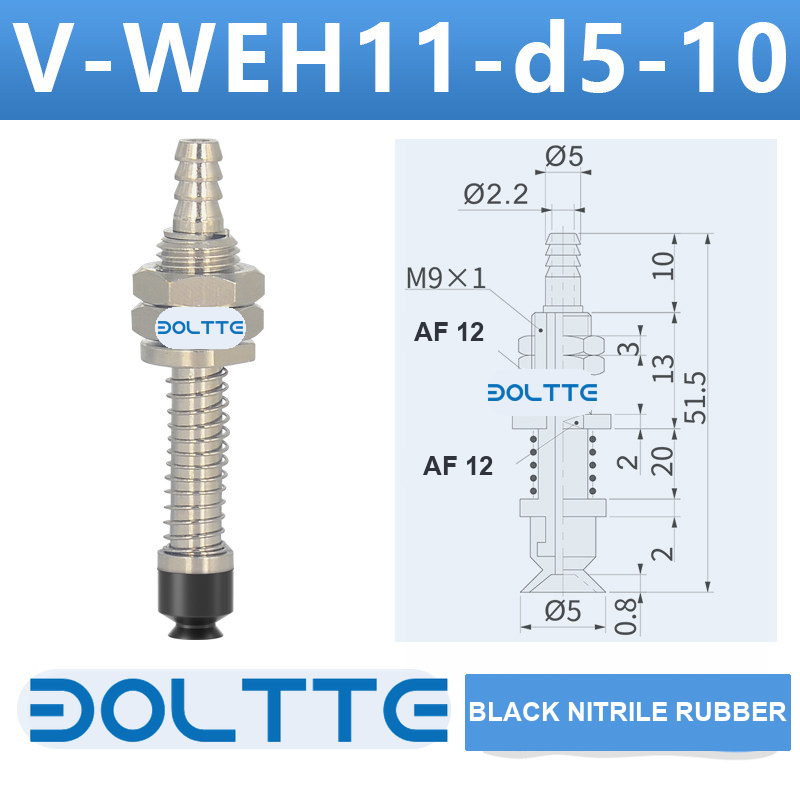

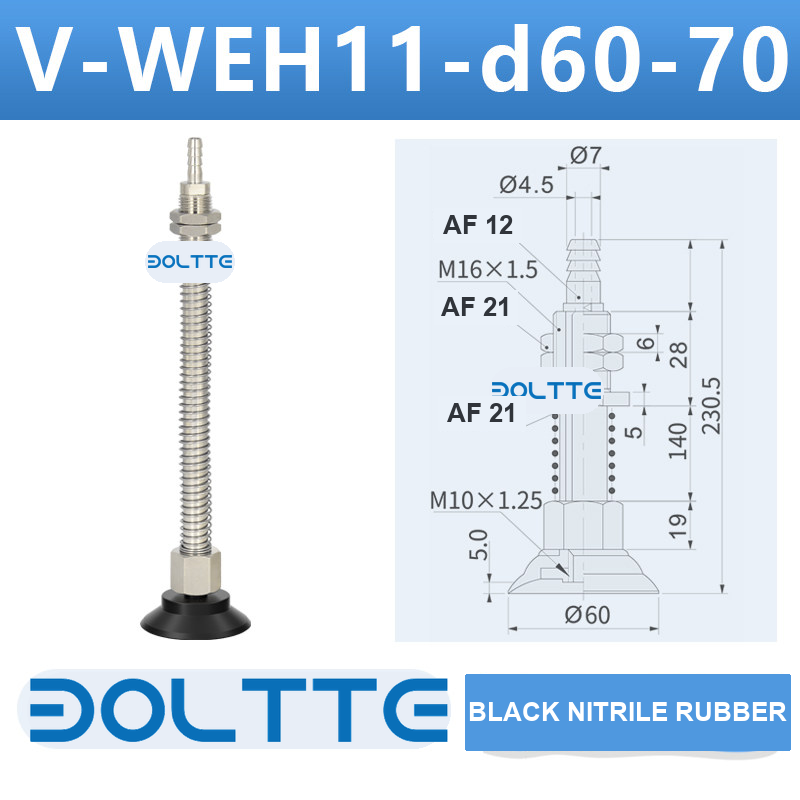

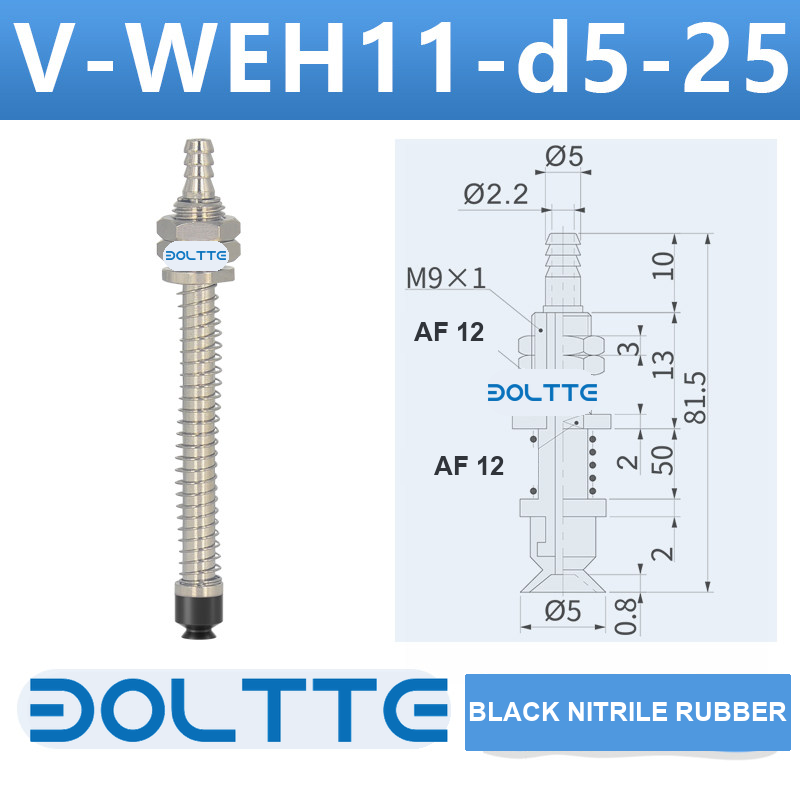

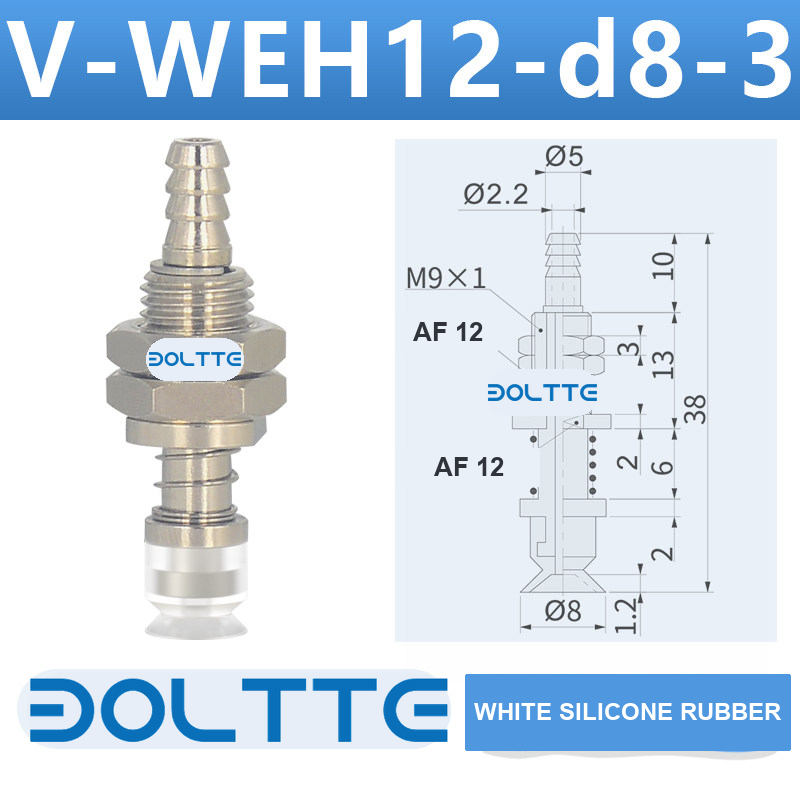

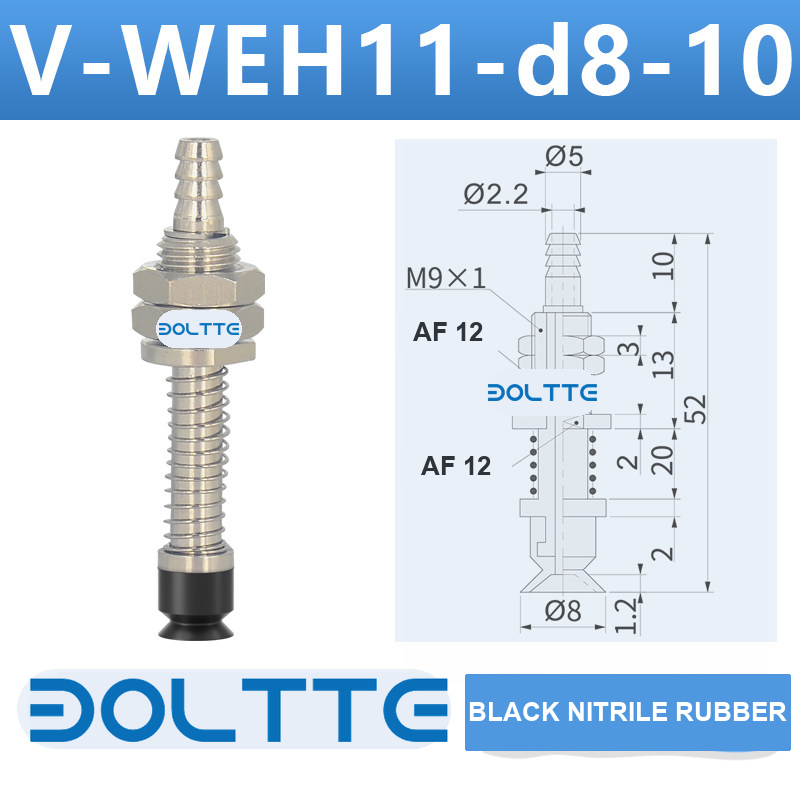

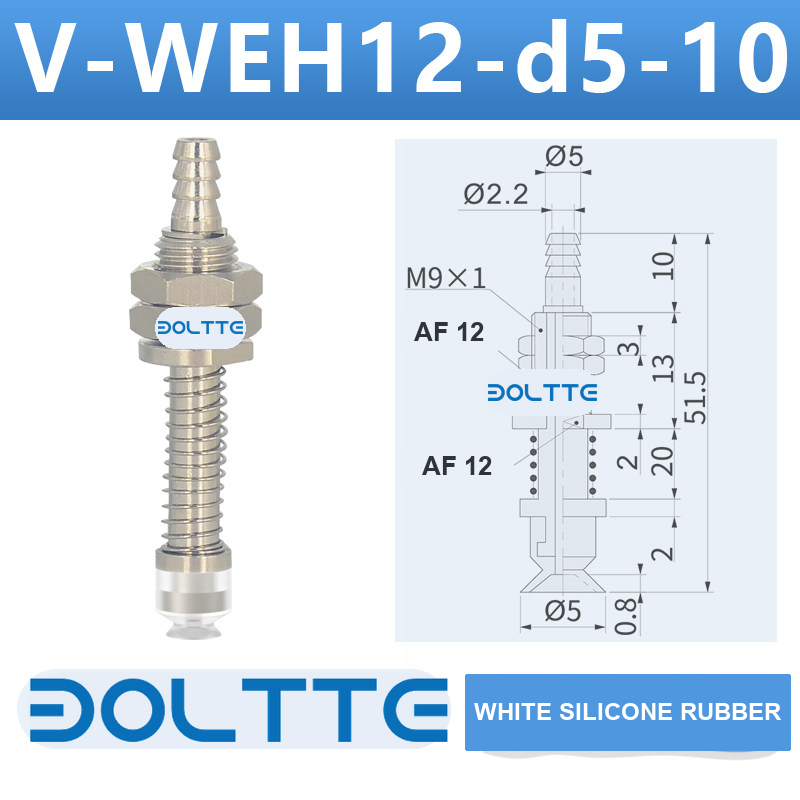

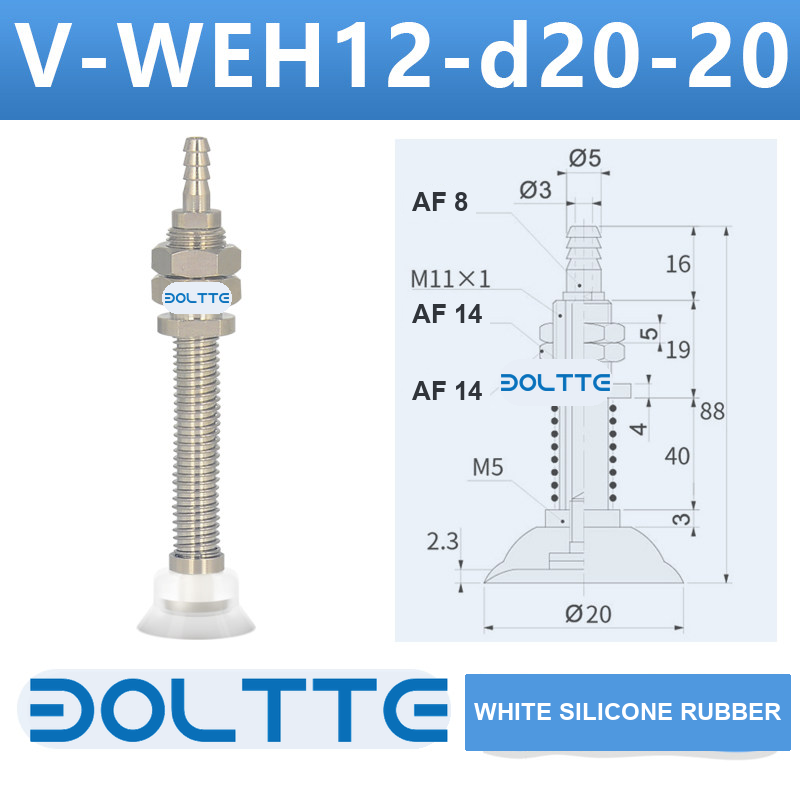

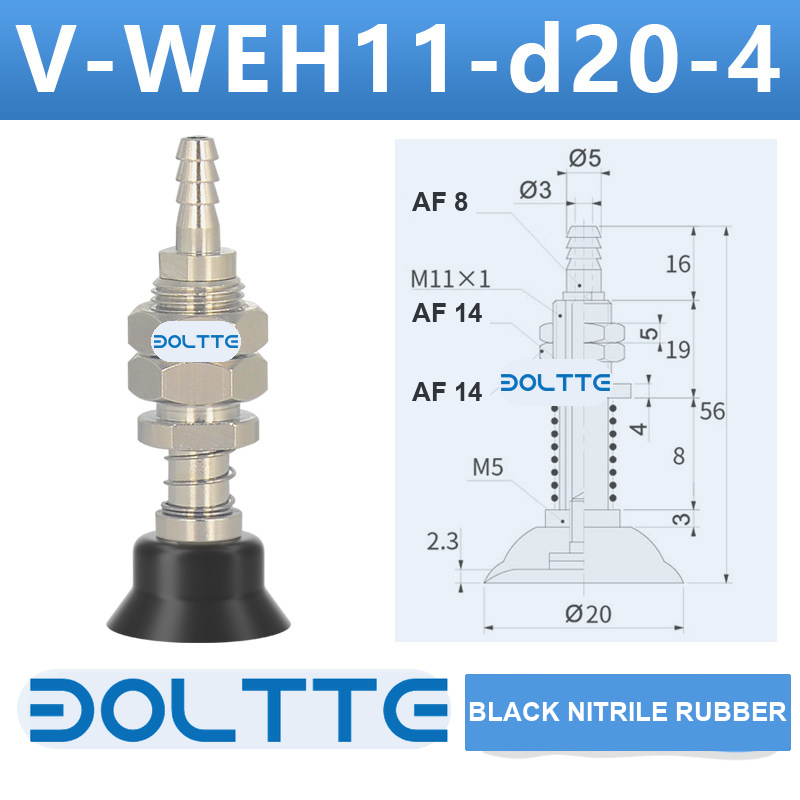

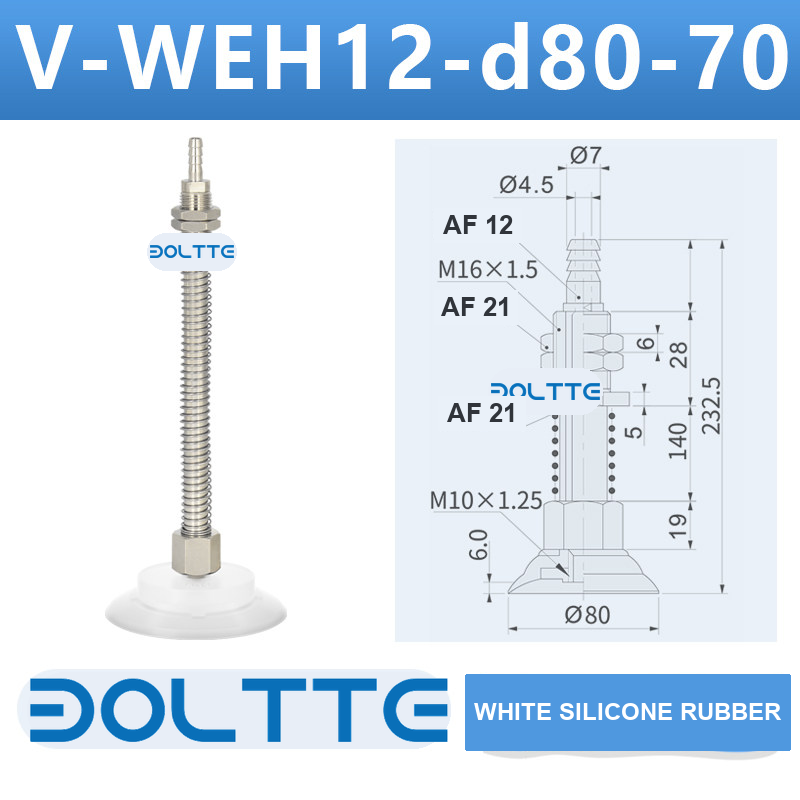

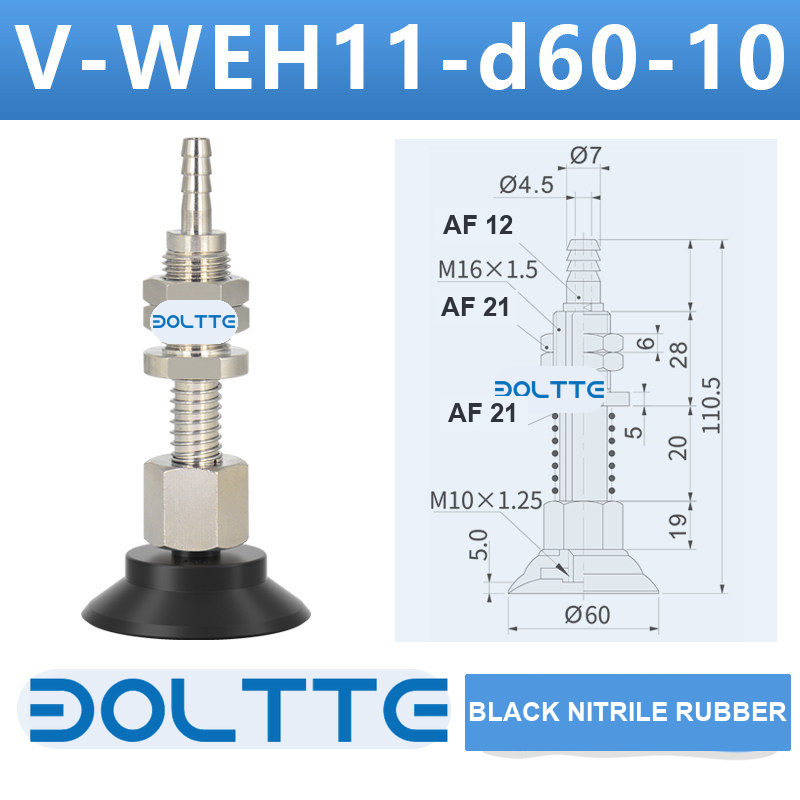

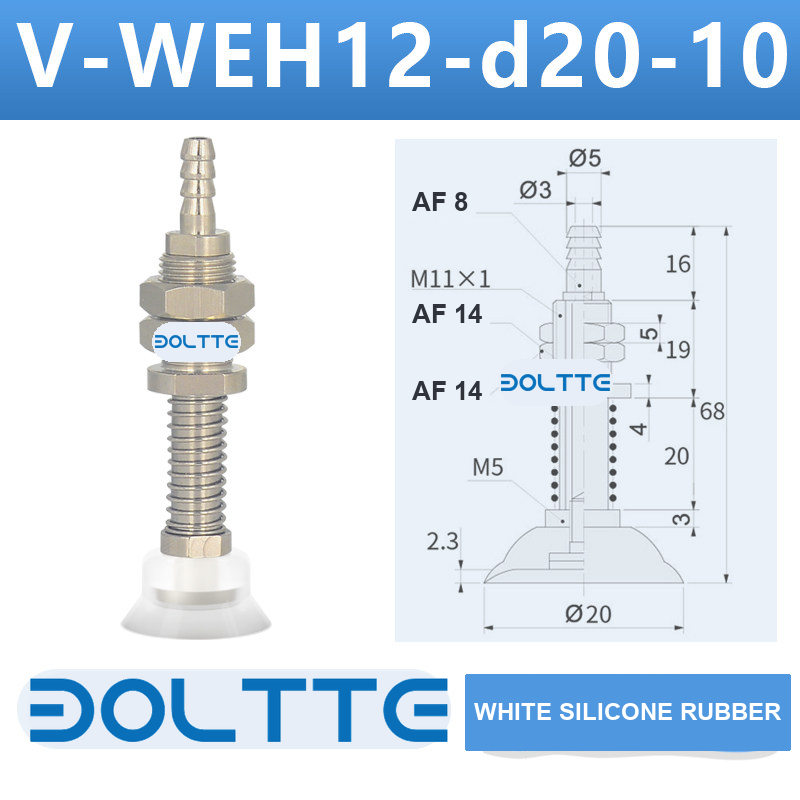

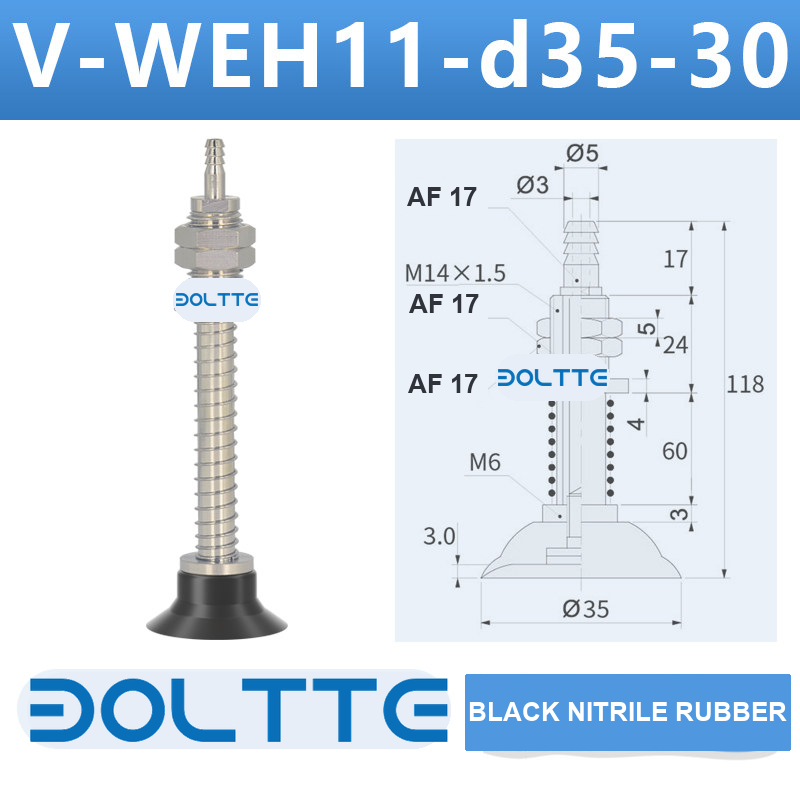

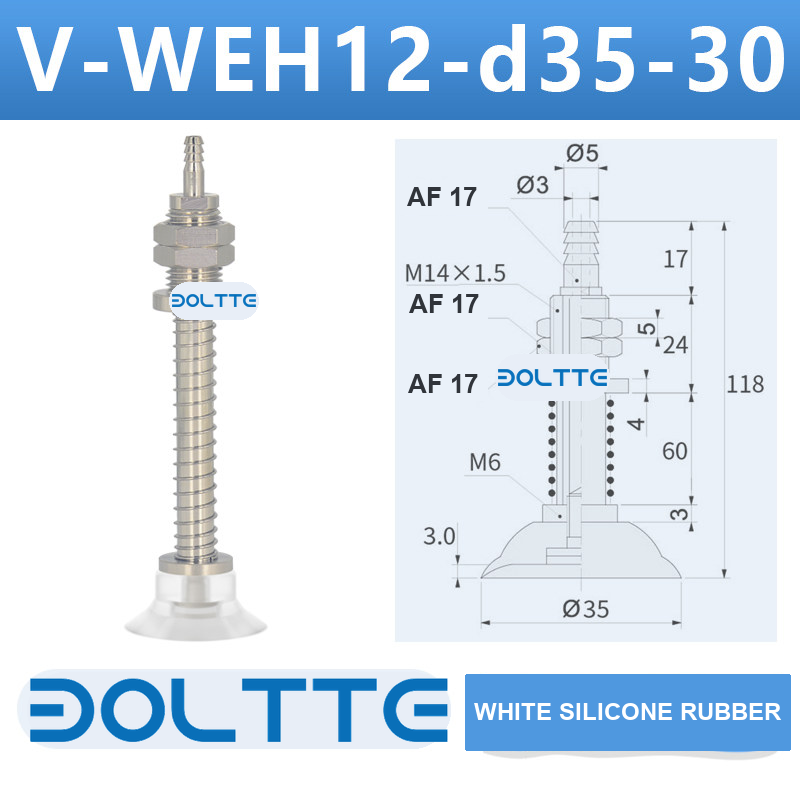

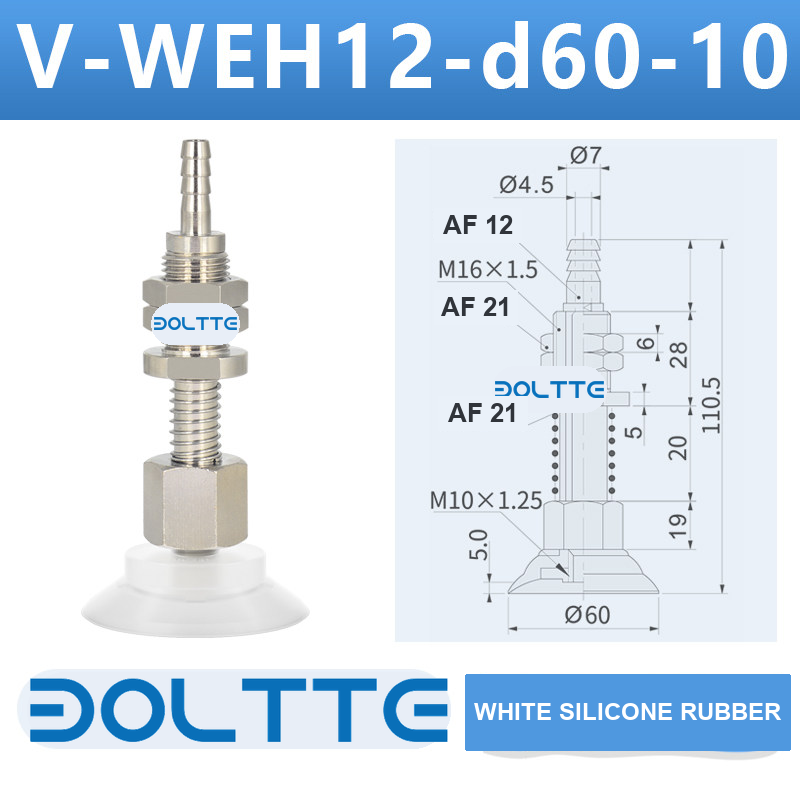

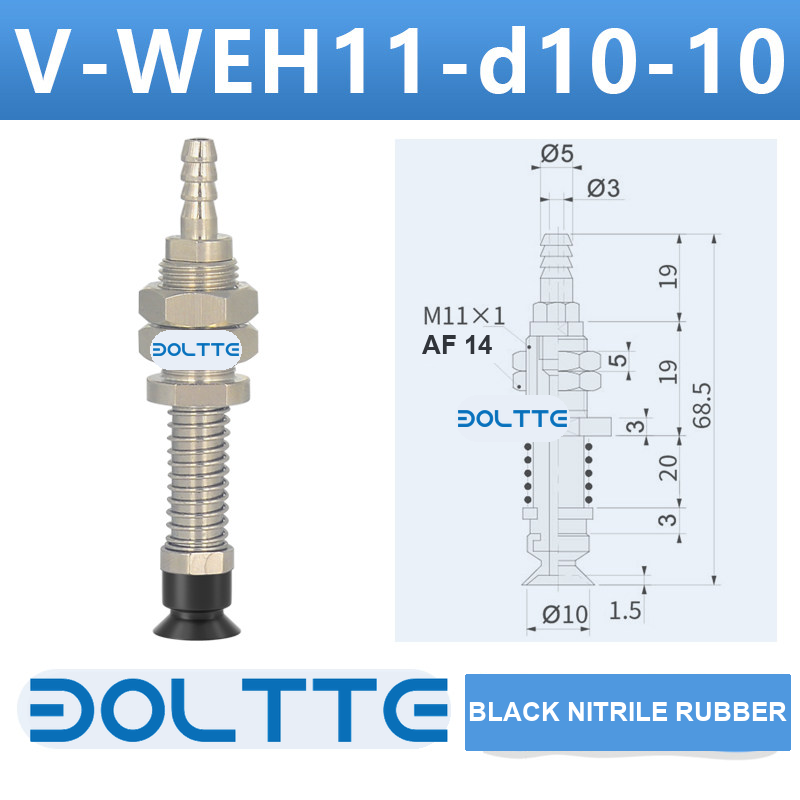

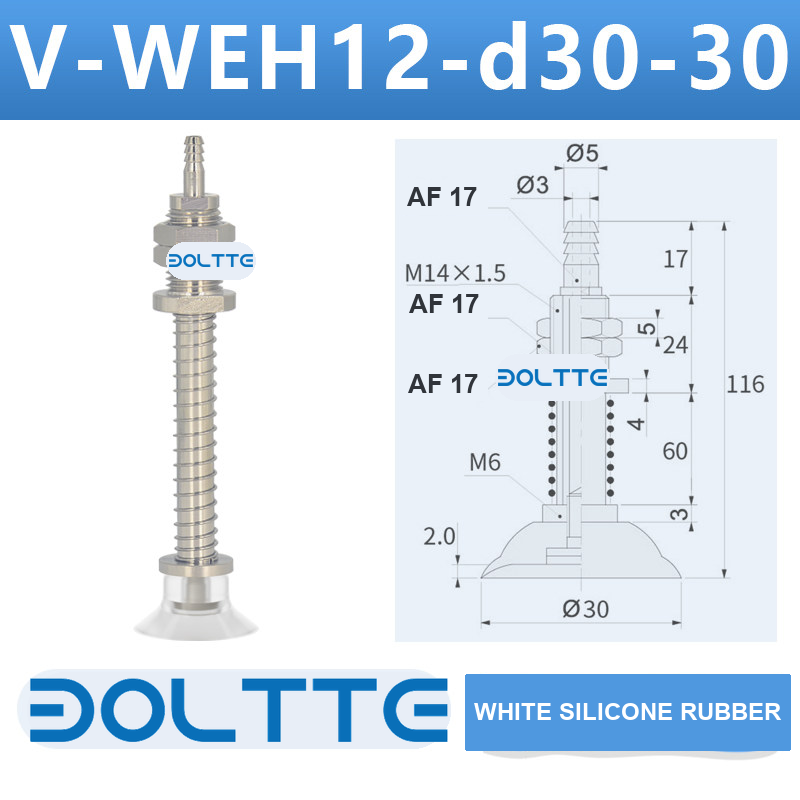

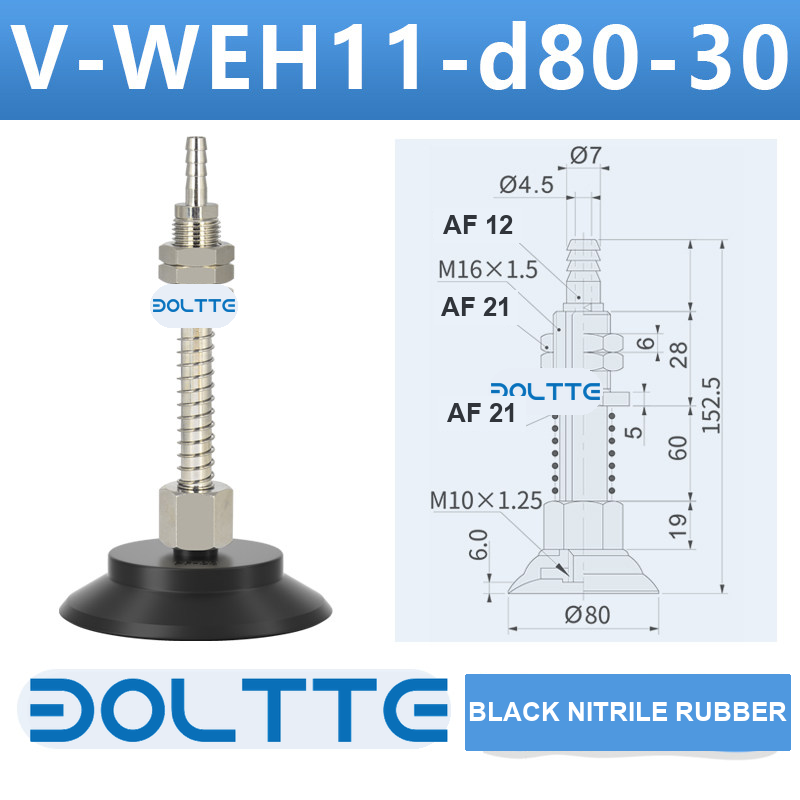

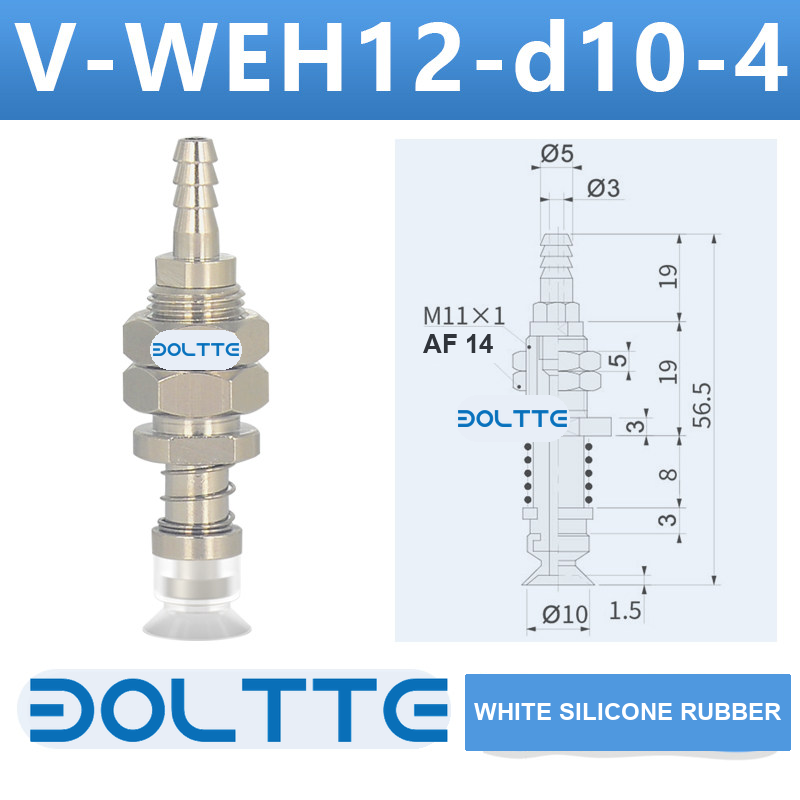

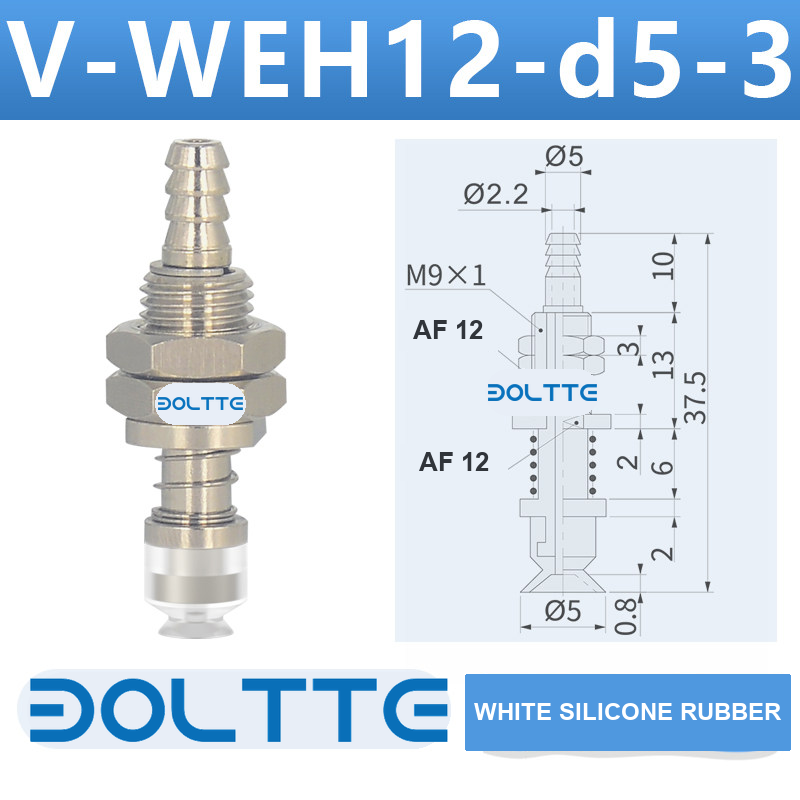

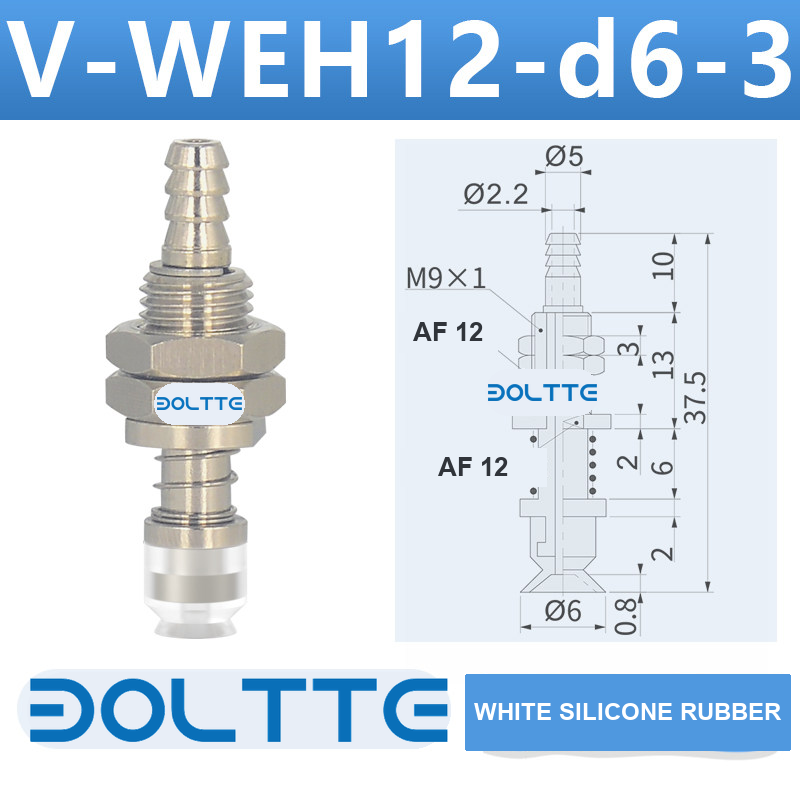

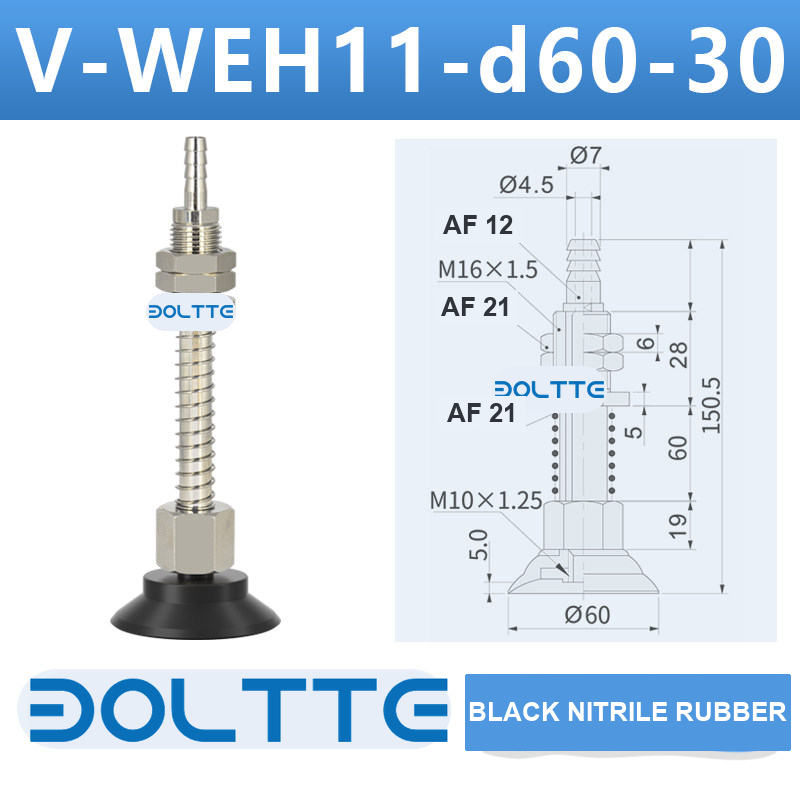

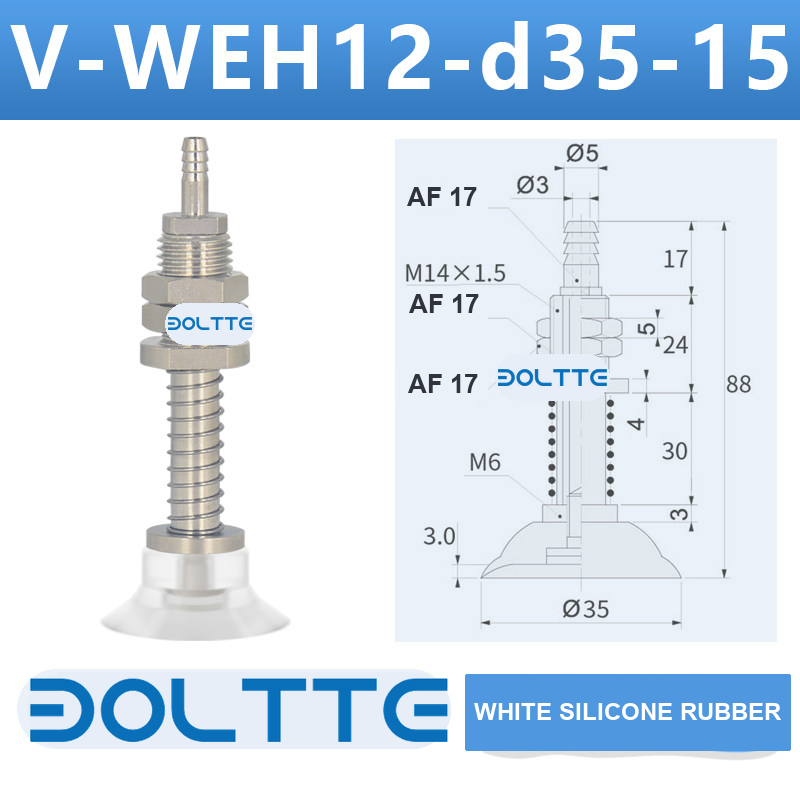

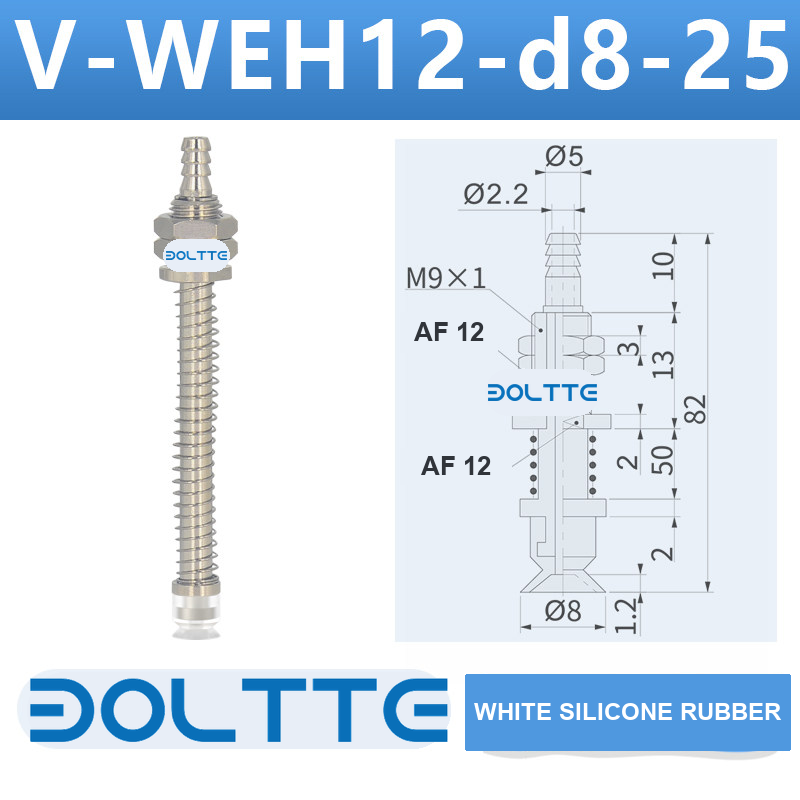

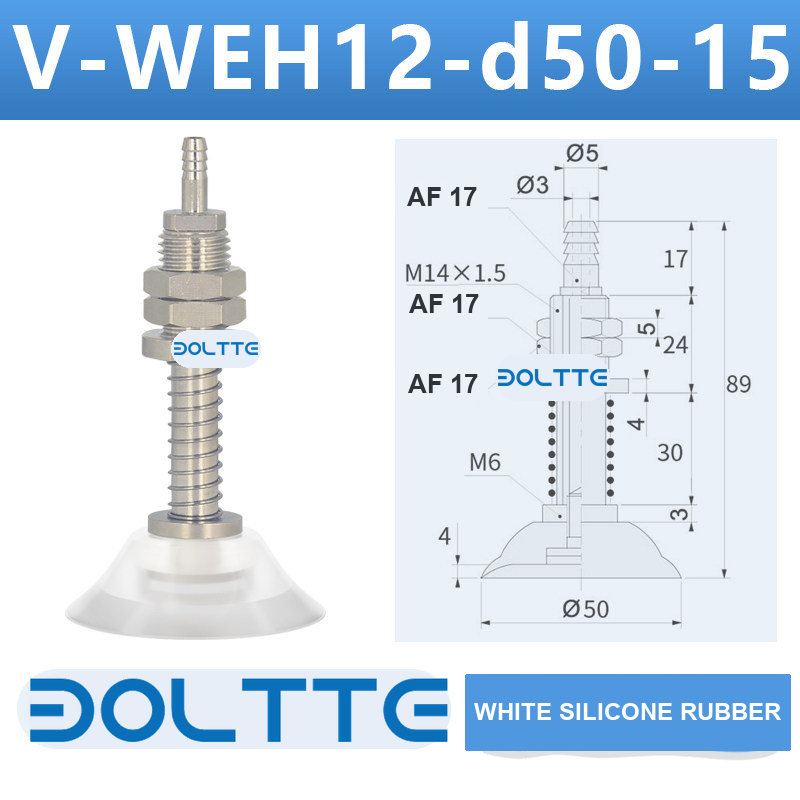

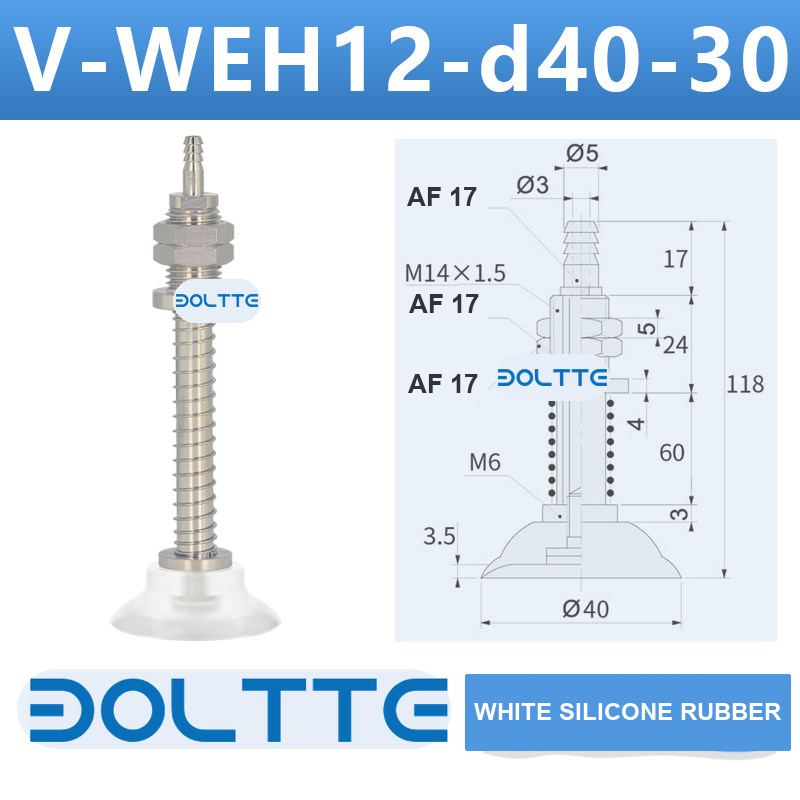

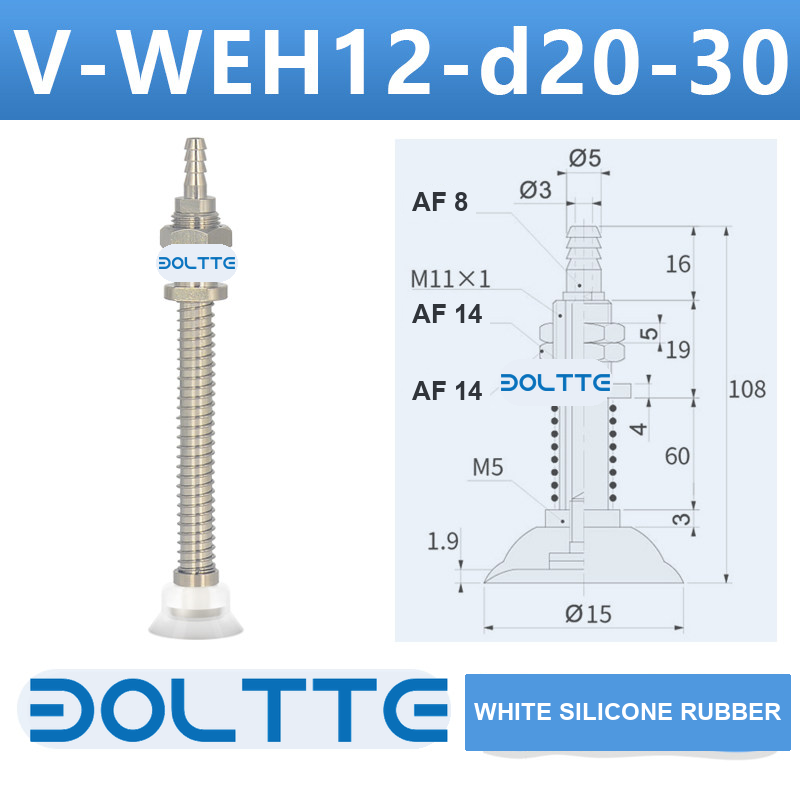

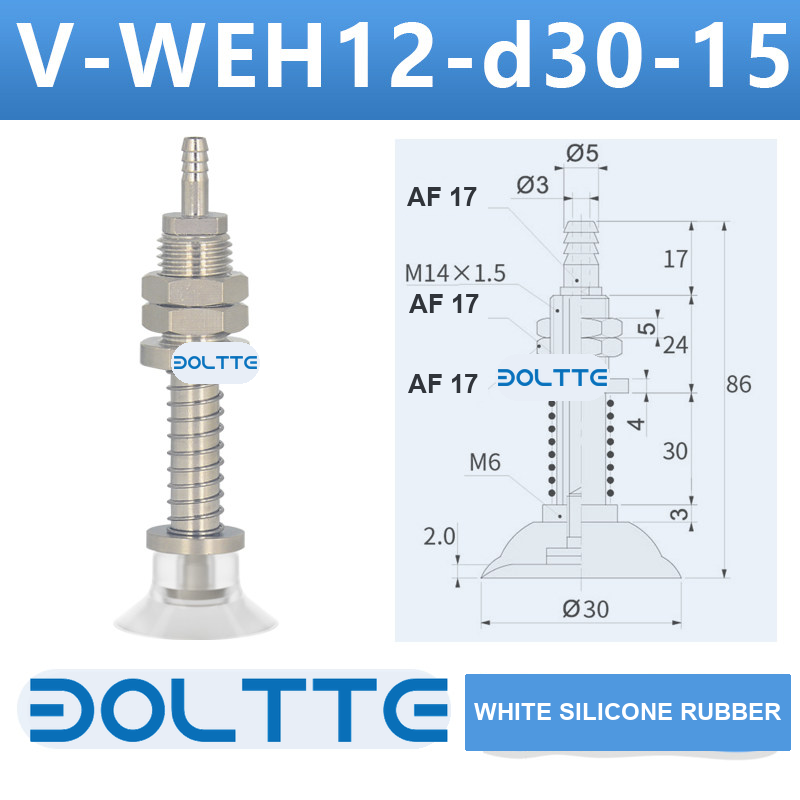

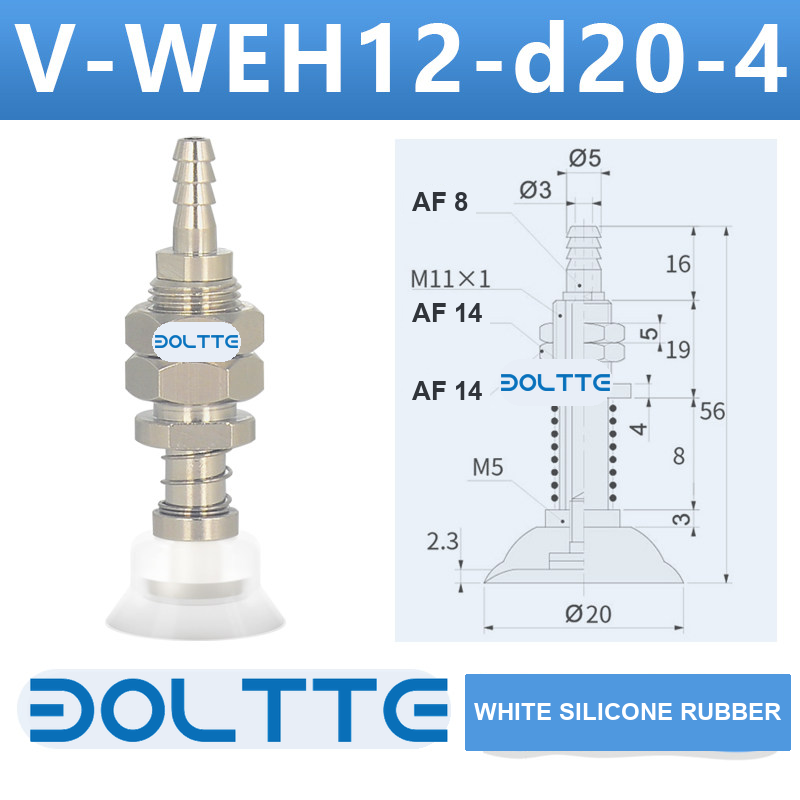

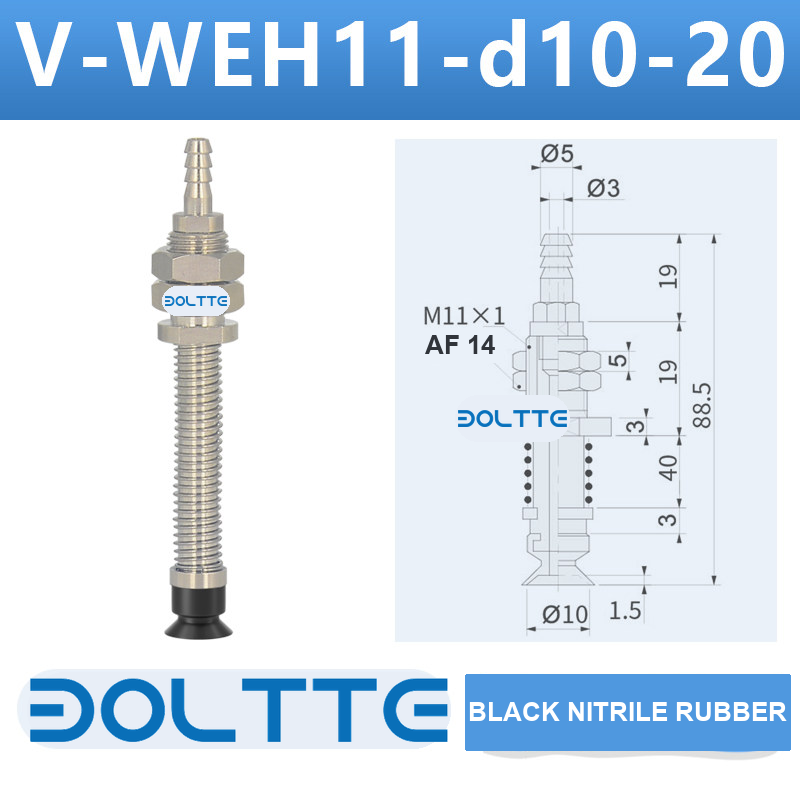

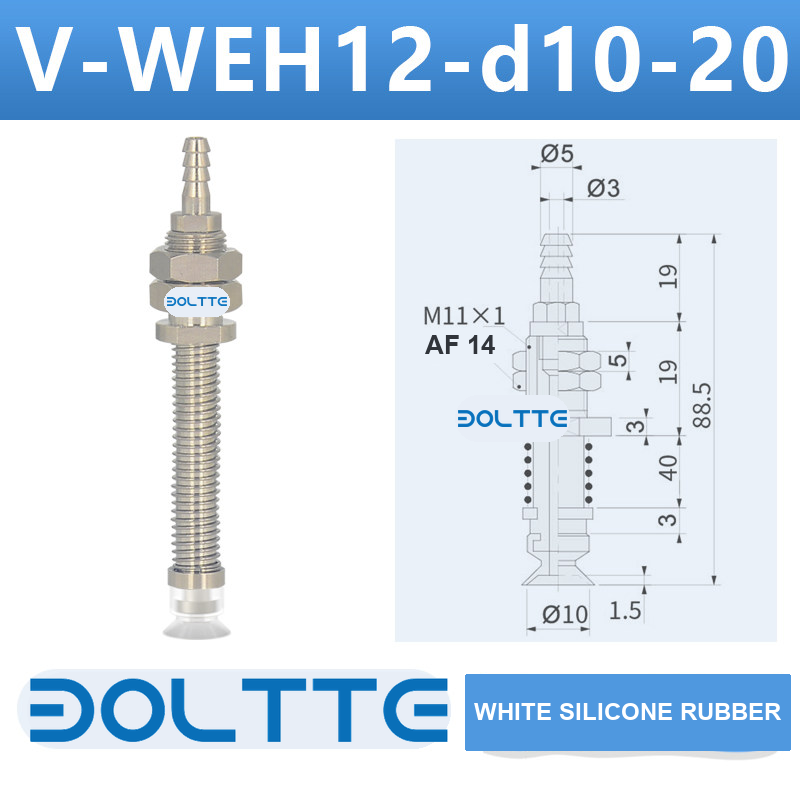

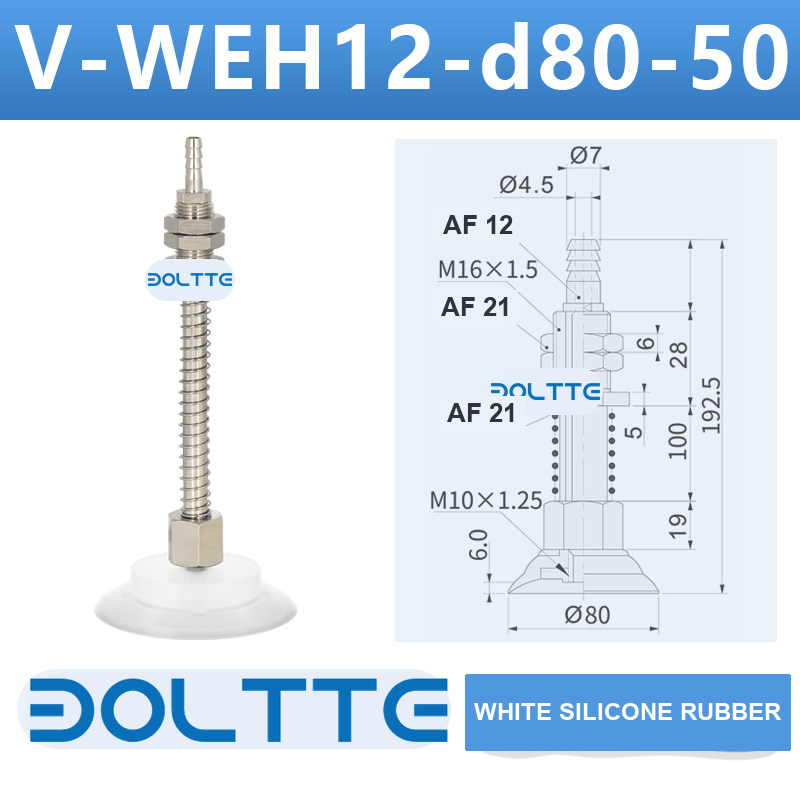

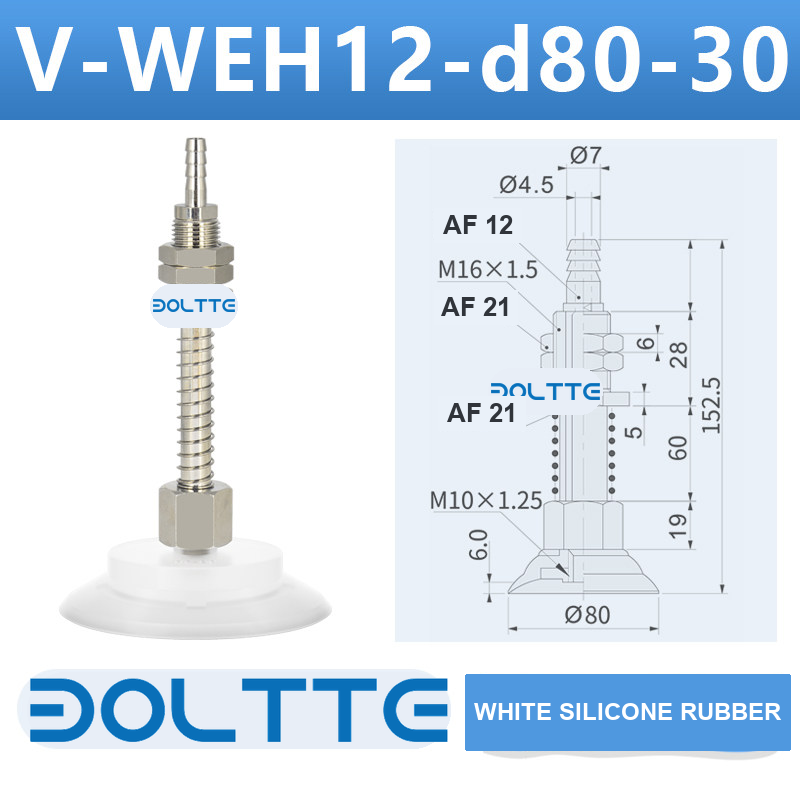

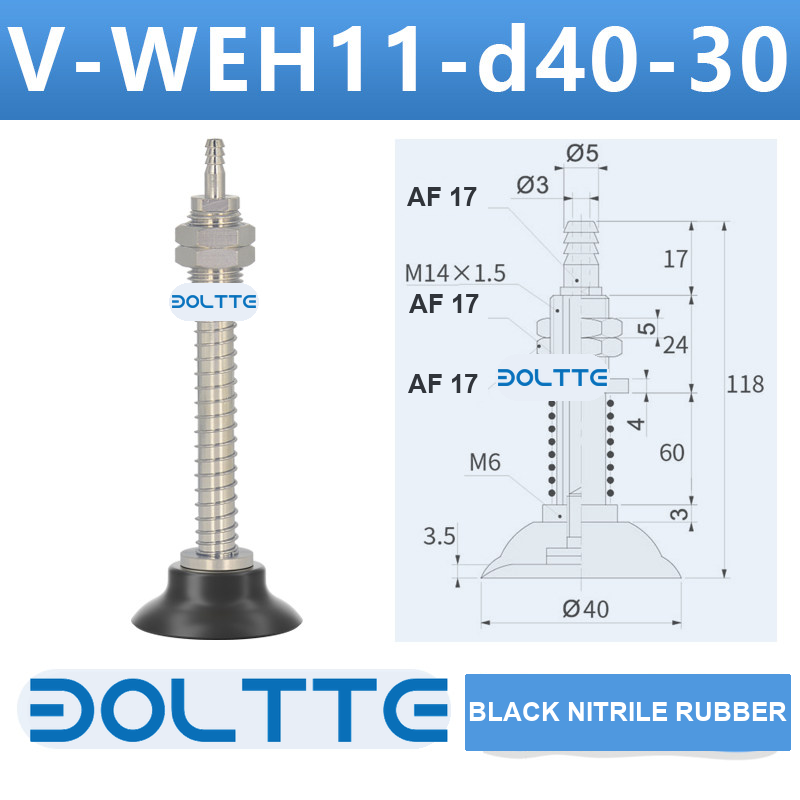

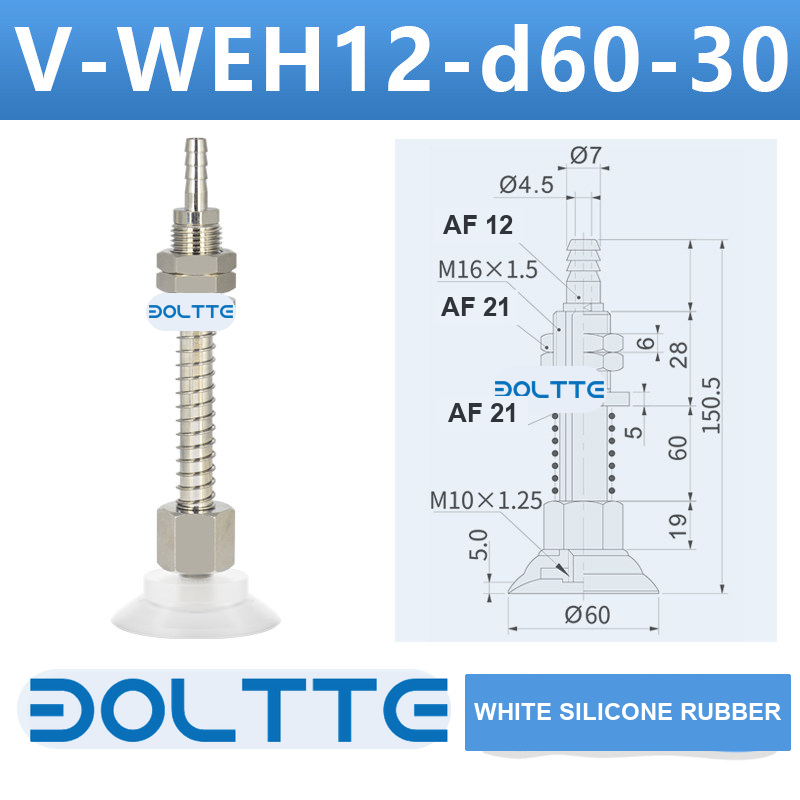

V-WEH[11 or 12]-d[diameter]-[suffix] identifies the material family, nominal cup diameter and complete assembly variant. Every selectable model has its own product view and dimensional drawing.
Suitable for
Industrial vacuum pick-and-place and packaging automation
Robotic end-effectors and compatible vacuum gripping fixtures
Replacement work where the complete model and installation drawing have been confirmed
Before use
Confirm the complete model code, selected drawing, cup material, mounting thread, vacuum connection, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
