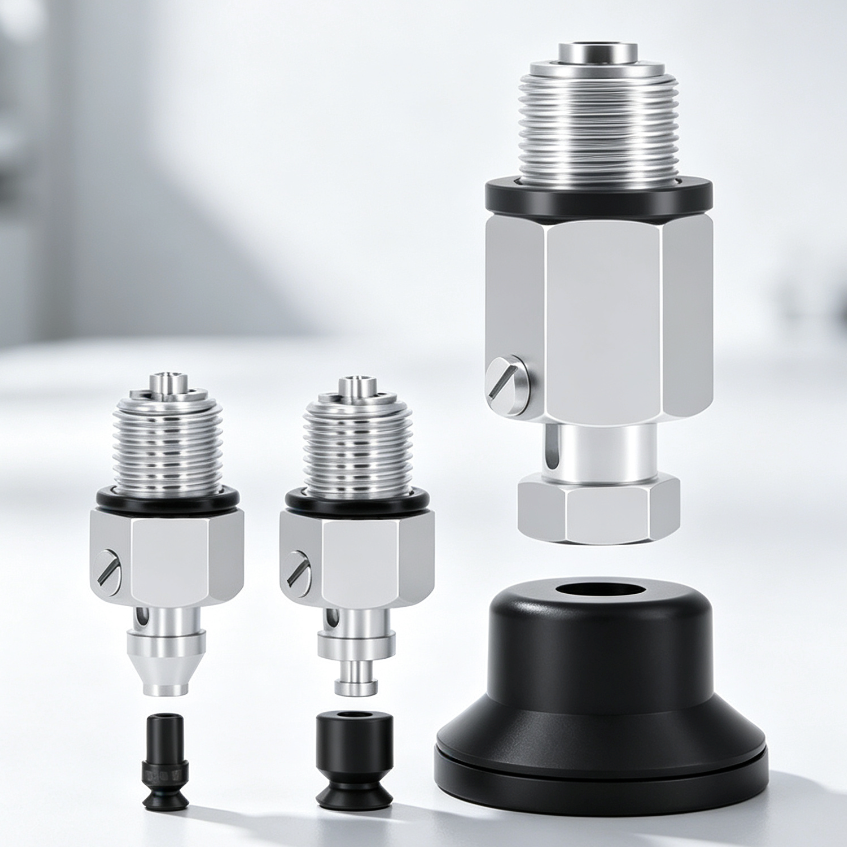

V-J-WES spring vacuum cup mounts for industrial vacuum gripping, automated handling and robotic end-effectors. Select the complete model by cup diameter and rubber material, then confirm the matching drawing and mounting details before ordering.

Quick Model Finder

1. Choose the diameter: select D2, D3, D4, D6, D8, D10, D15, D20, D25, D30, D40 or D50 according to the selected dimensional drawing.
2. Choose the material: WES36 uses black standard rubber, WES37 uses black antistatic rubber, and WES38 uses gray FKM rubber.

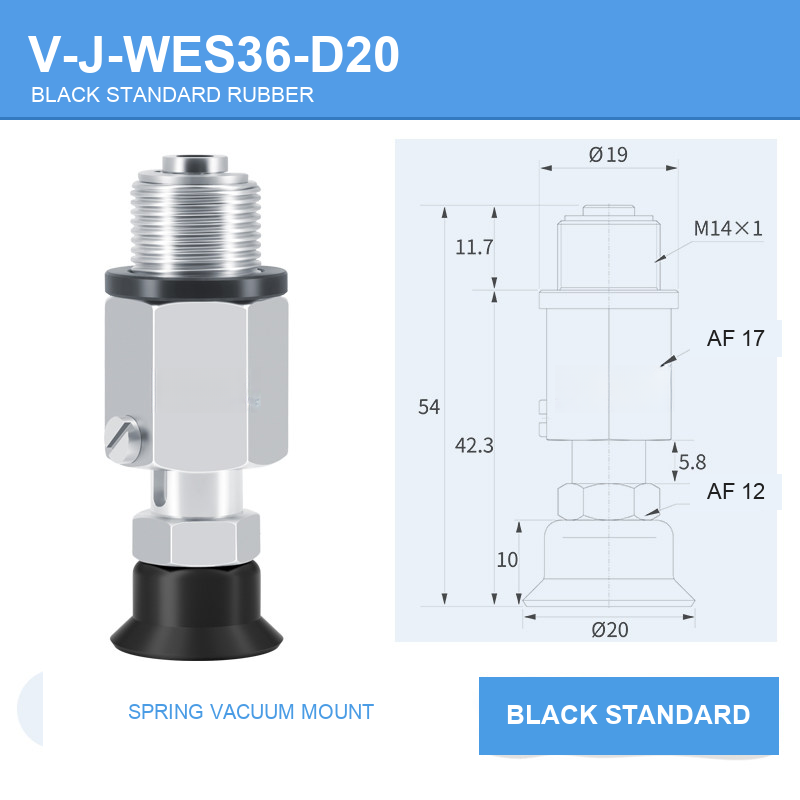

3. Confirm the assembly: check the selected image for the shown thread, hex size, overall dimensions and installation clearance.
4. Select the complete code: choose one listed V-J-WES model exactly as shown; do not combine attributes from different variants.

Model-code guide

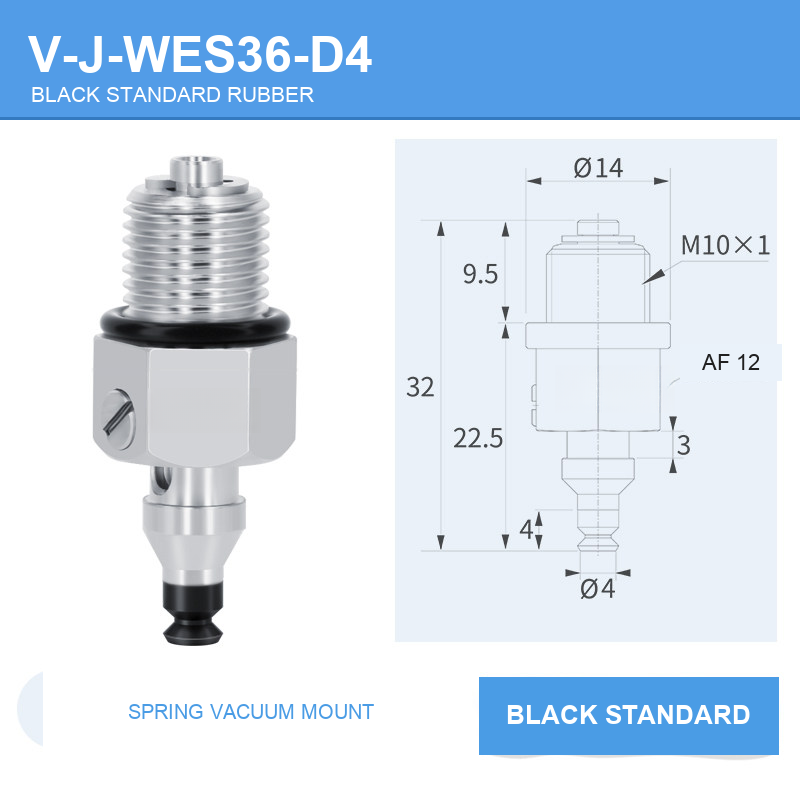

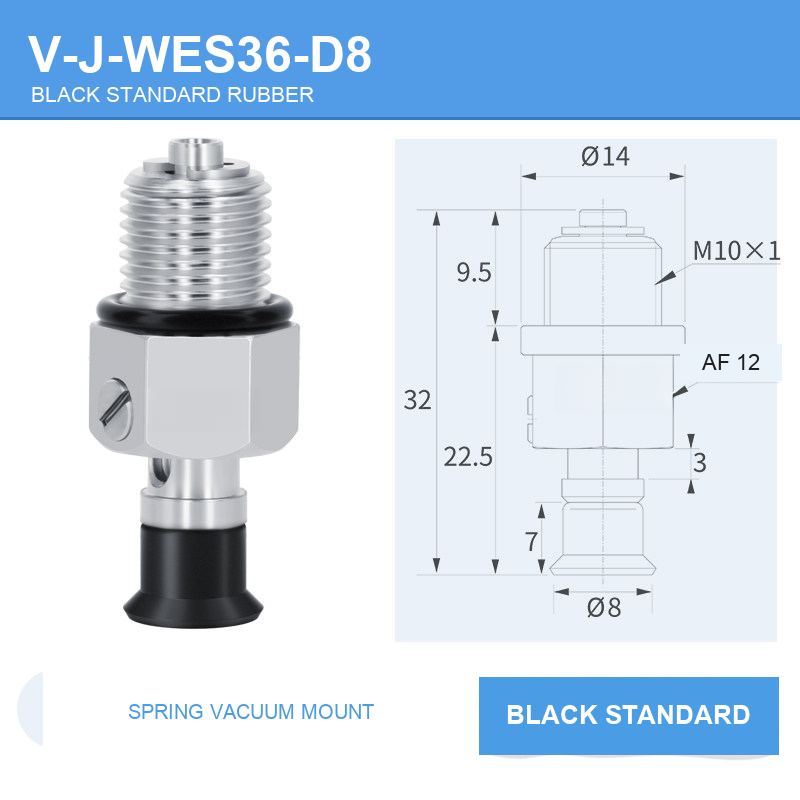

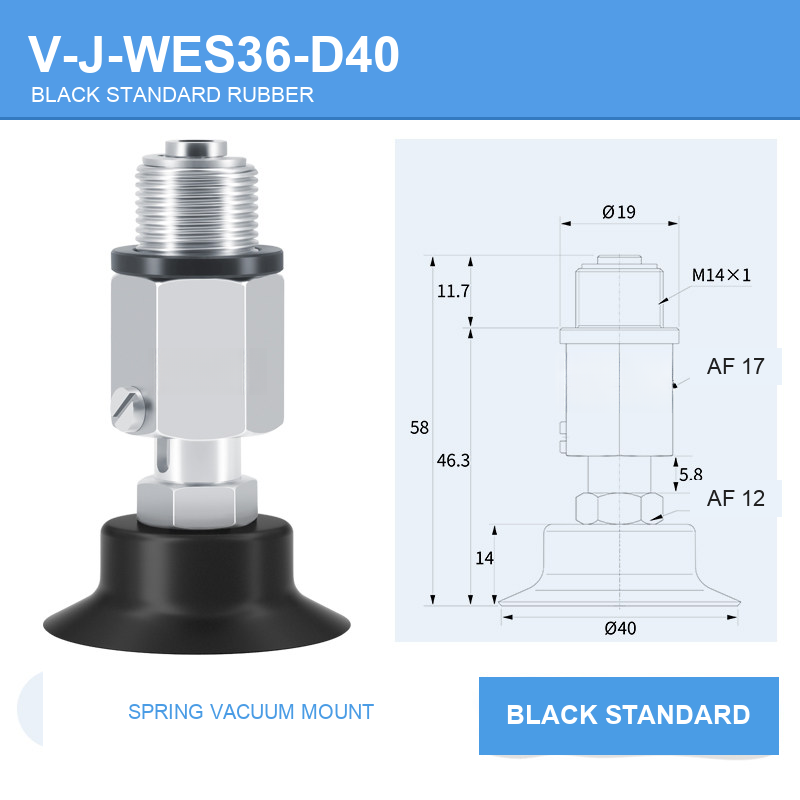

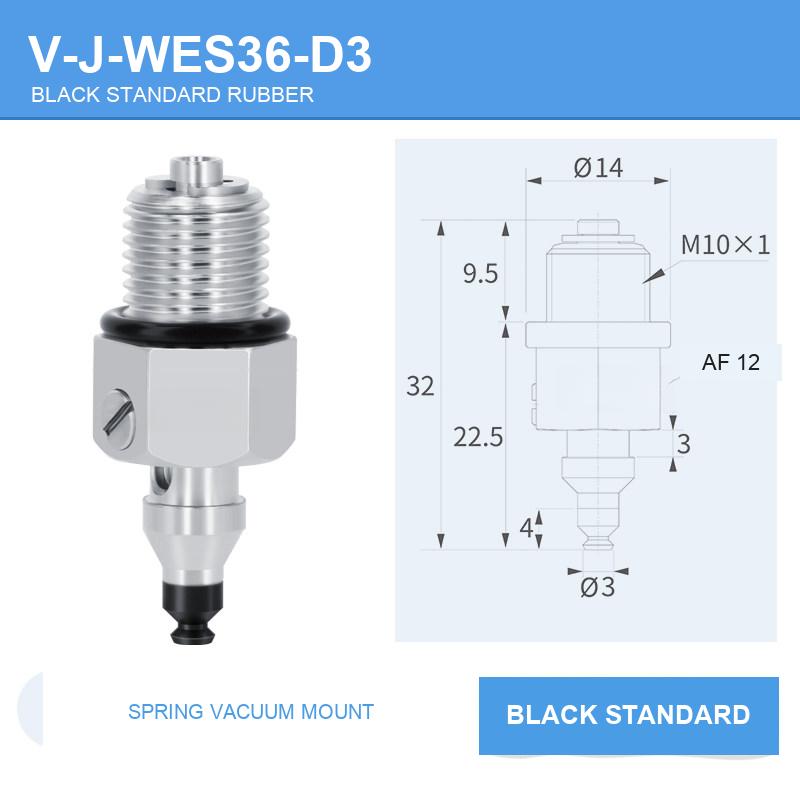

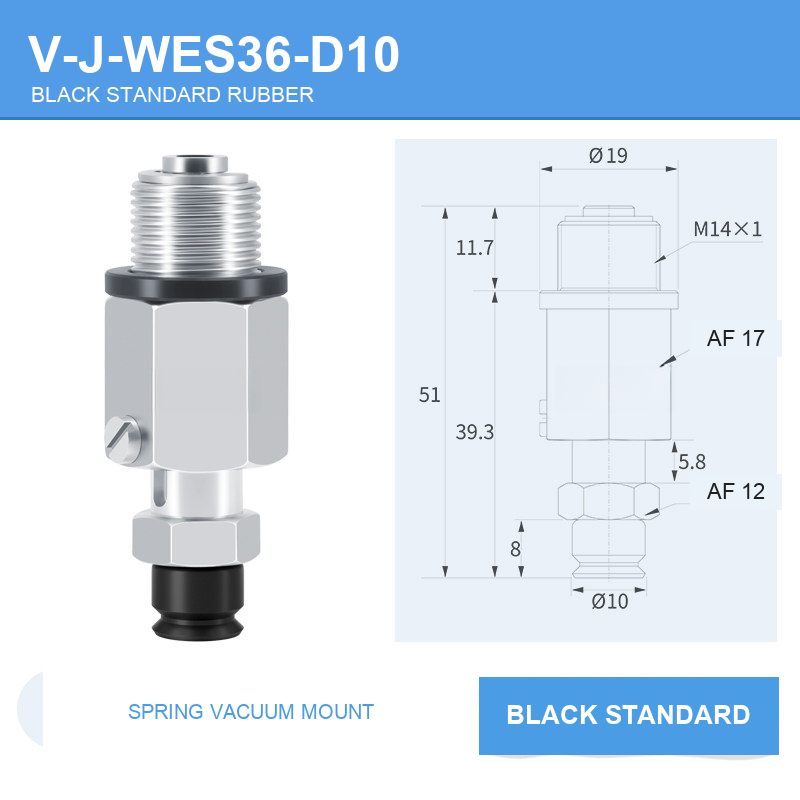

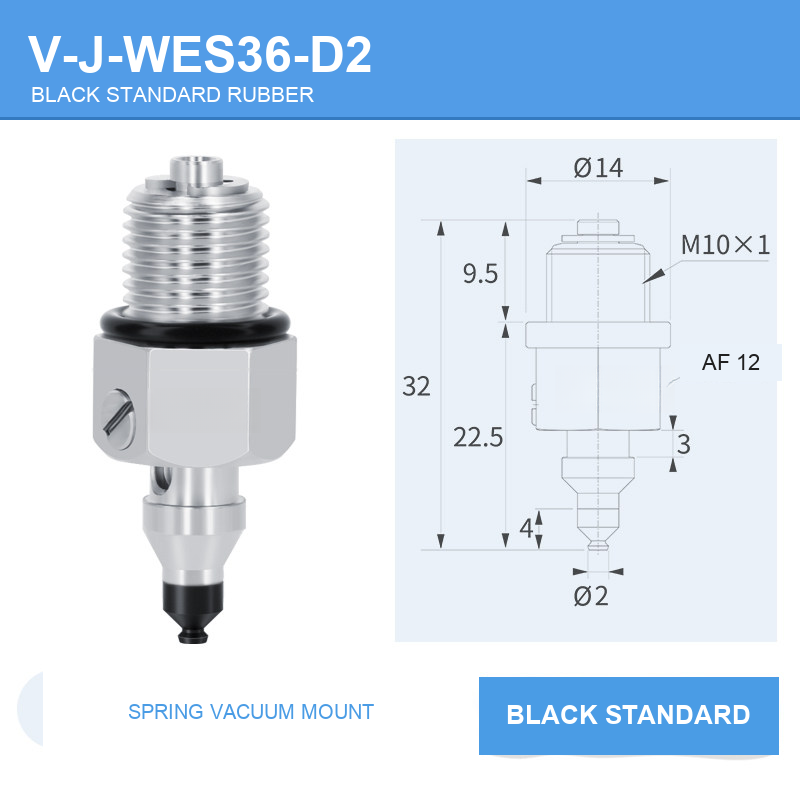

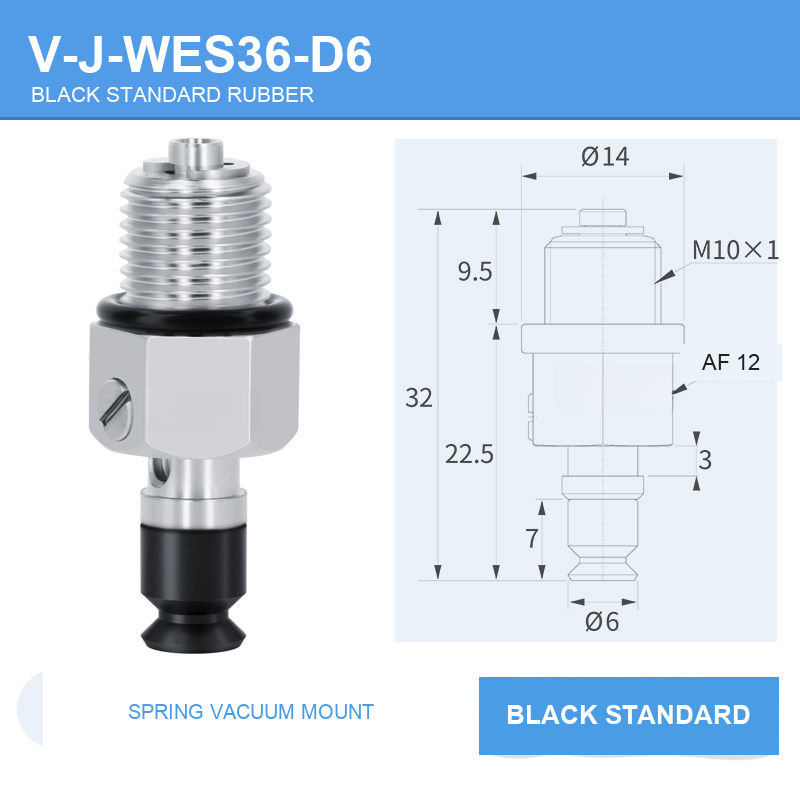

V-J-WES36-D[dia] identifies the black standard-rubber option; V-J-WES37-D[dia] identifies the black antistatic-rubber option; and V-J-WES38-D[dia] identifies the gray FKM-rubber option. Every selectable model has its own product view and dimensional drawing.

Suitable for

• Industrial vacuum pick-and-place and packaging automation
• Robotic end-effectors and vacuum gripping fixtures
• Replacement work where the complete model and mounting interface are confirmed

Before use

Confirm the complete model code, selected drawing, rubber material, mounting interface, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
