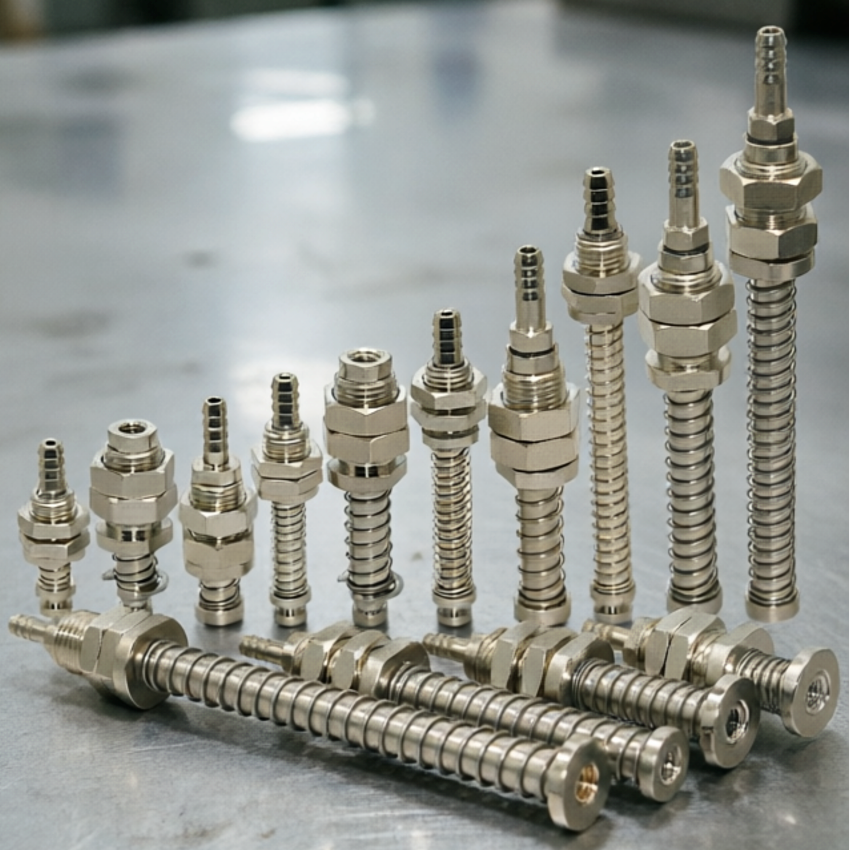

Top-Port Spring-Loaded Vacuum Cup Buffer Mounts and Mounting Adapters (M9/M11/M14)

Top-Port Spring-Loaded Vacuum Cup Buffer Mounts and Mounting Adapters

Spring-loaded buffer mounts and threaded mounting adapters for compatible industrial vacuum cup assemblies, robotic end-of-arm tooling and automated handling equipment. Select the exact component by model code, mounting thread, connection form, stroke and drawing.

• 21 selectable components: 14 spring-loaded buffer mounts and 7 mounting adapters

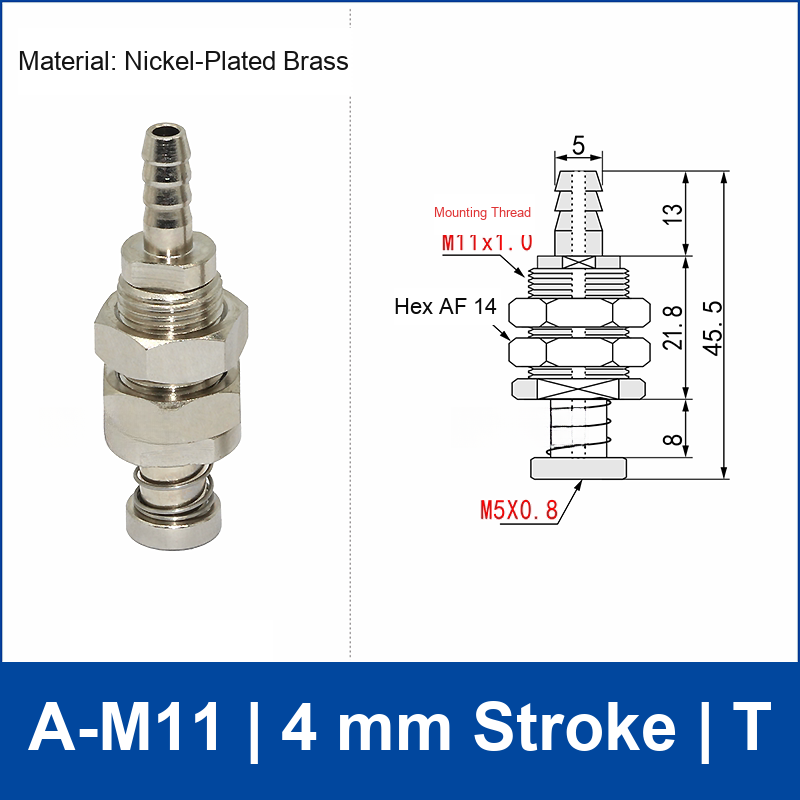

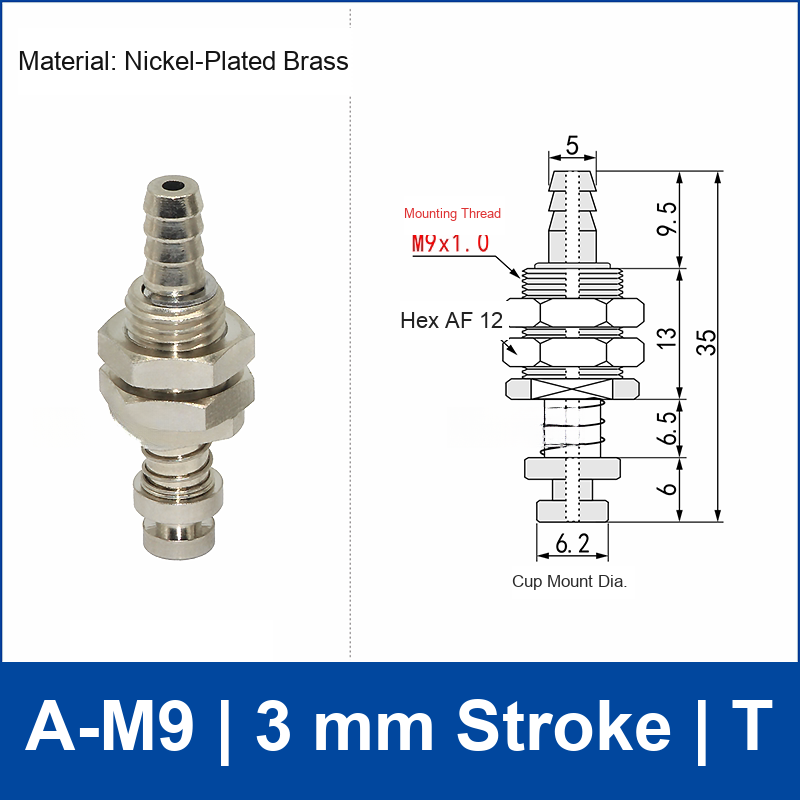

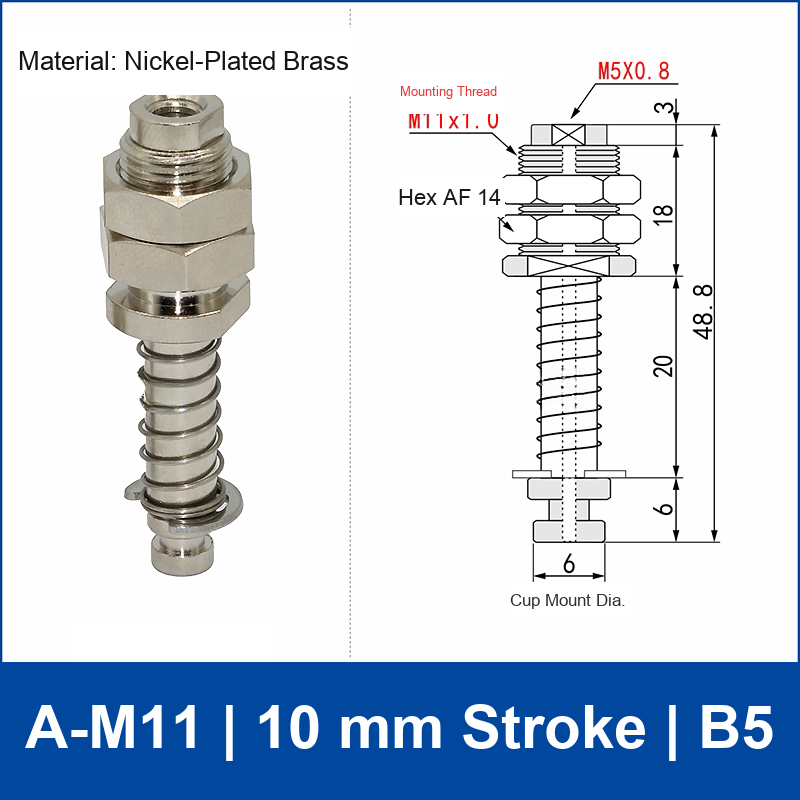

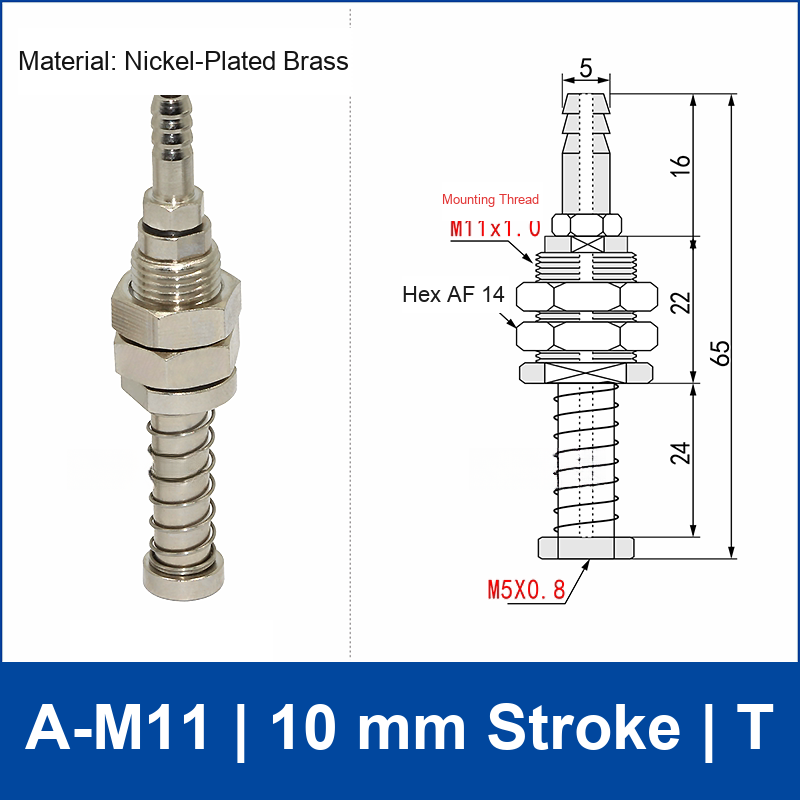

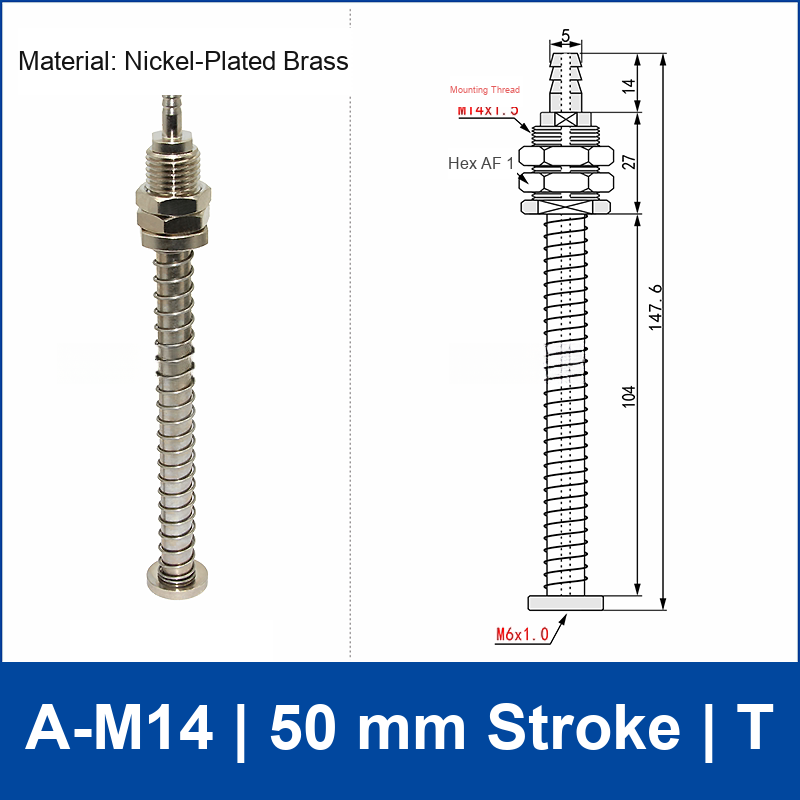

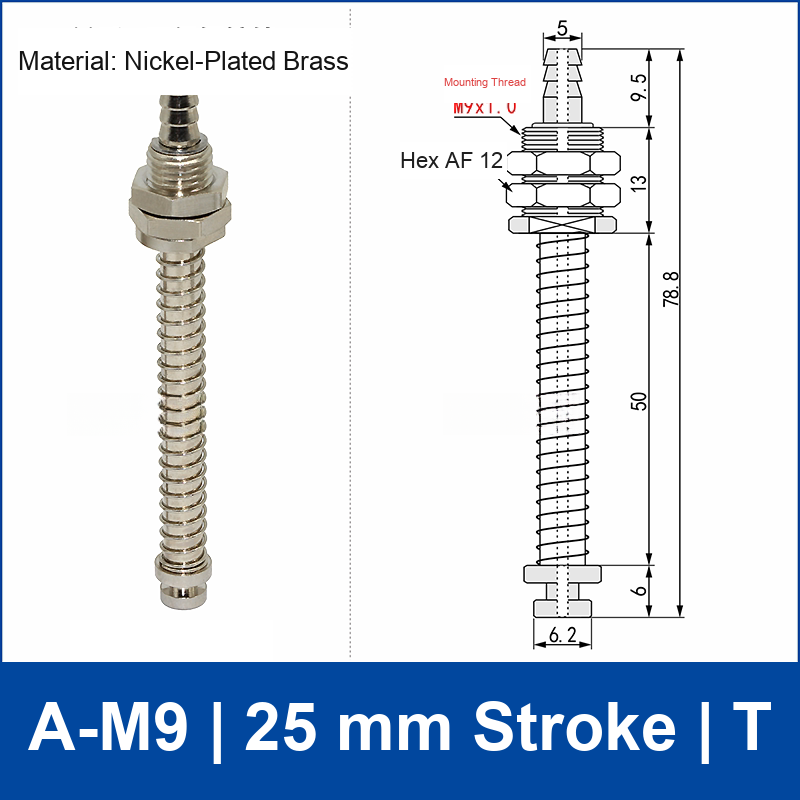

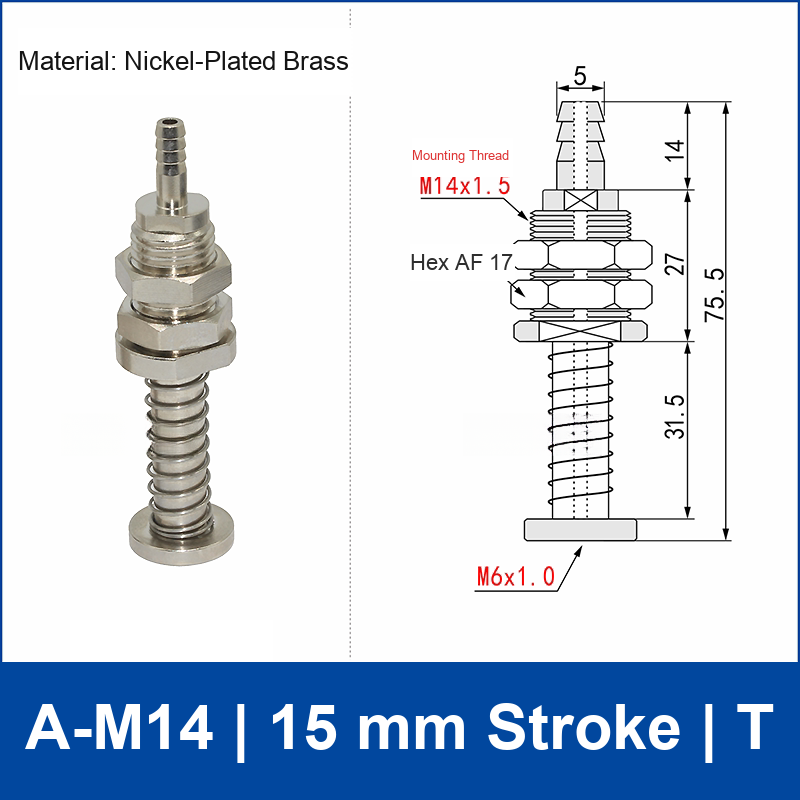

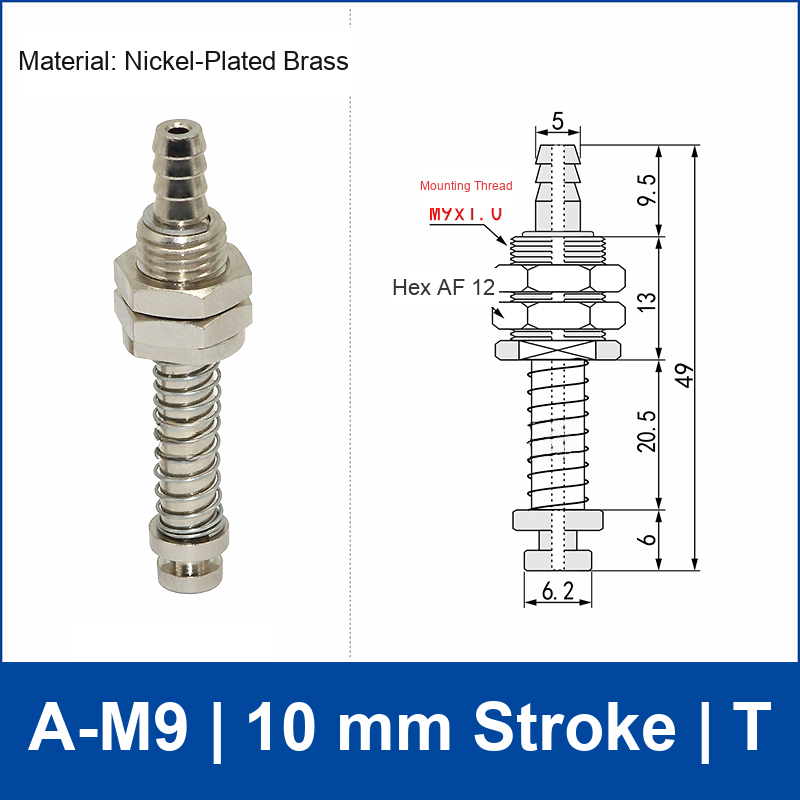

• Buffer-mount thread families: M9, M11 and M14, according to the selected model

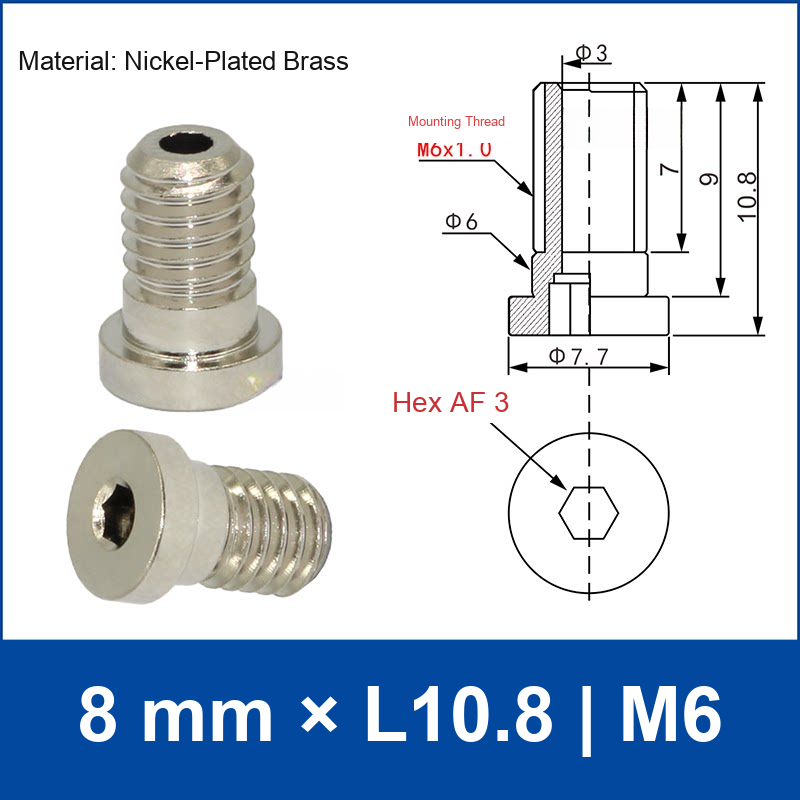

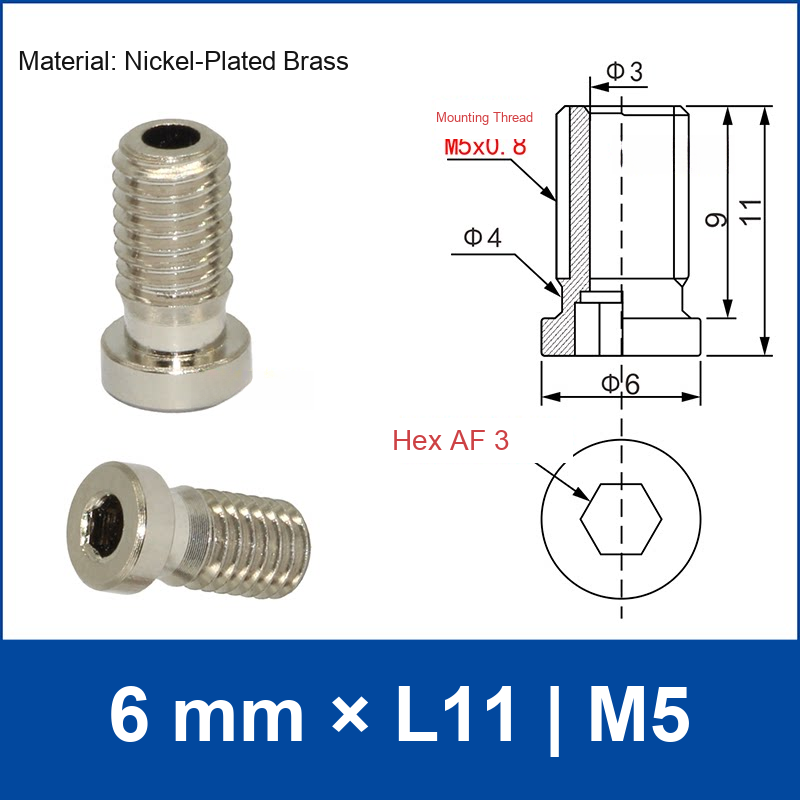

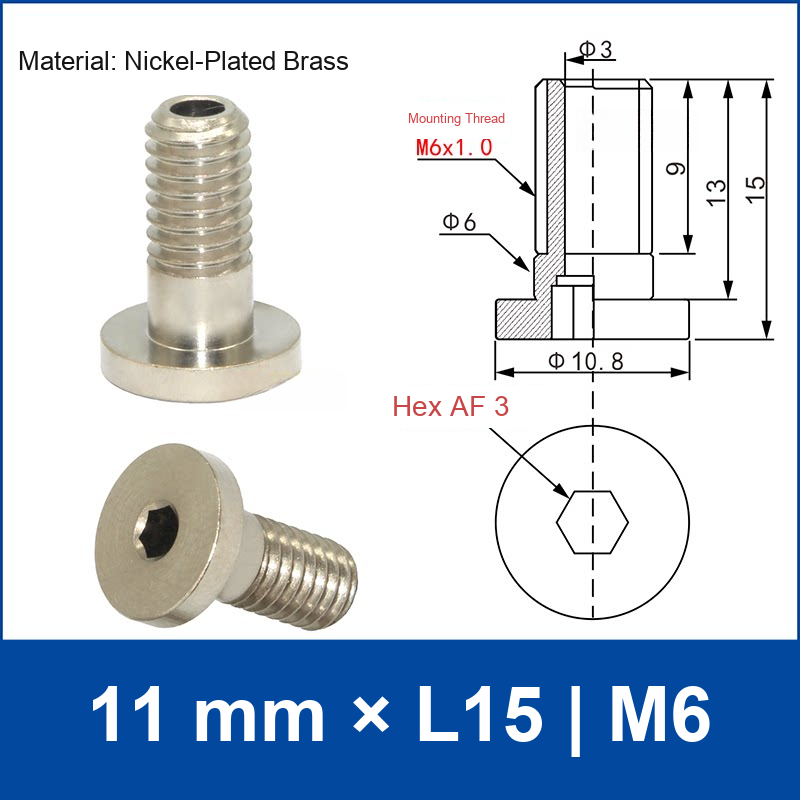

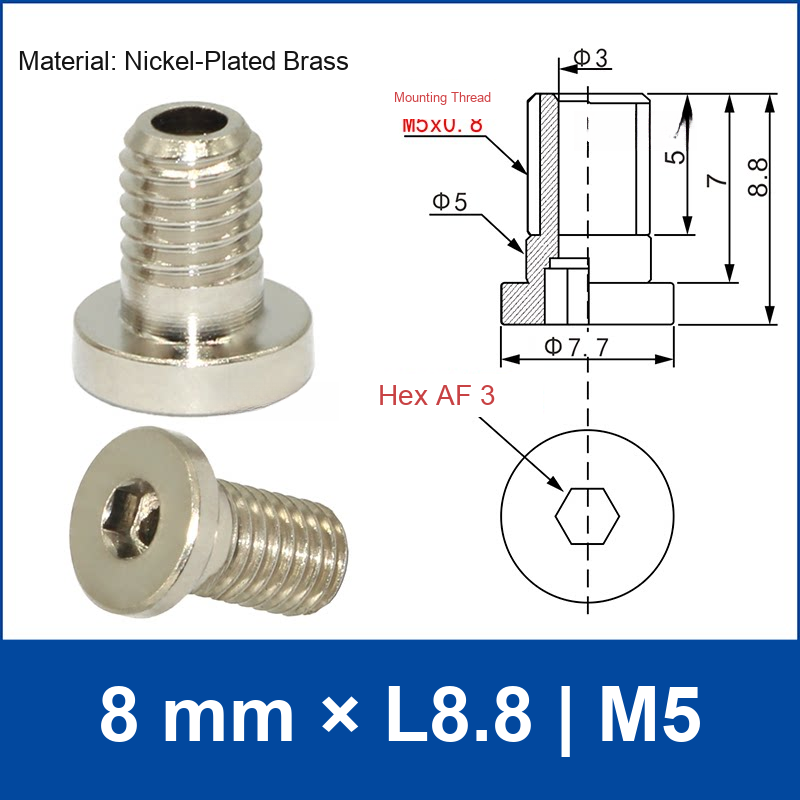

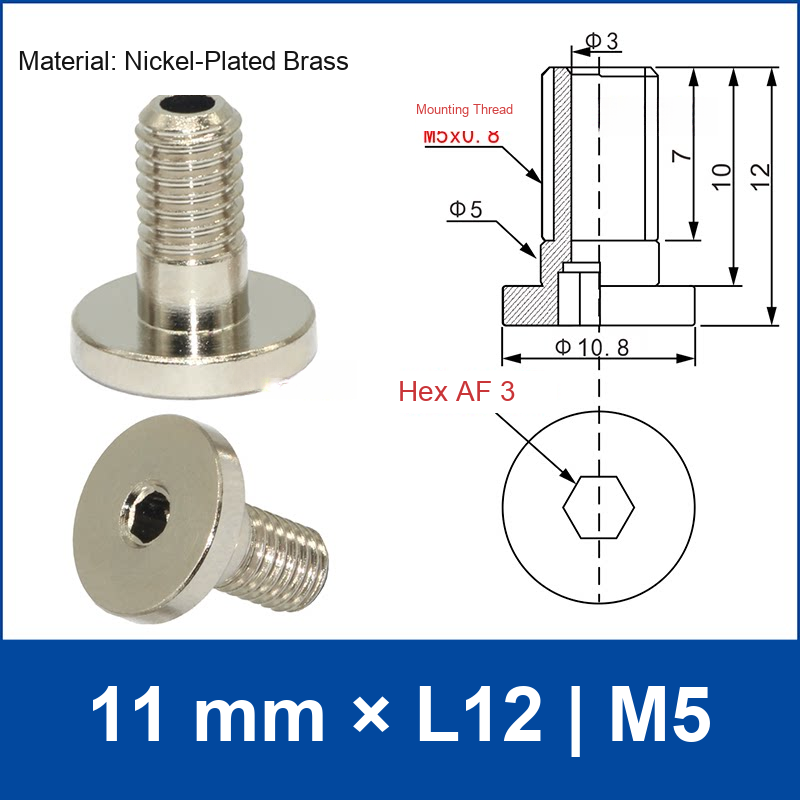

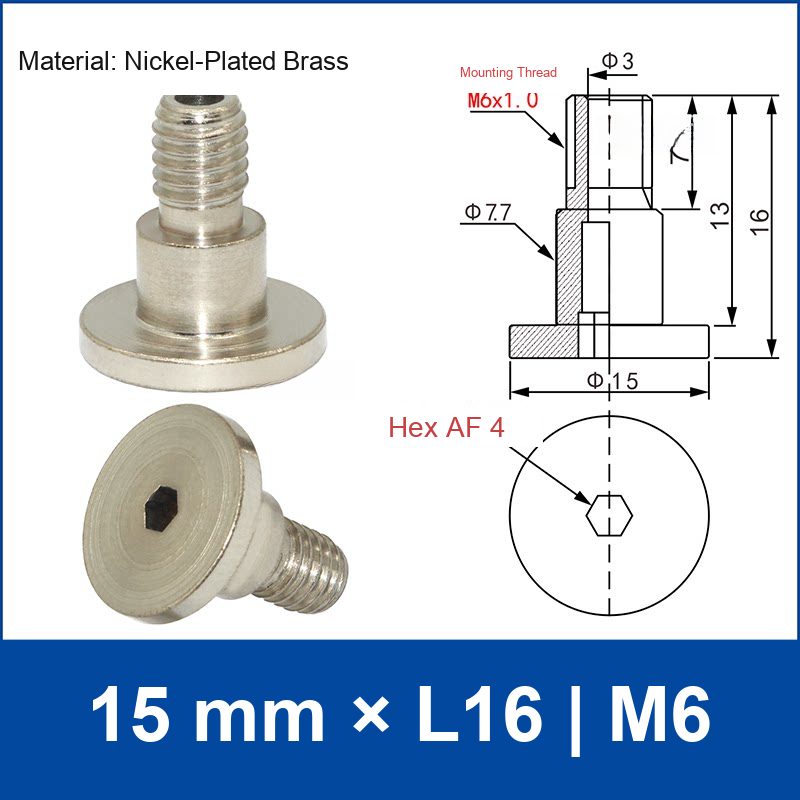

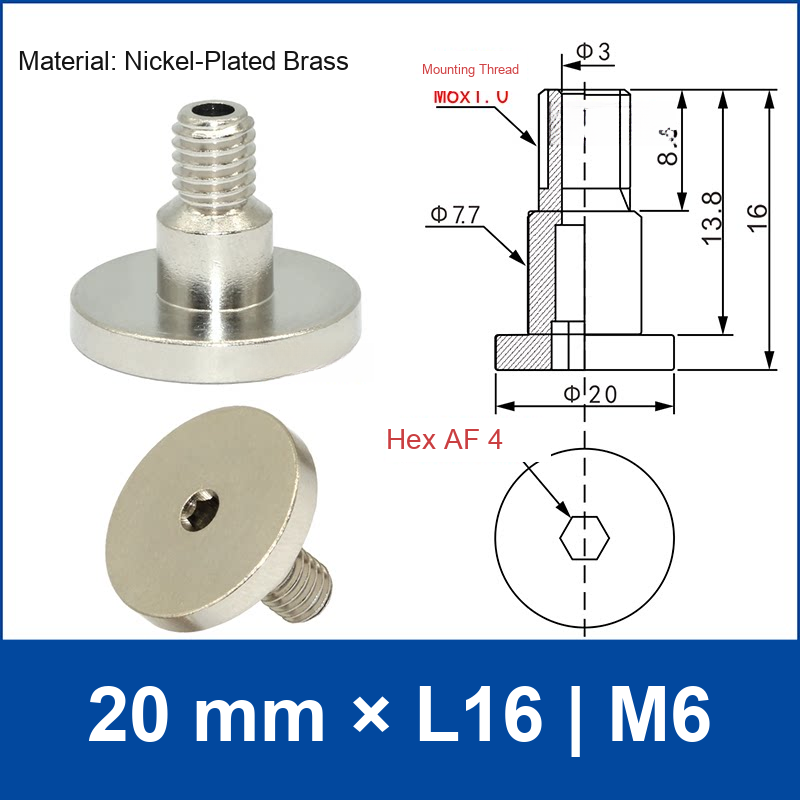

• Adapter thread families: M5 and M6, according to the selected model
• Nominal buffer strokes from 3 mm to 50 mm, depending on model
• T and B5 connection configurations where specified

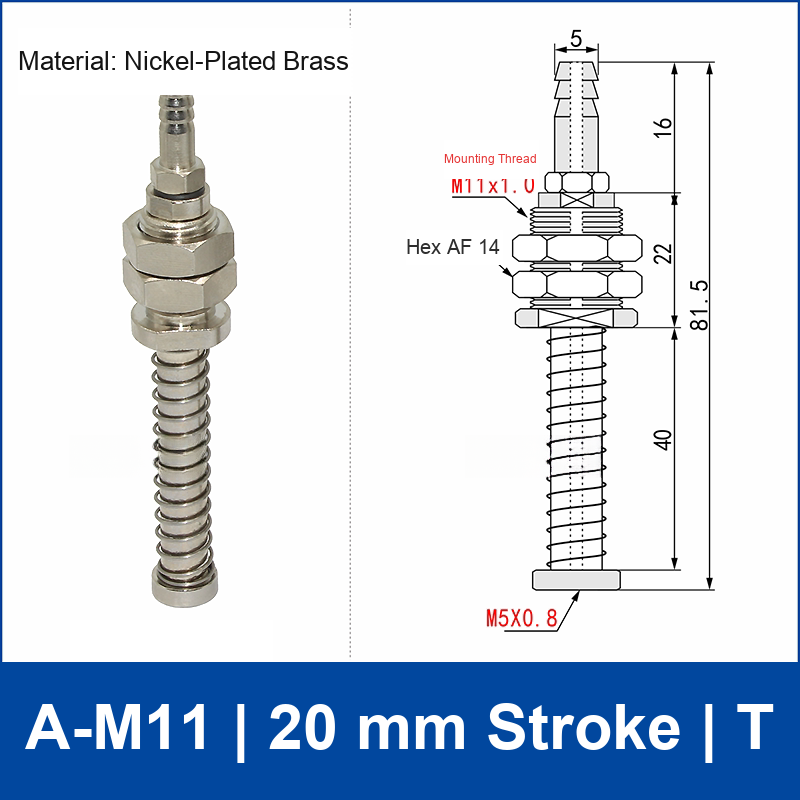

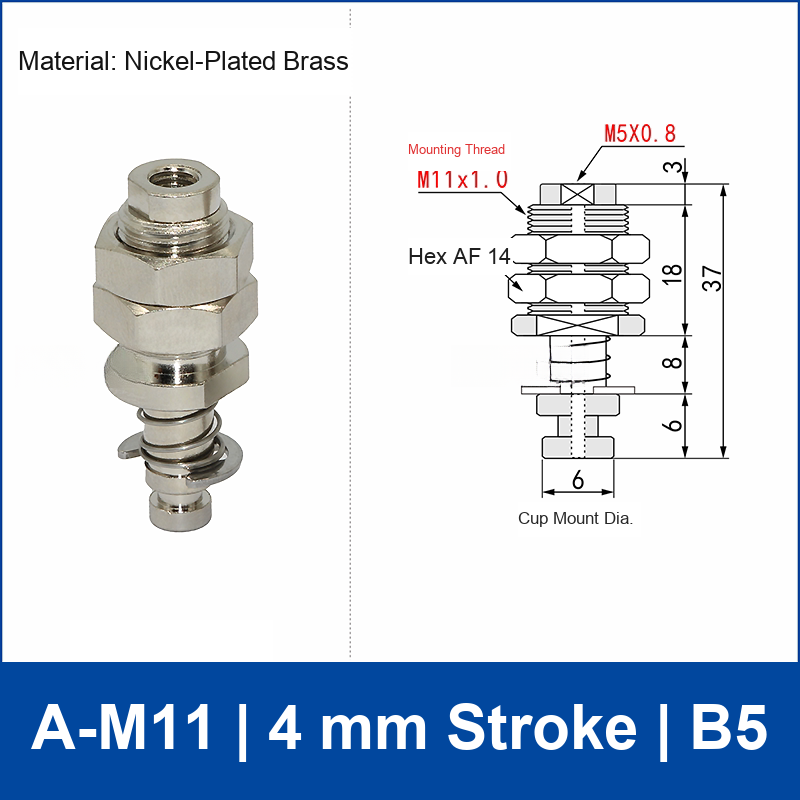

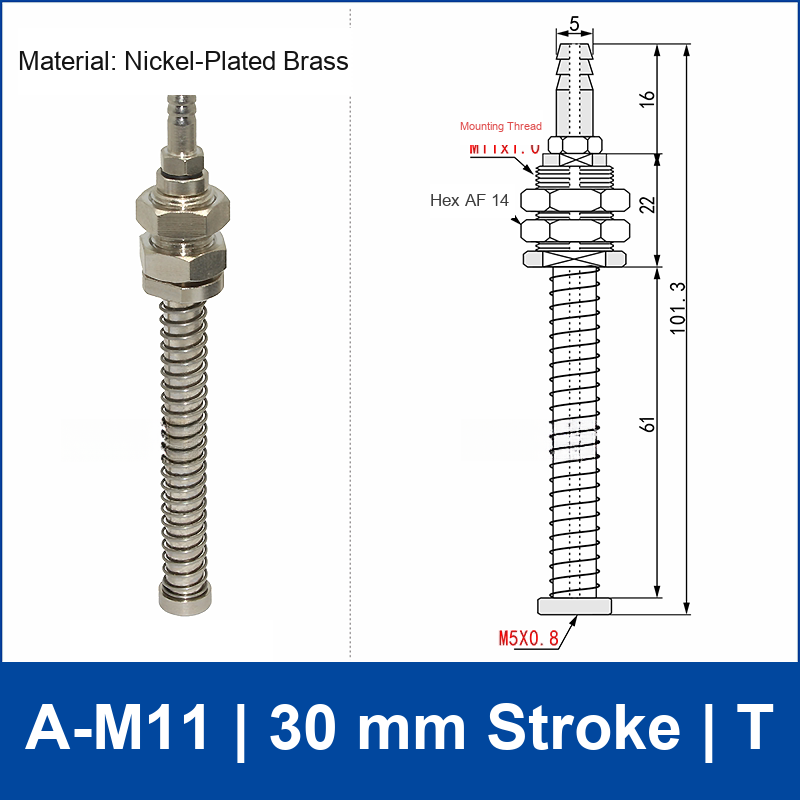

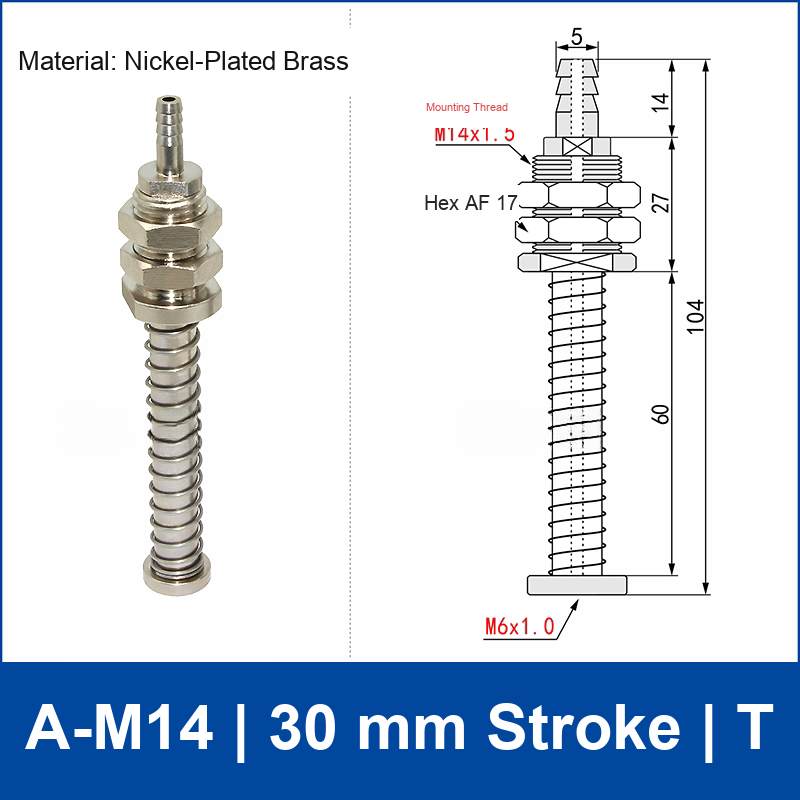

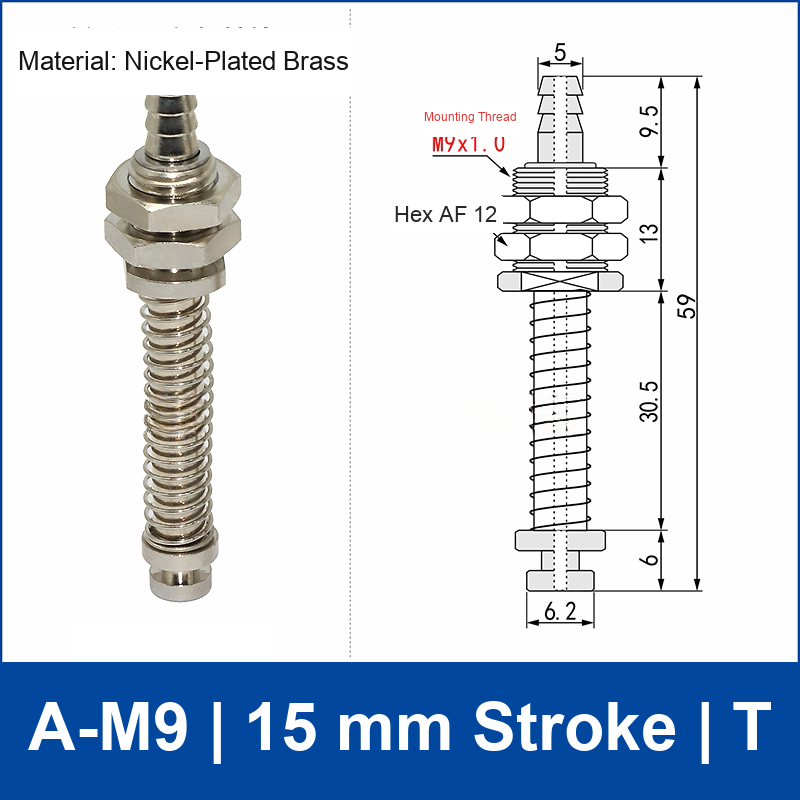

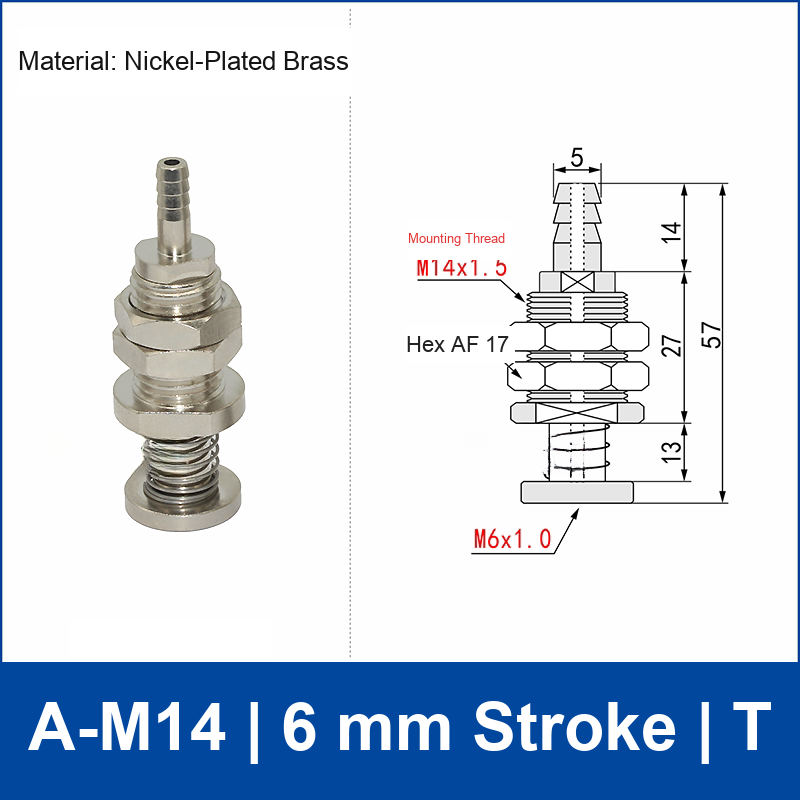

• Each model includes its matching product photograph, model code and technical drawing

Applications / Suitable For

• Industrial vacuum pick-and-place and packaging automation
• Robotic end-of-arm tooling requiring spring compliance
• Vacuum cup mounting, replacement and configuration work
• Dimensionally compatible automated handling systems

Confirm the selected model code, drawing, thread, connection form, mating hardware, vacuum cup, workpiece surface, vacuum level, payload, acceleration and operating environment before use. No food-contact, medical, lifting-safety or regulatory certification is claimed.
