Threaded Vacuum Cup Mount Fittings — M3–M12
Threaded Vacuum Cup Mount Fittings — M3–M12
Threaded mounting fittings and adapters for compatible industrial vacuum-cup assemblies, automation fixtures and replacement configurations. Select the complete listed model only after comparing the drawing, thread and interface arrangement.
Quick Model Finder
- Start with the exact thread: match the stated M3, M4, M5, M6, M8, M12 or G1/8 interface to the mating part.

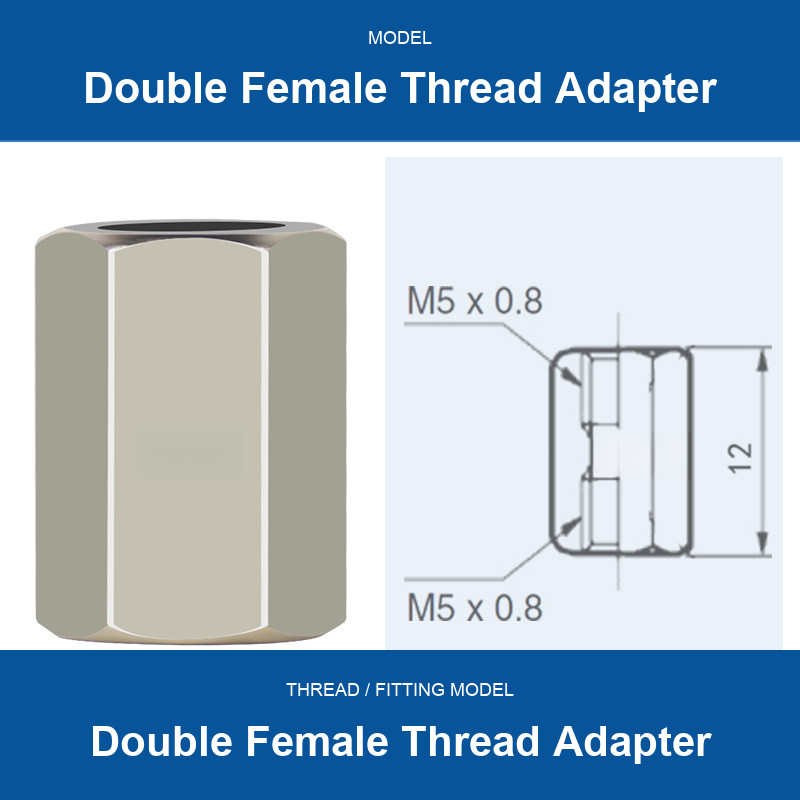

- Choose the fitting form: compare male, female, double-male, double-female, adapter, spacer and spring-buffer configurations.

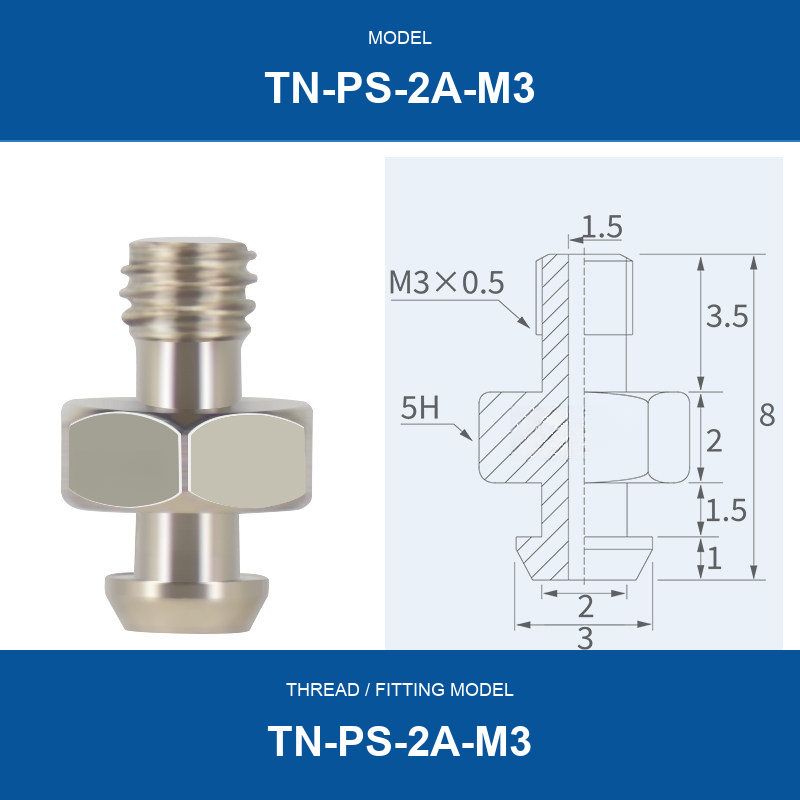

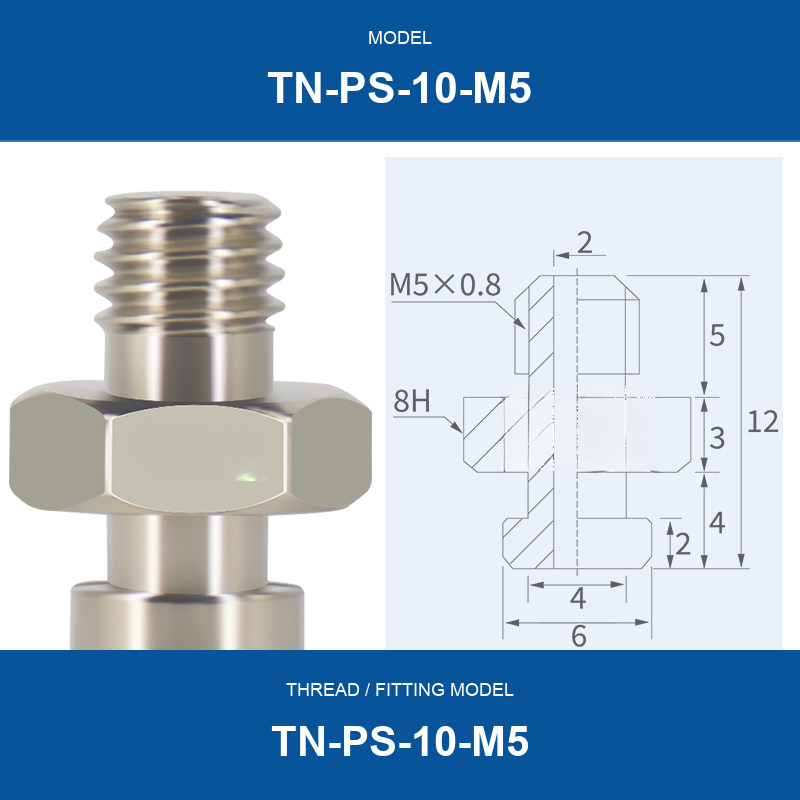

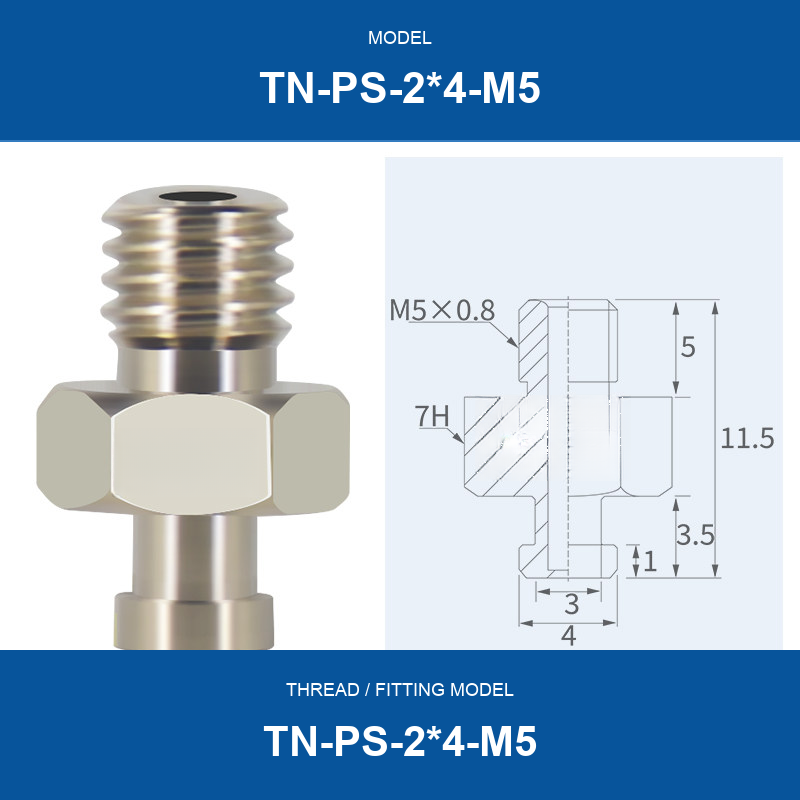

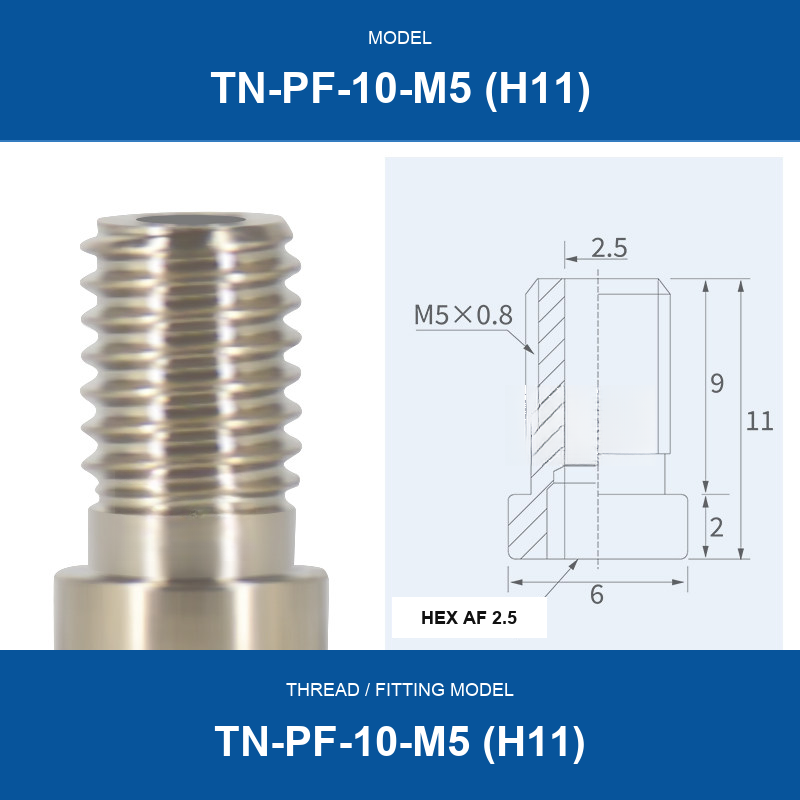

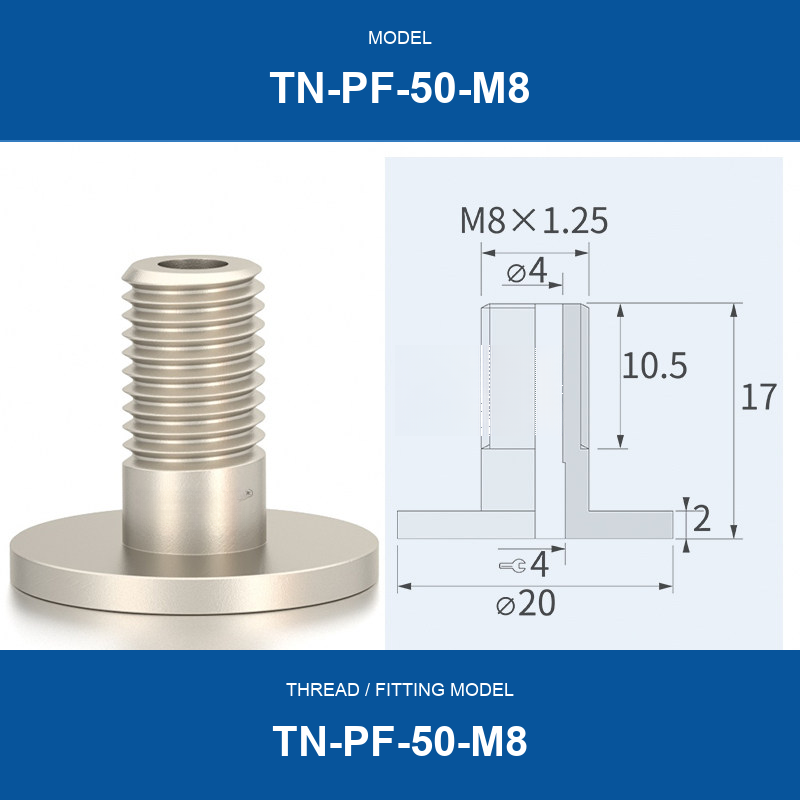

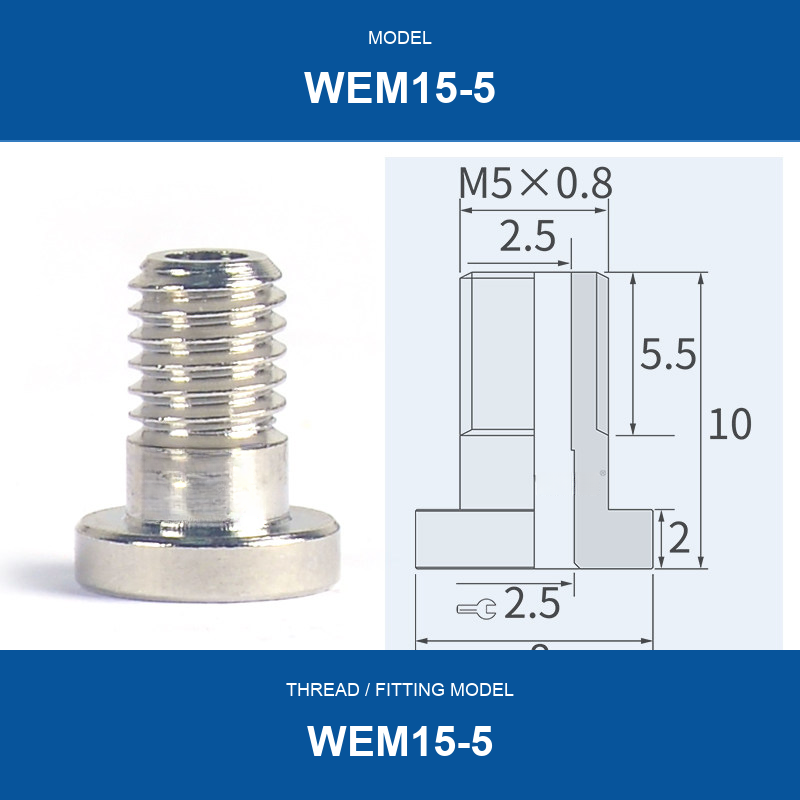

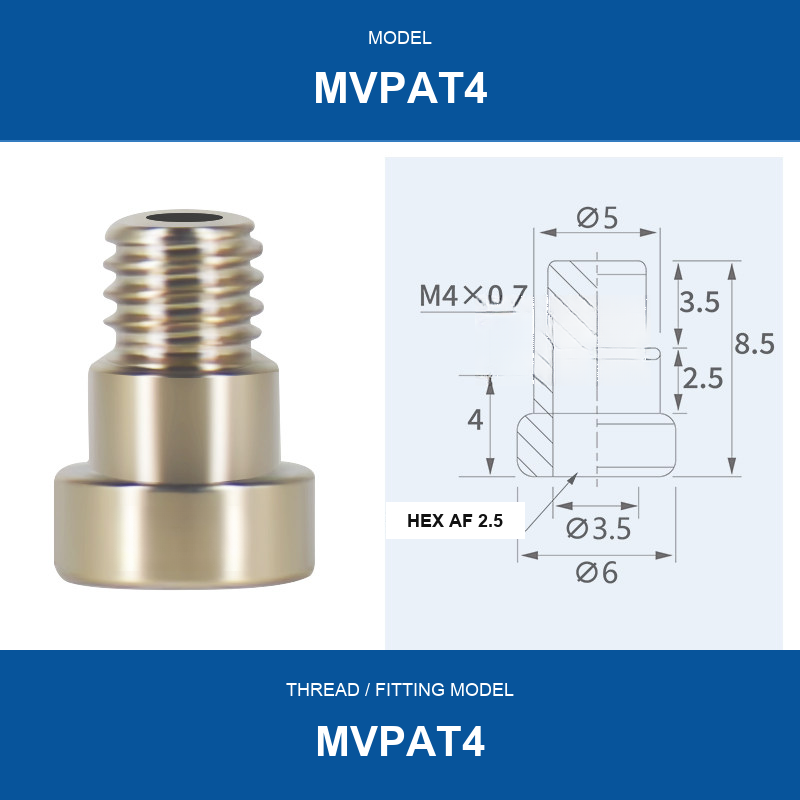

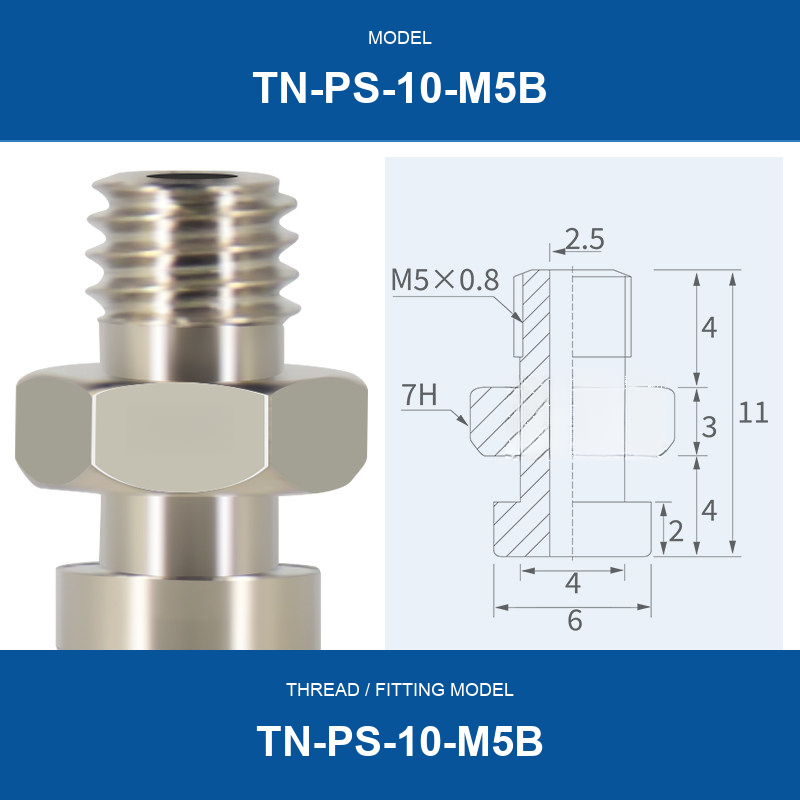

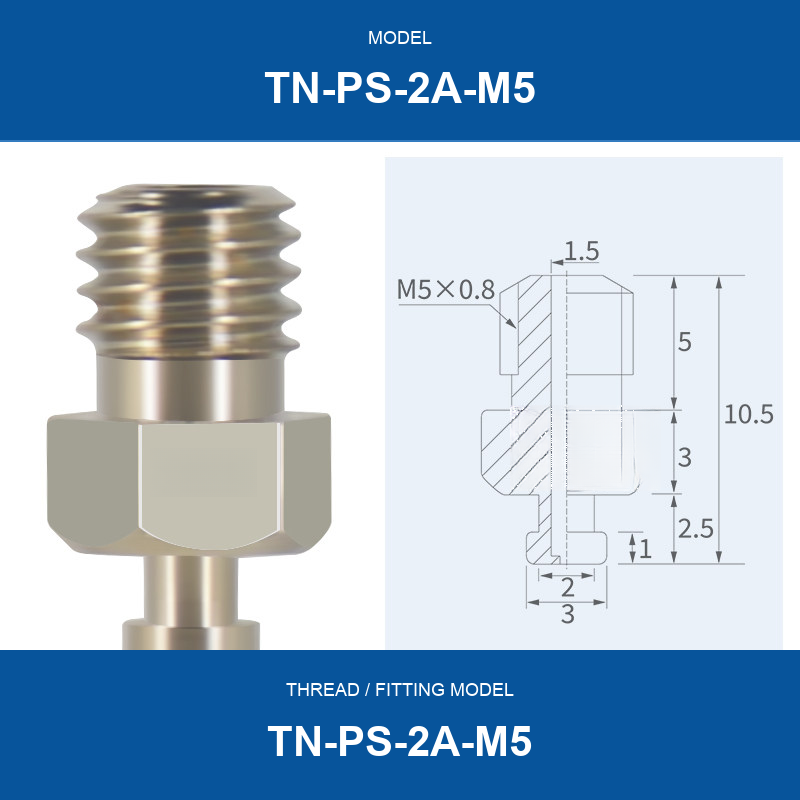

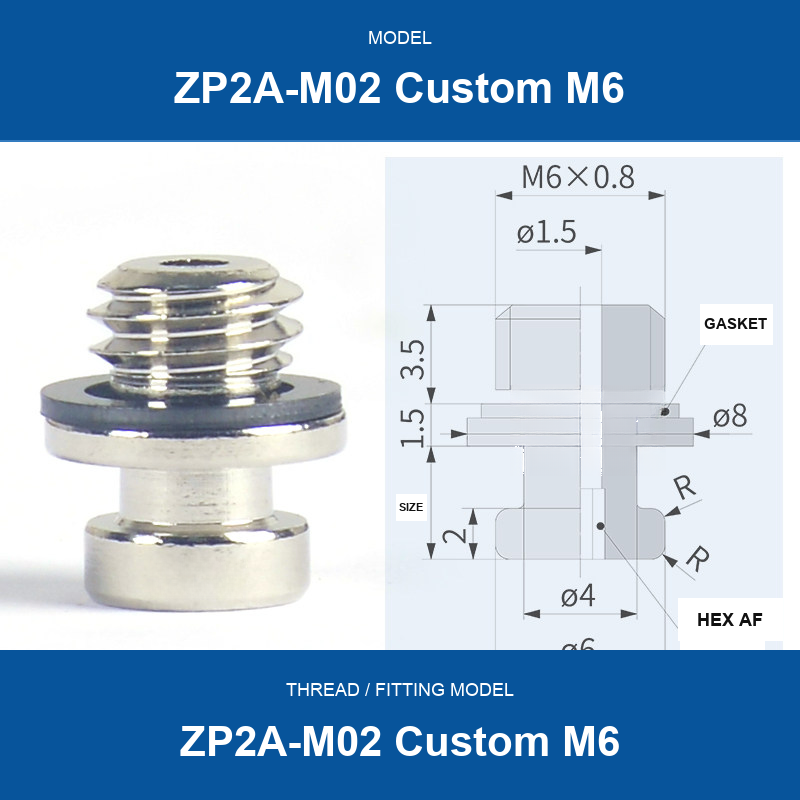

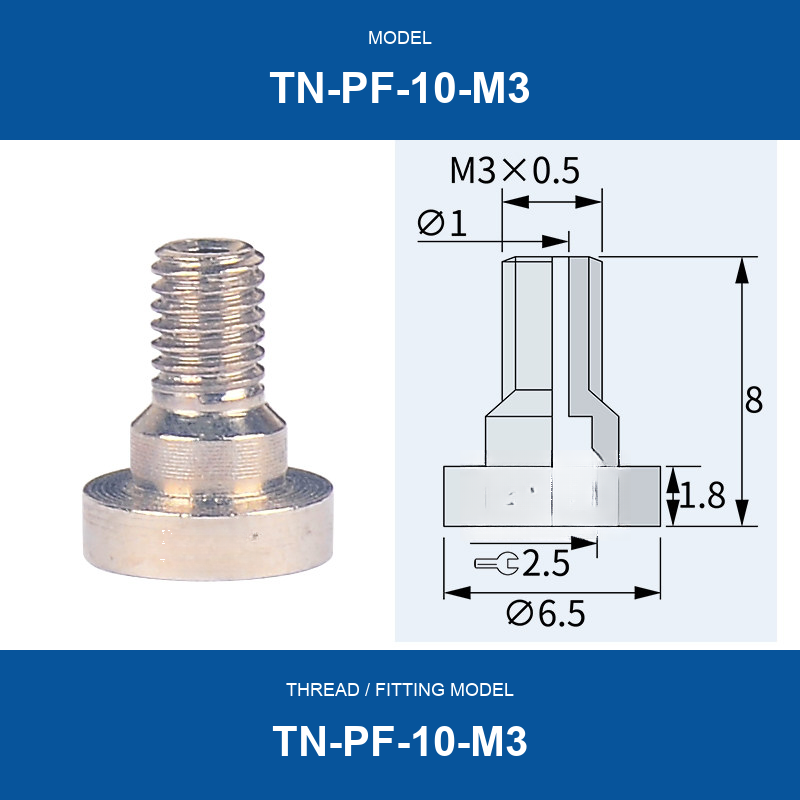

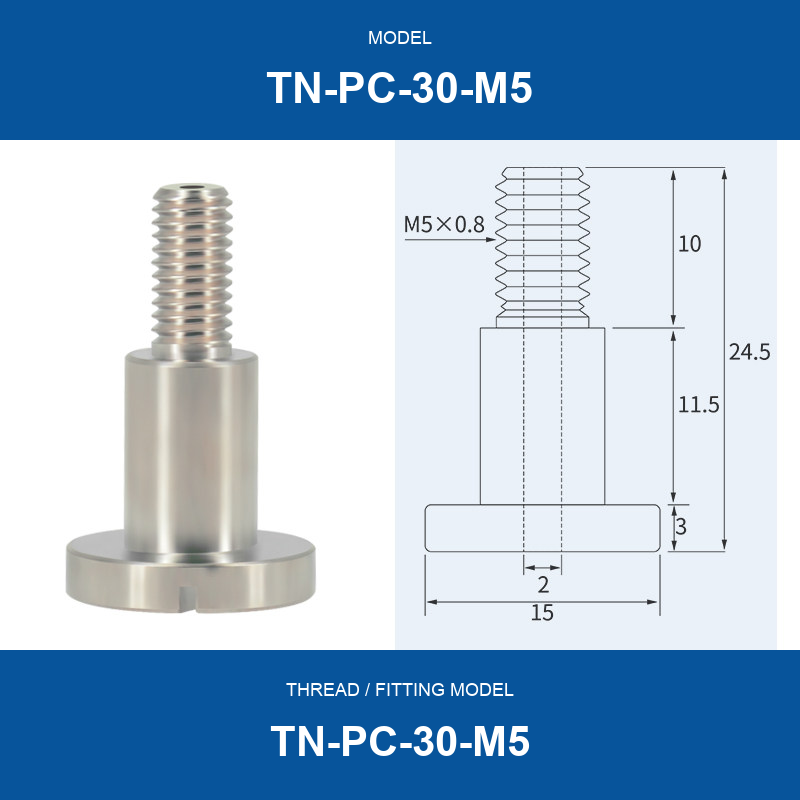

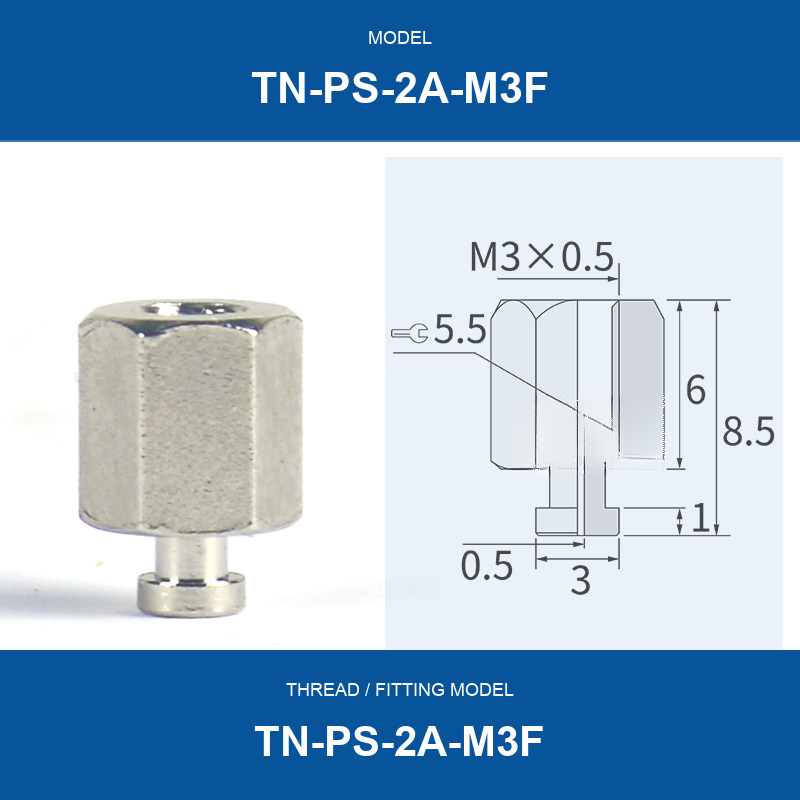

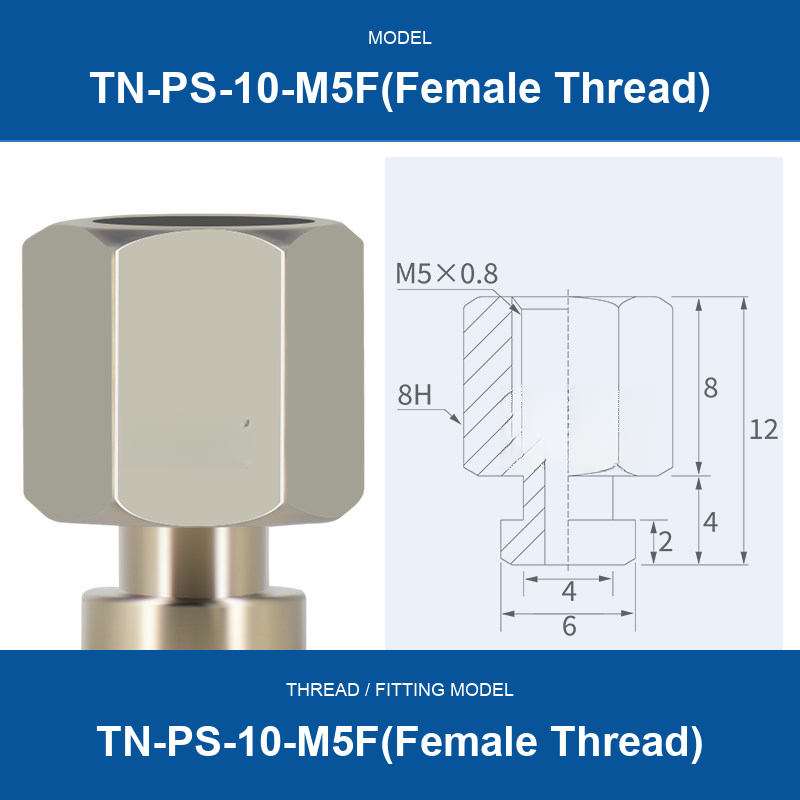

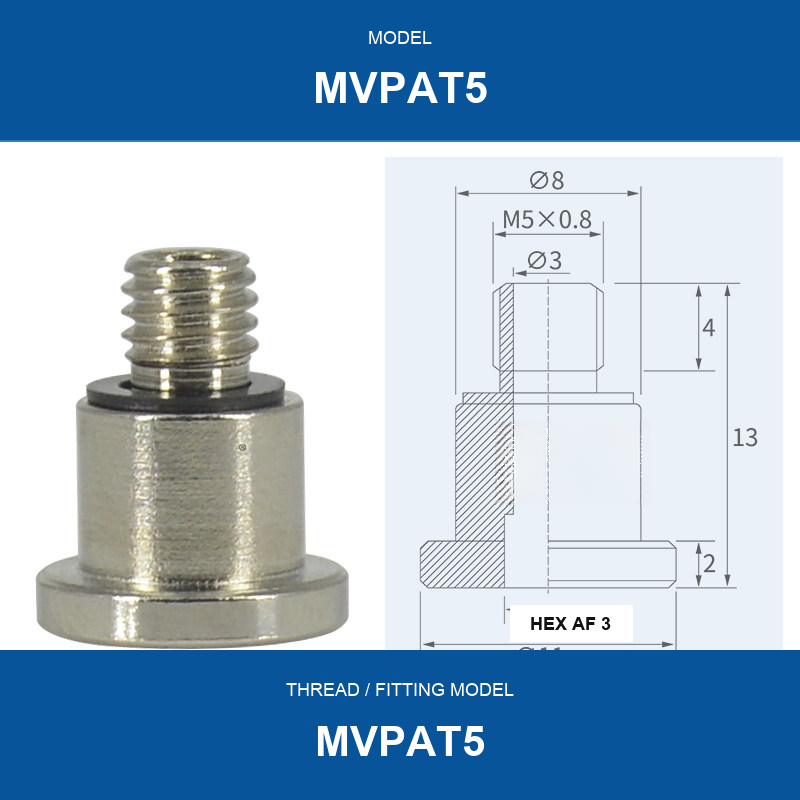

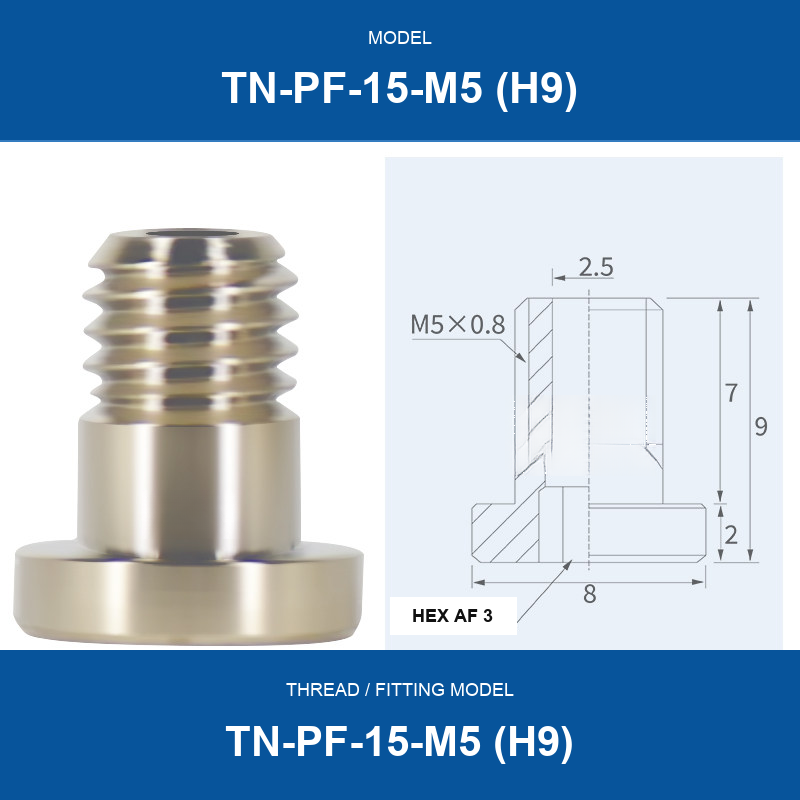

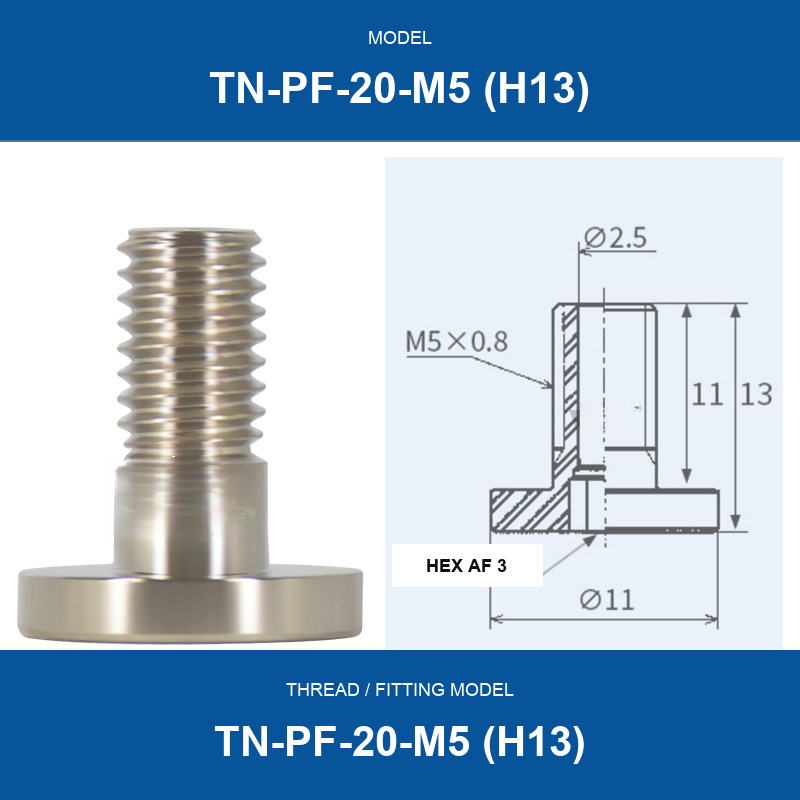

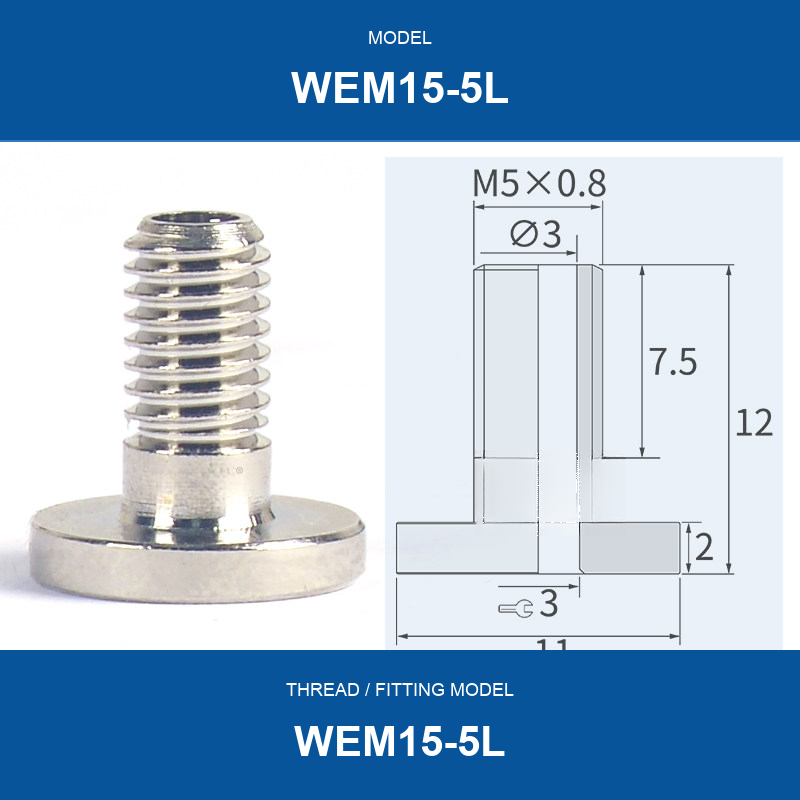

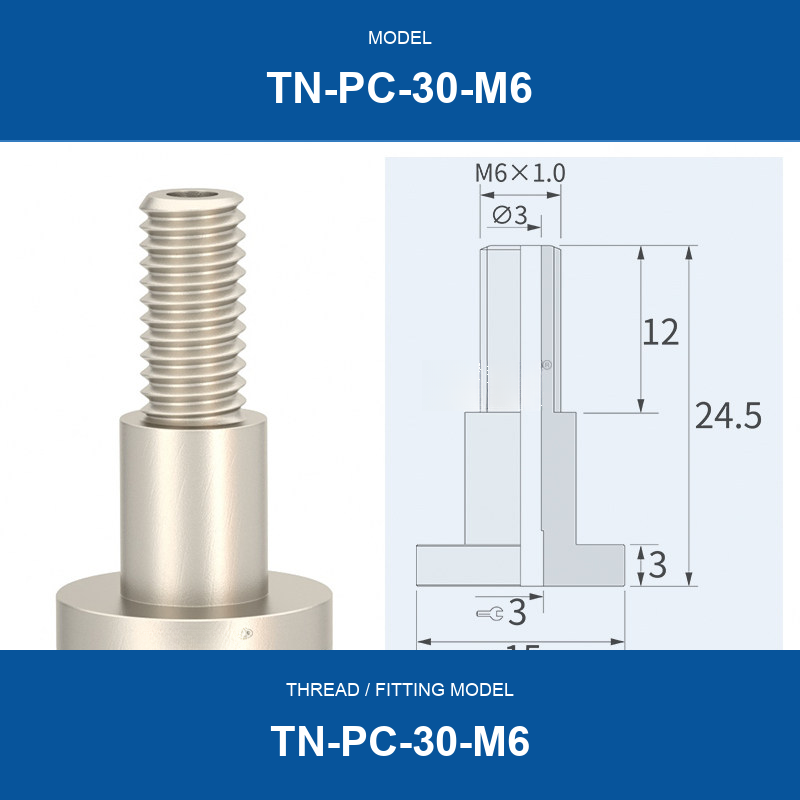

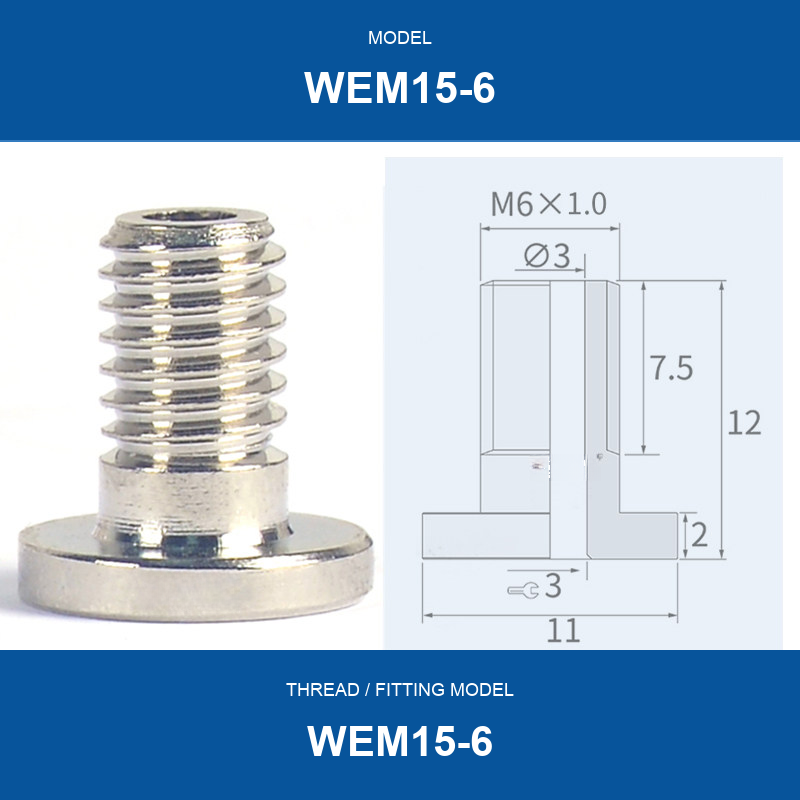

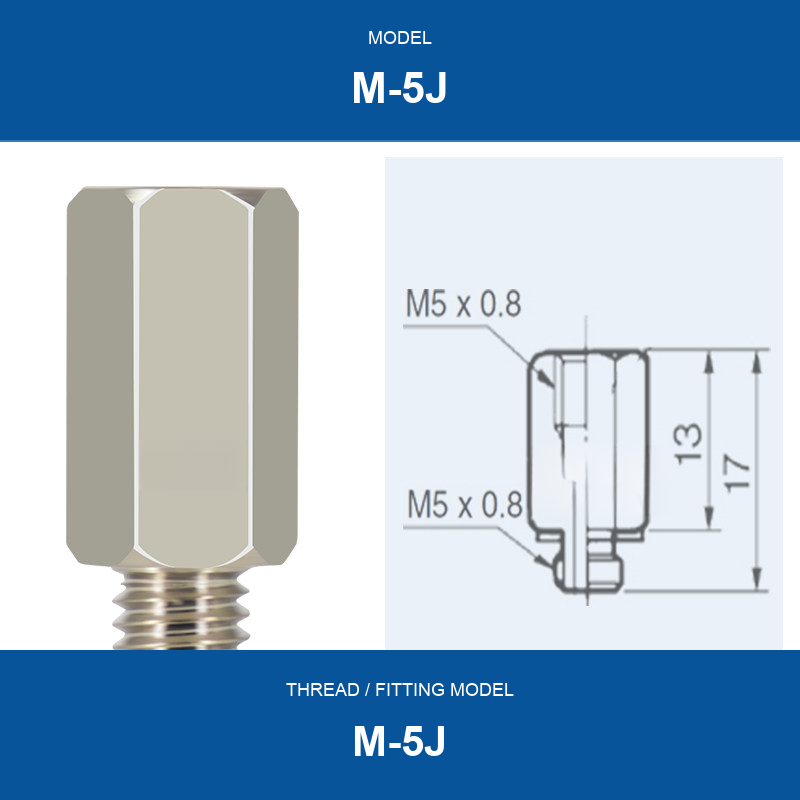

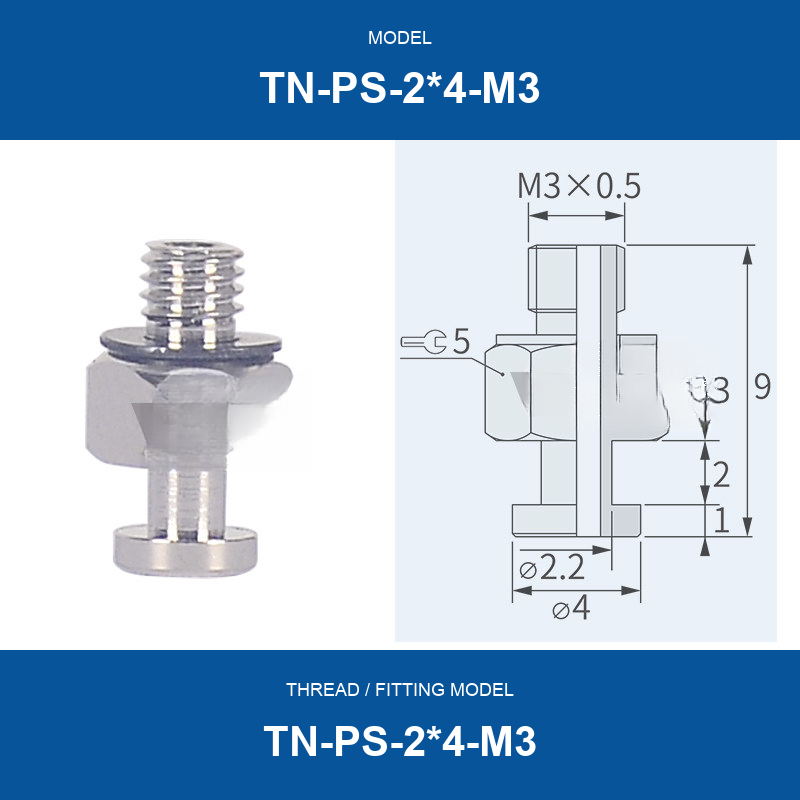

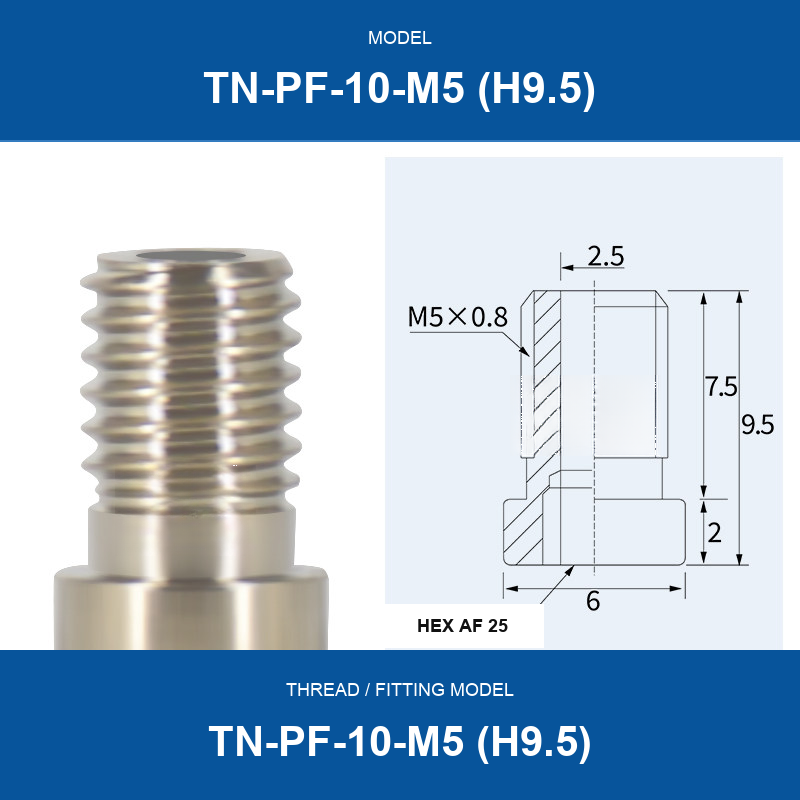

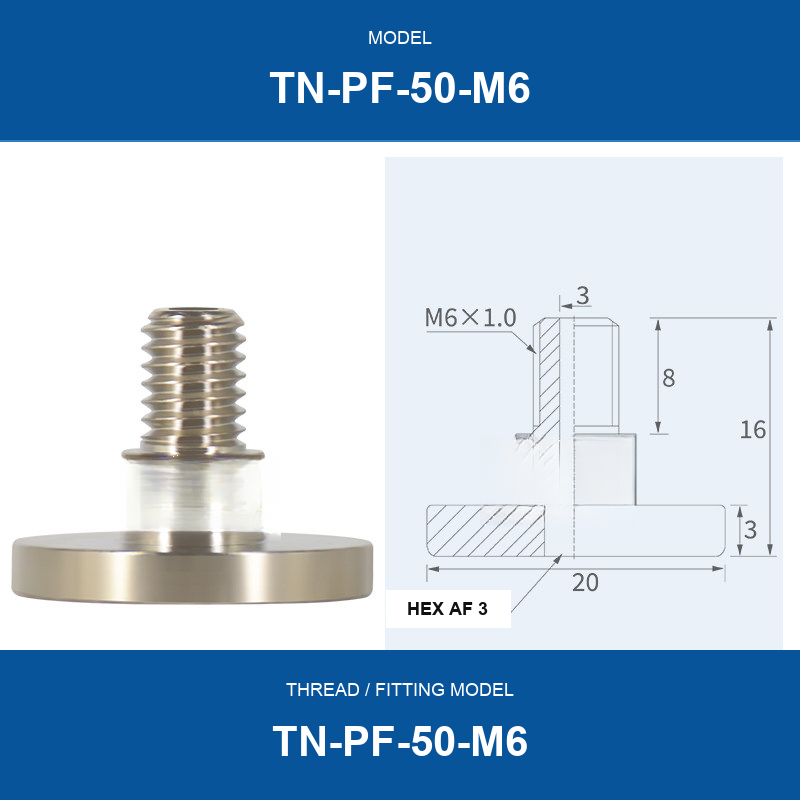

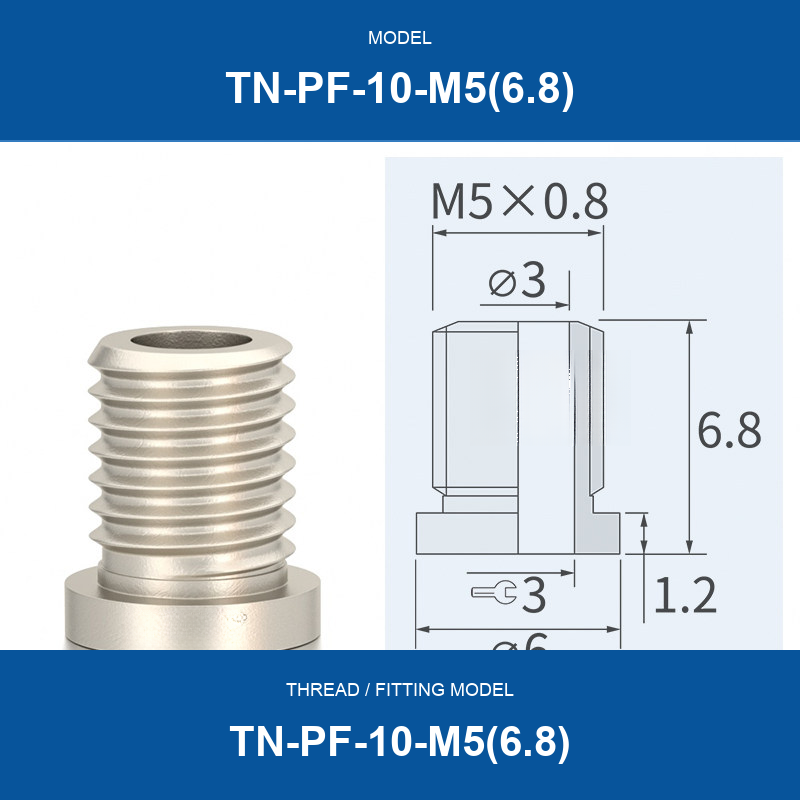

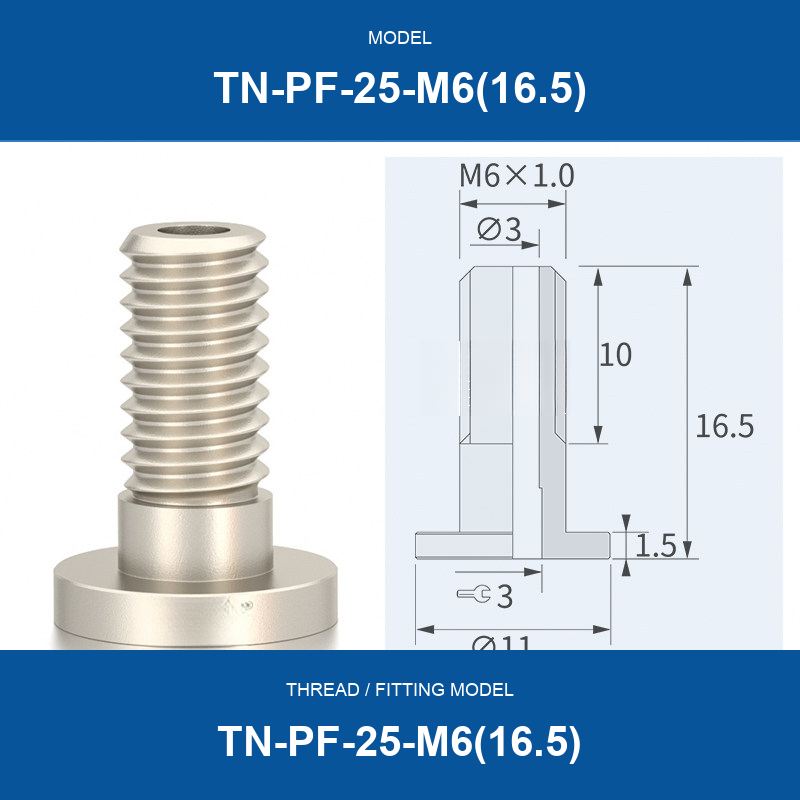

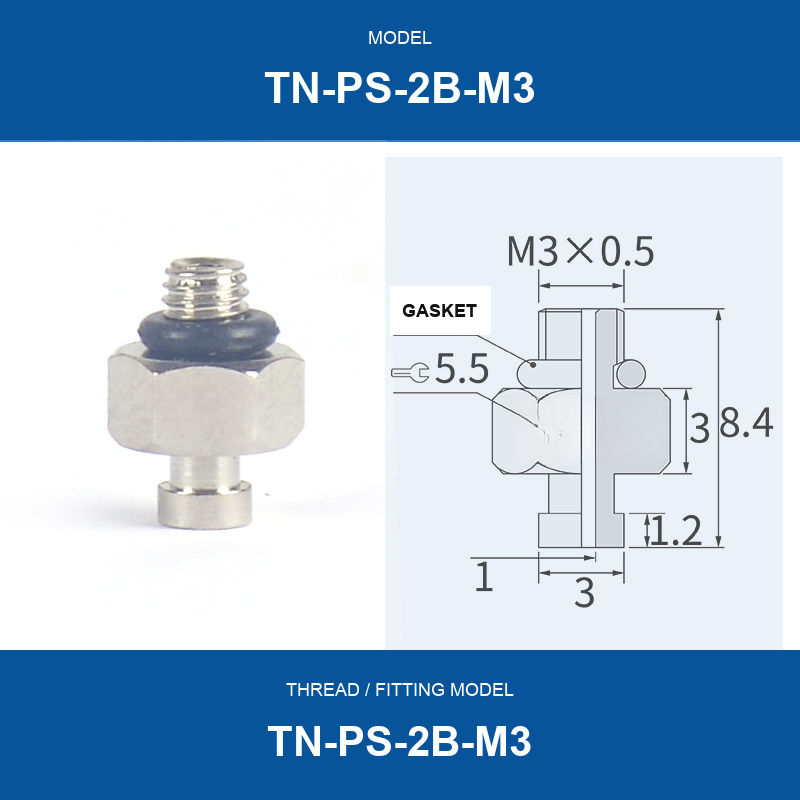

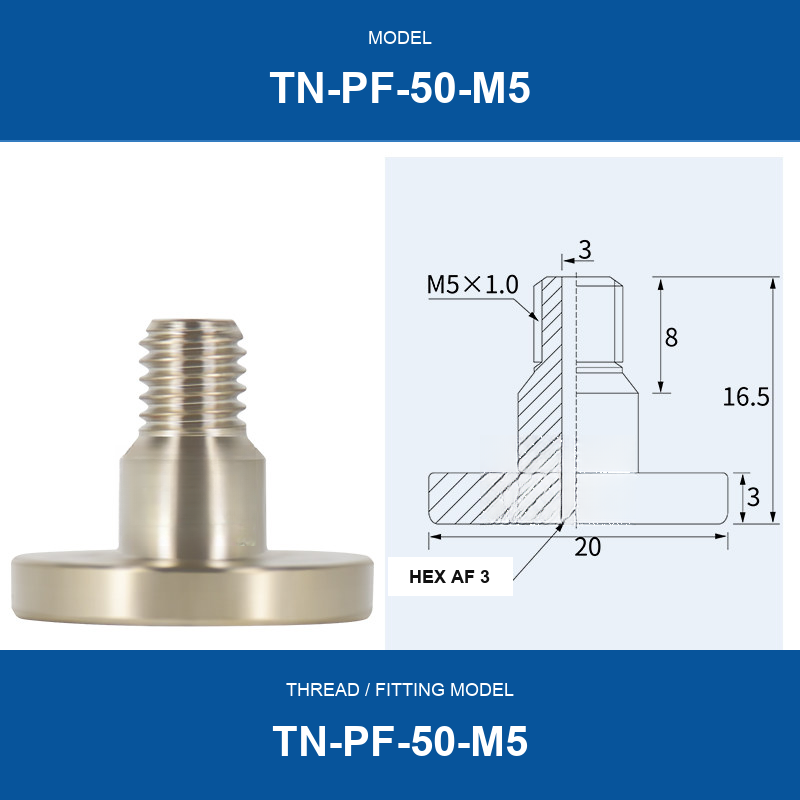

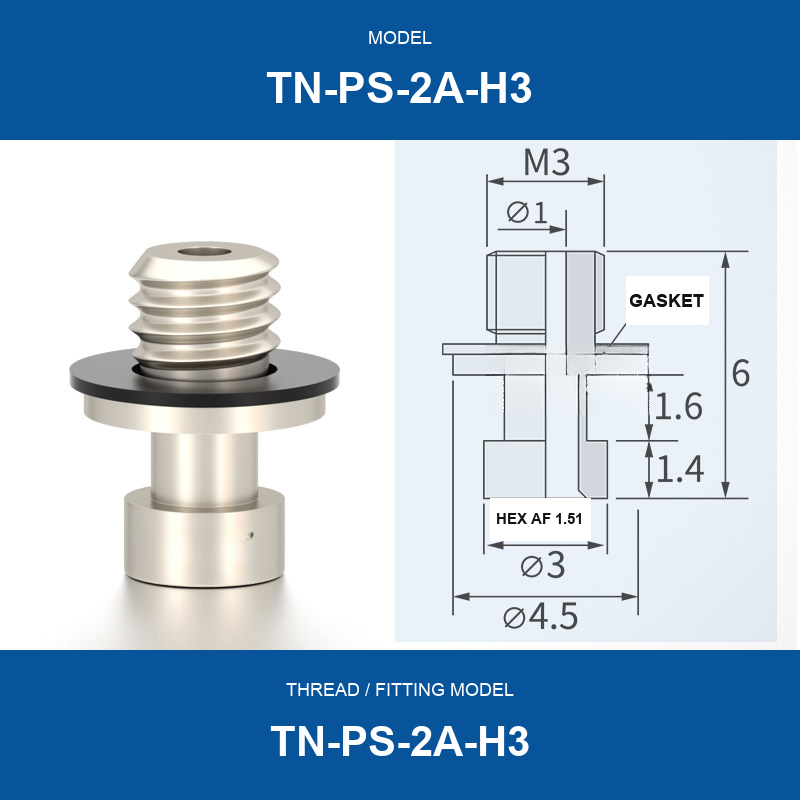

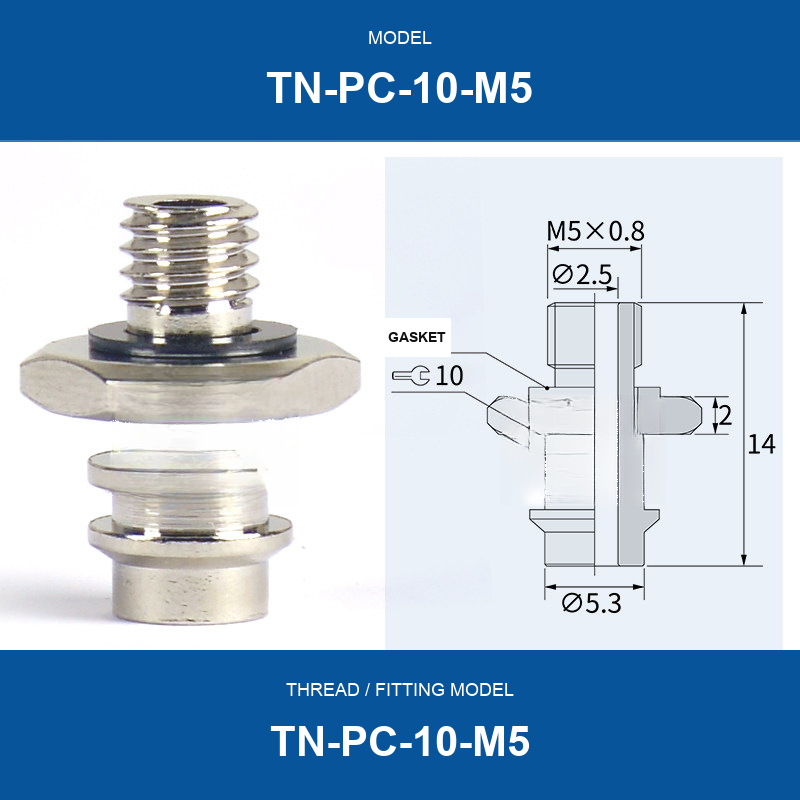

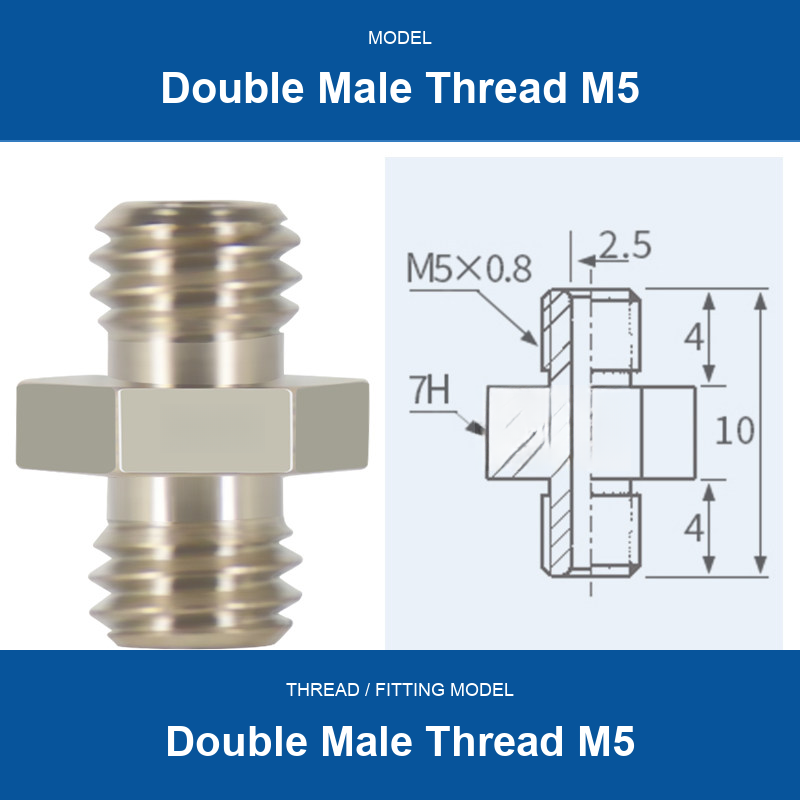

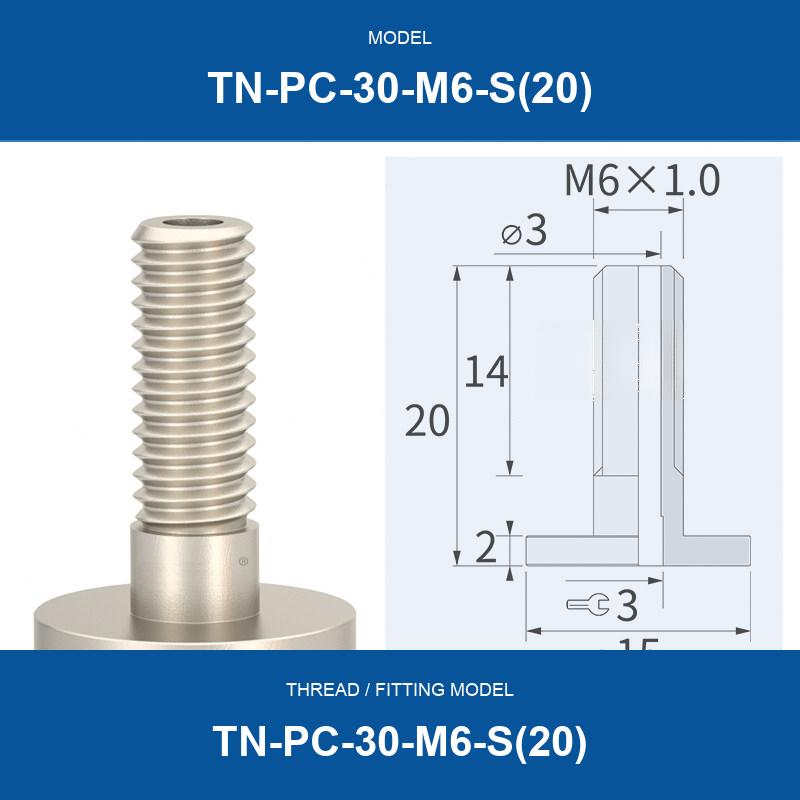

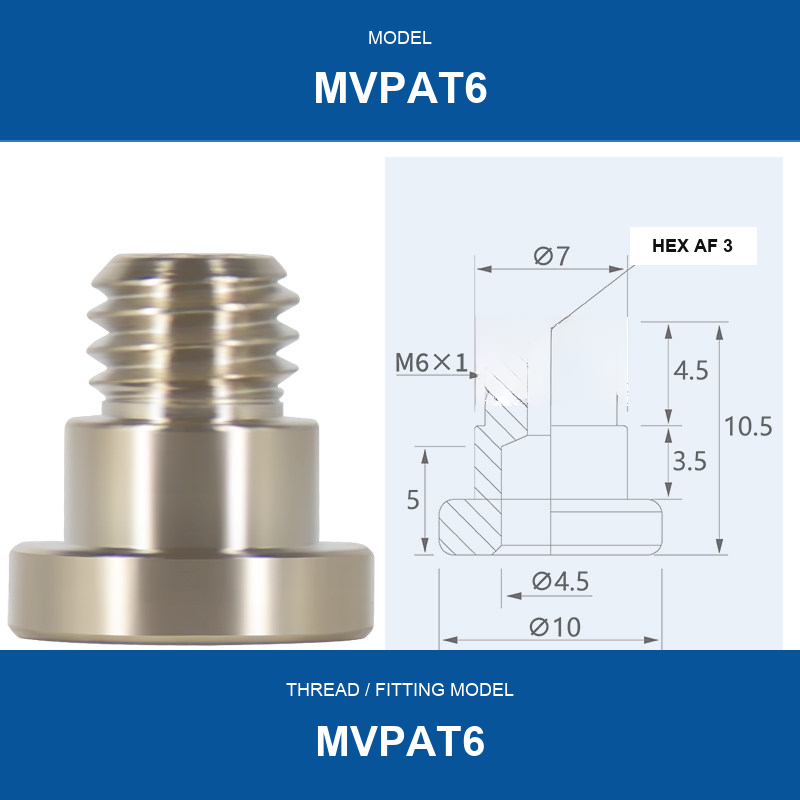

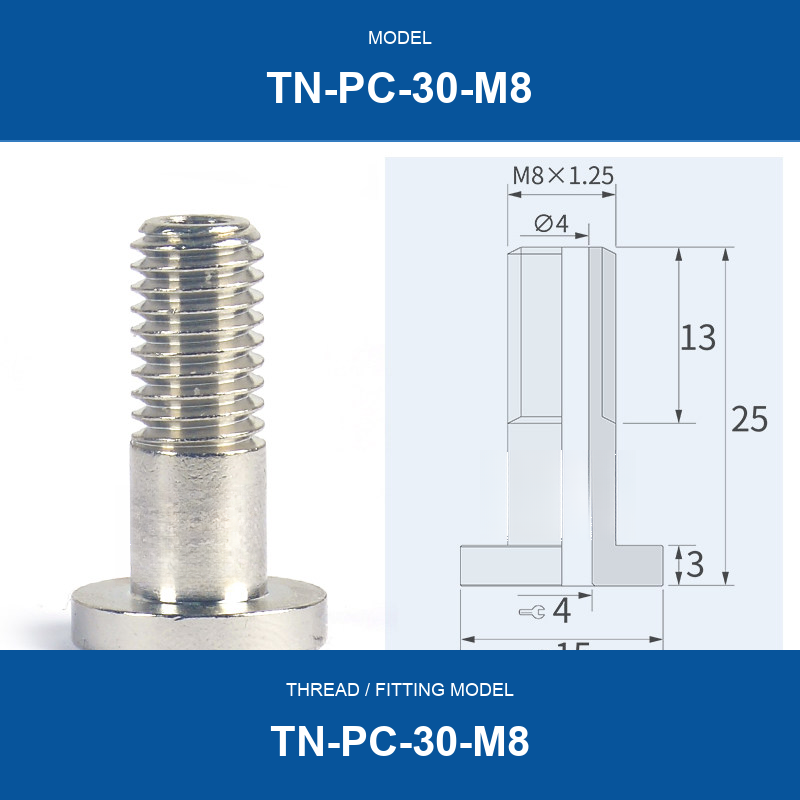

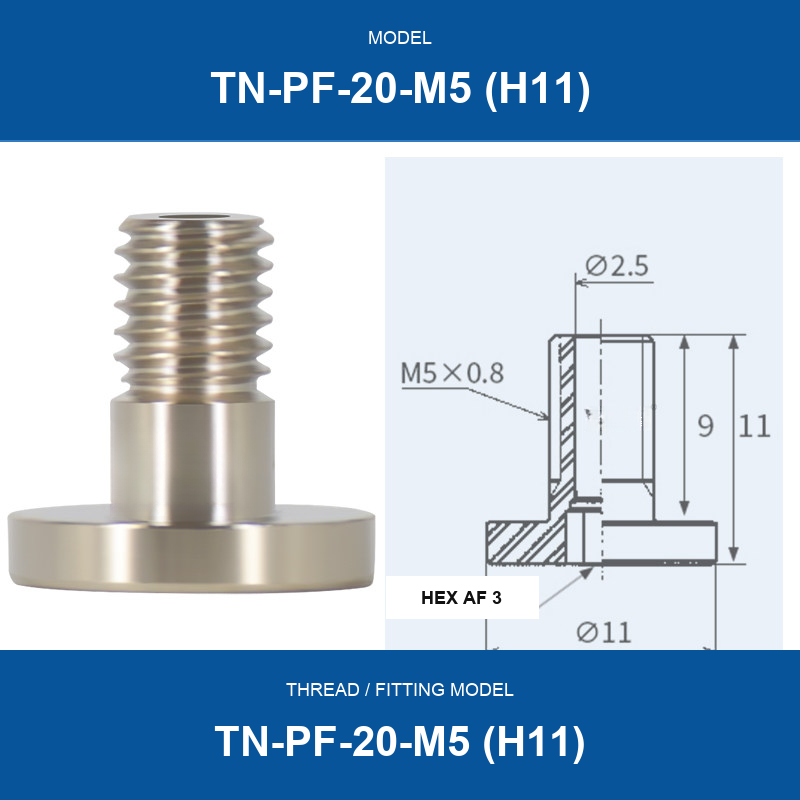

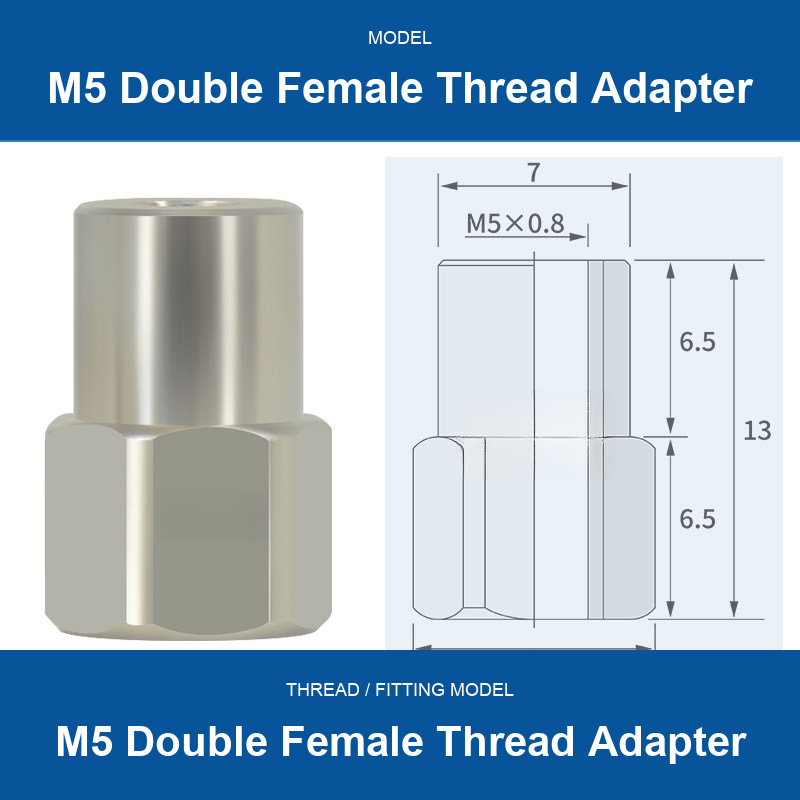

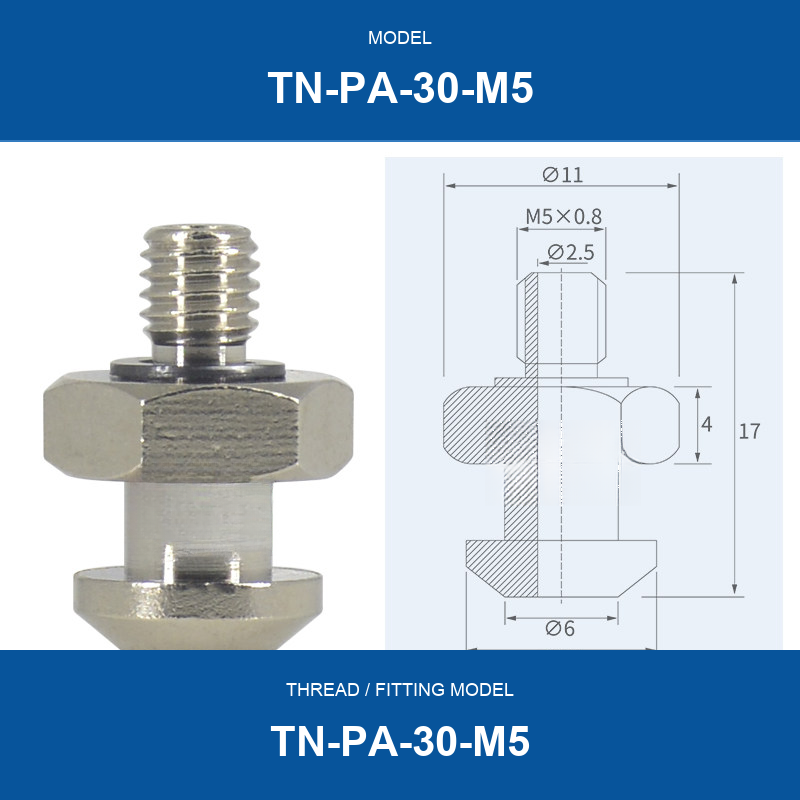

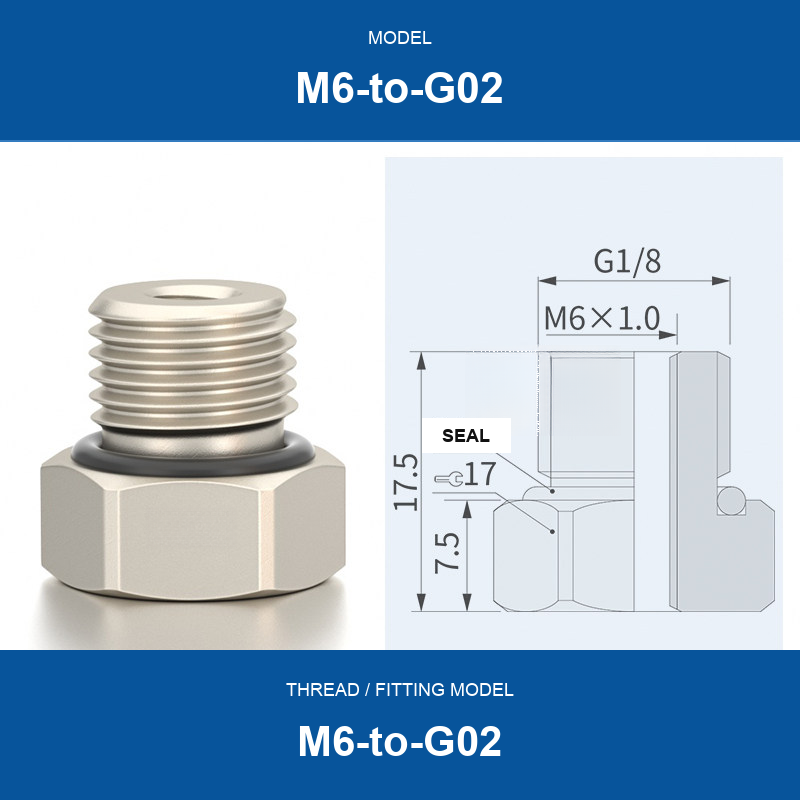

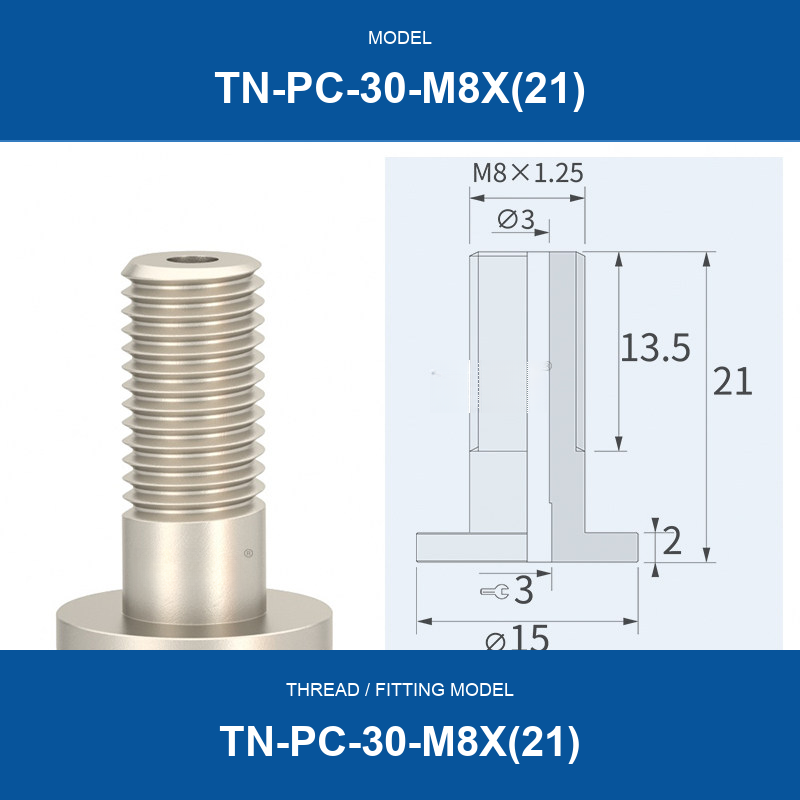

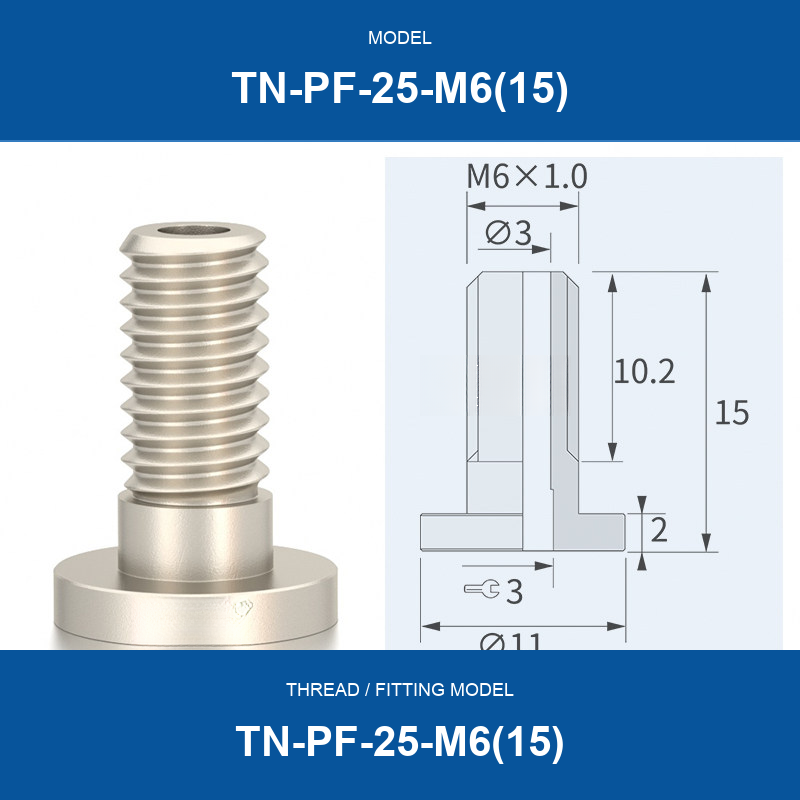

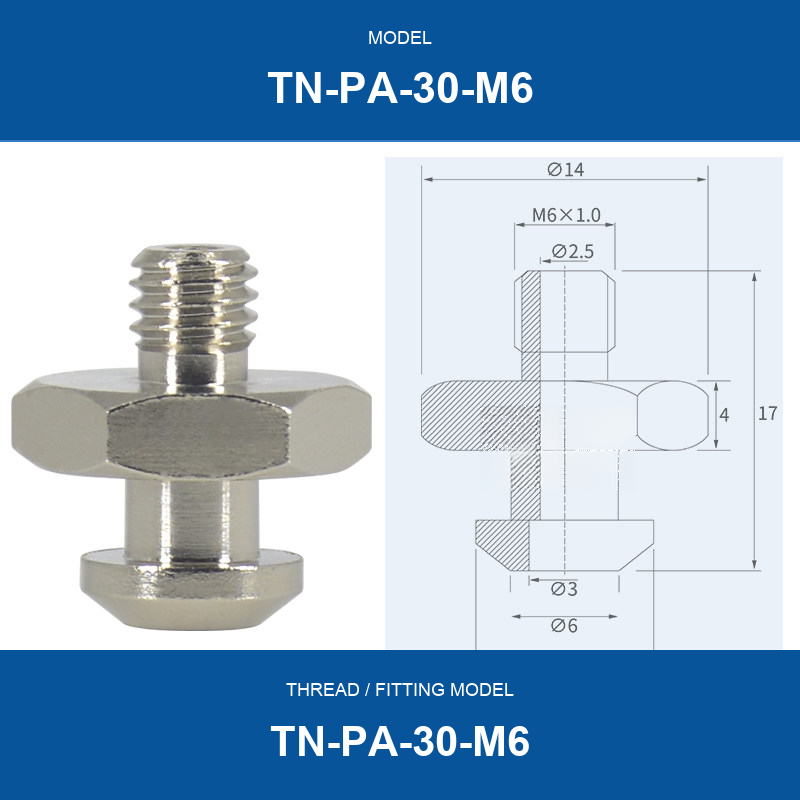

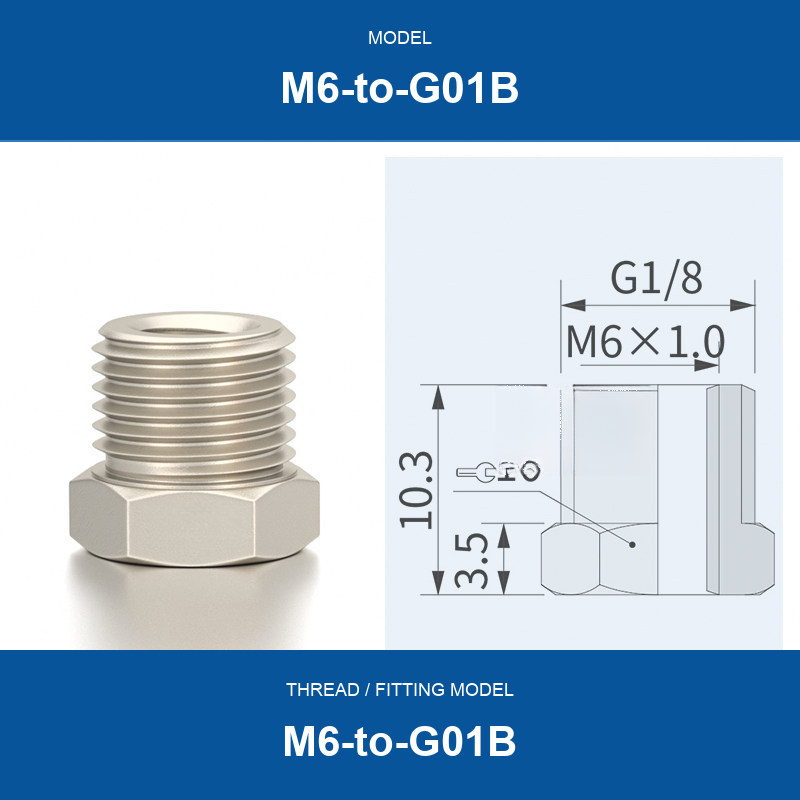

- Confirm dimensions: use the selected drawing to verify thread callouts, overall length, across-flats size, seating face and installation clearance.
- Keep special codes exact: custom, stainless-steel and named configurations are separate models; do not substitute them without a full compatibility check.
Model-code guide
Codes beginning with TN, WEM, MVPAT, ZP2A and FSPH identify different fitting or mounting configurations. A shared thread size alone does not confirm interchangeability.
Suitable for
- Vacuum-cup and holder mounting with a compatible interface
- Industrial automation fixtures and robot end-effectors
- Thread conversion, spacing and replacement work for compatible pneumatic systems
Before use
Confirm the complete selected model code, drawing, thread standard, mating component, sealing method, torque, installation clearance, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
FAQ
Can fittings with the same thread be exchanged? Not automatically. Compare the complete drawing, gender, seating face, overall length and intended interface. How do I choose a special configuration? Match the complete listed code and confirm compatibility with the connected vacuum-cup assembly before ordering.
