SVK/SVKG Top-Port Vacuum Logic Valves and Check Valves (M5 to G1/2)
SVK/SVKG Top-Port Vacuum Logic Valves and Check Valves

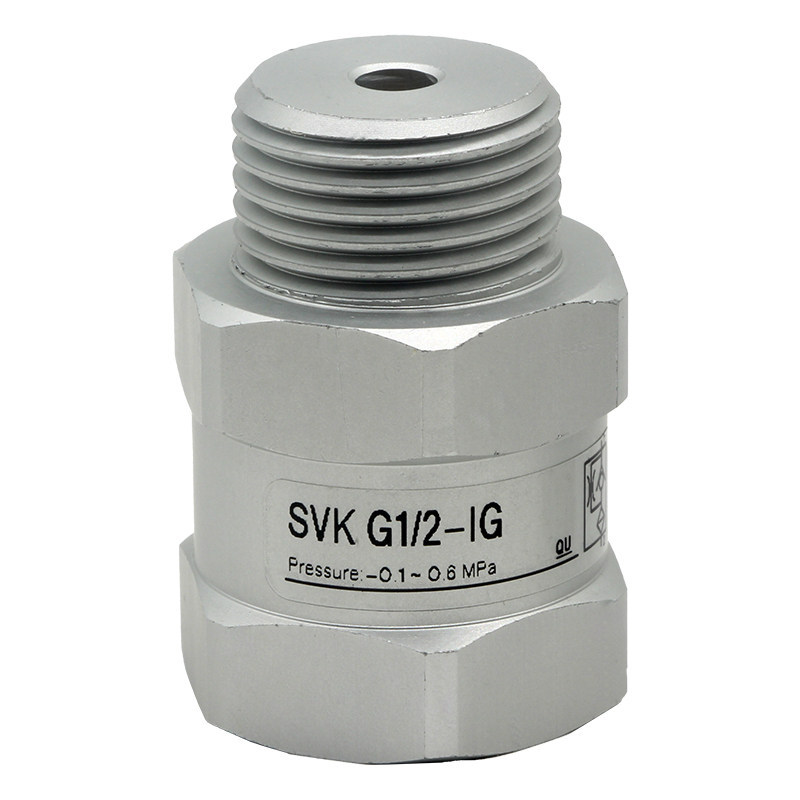

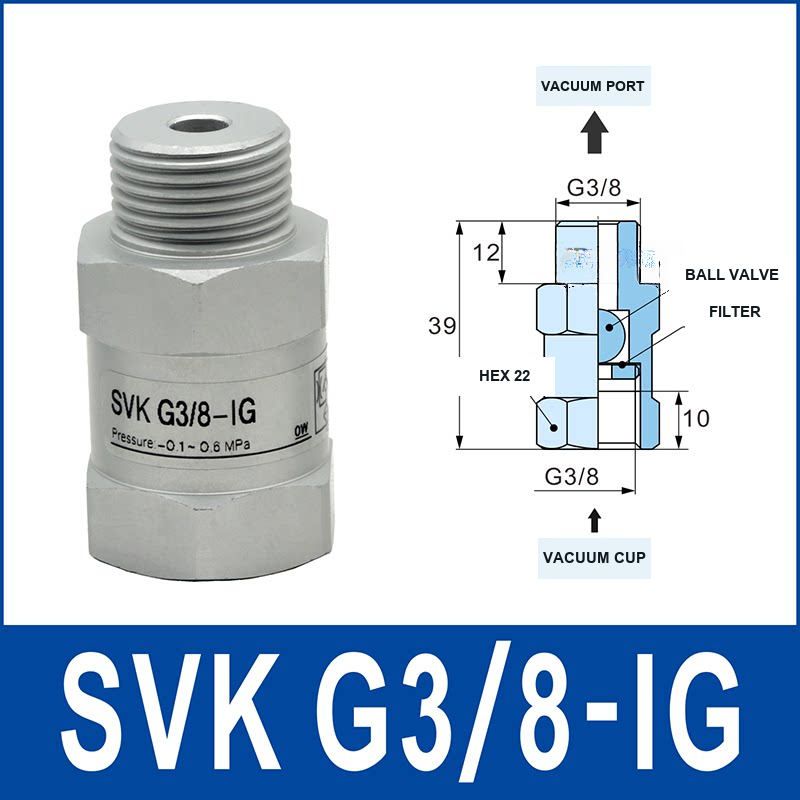

Compact inline vacuum-valve selections for compatible industrial vacuum cup assemblies, automated handling equipment and robotic end-effectors. Each selectable option includes its matching product view and dimensional cross-section drawing.
Quick selection
- Choose the top-port thread style: SVK models are the listed top external-thread selections; SVKG models are the listed top internal-thread selections.
- Choose the complete thread size: select M5 × 0.8, G1/8, G1/4, G3/8 or G1/2 only when it matches the required interface.
- Confirm the full model code: the suffixes IG and AG are distinct listed configurations. Do not combine a thread size and suffix from different selections.
- Check the drawing: confirm the vacuum-port direction, vacuum-cup connection, across-flats, overall dimensions and installation clearance before ordering.
Model-code guide
SVK identifies the listed top external-thread configuration. SVKG identifies the listed top internal-thread configuration. The middle code identifies the shown M5 or G thread size; IG and AG are the supplied configuration suffixes.
Suitable for
- Industrial vacuum cup assemblies and compatible inline vacuum circuits
- Robotic end-effectors and automated pick-and-place tooling
- Replacement or configuration work after dimensions and interfaces have been verified
Before use
Confirm the complete model code, selected drawing, thread interfaces, vacuum-cup connection, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
FAQ
How do I choose SVK or SVKG? First match the shown top-port thread style, then select the exact M5 or G size shown in the product drawing. Can I substitute an IG or AG suffix? Treat every full code as a separate selection and compare its drawing before substitution.
