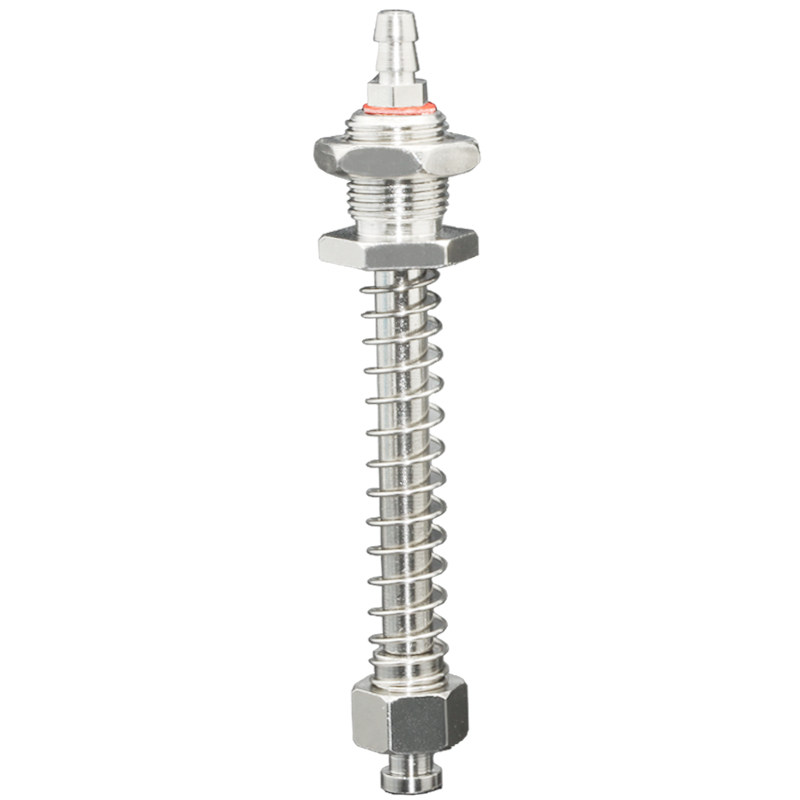

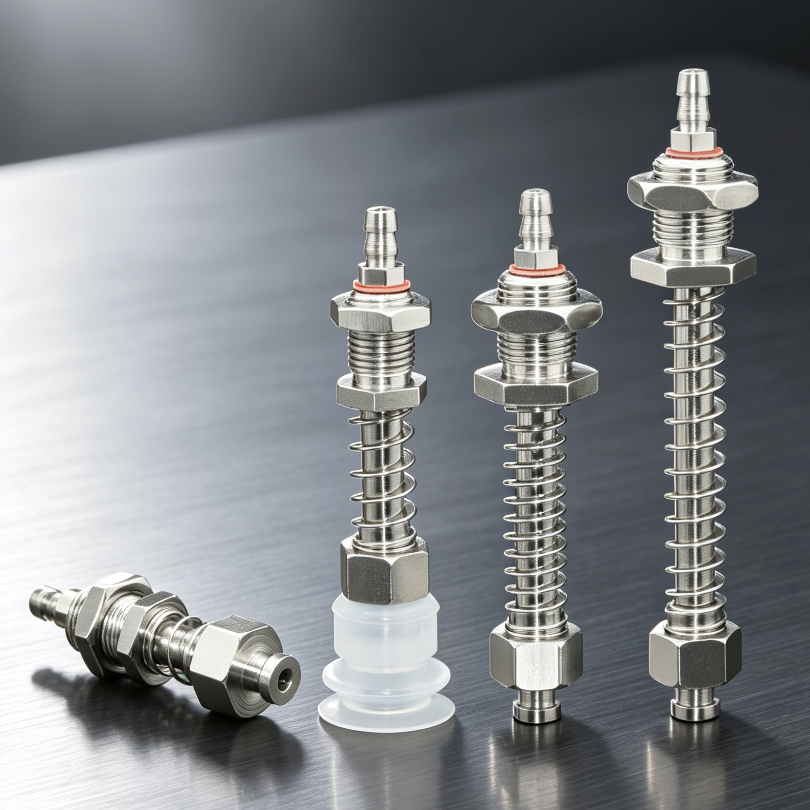

Spring-Loaded Rear-Air Vacuum Cup Holders, L50–L100, M10/M12

Spring-Loaded Rear-Air Vacuum Cup Holders

Compact spring-loaded holders for compatible vacuum cups, robotic end-of-arm tooling and pneumatic handling assemblies. Select by overall length, mounting thread and configuration.

• Overall lengths from 50 to 100 mm
• M10 x 1.0 and M12 x 1.0 mounting-thread options
• 7 mm small-head configuration identified by the model code
• Rear-air-inlet construction for compact hose routing
• Anti-rotation options in selected L70 and L100 configurations

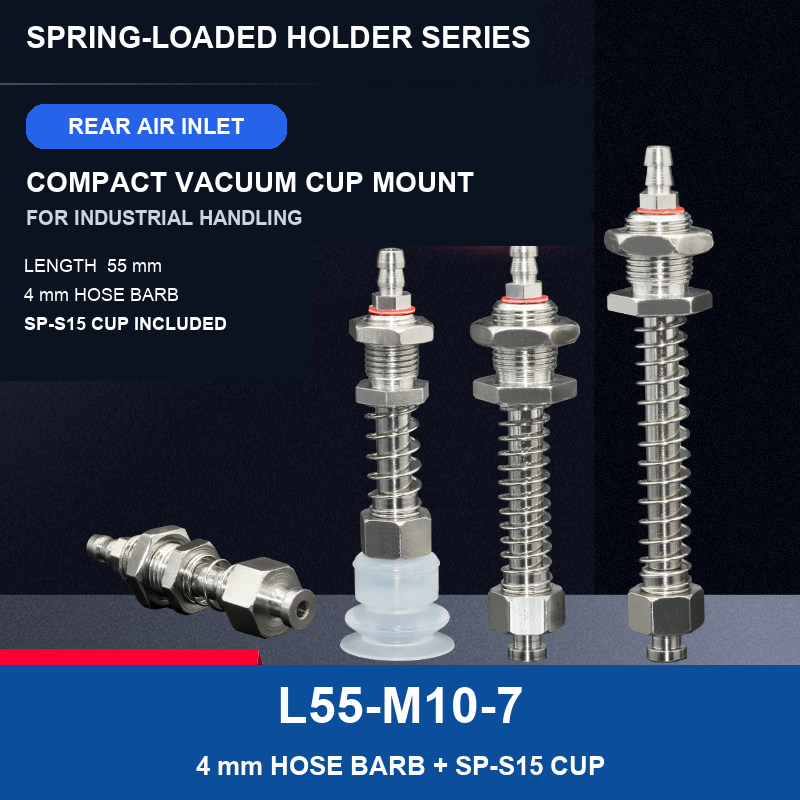

• L55 configuration with 4 mm hose barb and SP-S15 cup
• Spring compliance for compatible automated handling applications
• Model images show the selected code and applicable dimensions

Applications / Suitable For

• Robotic pick-and-place and packaging automation
• Vacuum end-of-arm tooling requiring spring compliance
• Compact handling assemblies with rear air connection
• Replacement holders after dimensional compatibility checks

Confirm the selected model code, drawing, overall length, mounting thread, head size, hose connection, mating cup, vacuum level, payload, acceleration and operating environment before use. No lifting-safety, food-contact, medical or regulatory certification is claimed.
