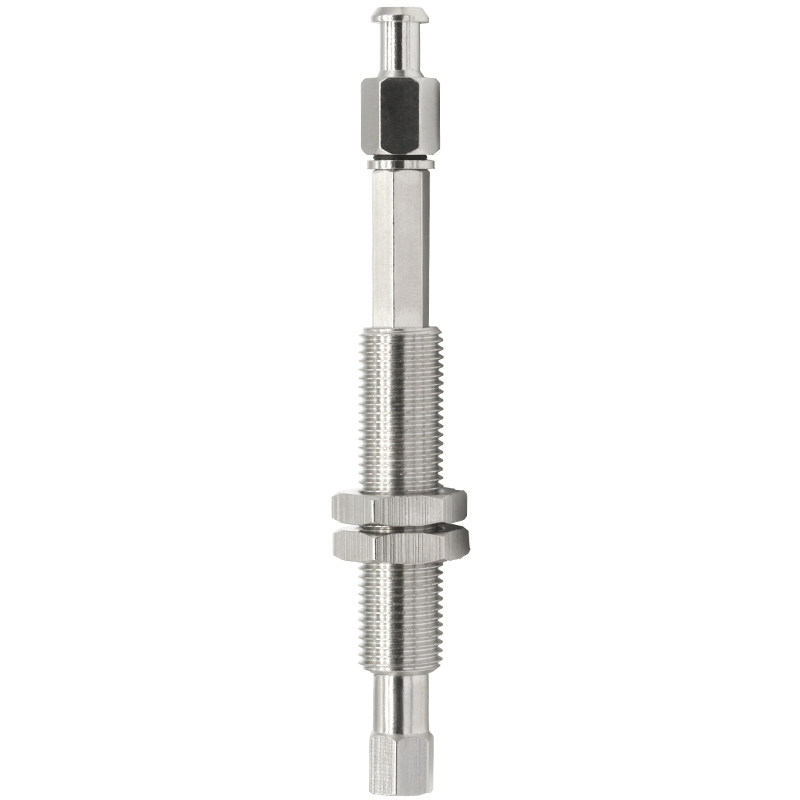

Spring-Buffered Vacuum Cup Mounts — M8/M10, 53–160 mm
Spring-Buffered Vacuum Cup Mounts — M8/M10, 53–160 mm
Spring-buffered mounts for compatible industrial vacuum cups, robotic end-effectors and automated handling equipment. Select the complete listed model according to mounting thread, overall length, head type, rotation requirement and the dimensional drawing.
Quick Model Finder
- Choose the mounting thread: select M8 or M10 as required by the installed vacuum-cup and mounting interface.
- Choose the head and motion: select Small Head or Medium Head, then Rotating or Non-Rotating as required by the application.
- Confirm the size: compare overall length, thread callouts, across-flats dimensions and stroke in the selected drawing before ordering.
- Select specialty configurations exactly as listed: for J-, K-, PISCO or other special model codes, confirm the complete code and interface arrangement before substitution.
Model-code guide

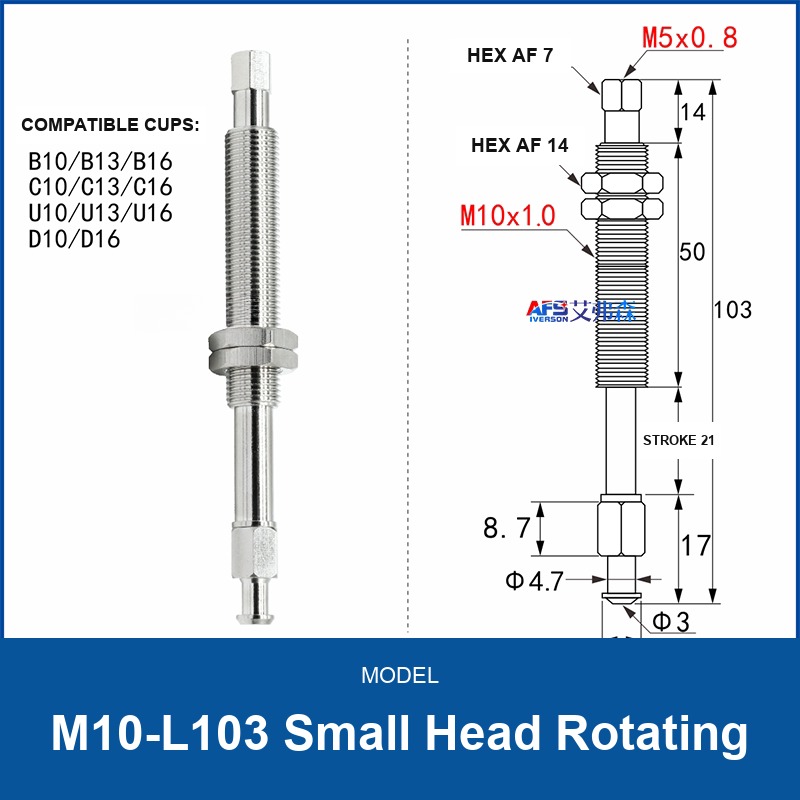

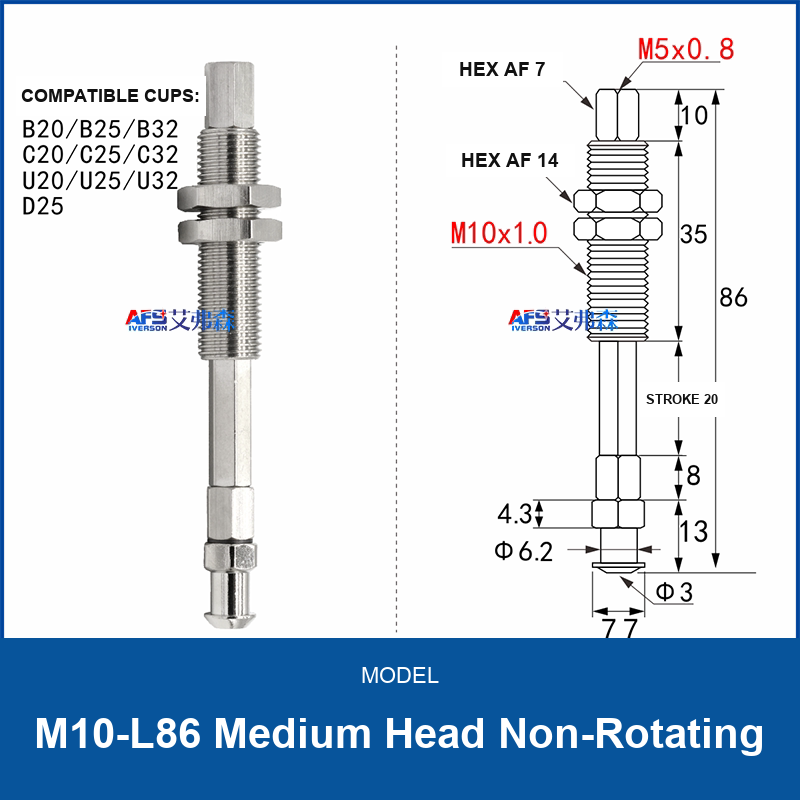

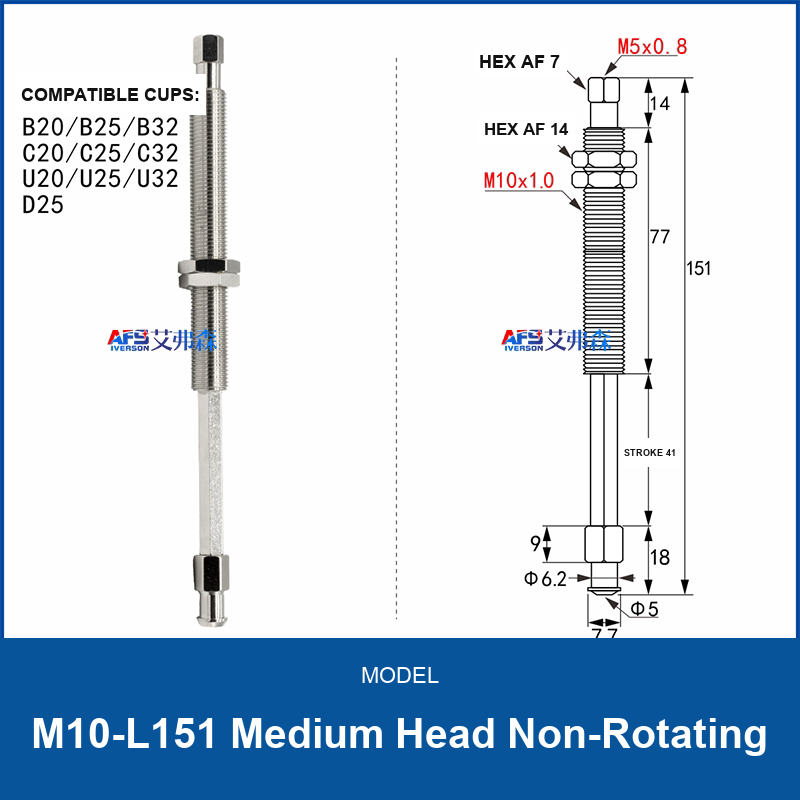

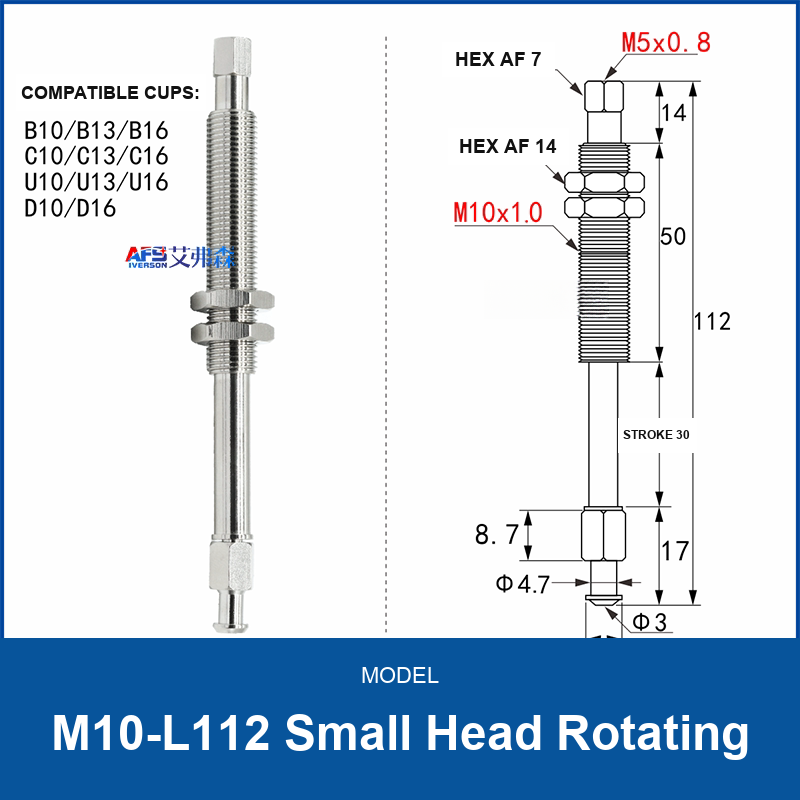

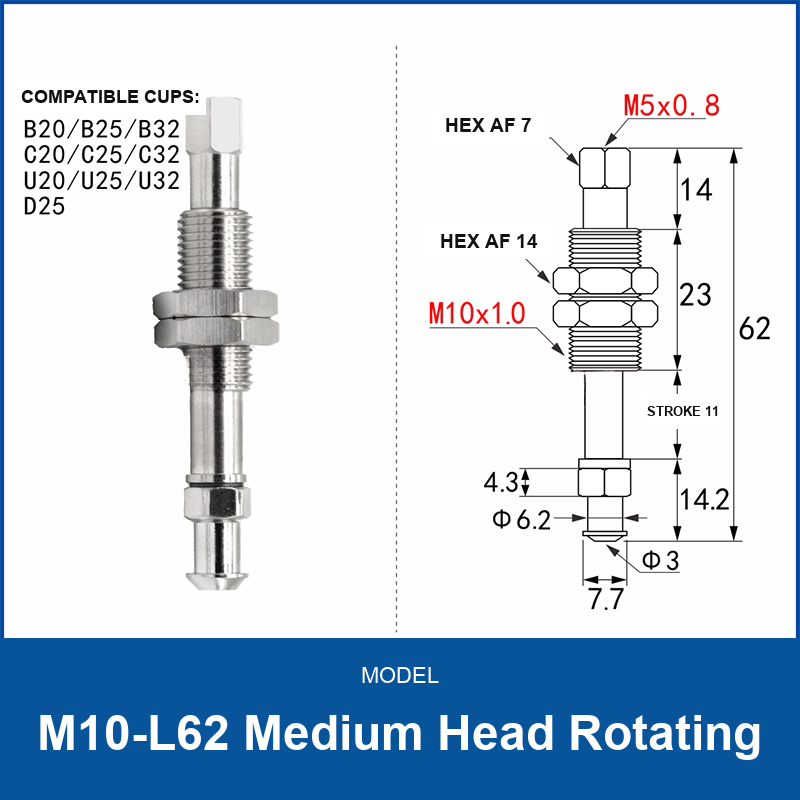

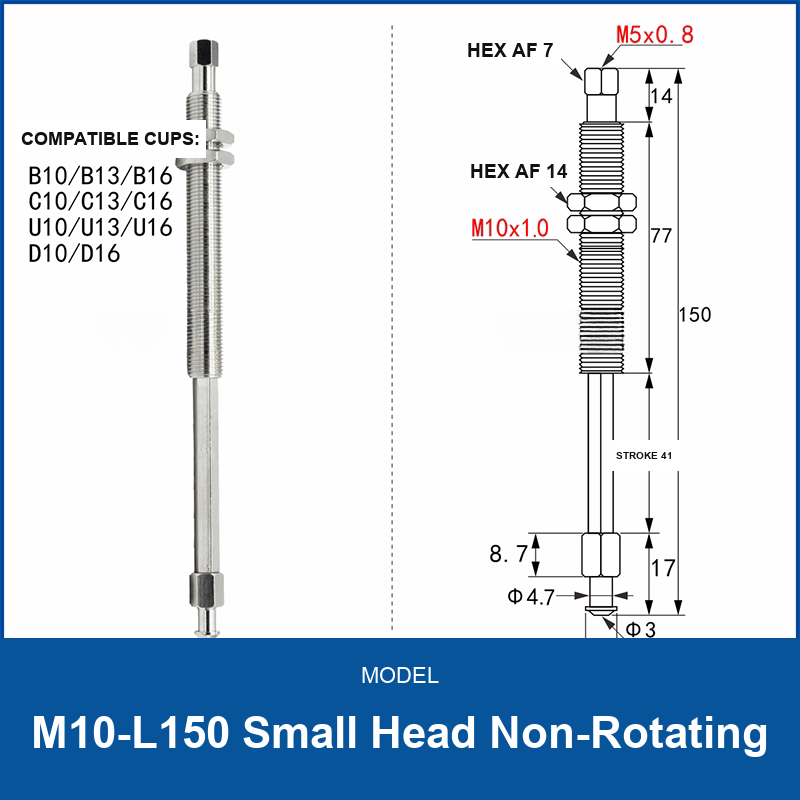

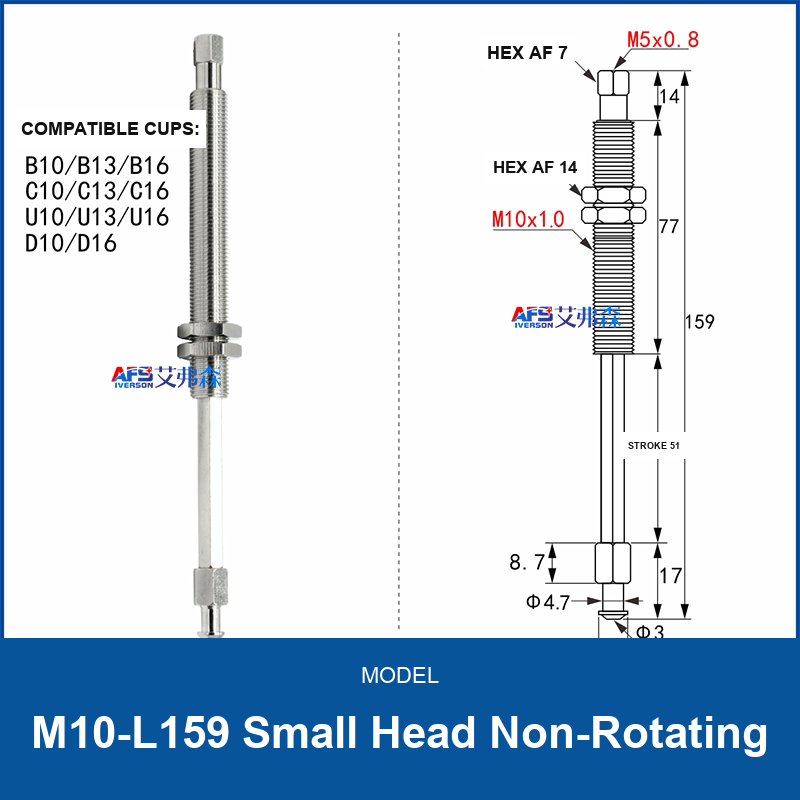

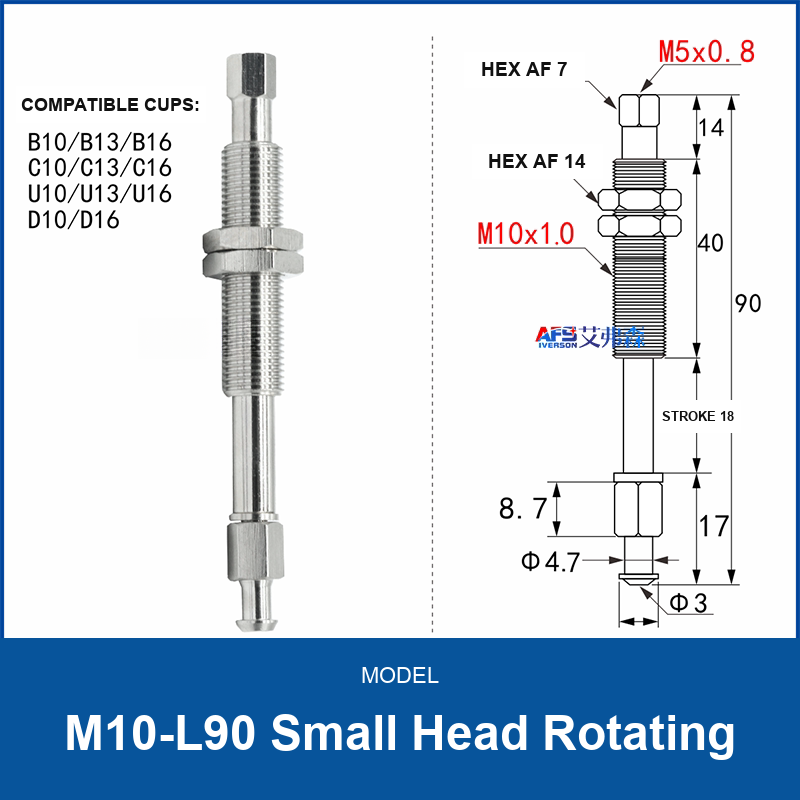

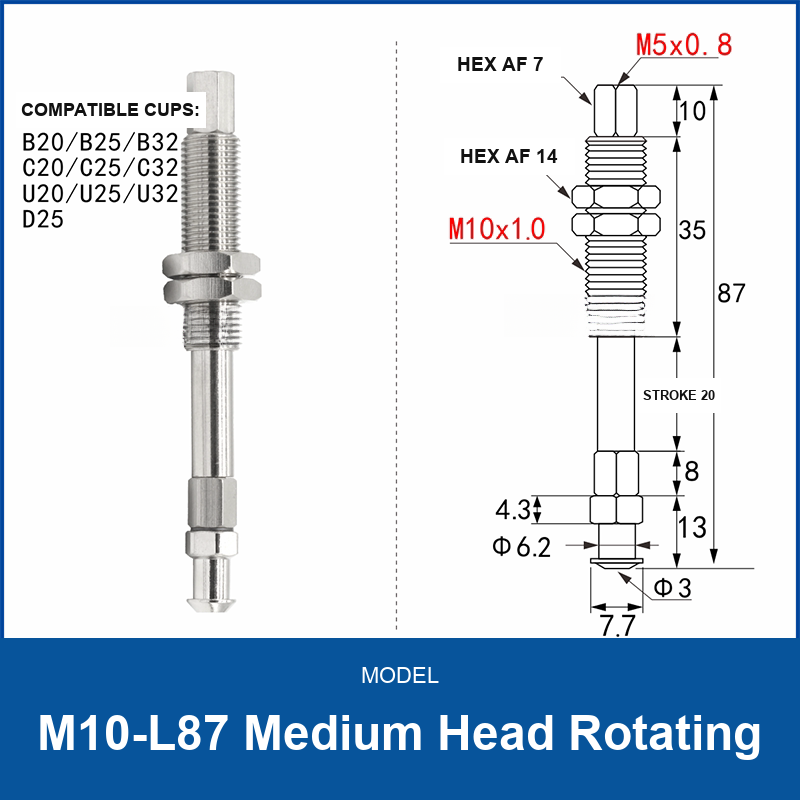

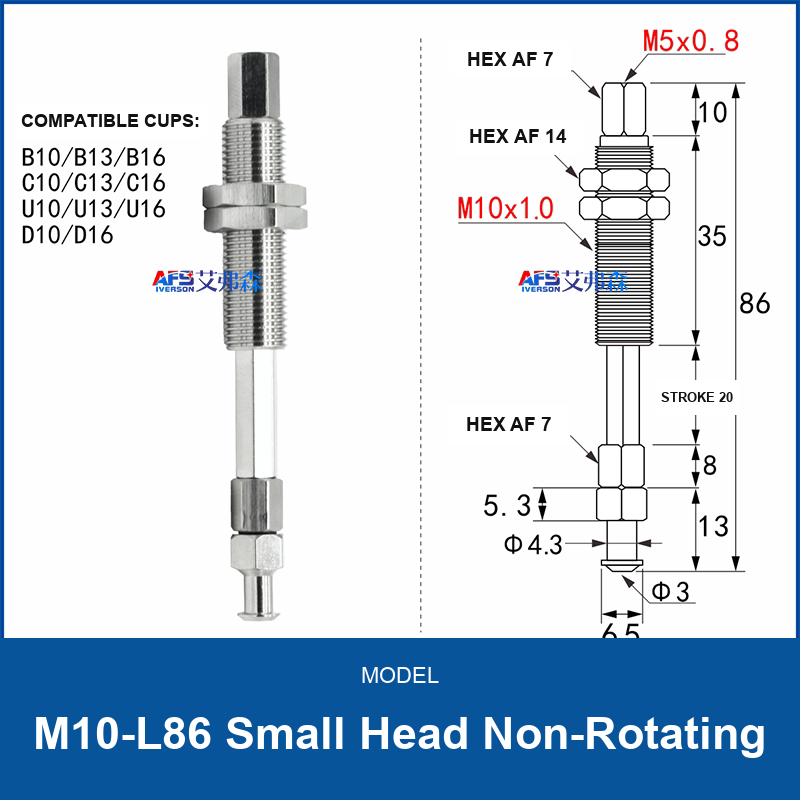

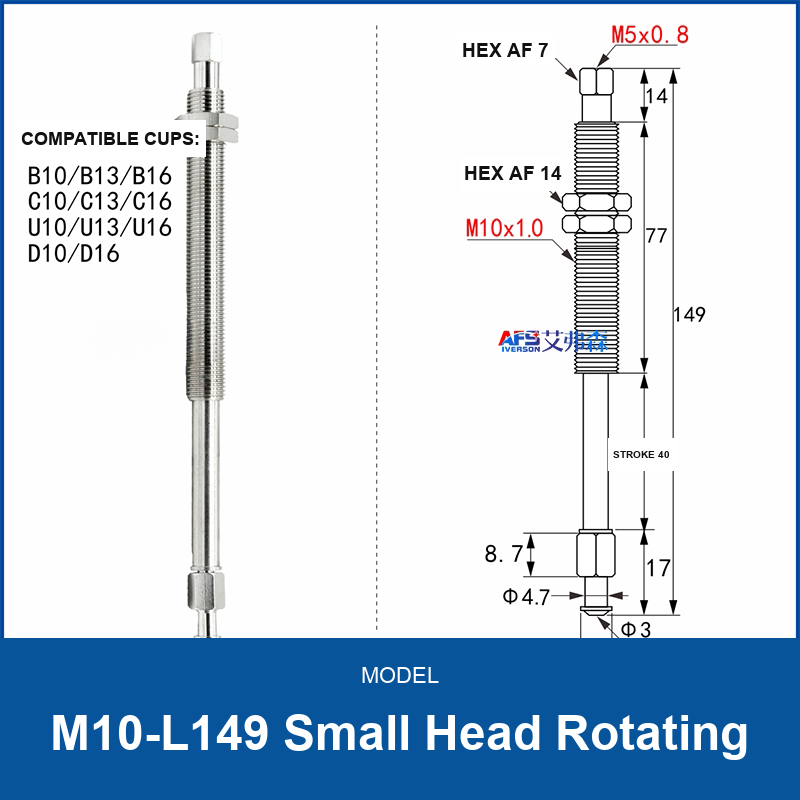

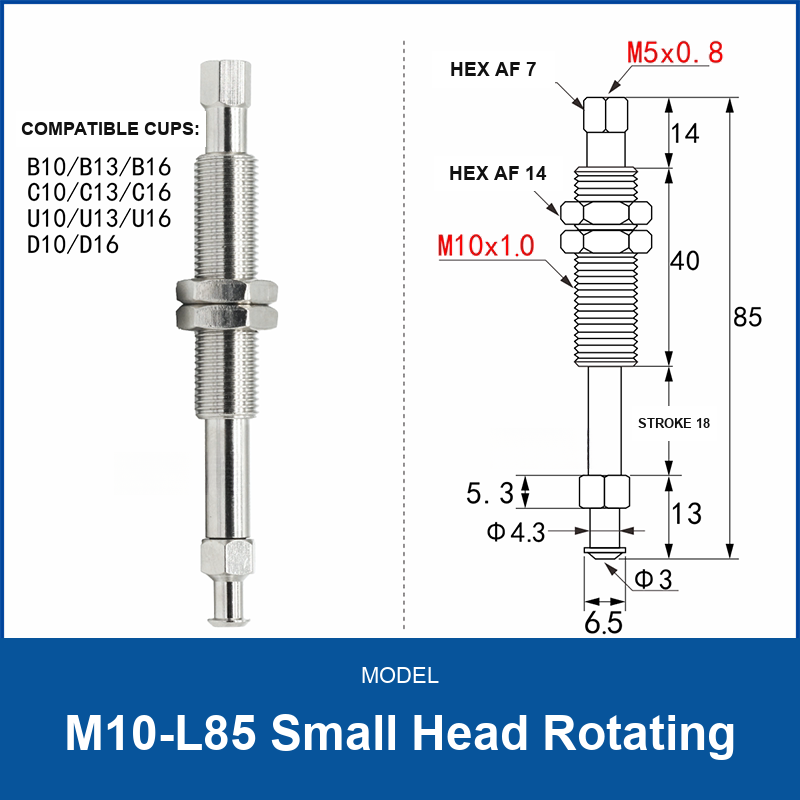

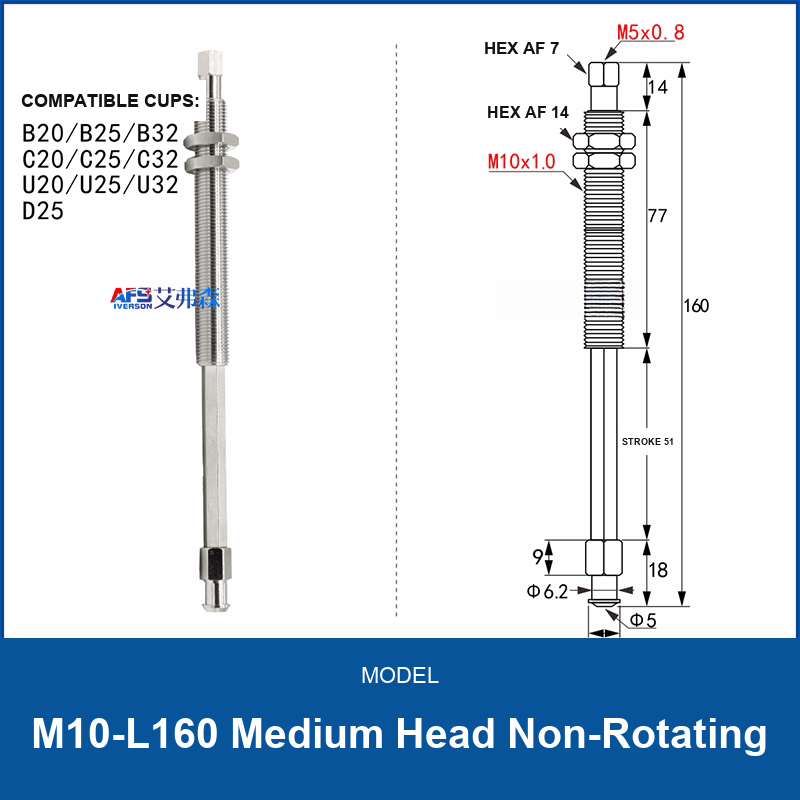

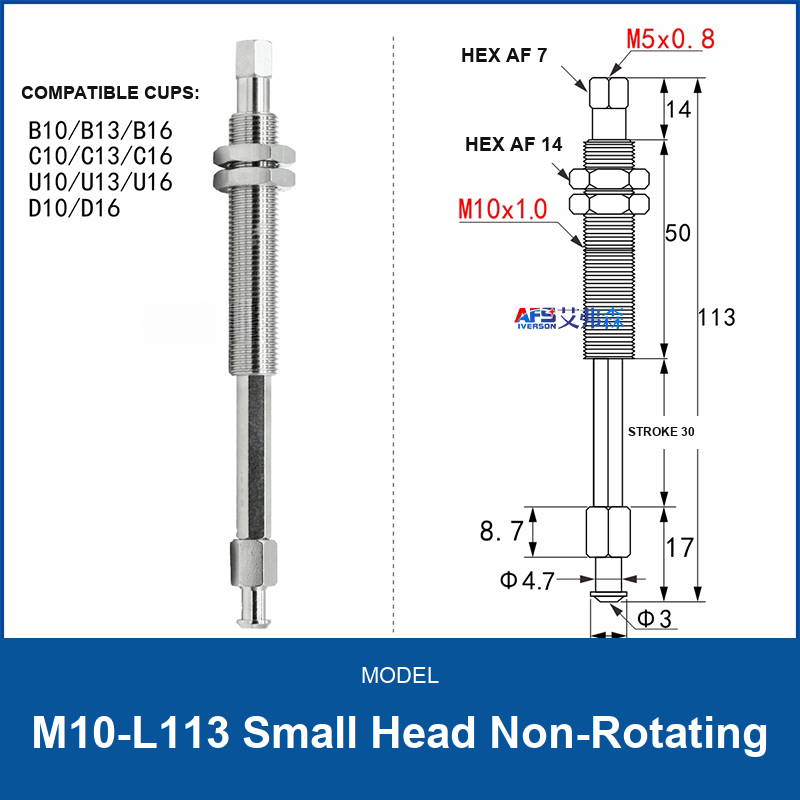

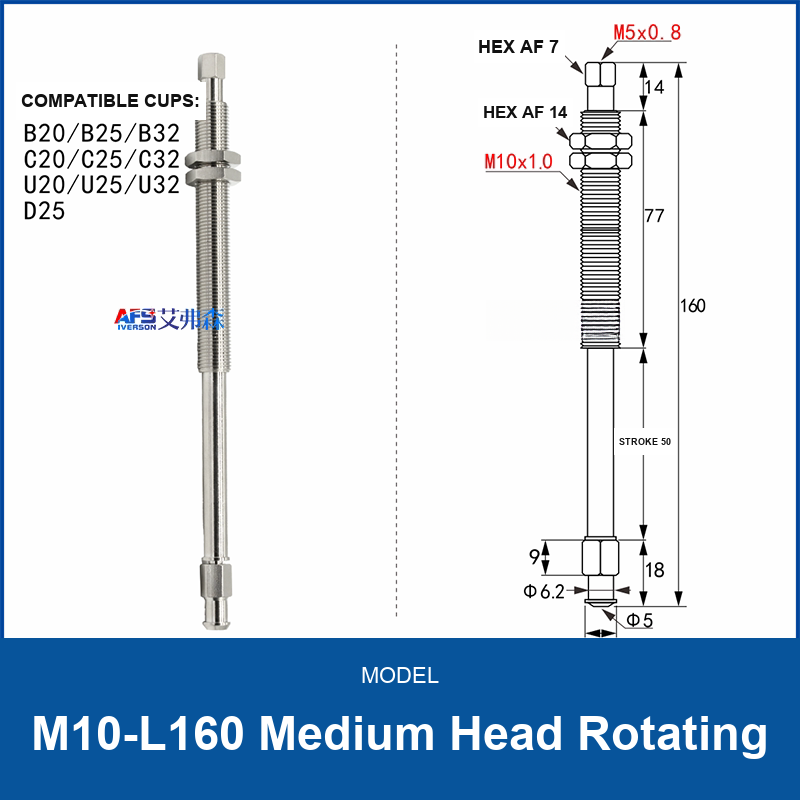

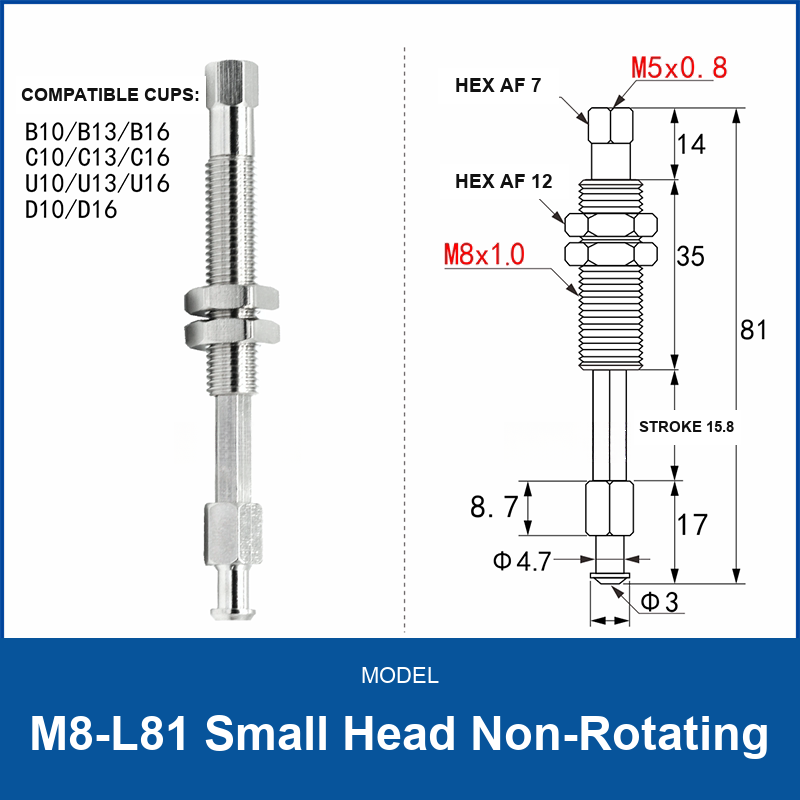

M8/M10-L[length] [Small or Medium Head] [Rotating or Non-Rotating] identifies the main spring-buffer configurations. Other listed codes are separate configurations; do not treat different model codes as interchangeable without comparing their interfaces and dimensions.
Suitable for
- Industrial vacuum pick-and-place and packaging automation
- Robot end-effectors requiring spring compliance
- Vacuum-cup mounting after compatibility checks
- Replacement or configuration work for compatible pneumatic systems
Before use
Confirm the complete selected model code, drawing, mounting thread, vacuum-cup compatibility, stroke, installation clearance, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
FAQ
Should I choose rotating or non-rotating? Choose rotating only when the installed assembly requires that motion; otherwise compare the selected drawing and complete code. Can I substitute a different length? Verify stroke, mounting clearance, interfaces and the complete listed model before substitution.
