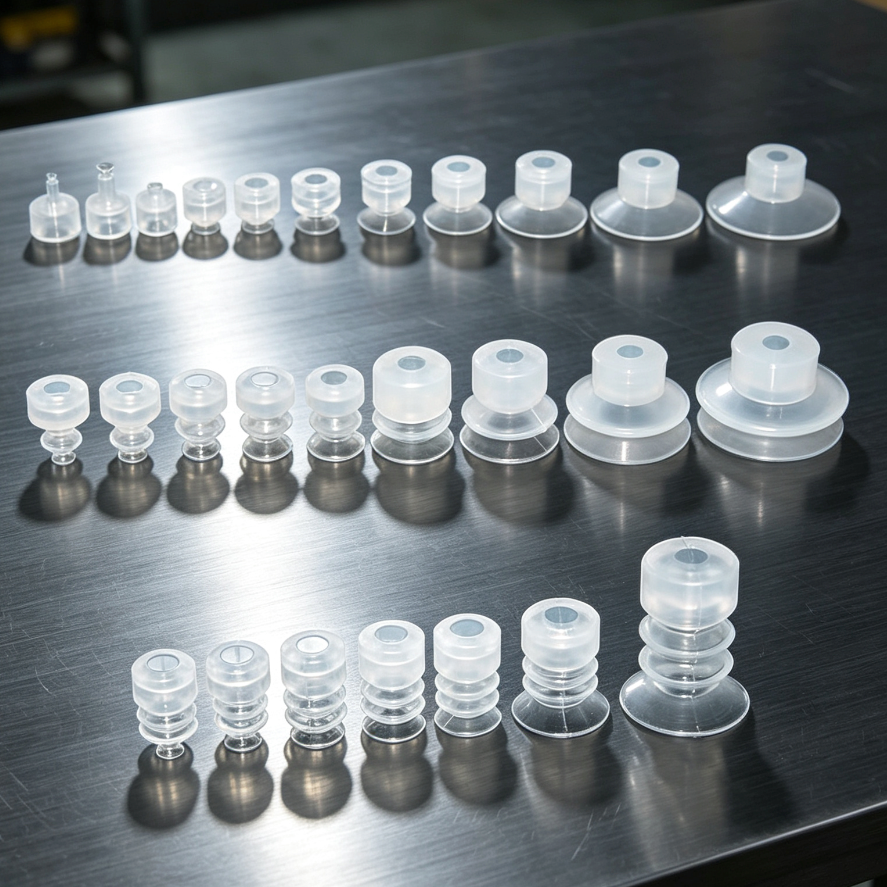

SPL, SP, DP and MP Mini Multi-Layer Silicone Vacuum Suction Cups
Compact silicone vacuum cups for precision automation, electronics, glass, packaging and injection-molded components.

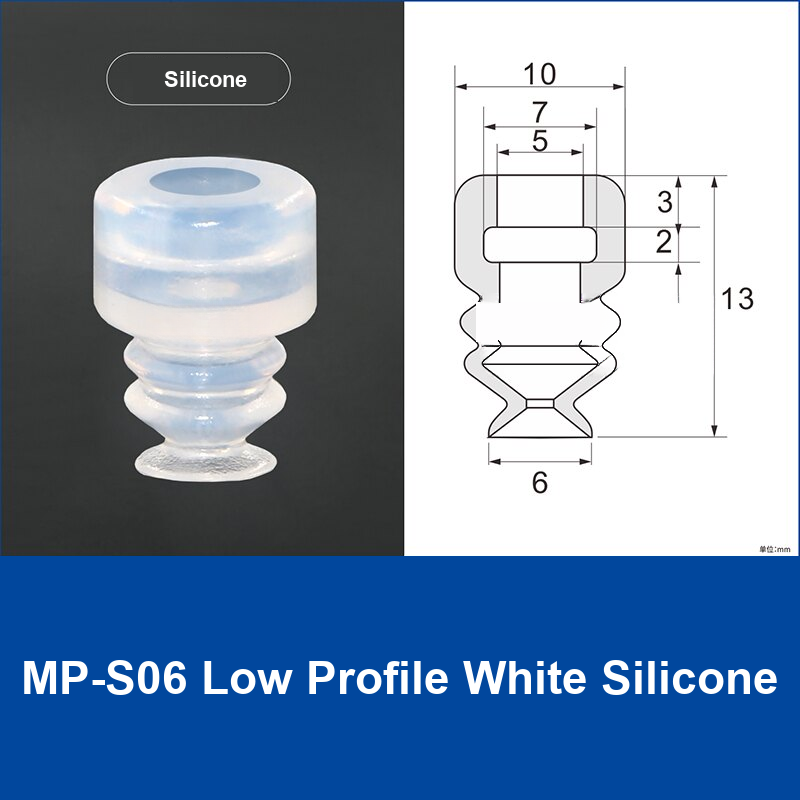

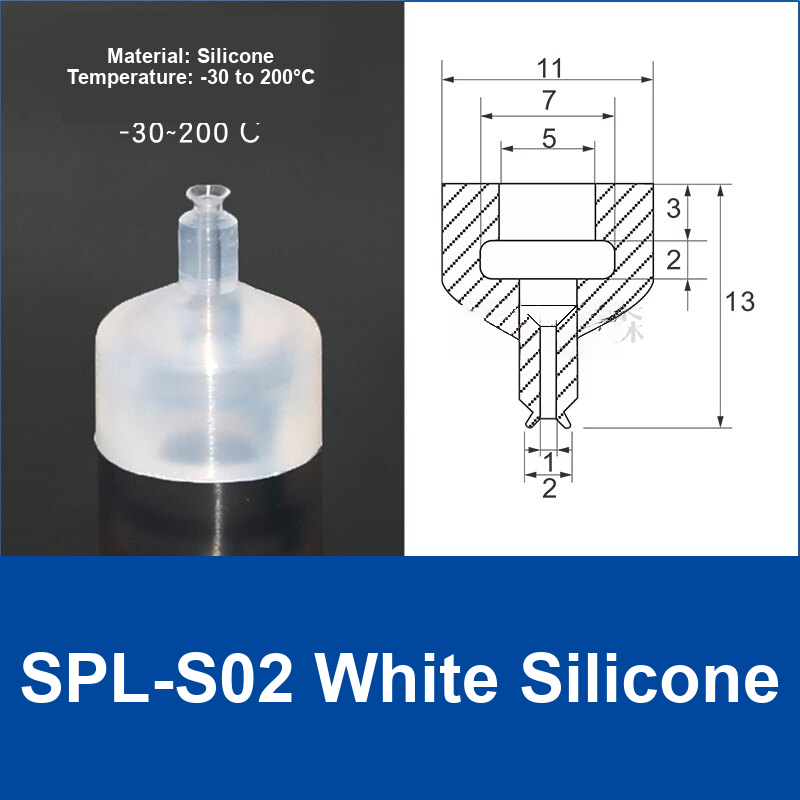

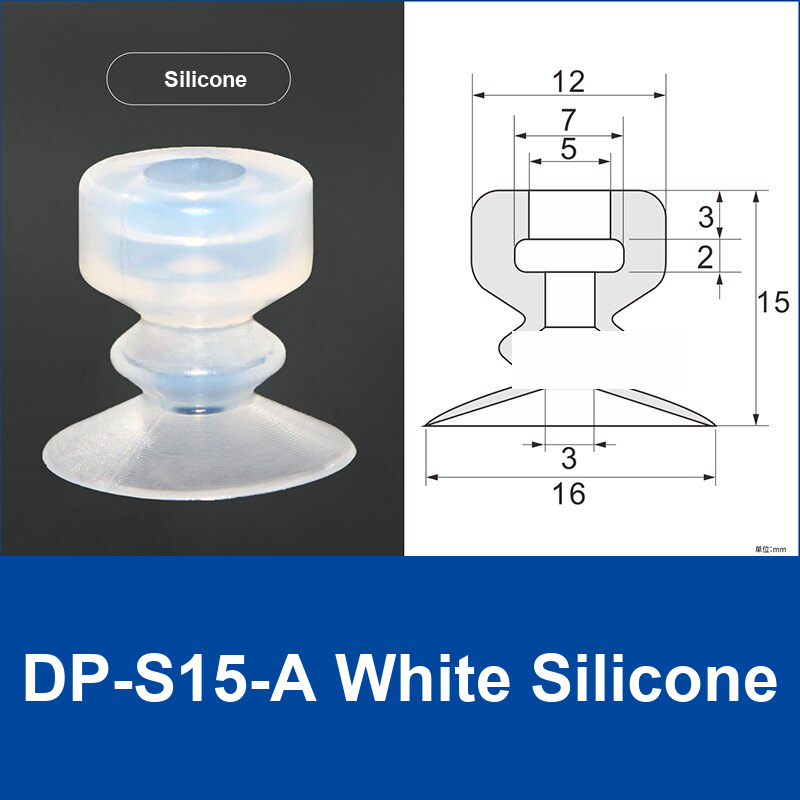

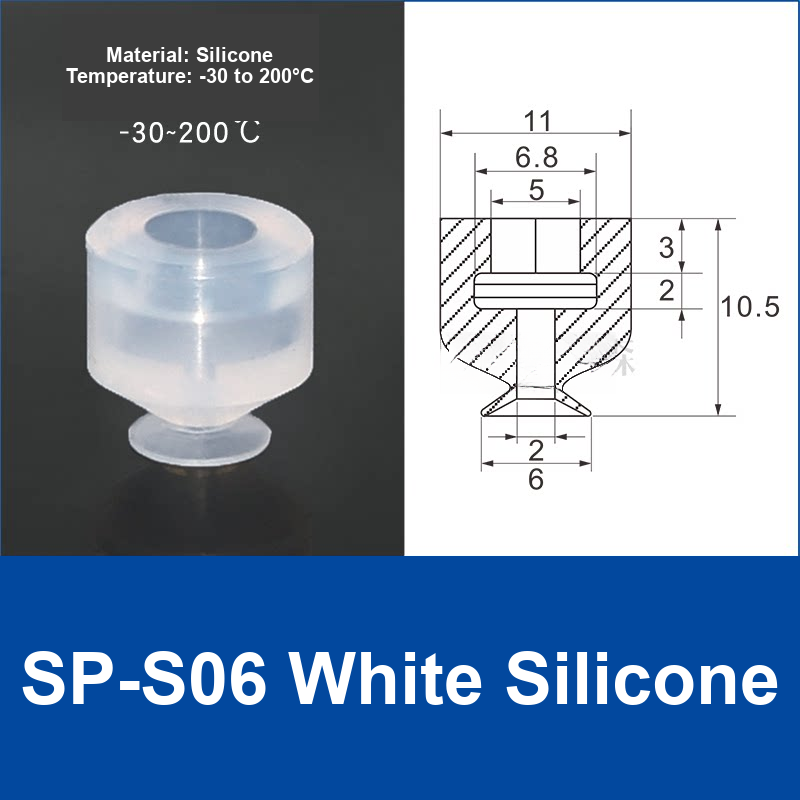

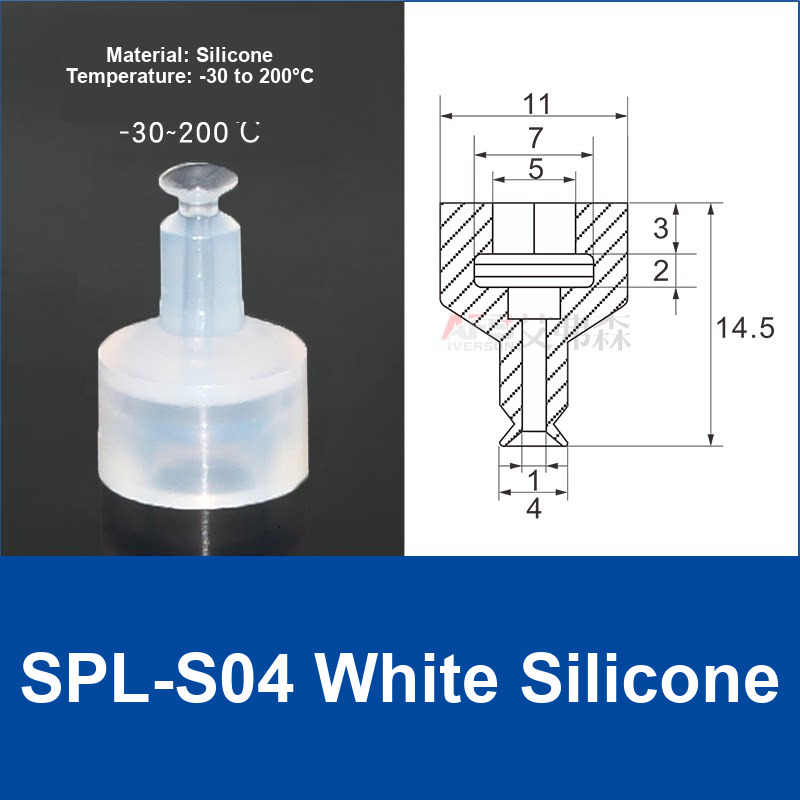

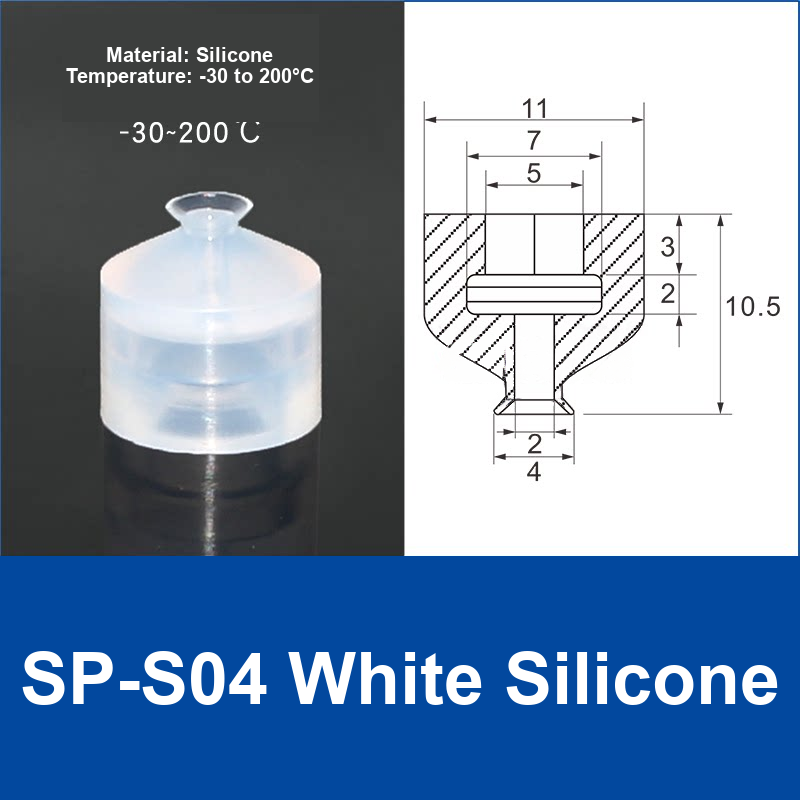

- SPL and SP single-layer, DP double-layer and MP triple-layer structures

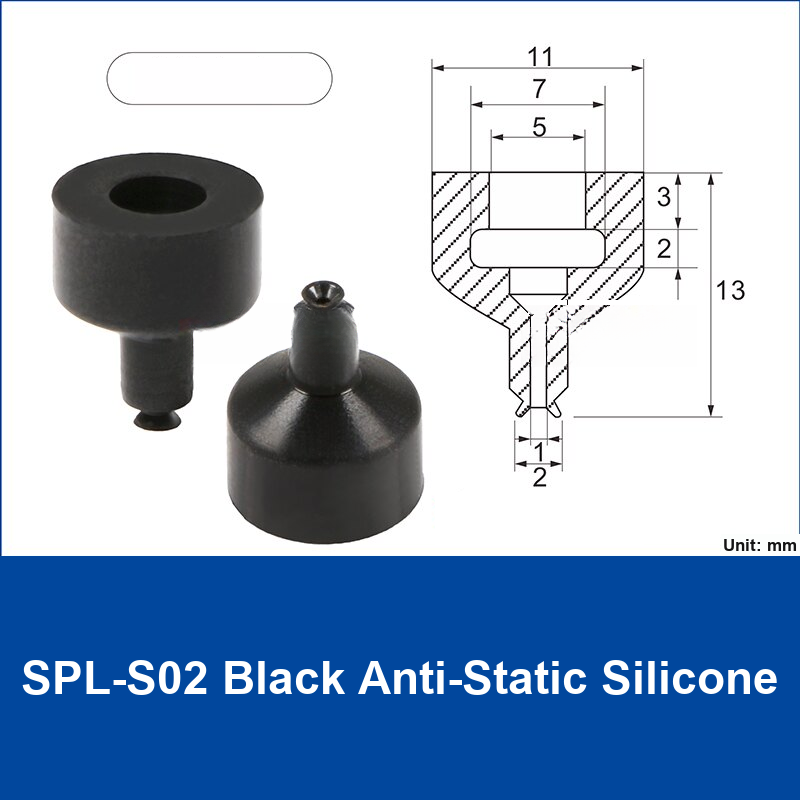

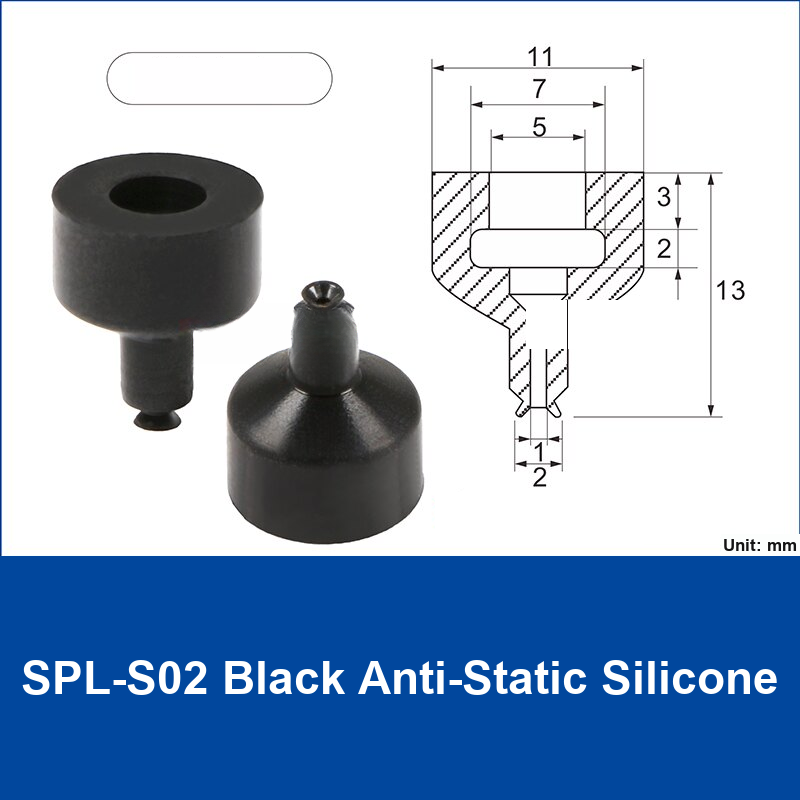

- White silicone and black anti-static silicone options

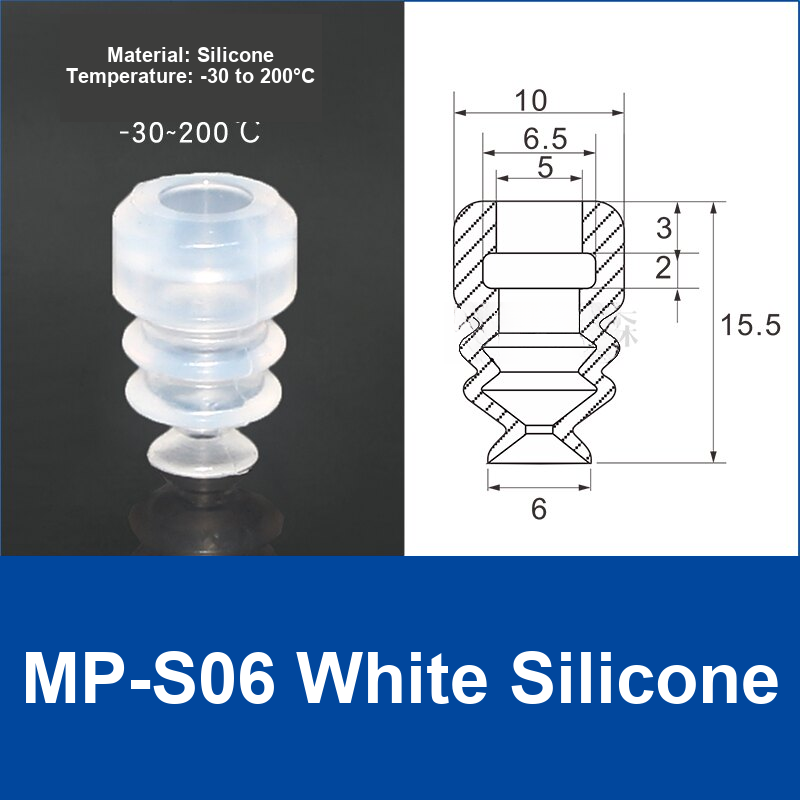

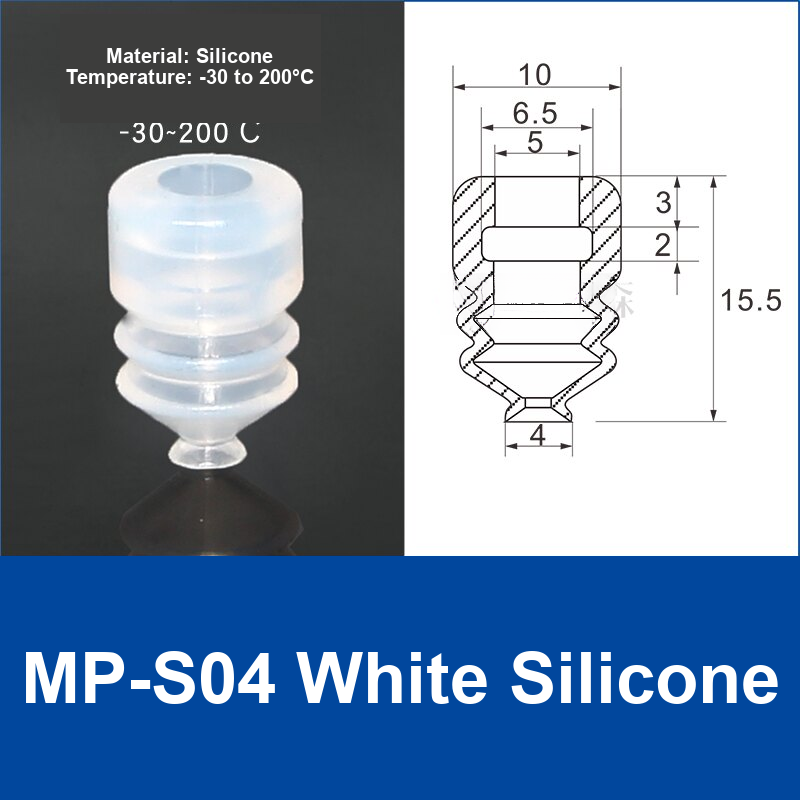

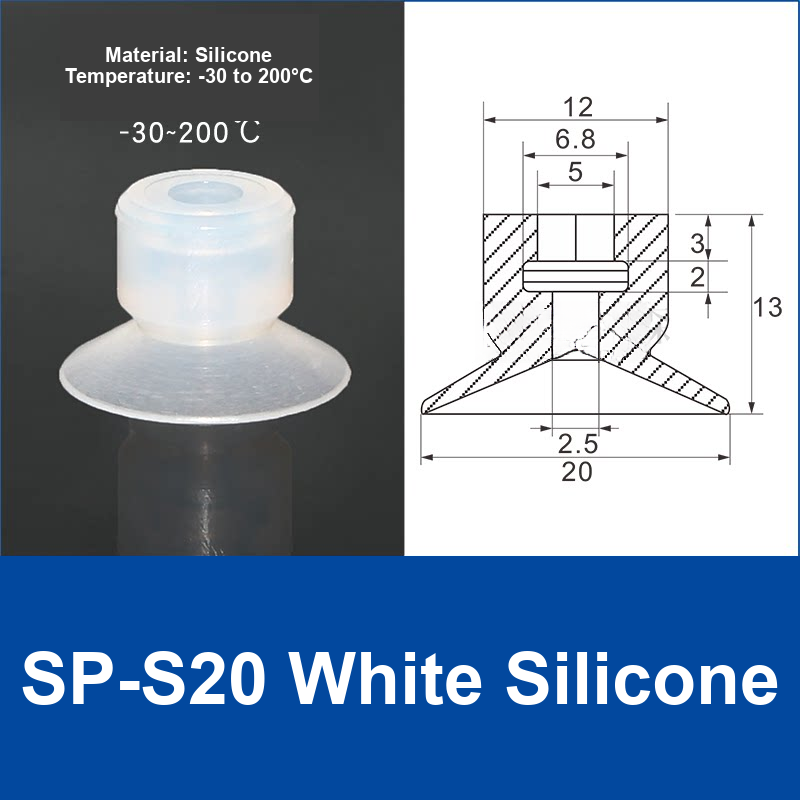

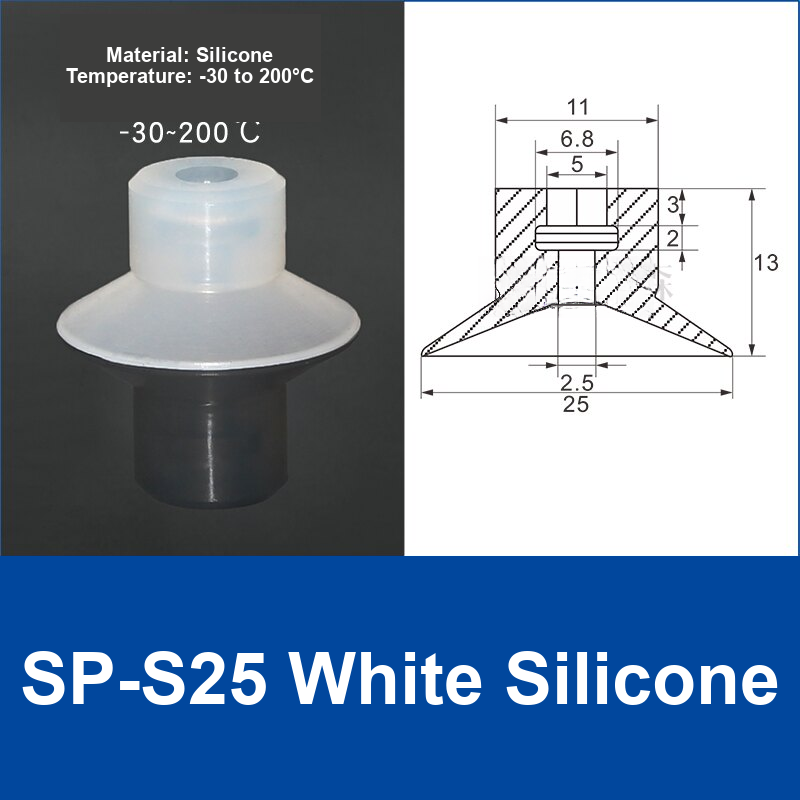

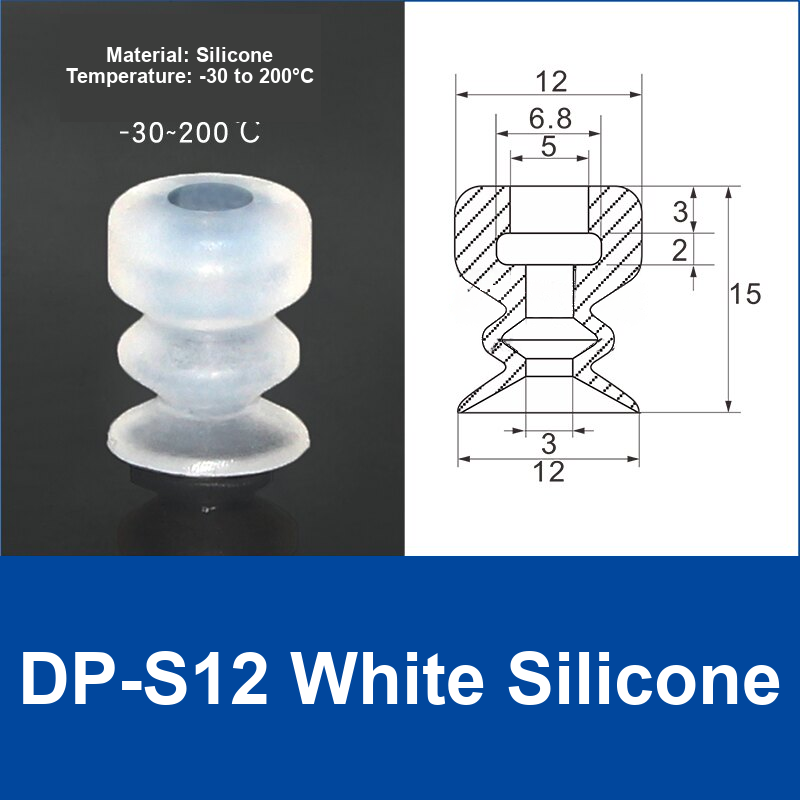

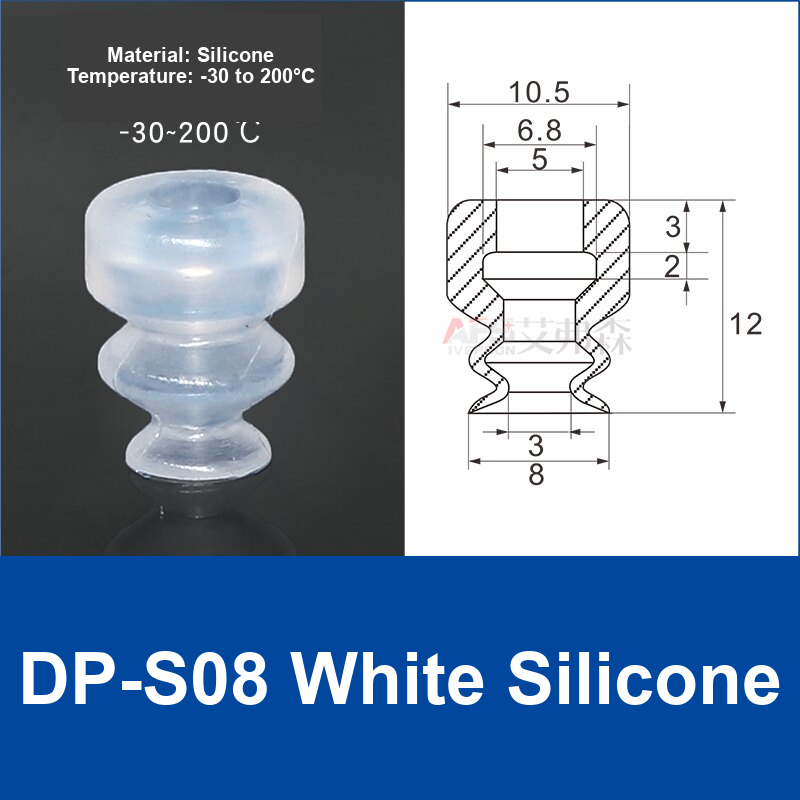

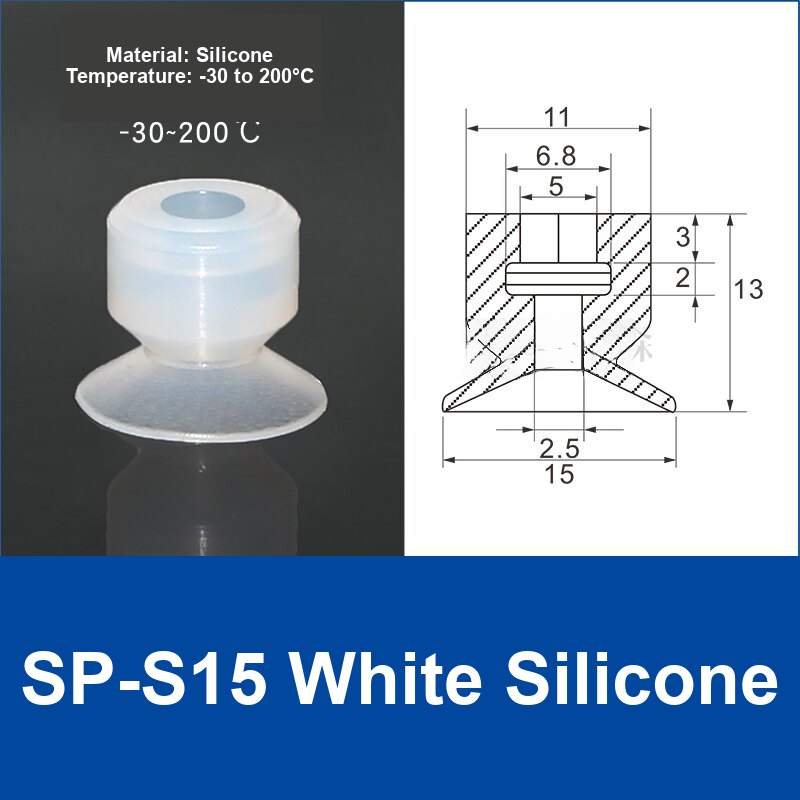

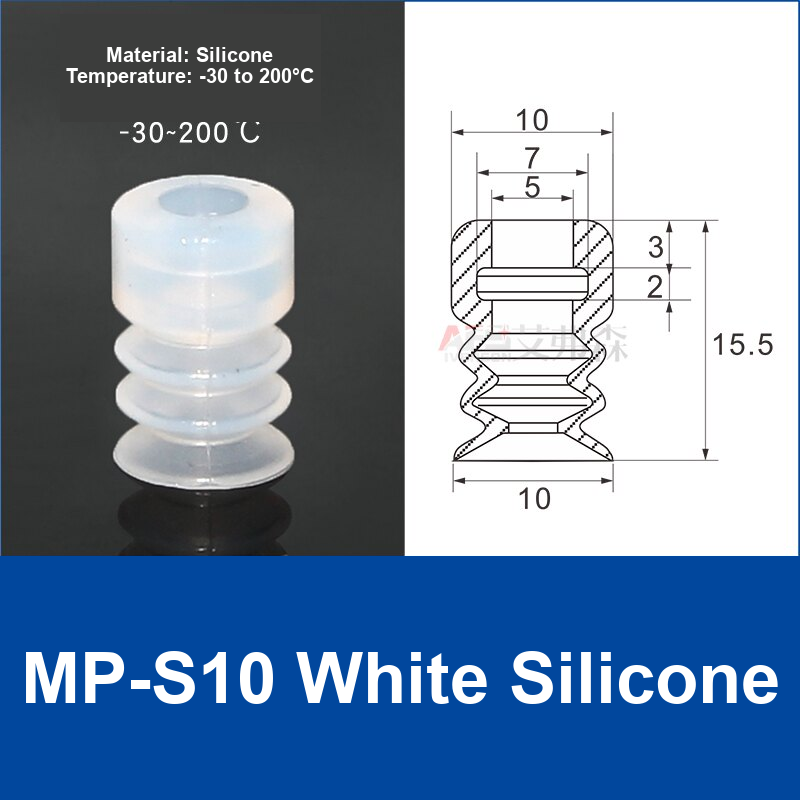

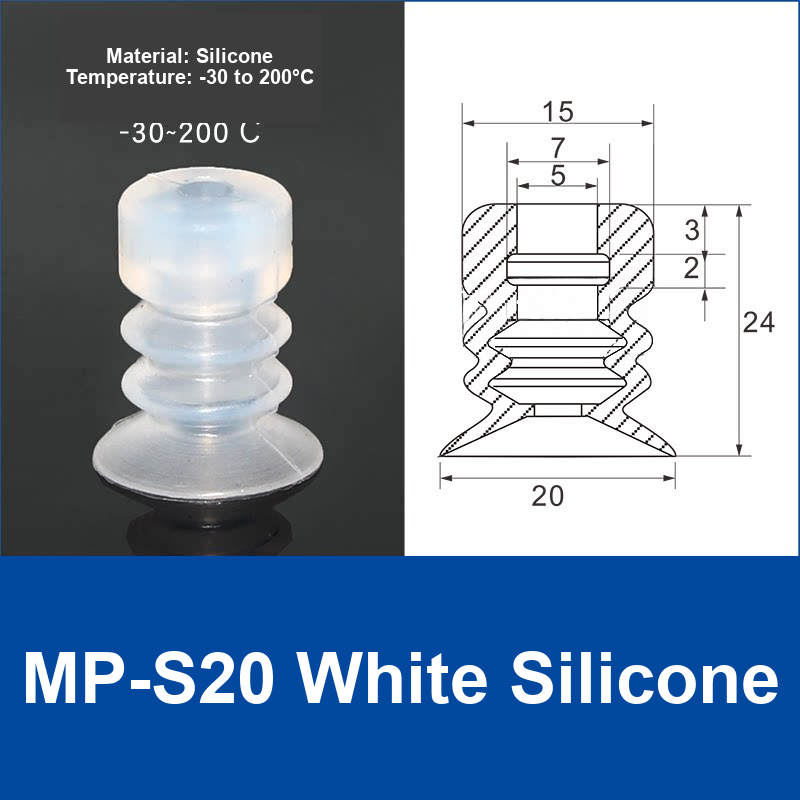

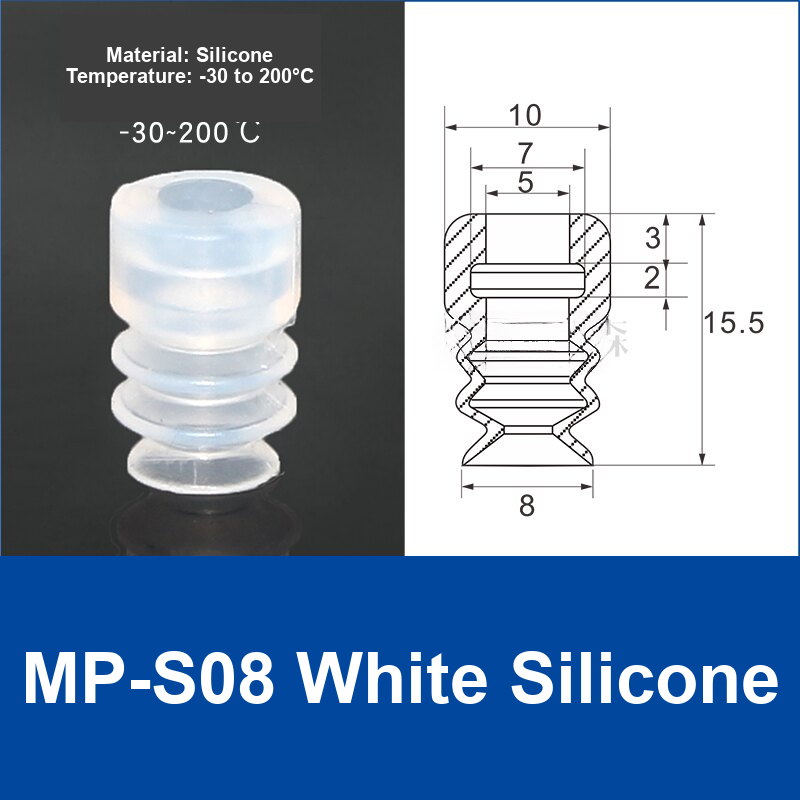

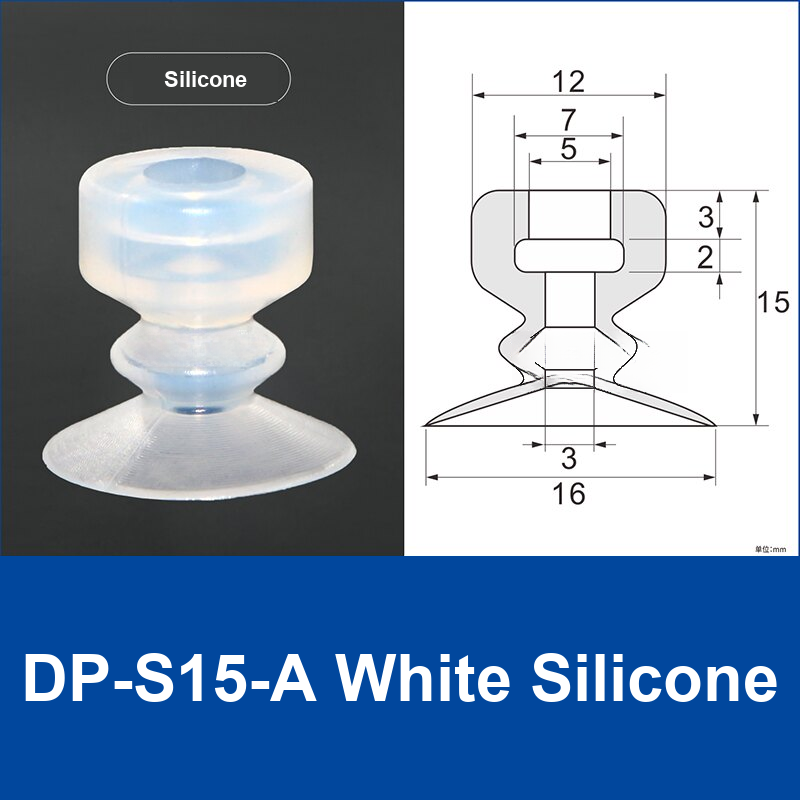

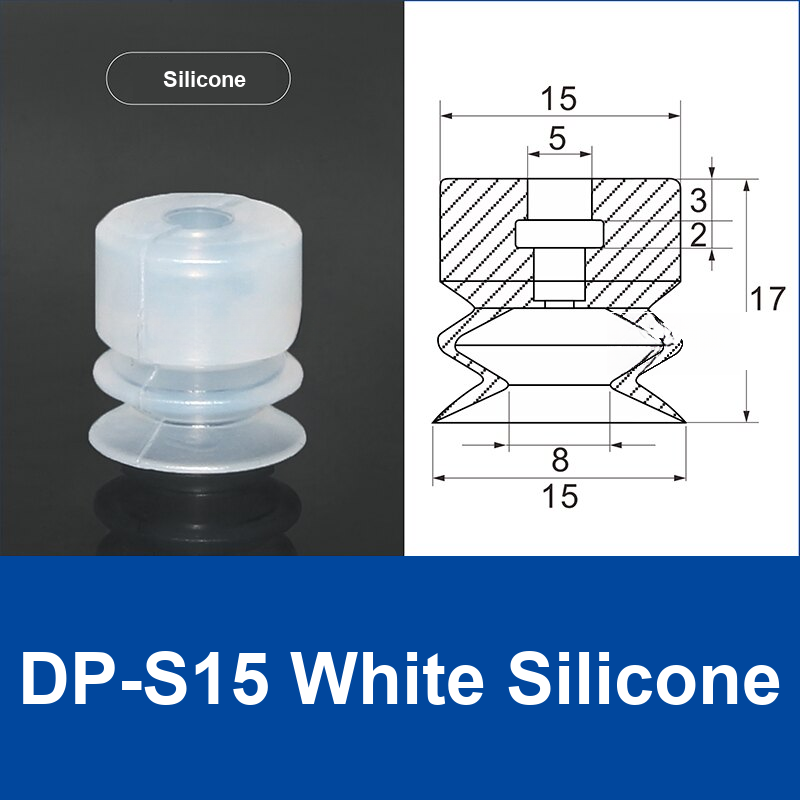

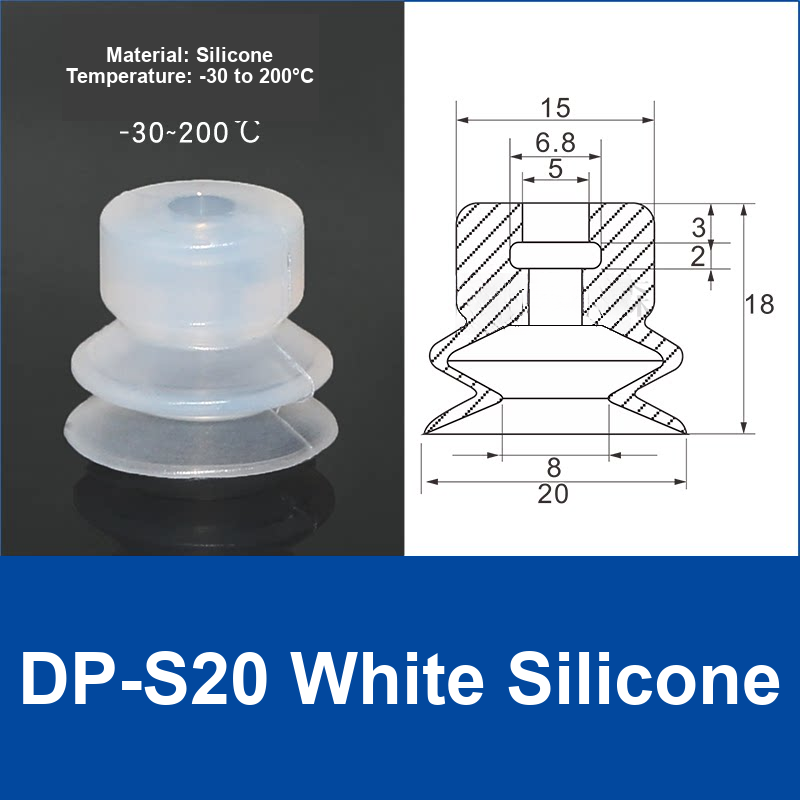

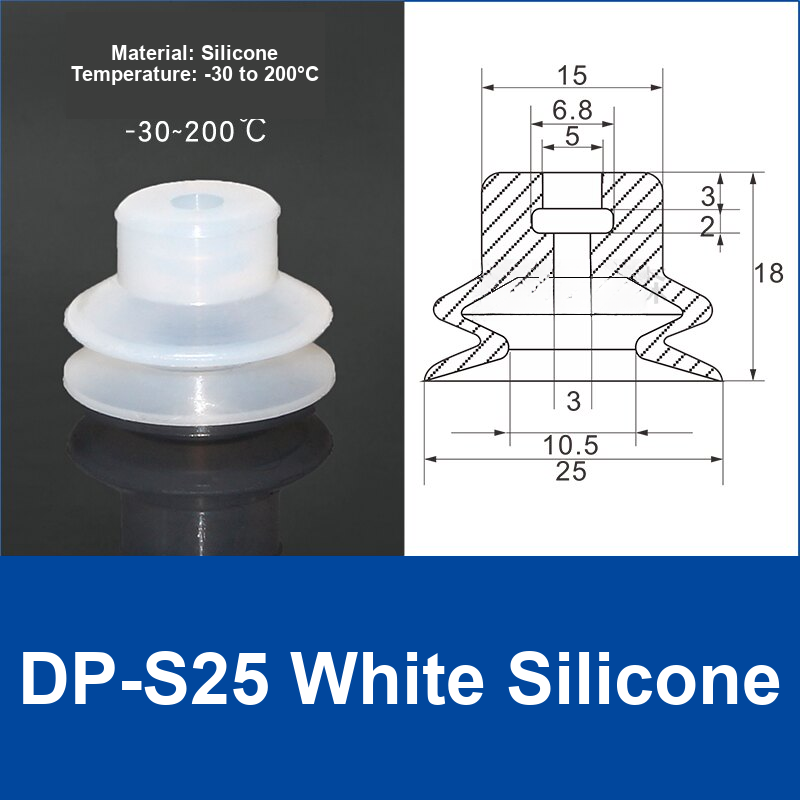

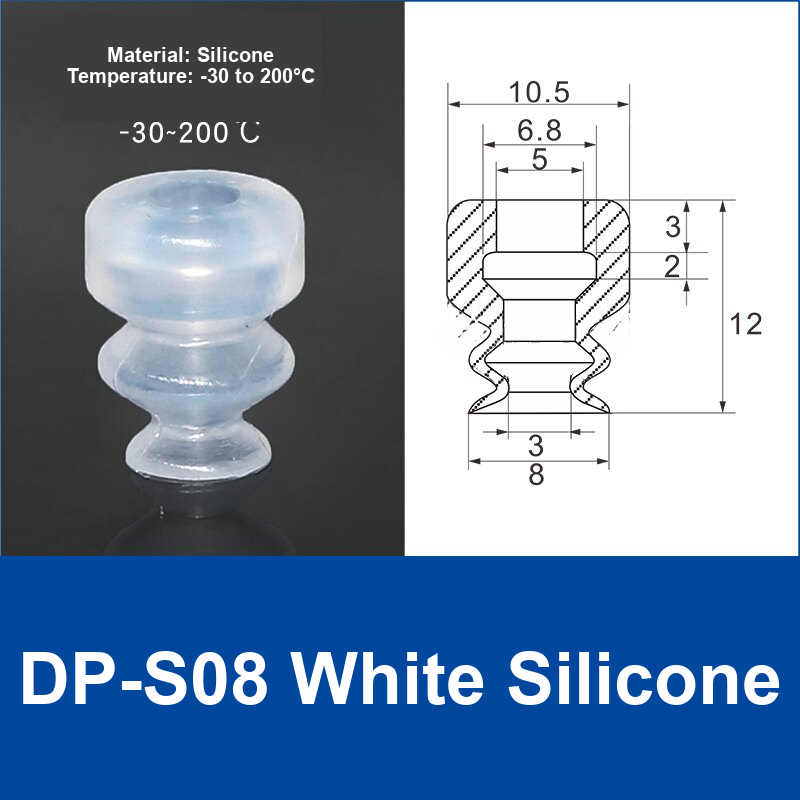

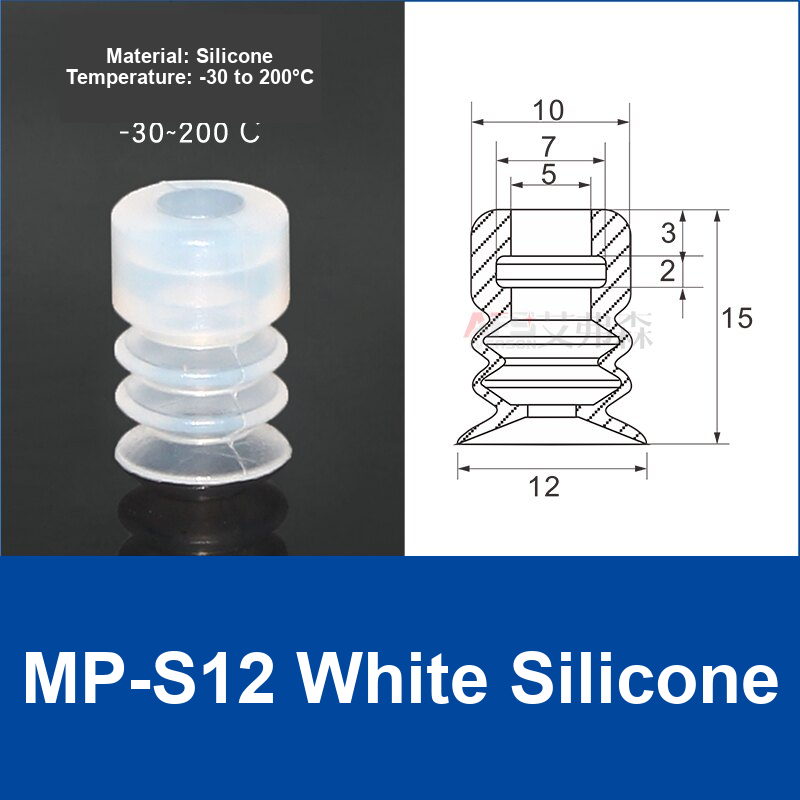

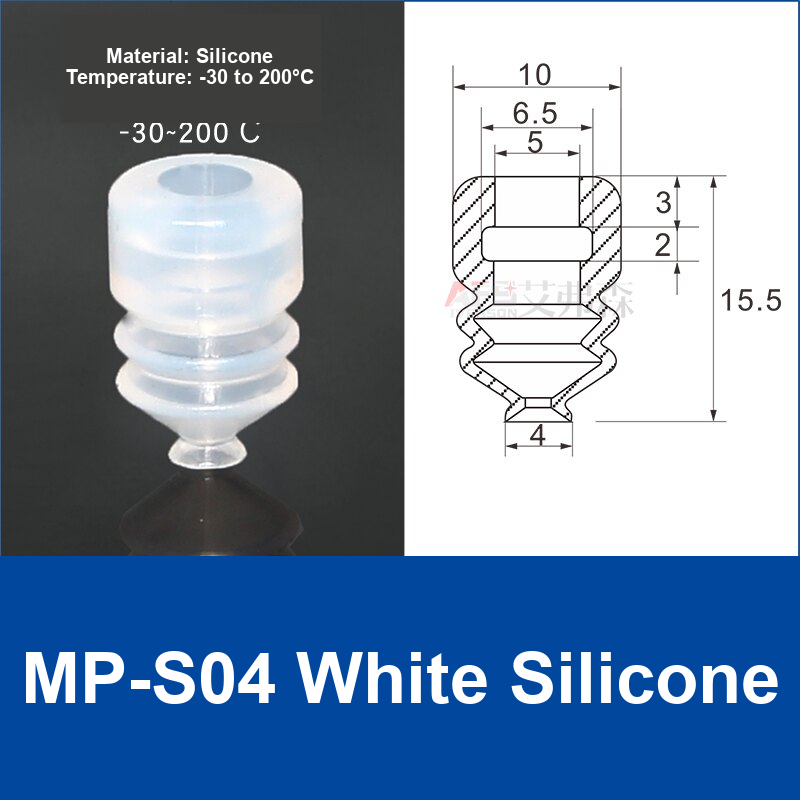

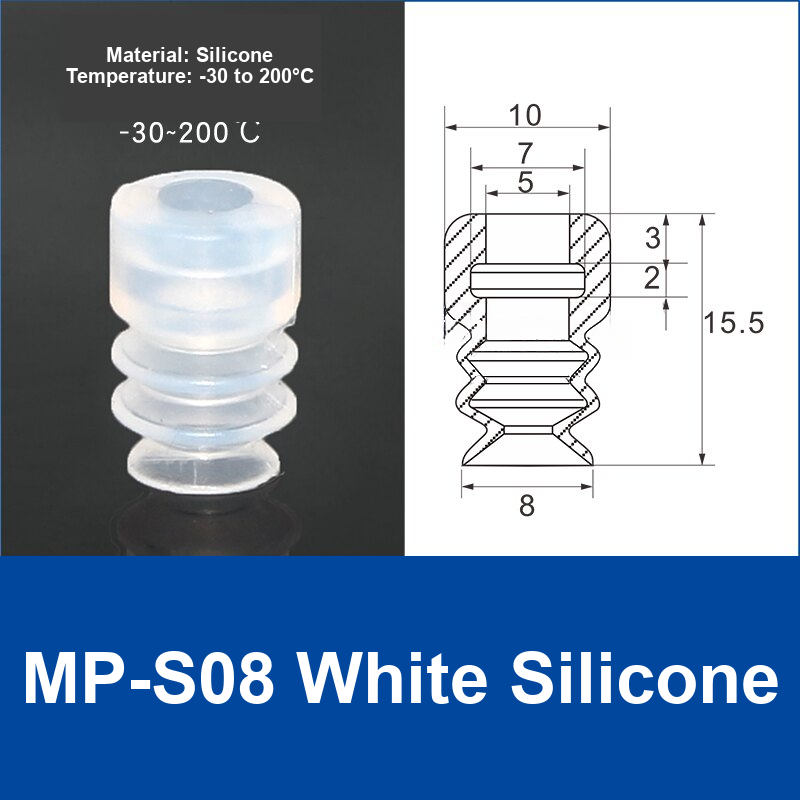

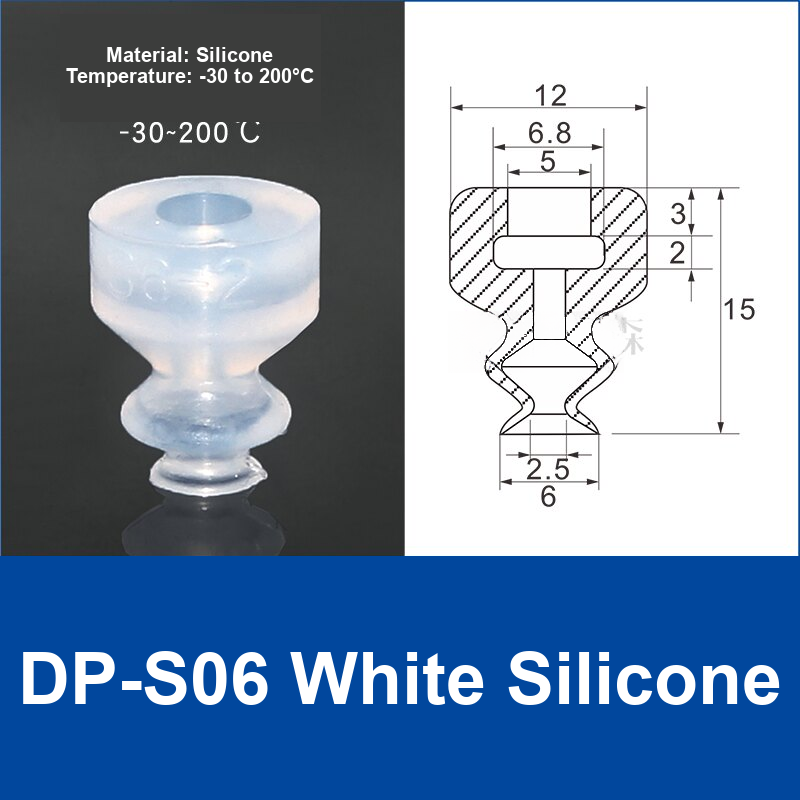

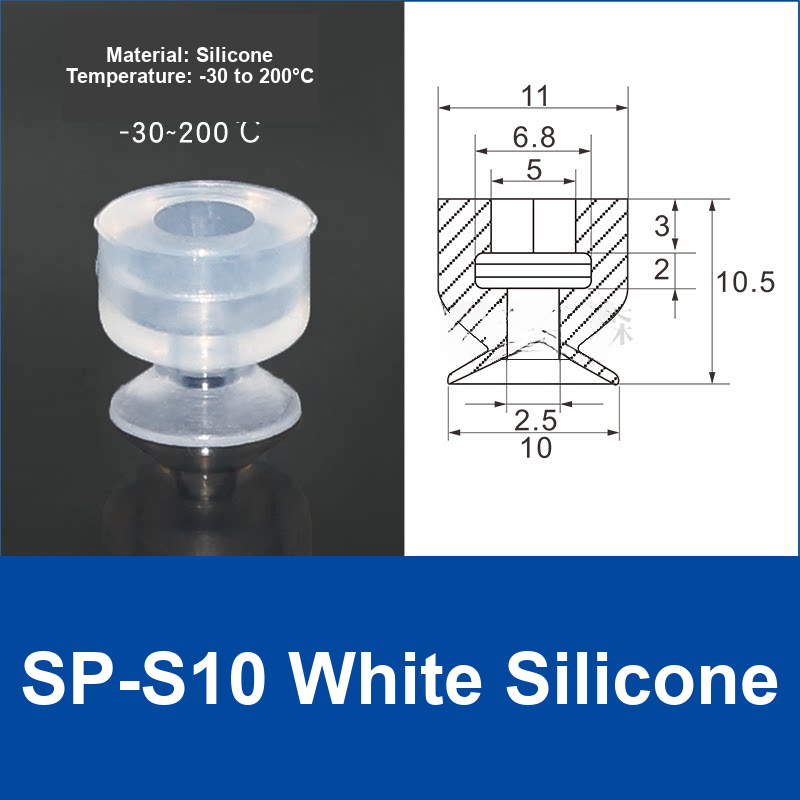

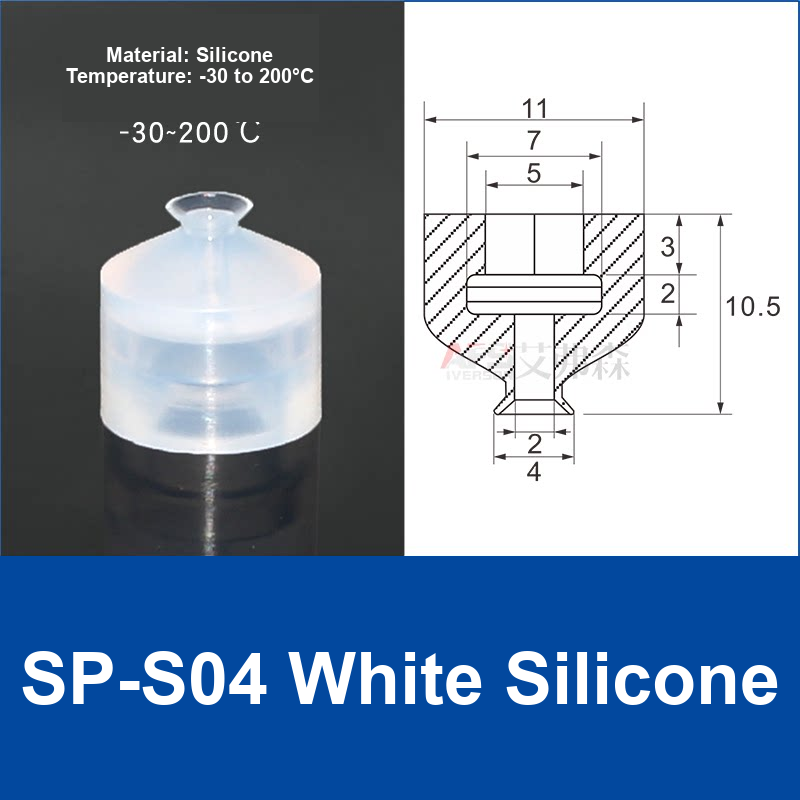

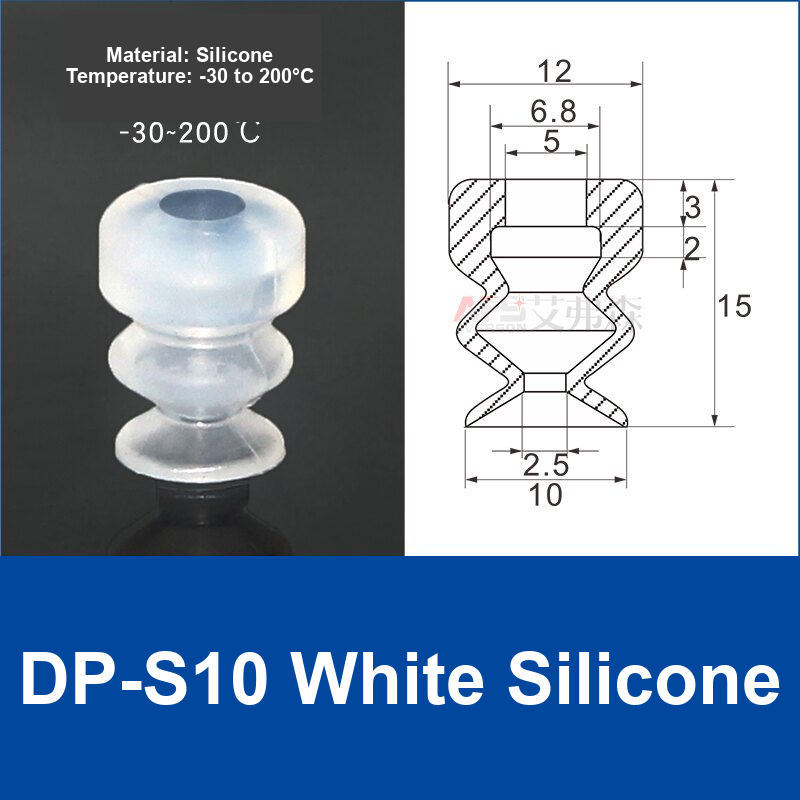

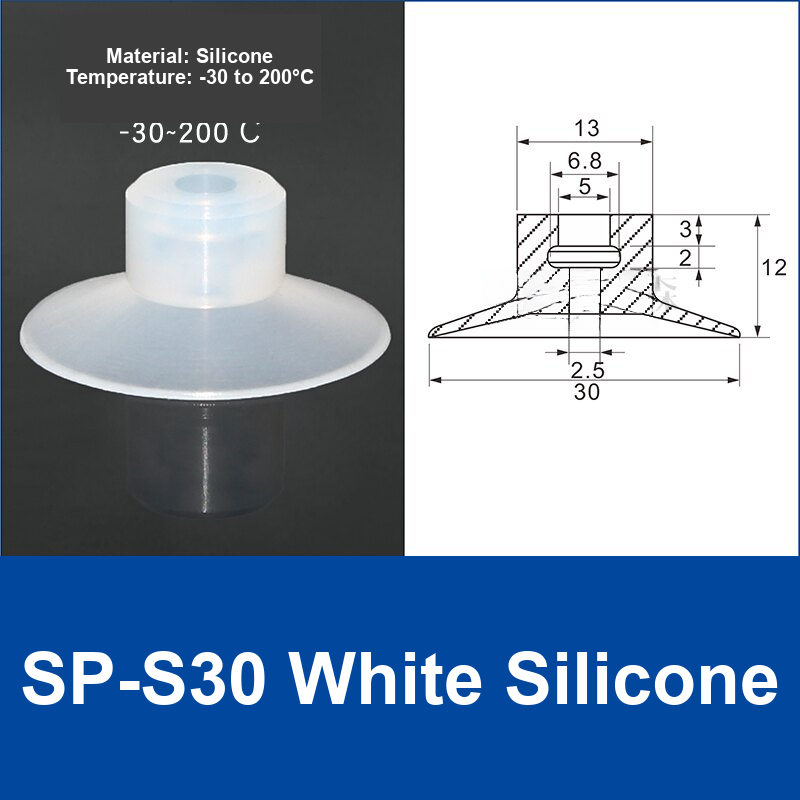

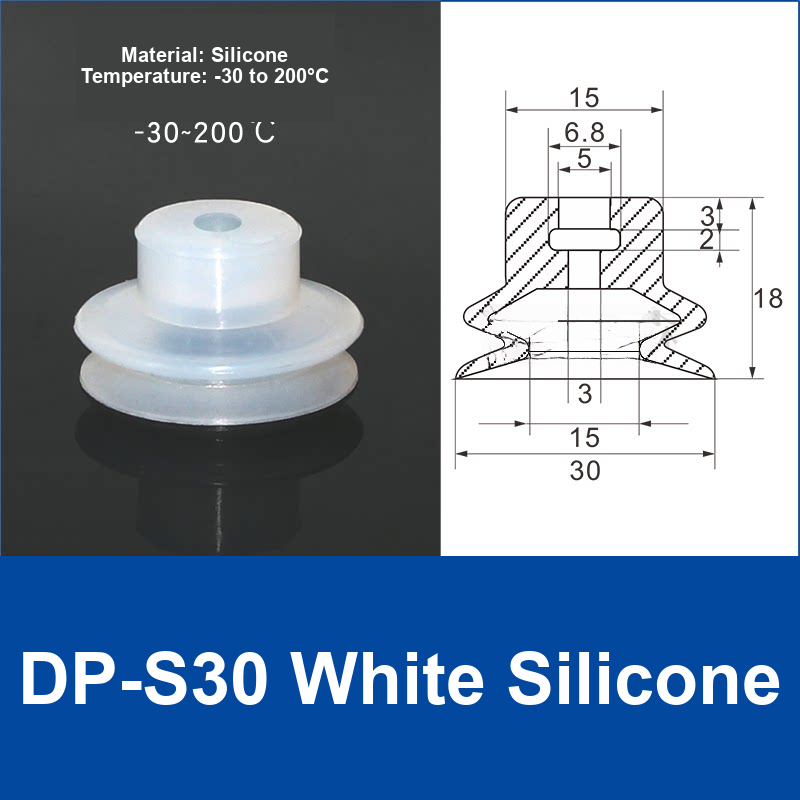

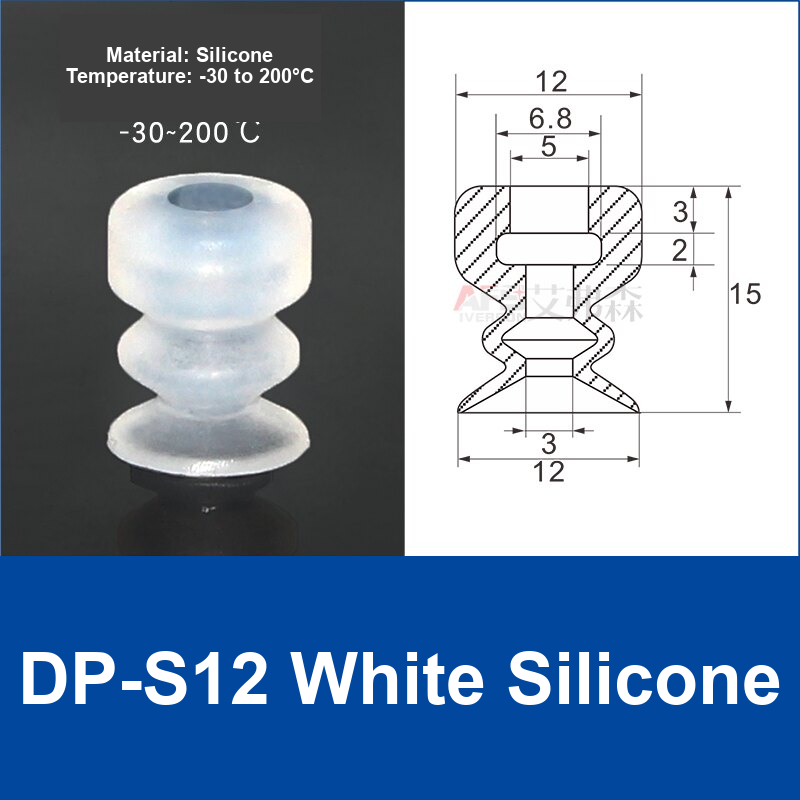

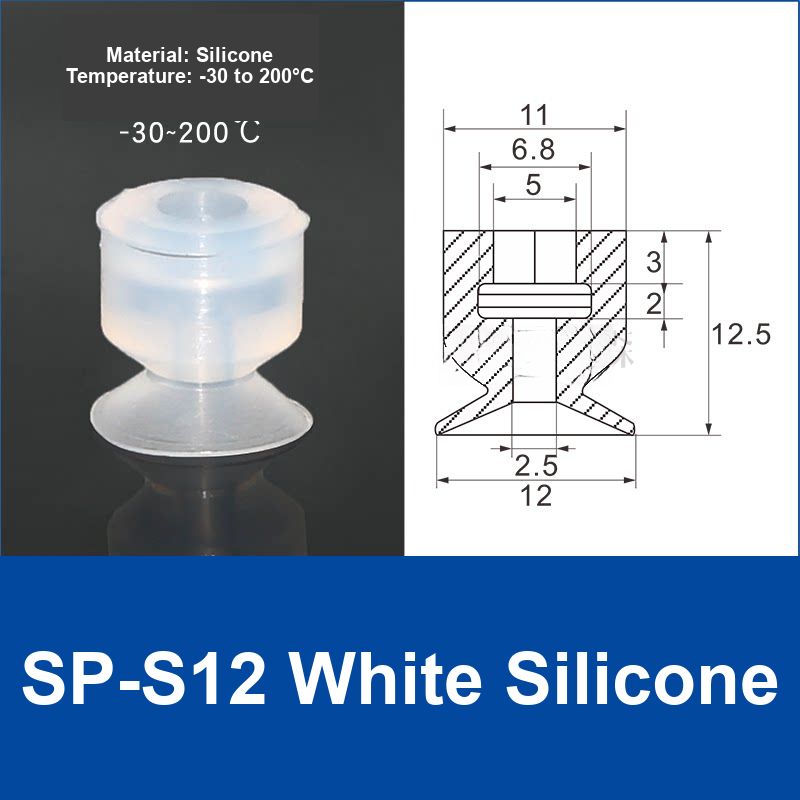

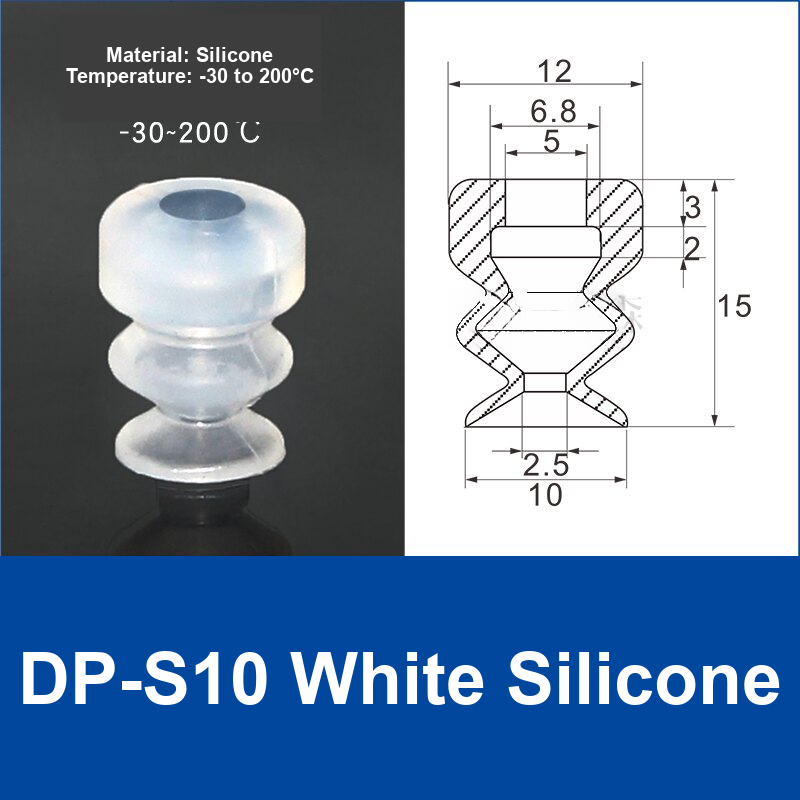

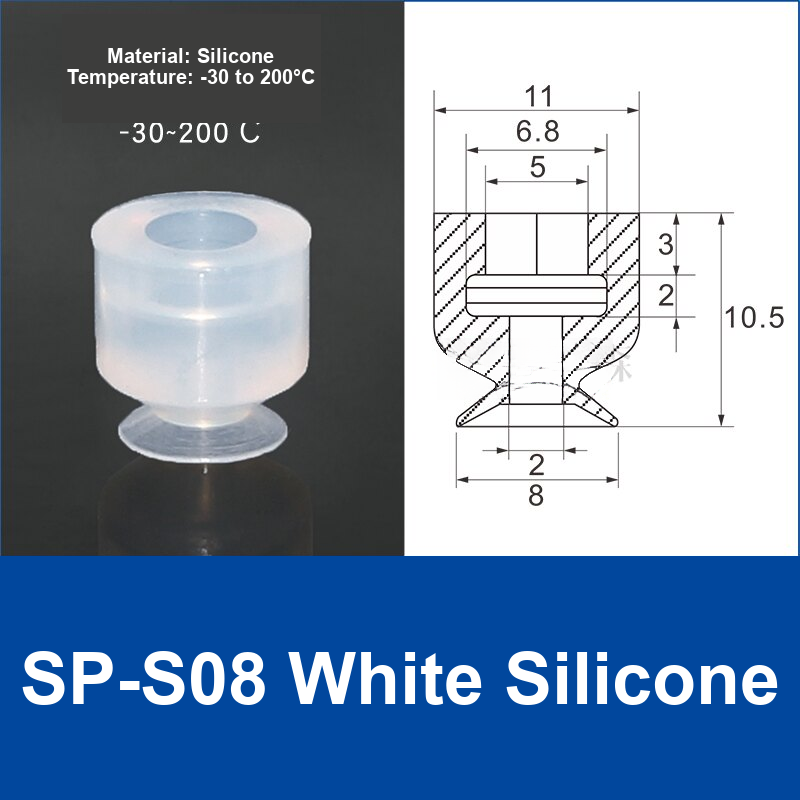

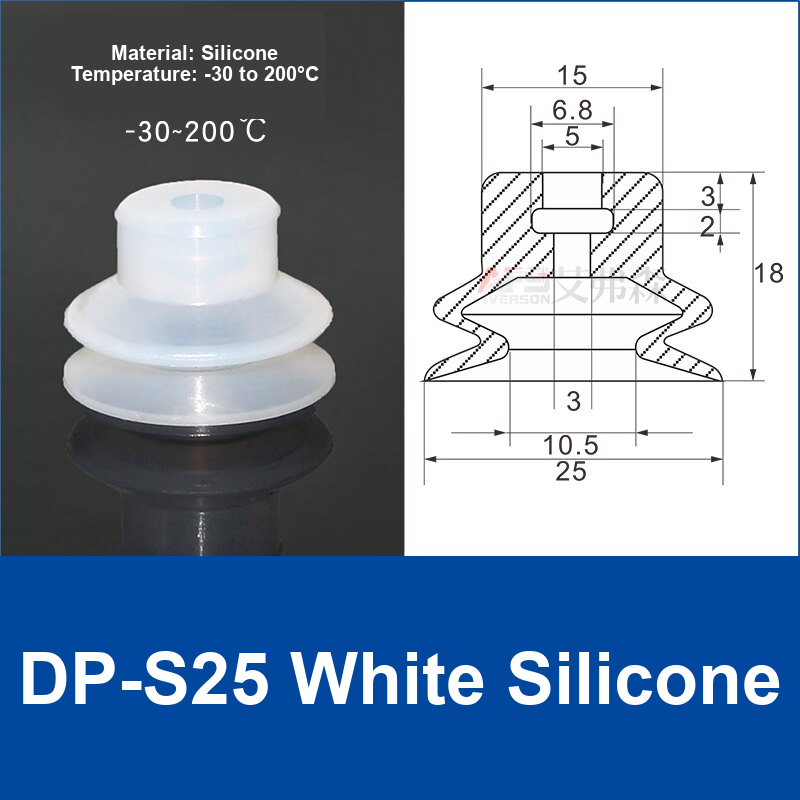

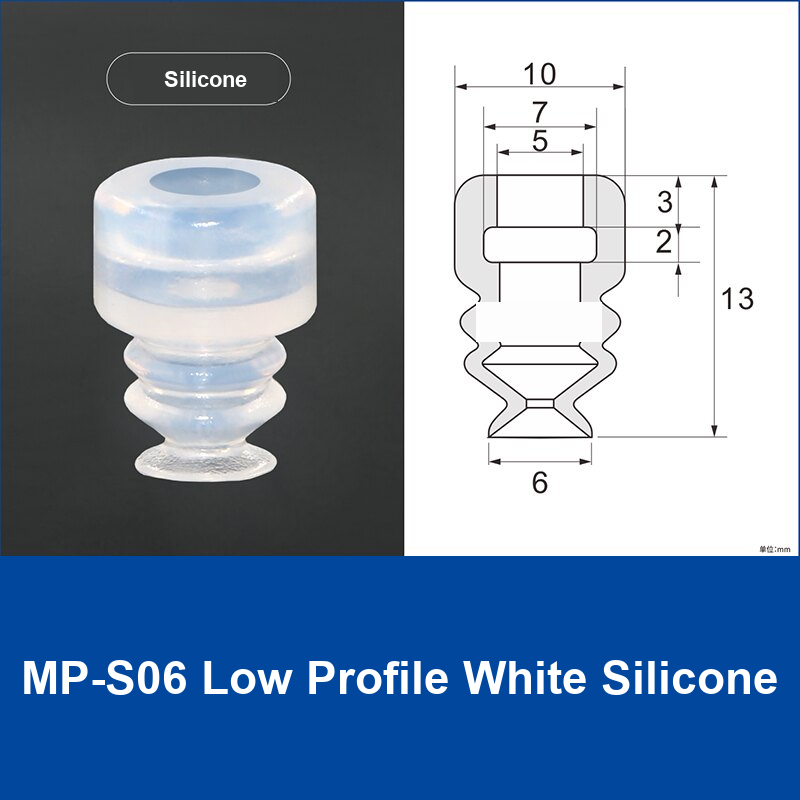

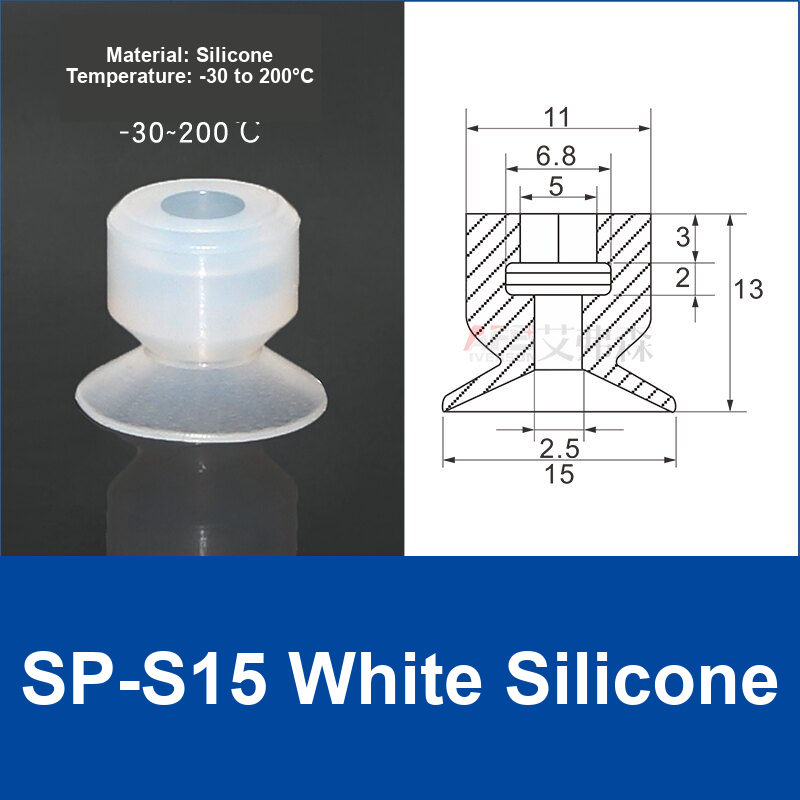

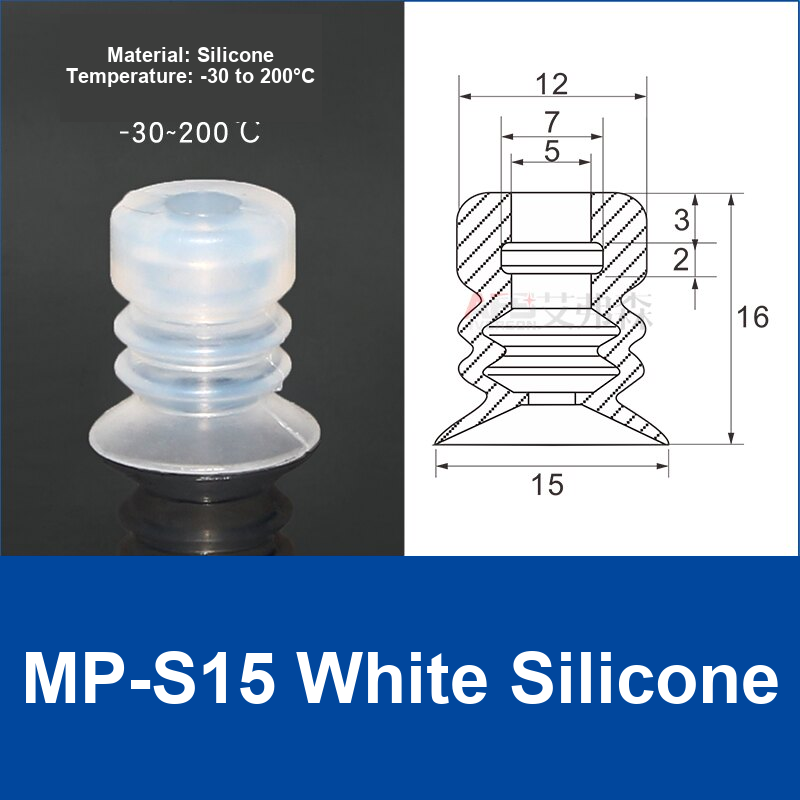

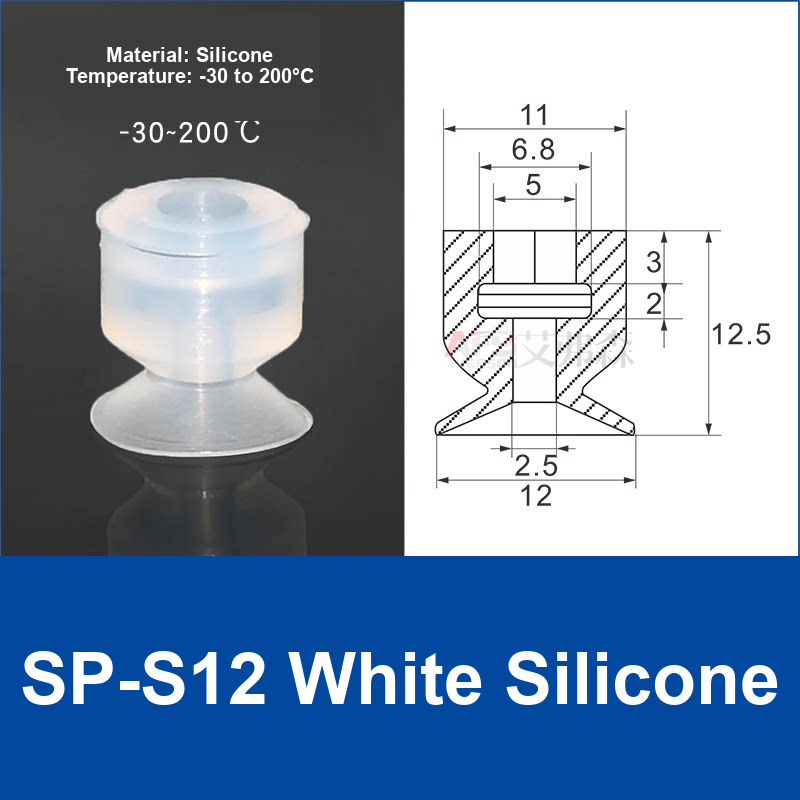

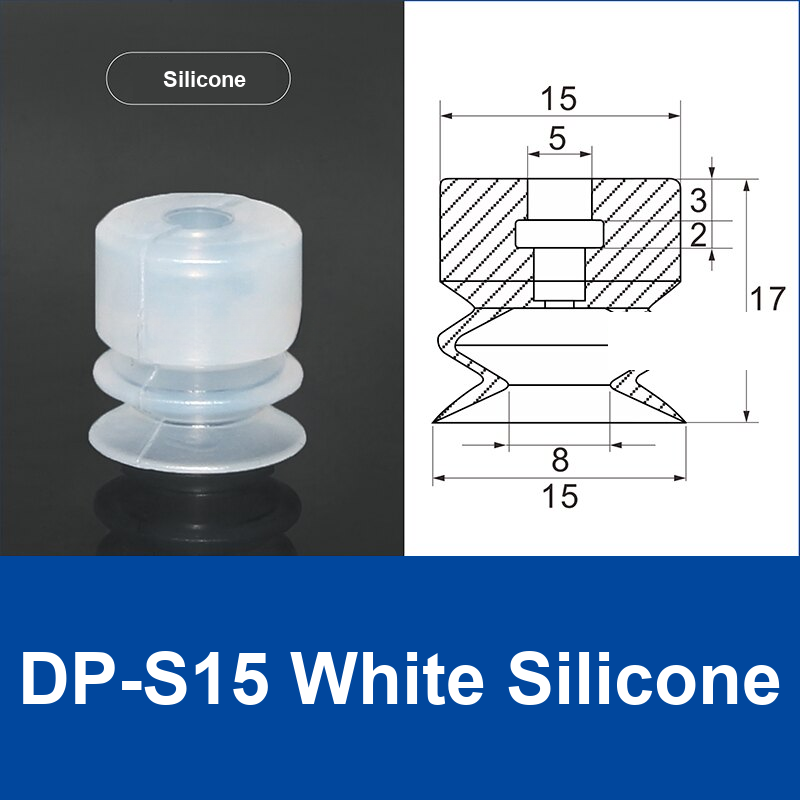

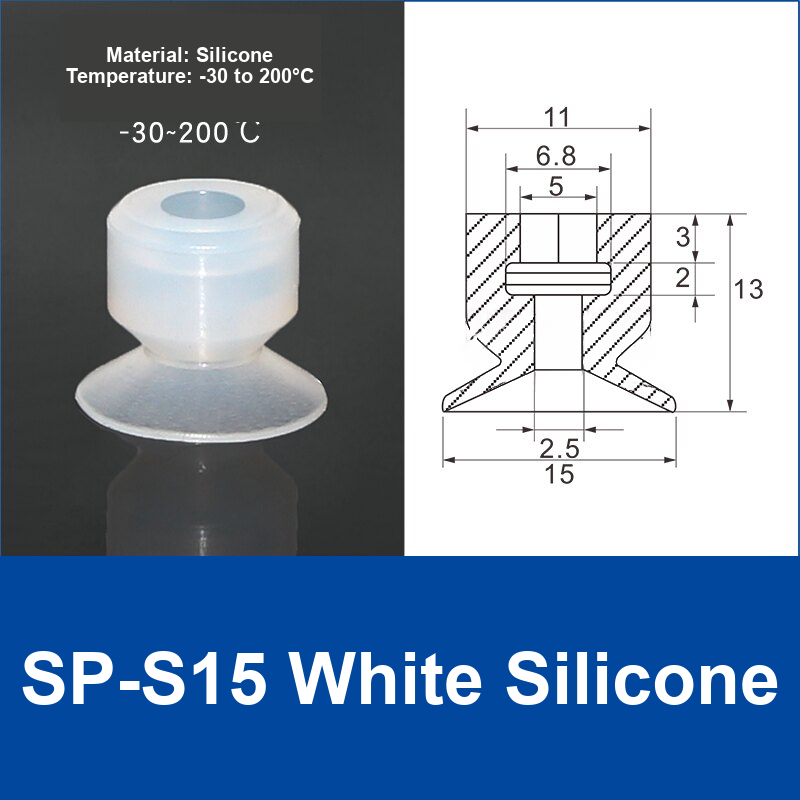

- Model-specific product views with dimensional drawings
- Compact 5 mm mounting-hole designs for small robotic and pneumatic handling systems
Applications and Suitable Workpieces
SPL SP DP MP Mini Multi-Layer Silicone Vacuum Suction Cups: These compact cups are intended for precision pickup of small parts where limited contact area, low mass and accurate positioning are important.
Recommended applications
- Electronic components, small plastic parts, glass pieces, labels, packaging components and precision assemblies.
- Compact robots, pneumatic pick-and-place units, sorting systems, inspection equipment and small-part assembly.
- Flat to slightly uneven parts requiring a small footprint and model-specific height compensation.
Model and selection notes
- SPL/SP, DP and MP identify single-, double- and triple-layer mini profiles. Select diameter, 5 mm mounting style and antistatic material where required.
- Select the smallest diameter that provides adequate holding force without covering features or edges.
- Flat models improve positioning stability; multi-bellows models compensate for height and curvature; conductive materials are only for static-sensitive handling where identified.
- Confirm surface porosity, vacuum level, release time, acceleration and part cleanliness on the real component.
