SP, DP and MP Multi-Layer Vacuum Suction Cups
Industrial vacuum suction cups for automated handling, packaging, glass, electronics and injection-molded components. Choose single-layer SP, double-layer DP or triple-layer MP models in silicone or nitrile rubber.

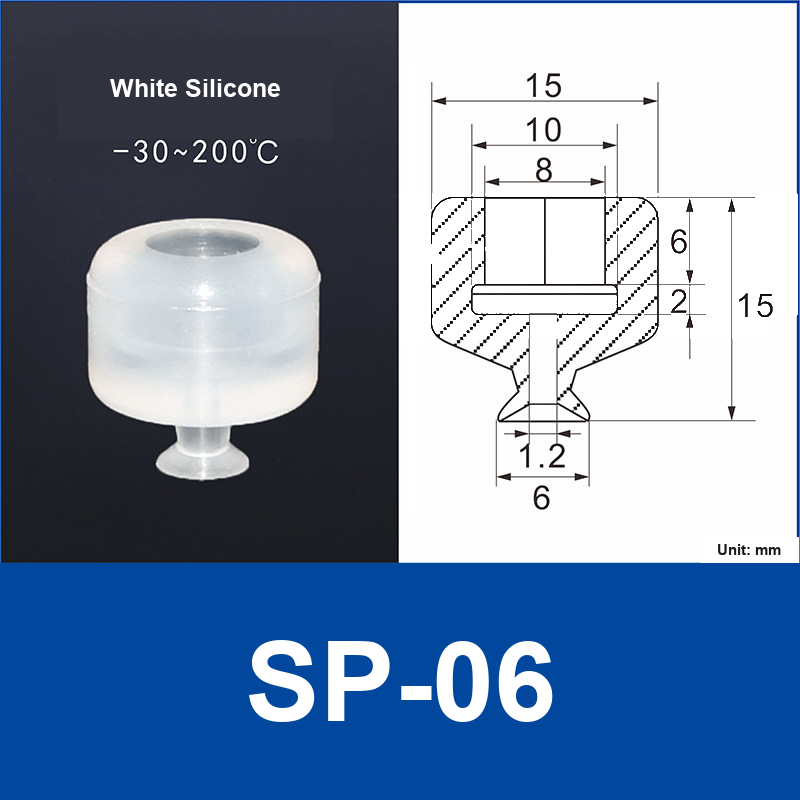

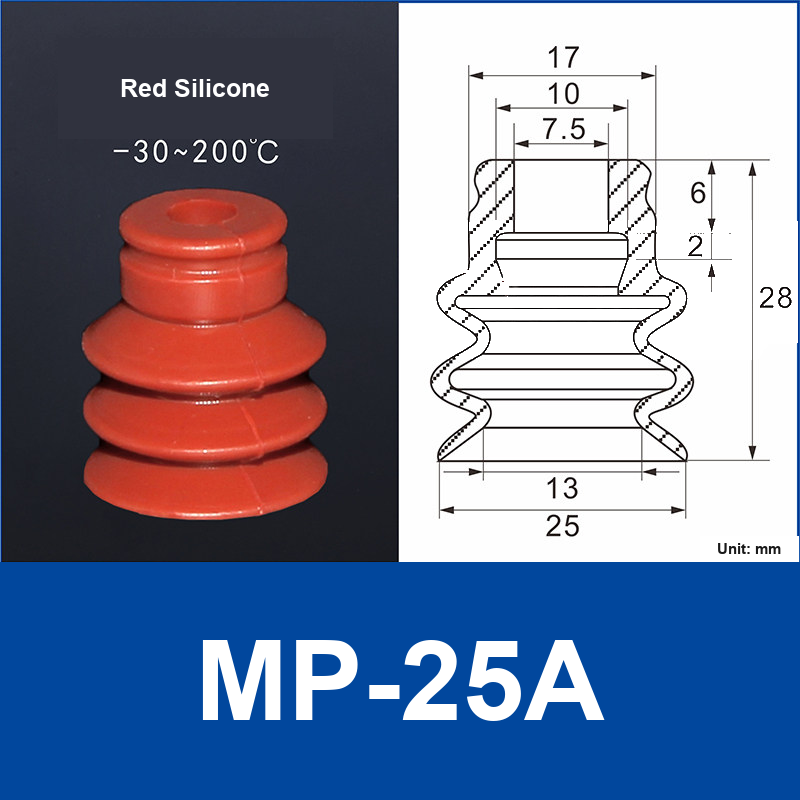

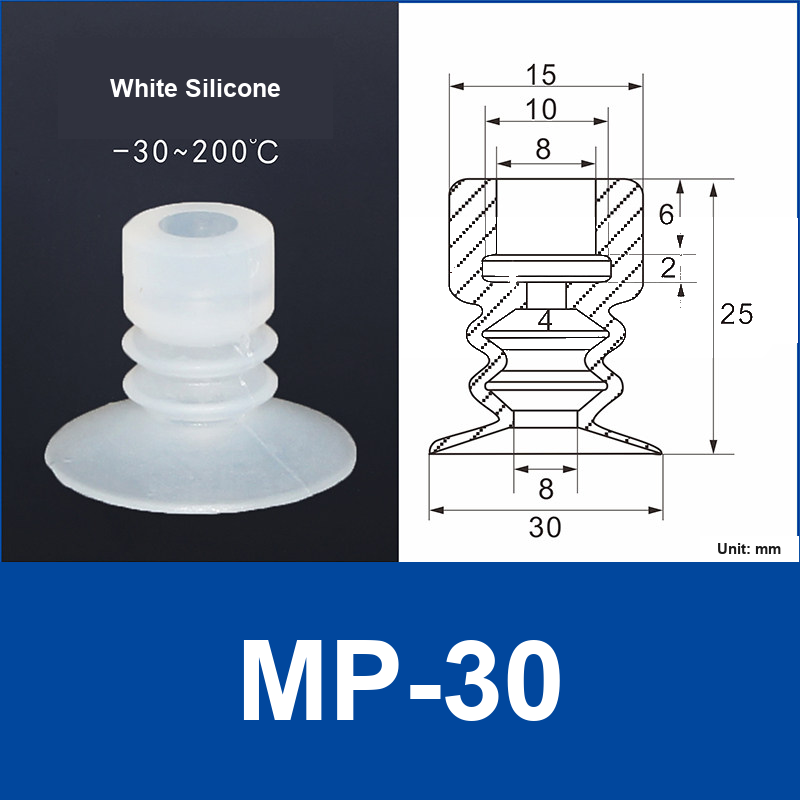

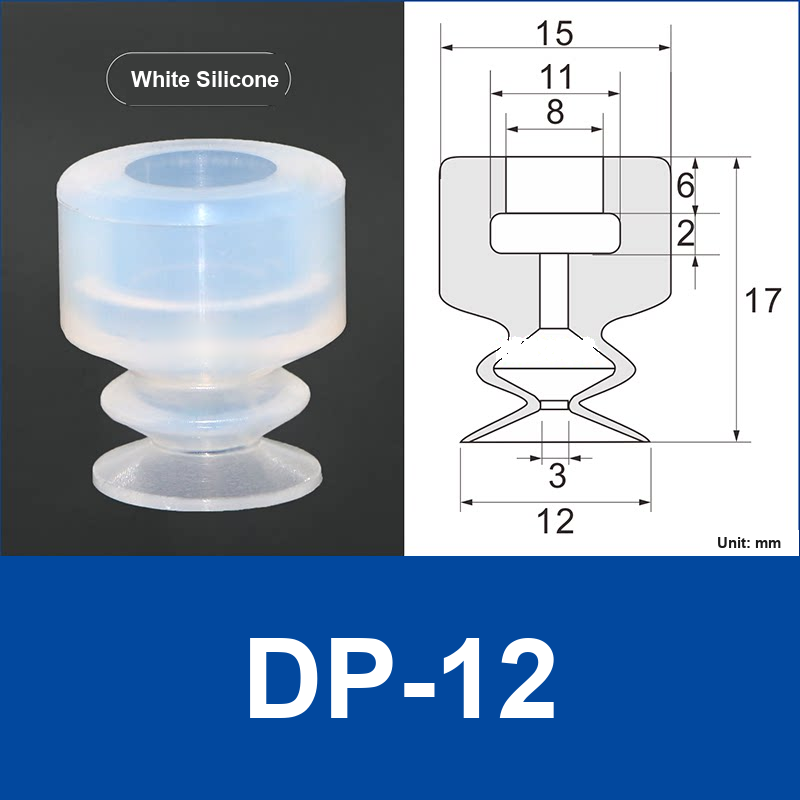

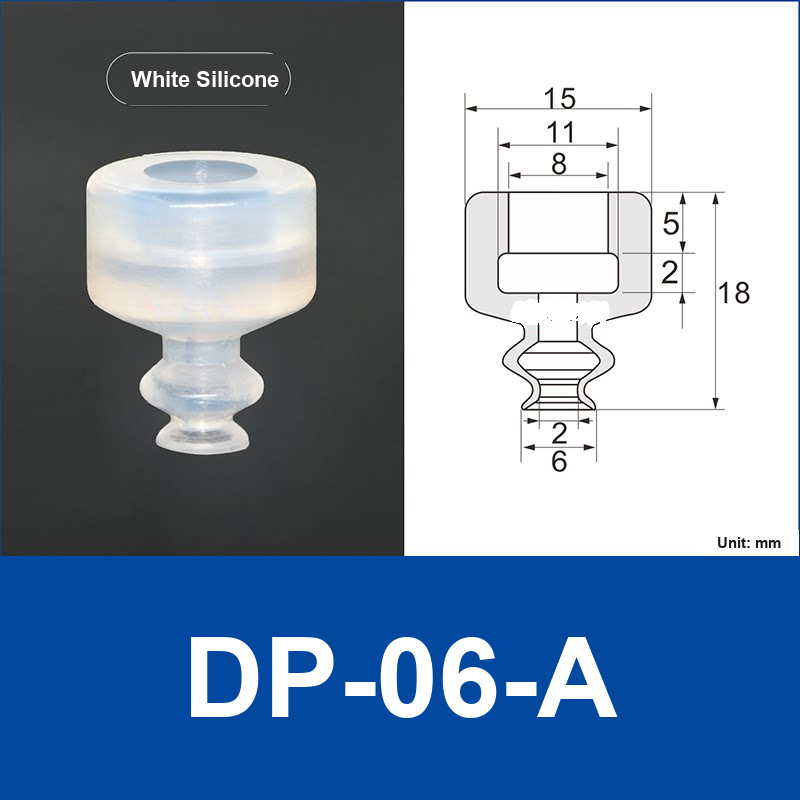

- SP single-layer, DP double-layer and MP triple-layer structures

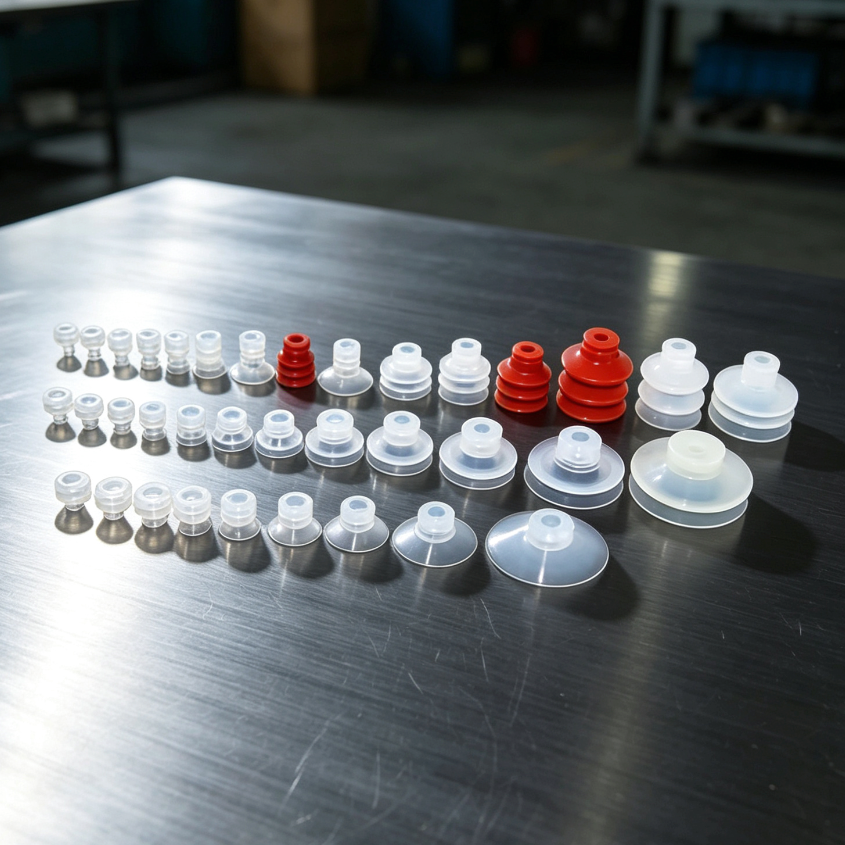

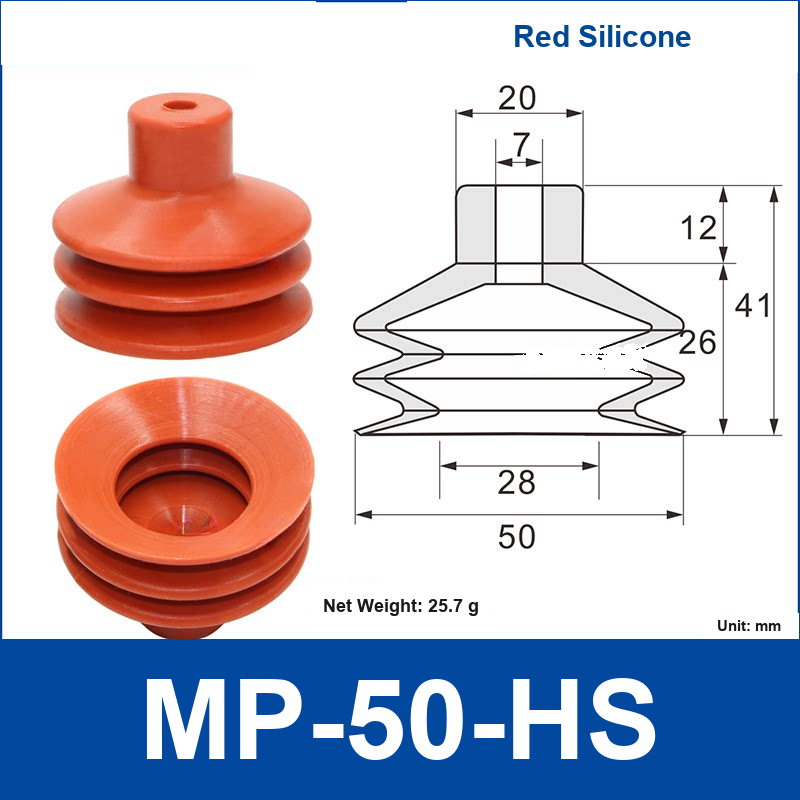

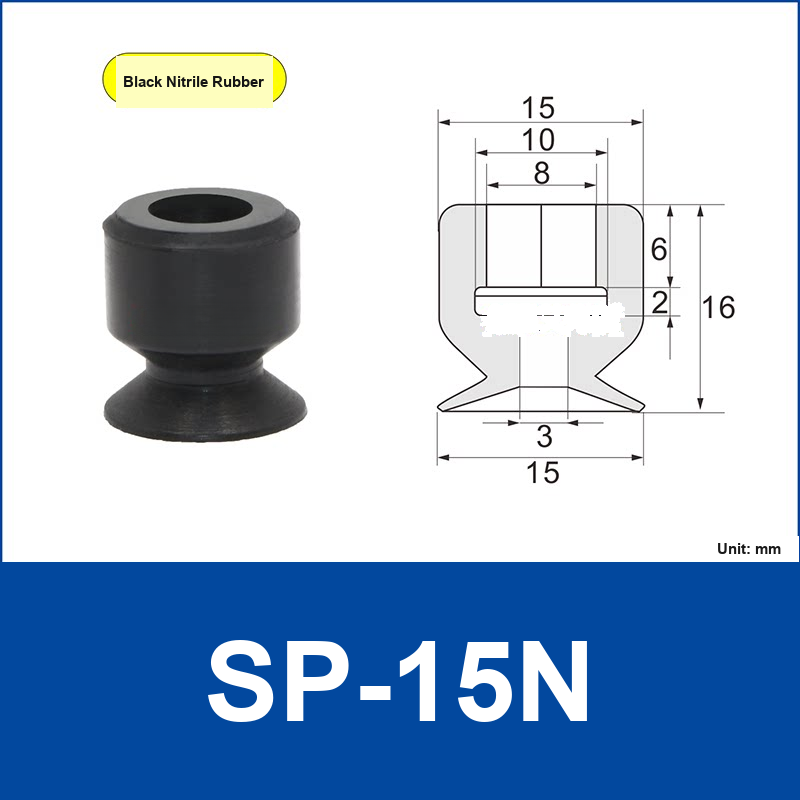

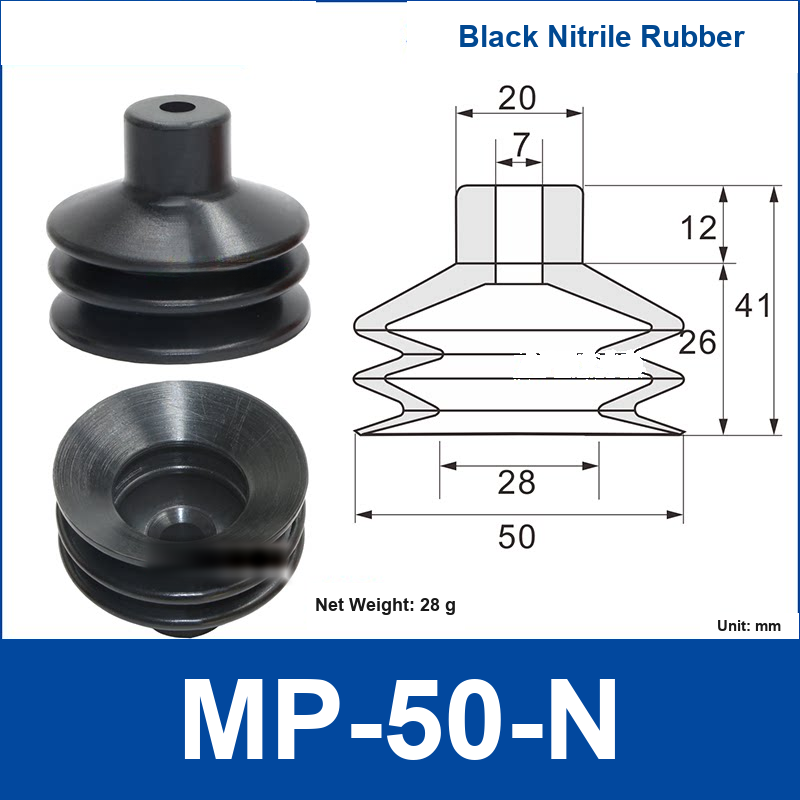

- White and red silicone or black nitrile rubber variants

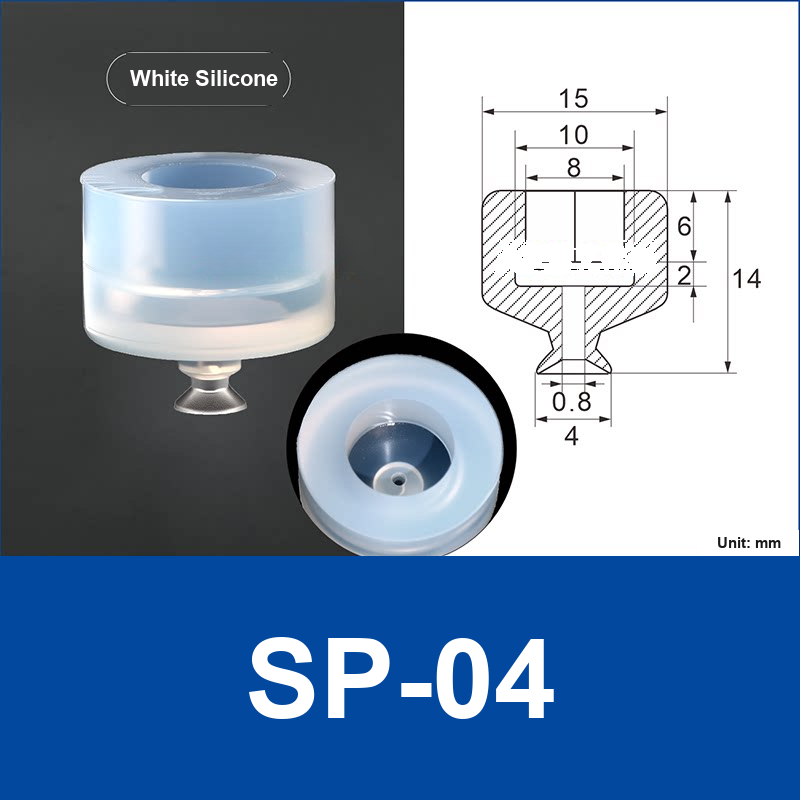

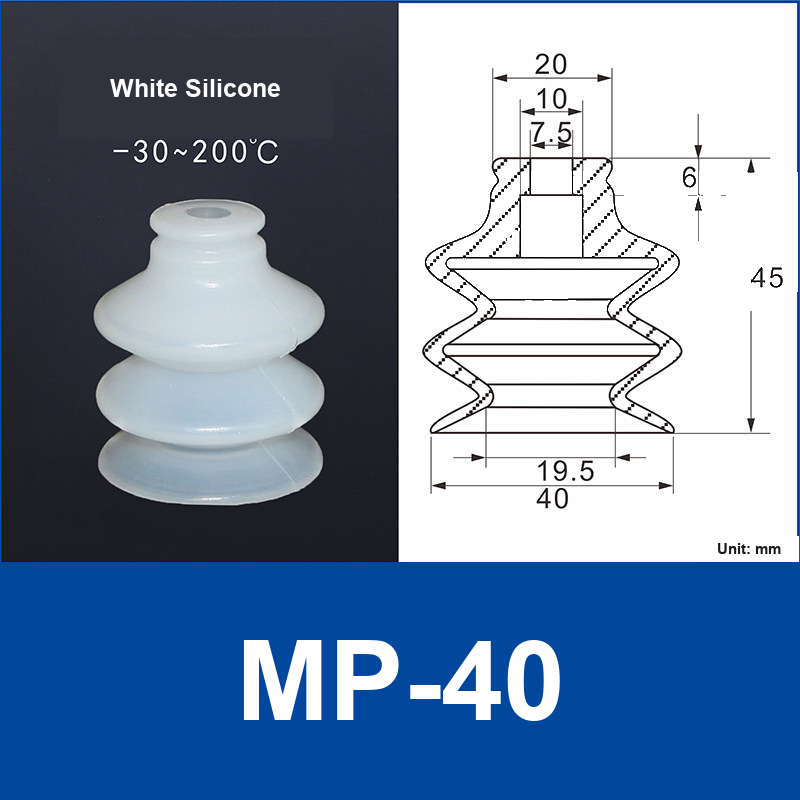

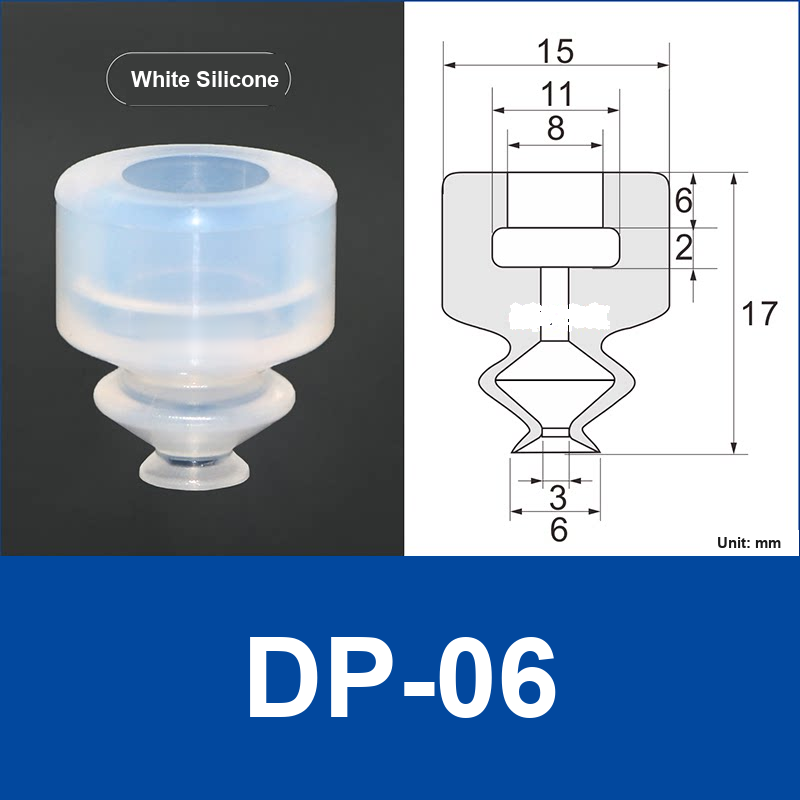

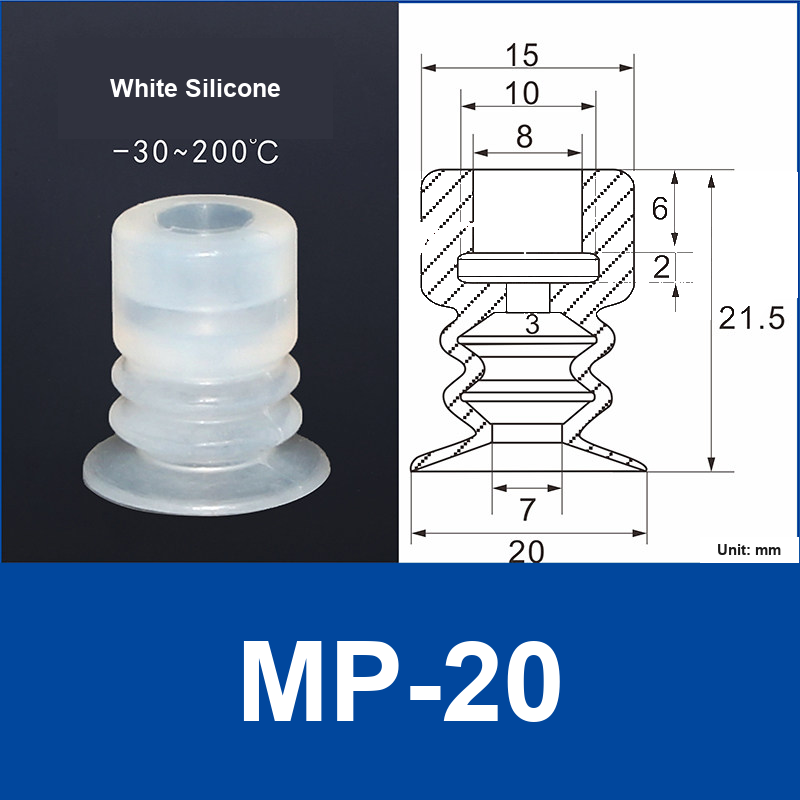

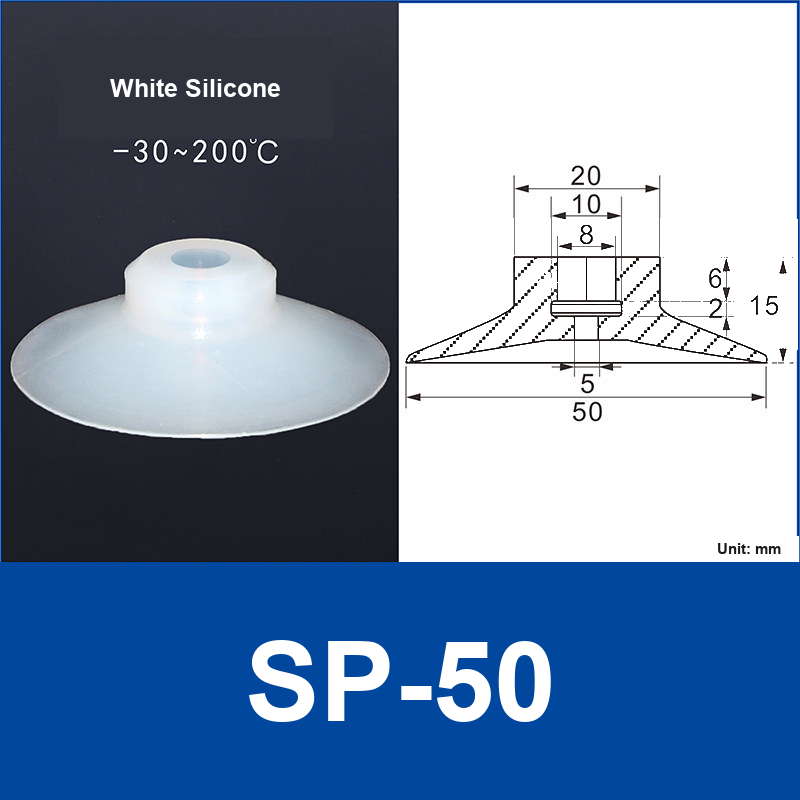

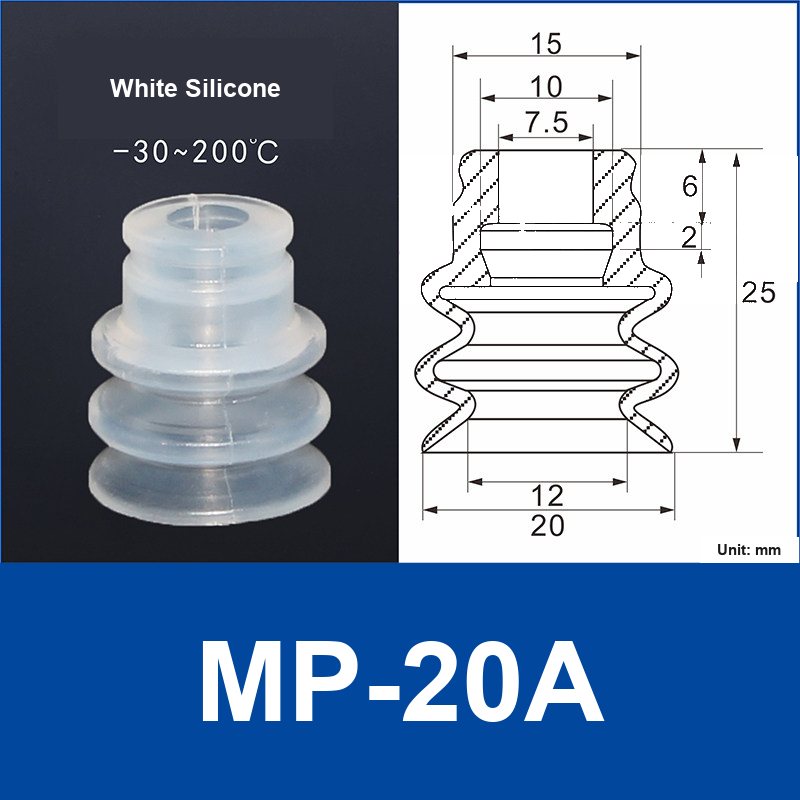

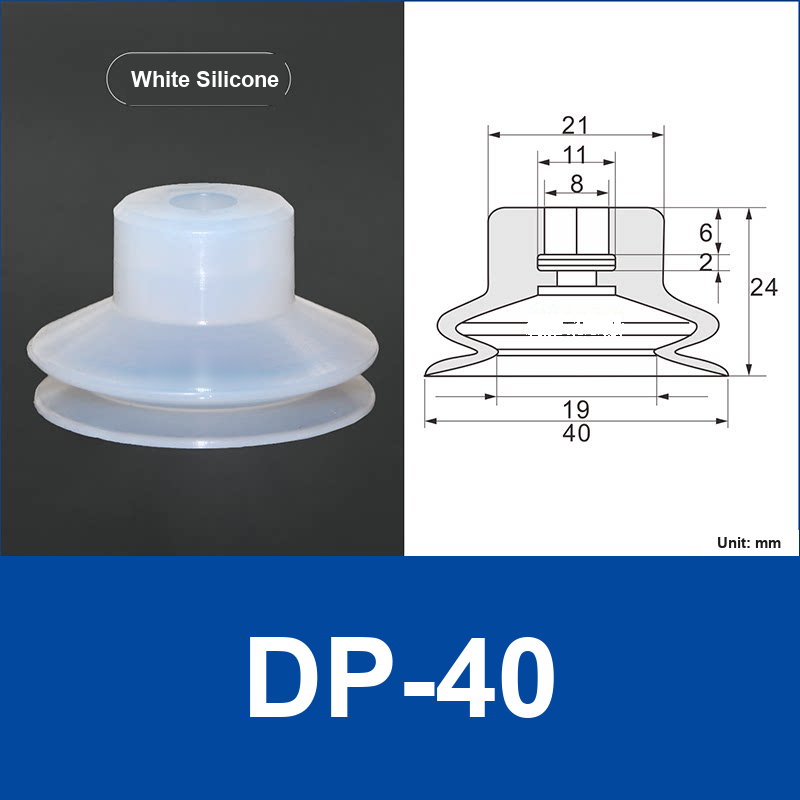

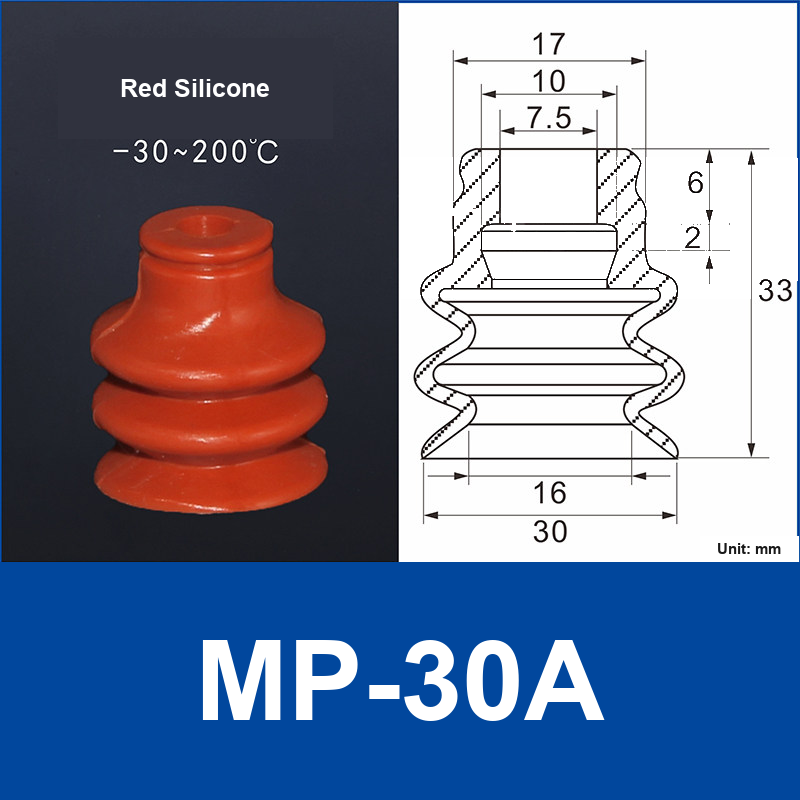

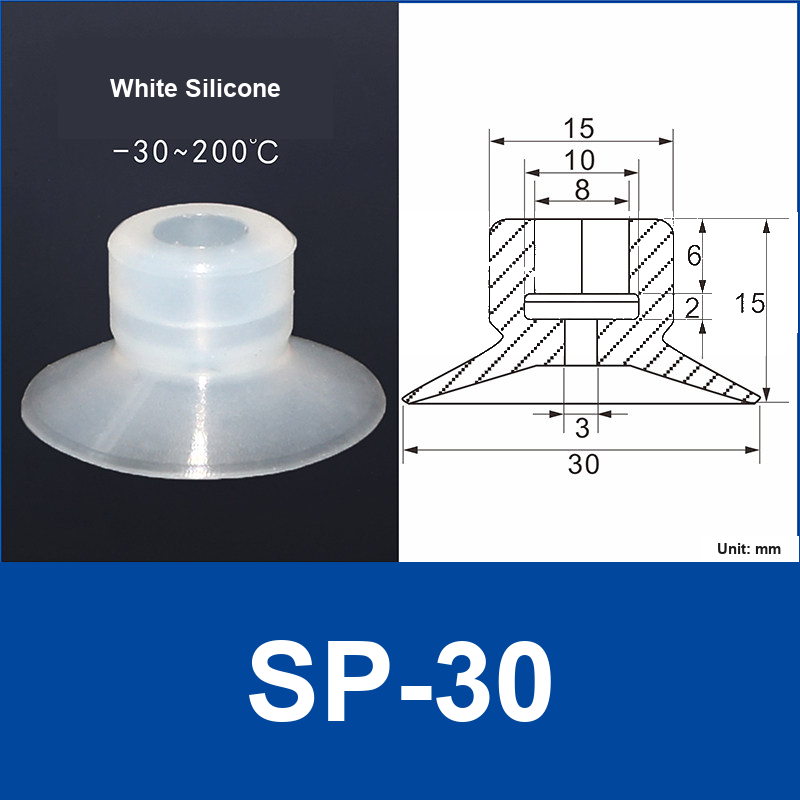

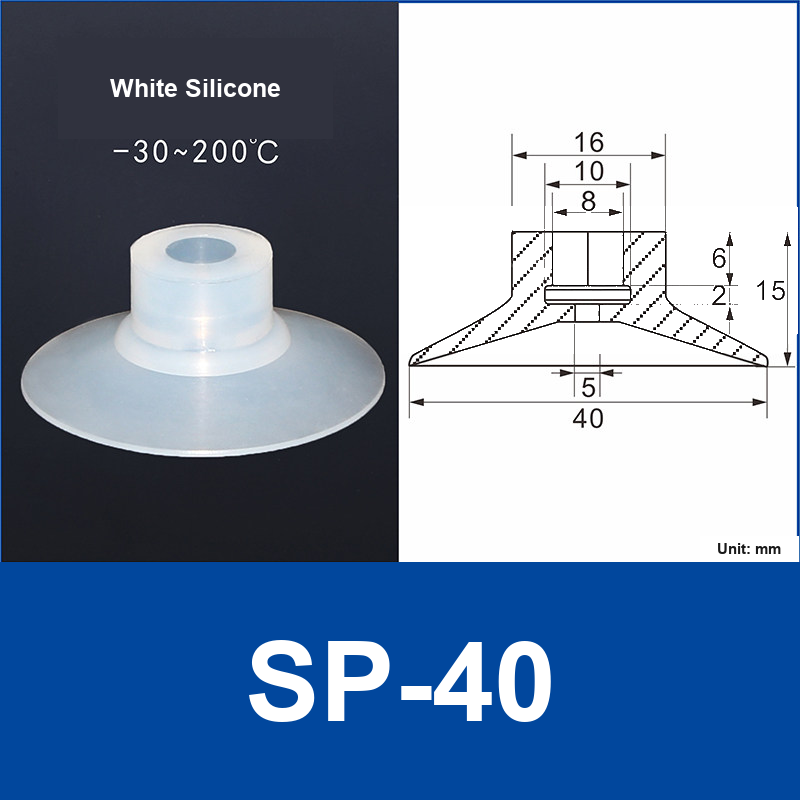

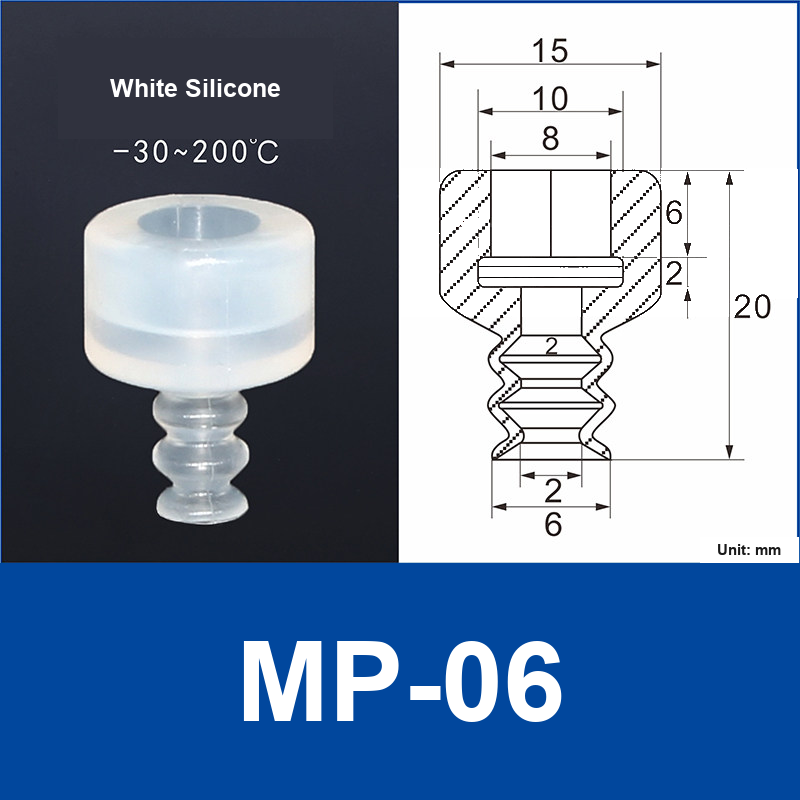

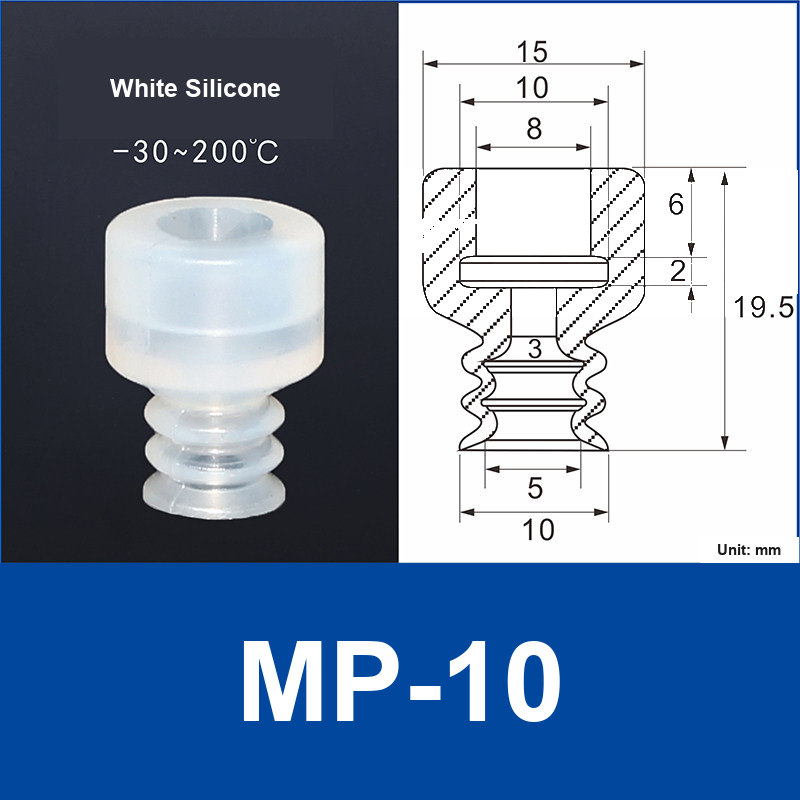

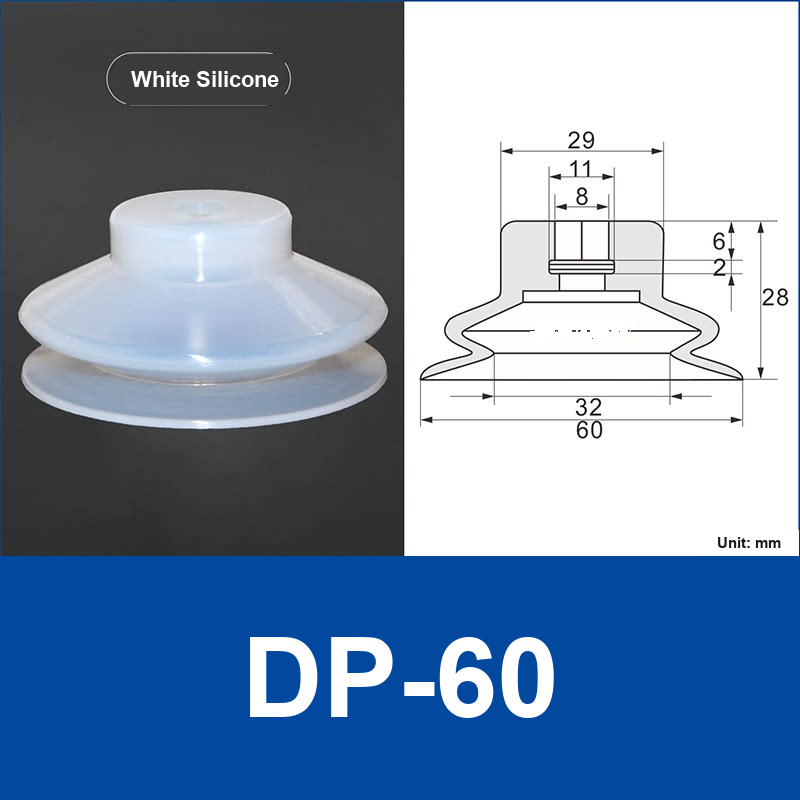

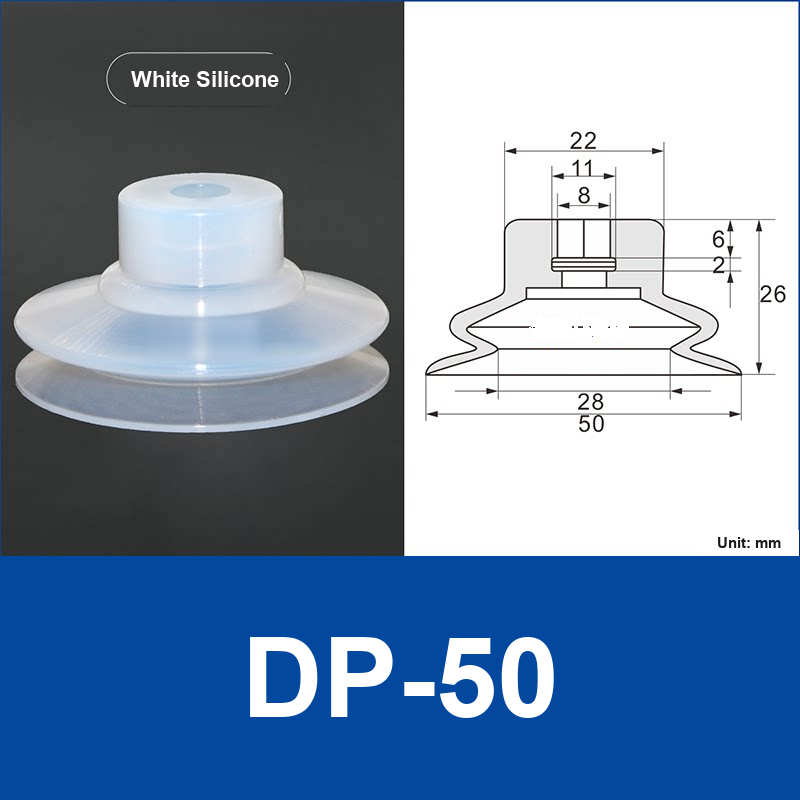

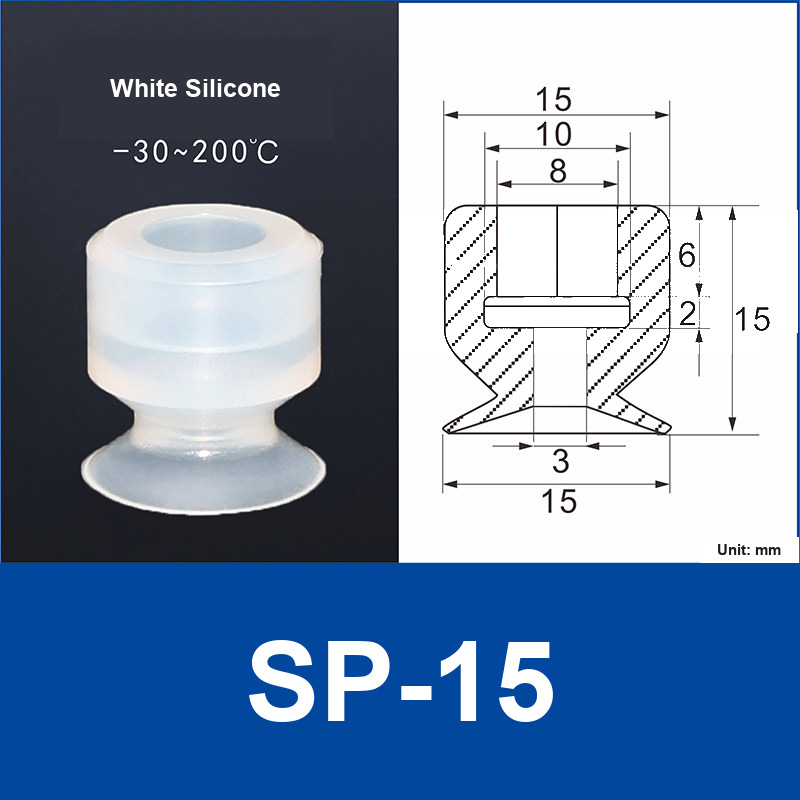

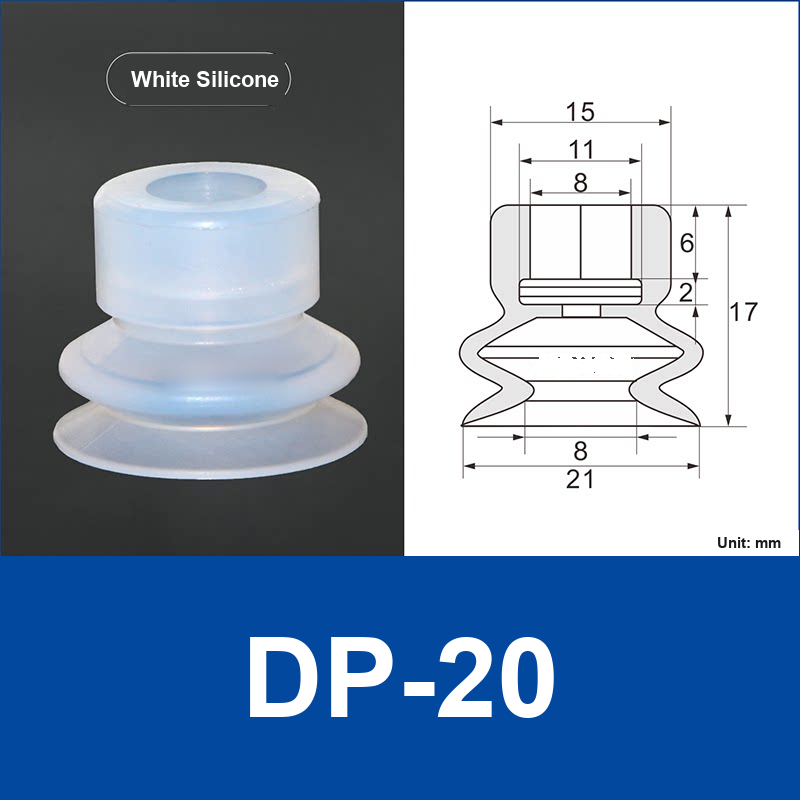

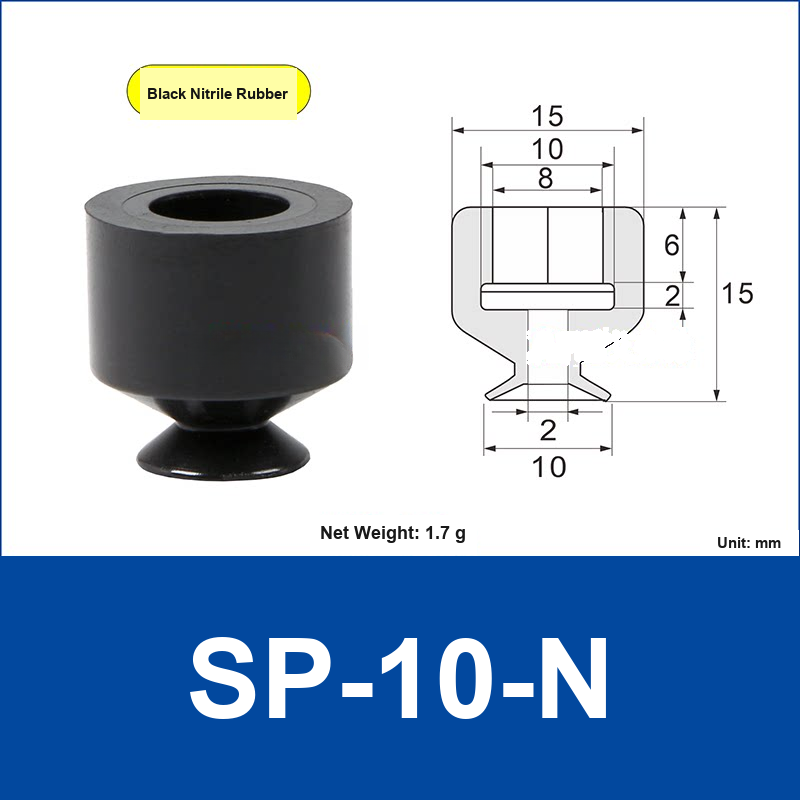

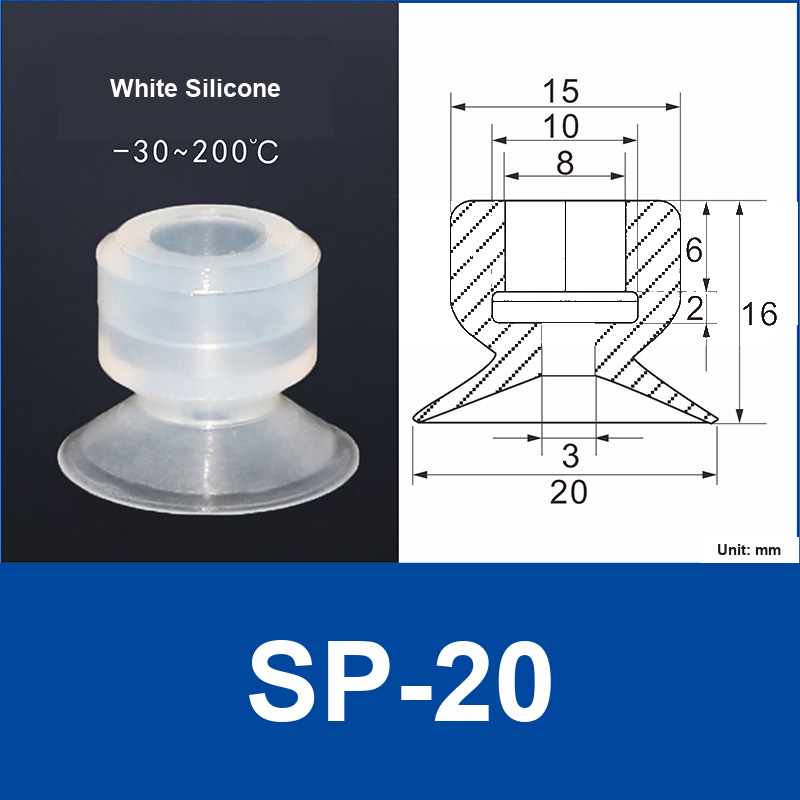

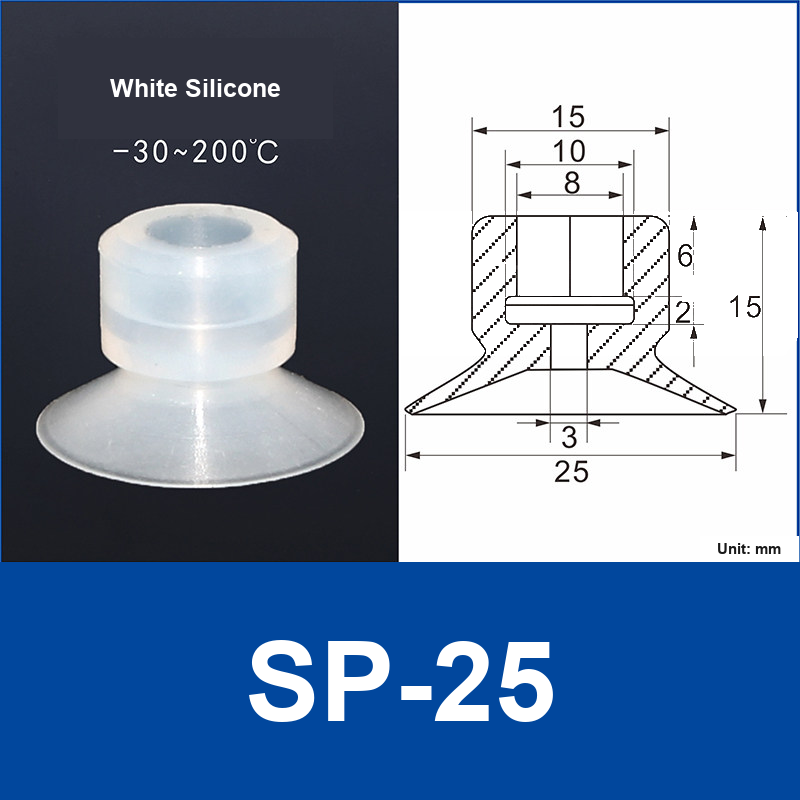

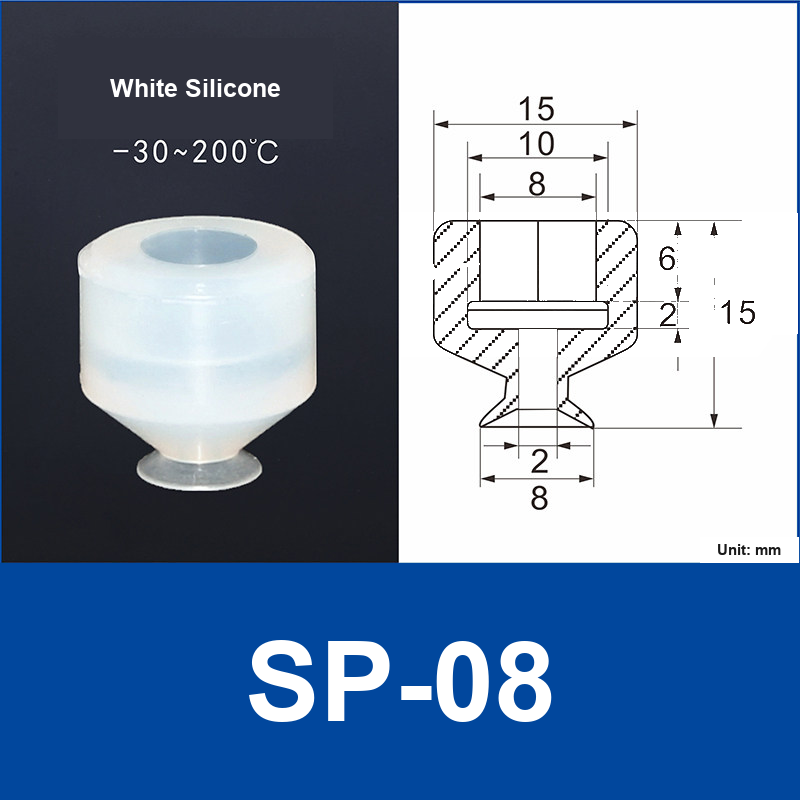

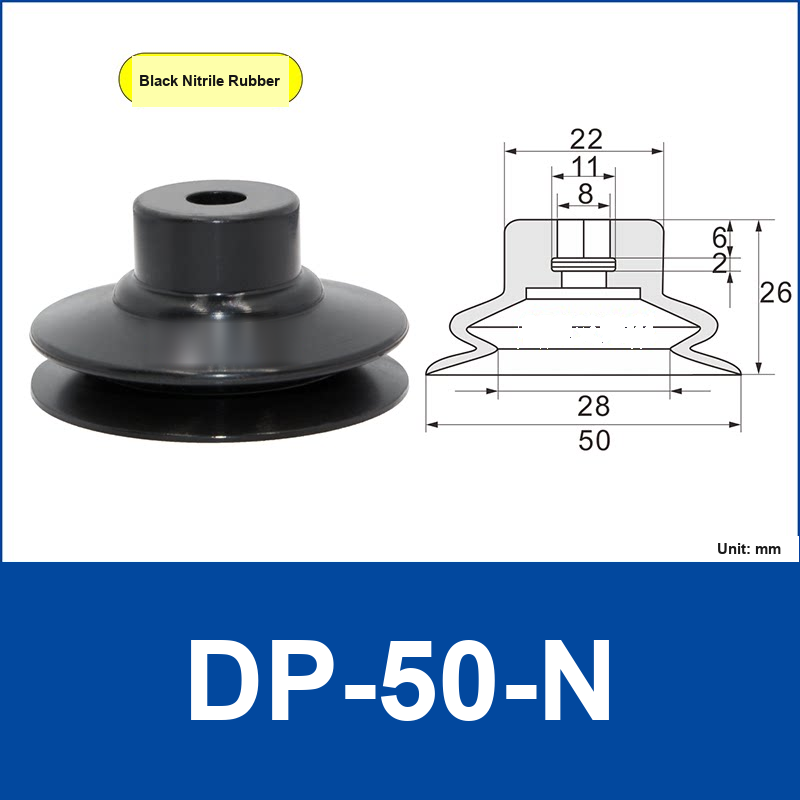

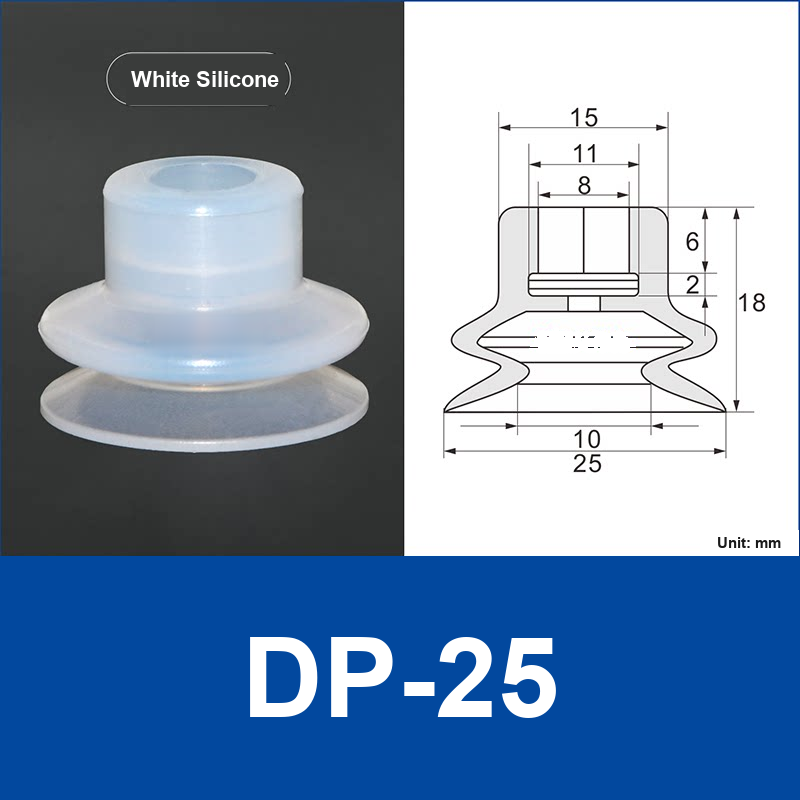

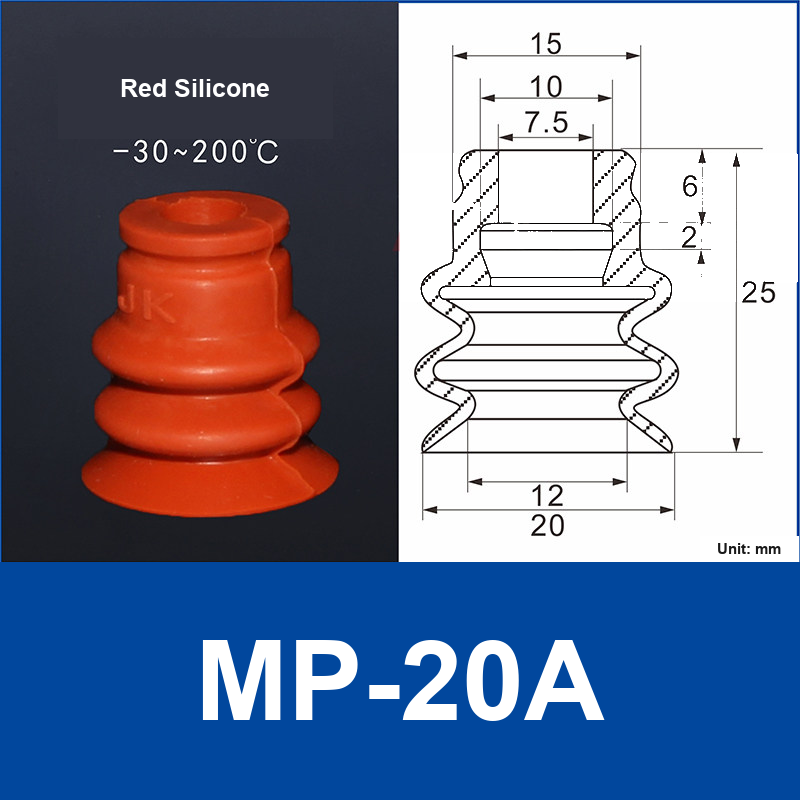

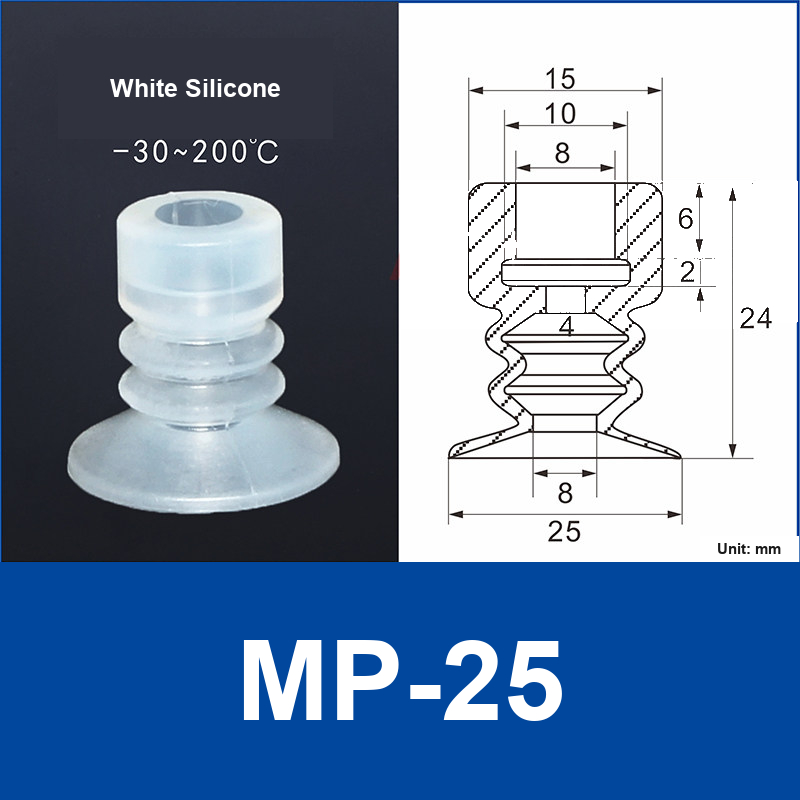

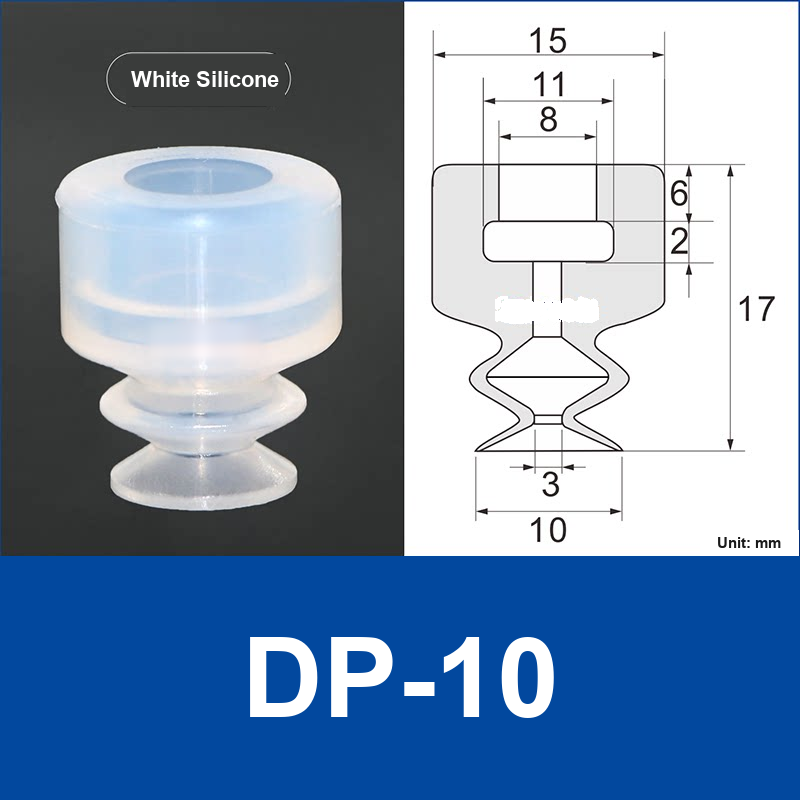

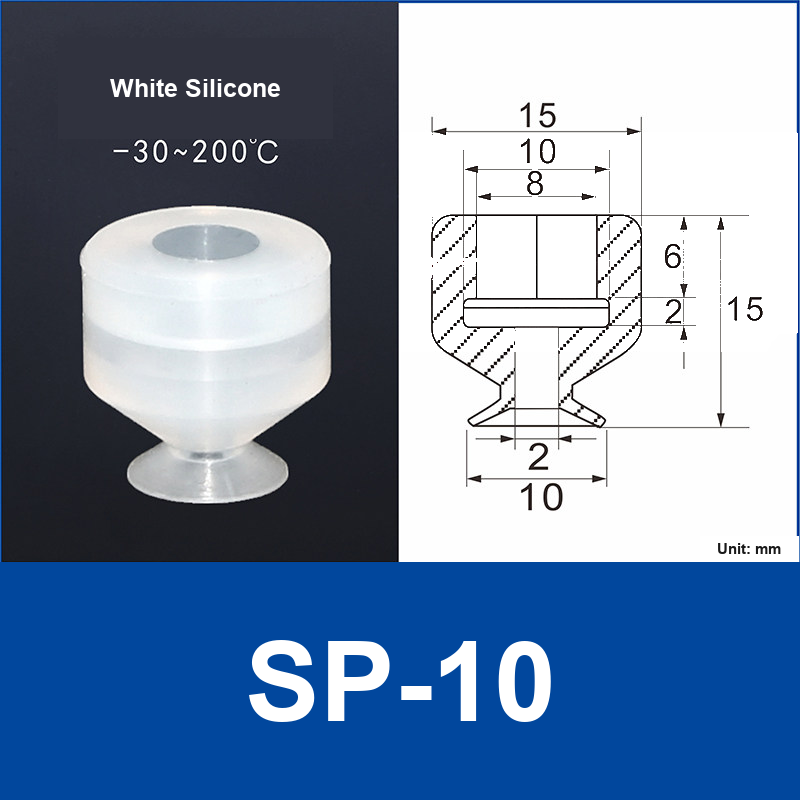

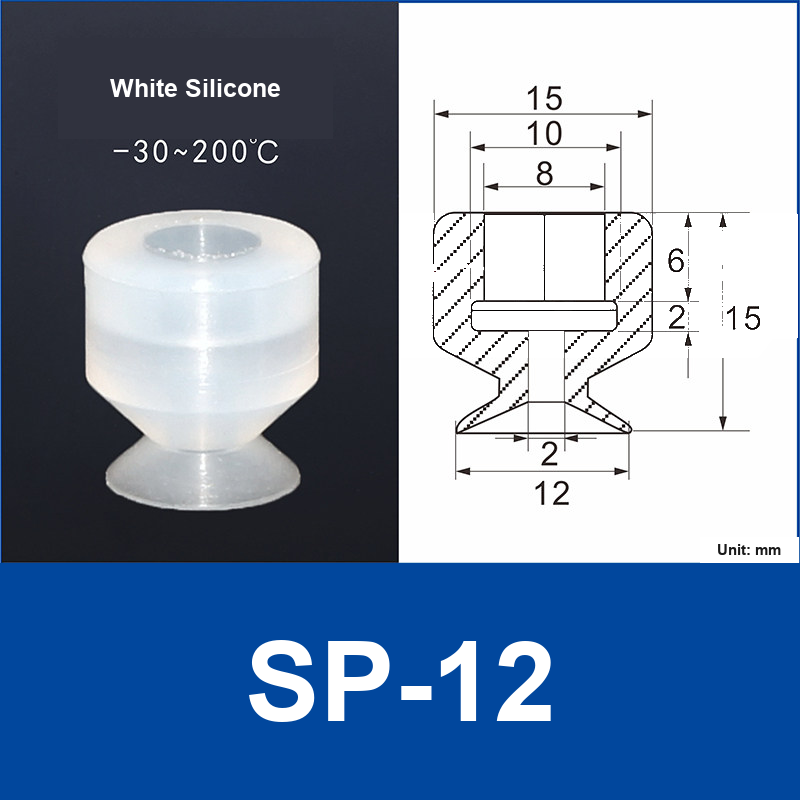

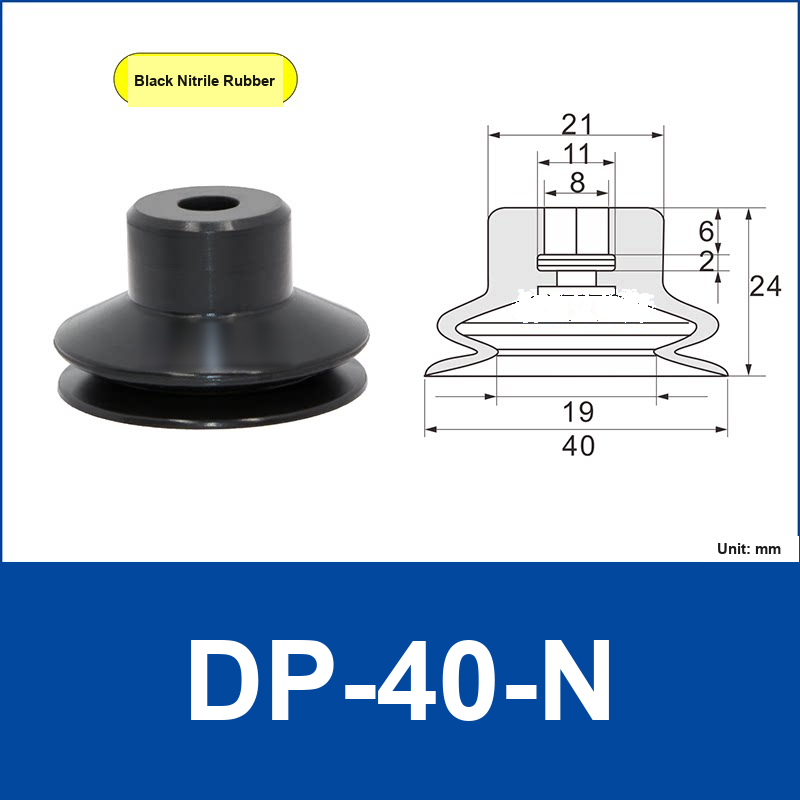

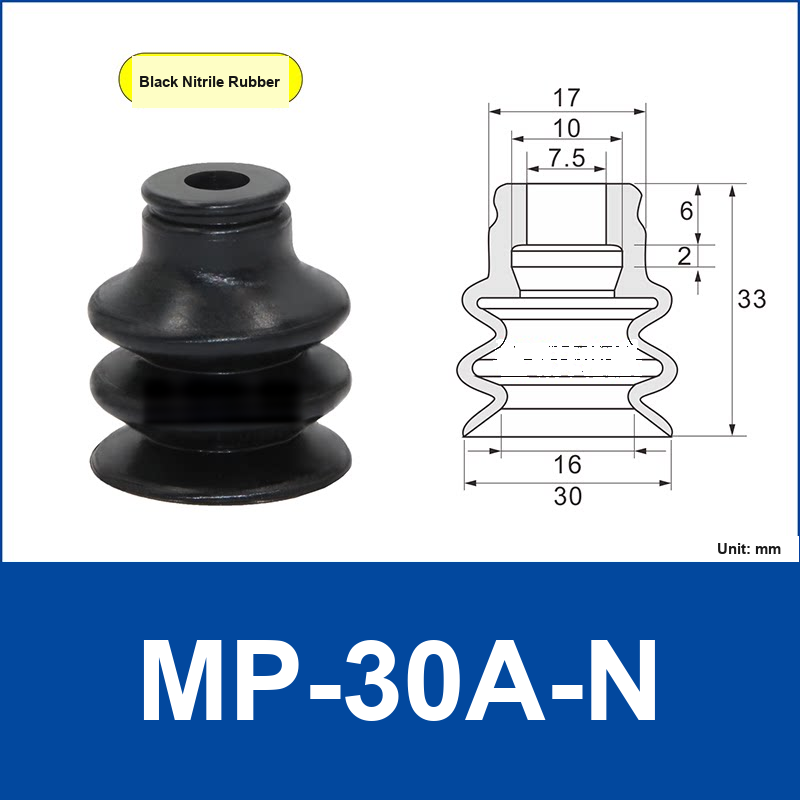

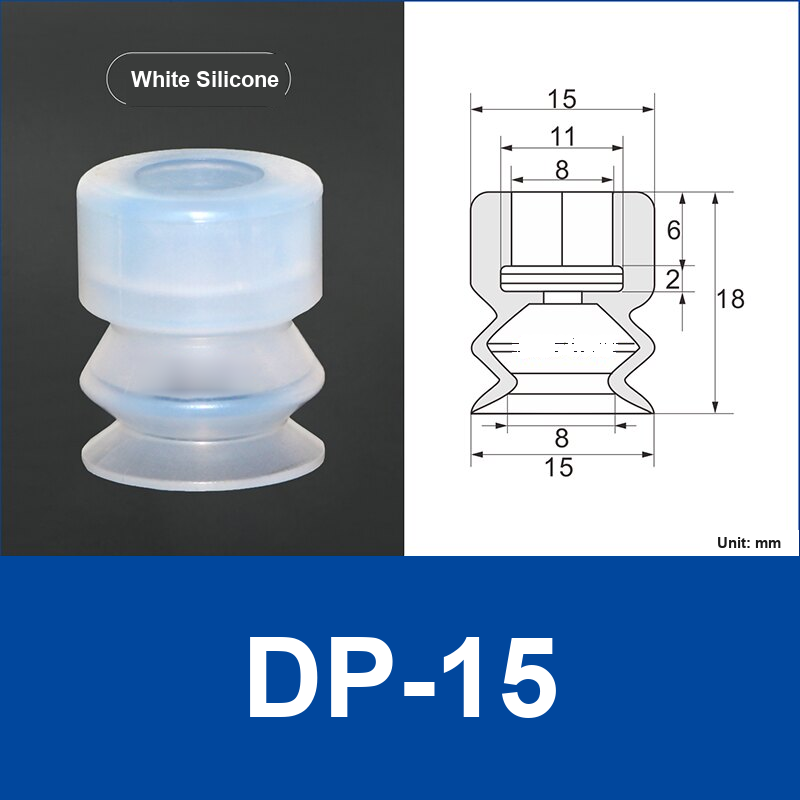

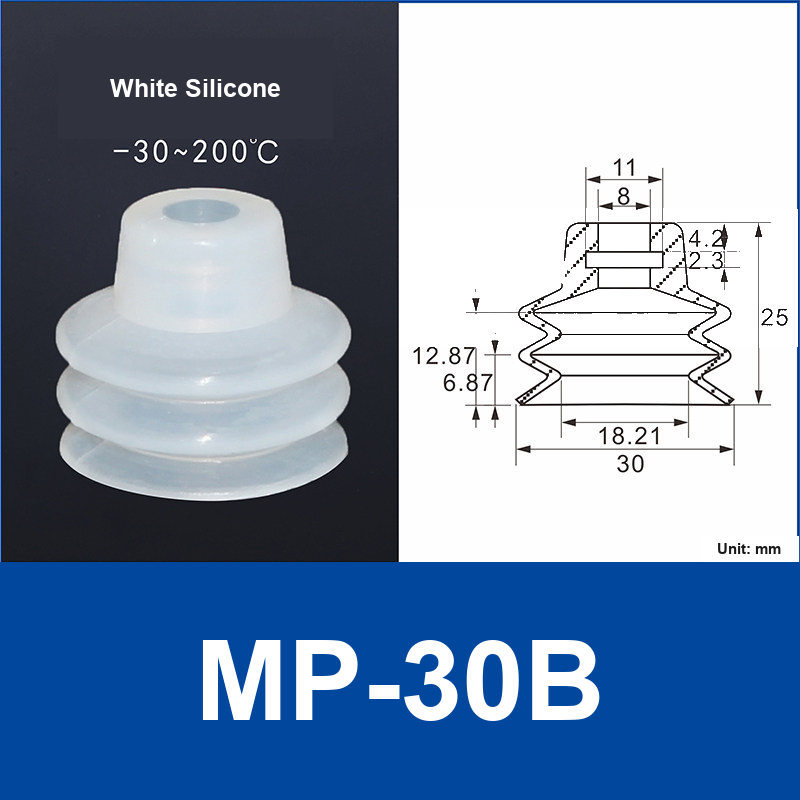

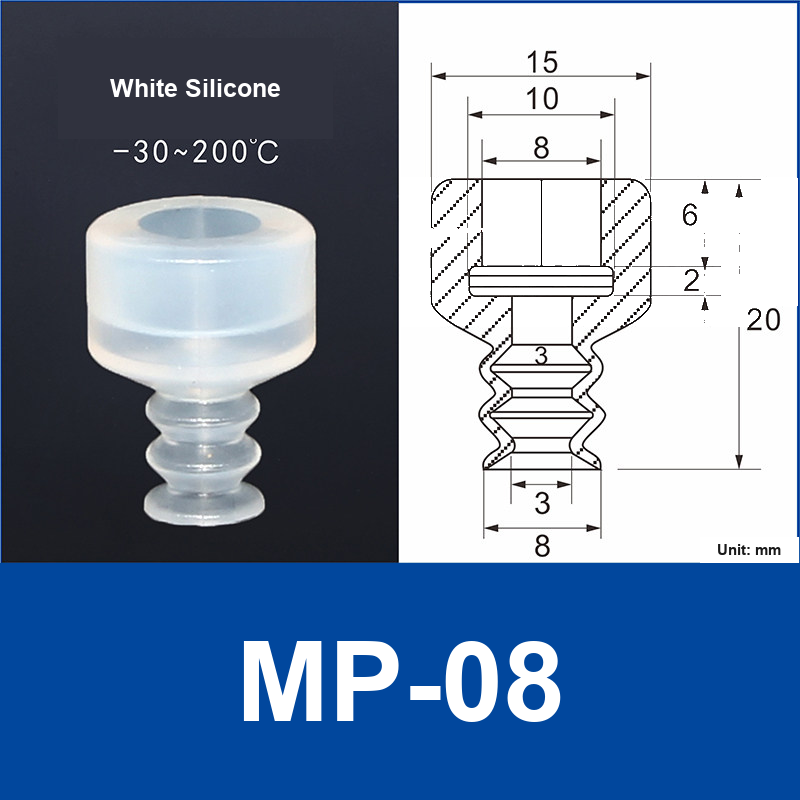

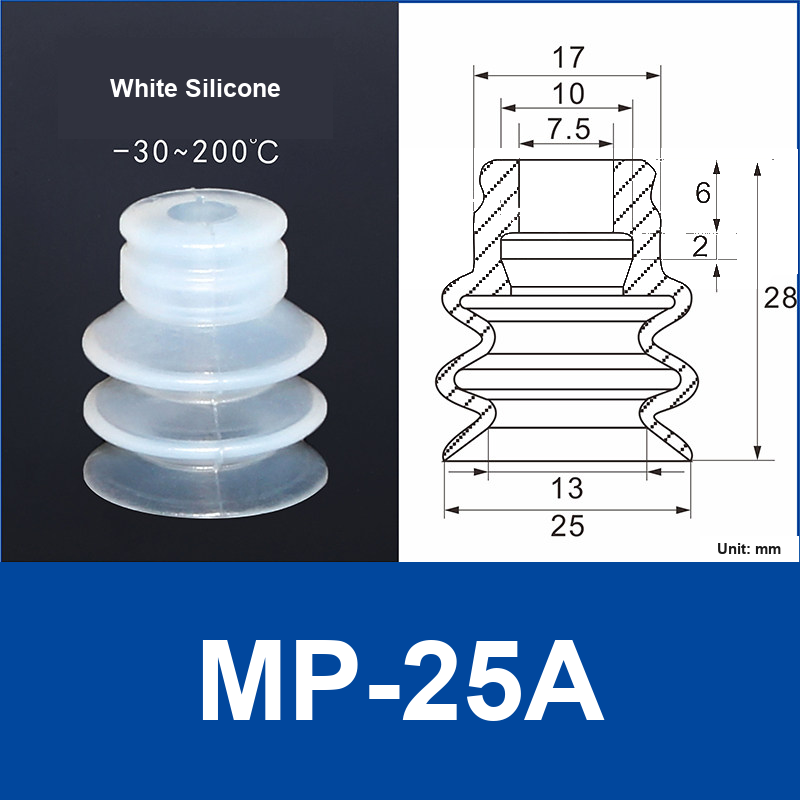

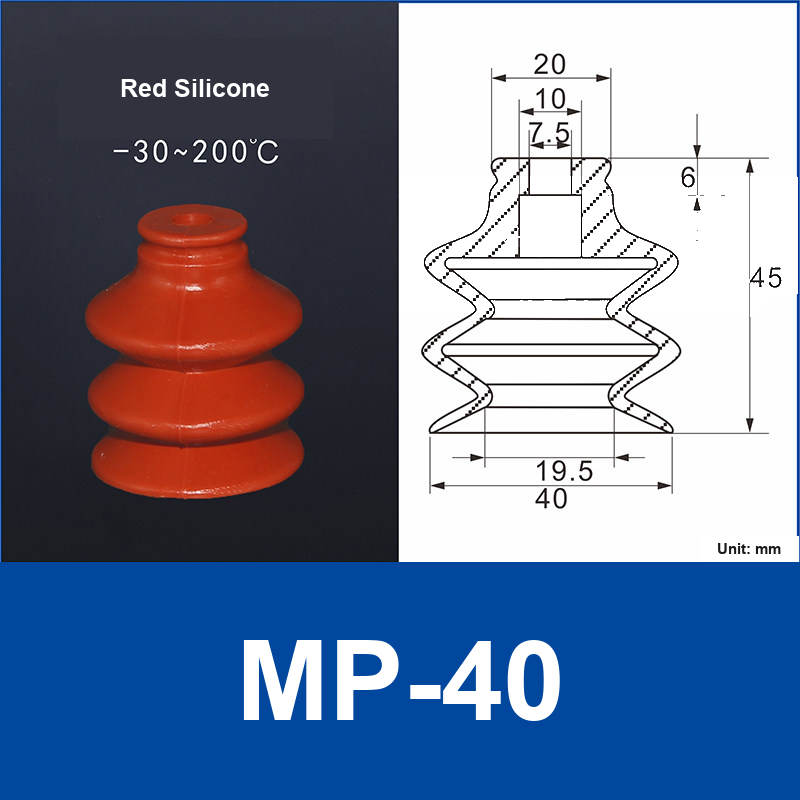

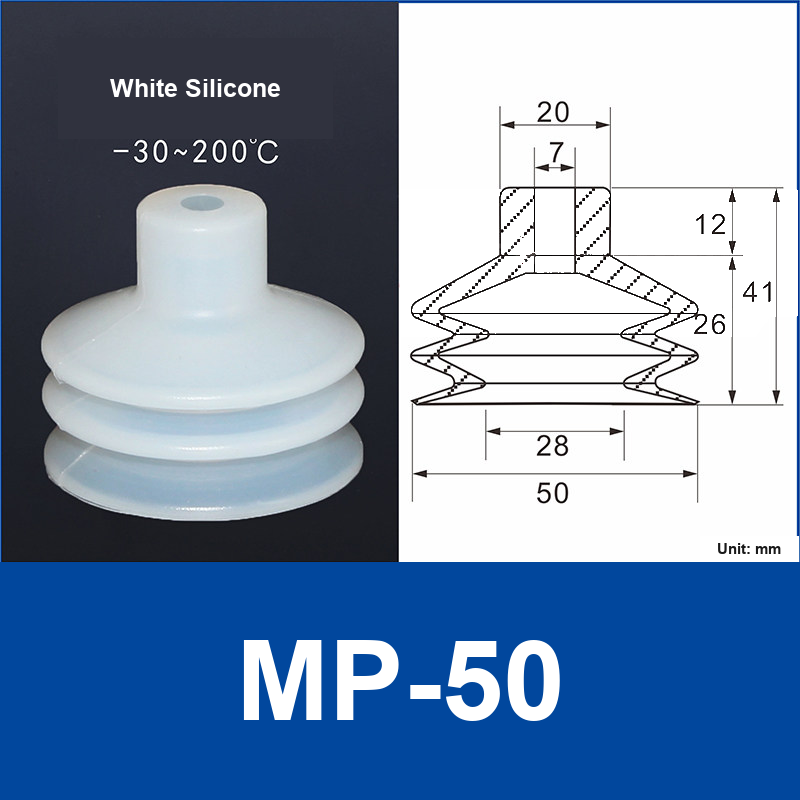

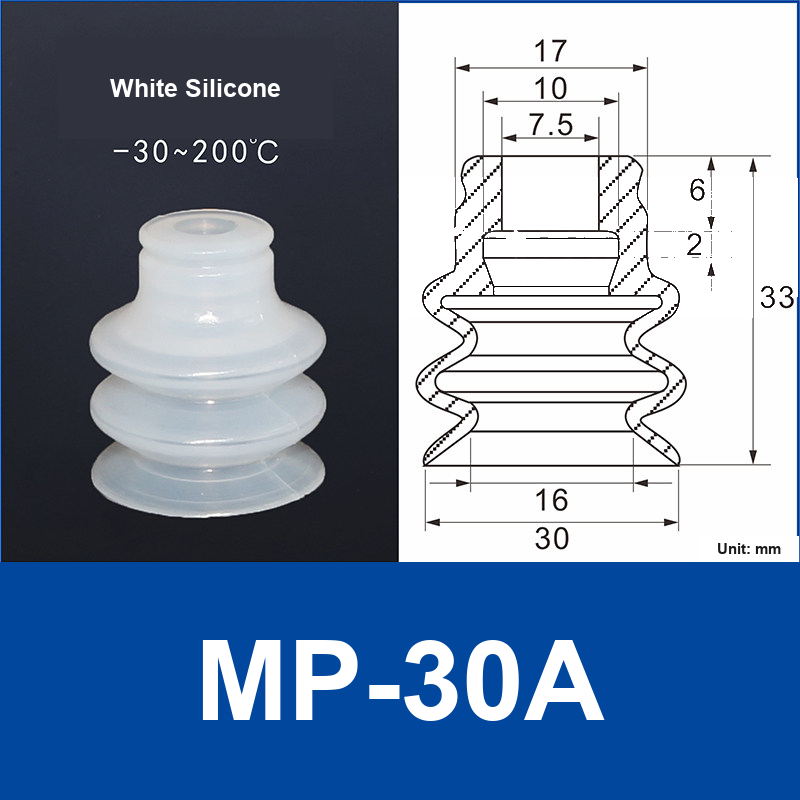

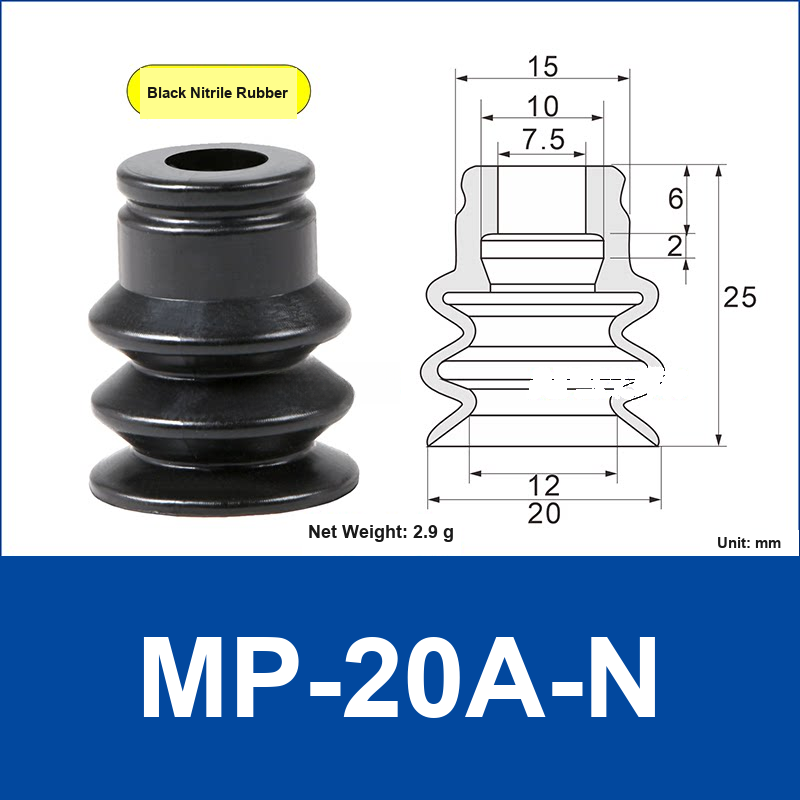

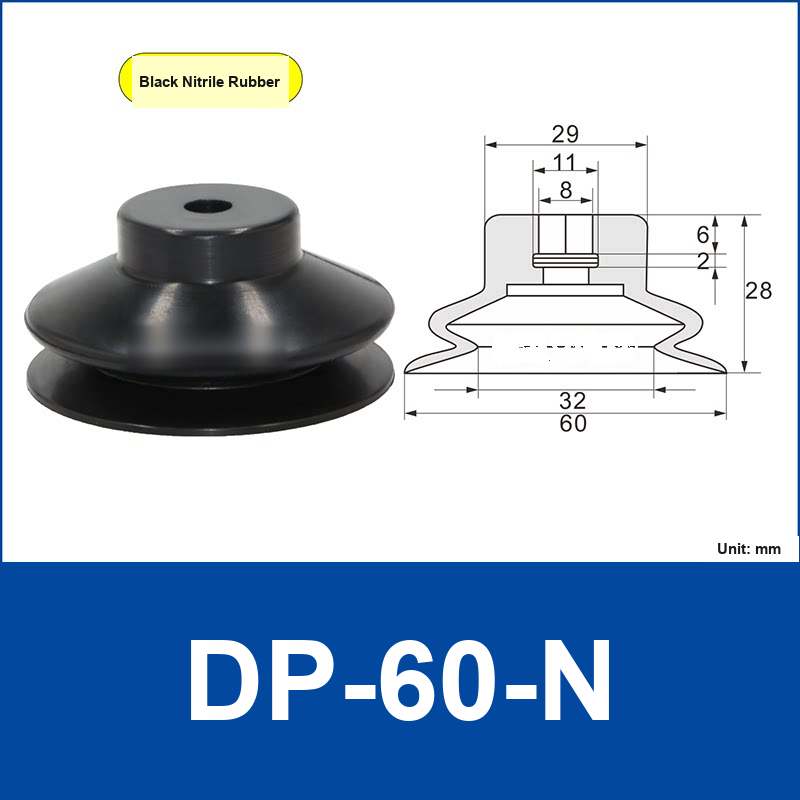

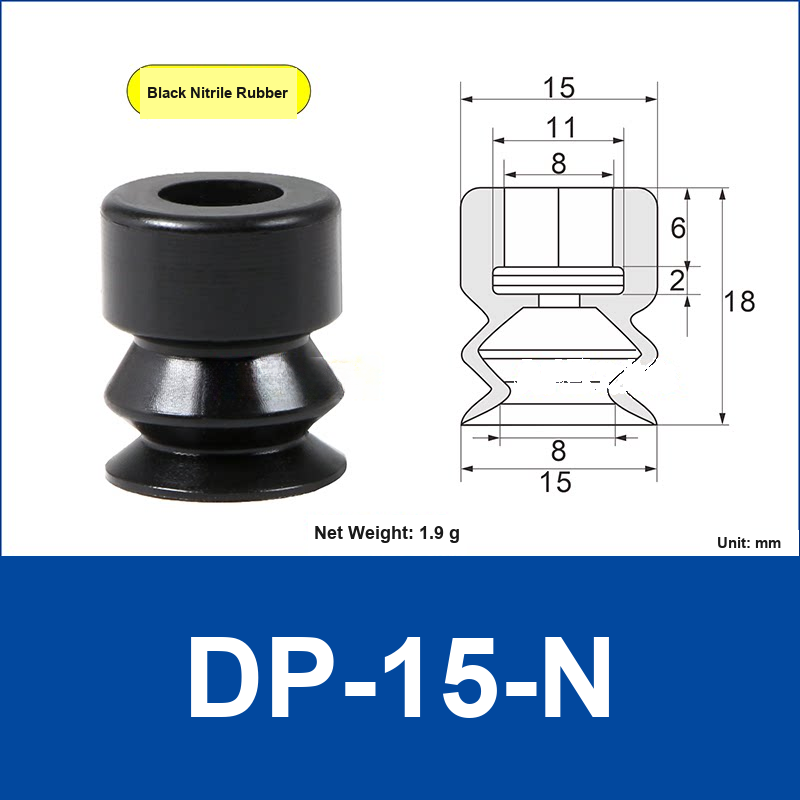

- Model-specific product views and dimensional drawings
Applications and Suitable Workpieces
SP DP MP Multi-Layer Silicone Vacuum Suction Cups: Bellows suction cups provide vertical stroke, damping and contour adaptation for parts with height variation, curvature or sensitive surfaces.
Recommended applications
- Curved or slightly uneven plastic parts, cartons, packaged goods, formed panels, glass and general industrial components.
- Mold unloading, machine tending, sorting, assembly and robotic pick-and-place where gentle contact is required.
- Multiple-cup grippers handling parts with small differences in height or position.
Model and selection notes
- SP is single-layer, DP double-layer and MP triple-layer. Select layer count, diameter and material according to required stability and height compensation.
- More bellows layers provide greater stroke and height compensation but can allow more lateral movement; select the profile for the required stability.
- Use the exact model dimensions and thread configuration shown in the product image when matching an existing holder.
- Holding force depends on sealing area, vacuum level, surface condition, acceleration and safety factor; test the actual workpiece.
