SMT+ and ZP2 Miniature Vacuum Cups for Pick-and-Place

SMT+ and ZP2 Miniature Vacuum Components

Compact black nitrile-rubber vacuum components for miniature parts, precision pick-and-place and space-limited automation.

Quick Model Finder

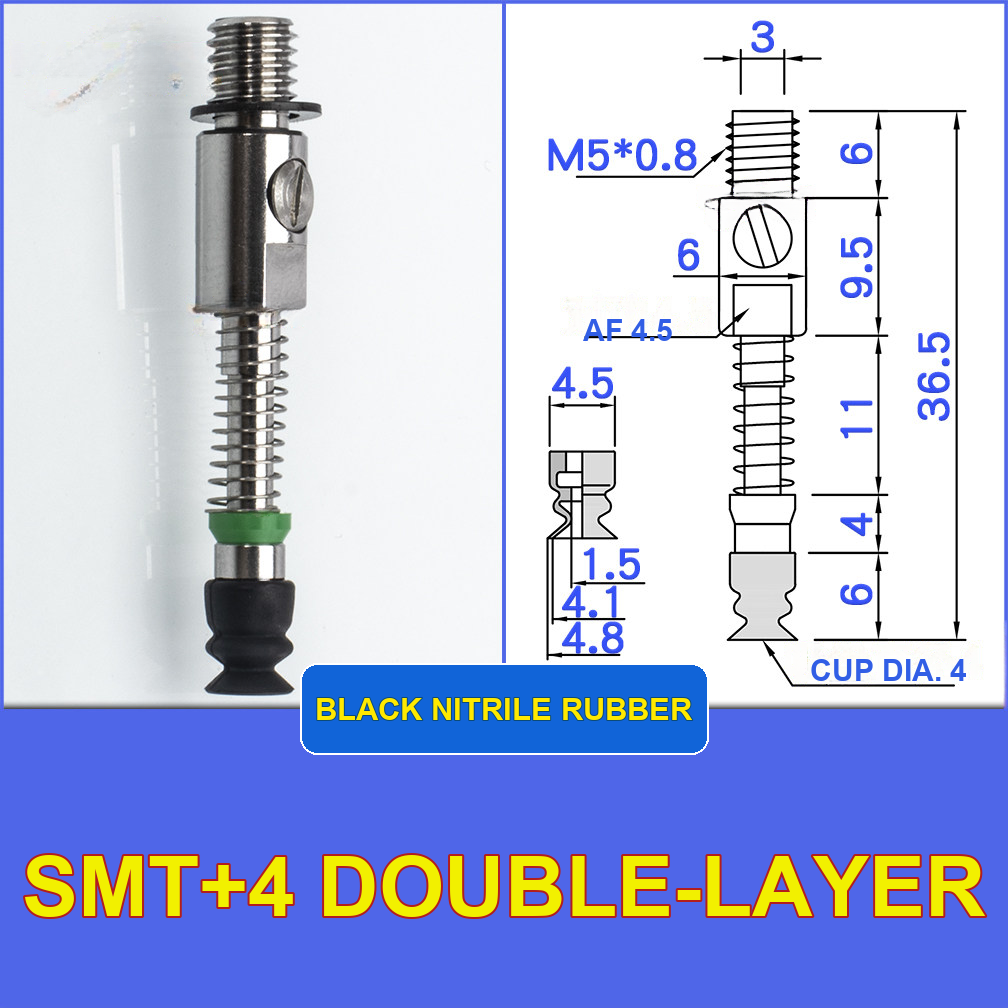

• SMT+ standard models: select the nominal 1.0, 1.5, 2.0, 3.5, 4.0 or 5.0 cup size, or the 4 mm double-layer profile.

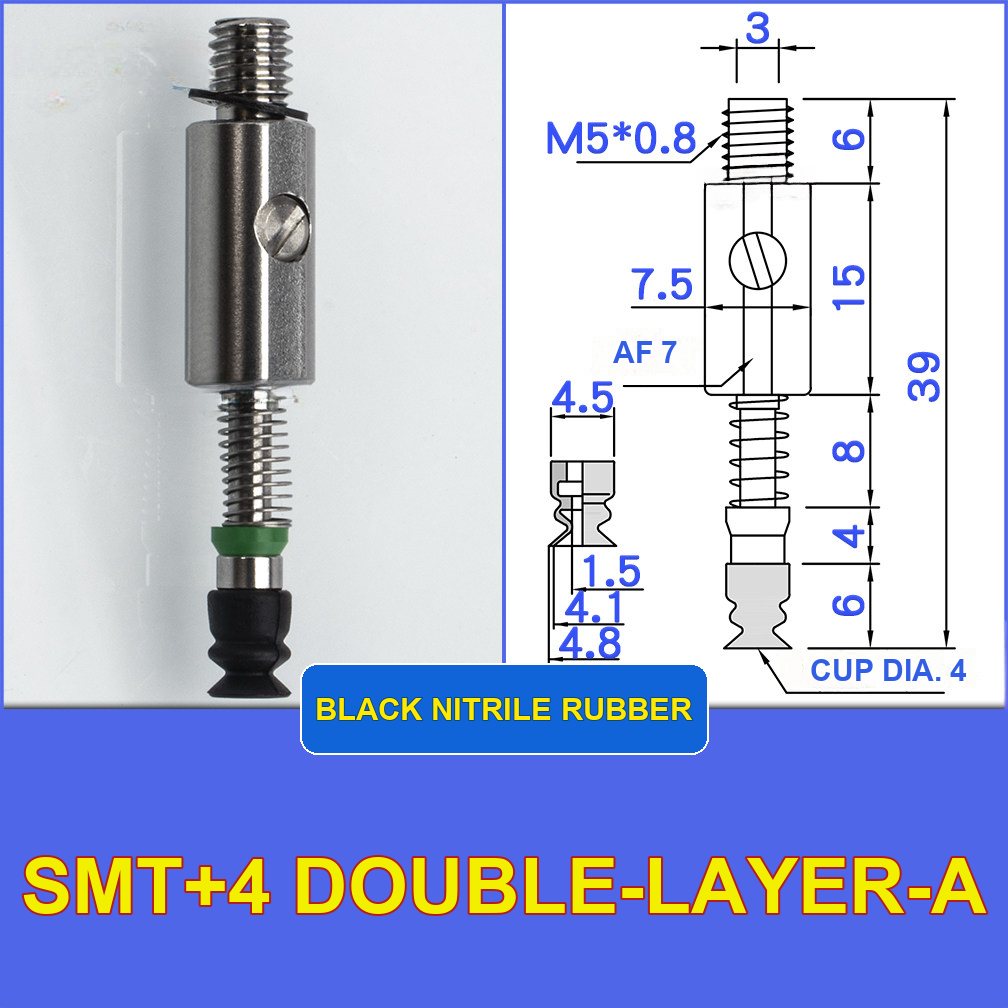

• SMT+ -A models: use the model-specific drawing to verify the longer body, AF 7 feature and installed height.
• ZP2 MUN models: compact flat short pad units; choose the exact B01, B015, B02, B035, B04 or B05 size.
• ZP2-B04MBN: bellows profile for applications that benefit from additional compliance.

Suitable for

• Miniature electronic and precision components
• Robotic pick-and-place, sorting and assembly
• Compact tooling with limited installation space

Before Use

Confirm the complete model code and its selected drawing, cup profile, material, mounting interface, vacuum path, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
