SMBE1 Mechanical Arm Fixture Shaft Clamps

SMBE1 Mechanical Arm Fixture Shaft Clamps

SMBE1 shaft-clamp fixture assemblies for mechanical-arm tooling, optical-shaft support and compact industrial positioning equipment. Select the exact model code shown in the product image to match the required clamp diameter and overall dimensions.

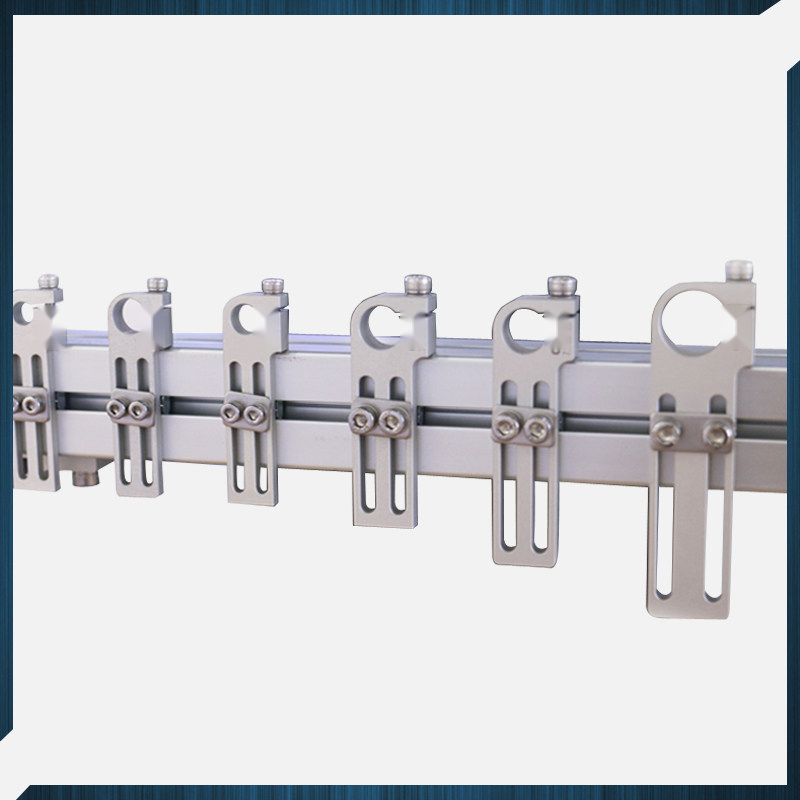

• Seven SMBE1 model configurations: 0840T, 1040T, 1240T, 1440T, 1450T, 2060T and 3060T
• Machined metal fixture body with slotted adjustment and dual fasteners
• Model-specific bore, width, length, thickness and height callouts remain visible in each drawing

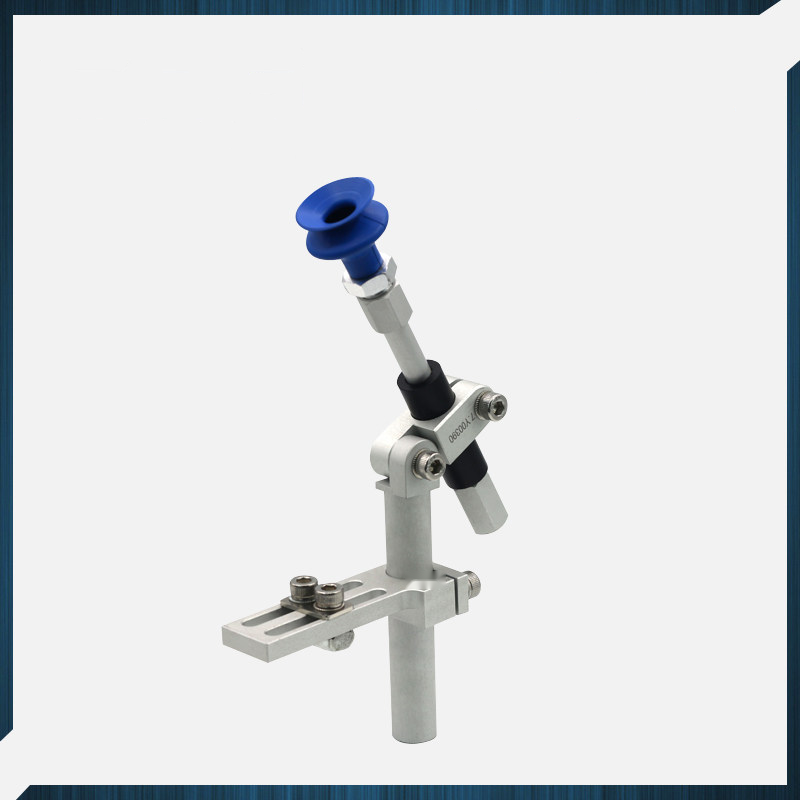

• Compact connection geometry for compatible mechanical-arm and shaft-clamp installations
• Each selectable model is represented by its corresponding technical image

Applications / Suitable For

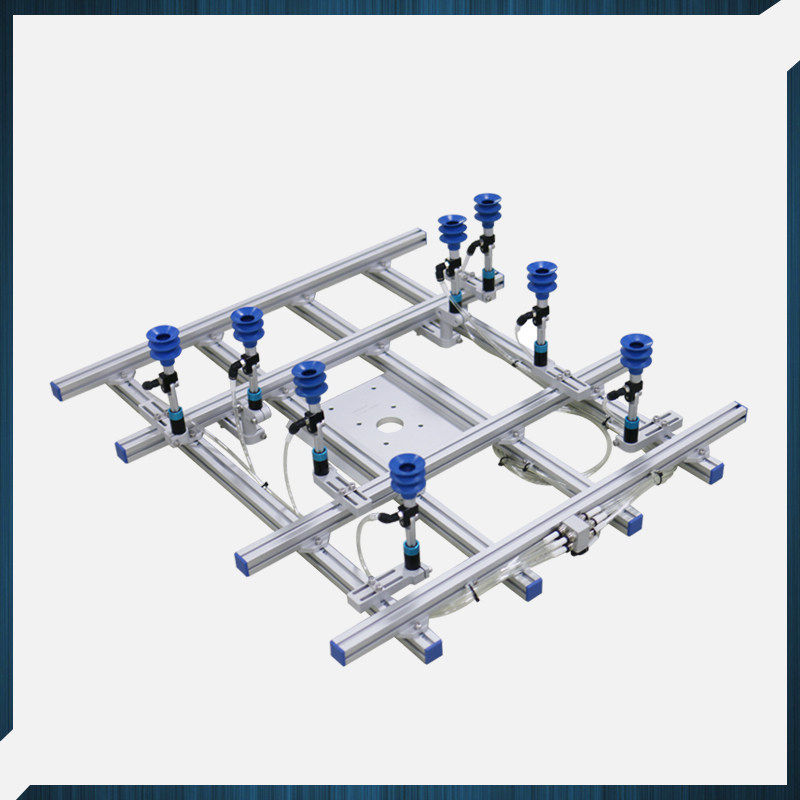

• Mechanical-arm fixtures and optical-shaft positioning
• Industrial automation, inspection and transfer equipment
• Adjustable brackets where a compact slotted clamp is required

Confirm the selected model drawing, shaft diameter, mating hardware, load, fastening torque, clearance and operating environment before use. No lifting-safety, food-contact, medical or regulatory certification is claimed.
