BOLTTE SMBA Cross-Connection Aluminum Profile Clamps — 18–80 mm

BOLTTE SMBA Cross-Connection Aluminum Profile Clamps

Aluminum clamp assemblies designed to secure intersecting profiles or square sections in industrial frames, fixtures and machine structures. Select the model that matches both profile sizes shown in the corresponding engineering drawing.

Product features

• Cross-connection design for joining two intersecting profiles.

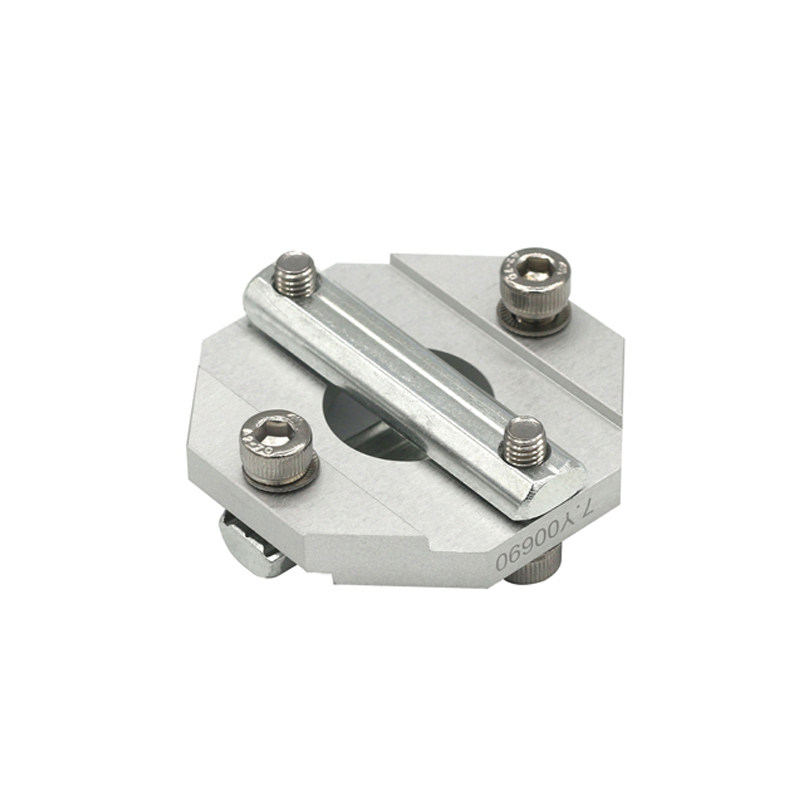

• Aluminum body with fastening hardware shown in the model image.
• Model combinations cover profile sizes from 18 mm to 80 mm.

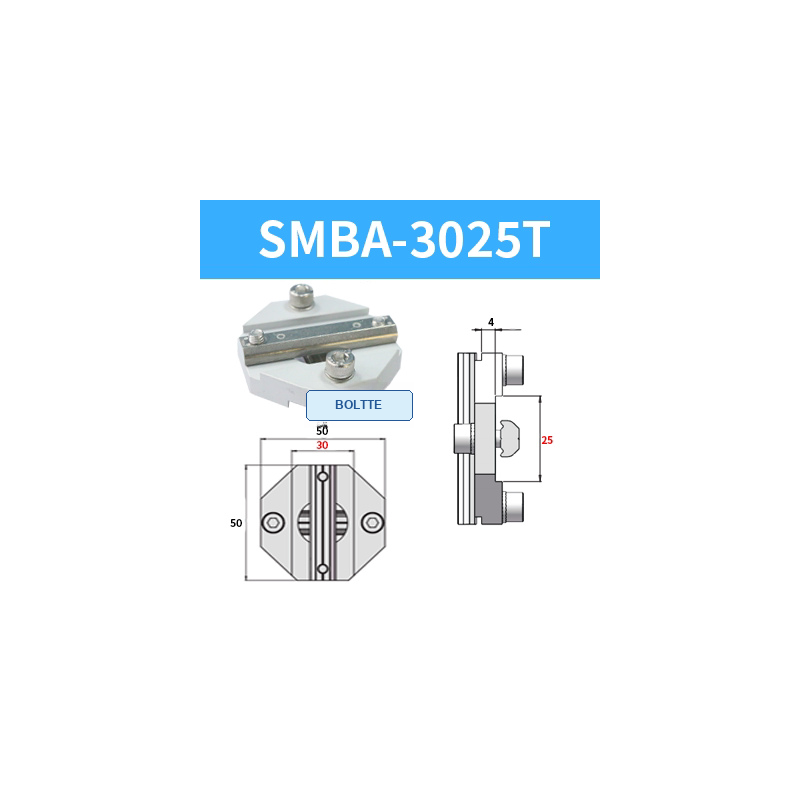

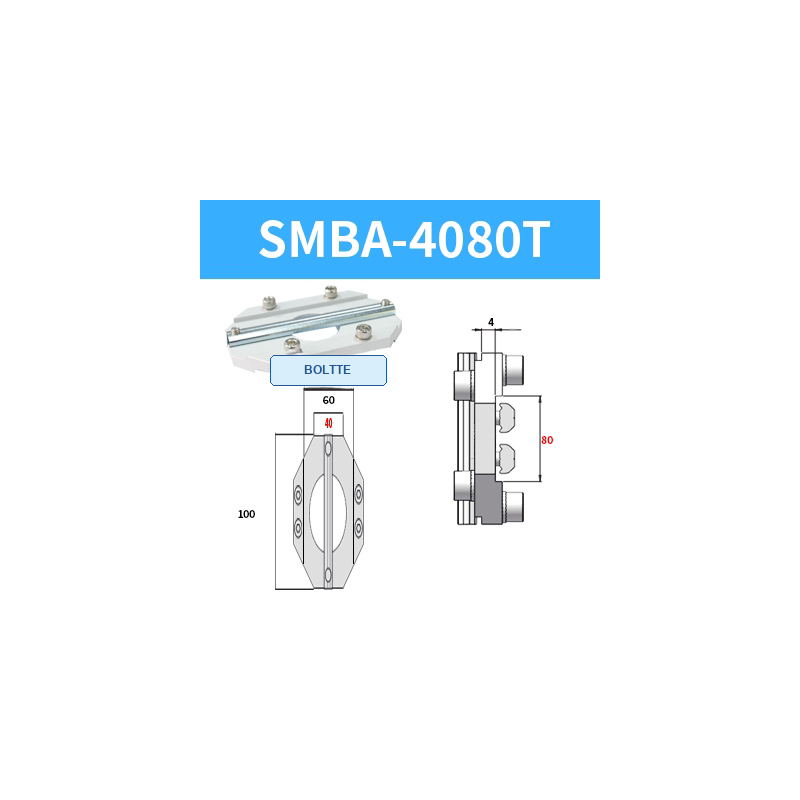

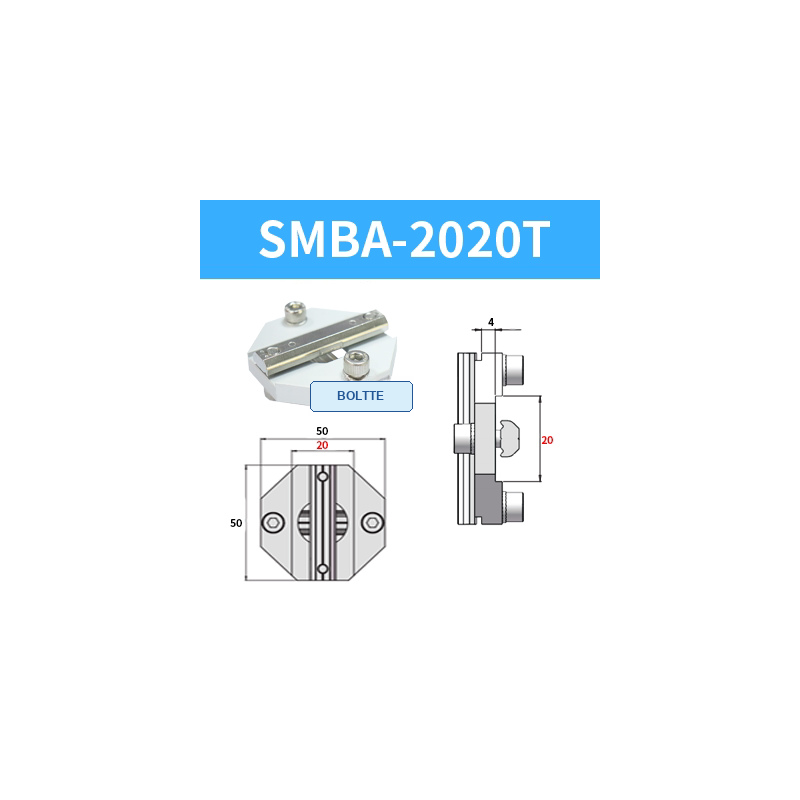

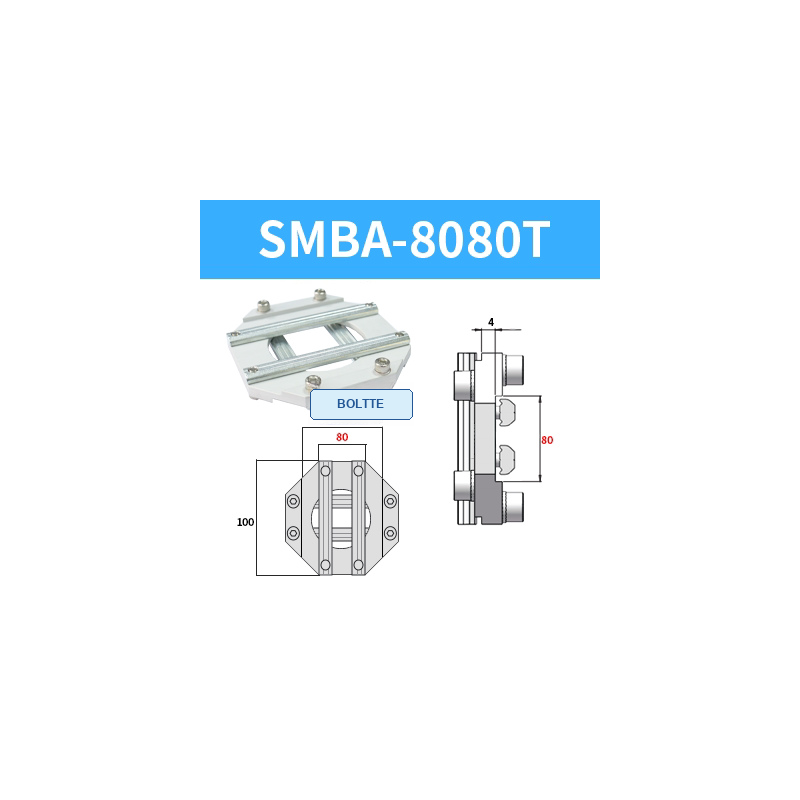

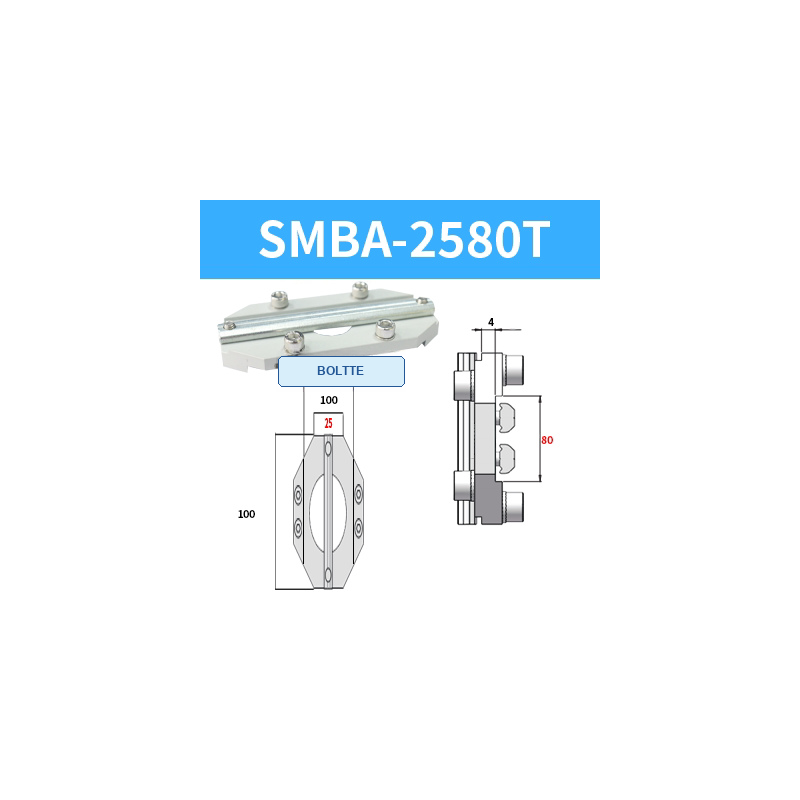

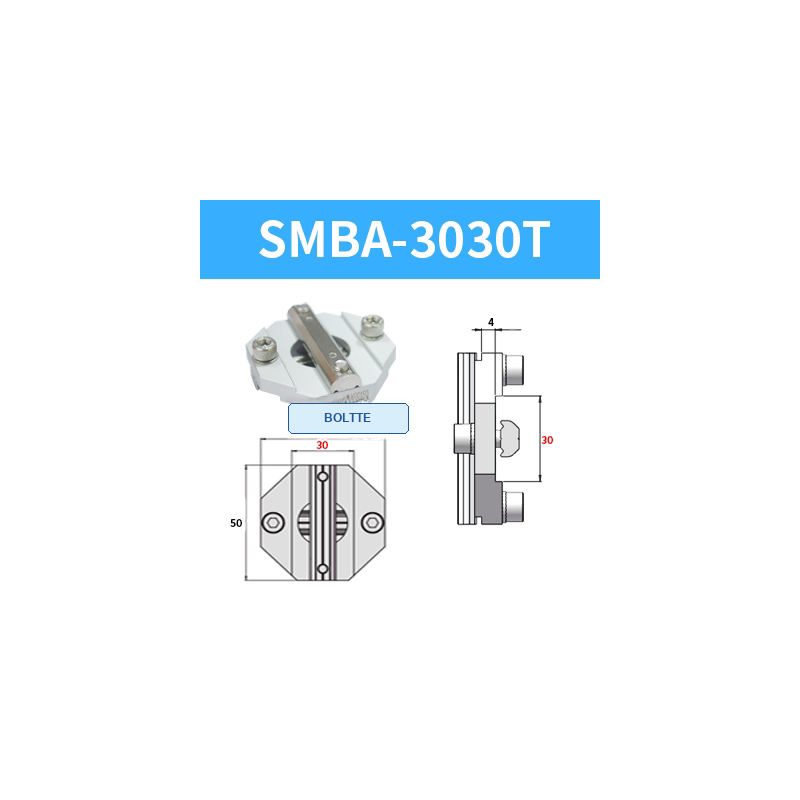

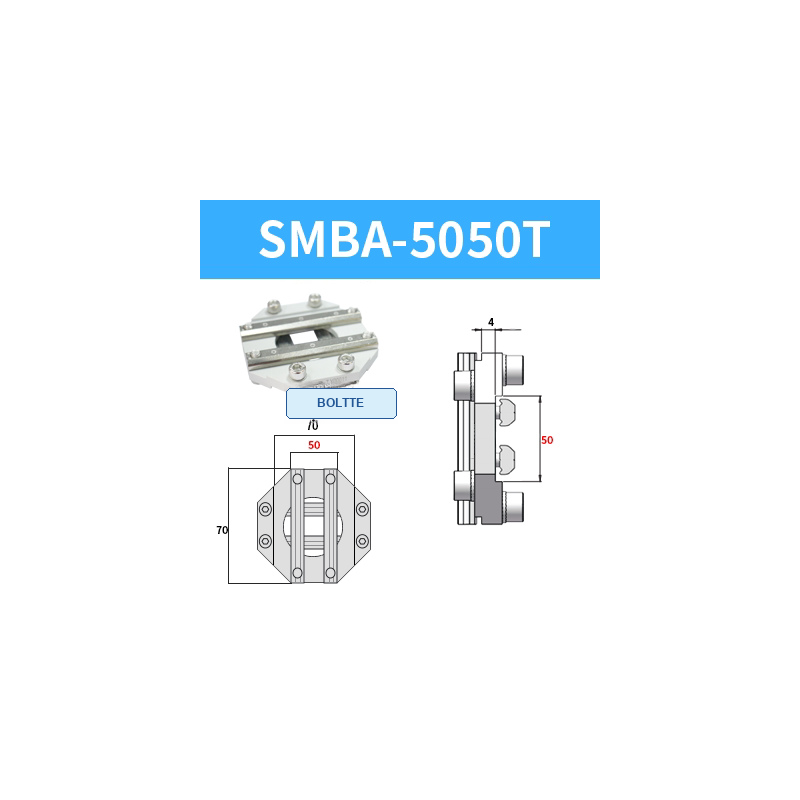

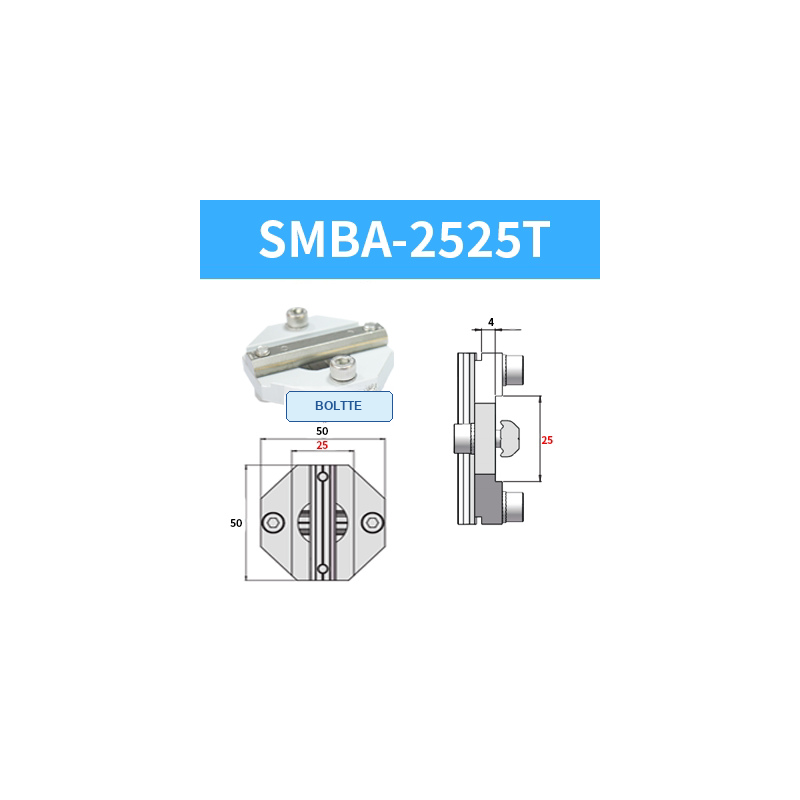

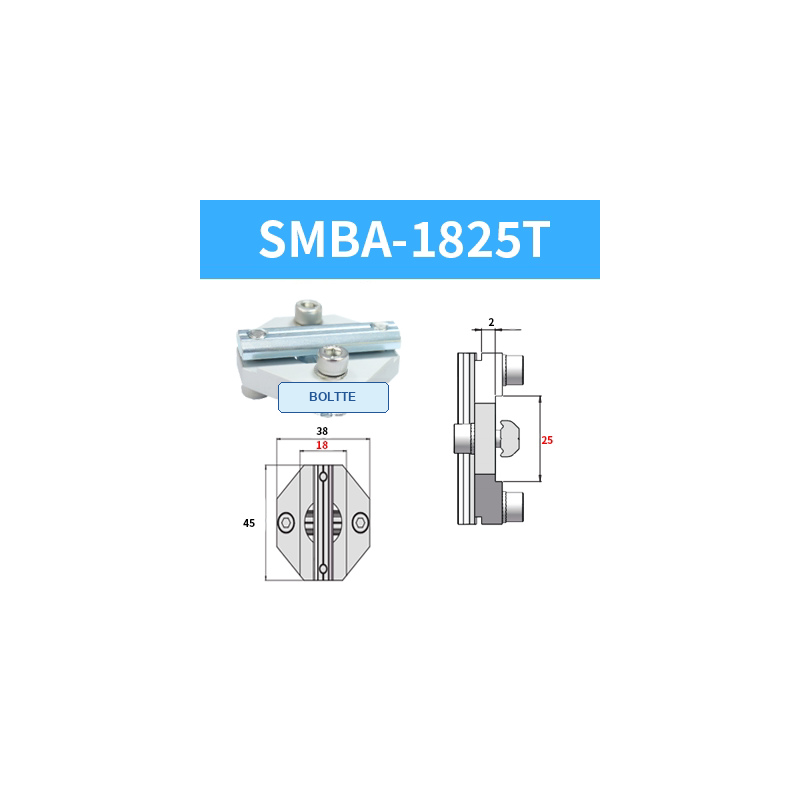

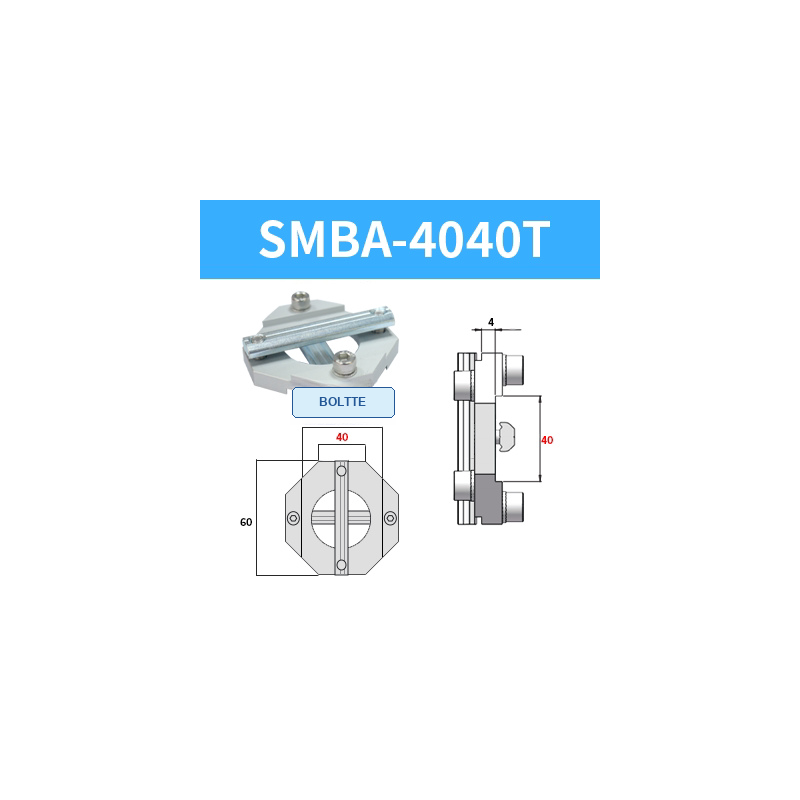

• Each selectable model has its own product view and dimensional drawing.

Model selection

The two numbers in the model identify the paired profile sizes. For example, SMBA-2550T is the 25 mm and 50 mm combination. Confirm the full model code before ordering.

Before ordering

• Verify both mating profile dimensions, installation orientation and available clearance.
• Confirm the required load, vibration conditions, fastener torque and frame material for the complete assembly.
• Dimensions are shown in millimetres unless otherwise marked.

Product Details and Applications

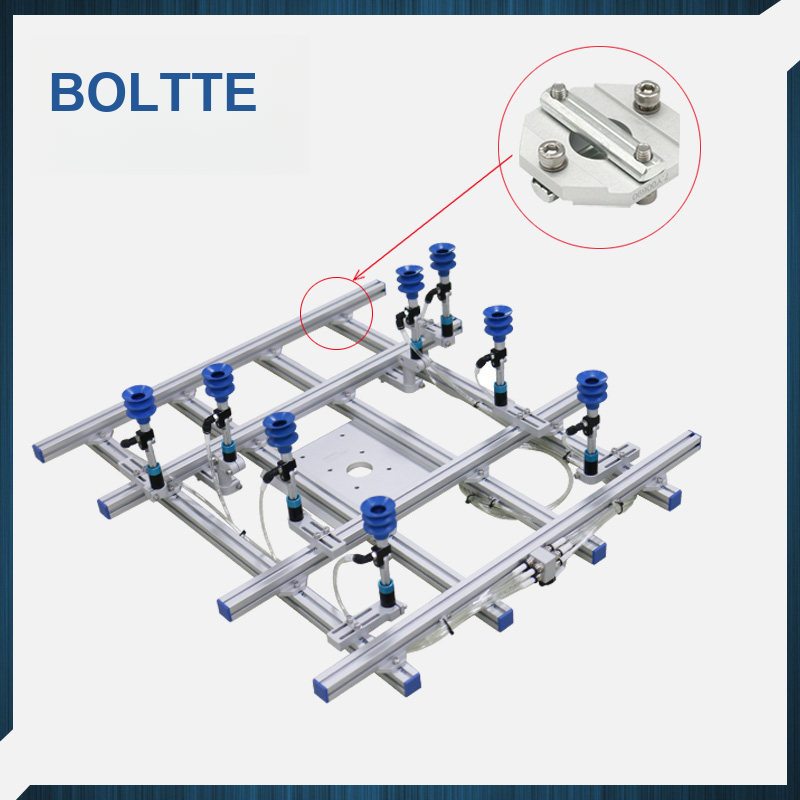

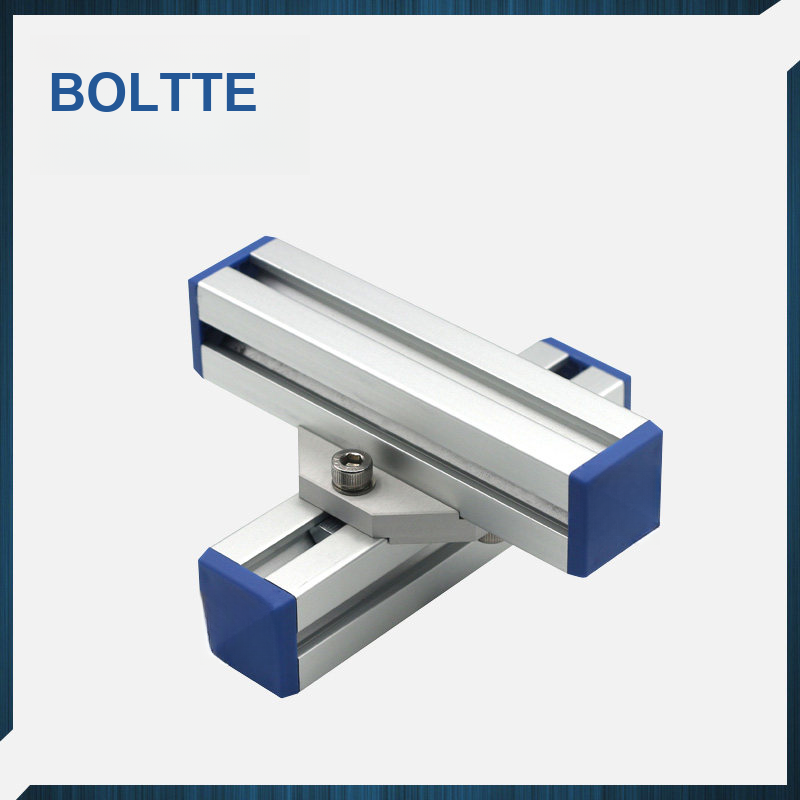

Reference views show SMBA cross-connection clamps in profile-frame and fixture applications.
