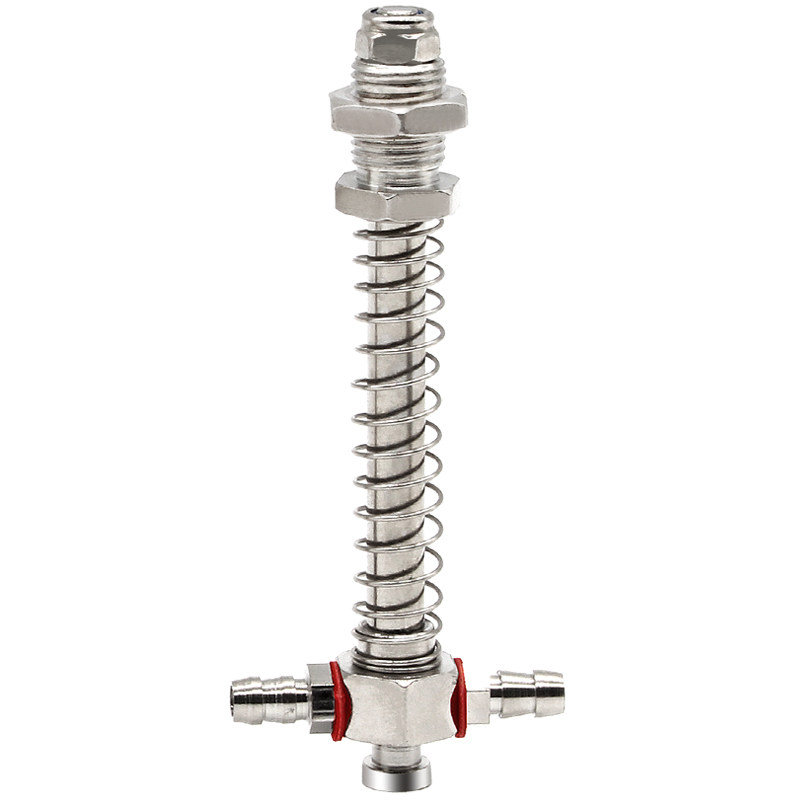

Small-Head Dual-Side Air-Inlet Vacuum Cup Buffer Mounts (L45–L100)
Small-Head Dual-Side Air-Inlet Vacuum Cup Buffer Mounts

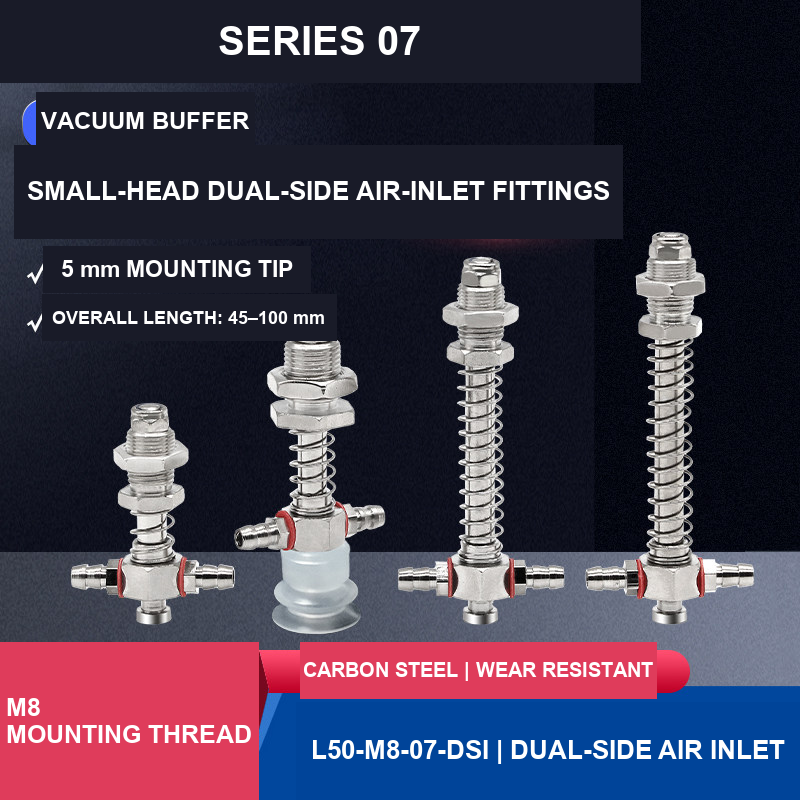

Spring-loaded vacuum cup buffer mounts for compatible industrial vacuum systems, robot end-effectors and automated handling equipment. Select the required overall length, mounting thread and dual-side air-inlet configuration from the exact model code and dimensional drawing.
Quick selection
- Choose the length: select L45, L48, L50, L53, L55, L60, L65, L70, L75, L80, L85, L90 or L100 according to the required installation length.
- Choose the mounting thread: select the offered M8 × 1.0, M10 × 1.0 or M12 × 1.0 option only after matching the mating component.

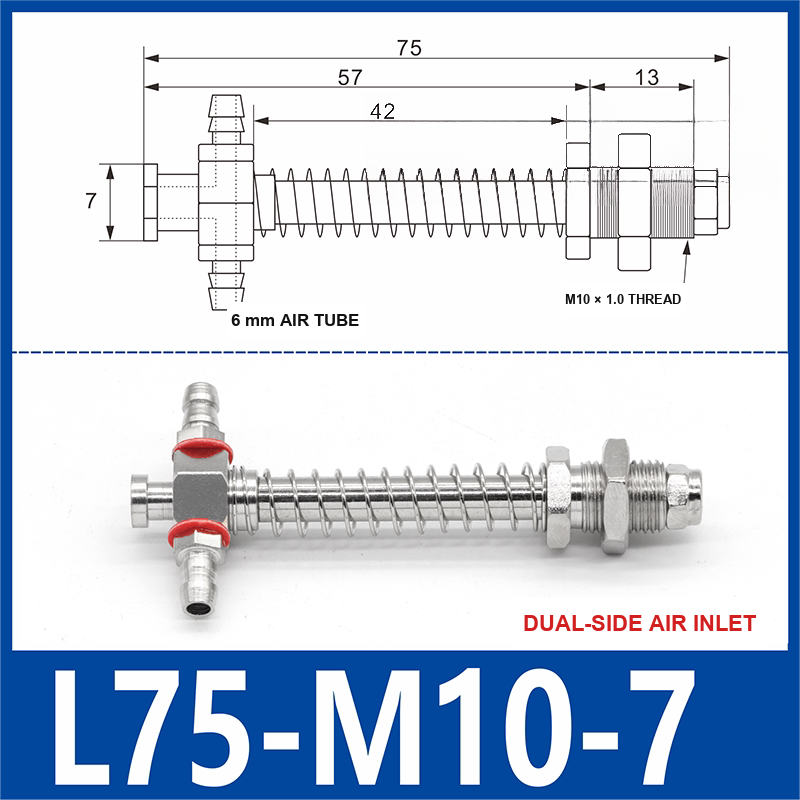

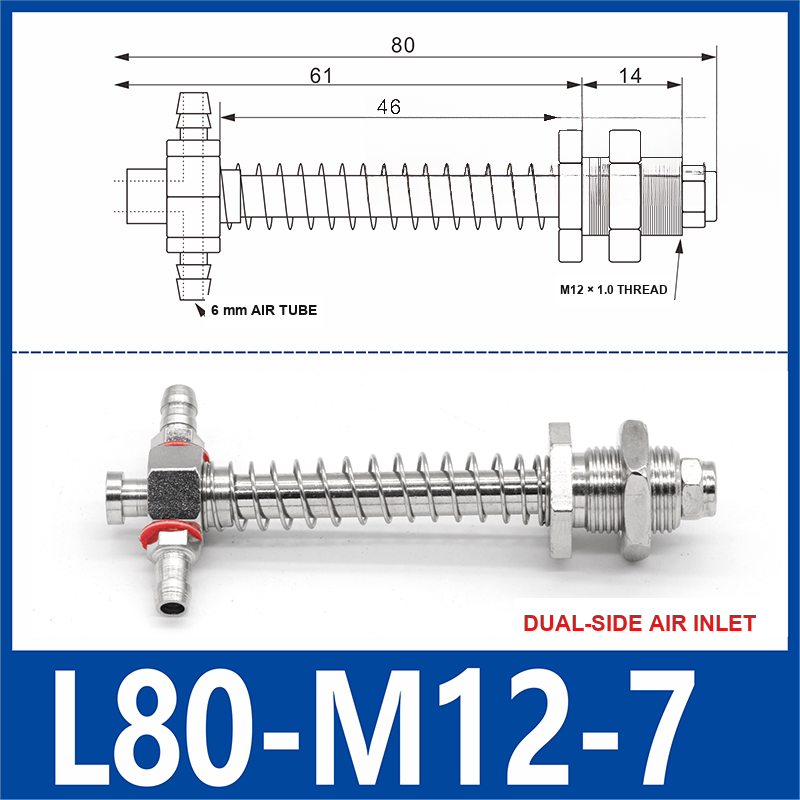

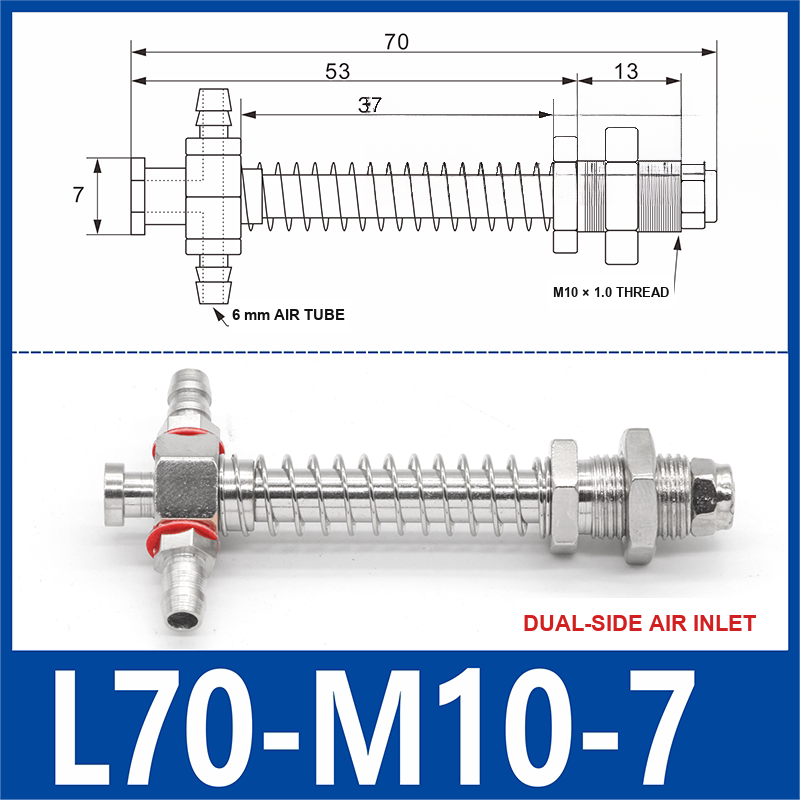

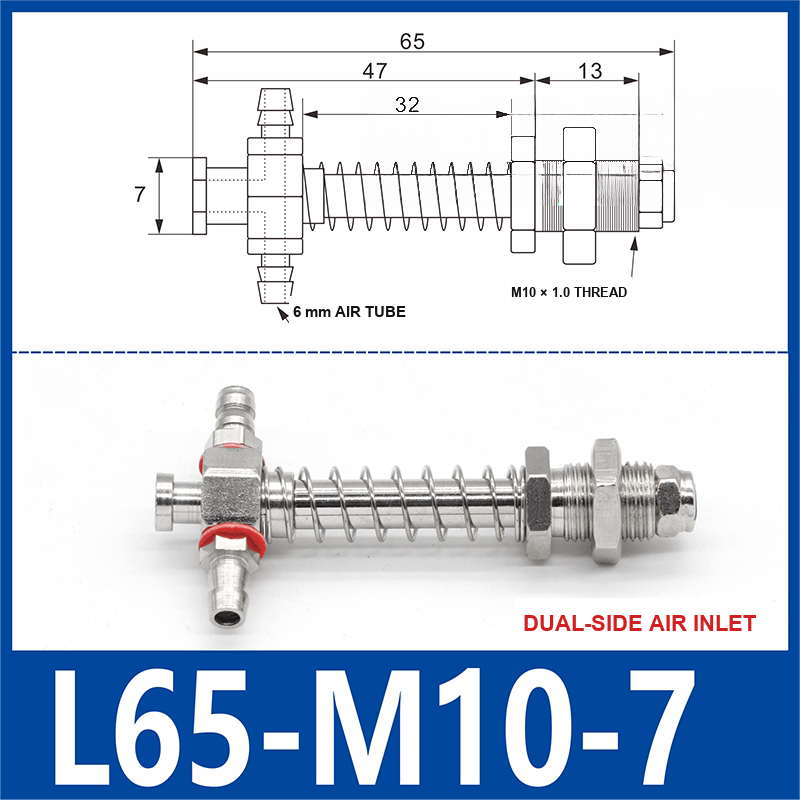

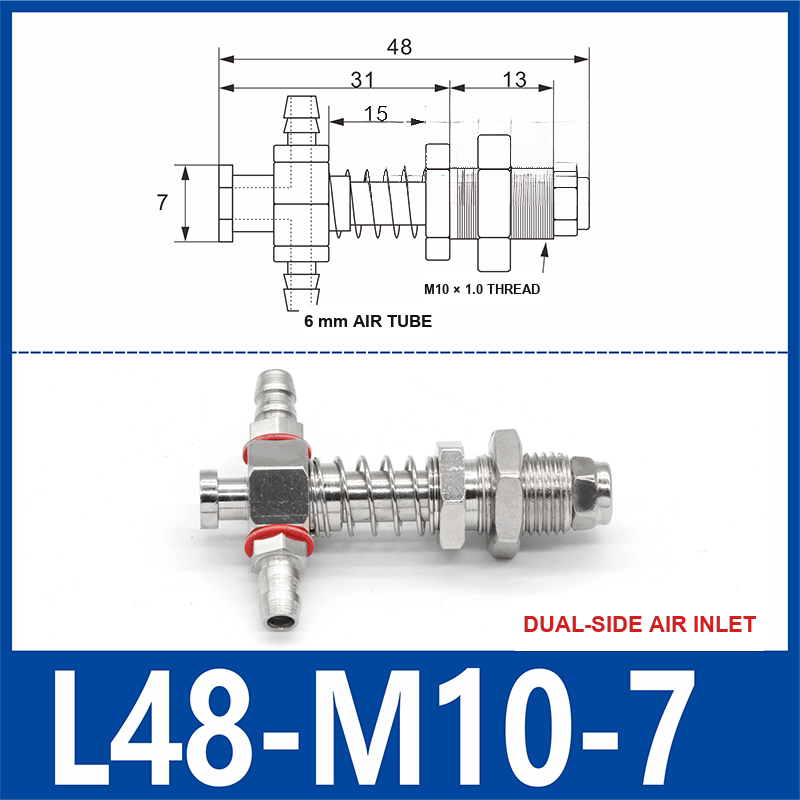

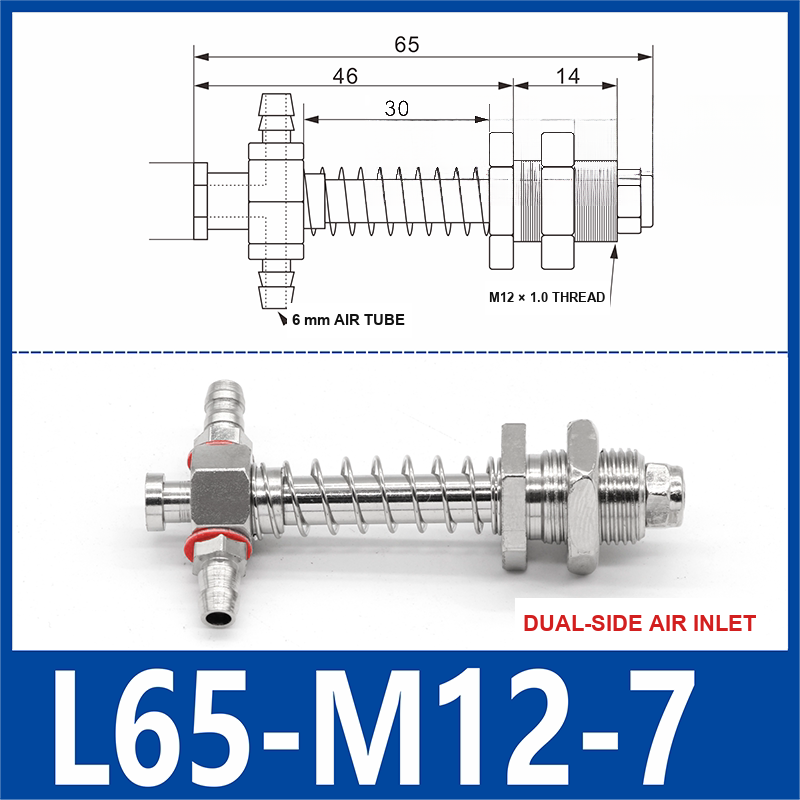

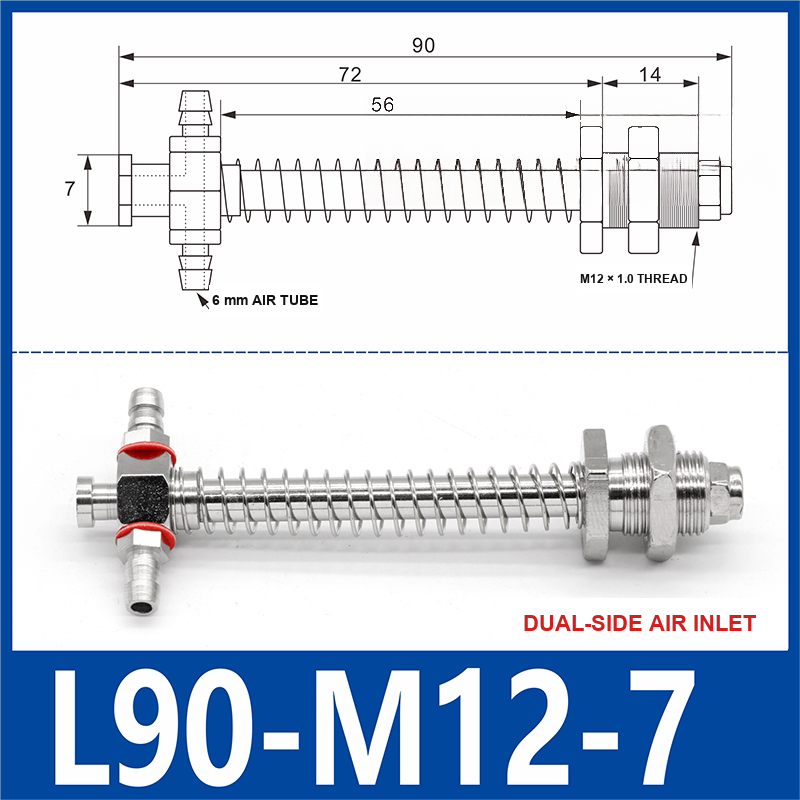

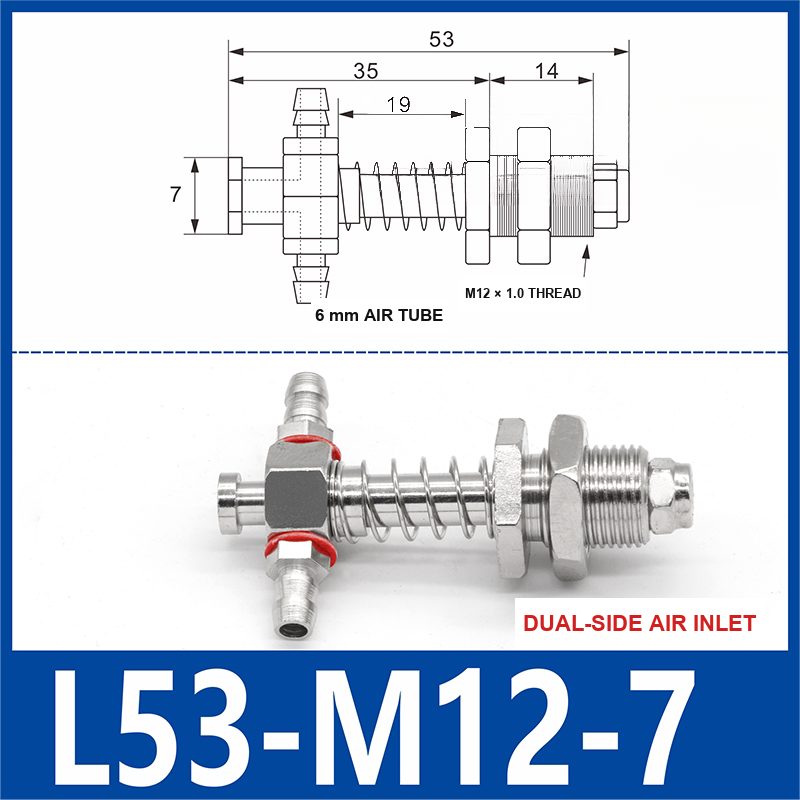

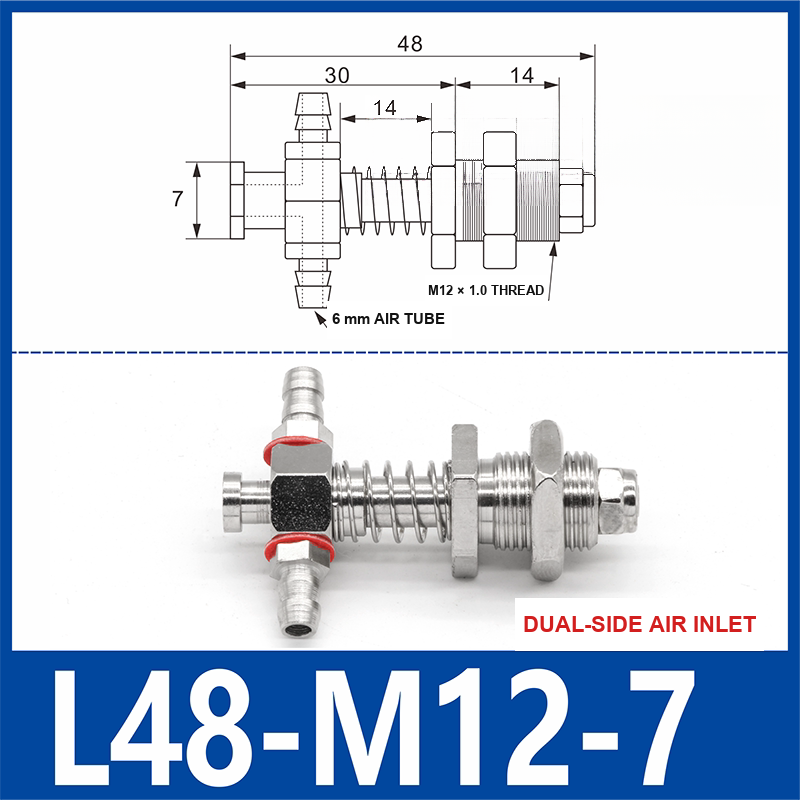

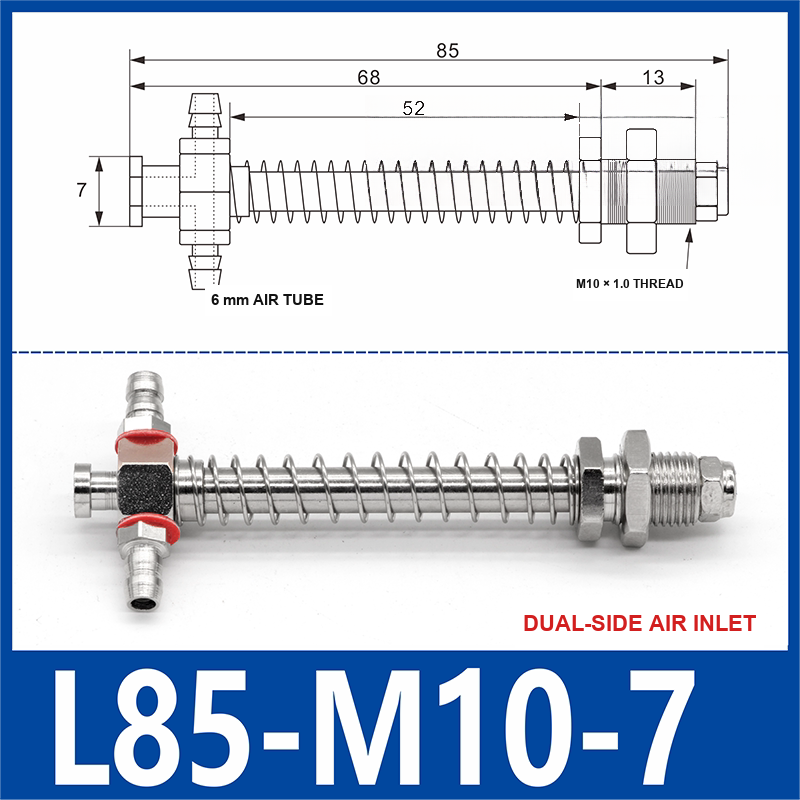

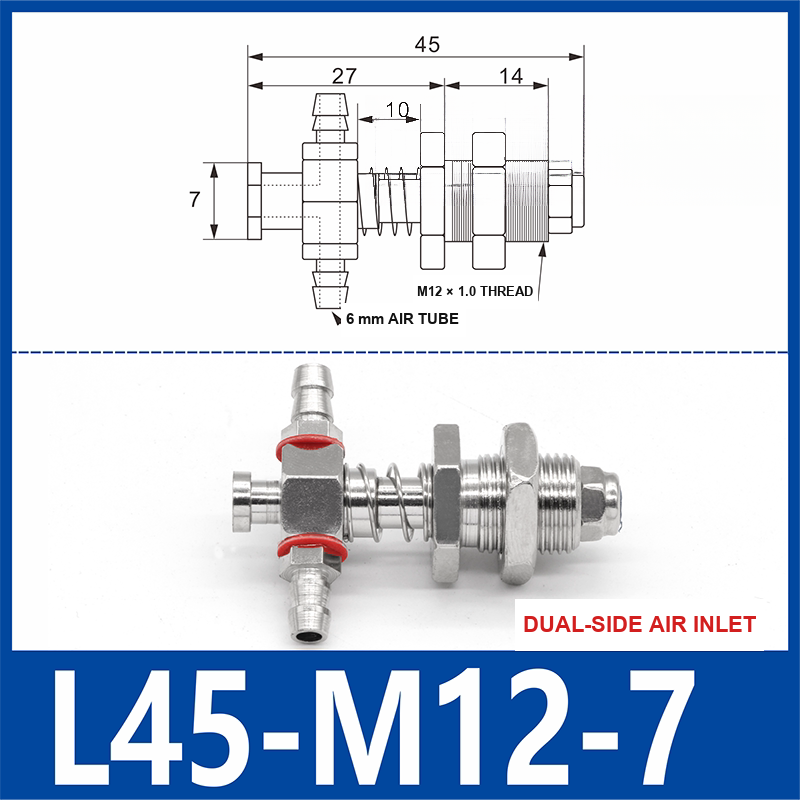

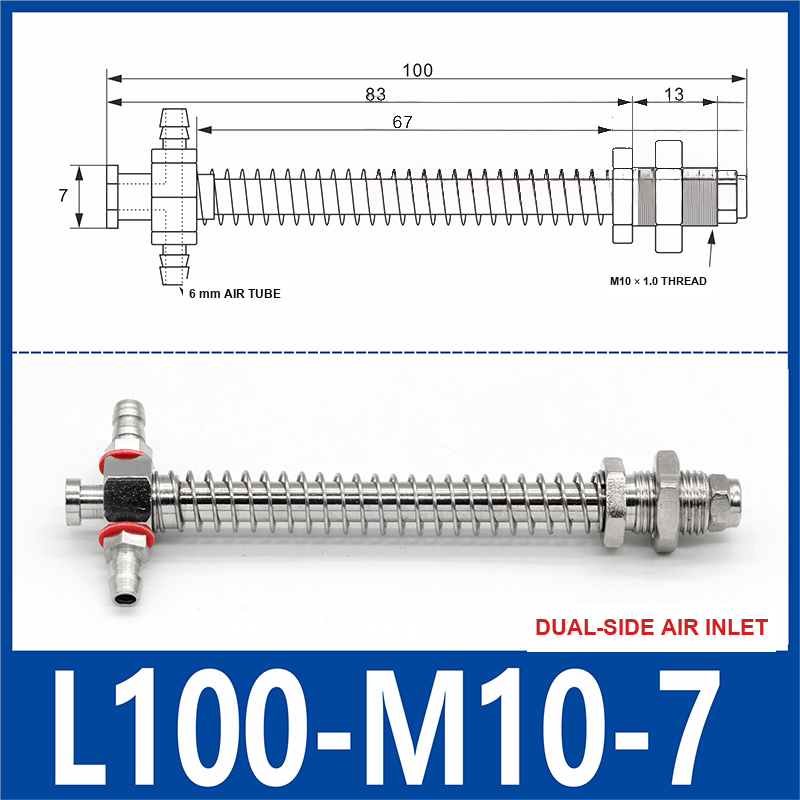

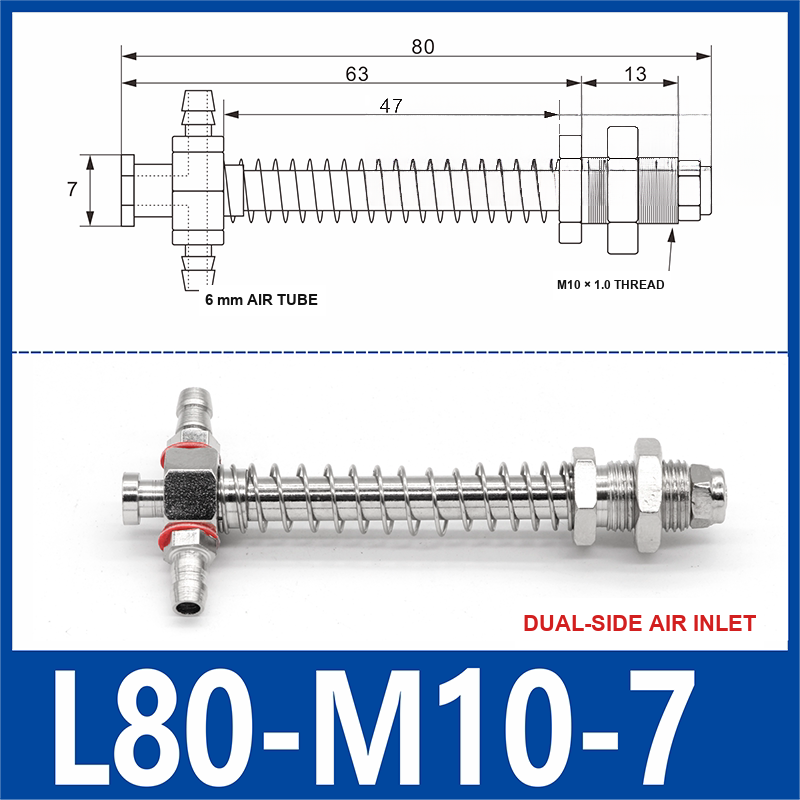

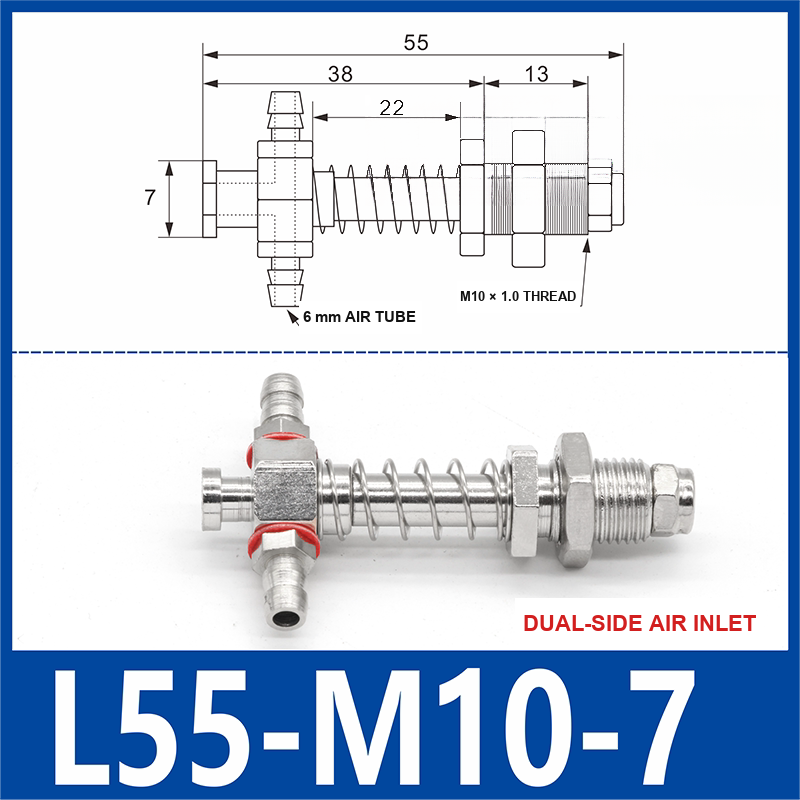

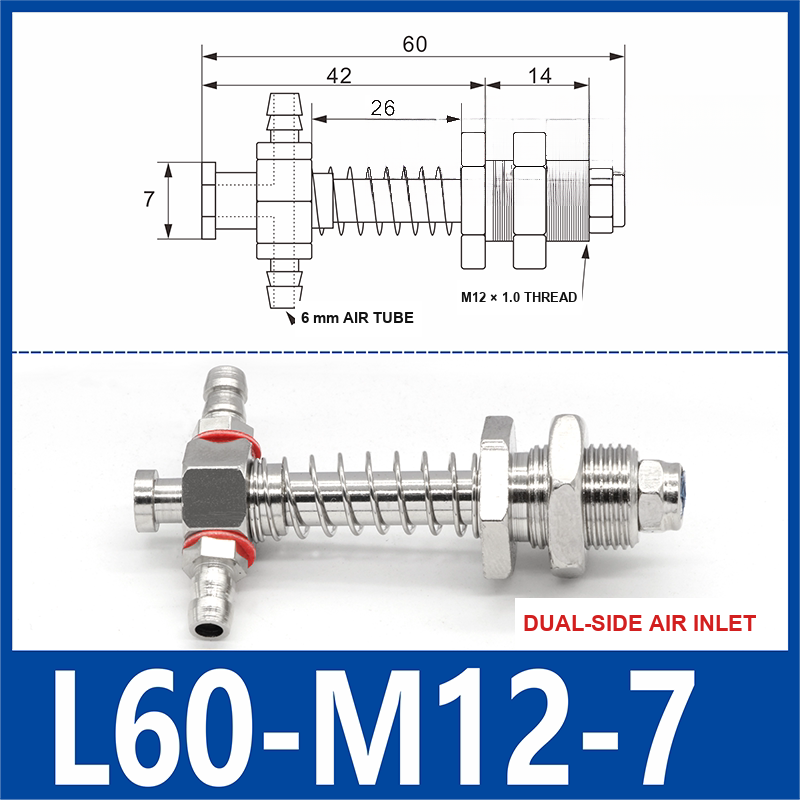

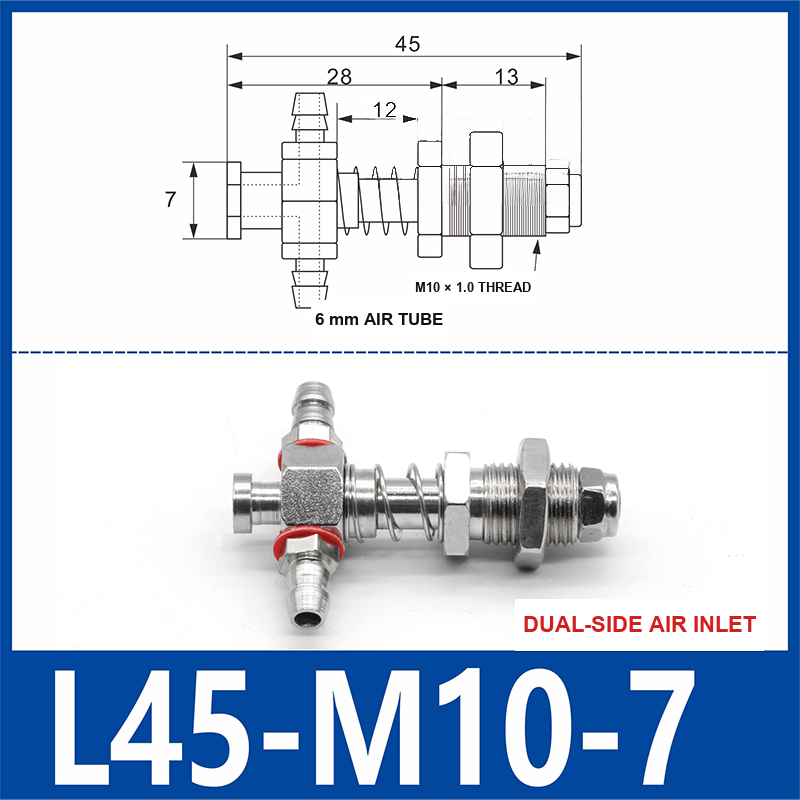

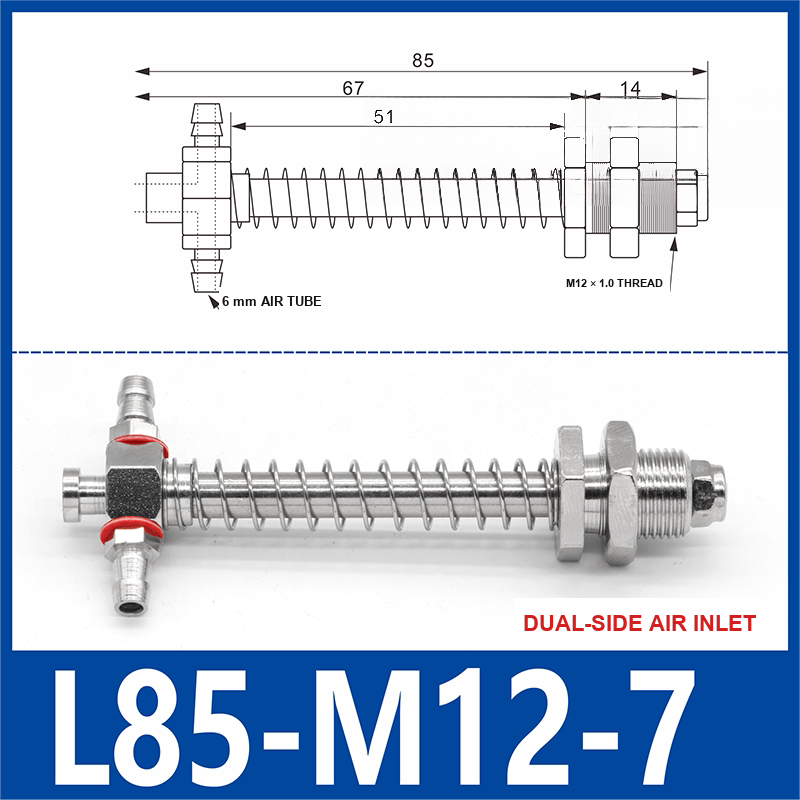

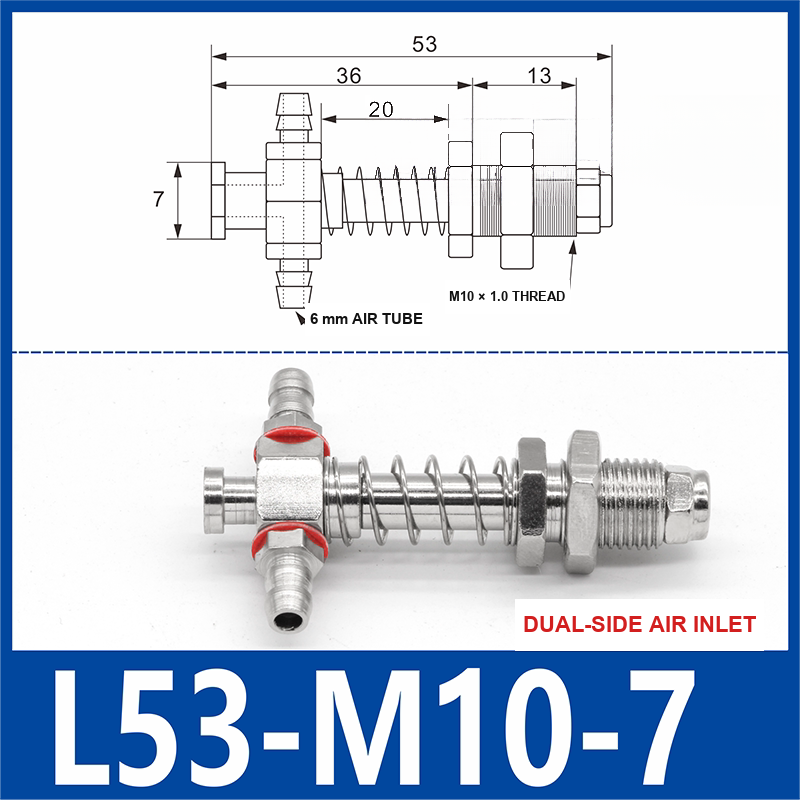

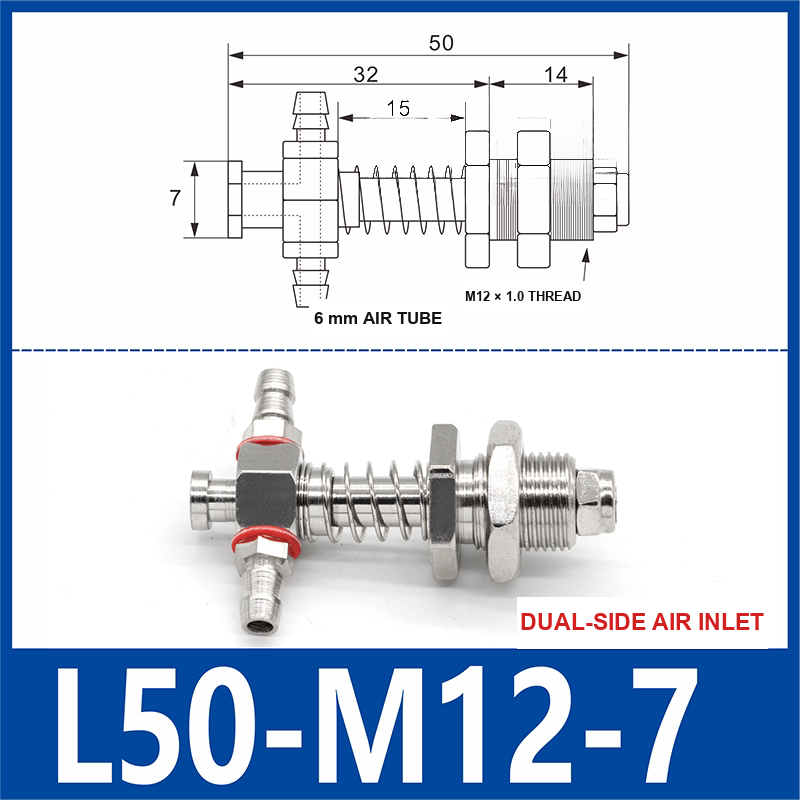

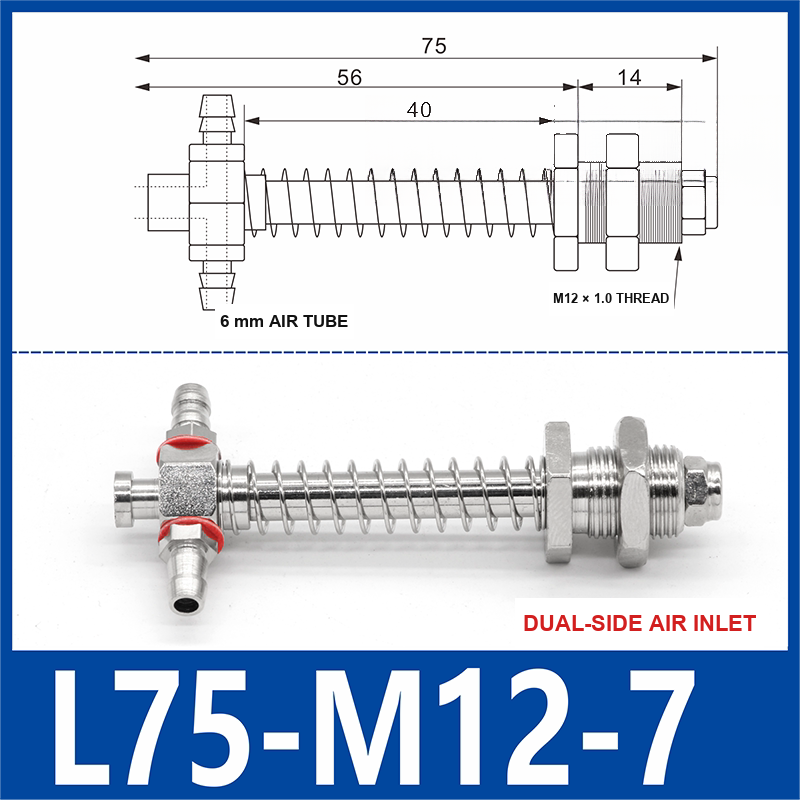

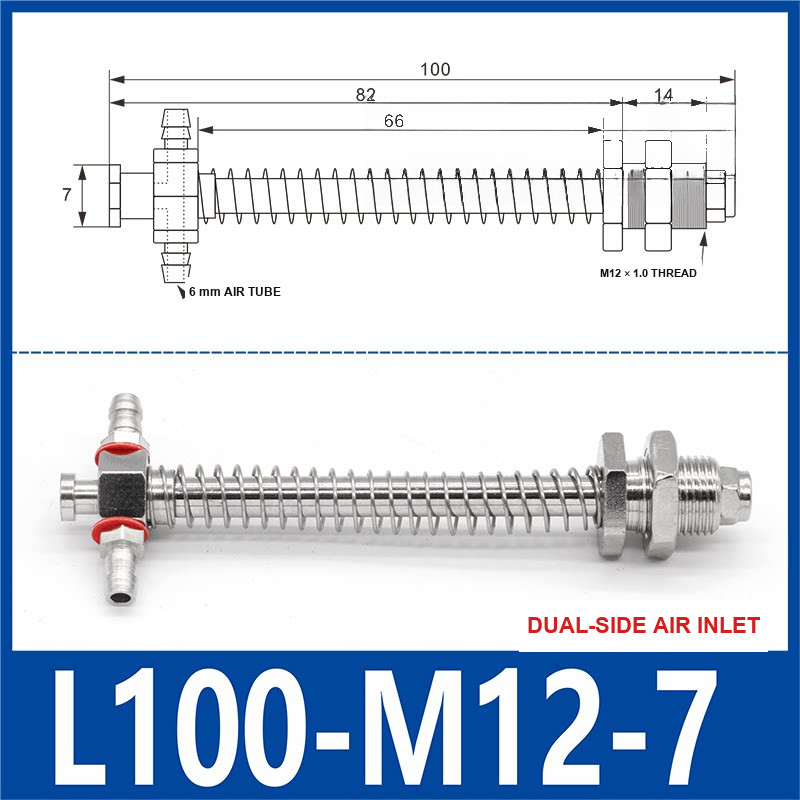

- Confirm the air connection: the technical drawings show 6 mm air-tube callouts and the dual-side inlet layout for the corresponding model.
- Verify the full option: compare the complete model code, drawing dimensions, vacuum cup interface and clearance before ordering.
Model code guide
L[length]-M[thread]-07-DSI: overall length, mounting thread, 07 series code and dual-side air inlet. Each selectable option displays its dedicated product view and matching drawing.
Suitable for
- Industrial vacuum pick-and-place and packaging automation
- Robot end-effectors that require spring compliance

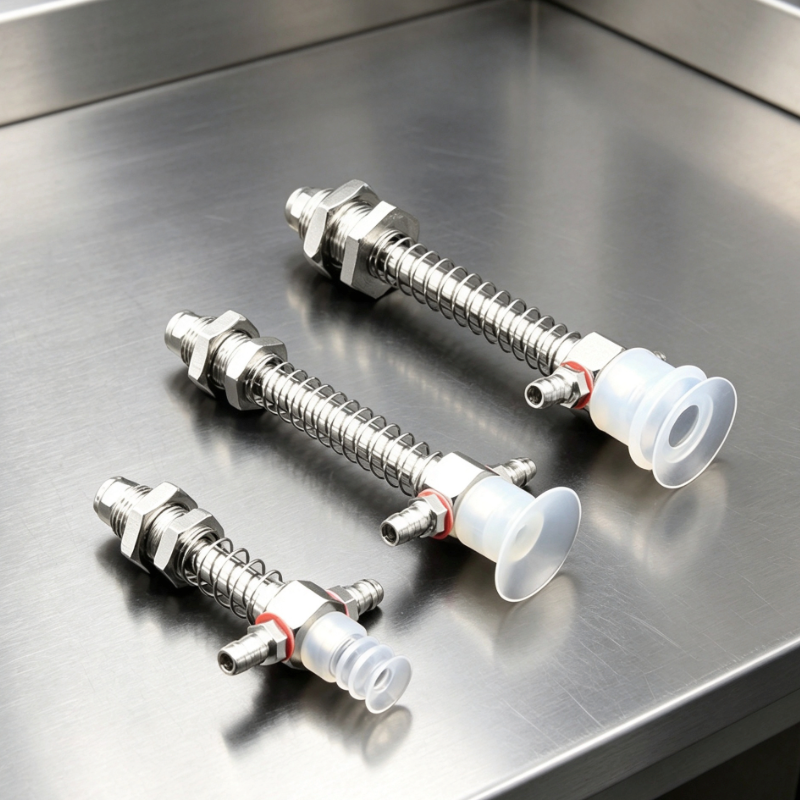

- Vacuum cup mounting, replacement and fixture assembly
- Dimensionally compatible automated handling equipment
Before use
Confirm the selected model code, technical drawing, mounting thread, air-tube connection, compatible vacuum cup, vacuum level, payload, acceleration and operating environment. No food-contact, medical, lifting-safety or regulatory certification is claimed.
FAQ
How do I choose M8, M10 or M12? Match the selected model drawing to the mating mounting interface. Does the length change the air inlet layout? Confirm the complete selected drawing; the listed variants use the dual-side inlet configuration while length and mounting thread vary by option.
