BOLTTE Side-Entry Rotary Vacuum Cup Buffer Fittings - M14/M16
BOLTTE side-entry rotary vacuum cup buffer fittings combine an adjustable threaded mounting body with a lateral hose connection for vacuum-handling assemblies. Choose the exact model according to the mounting thread, connection and dimensional drawing.
Model selection
- M14 and M16 mounting families are available.
- Lower connection choices include G1/4 and G3/8 according to model.

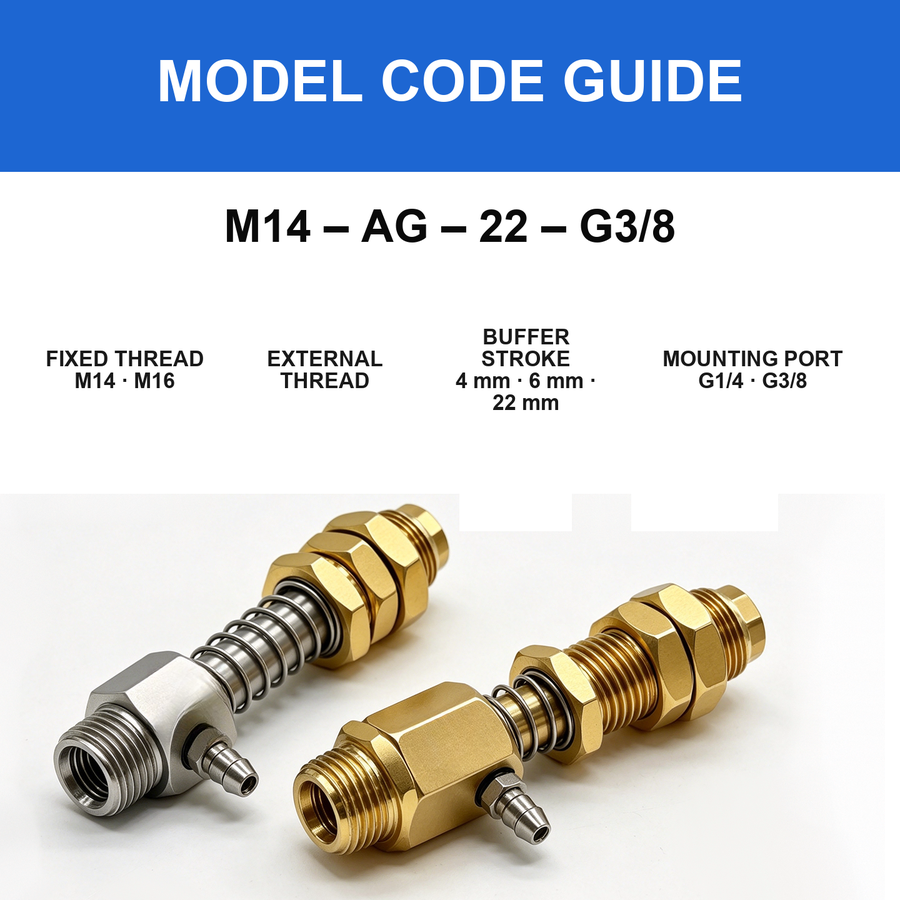

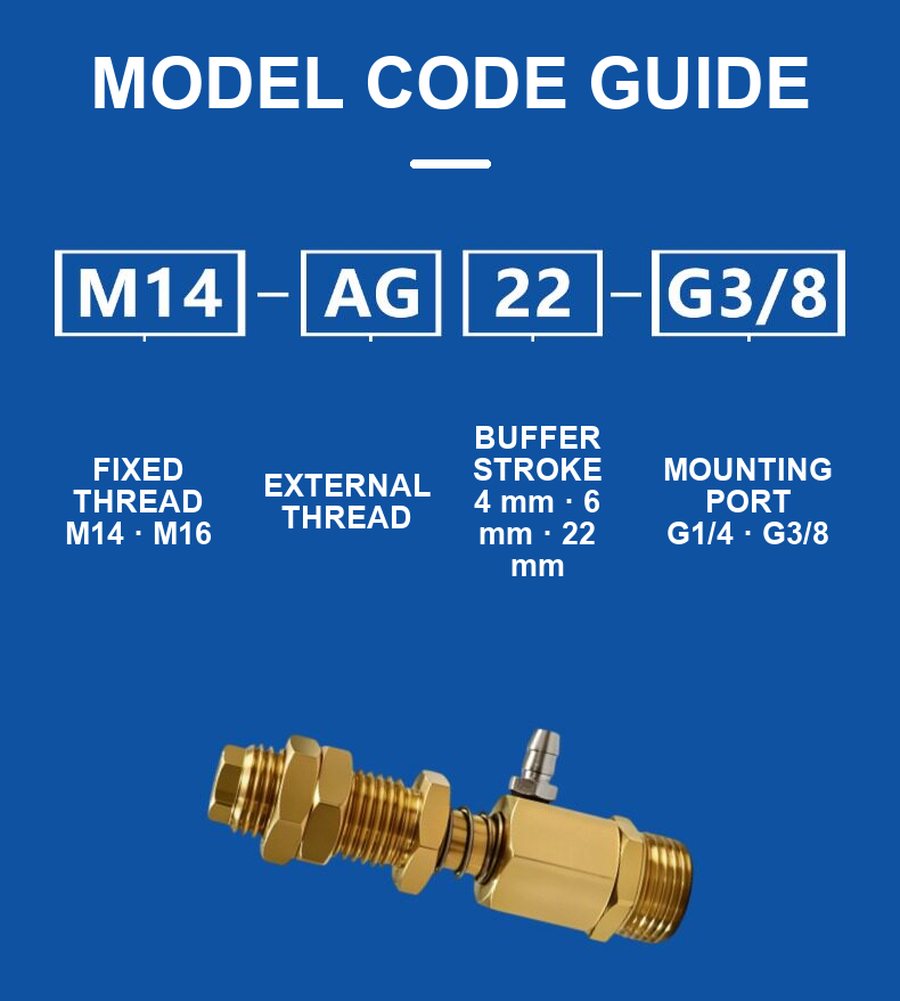

- AG4, AG6, AG22, L42 and FSTE configurations are listed as separate selectable models.
- Extended Thread configurations are identified directly in the model selector.

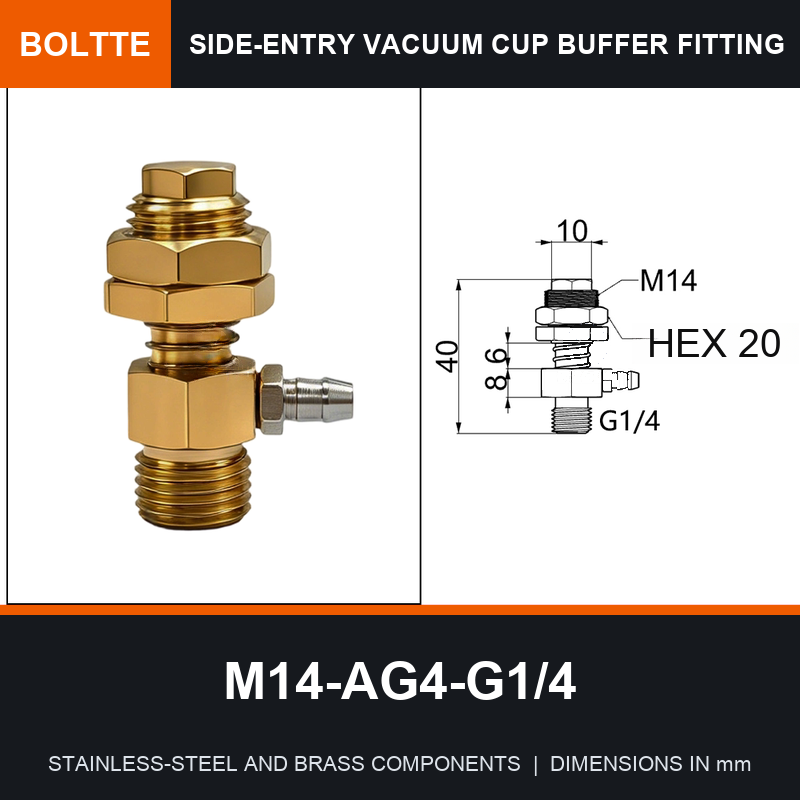

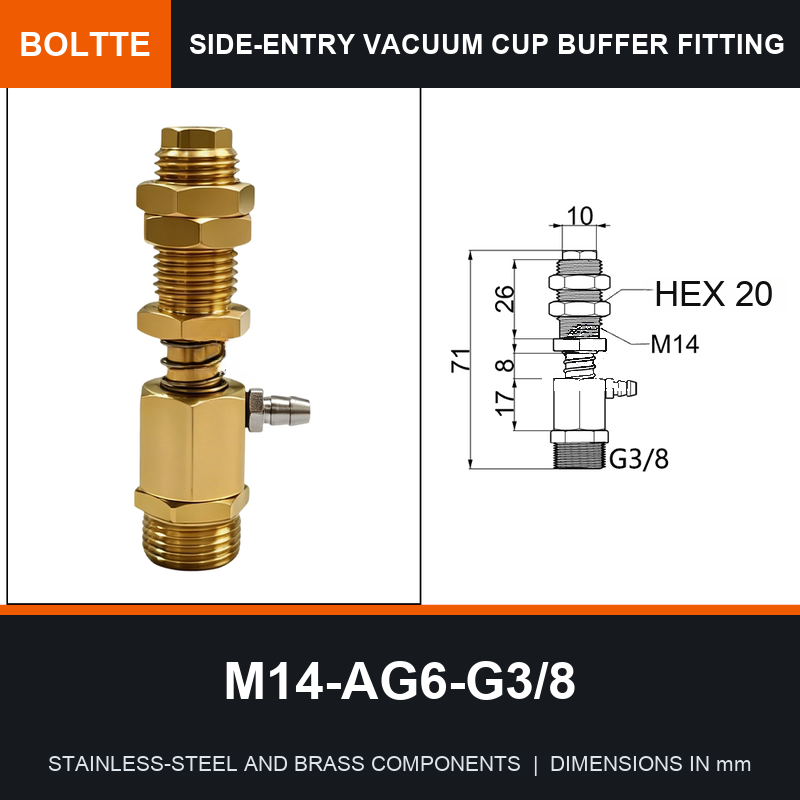

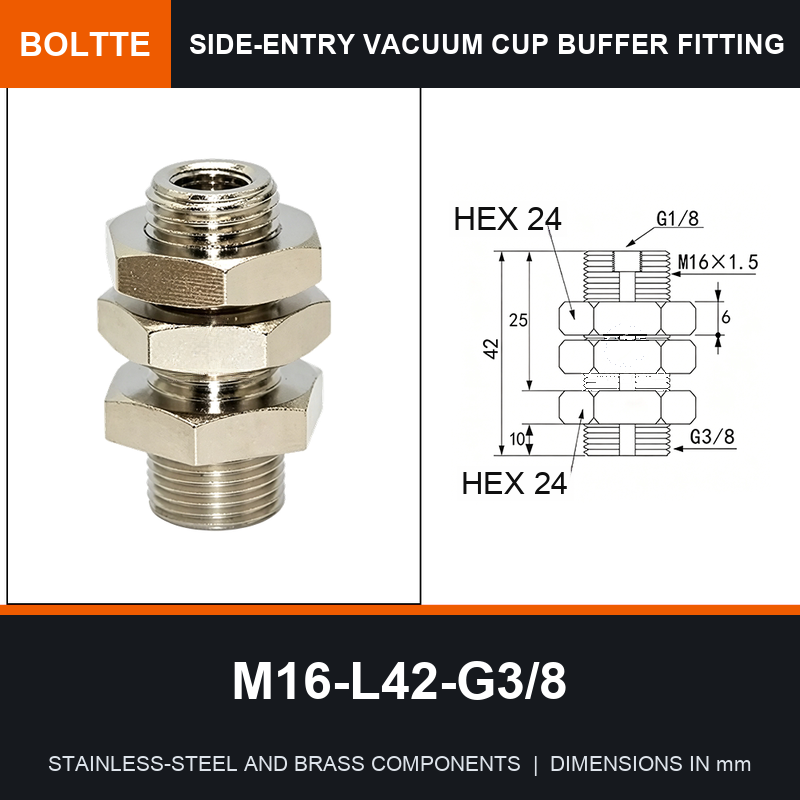

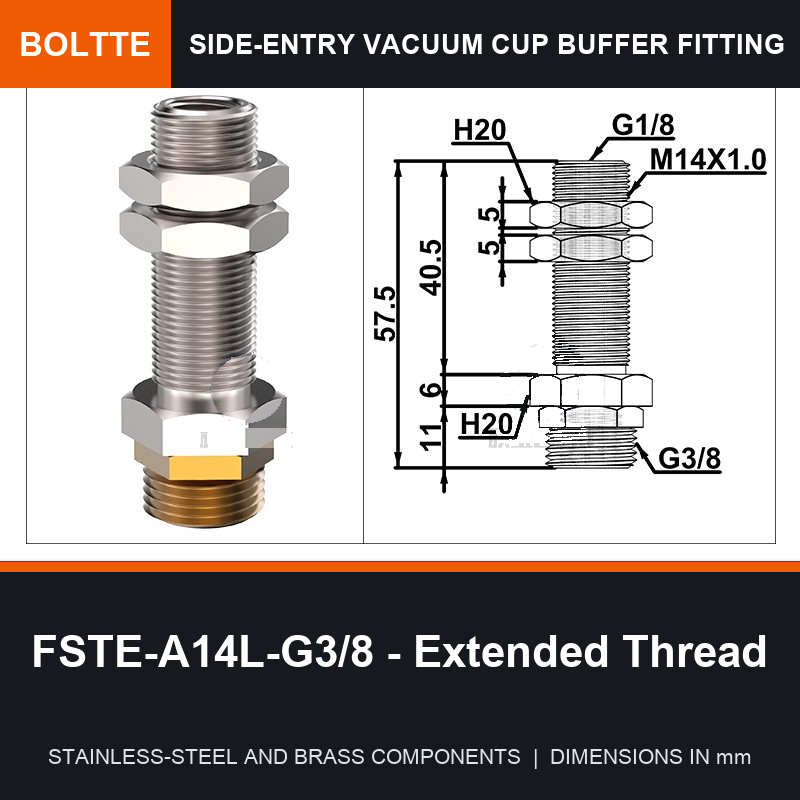

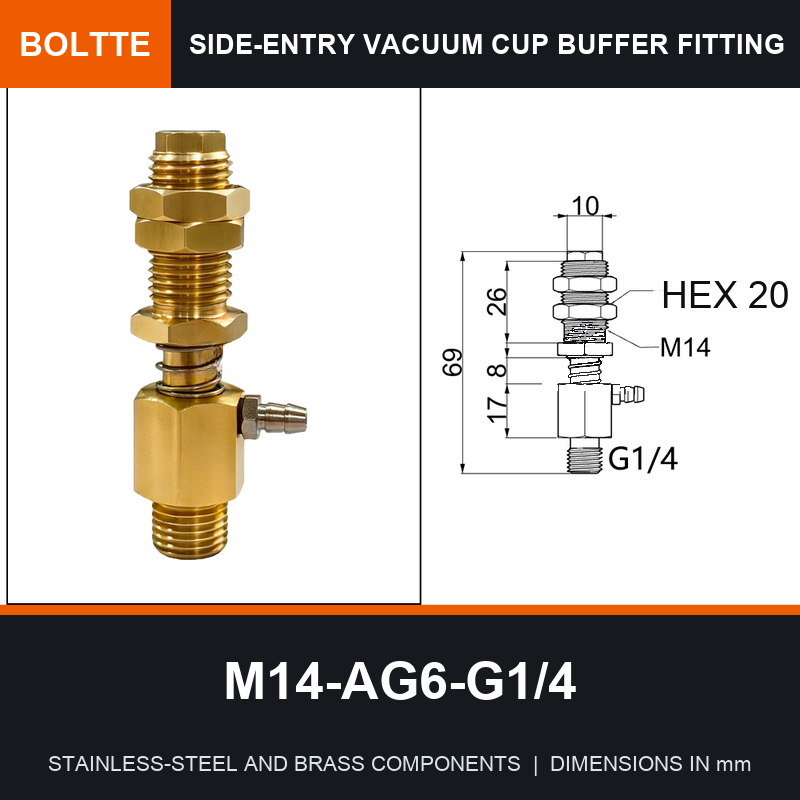

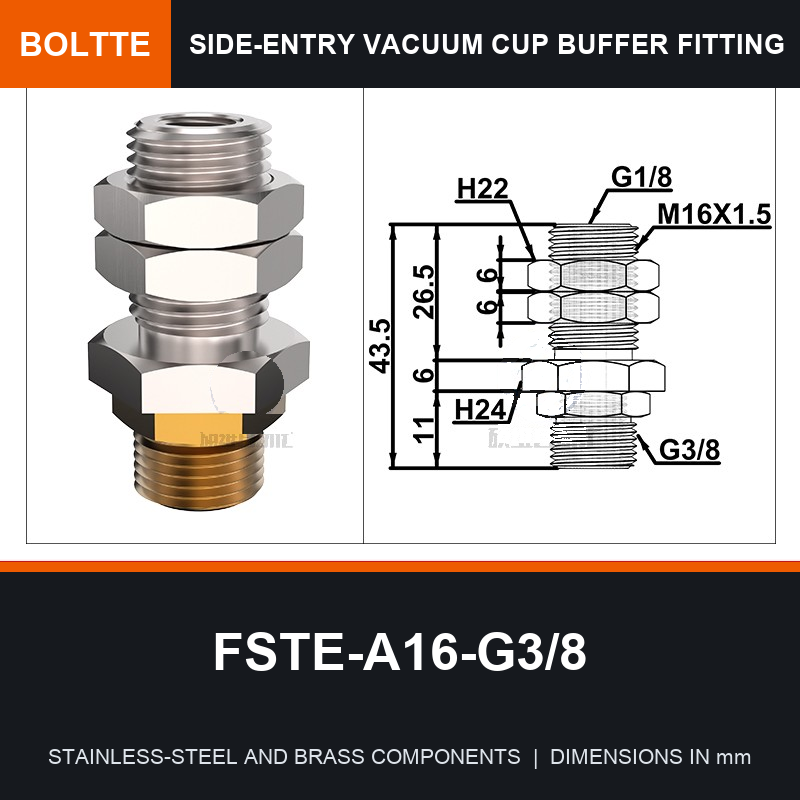

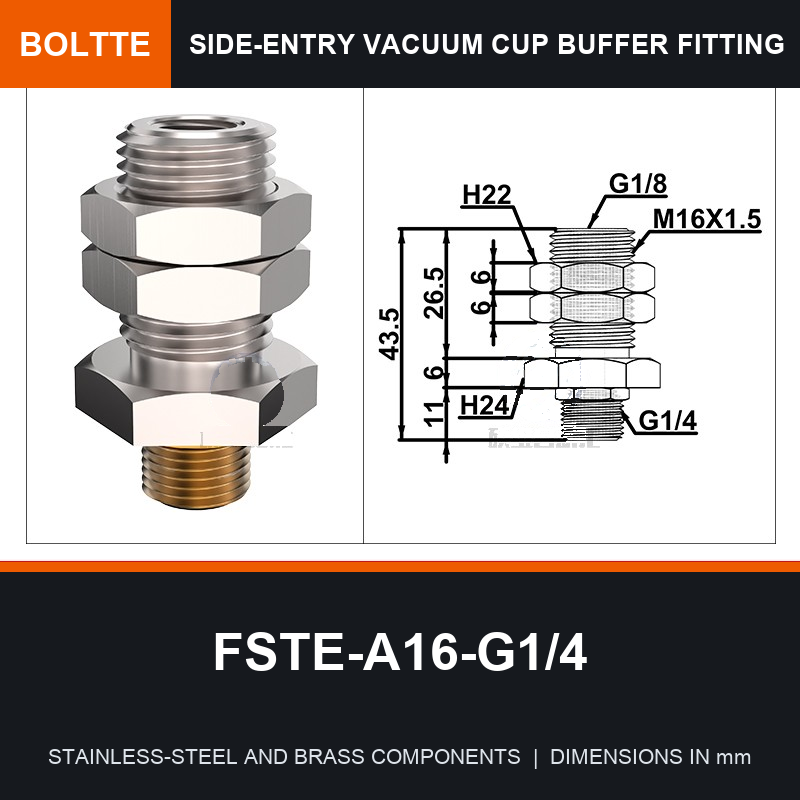

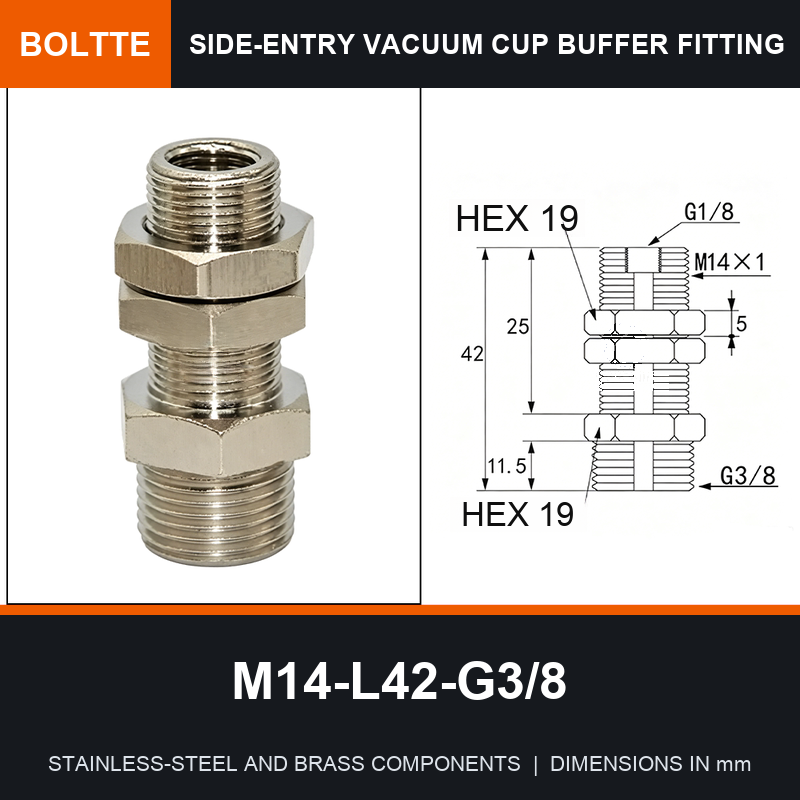

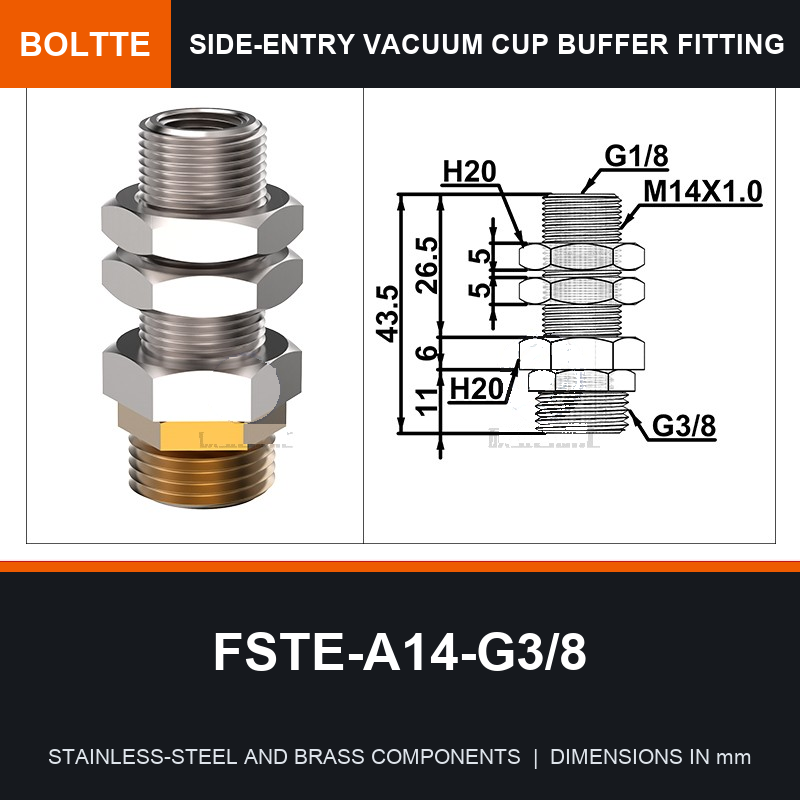

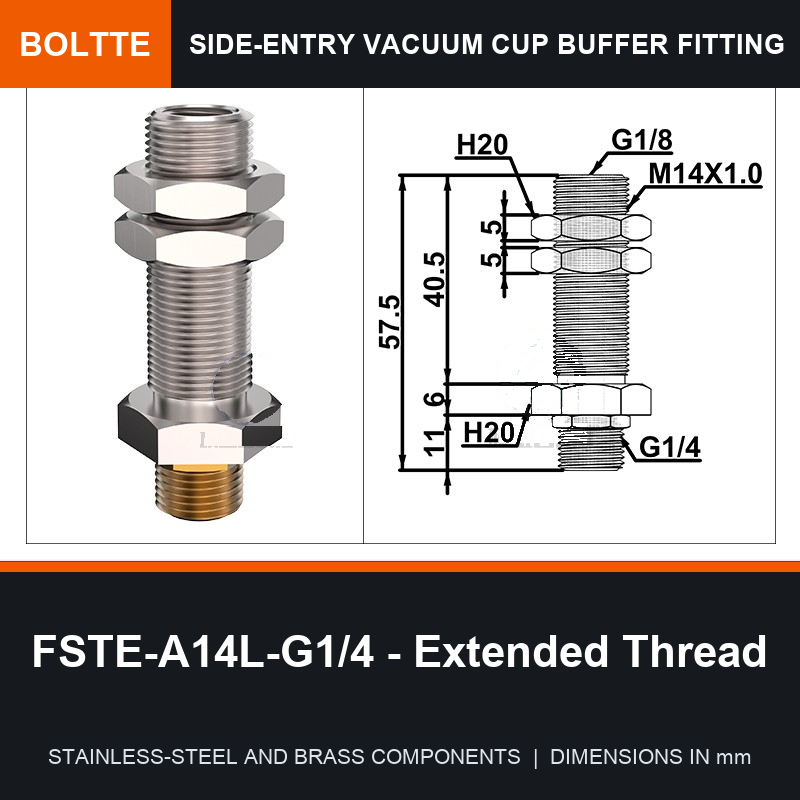

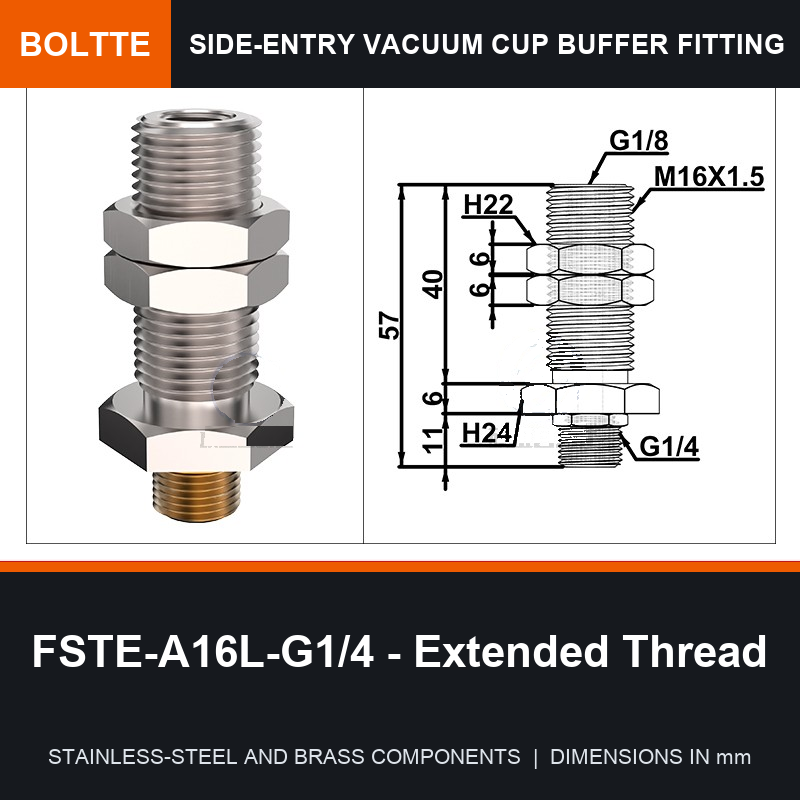

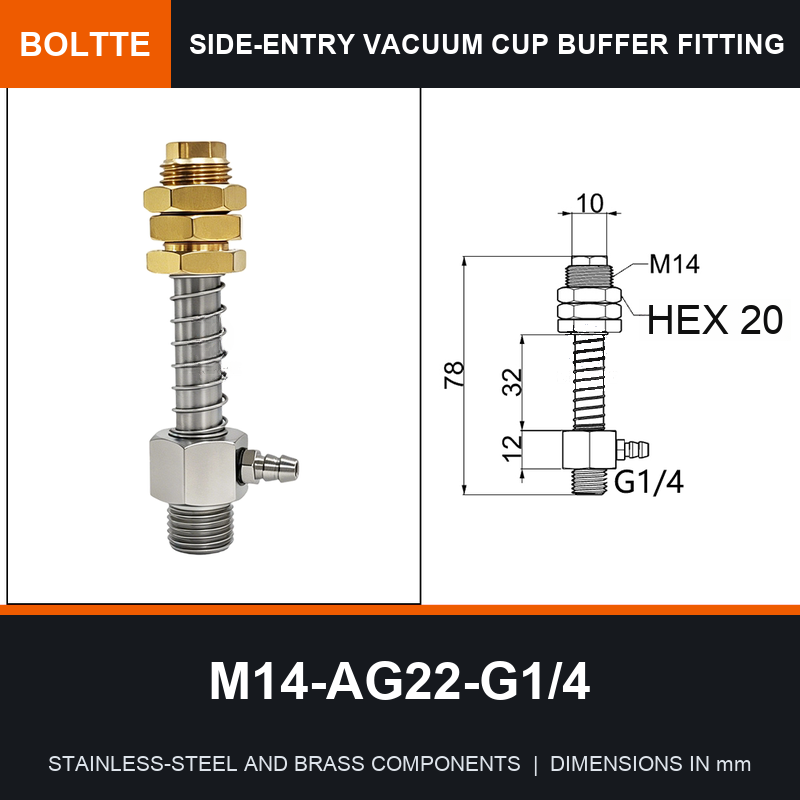

- Each model image shows its applicable body dimensions and thread callouts in millimetres.
Ordering requirements
- Confirm the mounting thread, lower connection and lateral hose interface before ordering.
- Check the available installation height, adjustment range and surrounding clearance against the selected drawing.
- Confirm the matching vacuum cup, tubing and equipment interface separately.
The selected model controls the applicable dimensions. Verify all mating dimensions before installation.
