SGP Thin Single-Layer Patterned Vacuum Cups, 15–40 mm

SGP Thin Single-Layer Patterned Vacuum Cups, 15–40 mm

Thin single-layer patterned vacuum cups for bag opening, packaging equipment and compatible automated handling applications.

Quick Model Finder

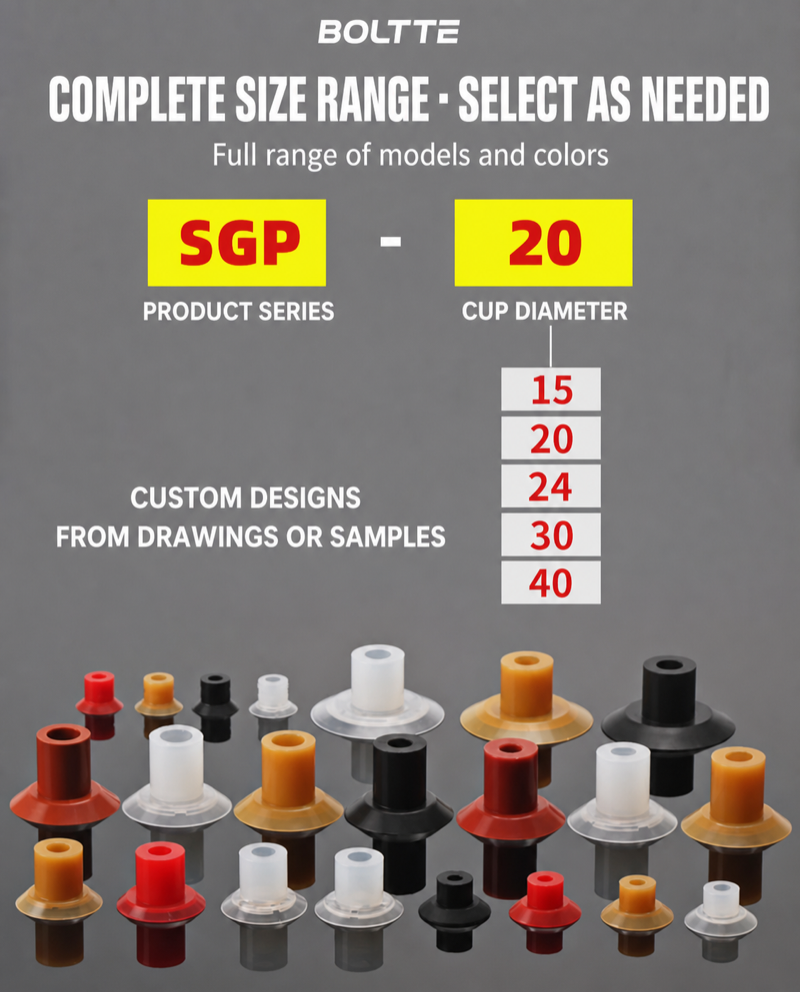

• SGP-15, SGP-20, SGP-24 and SGP-40: select the required cup diameter and colour.

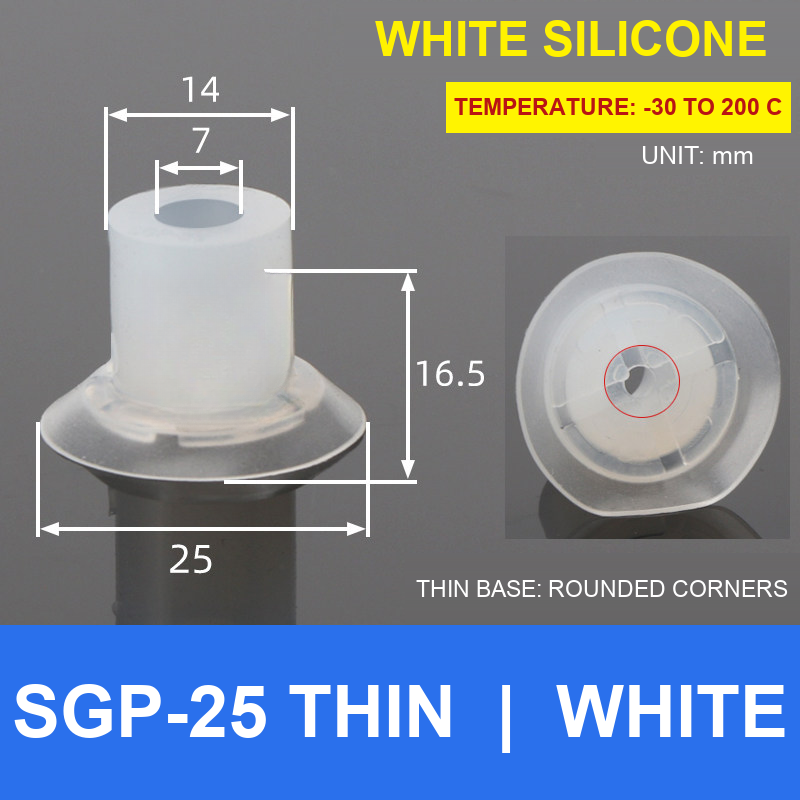

• SGP-25: choose the thin rounded-corner base or the thick square-corner base where listed.
• SGP-30: choose the 11 mm large-bore or 8 mm small-bore version.
• White, brown and red selections are silicone; black selections are nitrile rubber.

Typical Uses

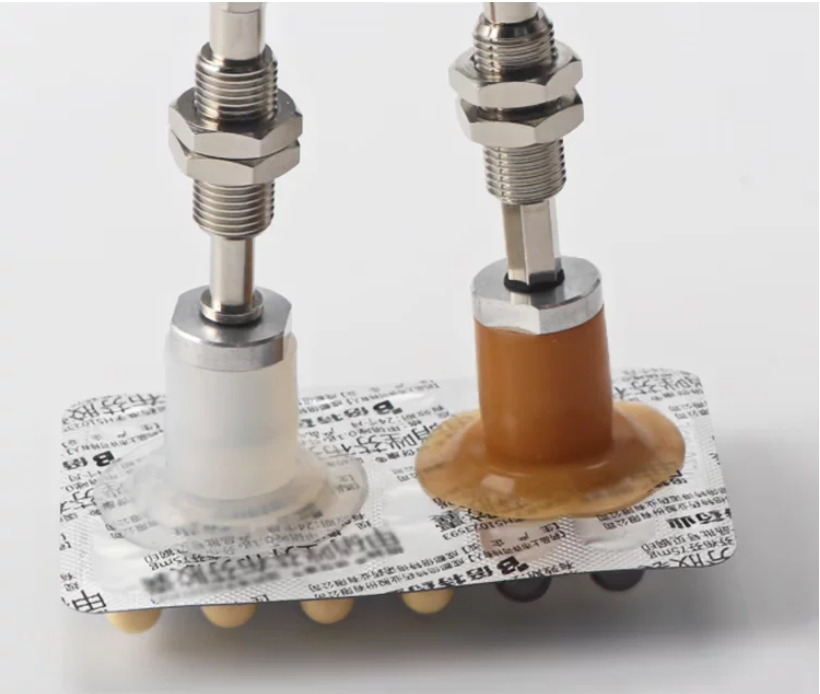

• Bag-opening and packaging machinery
• Lightweight pick-and-place automation
• Compatible industrial vacuum tooling

Before Ordering

Confirm the complete model, cup diameter, bore size, base style, material, mounting dimensions, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment. No food-contact, medical, lifting-safety or regulatory certification is claimed.

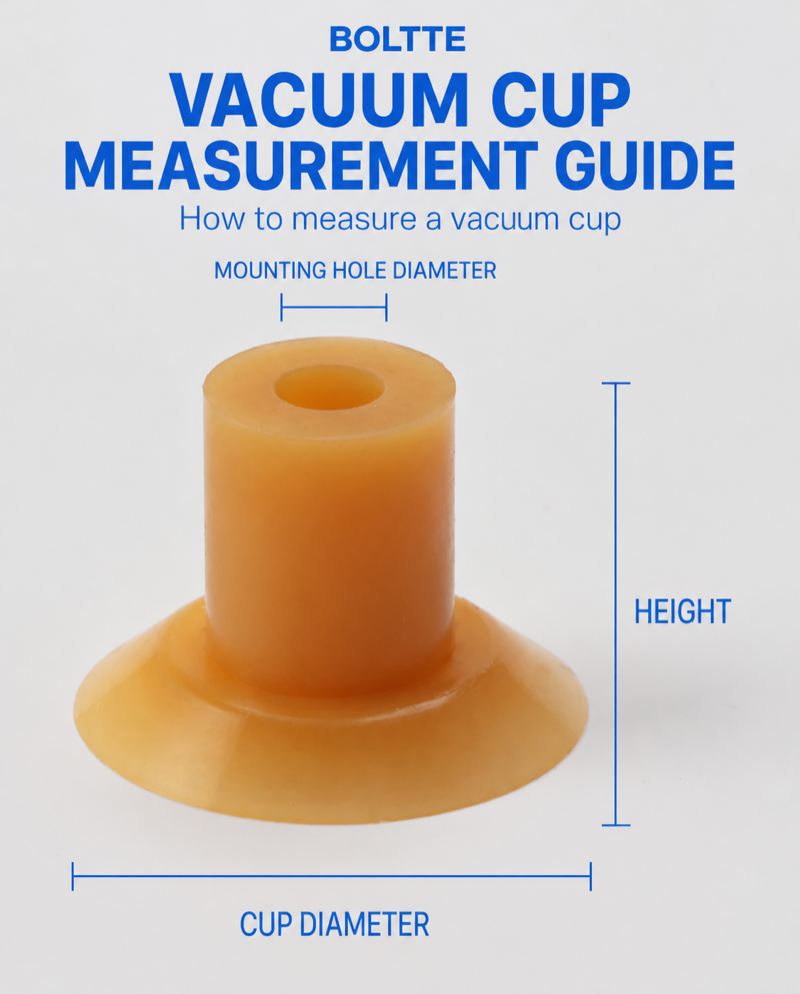

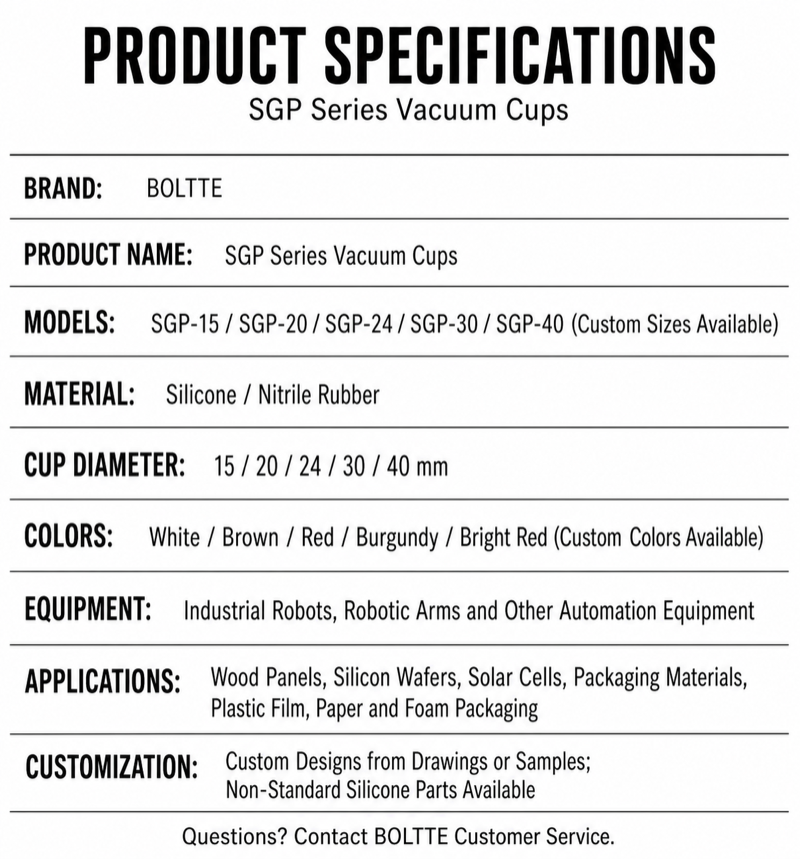

Product Overview, Measurement and Specifications
