SEA Adjustable Mechanical Arm Fixture Shaft Clamps

SEA Adjustable Mechanical Arm Fixture Shaft Clamps

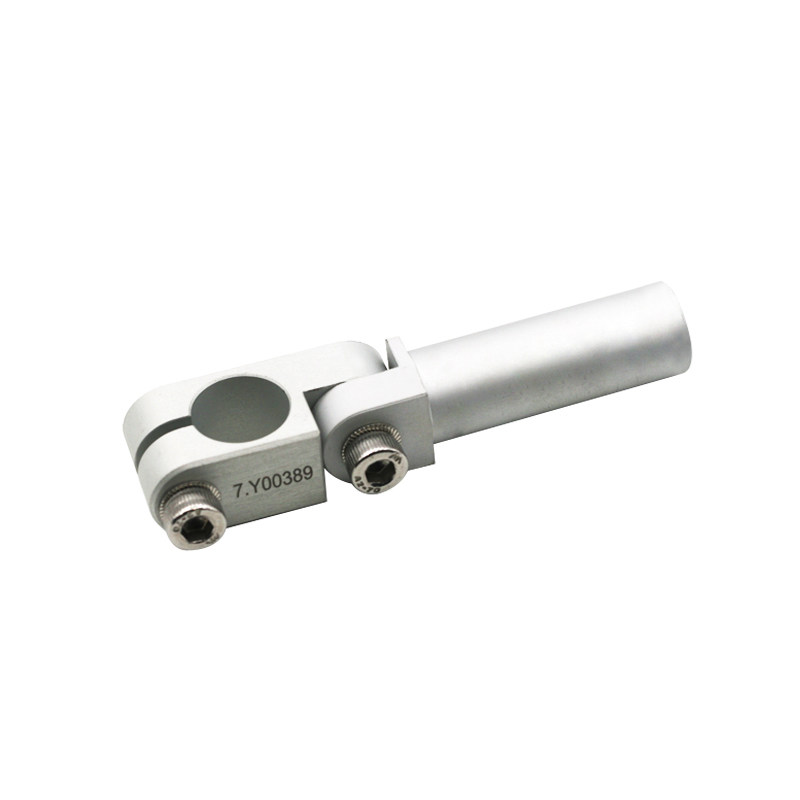

SEA adjustable fixture clamps for cylindrical shafts, mechanical-arm brackets and compact industrial positioning assemblies. The universal-angle joint design supports model-specific shaft diameters and arm lengths shown in the technical drawings.

• Eleven SEA model configurations from 10 mm to 30 mm shaft diameters

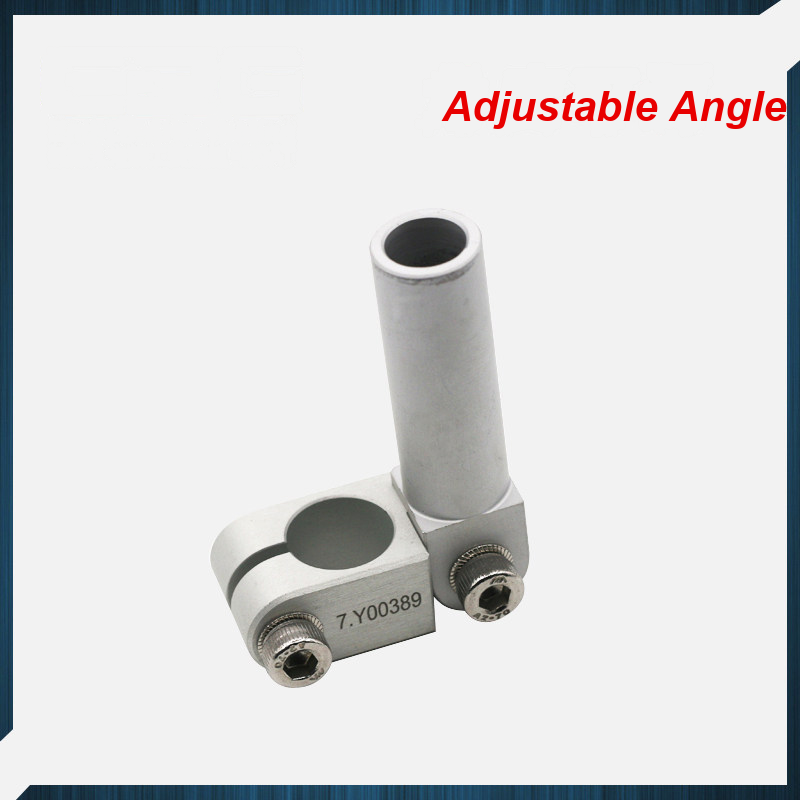

• Adjustable-angle clamp body for mechanical-arm fixture assemblies
• Anodized aluminum construction with steel fastening hardware

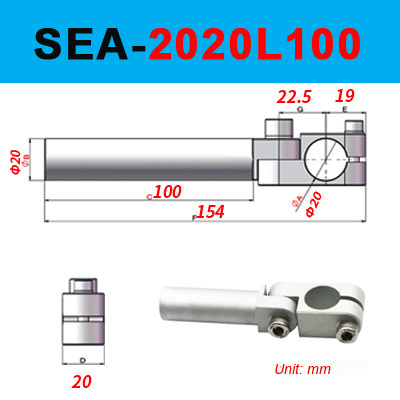

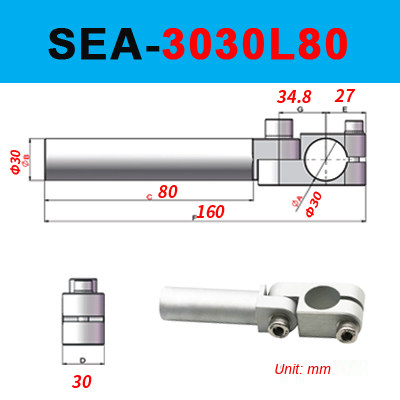

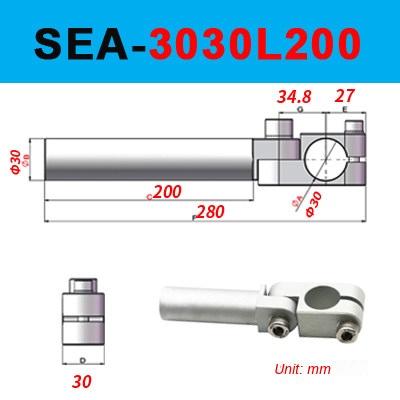

• Model drawings show the corresponding shaft diameter, arm length and overall dimensions
• Select the exact SEA model code that matches the required shaft and length

Applications / Suitable For

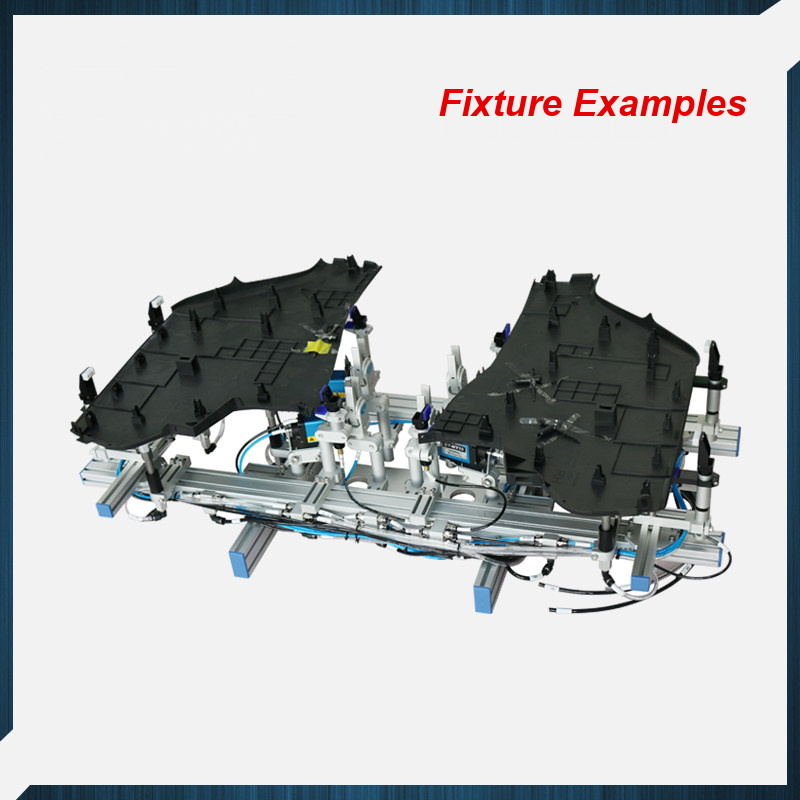

• Mechanical-arm fixtures and optical-shaft positioning
• Industrial automation, inspection and transfer equipment
• Adjustable brackets requiring compact cylindrical-shaft clamping

Confirm the selected model drawing, shaft diameter, mating hardware, load, fastening torque, clearance and operating environment before use. No lifting-safety, food-contact, medical or regulatory certification is claimed.
