  • BOLTTE SCSP3 two-piece split shaft collar 3 mm bore 16 mm outer diameter 8 mm width
  • BOLTTE SCSP4 two-piece split shaft collar 4 mm bore 18 mm outer diameter 8 mm width
  • BOLTTE SCSP5 two-piece split shaft collar 5 mm bore 20 mm outer diameter 8 mm width

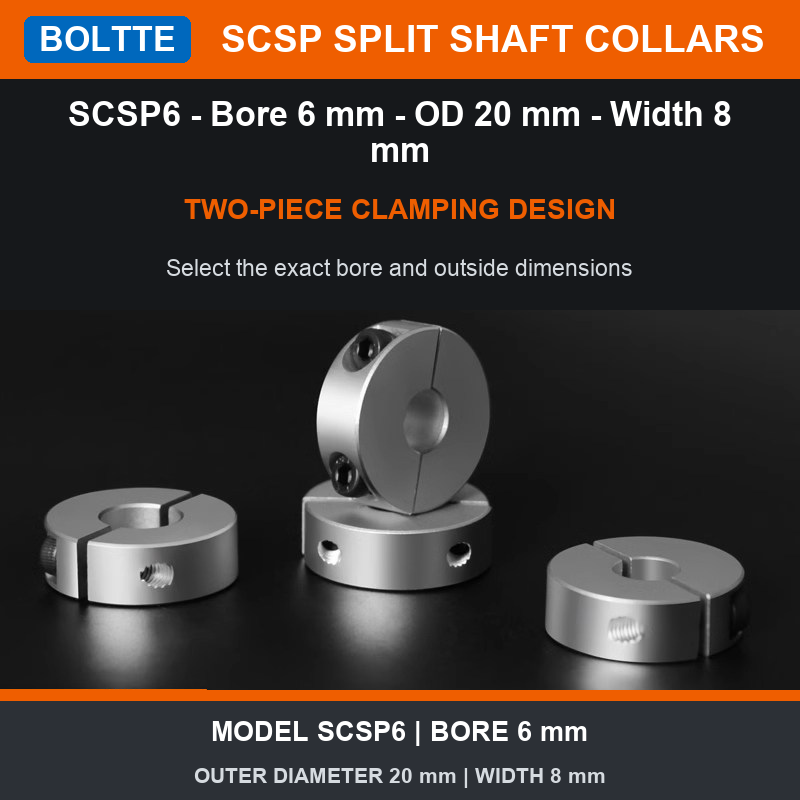

  • BOLTTE SCSP6 two-piece split shaft collar 6 mm bore 20 mm outer diameter 8 mm width
  • BOLTTE SCSP8 two-piece split shaft collar 8 mm bore 25 mm outer diameter 8 mm width
  • BOLTTE SCSP10 two-piece split shaft collar 10 mm bore 30 mm outer diameter 10 mm width
  • BOLTTE SCSP12 two-piece split shaft collar 12 mm bore 30 mm outer diameter 10 mm width
  • BOLTTE SCSP13 two-piece split shaft collar 13 mm bore 30 mm outer diameter 10 mm width
  • BOLTTE SCSP14 two-piece split shaft collar 14 mm bore 35 mm outer diameter 12 mm width
  • BOLTTE SCSP15 two-piece split shaft collar 15 mm bore 35 mm outer diameter 12 mm width
  • BOLTTE SCSP16 two-piece split shaft collar 16 mm bore 35 mm outer diameter 12 mm width
  • BOLTTE SCSP18 two-piece split shaft collar 18 mm bore 40 mm outer diameter 12 mm width
  • BOLTTE SCSP20 two-piece split shaft collar 20 mm bore 40 mm outer diameter 12 mm width
  • BOLTTE SCSP22 two-piece split shaft collar 22 mm bore 45 mm outer diameter 12 mm width
  • BOLTTE SCSP25 two-piece split shaft collar 25 mm bore 45 mm outer diameter 12 mm width
  • BOLTTE SCSP28 two-piece split shaft collar 28 mm bore 50 mm outer diameter 12 mm width
  • BOLTTE SCSP30 two-piece split shaft collar 30 mm bore 55 mm outer diameter 15 mm width
  • BOLTTE SCSP32 two-piece split shaft collar 32 mm bore 60 mm outer diameter 15 mm width
  • BOLTTE SCSP35 two-piece split shaft collar 35 mm bore 60 mm outer diameter 15 mm width
  • BOLTTE SCSP40 two-piece split shaft collar 40 mm bore 70 mm outer diameter 18 mm width
  • BOLTTE SCSP45 two-piece split shaft collar 45 mm bore 80 mm outer diameter 22 mm width
  • BOLTTE SCSP50 two-piece split shaft collar 50 mm bore 85 mm outer diameter 22 mm width

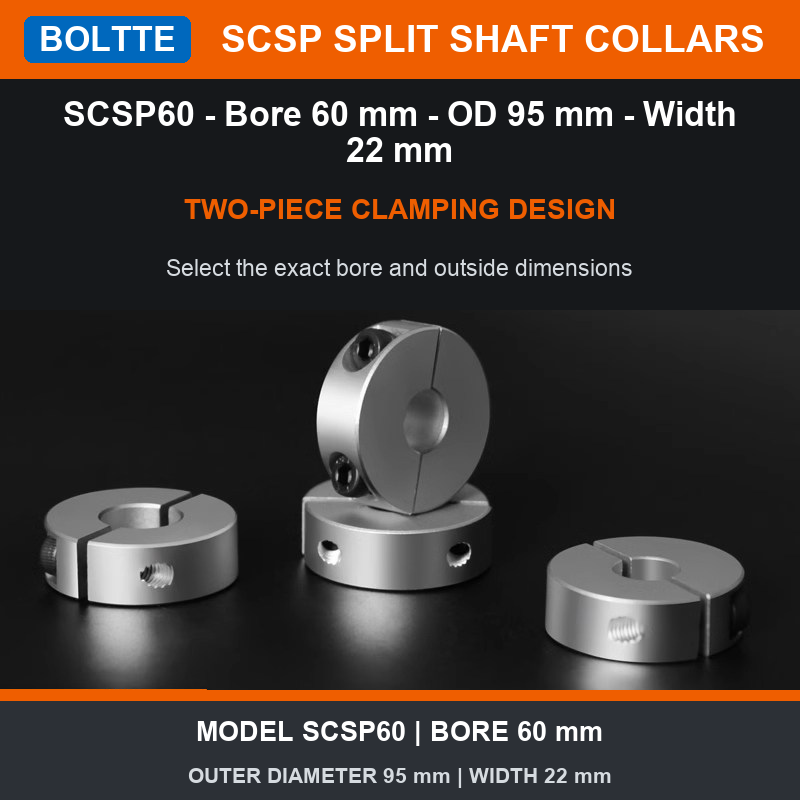

  • BOLTTE SCSP60 two-piece split shaft collar 60 mm bore 95 mm outer diameter 22 mm width
1 / 23

BOLTTE SCSP Two-Piece Split Shaft Collars - 3-60 mm Bore

$4.00 USD
BOLTTE SCSP Two-Piece Split Shaft Collars - 3-60 mm Bore
Model
Quantity
WhatsApp

BOLTTE SCSP Two-Piece Split Shaft Collars - 3-60 mm Bore

BOLTTE SCSP two-piece split shaft collars use an aluminum-alloy clamping body for shaft positioning, spacing and component retention. Select the exact model by bore, outer diameter and width.

Model selection

  • Model range: SCSP3 to SCSP60.
  • Bore range: 3 mm to 60 mm.
  • Outer diameter range: 16 mm to 95 mm.
  • Width range: 8 mm to 22 mm.
  • Each model card identifies the exact bore, outer diameter and width.

Ordering requirements

  • Select the model that matches the shaft diameter.
  • Verify the available radial and axial installation space against the listed outer diameter and width.
  • If a keyway or other machining is required, state the dimensions separately in Order requirements.
  • Confirm shaft tolerance, surface condition, axial load, clamp clearance and tightening requirements before installation.

The product image represents the SCSP family. The selected dimensions follow the chosen model. Verify all mating dimensions before use.

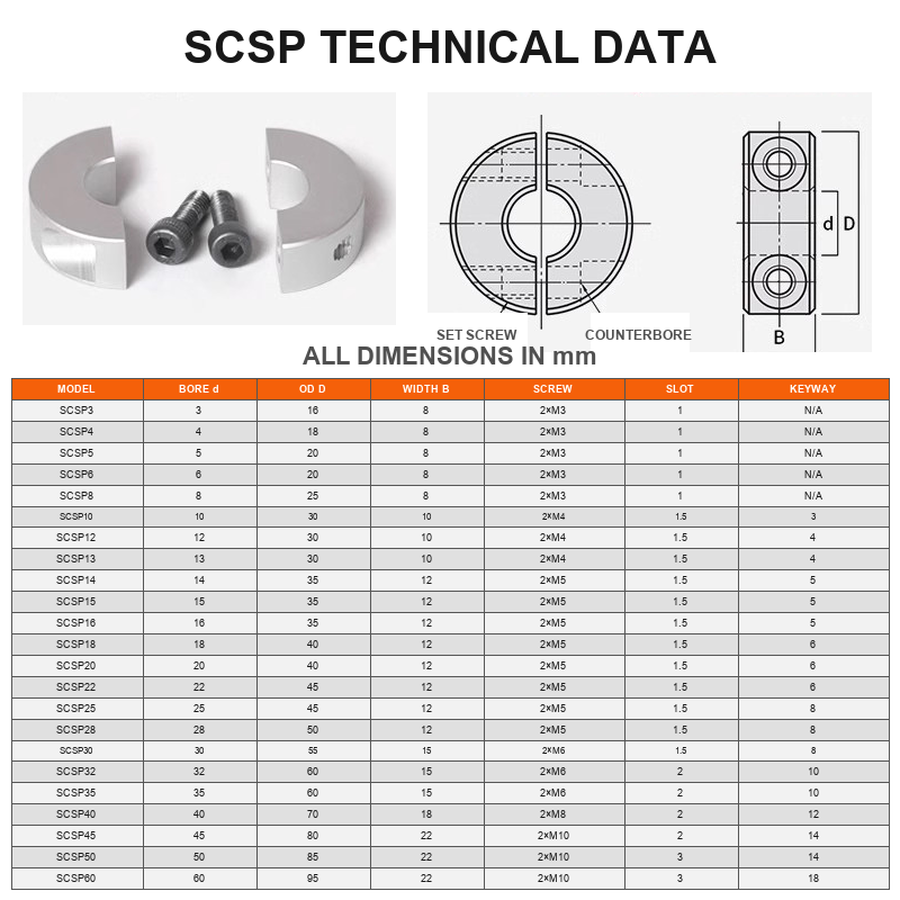

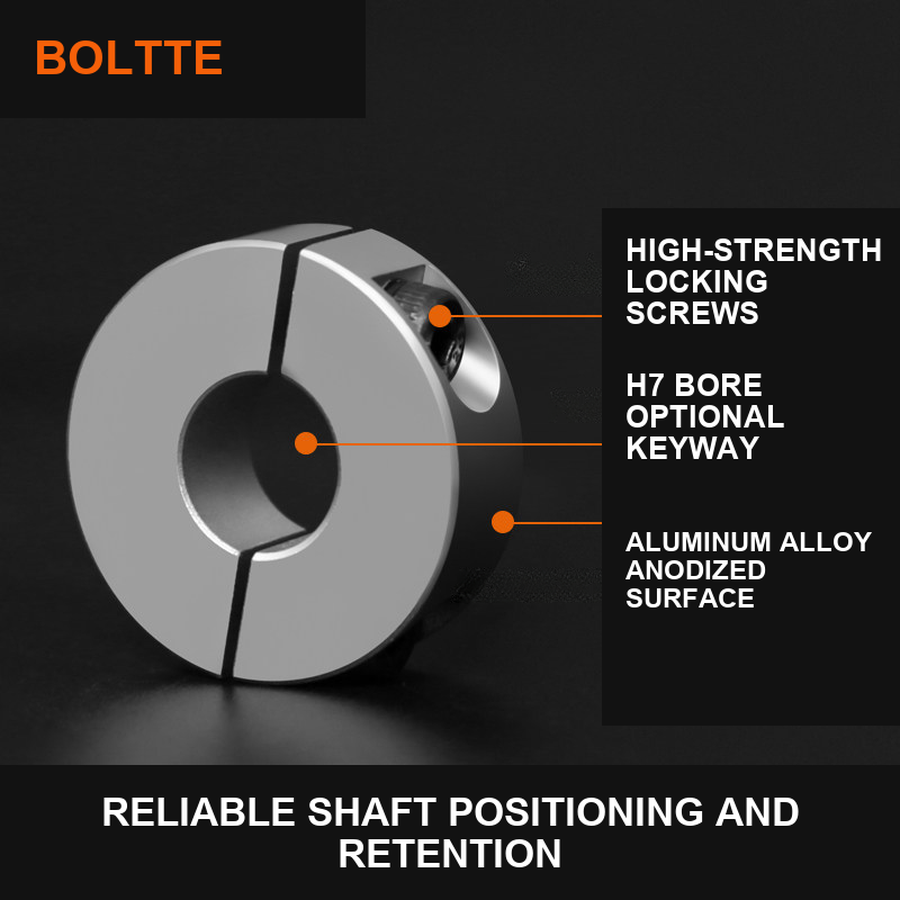

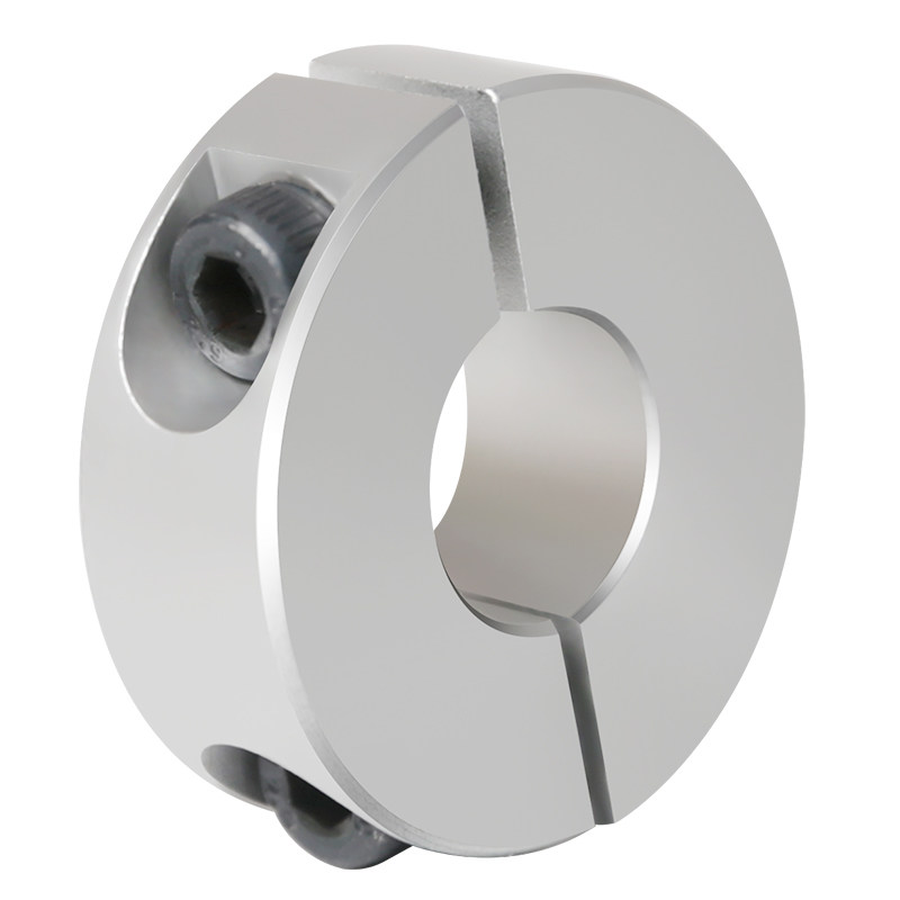

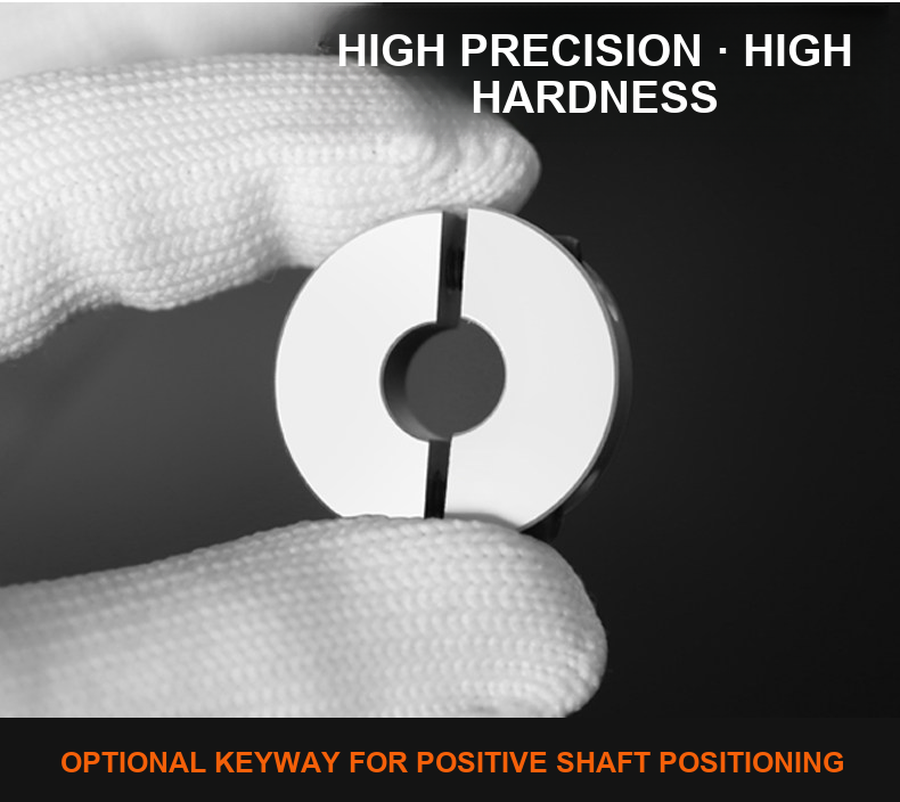

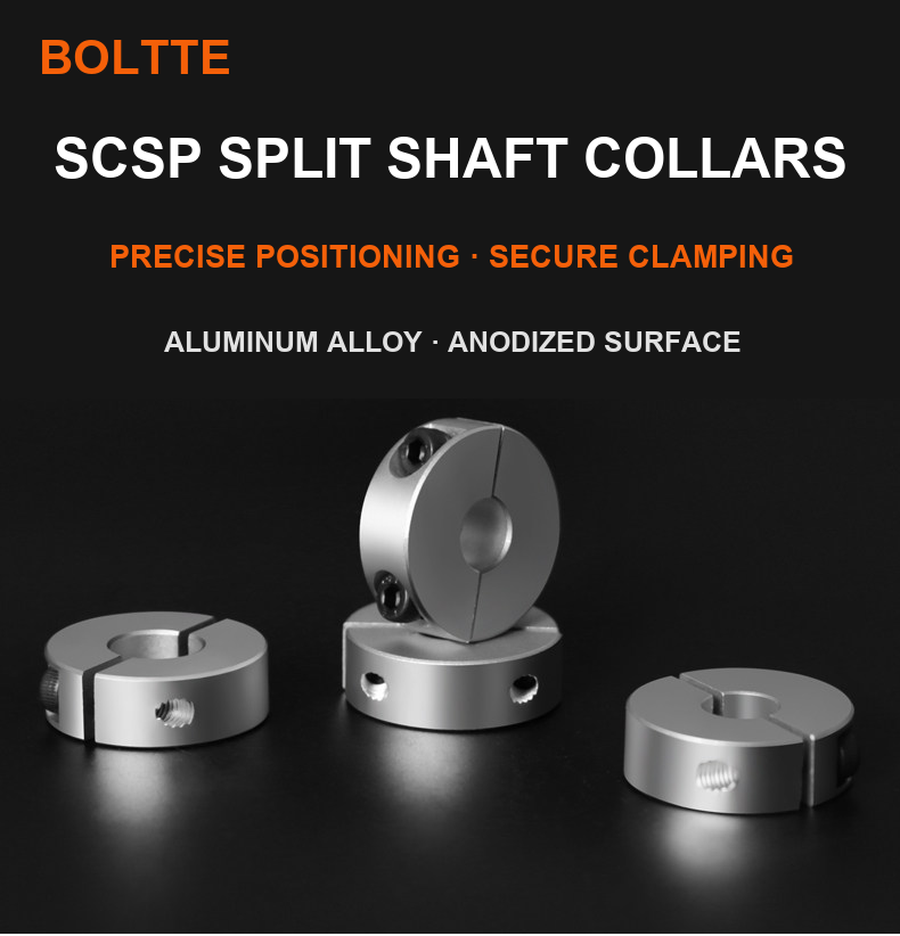

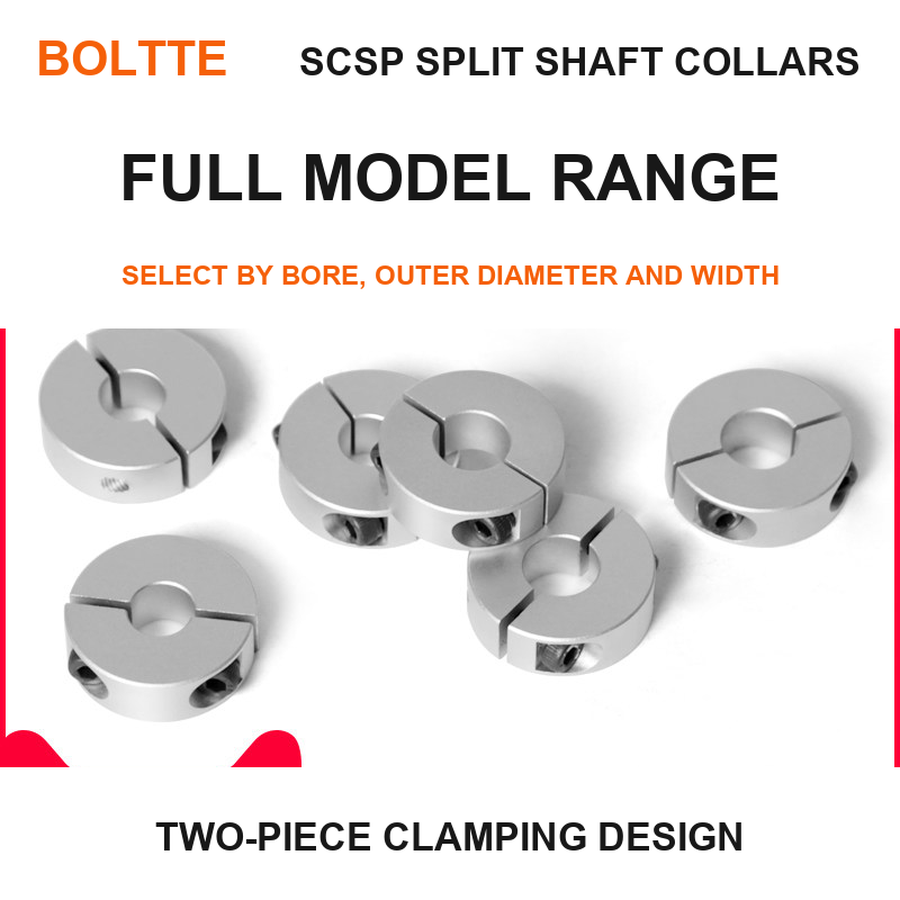

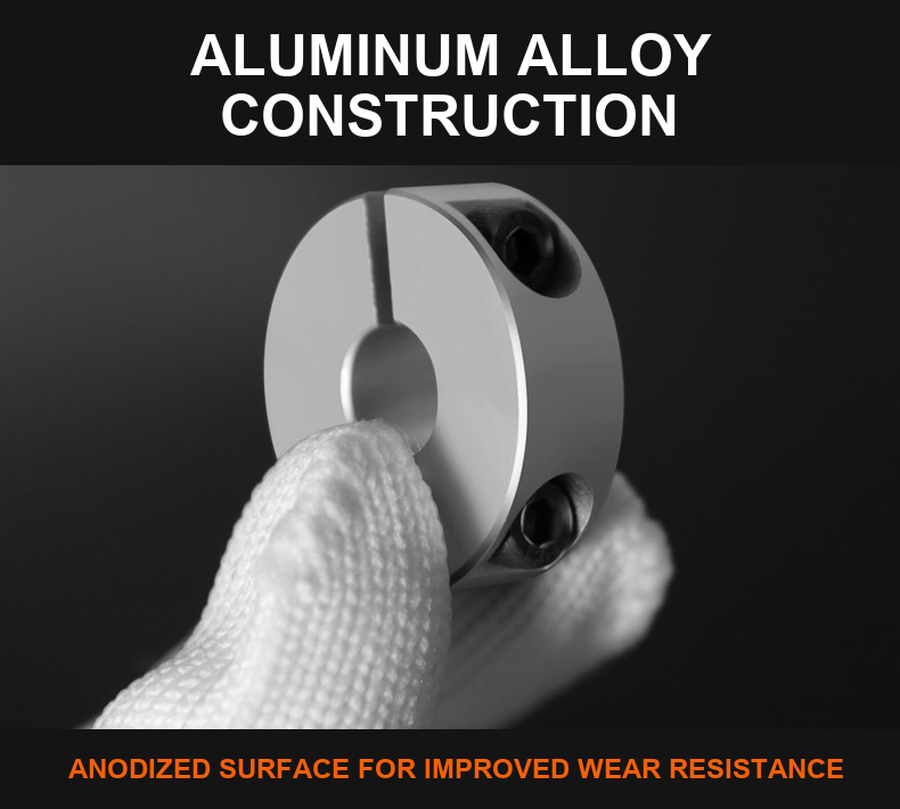

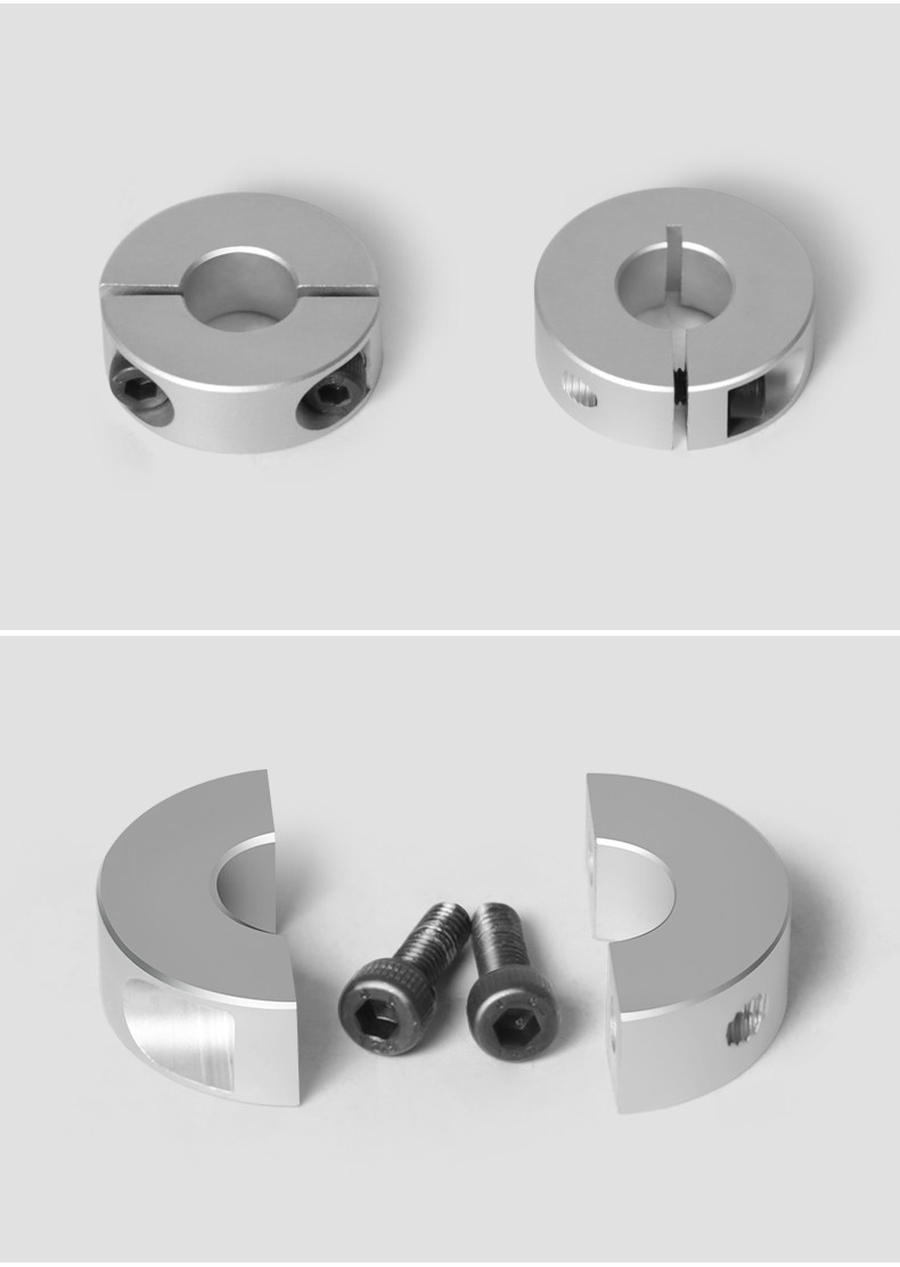

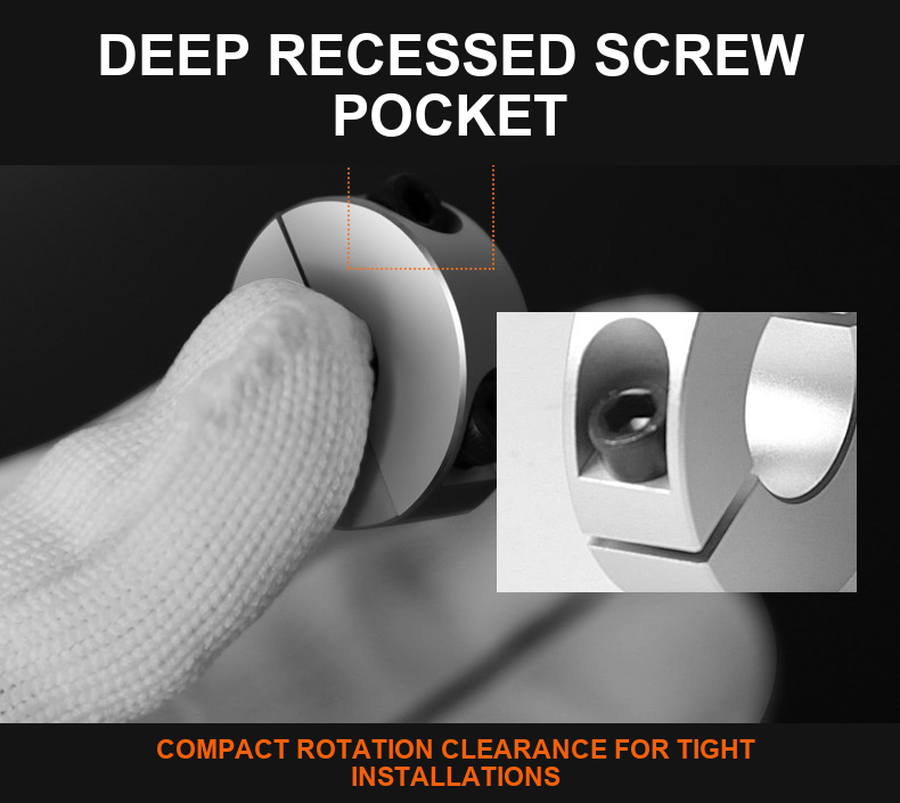

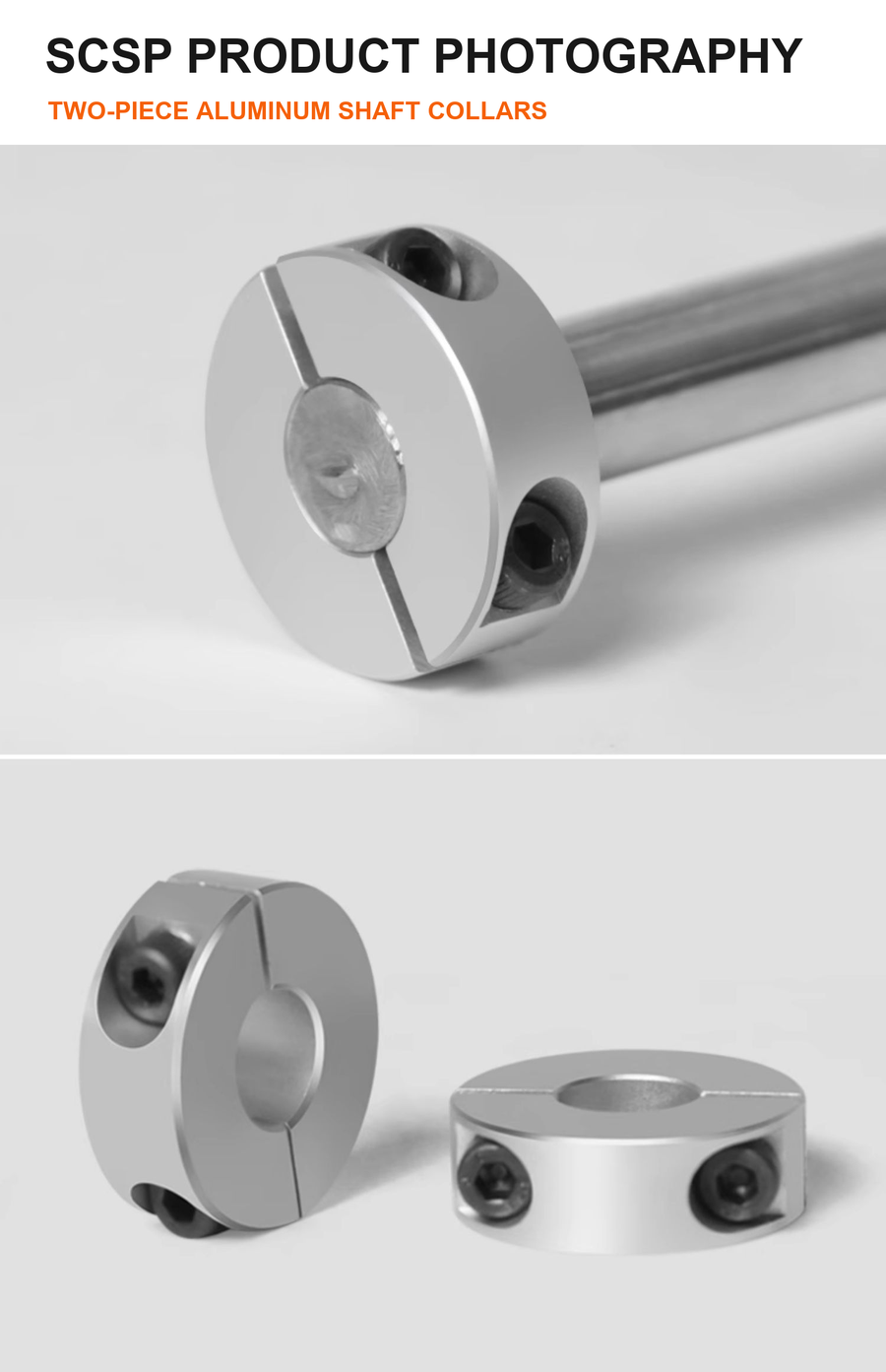

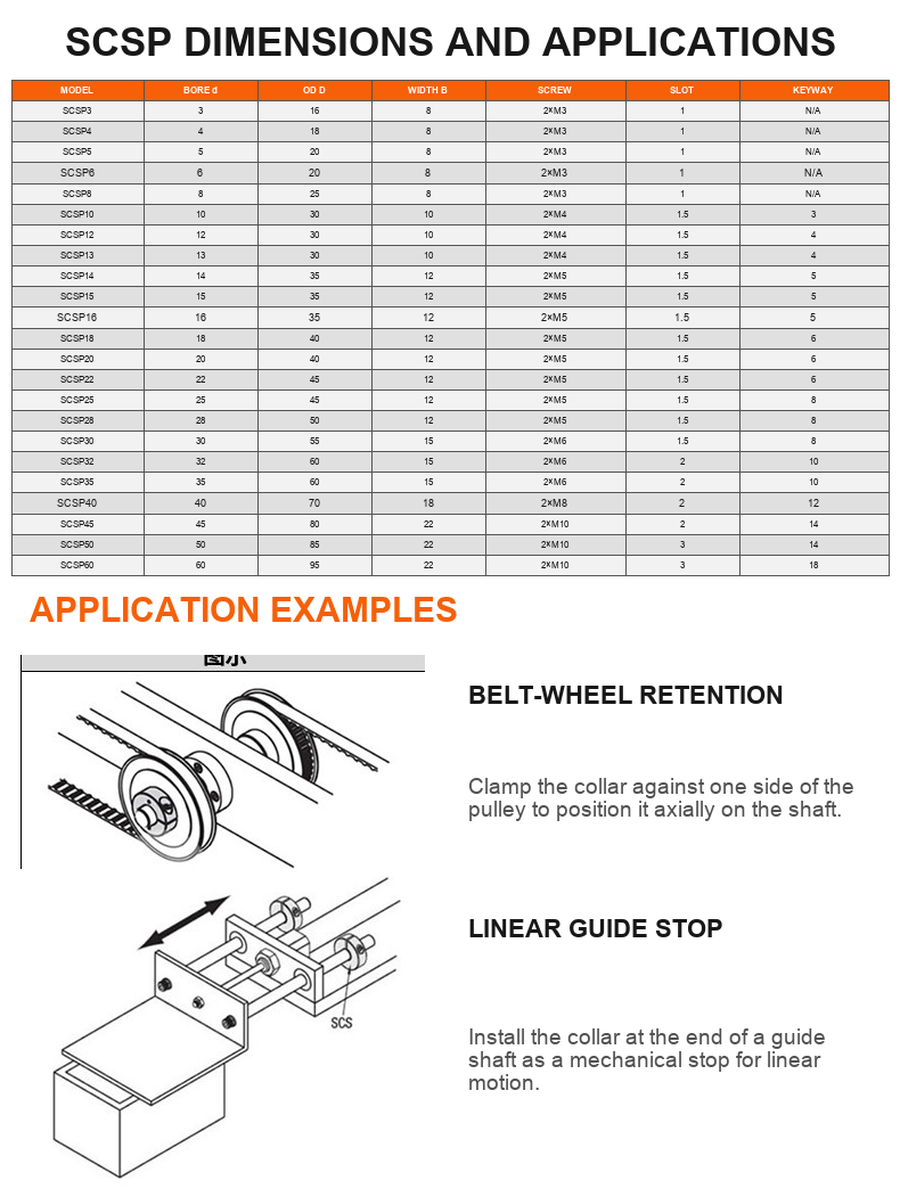

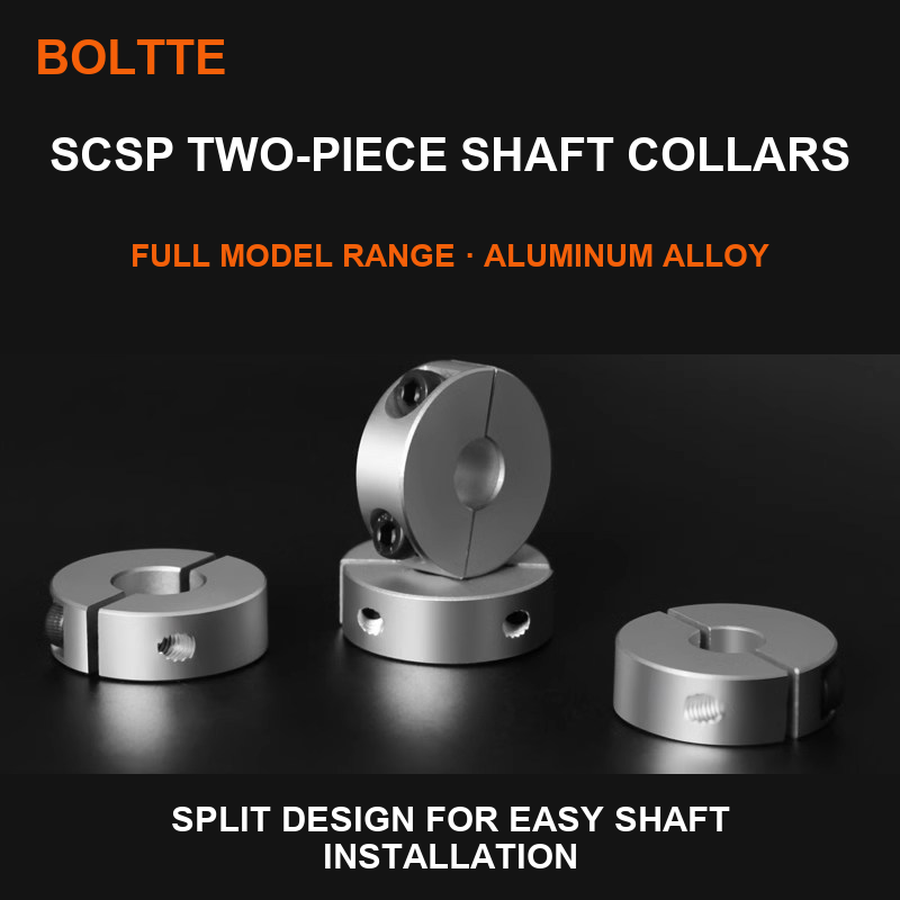

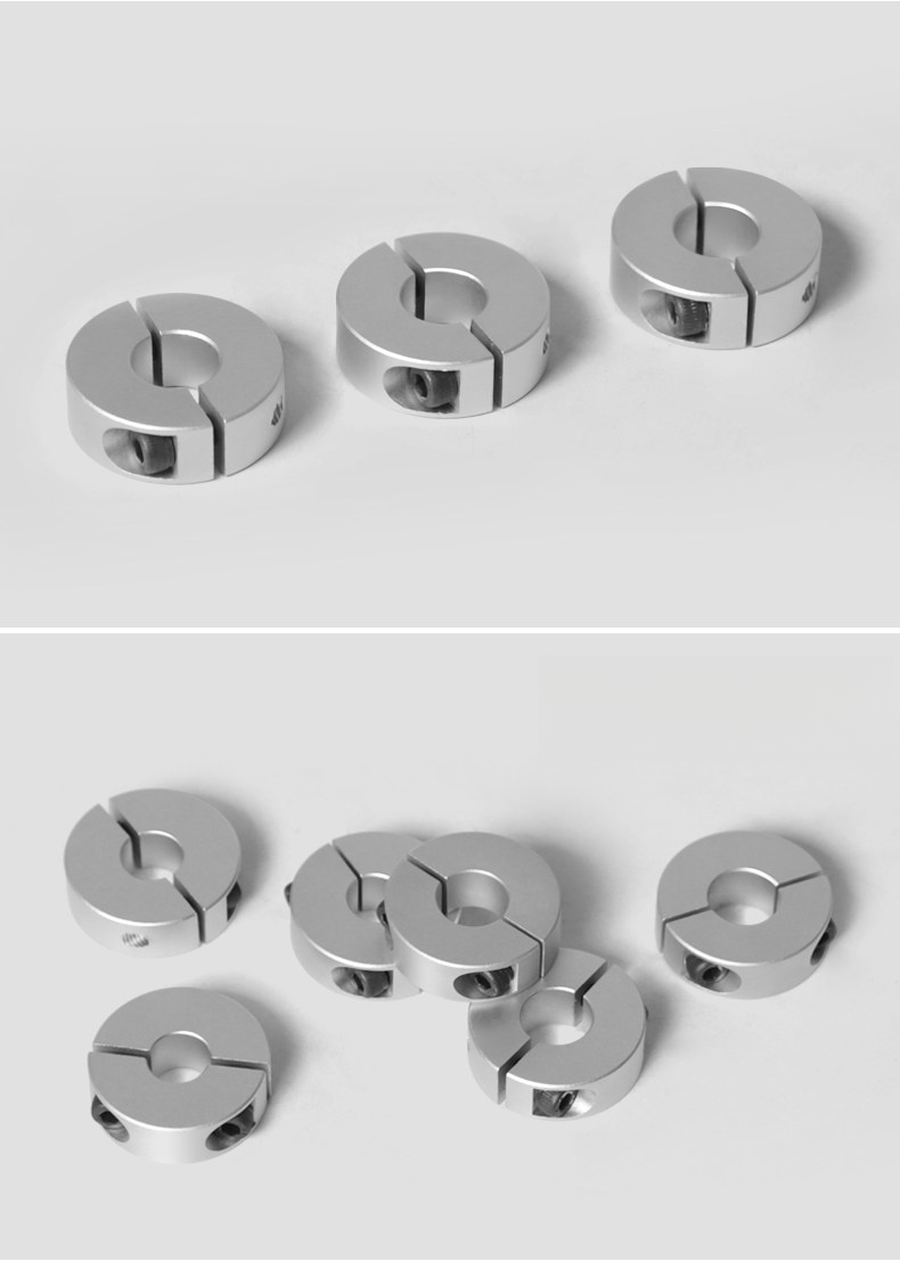

BOLTTE SCSP split shaft collars overview SCSP two-piece split shaft collar product range SCSP collar material bore and set-screw features SCSP aluminum alloy and anodized surface finish SCSP deep recessed locking screw pocket SCSP high precision and high hardness SCSP dimensions and application examples SCSP model dimensions screw slot and keyway data SCSP full model range SCSP split shaft collar single product view SCSP split shaft collar product photography SCSP split shaft collar and screws SCSP split shaft collar model range
