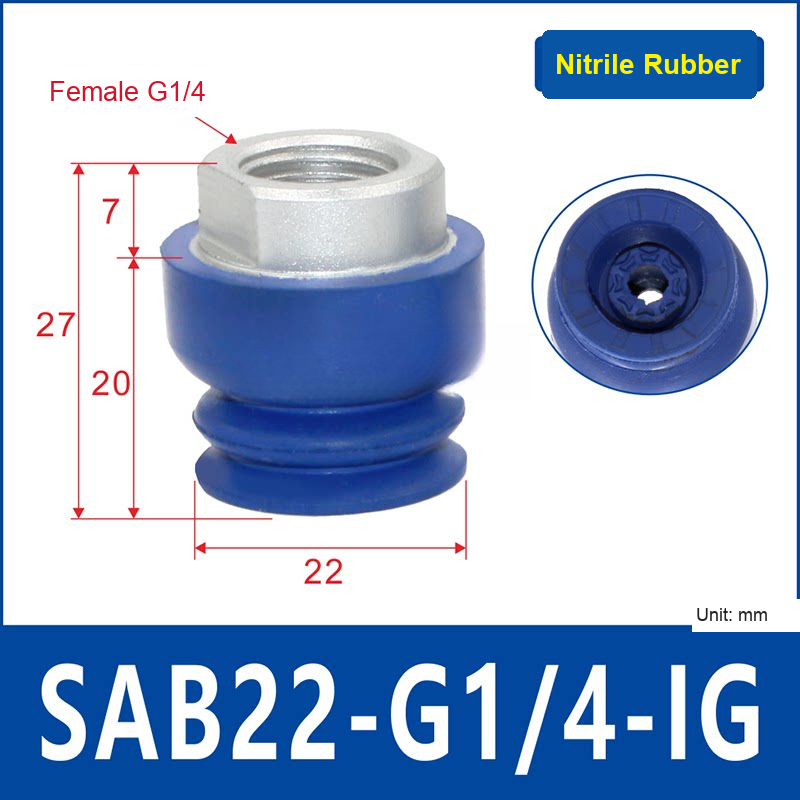

  • SAB22-G1/4-IG vacuum suction cup or fitting

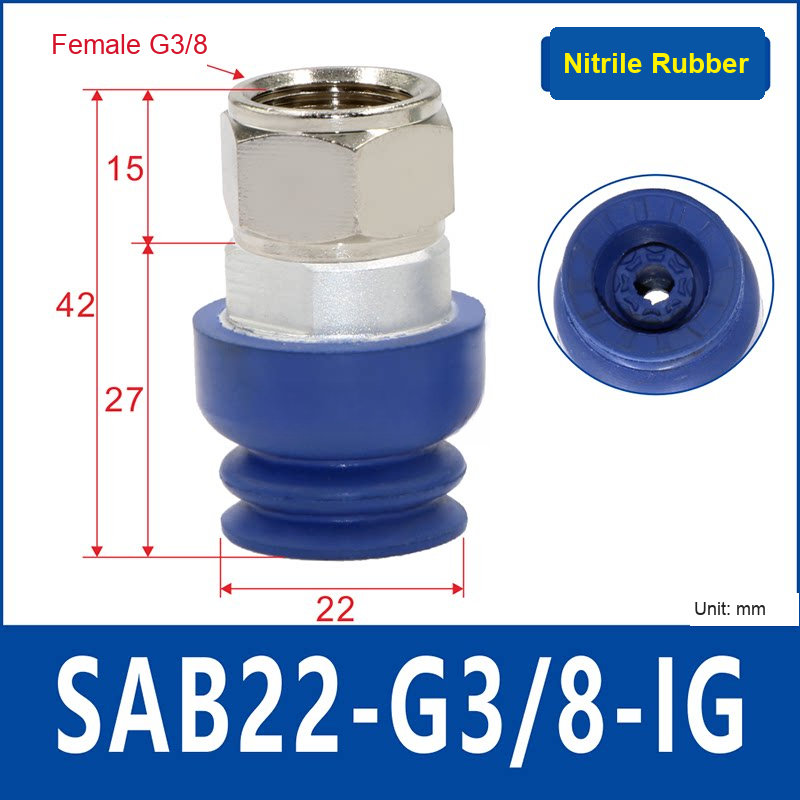

  • SAB22-G3/8-IG vacuum suction cup or fitting

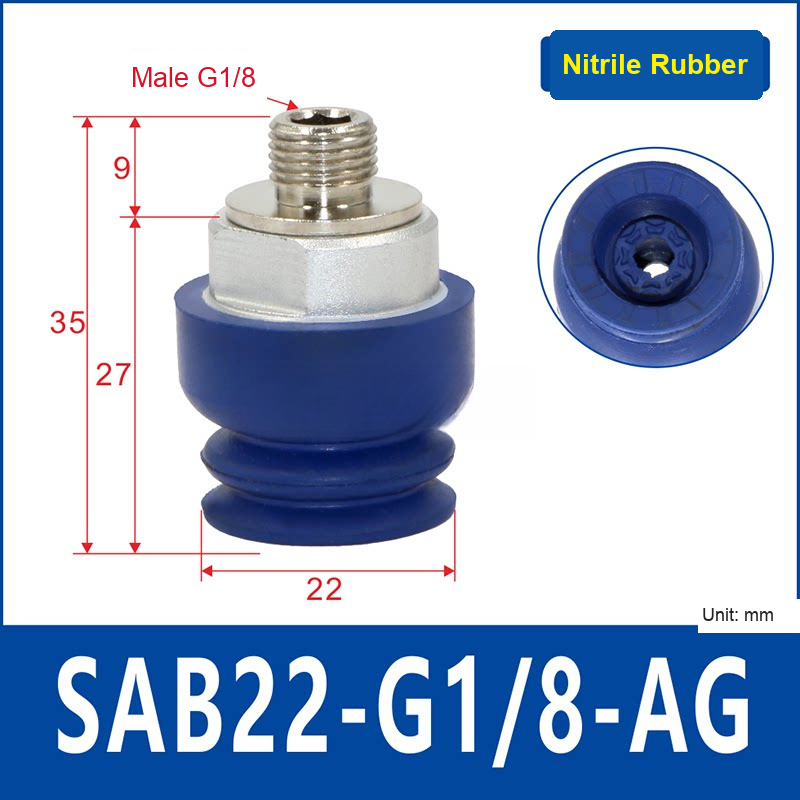

  • SAB22-G1/8-AG vacuum suction cup or fitting

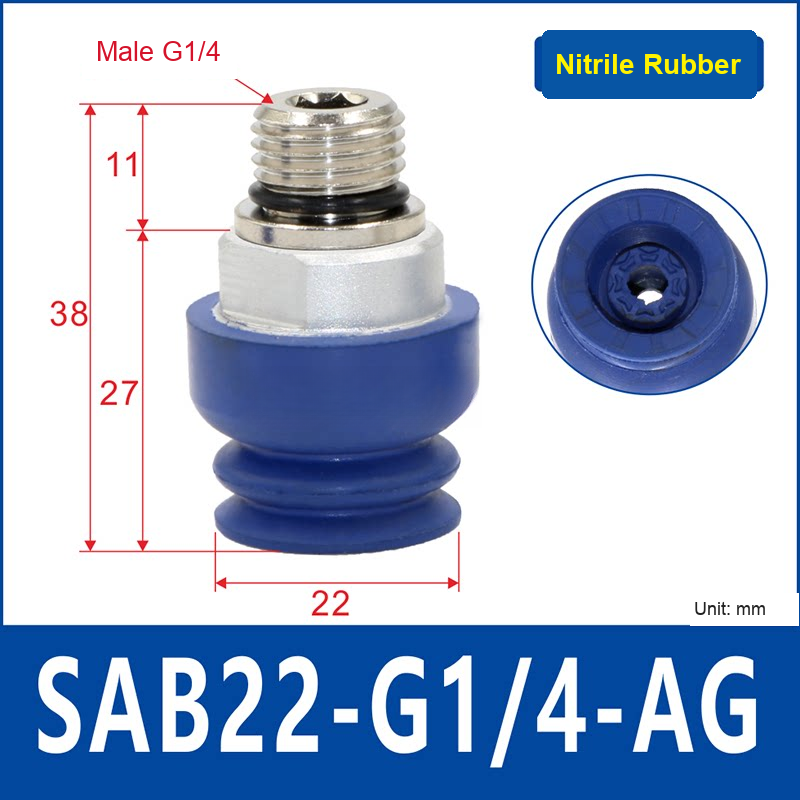

  • SAB22-G1/4-AG vacuum suction cup or fitting

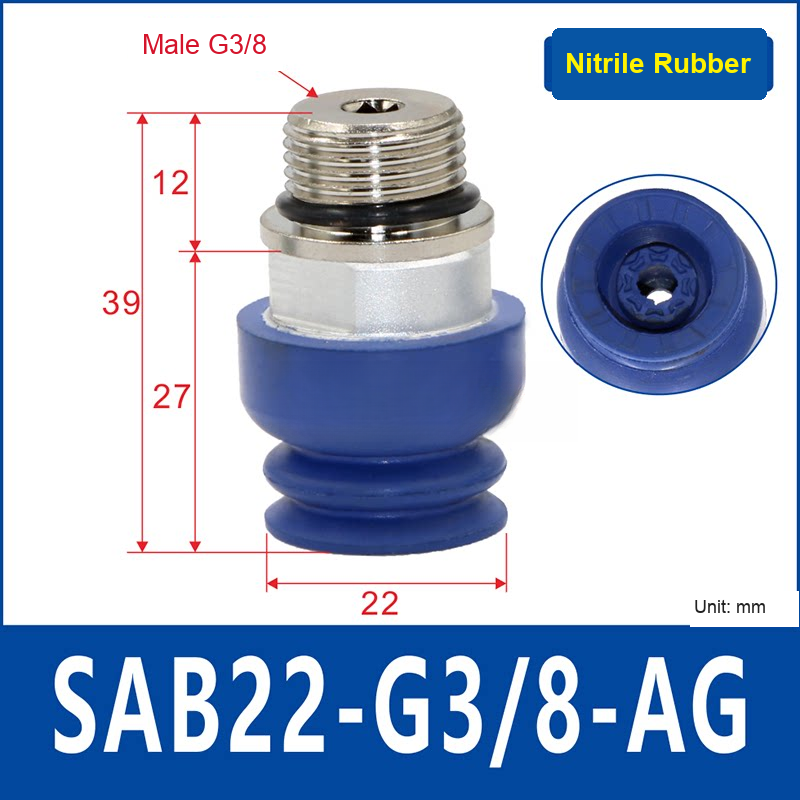

  • SAB22-G3/8-AG vacuum suction cup or fitting

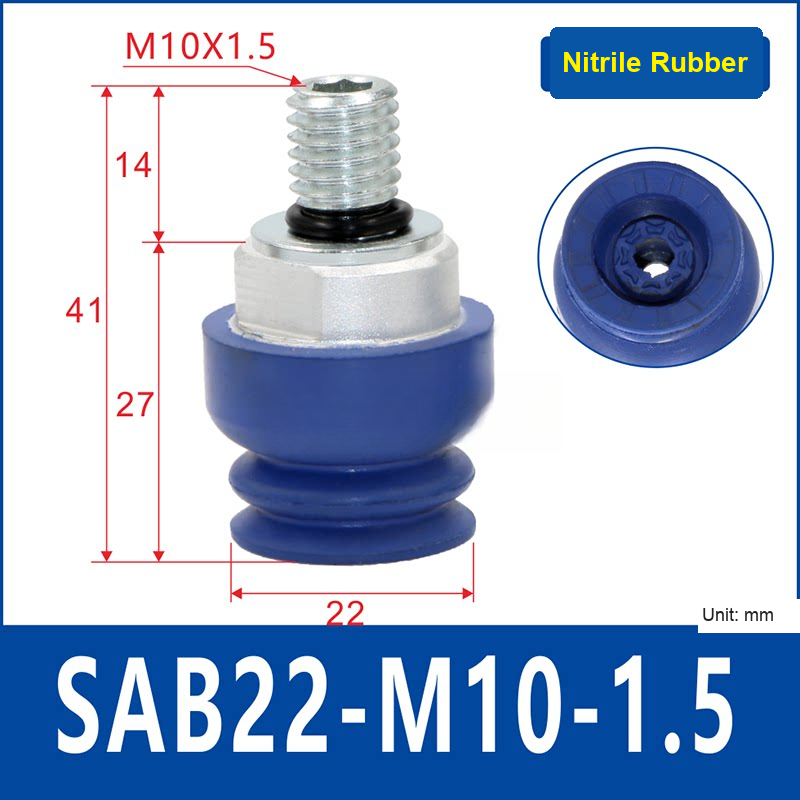

  • SAB22-M10×1.5 vacuum suction cup or fitting

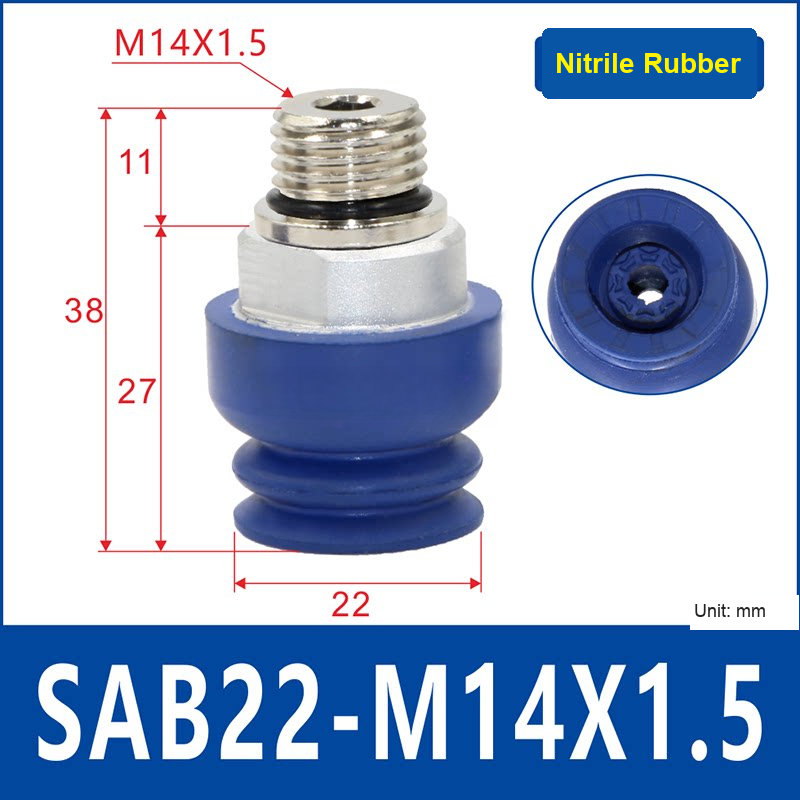

  • SAB22-M14×1.5 vacuum suction cup or fitting
  • SAB30-G1/4-IG vacuum suction cup or fitting

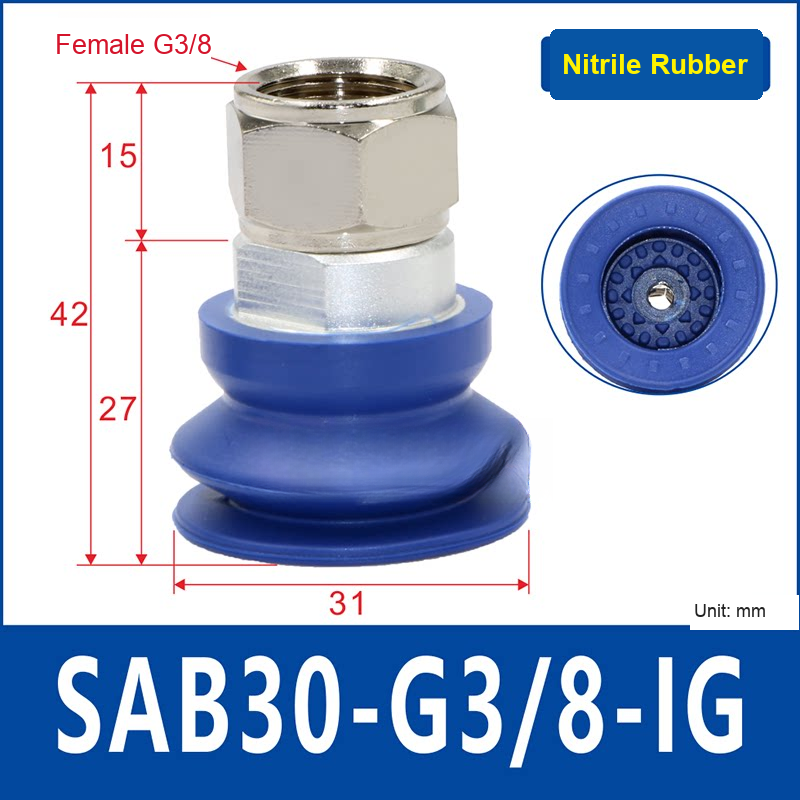

  • SAB30-G3/8-IG vacuum suction cup or fitting

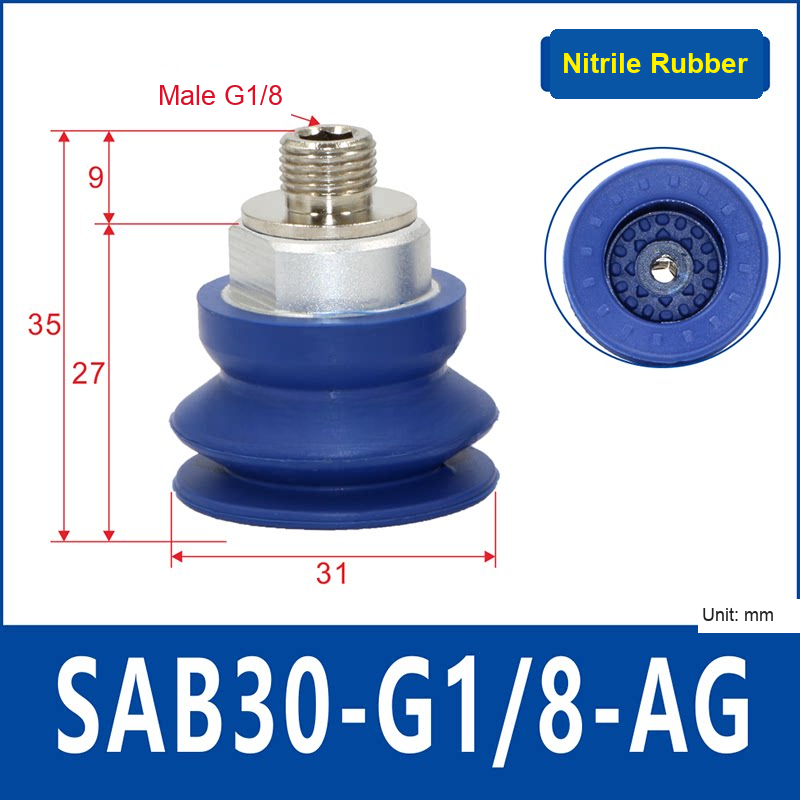

  • SAB30-G1/8-AG vacuum suction cup or fitting

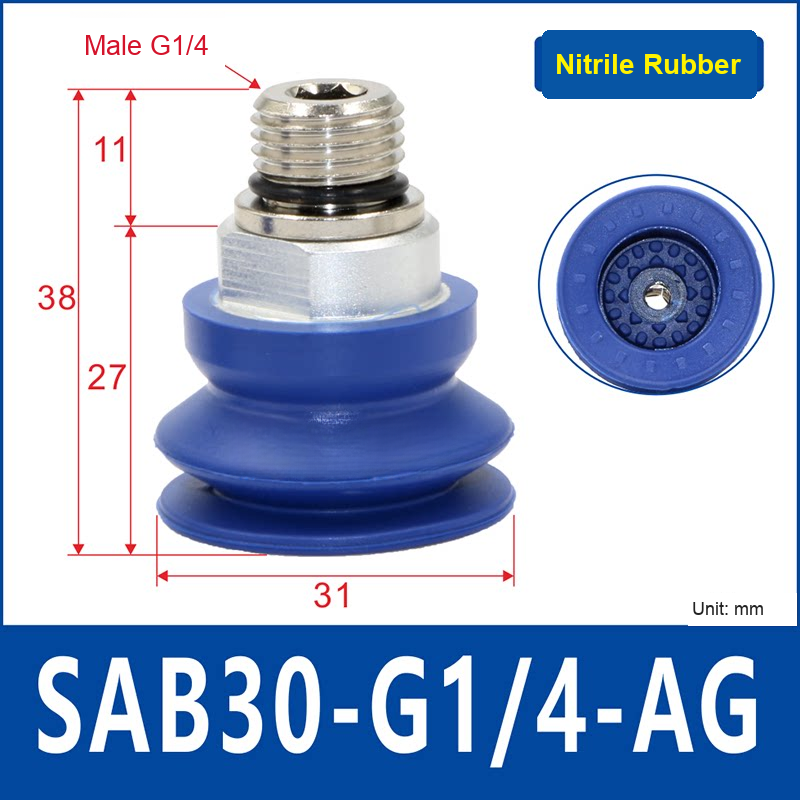

  • SAB30-G1/4-AG vacuum suction cup or fitting

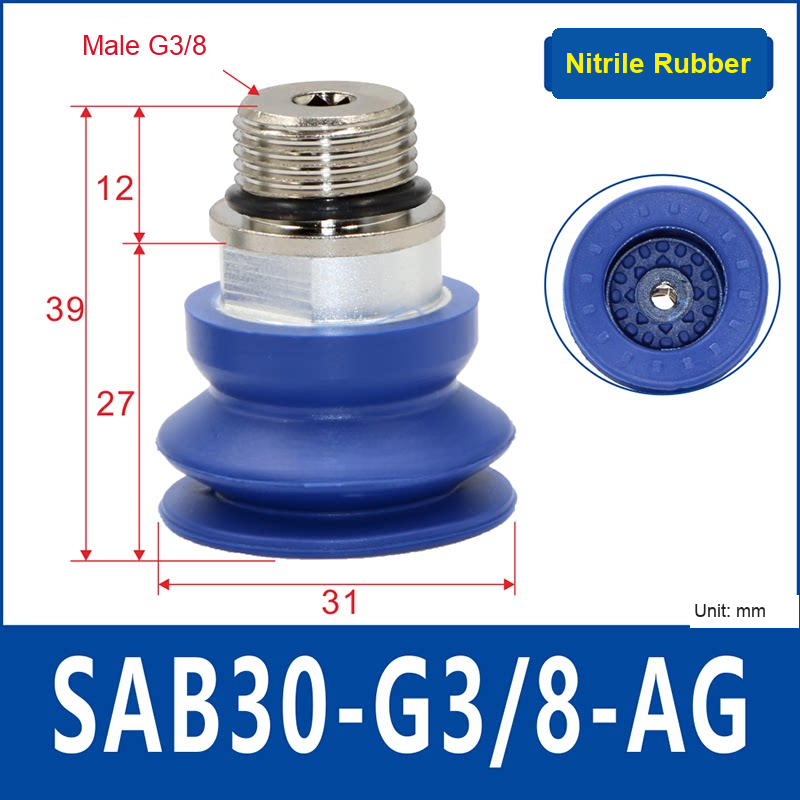

  • SAB30-G3/8-AG vacuum suction cup or fitting

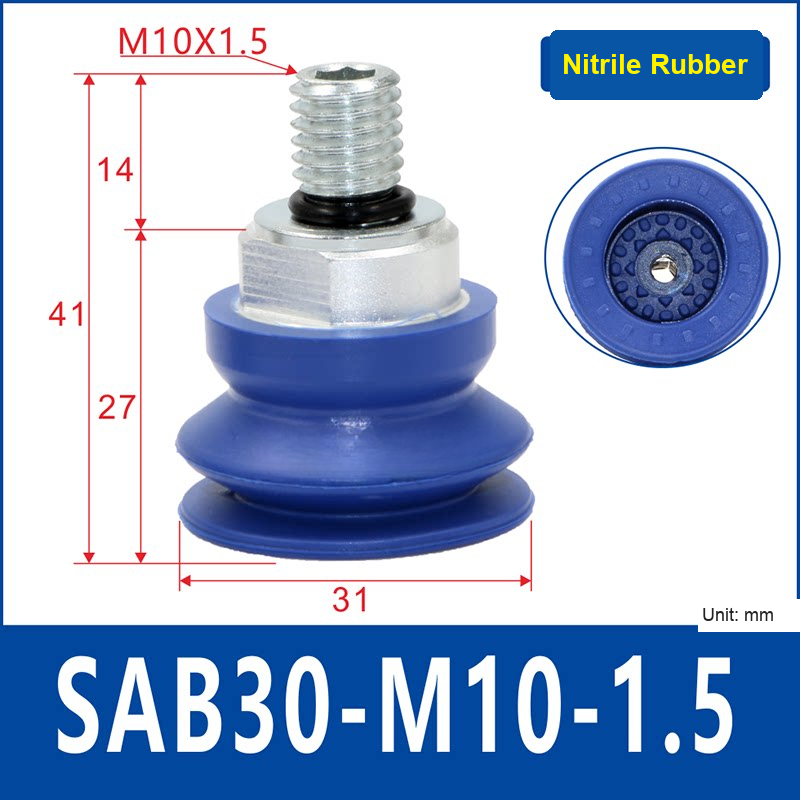

  • SAB30-M10×1.5 vacuum suction cup or fitting

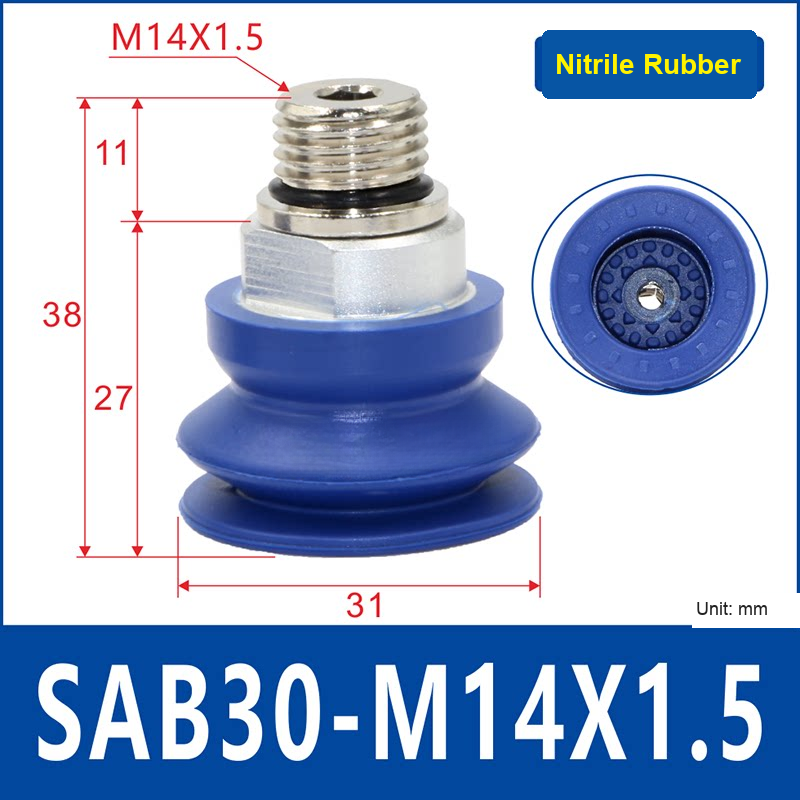

  • SAB30-M14×1.5 vacuum suction cup or fitting

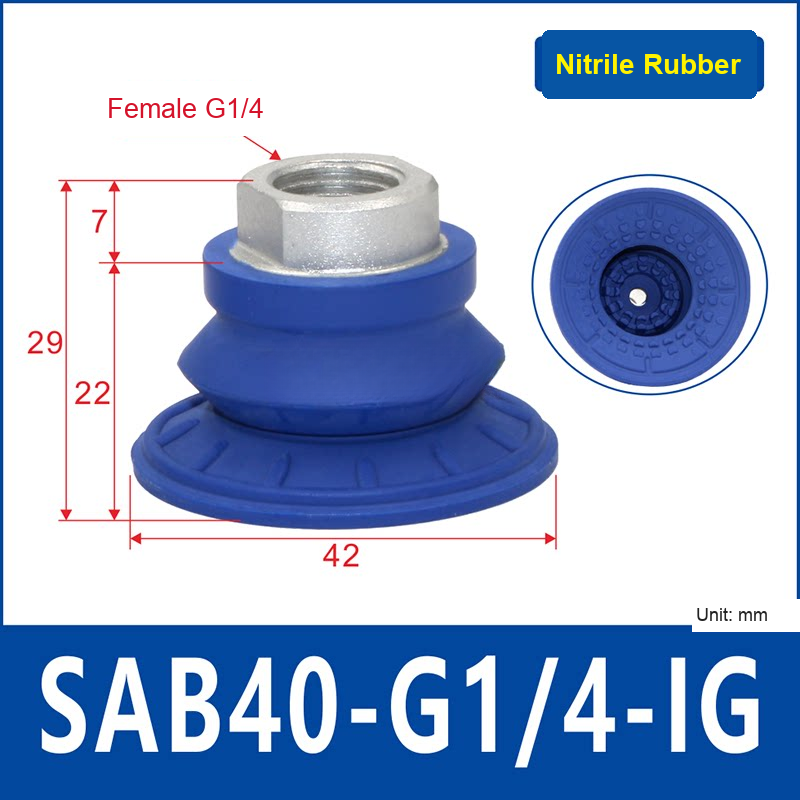

  • SAB40-G1/4-IG vacuum suction cup or fitting

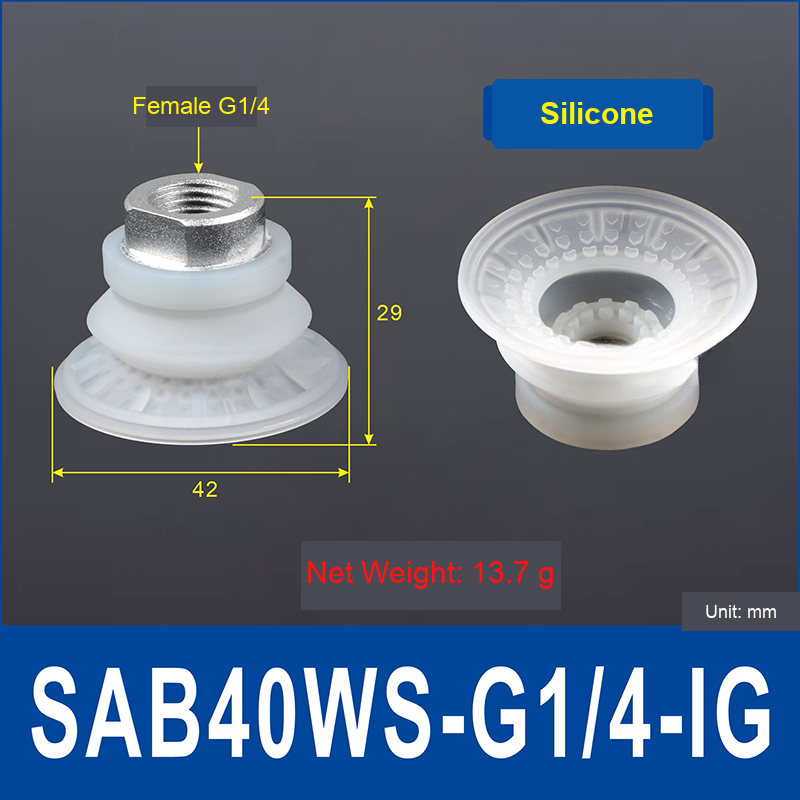

  • SAB40WS-G1/4-IG vacuum suction cup or fitting

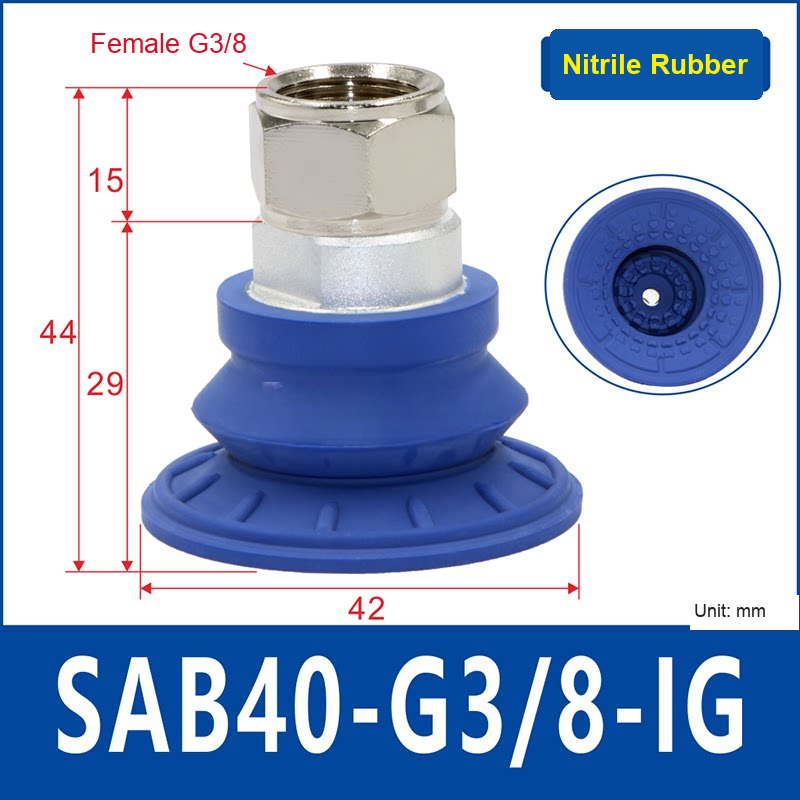

  • SAB40-G3/8-IG vacuum suction cup or fitting

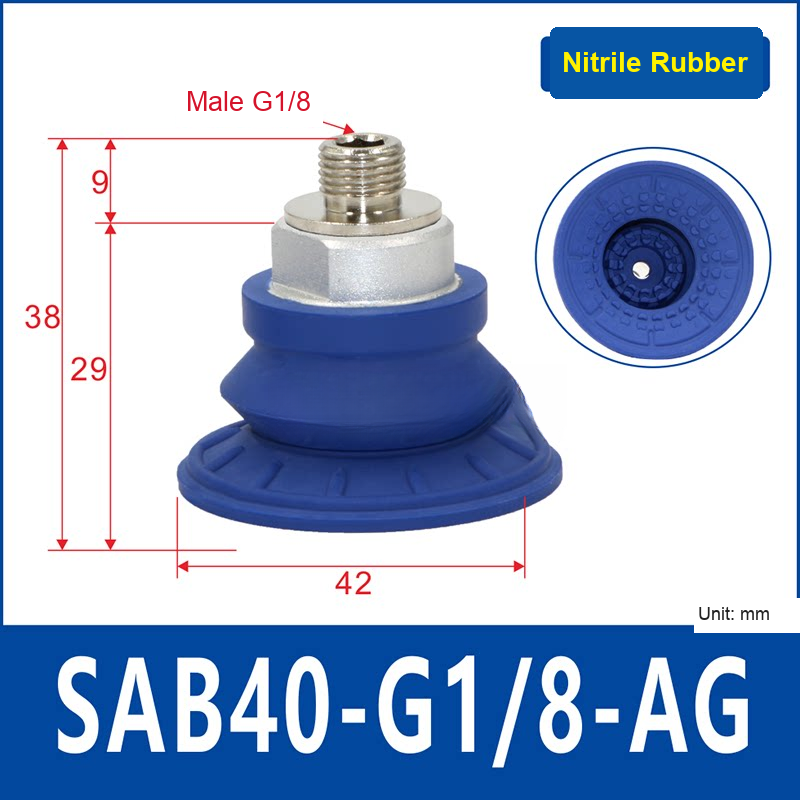

  • SAB40-G1/8-AG vacuum suction cup or fitting

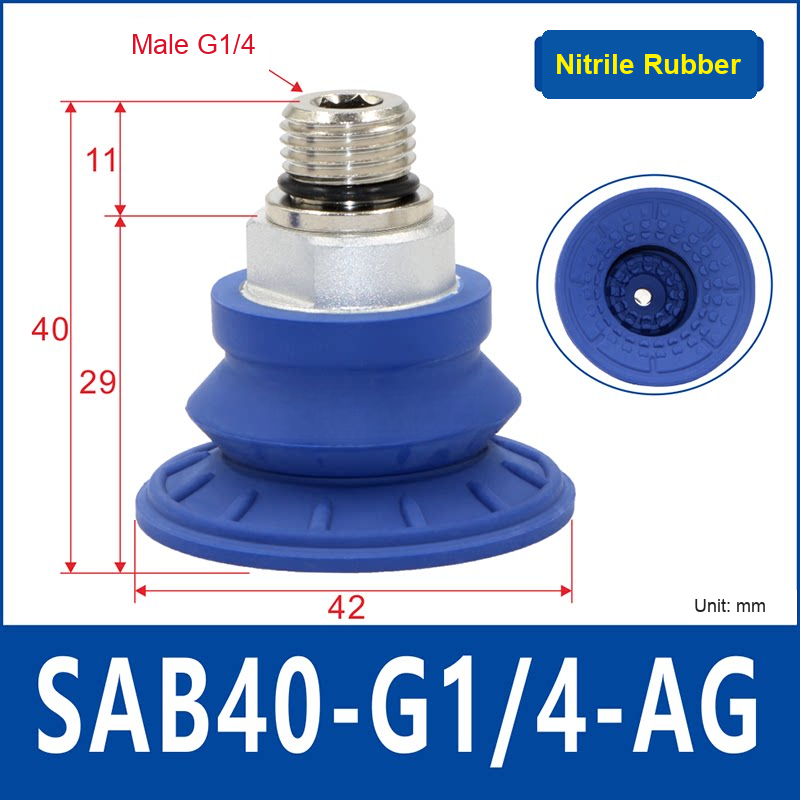

  • SAB40-G1/4-AG vacuum suction cup or fitting

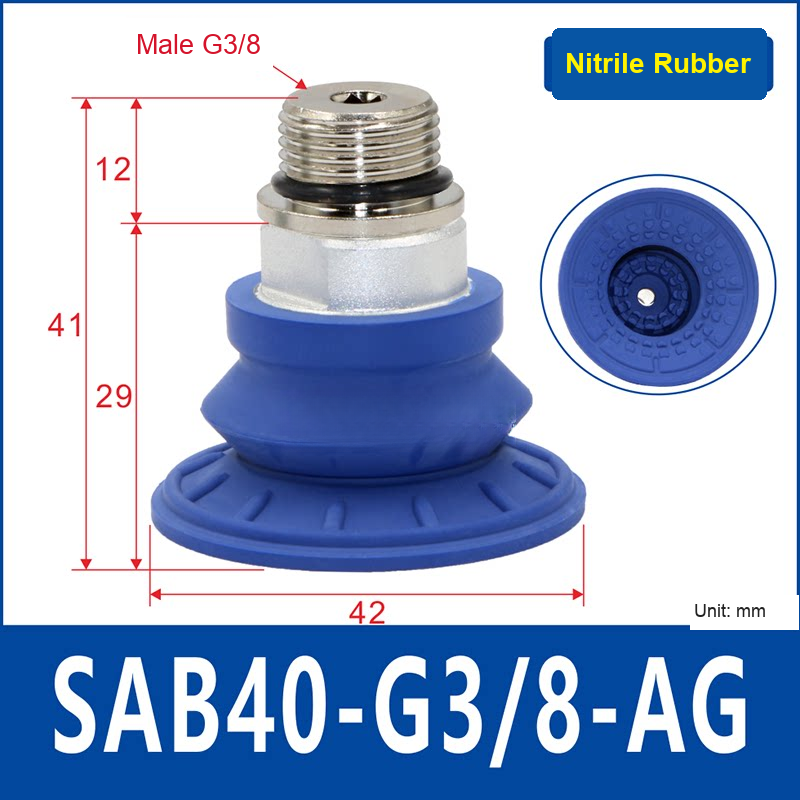

  • SAB40-G3/8-AG vacuum suction cup or fitting

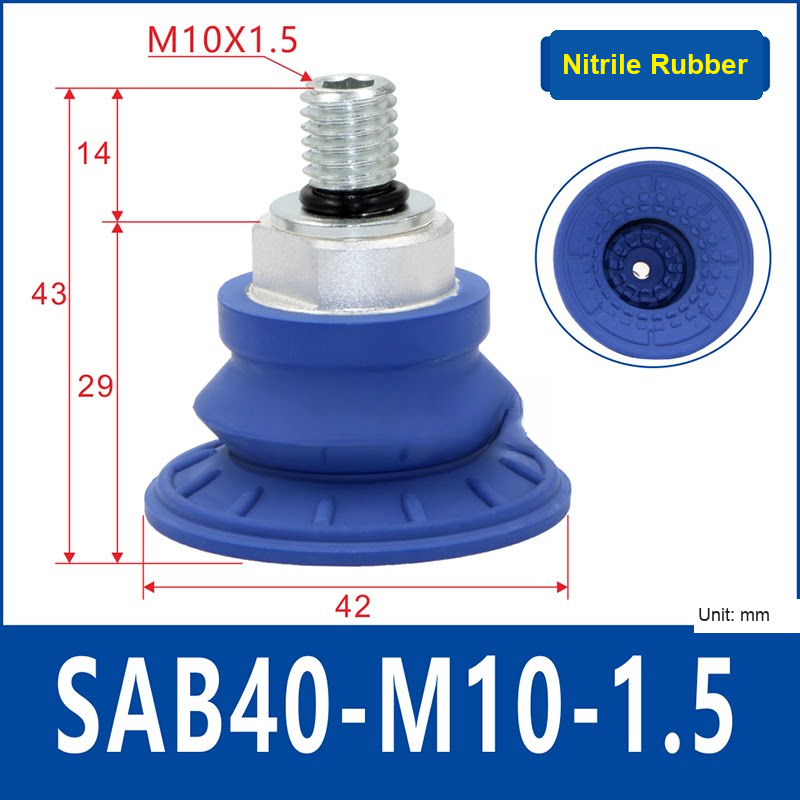

  • SAB40-M10×1.5 vacuum suction cup or fitting

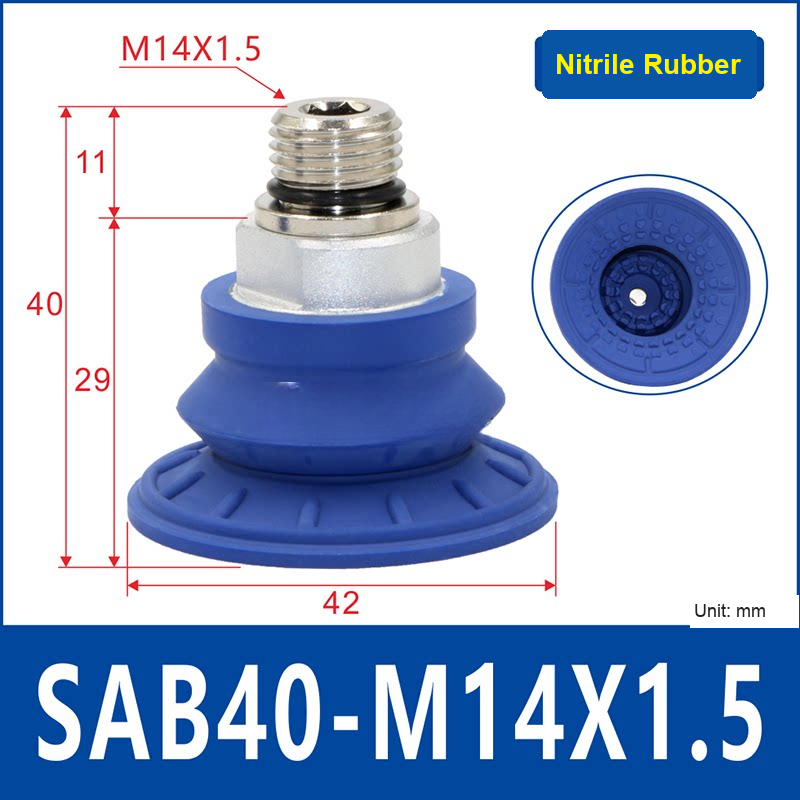

  • SAB40-M14×1.5 vacuum suction cup or fitting

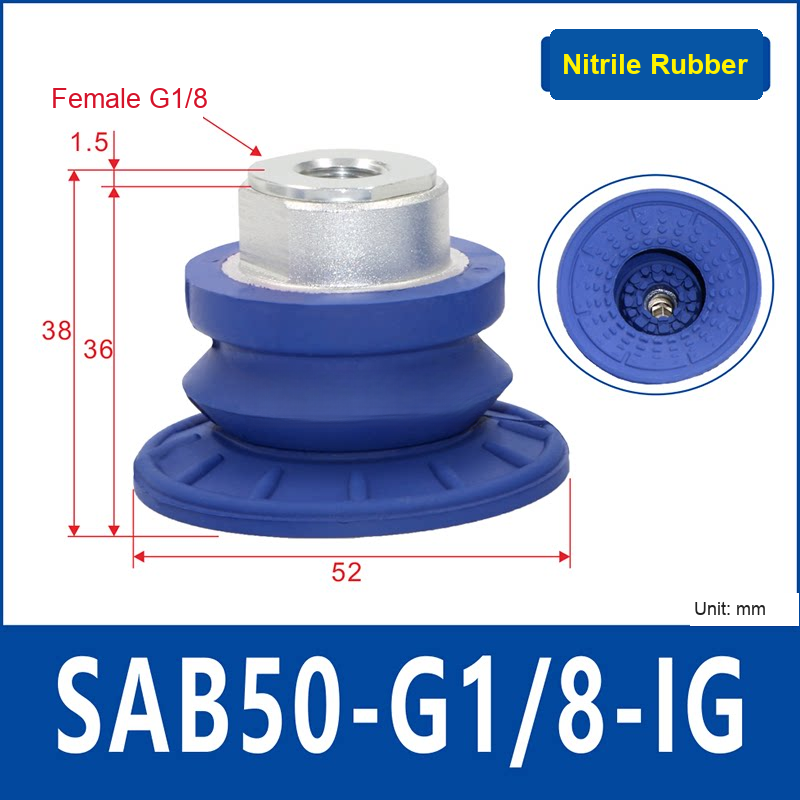

  • SAB50-G1/8-IG vacuum suction cup or fitting
  • SAB50-G1/4-IG vacuum suction cup or fitting

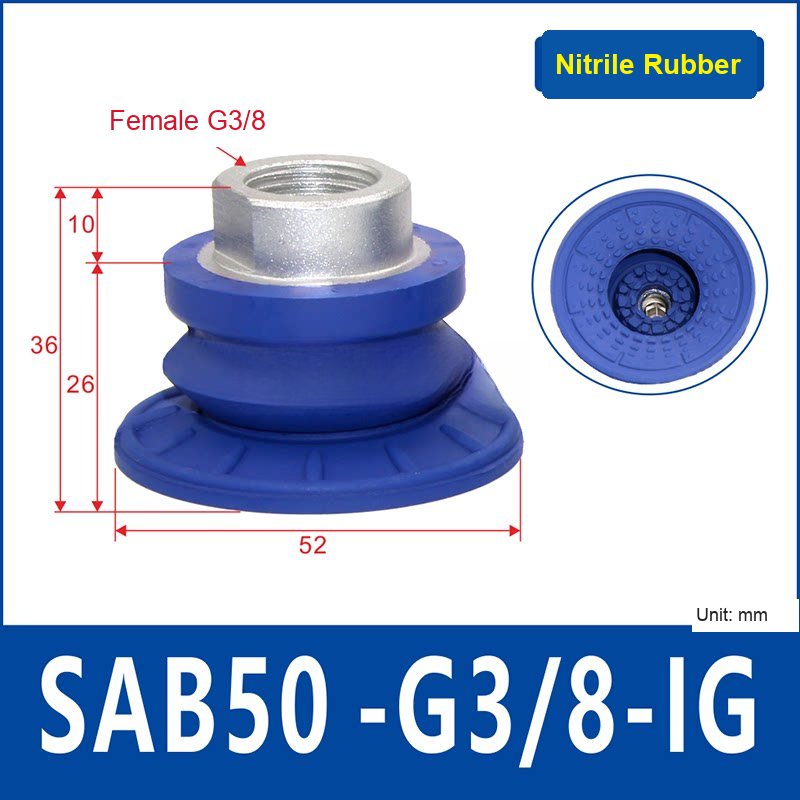

  • SAB50-G3/8-IG vacuum suction cup or fitting

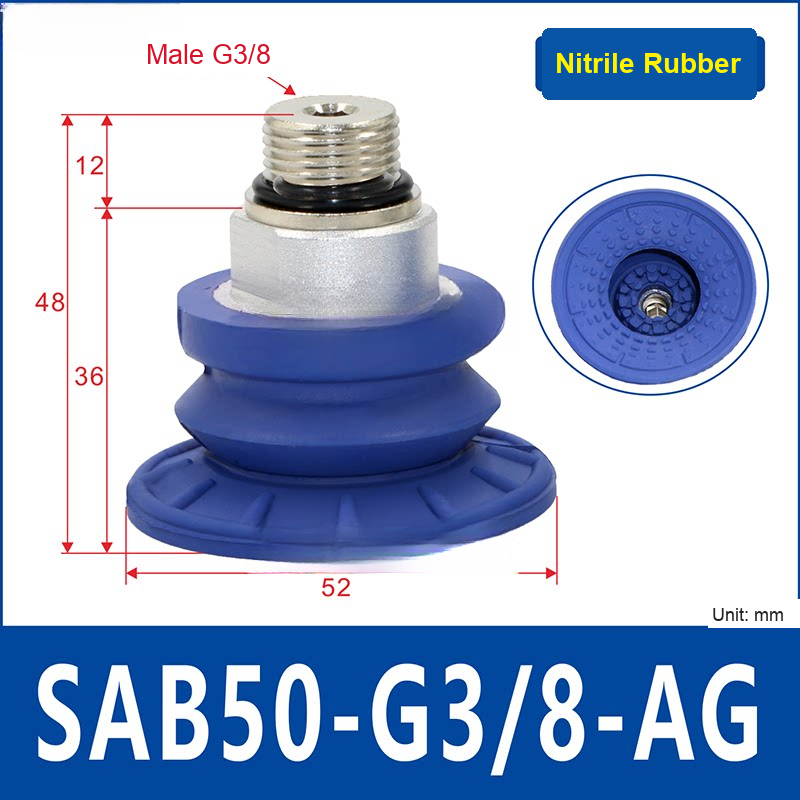

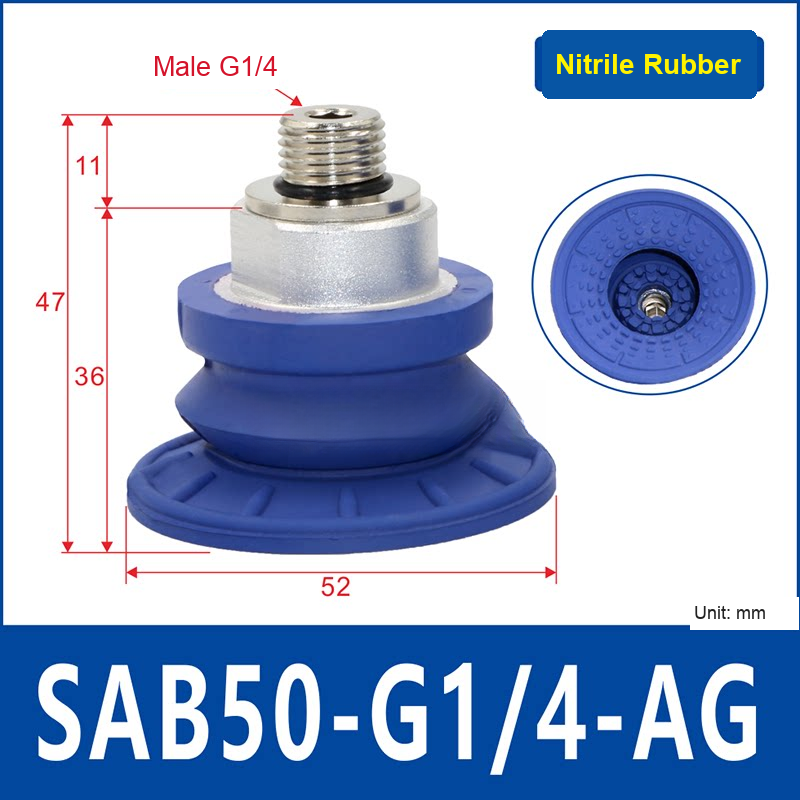

  • SAB50-G1/4-AG vacuum suction cup or fitting
  • SAB50-G3/8-AG vacuum suction cup or fitting

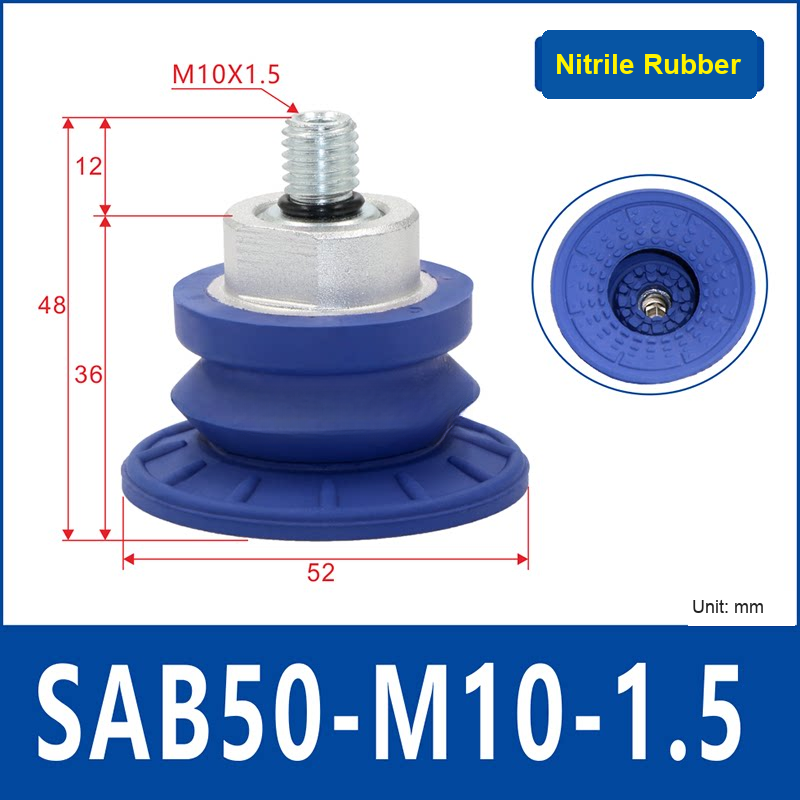

  • SAB50-M10×1.5 vacuum suction cup or fitting
  • SAB50-M14×1.5 vacuum suction cup or fitting

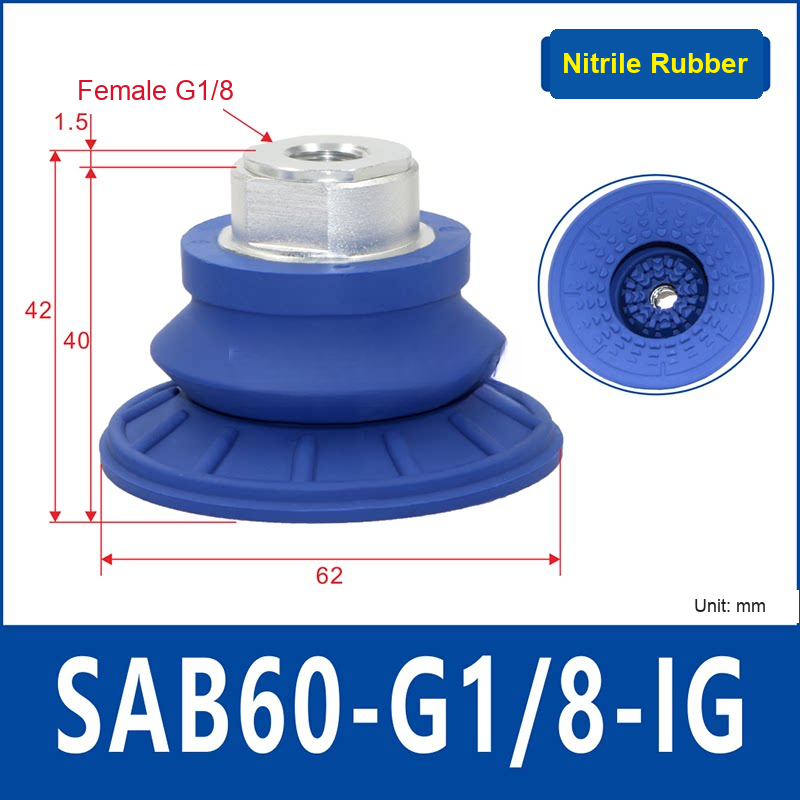

  • SAB60-G1/8-IG vacuum suction cup or fitting

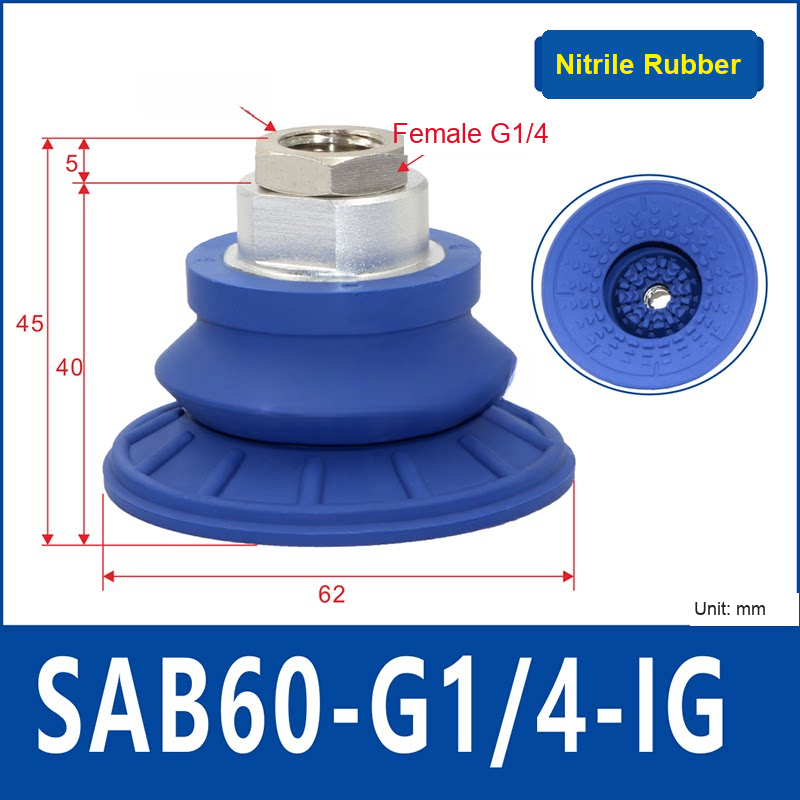

  • SAB60-G1/4-IG vacuum suction cup or fitting

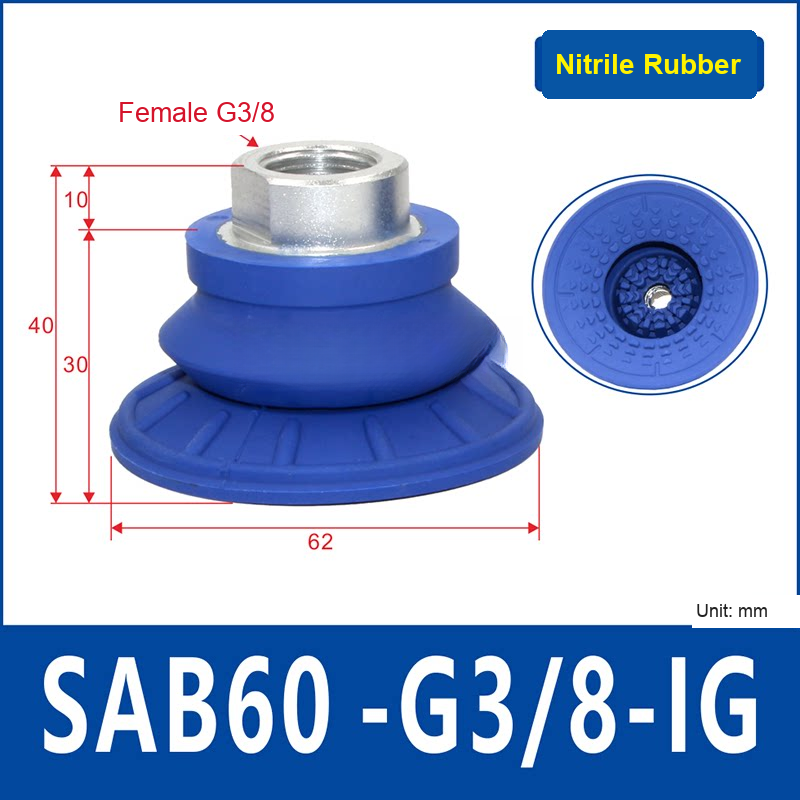

  • SAB60-G3/8-IG vacuum suction cup or fitting

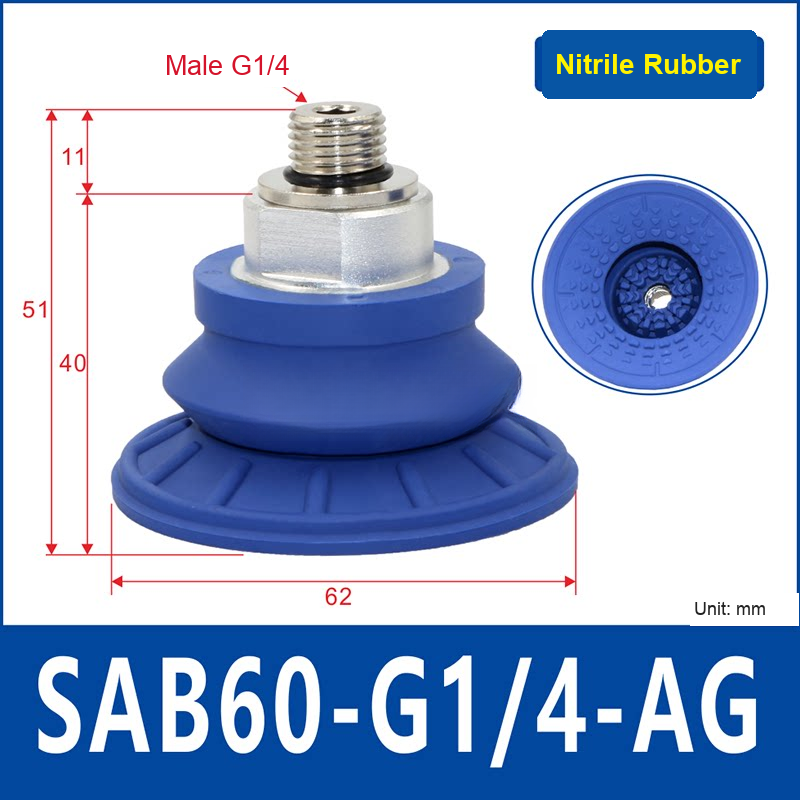

  • SAB60-G1/4-AG vacuum suction cup or fitting

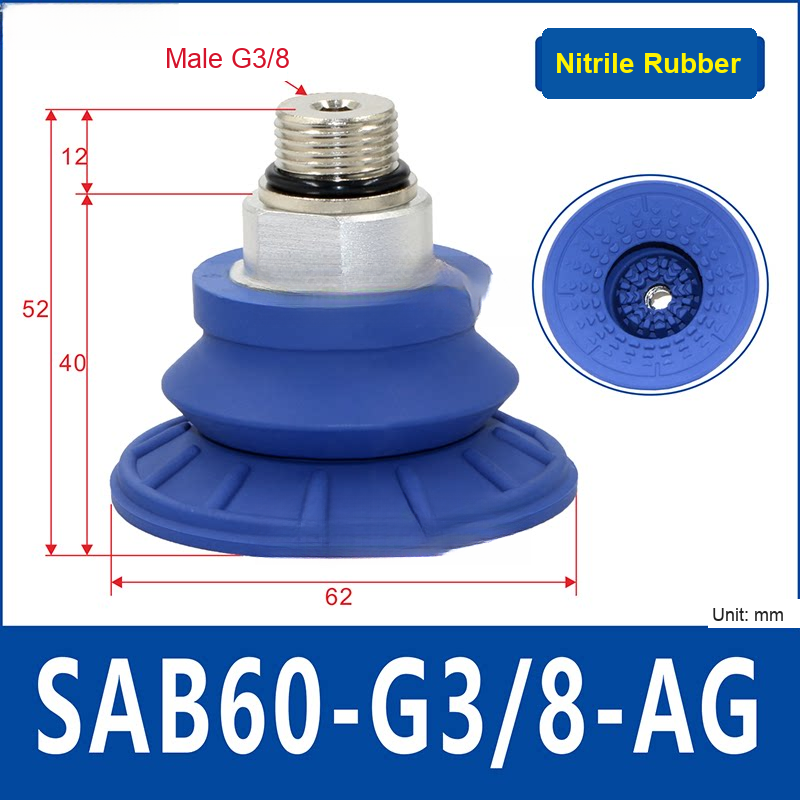

  • SAB60-G3/8-AG vacuum suction cup or fitting

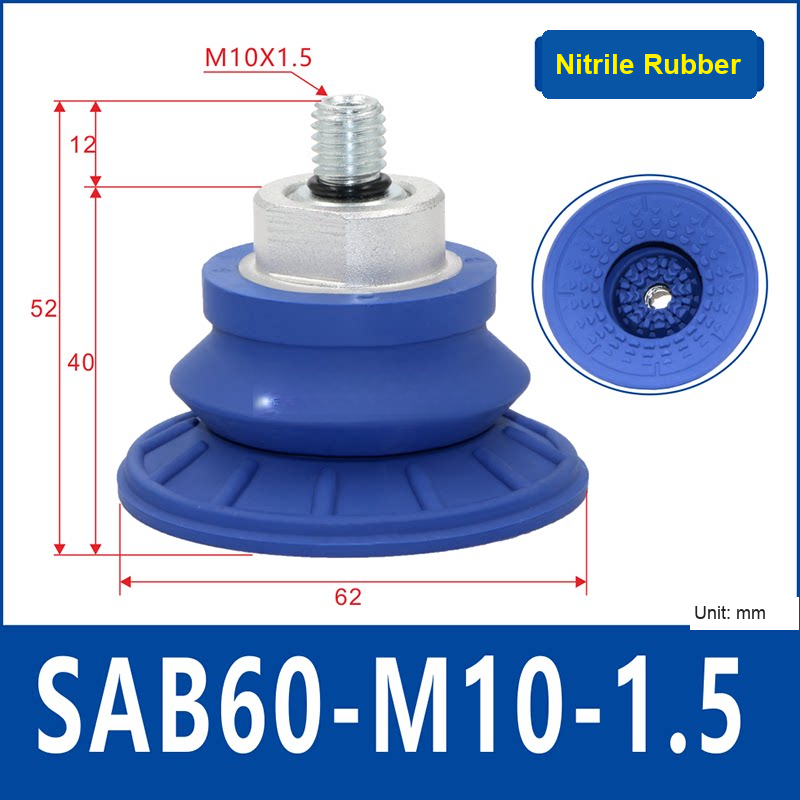

  • SAB60-M10×1.5 vacuum suction cup or fitting

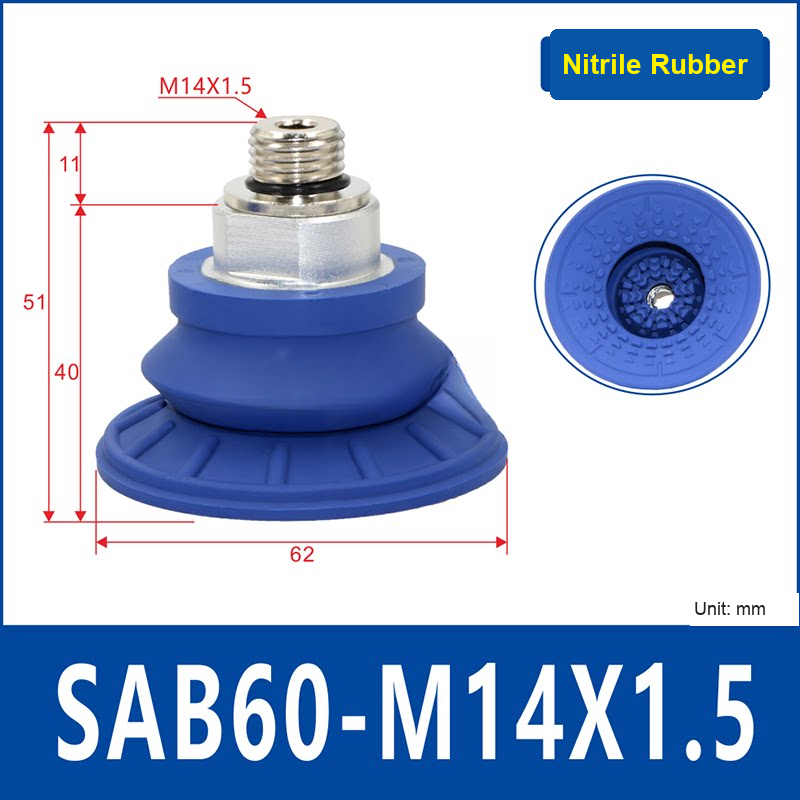

  • SAB60-M14×1.5 vacuum suction cup or fitting
  • SAB80-G1/8-IG vacuum suction cup or fitting
  • SAB80-G1/4-IG vacuum suction cup or fitting

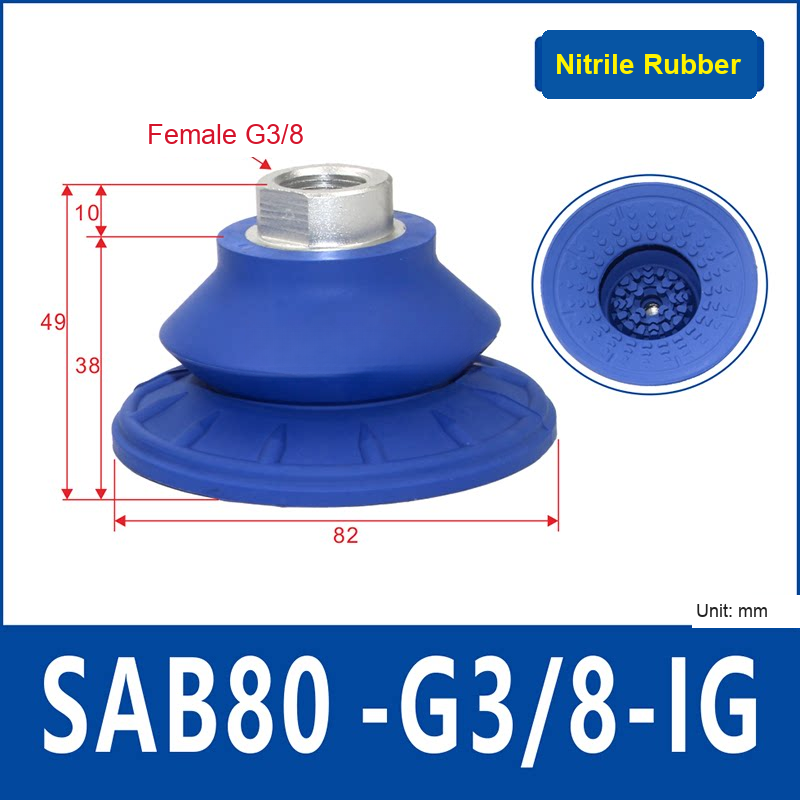

  • SAB80-G3/8-IG vacuum suction cup or fitting
  • SAB80-G1/4-AG vacuum suction cup or fitting

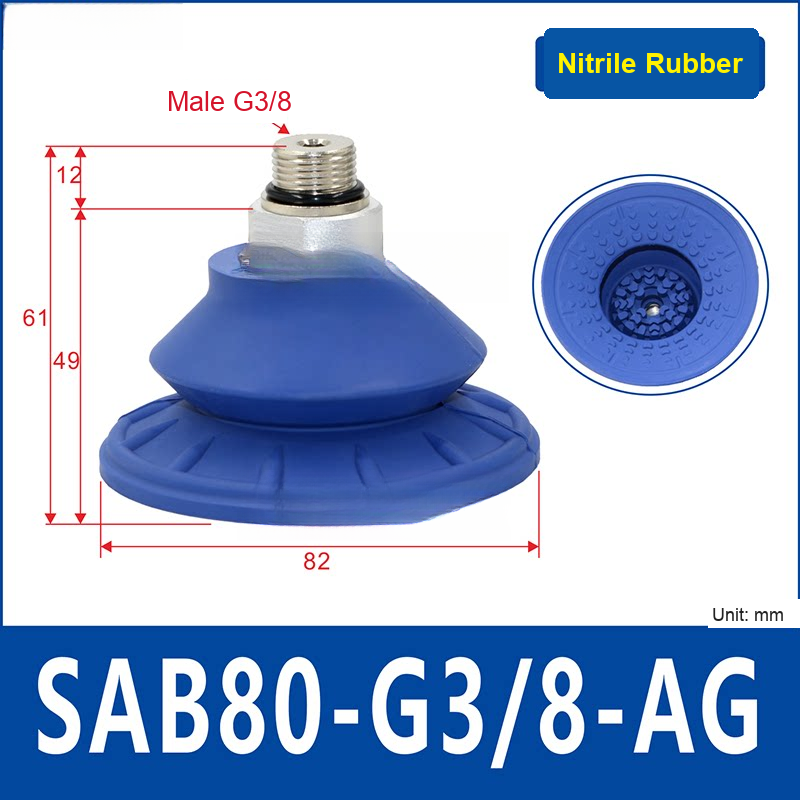

  • SAB80-G3/8-AG vacuum suction cup or fitting

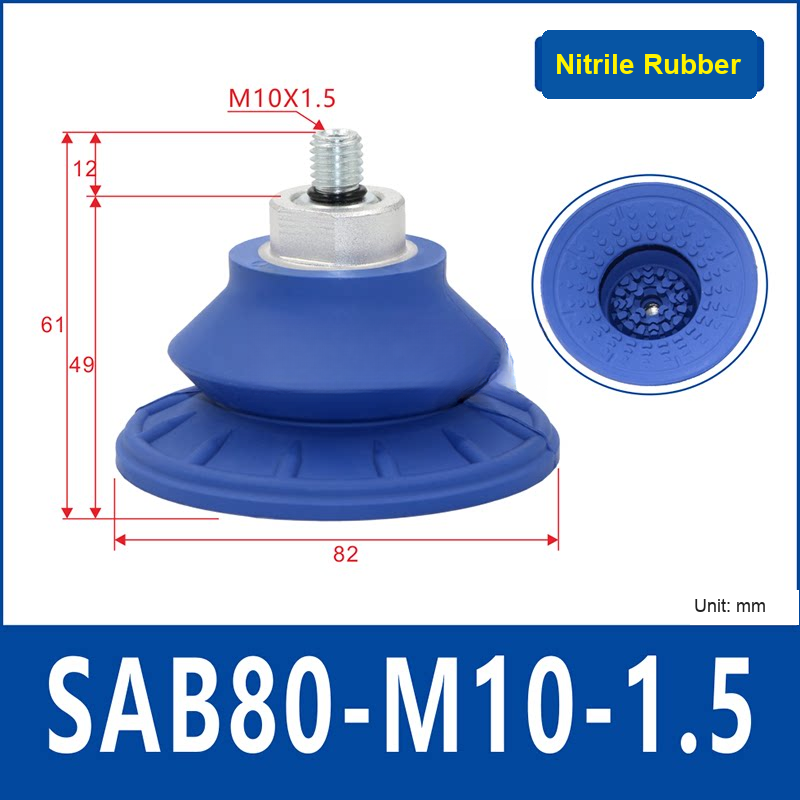

  • SAB80-M10×1.5 vacuum suction cup or fitting
  • SAB80-M14×1.5 vacuum suction cup or fitting

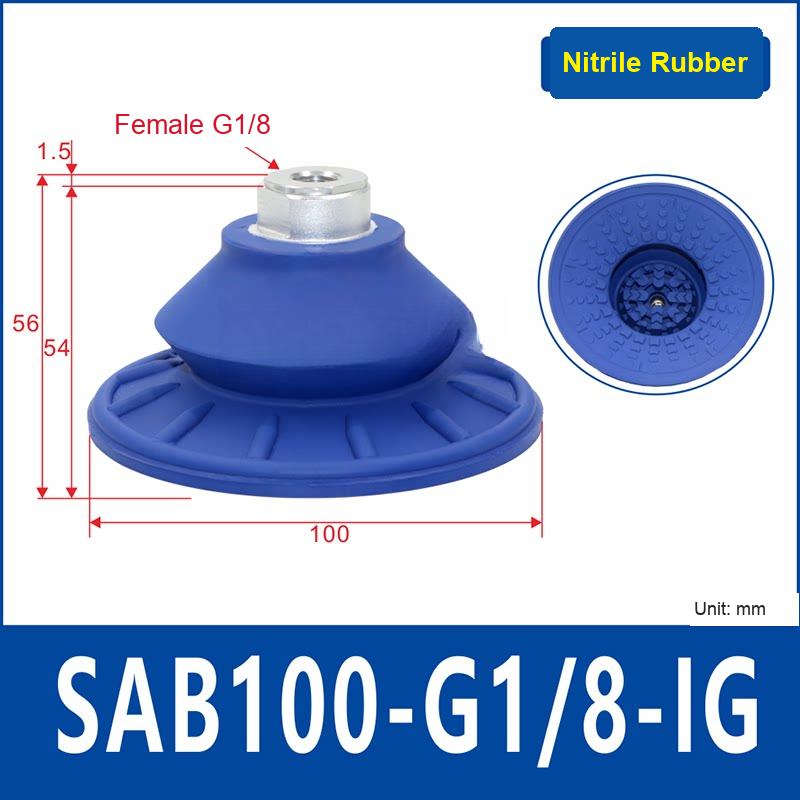

  • SAB100-G1/8-IG vacuum suction cup or fitting

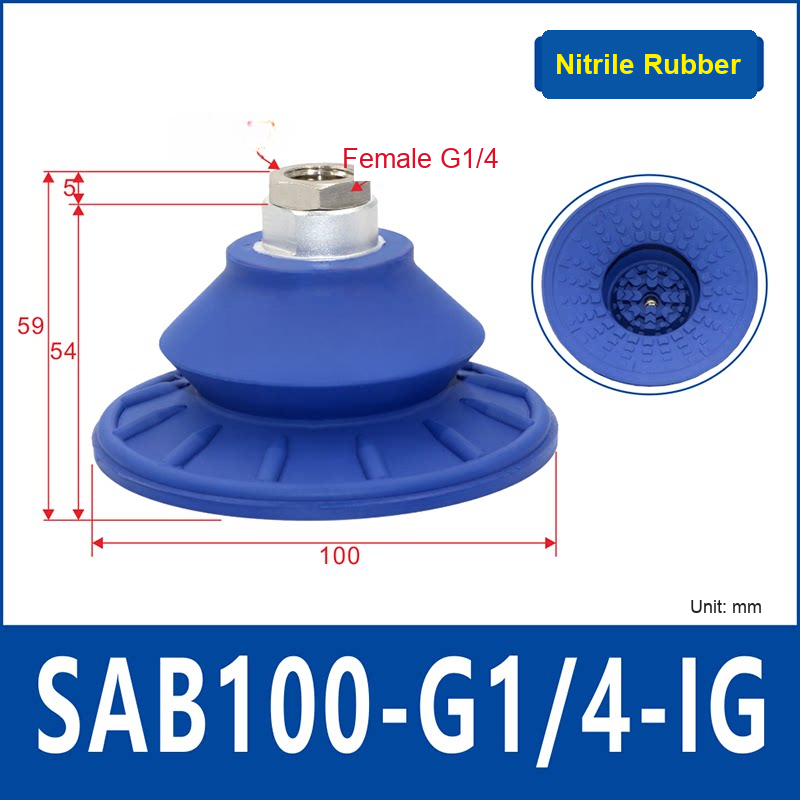

  • SAB100-G1/4-IG vacuum suction cup or fitting

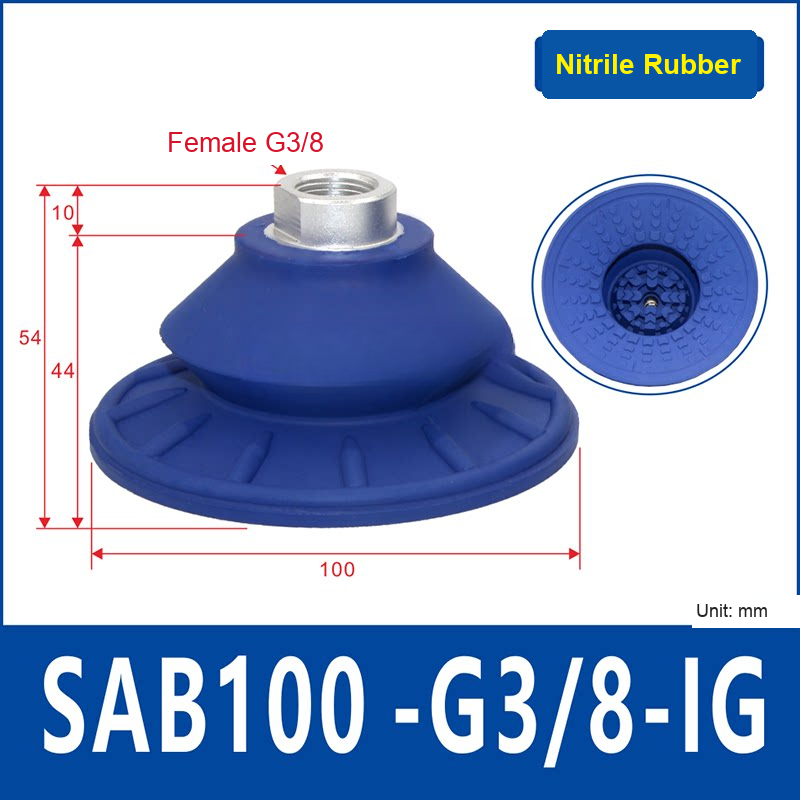

  • SAB100-G3/8-IG vacuum suction cup or fitting

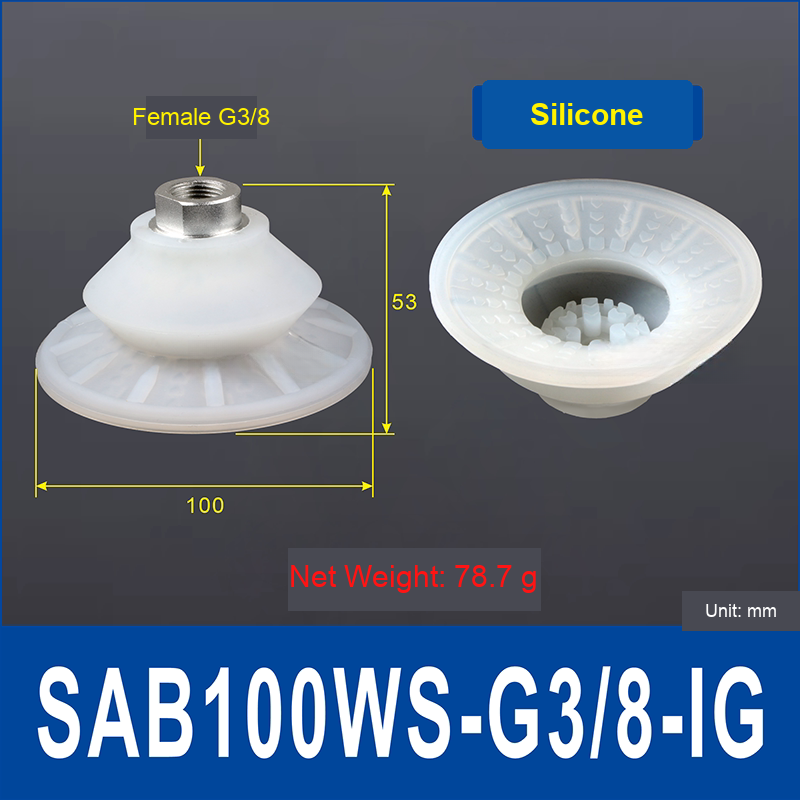

  • SAB100WS-G3/8-IG vacuum suction cup or fitting
  • SAB100-G1/4-AG vacuum suction cup or fitting

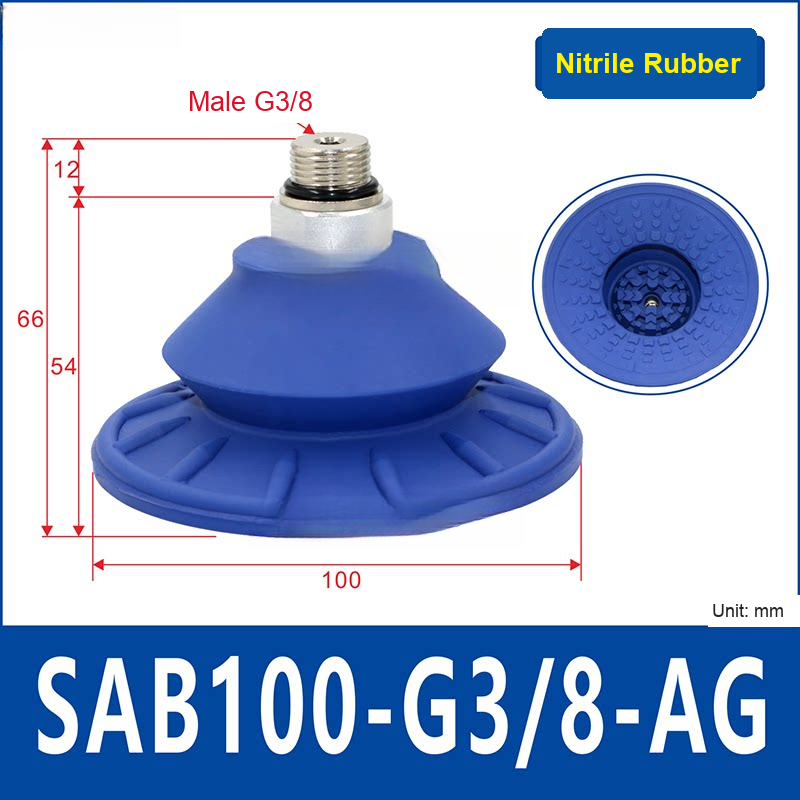

  • SAB100-G3/8-AG vacuum suction cup or fitting

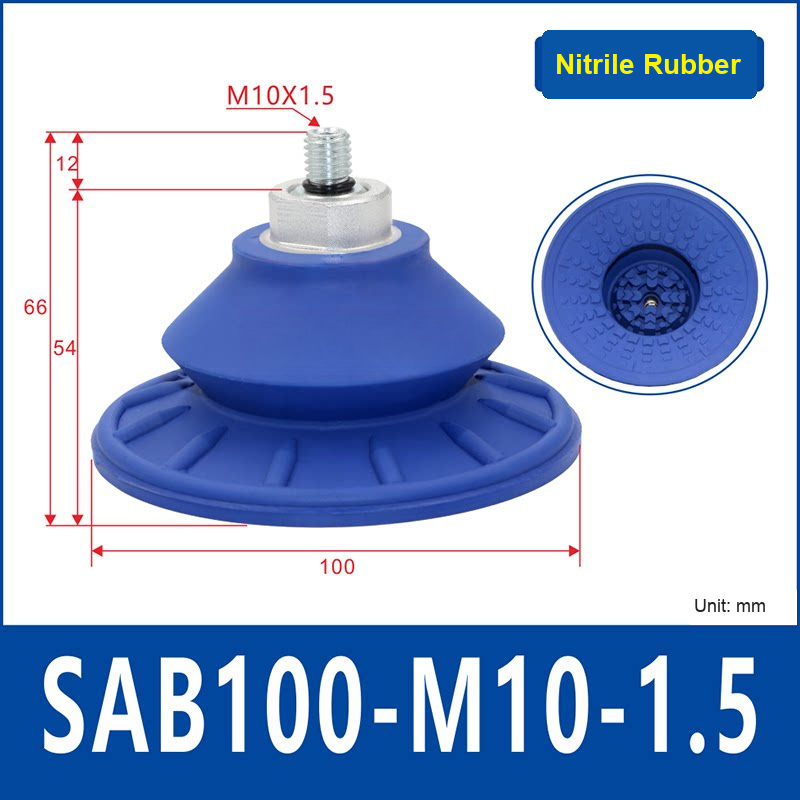

  • SAB100-M10×1.5 vacuum suction cup or fitting

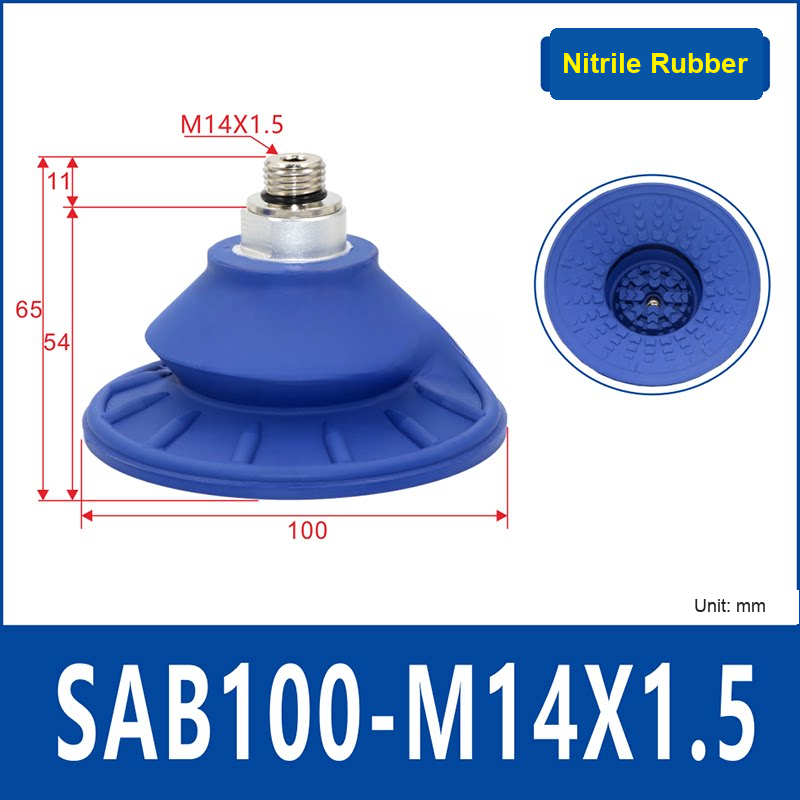

  • SAB100-M14×1.5 vacuum suction cup or fitting
  • SAB125-G1/8-IG vacuum suction cup or fitting
  • SAB125-G1/4-IG vacuum suction cup or fitting

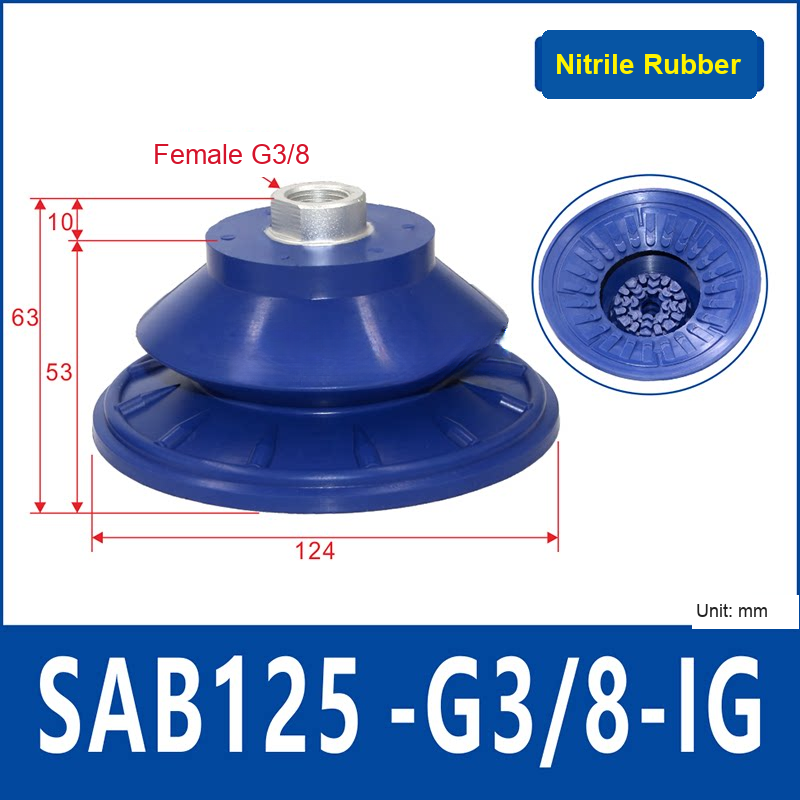

  • SAB125-G3/8-IG vacuum suction cup or fitting
  • SAB125-G1/4-AG vacuum suction cup or fitting
  • SAB125-G3/8-AG vacuum suction cup or fitting
  • SAB125-M10×1.5 vacuum suction cup or fitting
  • SAB125-M14×1.5 vacuum suction cup or fitting

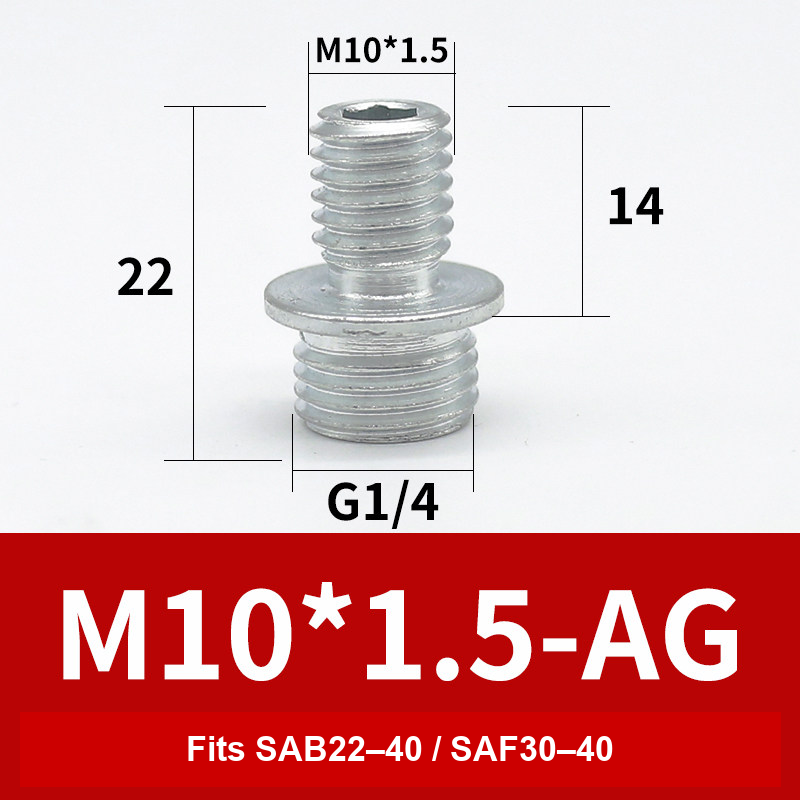

  • M10×1.5 Fitting (for SAB22–40) vacuum suction cup or fitting

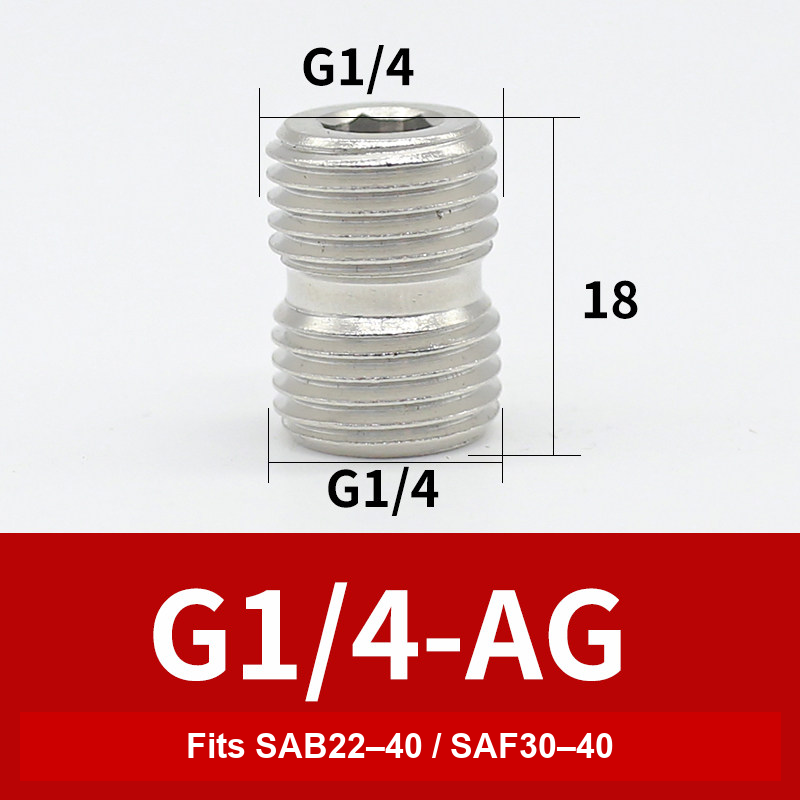

  • G1/4-AG Fitting (for SAB22–40) vacuum suction cup or fitting
  • G1/4-AG Fitting (for SAB50–125) vacuum suction cup or fitting
  • G1/4-IG Fitting (for SAB50–125) vacuum suction cup or fitting

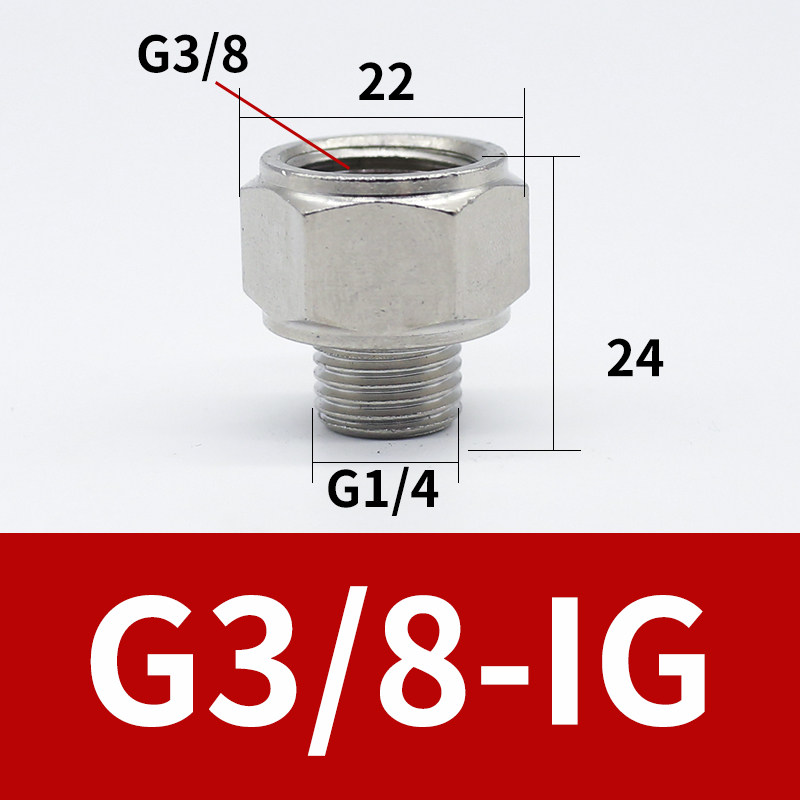

  • G3/8-IG Fitting (for SAB22–40) vacuum suction cup or fitting
1 / 64

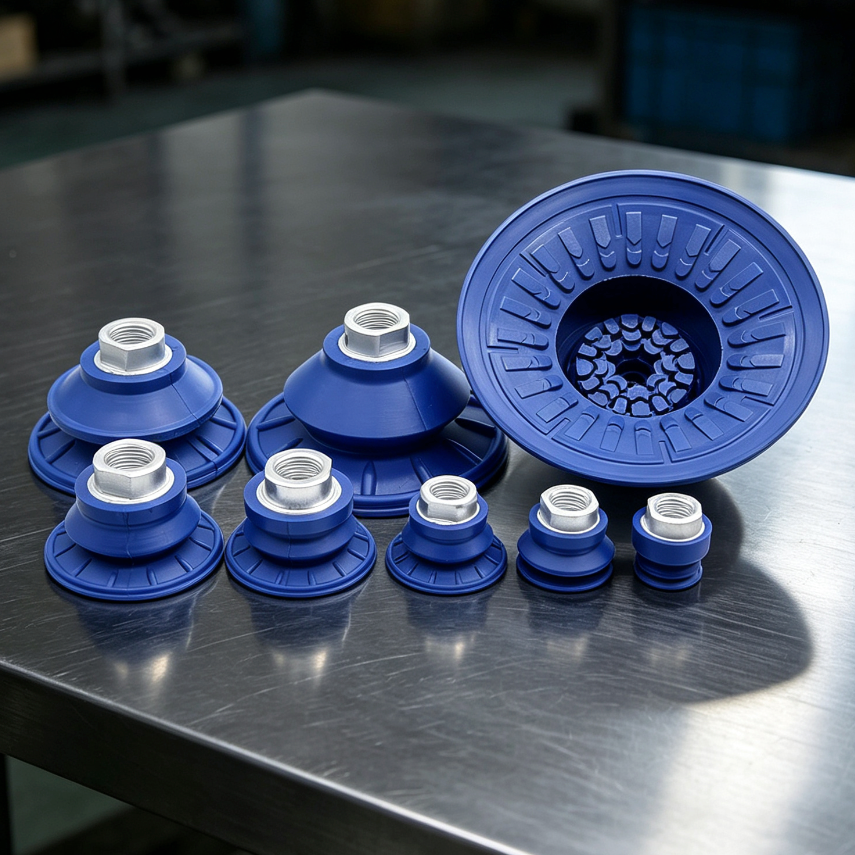

SAB Series NBR Double-Layer Vacuum Suction Cups and Fittings

$17.00 USD $7.65 USD 55% OFF
SAB Series NBR Double-Layer Vacuum Suction Cups and Fittings
Model
Quantity
WhatsApp

SAB Series NBR Double-Layer Vacuum Suction Cups and Fittings

Double-layer bellows vacuum suction cups and matching threaded fittings for automated handling and industrial vacuum systems.

  • Nitrile rubber cups for durable industrial gripping
  • Multiple cup diameters, female and male thread configurations, and matching fittings
  • Available model images show dimensions and model specifications

Applications and Suitable Workpieces

SAB Series NBR Double-Layer Vacuum Suction Cups and Fittings: These robust cups are intended for dynamic handling of sheet metal and formed industrial panels, including lightly oily production surfaces.

Recommended applications

  • Steel and aluminum sheets, stamped panels, automotive body parts and smooth formed metal components.
  • Press feeding, punching, destacking, transfer lines, CNC or laser-machine loading and robotic handling.
  • Dry or oily workpieces requiring stable lateral positioning and repeated high-cycle operation.

Model and selection notes

  • SAB diameter and female/male thread identify the complete cup assembly. Standard cup and separate fitting variants are not interchangeable.
  • Bellows profiles adapt to curved or height-varying panels; flatter profiles give more stable positioning on flat sheets.
  • NBR is suited to abrasion and oil exposure; silicone is selected where temperature range or clean contact is more important.
  • Sharp edges, perforations, heavy scale and severe curvature interrupt the seal. Test the real part and use a suitable safety factor.
