PT/PY Threaded Vacuum Cup Holder Fittings — M10–M14

PT/PY Threaded Vacuum Cup Holder Fittings — M10–M14

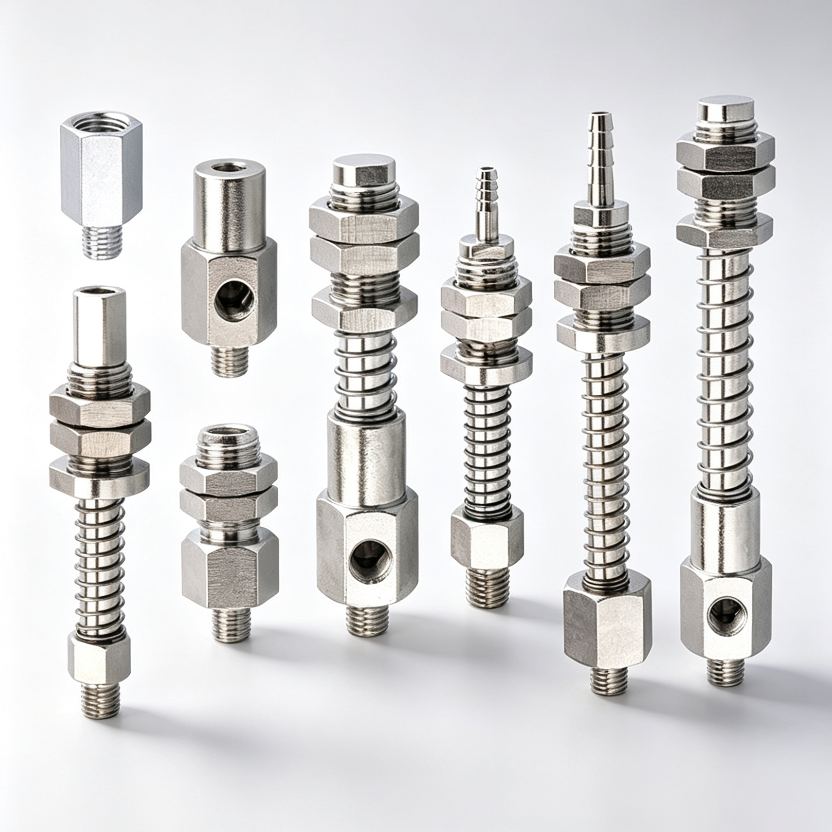

Nickel-plated brass fittings and holder assemblies for mounting compatible vacuum cups in industrial automation systems.

Quick Model Finder

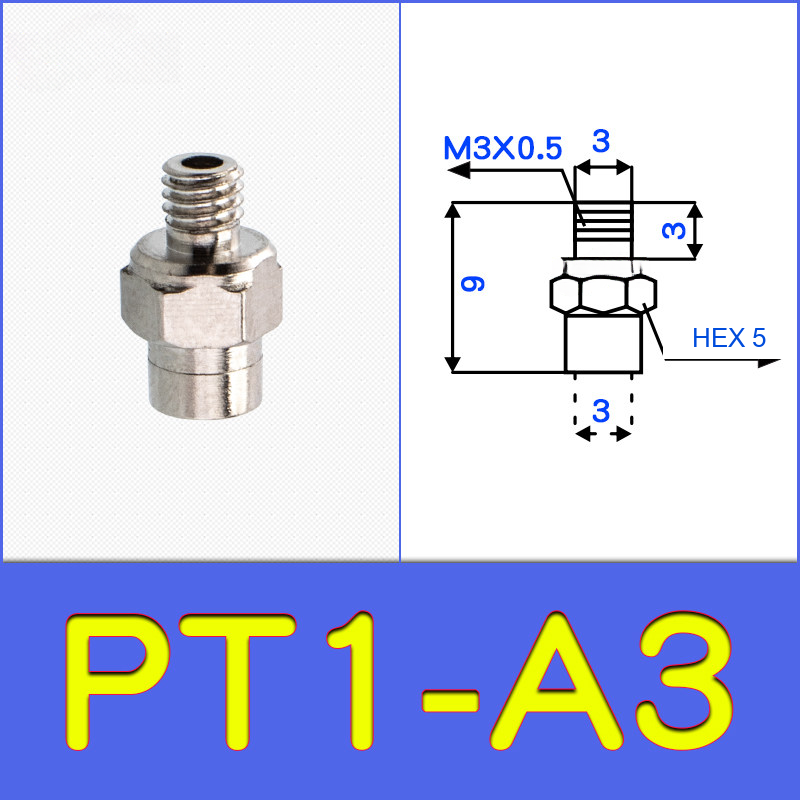

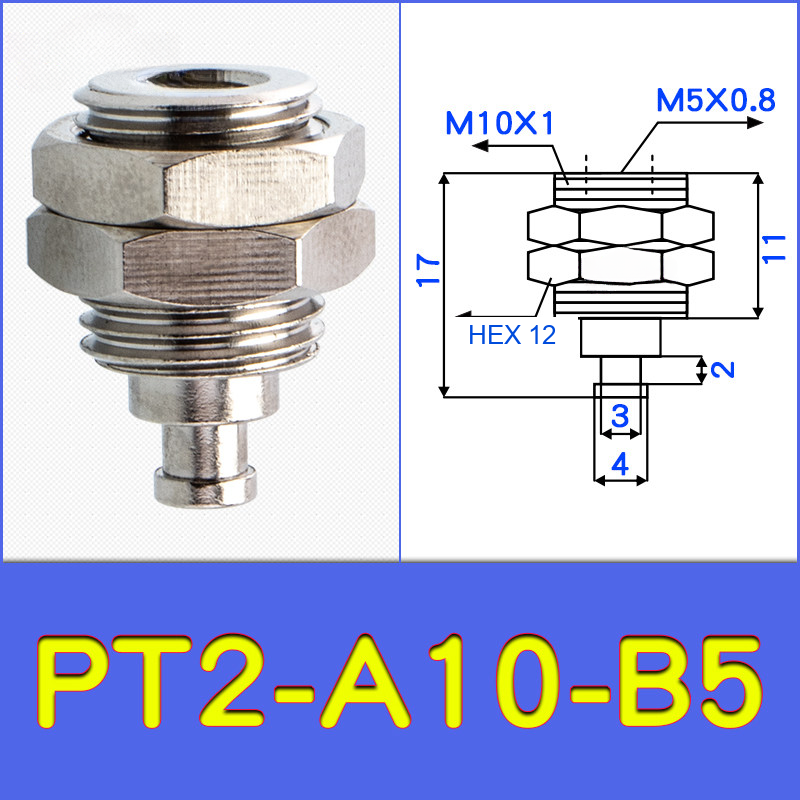

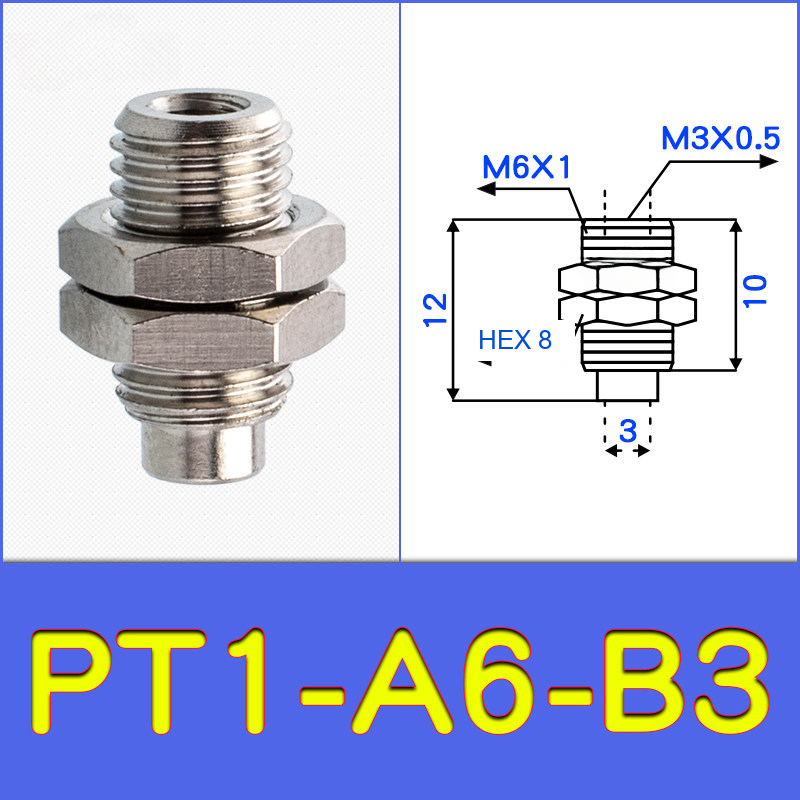

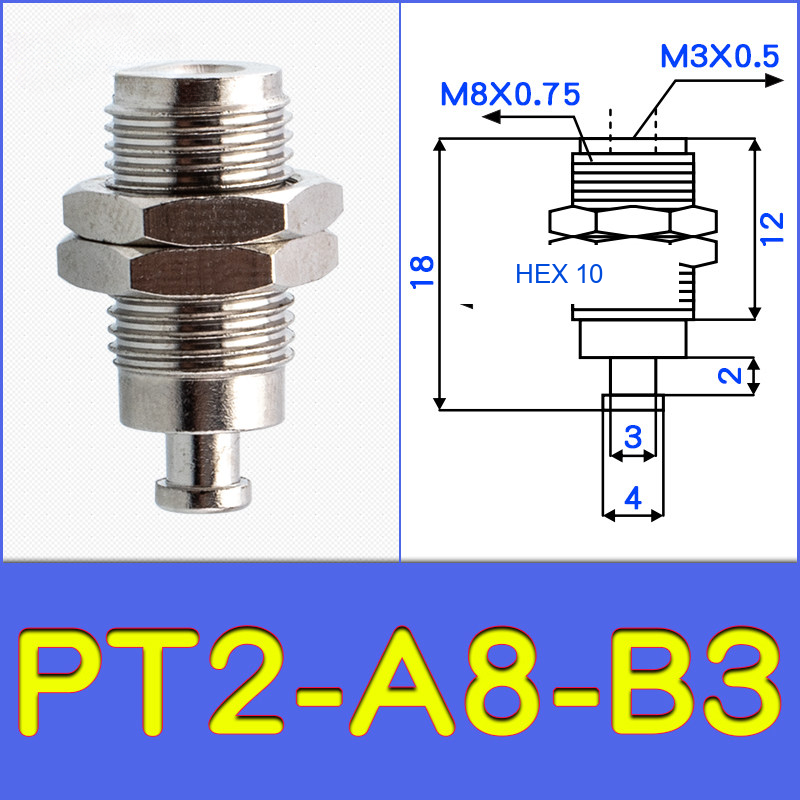

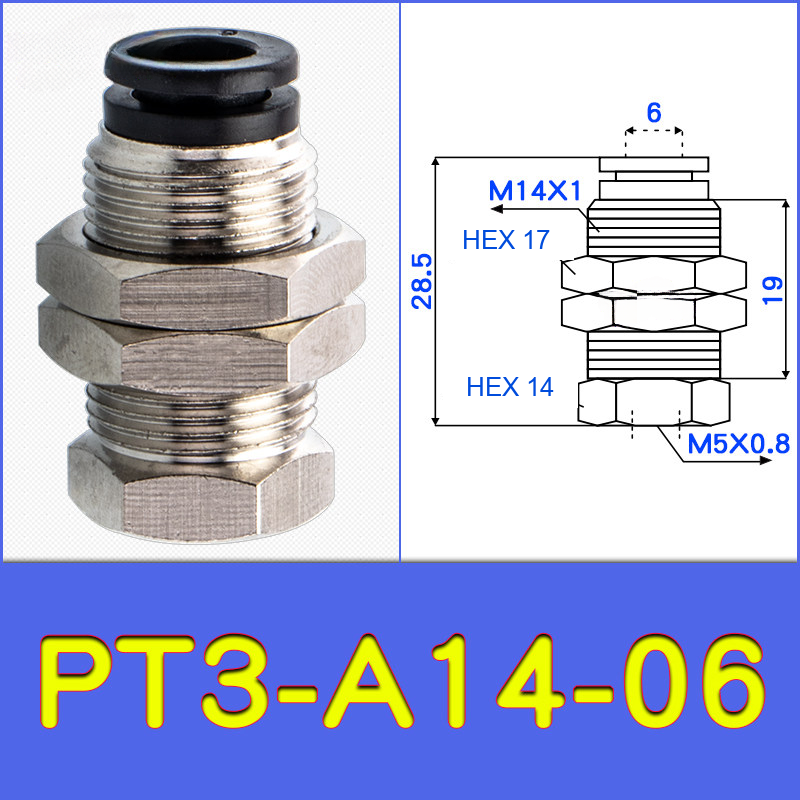

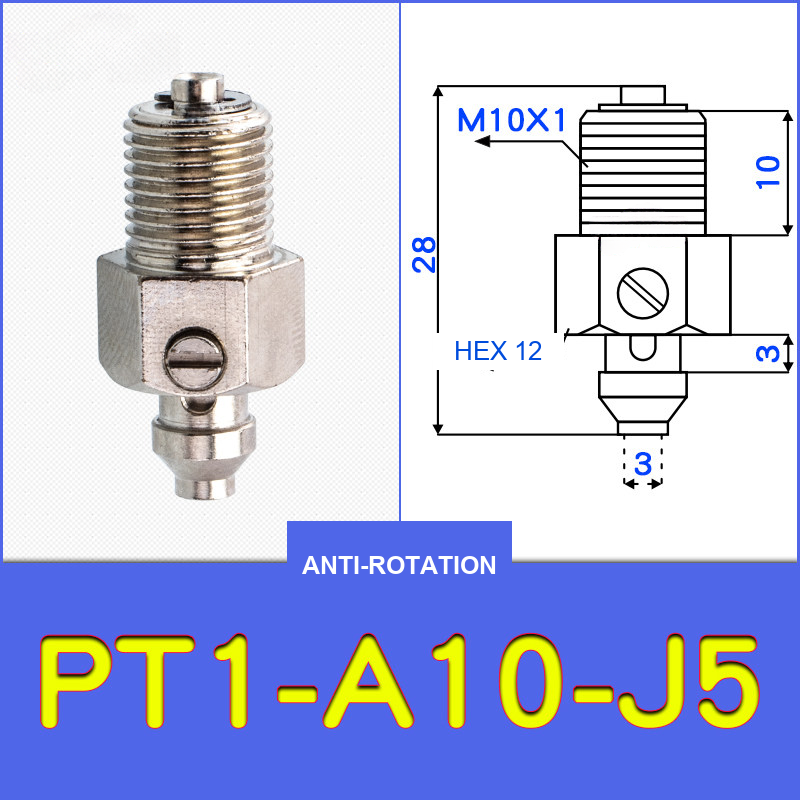

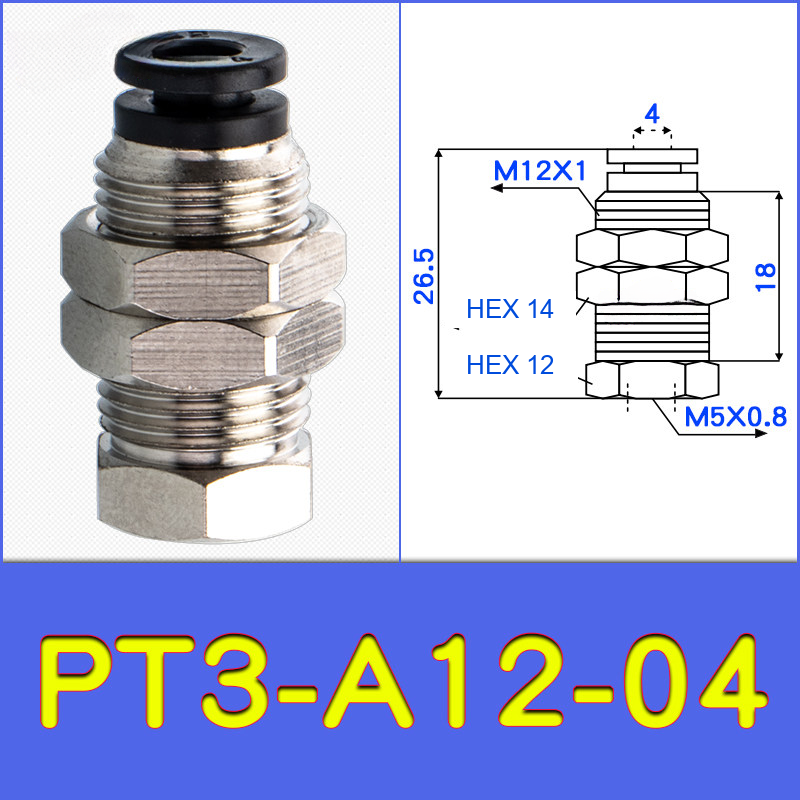

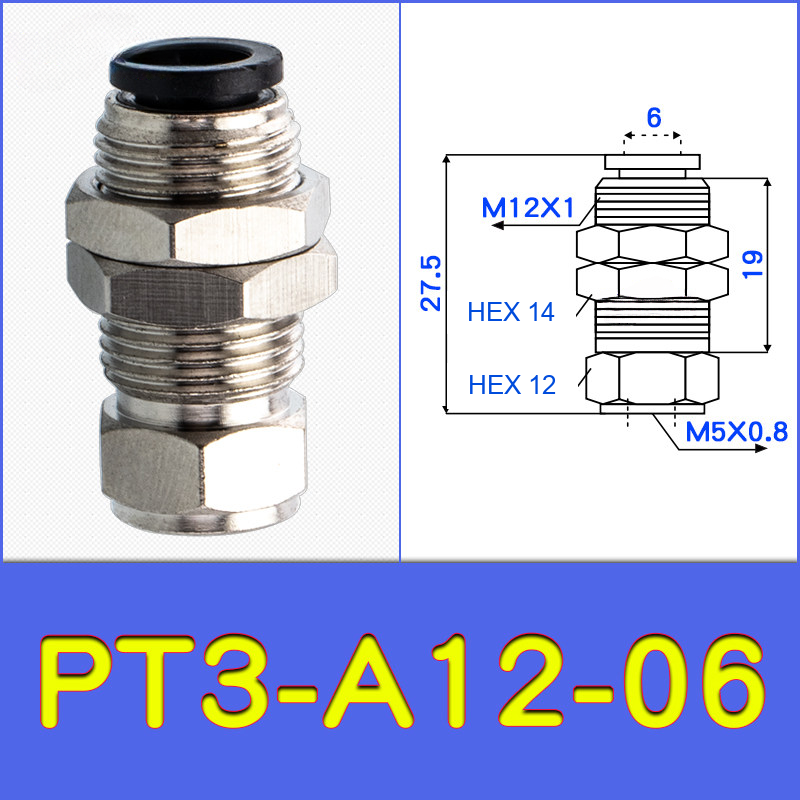

• PT1 / PT2 / PT3: compact holder configurations with model-specific thread and hex dimensions.

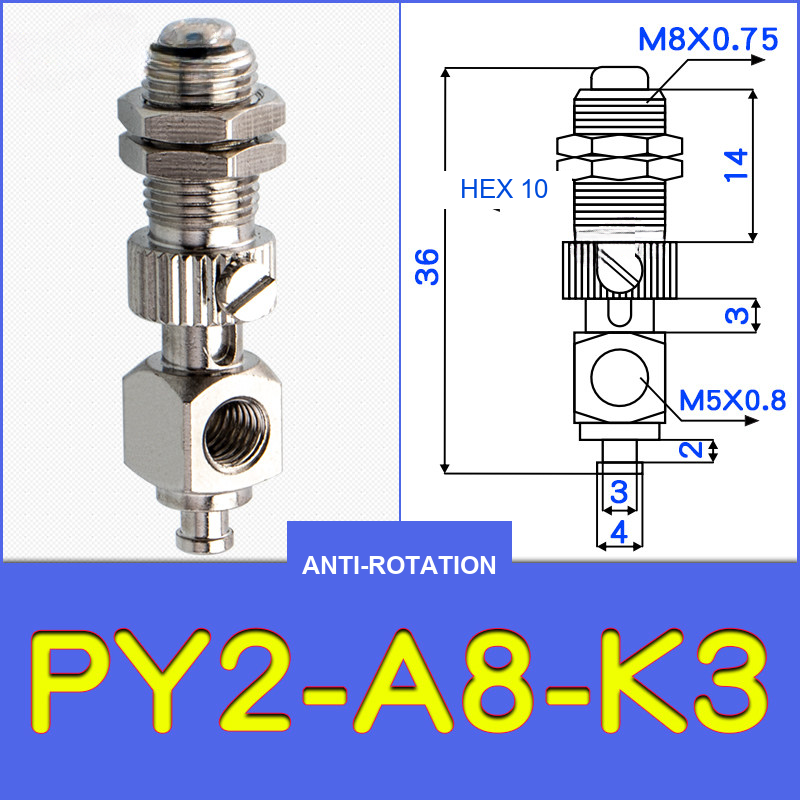

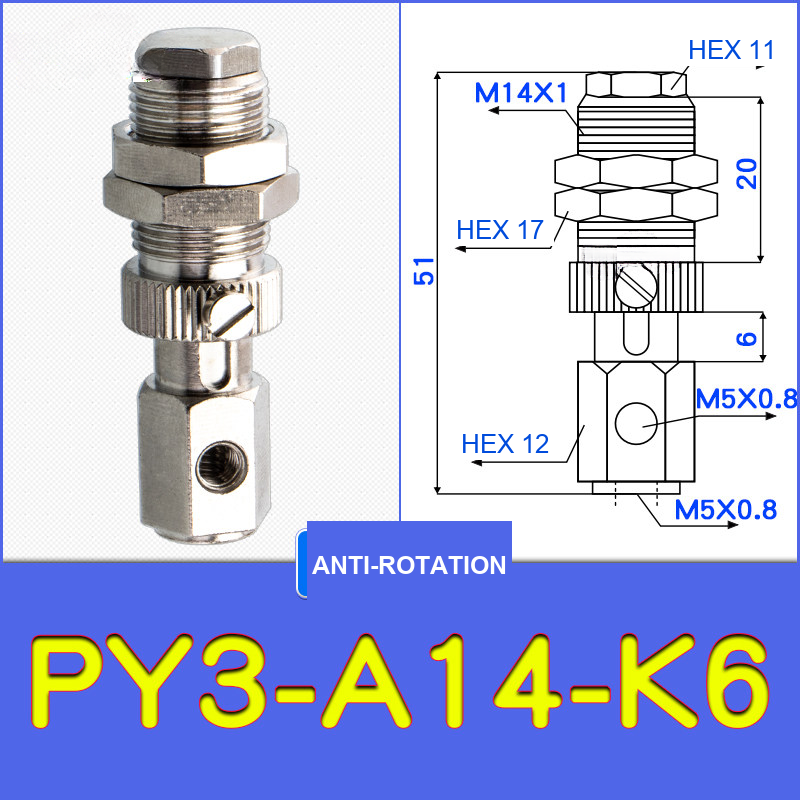

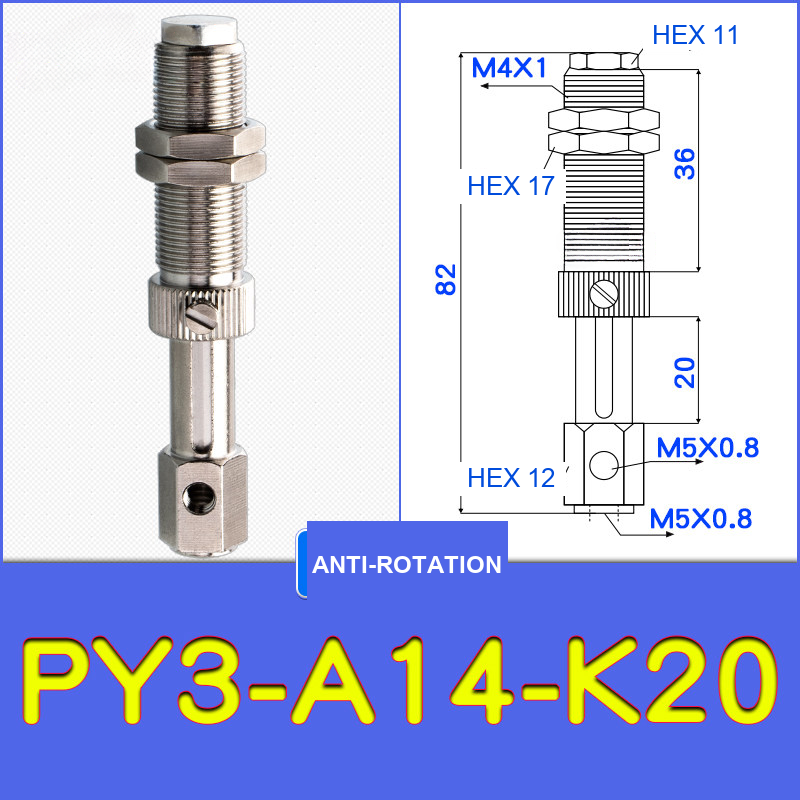

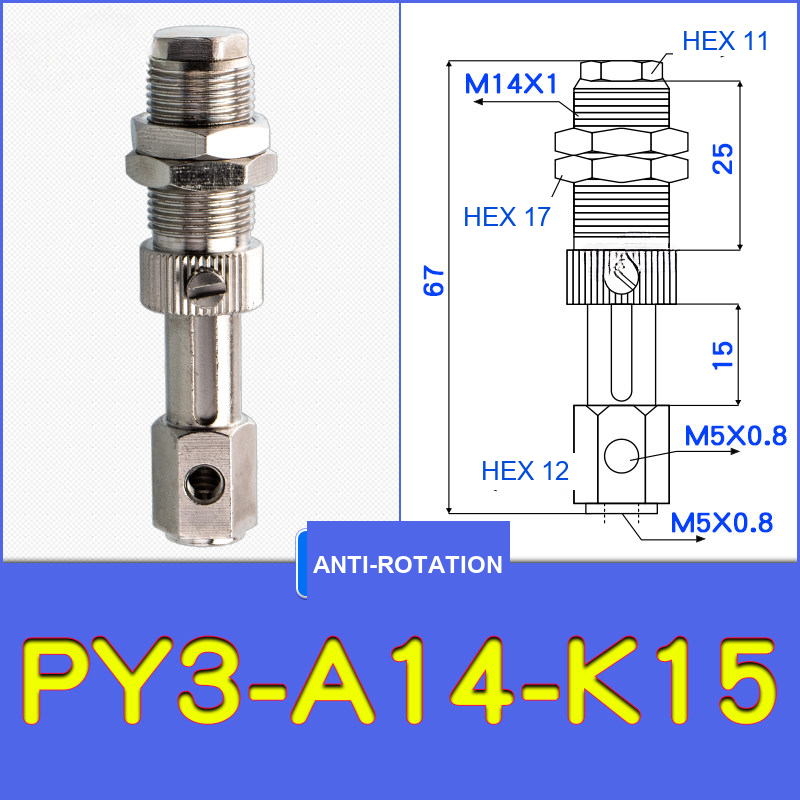

• PY2 / PY3: alternative holder configurations with side or lower connection details shown in each drawing.

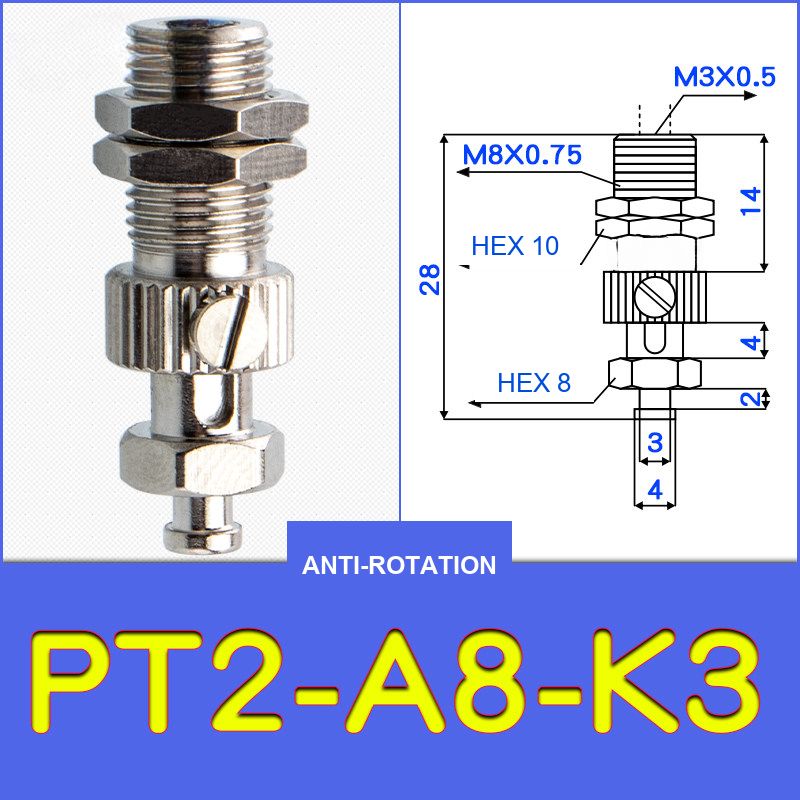

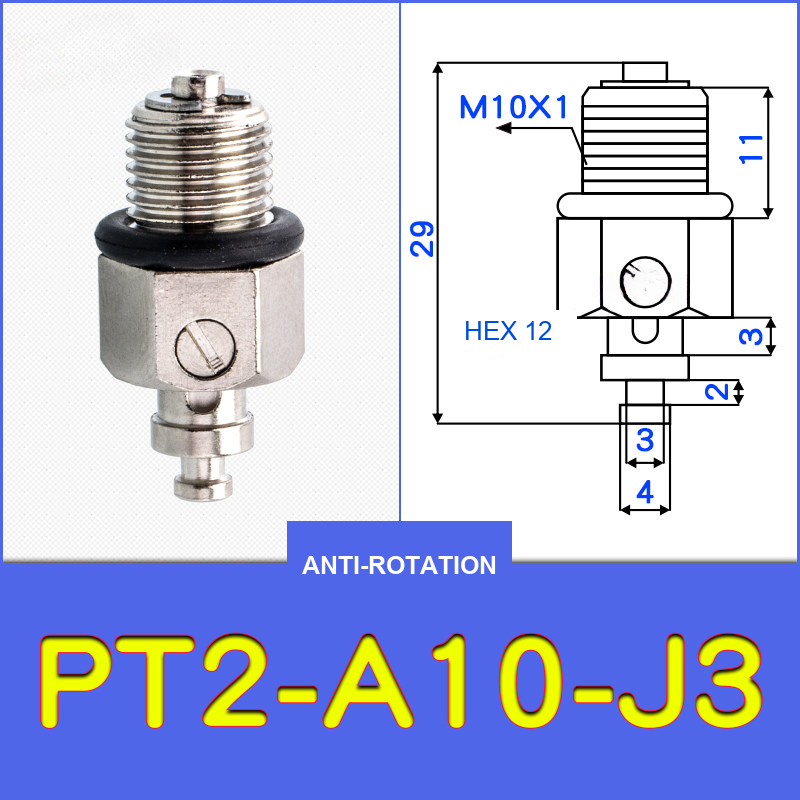

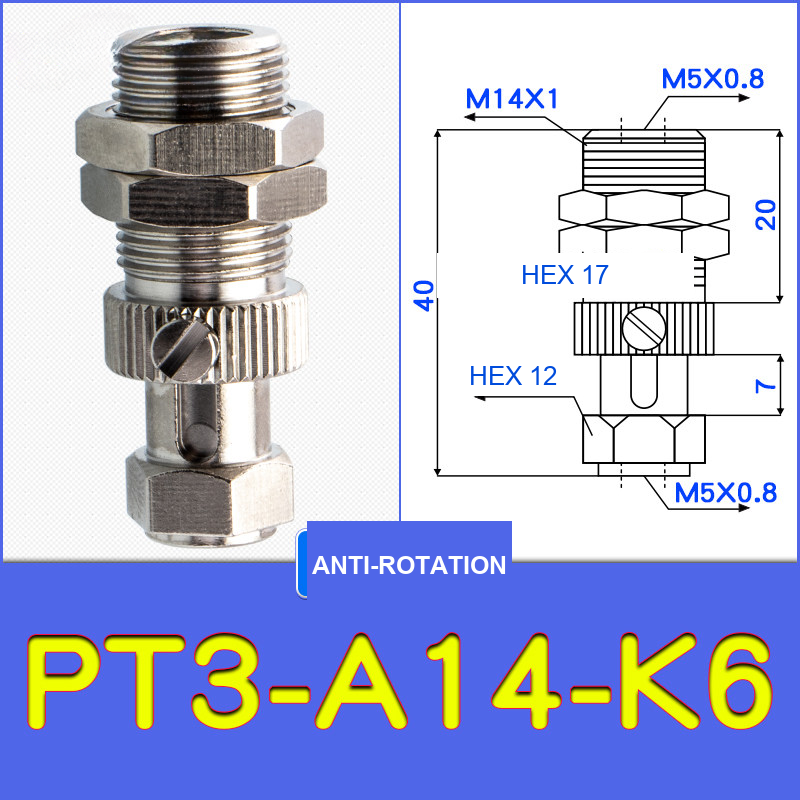

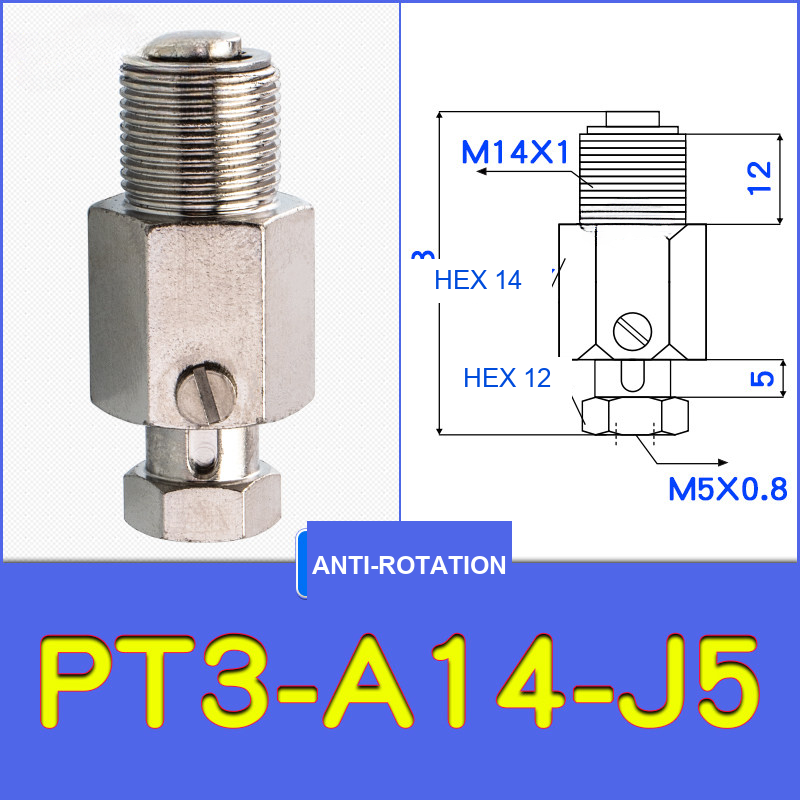

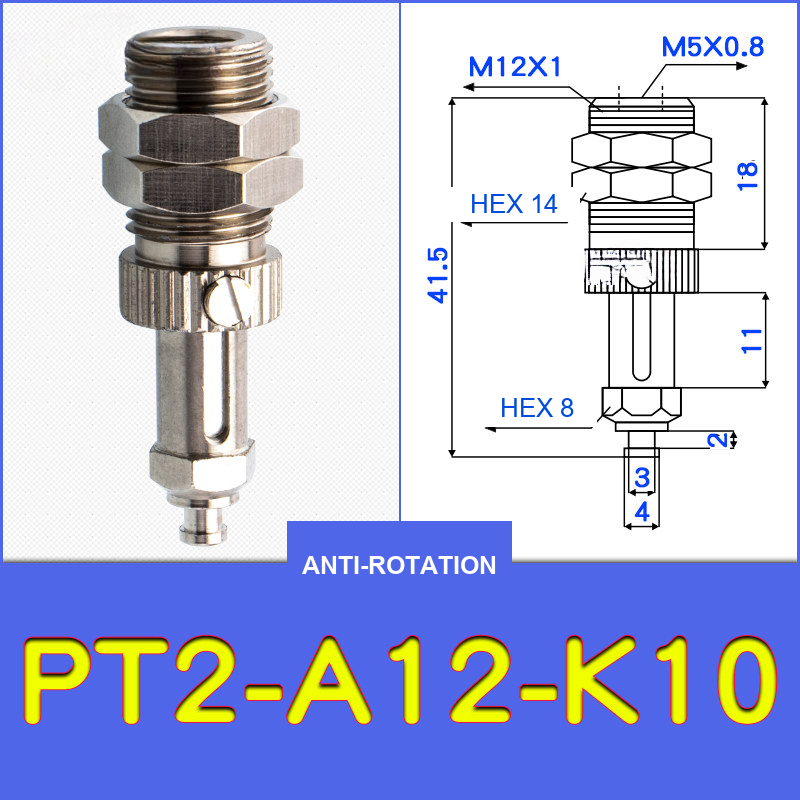

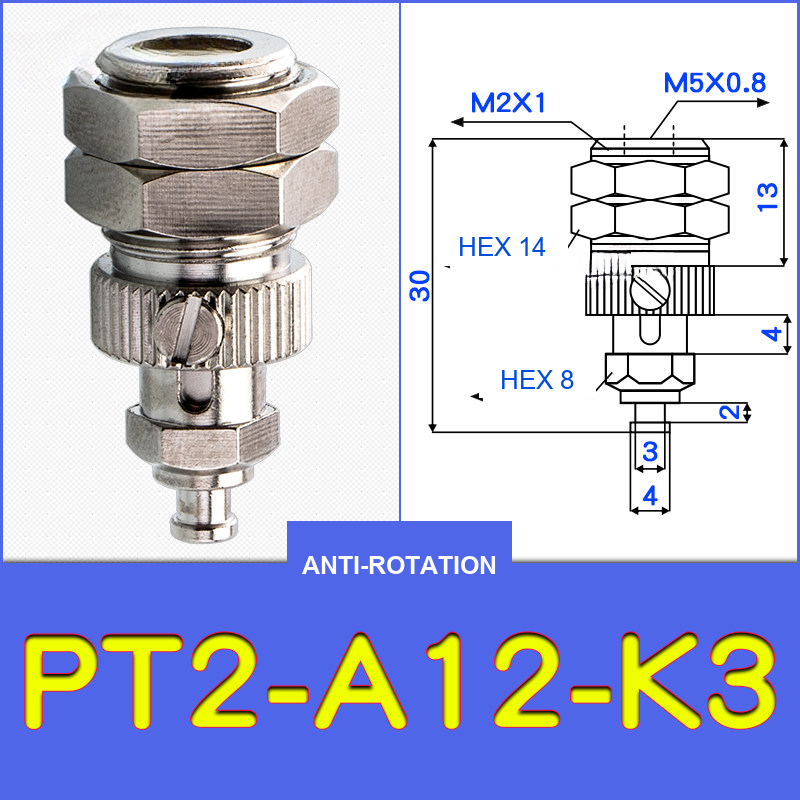

• Anti-rotation options: identified directly in the selectable model name and product image.

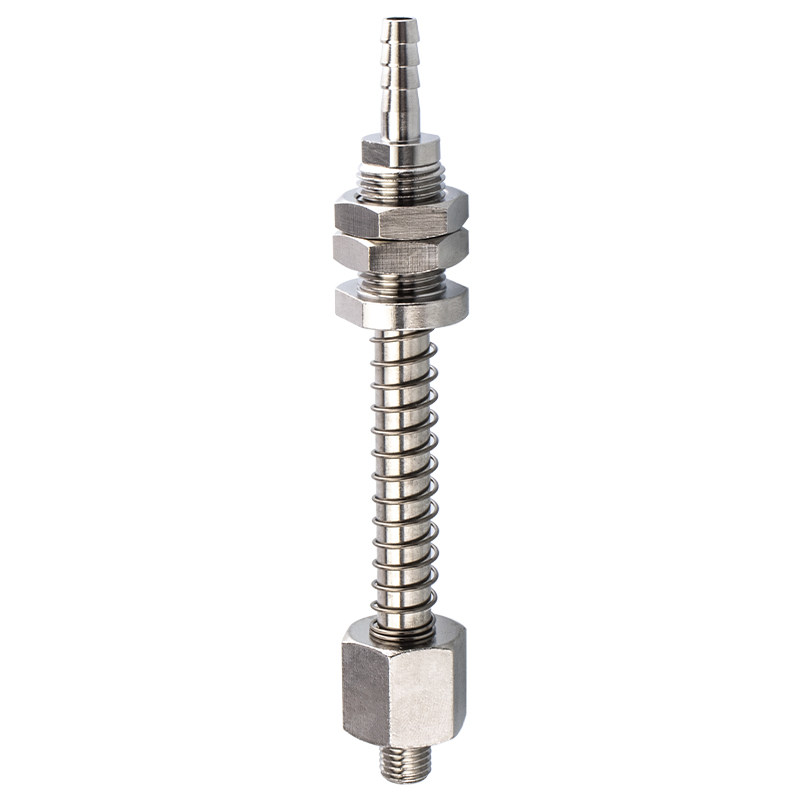

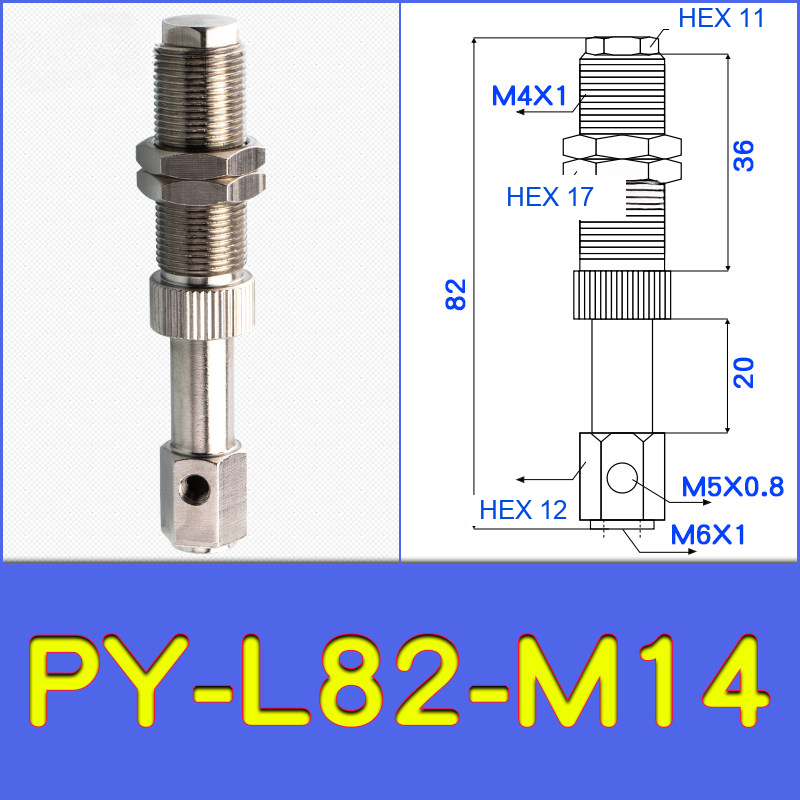

• Extended assemblies: PT-L75.5-M14, PT-L74.5-M14 and PY-L82-M14.
• Choose the exact model code, then confirm every thread, hex size and installed dimension on its selected drawing before ordering.

Model-code guide

PT and PY identify the holder configuration family. The remaining letters and numbers identify the exact body, thread, connection and length combination; use the complete code without substitution.

Suitable for

• Industrial robotic pick-and-place
• Packaging, sorting and assembly equipment
• Compatible vacuum gripping and handling systems

Before Use

Confirm the complete model code, selected drawing, mounting thread, connection, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
