BOLTTE POM Right-Angle Bevel Gears — Module 1/1.5, 20–30 Teeth

BOLTTE POM Right-Angle Bevel Gears — Module 1/1.5, 20–30 Teeth

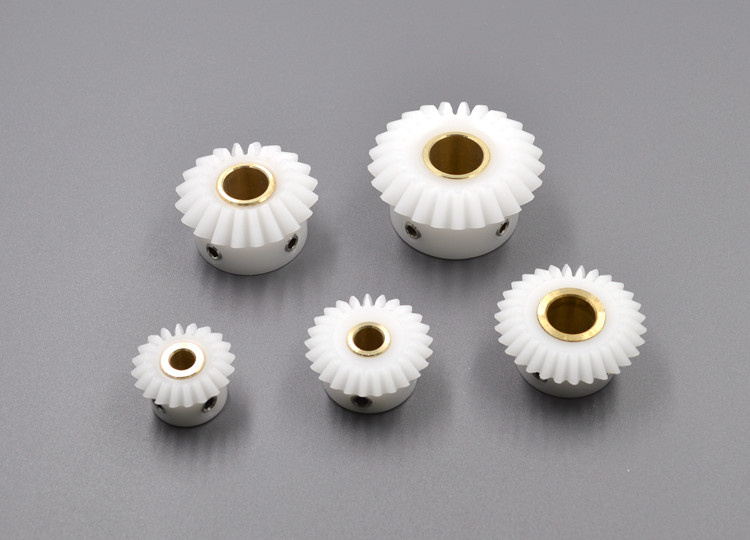

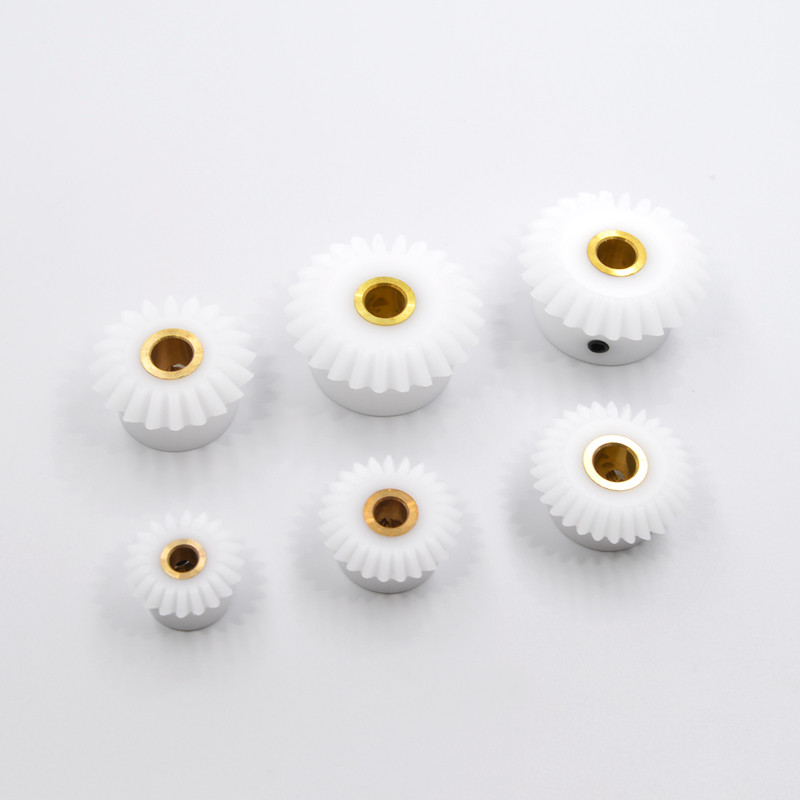

White POM right-angle bevel gears for compatible mechanical transmission and automation assemblies. Select the module, tooth count and bore shown in the corresponding engineering drawing.

Model Selection

• Module 1: 20-, 25- and 30-tooth configurations with the listed bore options.
• Module 1.5: 20- and 25-tooth configurations with the listed bore options.

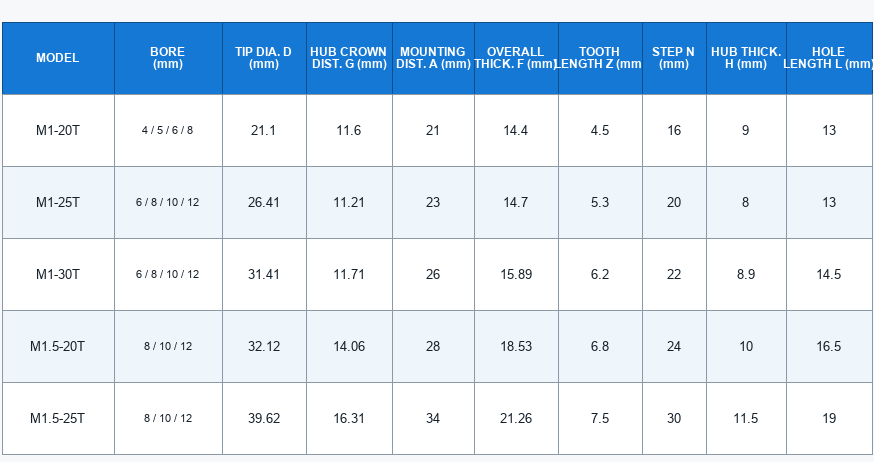

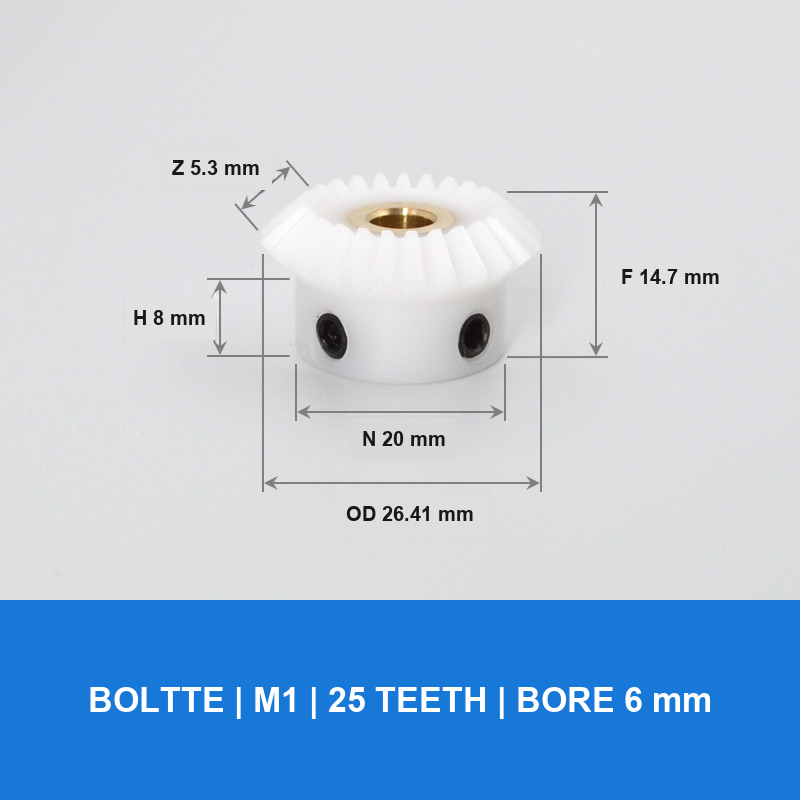

• Each model drawing shows the applicable outside diameter, overall thickness, step, hub thickness and tooth length.

Material and Use

• POM engineering-plastic gear body with a metal-lined bore as shown.
• 90-degree bevel-gear geometry for compatible shafts and mating gears.
• Use only with a compatible module, tooth count, shaft diameter, alignment and load rating.

Order Notes

Confirm the module, tooth count, bore size and mating gear before ordering. If machining is required, include the shaft diameter and whether a through bore is needed in the order notes.

Check the engineering drawing, center distance, clearance, speed, torque, lubrication, temperature and operating environment for the complete mechanism. Product dimensions are shown in millimetres unless marked otherwise.
