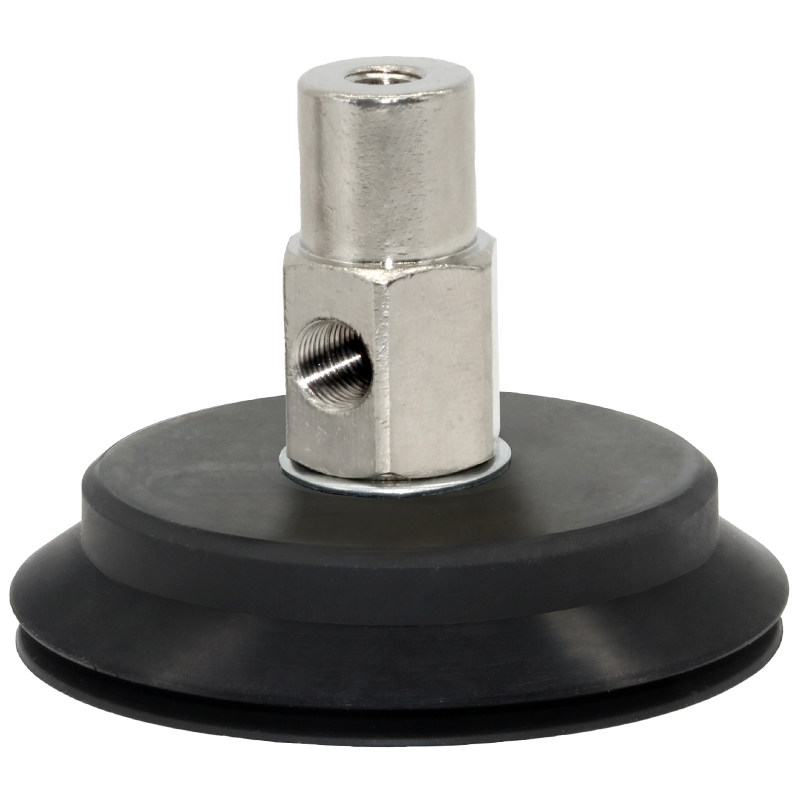

PJYK Side-Port Vacuum Cup Assemblies — 60–80 mm

PJYK Side-Port Vacuum Cup Assemblies — 60–80 mm

PJYK side-port vacuum cup assemblies for industrial vacuum gripping, automated handling and robotic end-effectors. Select the complete model by nominal cup diameter and material, then confirm the dimensional drawing and connection details before ordering.

Quick Model Finder

1. Choose the diameter: select PJYK-60, PJYK-70 or PJYK-80 for the nominal cup diameter shown in the selected drawing.
2. Choose the material: models ending in -S use white silicone; models ending in -N use black NBR.
3. Confirm the assembly: verify the selected image for the PT 1/8 connection, M8×1.25P mounting callout, 21 A/F hex size, overall height and all installation dimensions.
4. Select the complete code: choose one listed PJYK model exactly as shown and do not combine dimensions or attributes from different variants.

Model-code guide

PJYK-[diameter]-S identifies a white-silicone option. PJYK-[diameter]-N identifies a black-NBR option. Every selectable model has its own product view and dimensional drawing.

Suitable for

• Industrial vacuum pick-and-place and packaging automation
• Robotic end-effectors and vacuum gripping fixtures
• Replacement work where the complete model and connection are confirmed

Before use

Confirm the complete model code, selected drawing, cup material, mounting interface, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
