PFYK Side-Port Vacuum Cup Assemblies — 60–95 mm

PFYK Side-Port Vacuum Cup Assemblies — 60–95 mm

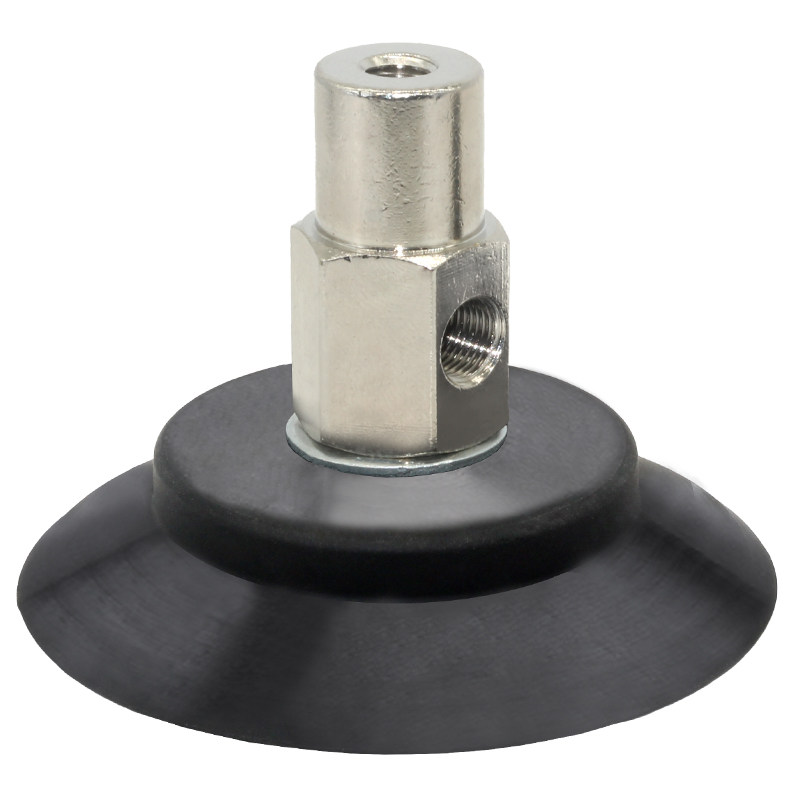

PFYK side-port vacuum cup assemblies for compatible industrial vacuum systems, automated handling equipment and robotic end-effectors. Select the complete listed model by cup diameter and material, then confirm the drawing and connection details before ordering.

Quick Model Finder

1. Choose the cup diameter: select 60 mm, 80 mm or 95 mm according to the required contact area and installation envelope shown in the selected drawing.
2. Choose the material: models ending in -S are white silicone; models ending in -N are black nitrile rubber. Confirm material compatibility with the workpiece and operating environment.
3. Confirm the interface: compare the selected drawing for the M8×1.25P mounting thread, PT1/8 side port, overall height and installation clearance.
4. Confirm the complete code: select one complete PFYK model exactly as listed; do not combine dimensions or attributes from different variants.

Model-code guide

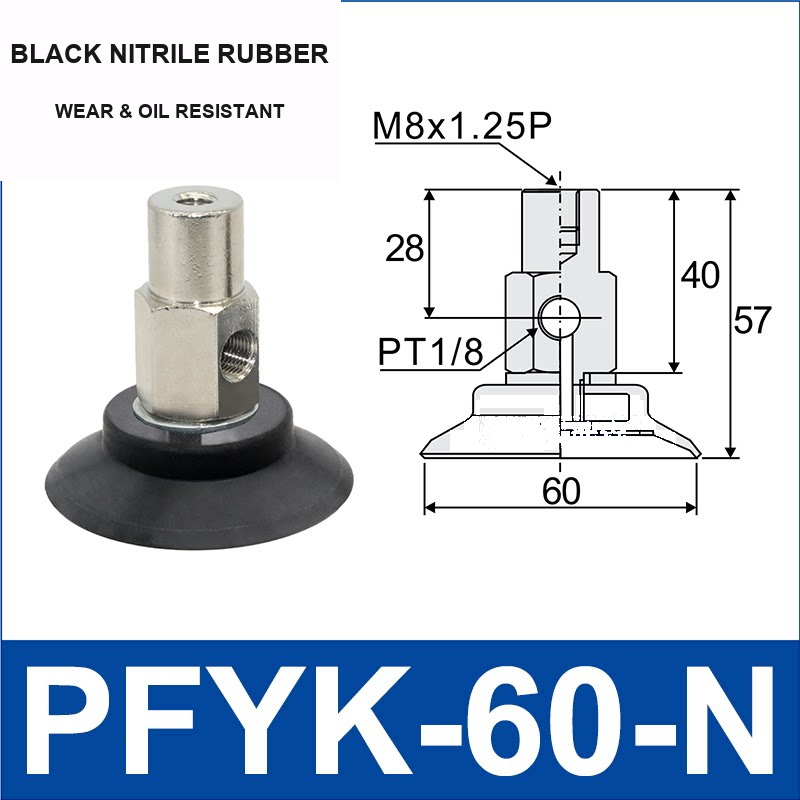

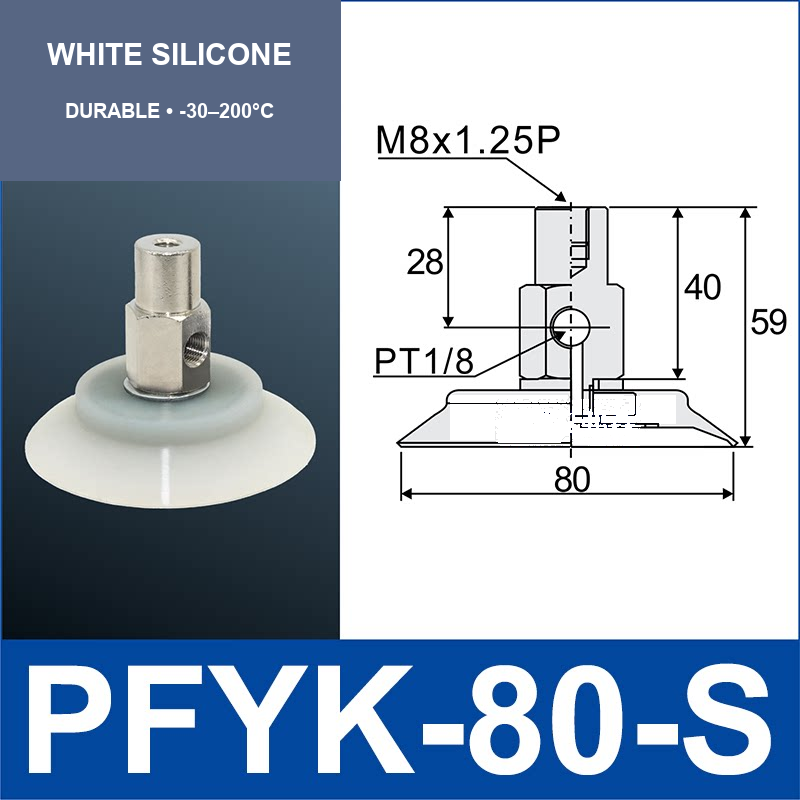

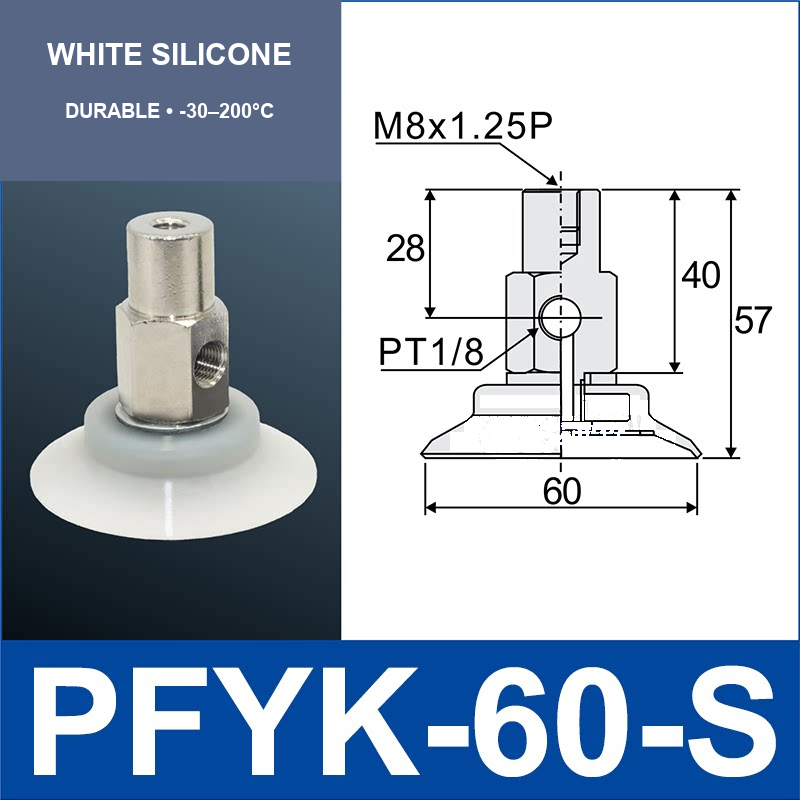

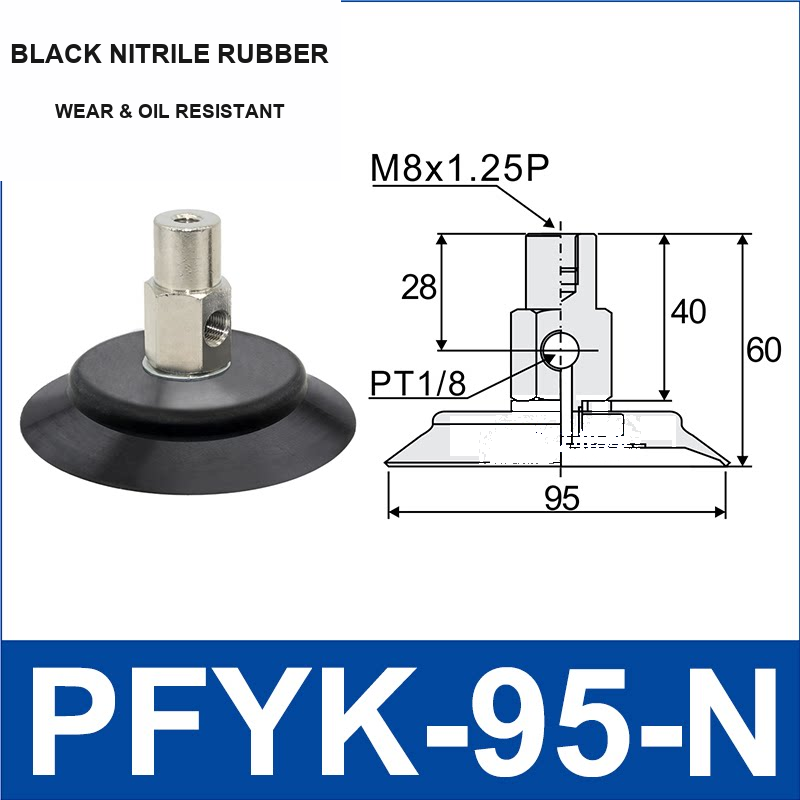

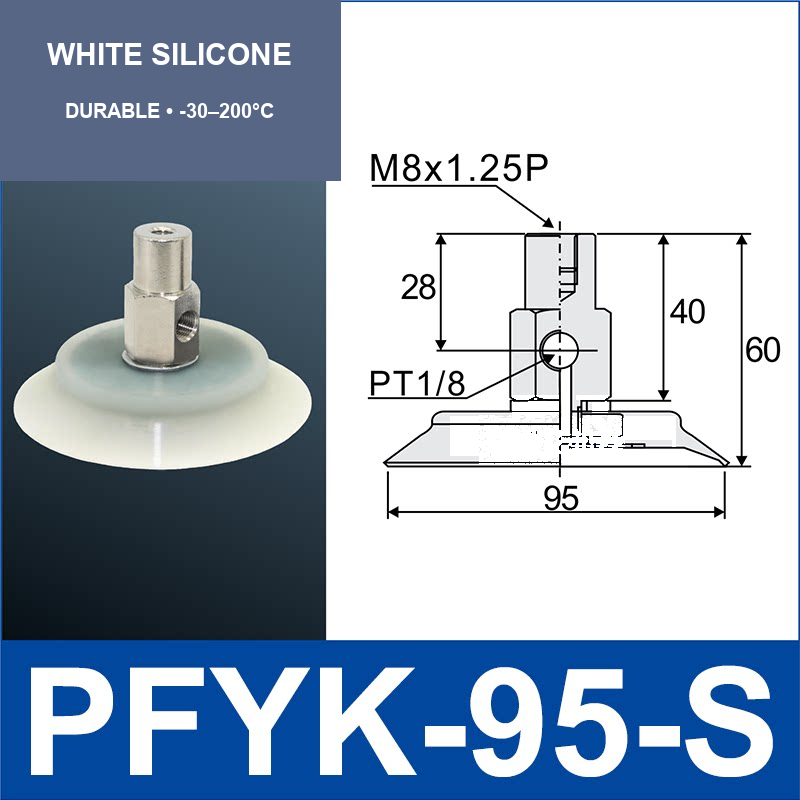

PFYK-[60/80/95]-S identifies a white-silicone option. PFYK-[60/80/95]-N identifies a black-nitrile-rubber option. Every selectable model has its own product view and dimensional drawing.

Suitable for

• Industrial vacuum pick-and-place and packaging automation
• Robotic end-effectors and vacuum gripping fixtures
• Replacement or configuration work where the complete model and interfaces are confirmed

Before use

Confirm the complete selected model code, drawing, cup material, mounting thread, side-port connection, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
