PFG heavy-duty holders and spring-buffer assemblies for industrial vacuum cups, automated handling equipment and robot end-effectors. Each selectable model has its own connection geometry, overall length and dimensional drawing.

Quick Model Finder

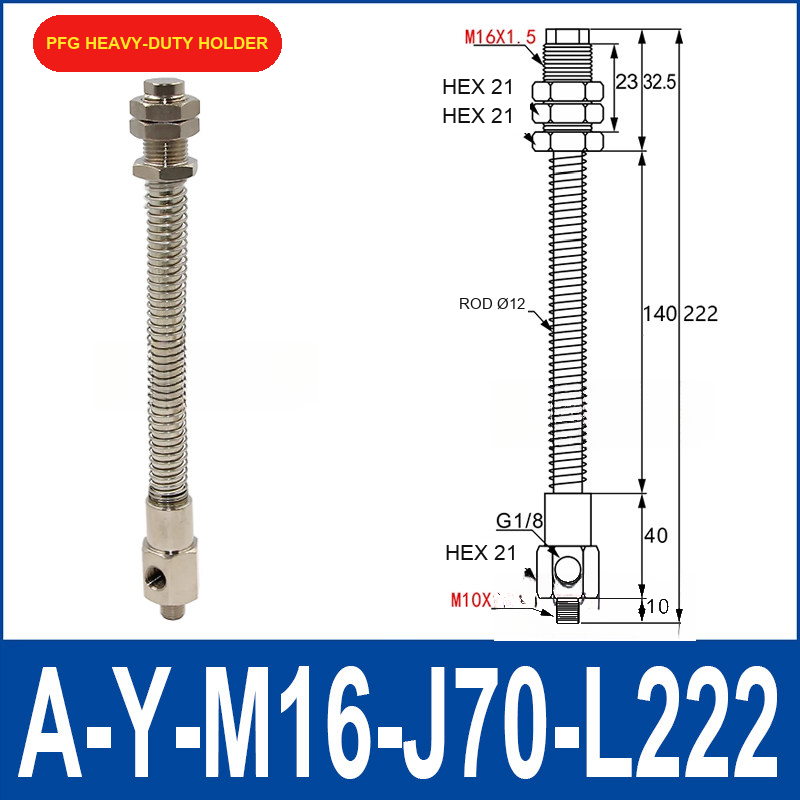

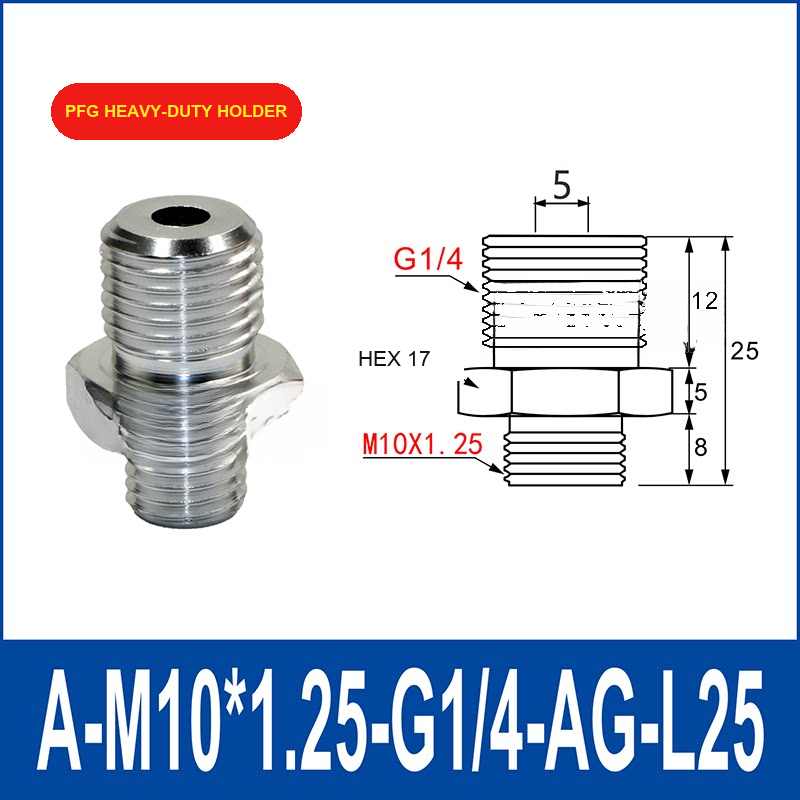

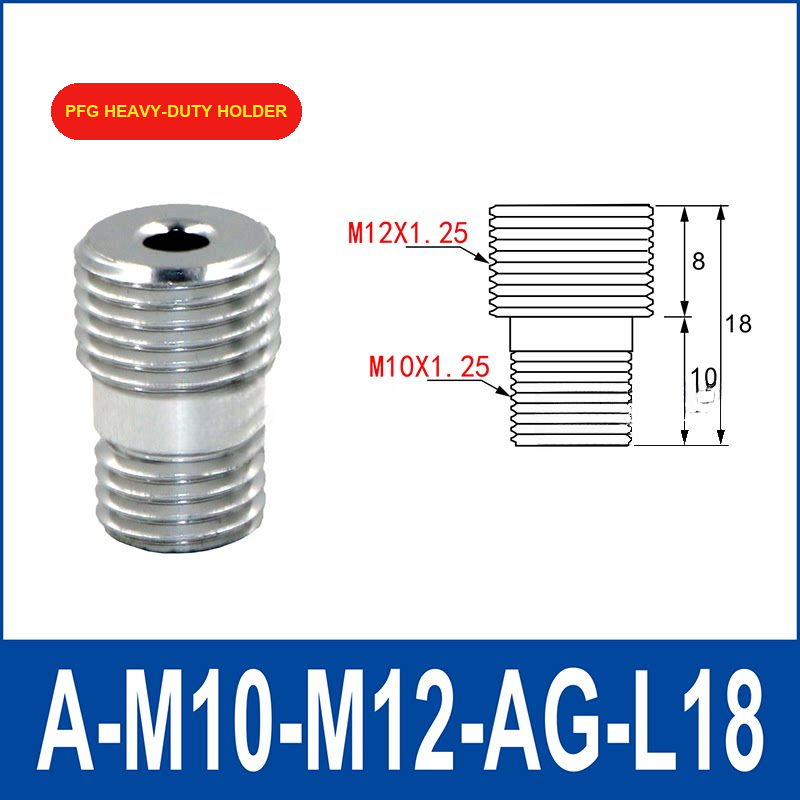

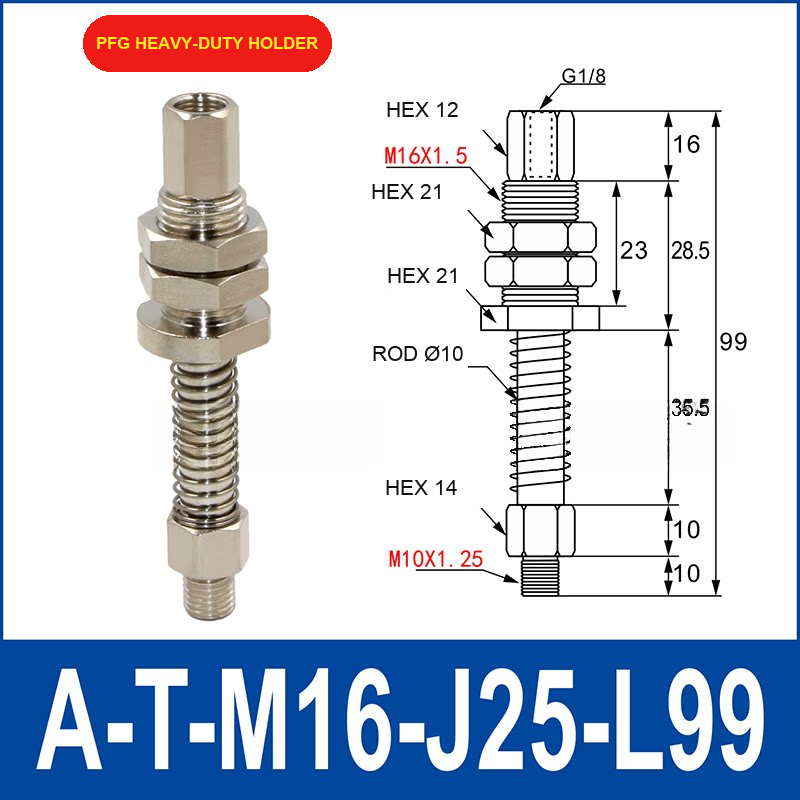

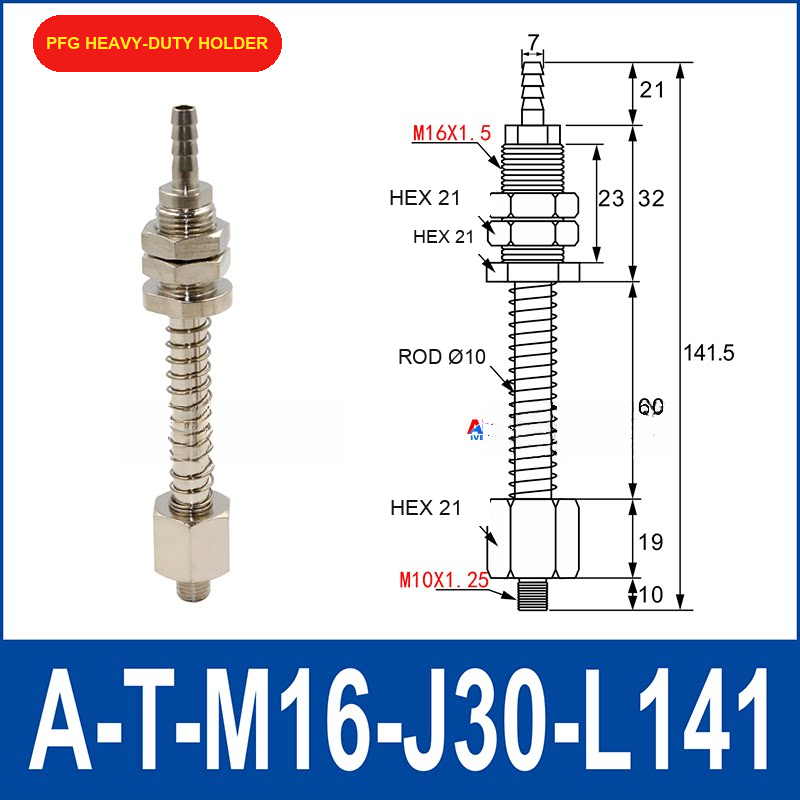

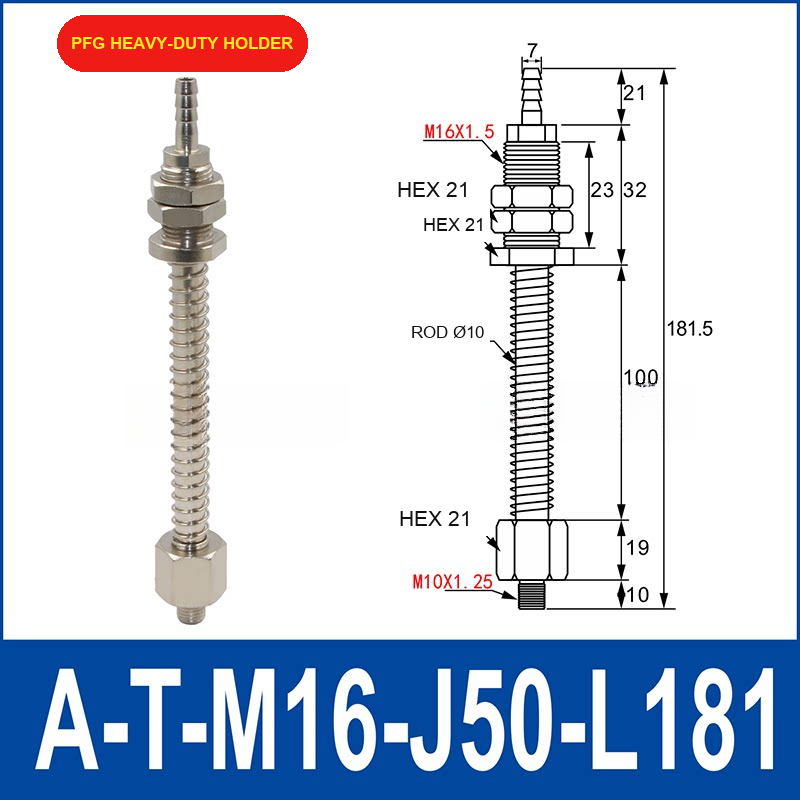

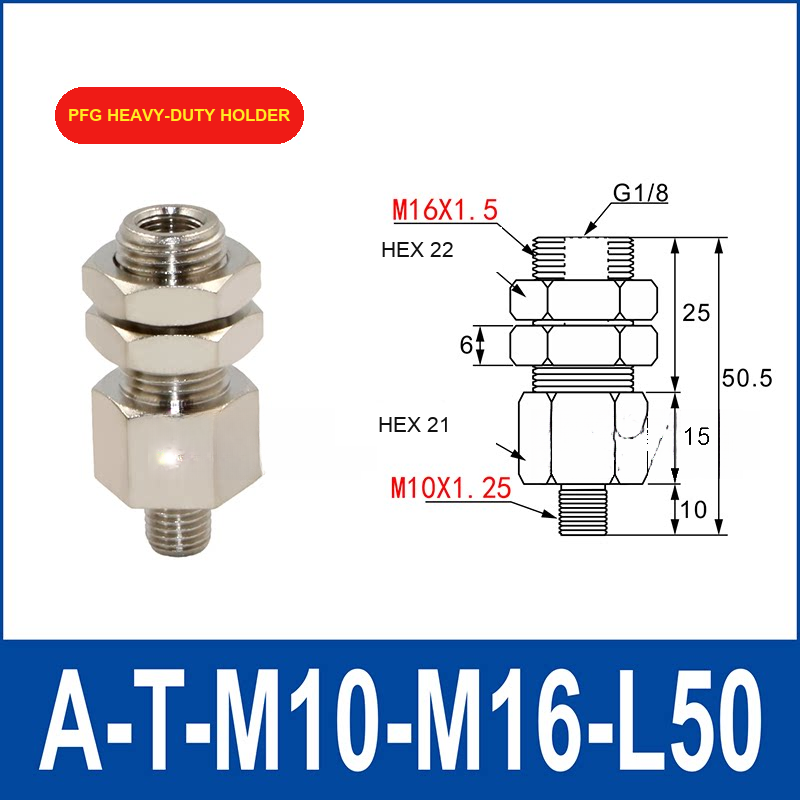

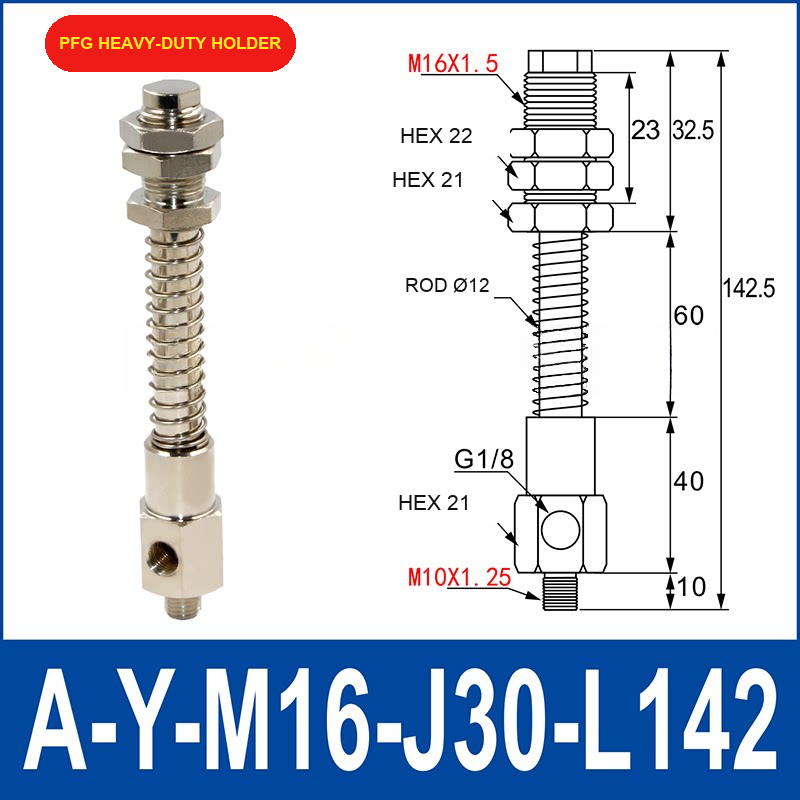

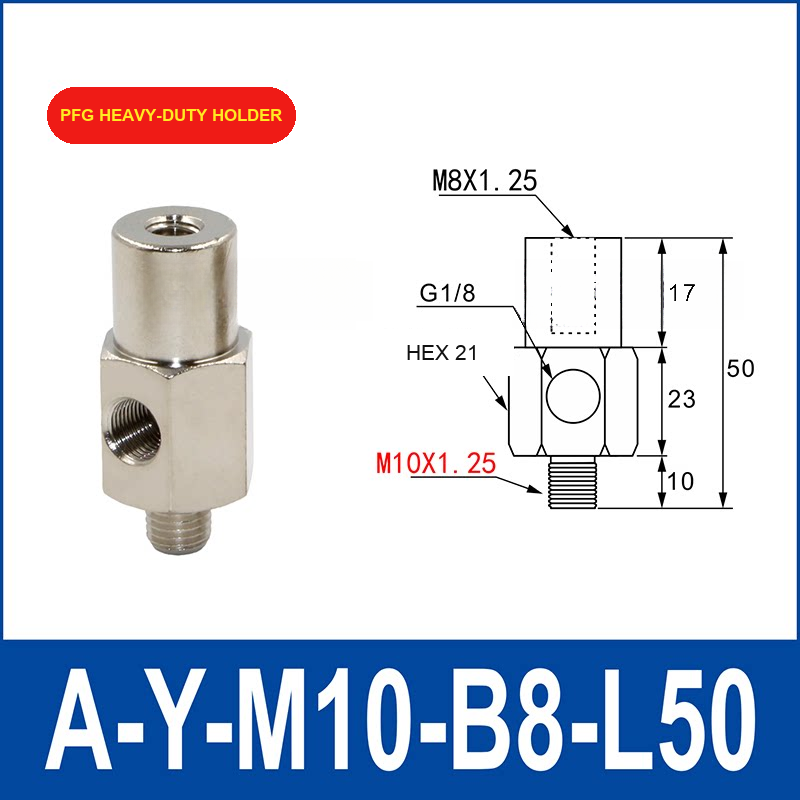

1. Select the complete model code: A-M, A-T and A-Y identify distinct holder or buffer-assembly configurations. Use the full listed code rather than combining dimensions from different models.
2. Confirm the interfaces: compare the selected drawing for its cup-side thread, mounting thread, G-thread or tube connection, hex sizes and clearance.
3. Confirm the length: the final L value in the model code corresponds to the listed overall configuration. Check every dimension shown in the matching image before ordering.
4. Check material: variants specify aluminium alloy, nickel-plated copper or nickel-plated steel where listed.

Suitable for

• Heavy-duty industrial vacuum-cup mounting and buffering
• Robot end-effectors, automation fixtures and pick-and-place equipment
• Replacement work where the exact connection, length and drawing are confirmed

Before use

Confirm the complete model code, drawing, cup compatibility, threads, tube or port interface, mounting clearance, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
