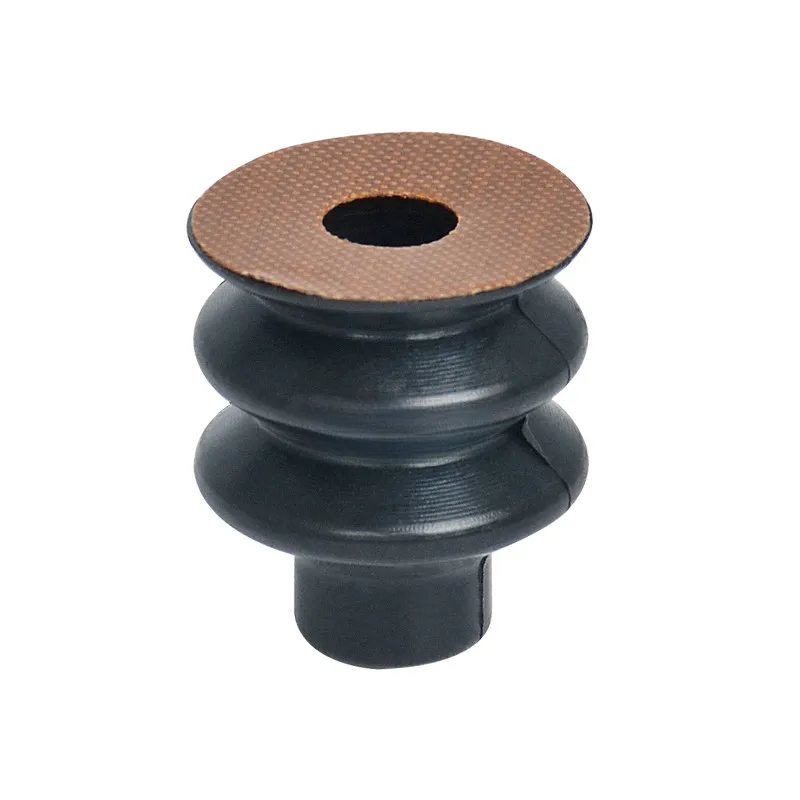

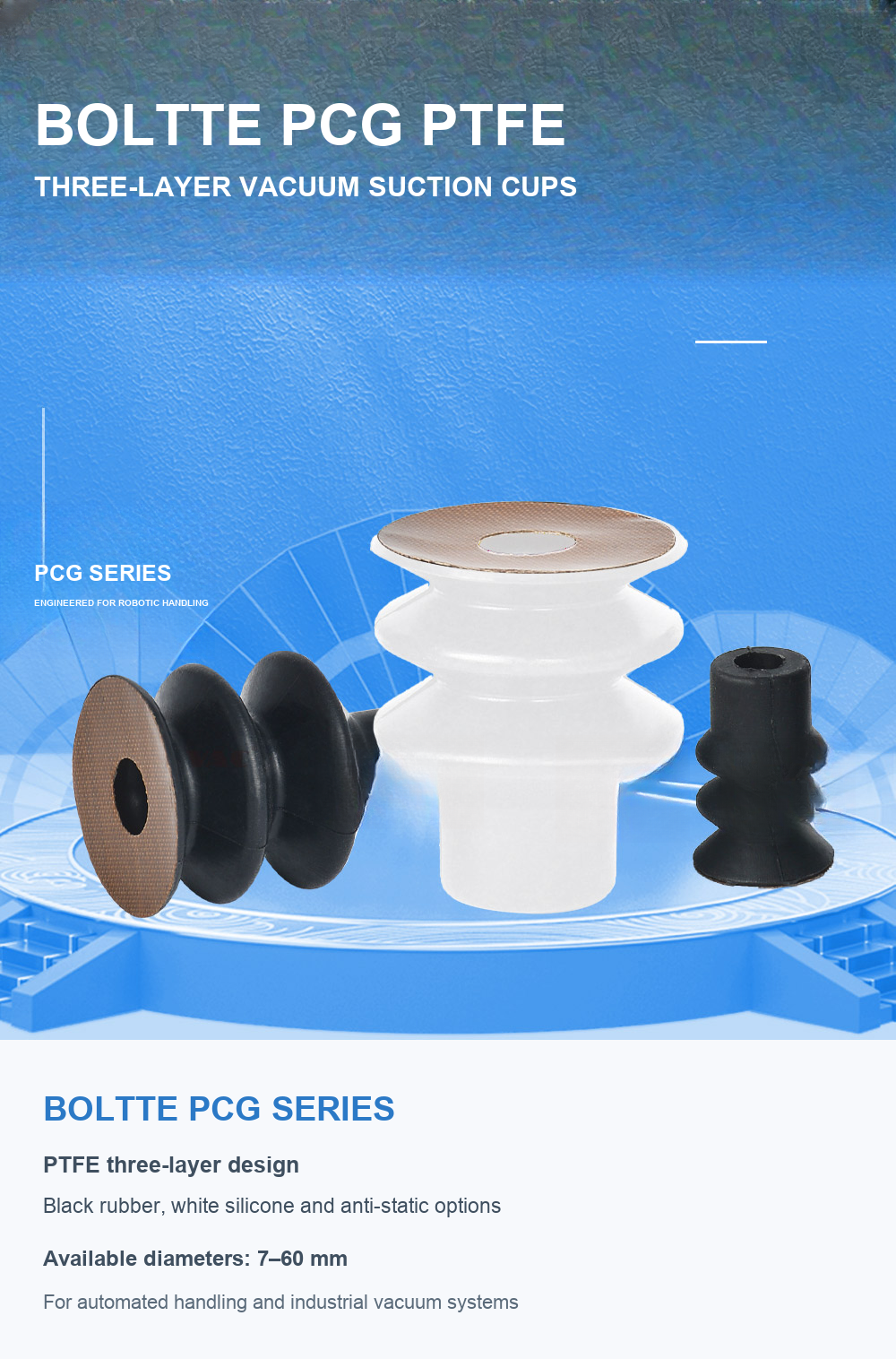

BOLTTE PCG Three-Layer PTFE Vacuum Suction Cups

Three-layer vacuum suction cups for automated handling, robotic tooling and industrial vacuum systems. Select the exact model and material shown in the corresponding engineering drawing.

Model and material options

• Black Rubber: PCG-N models for general industrial gripping.
• White Silicone: PCG-S models for applications requiring a silicone contact layer.

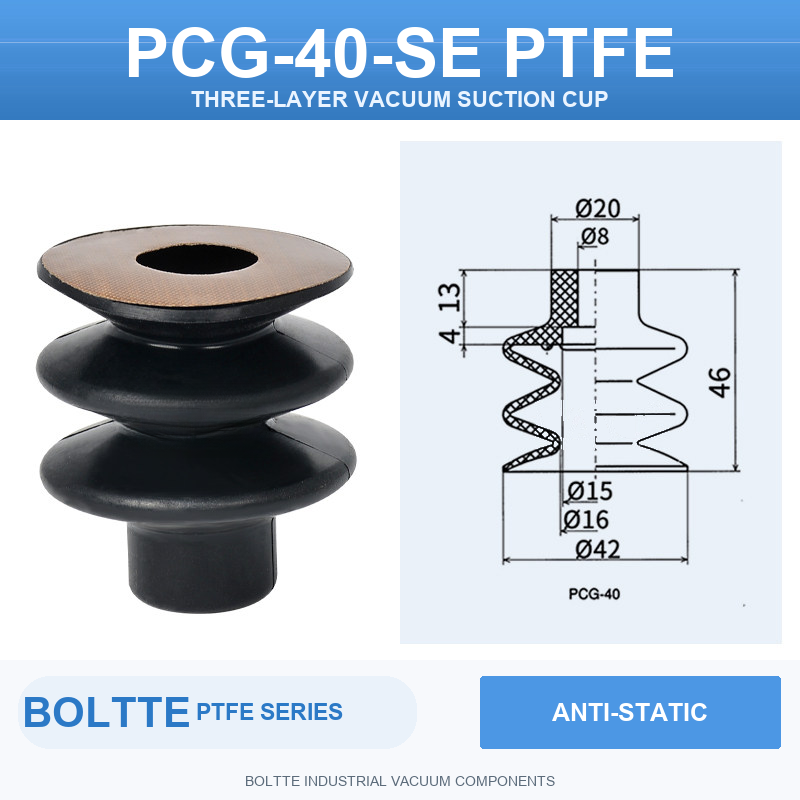

• Anti-Static: PCG-SE models for applications requiring an anti-static contact layer.
• Available diameters include 7, 10, 10B, 12, 15, 18, 20, 25, 30, 40 and 60 mm.

Before ordering

Confirm the complete model code, material, cup diameter, workpiece surface, payload, acceleration, temperature and installation clearance against the selected drawing. Actual performance depends on the complete pneumatic system and application conditions.

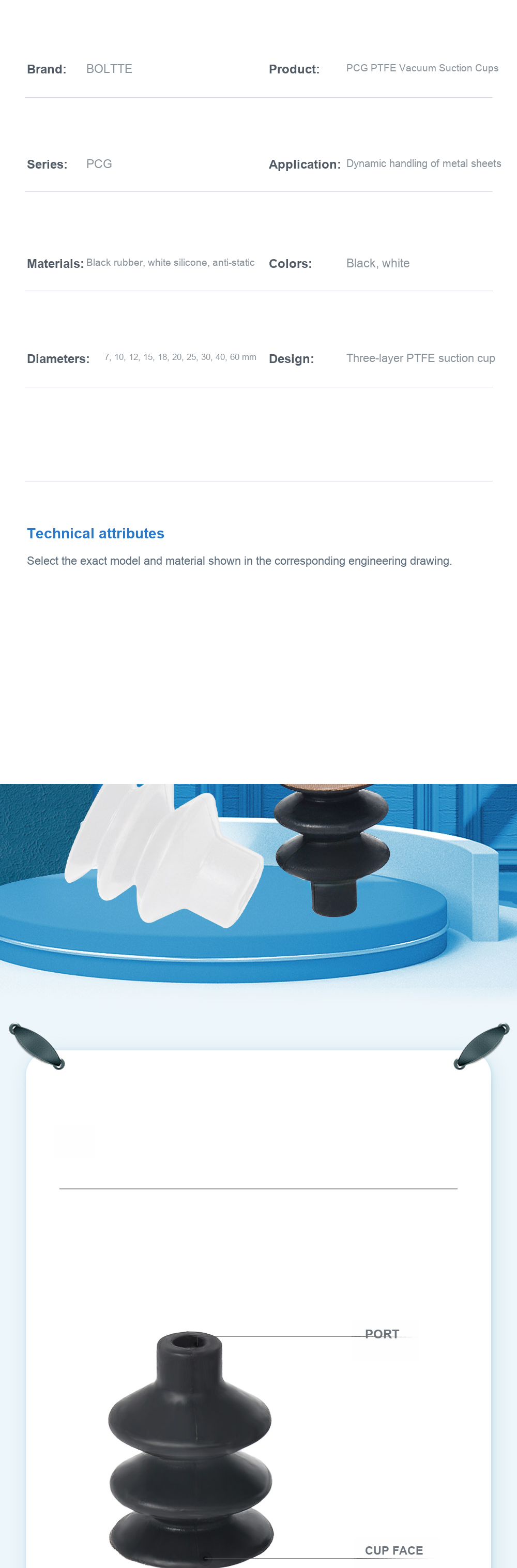

Technical information

• Dimensions and connection callouts are shown in millimetres unless otherwise marked.
• Each product image corresponds to its selectable model and is provided for technical identification.
• Use compatible pneumatic components and follow the requirements of the complete machine system.
