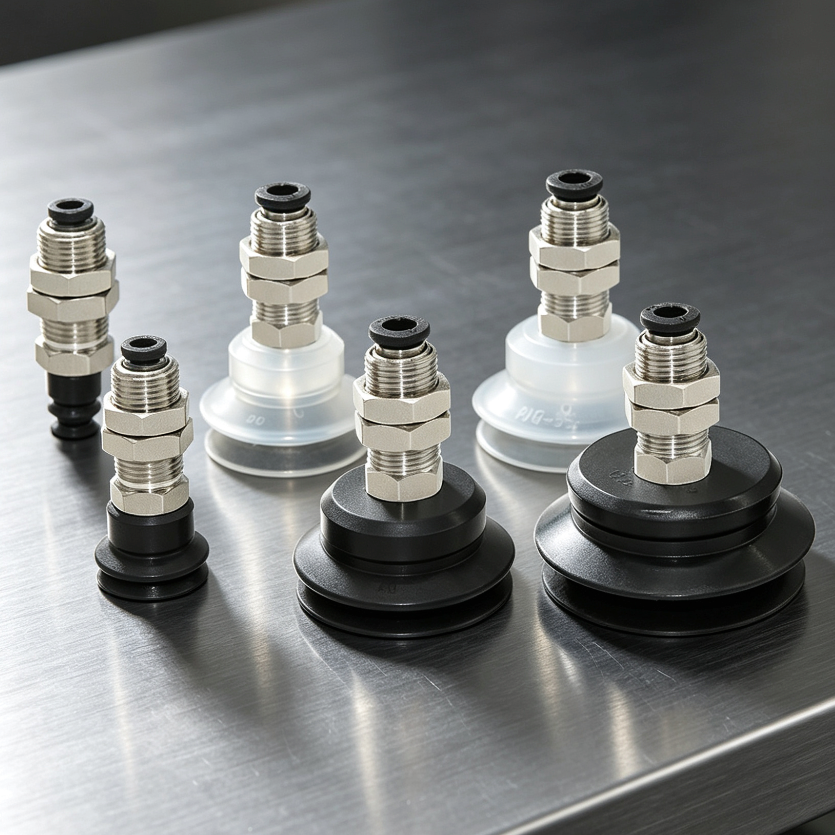

PBK Series Vacuum Cup Holders, 6–50 mm, Silicone or Nitrile

PBK Series Vacuum Cup Holders

Compact PBK vacuum cup holders with silicone or nitrile cups for industrial pick-and-place, robotic end-of-arm tooling and pneumatic handling assemblies.

• 21 selectable configurations from 6 to 50 mm cup diameter
• White silicone options with a stated -30 to 200 degrees C range

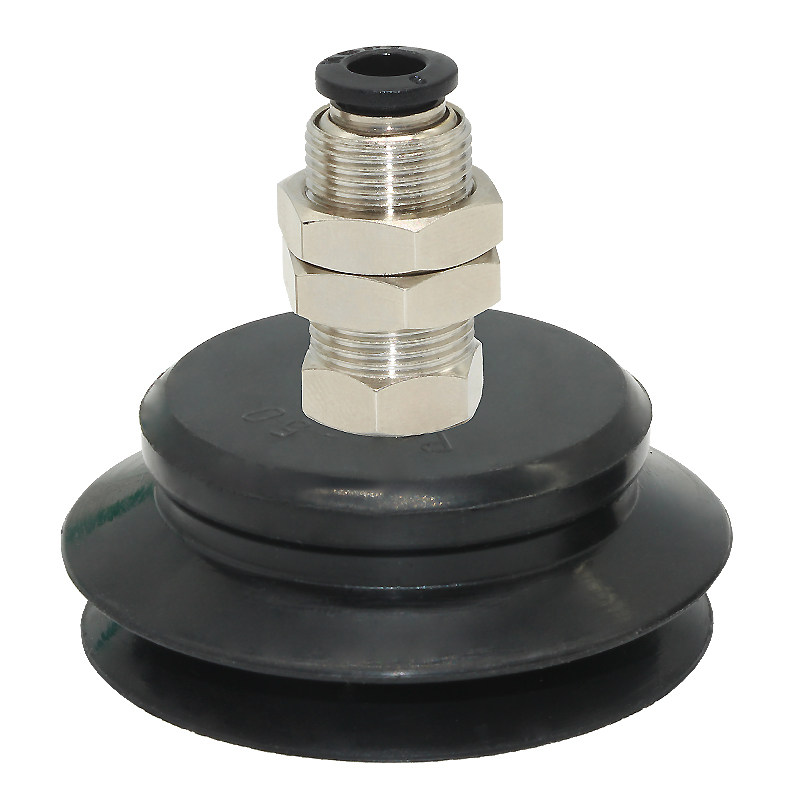

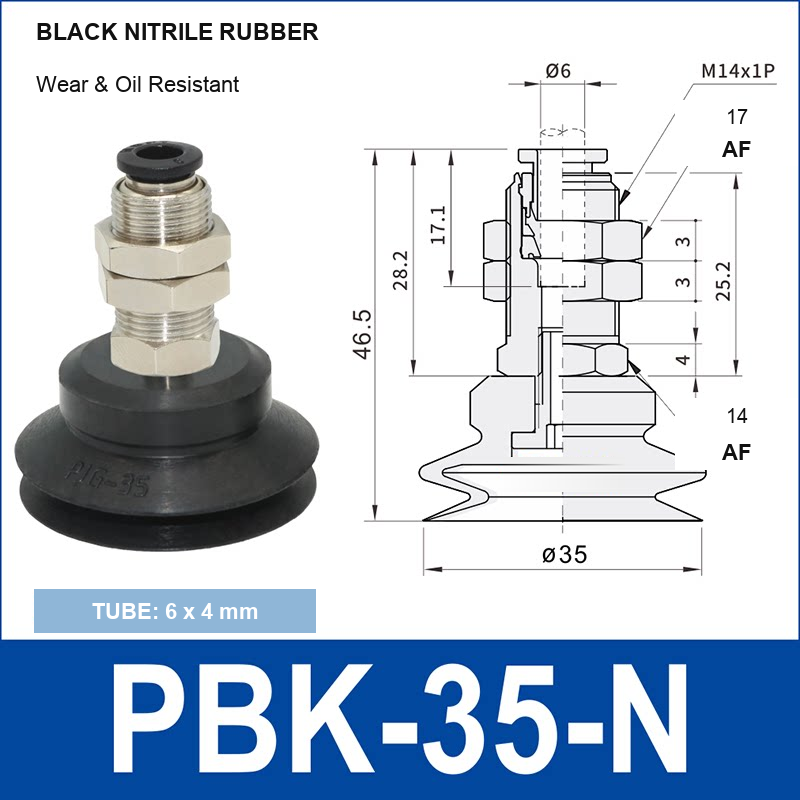

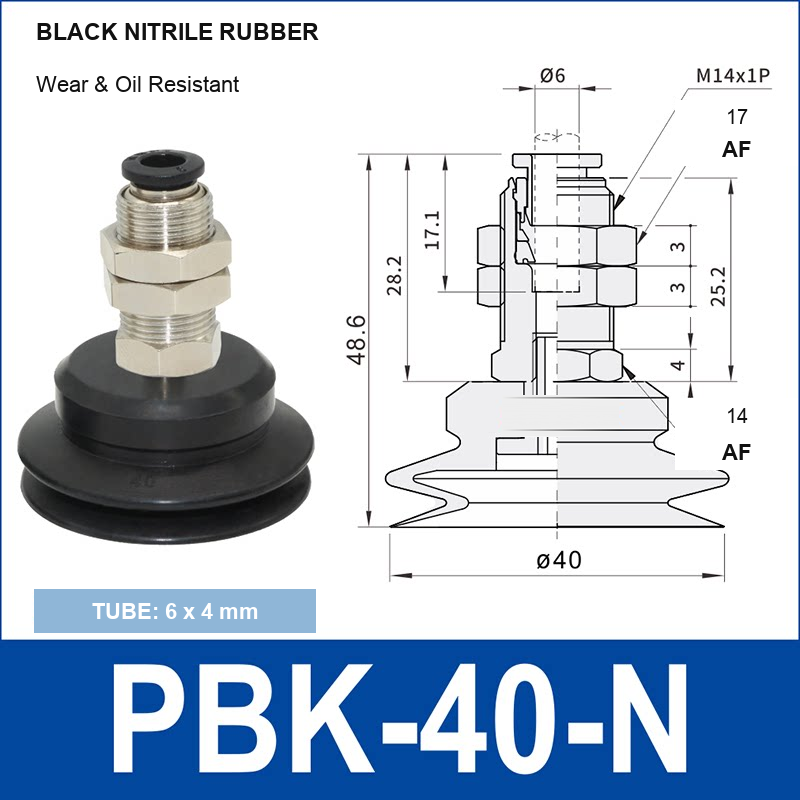

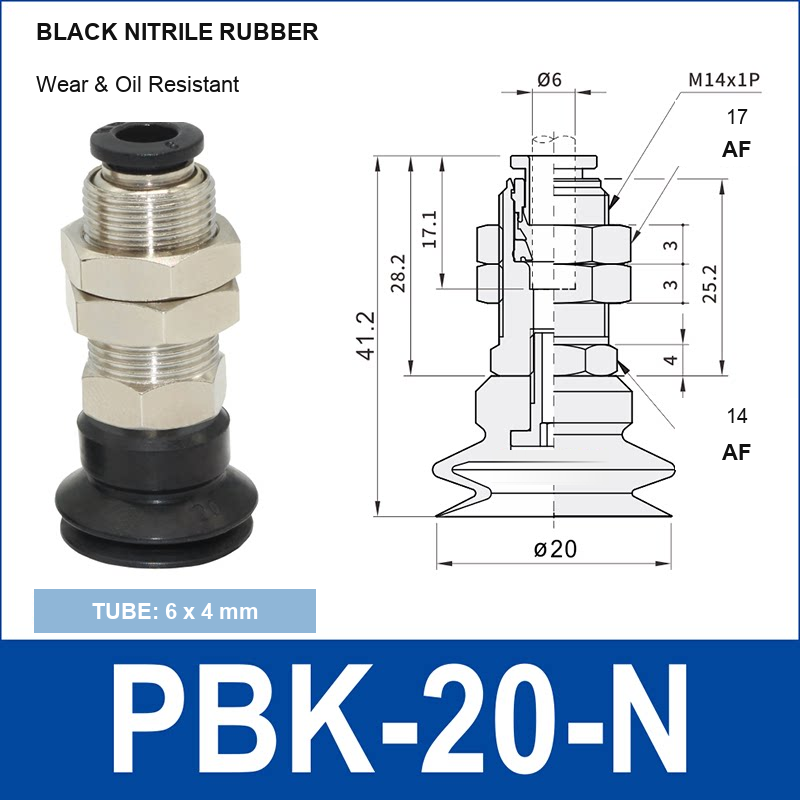

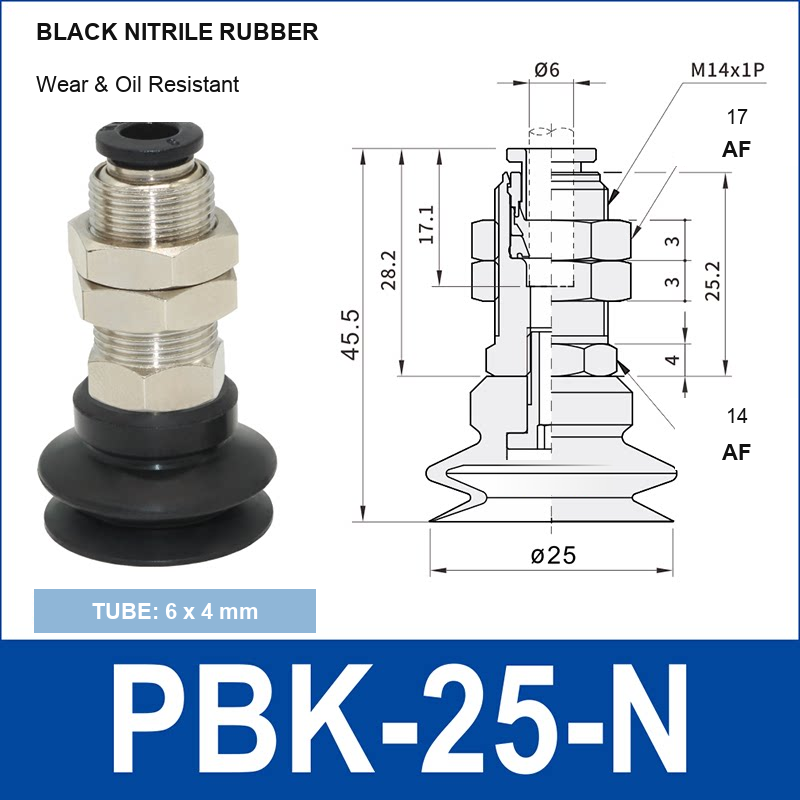

• Black nitrile rubber options specified for wear and oil resistance

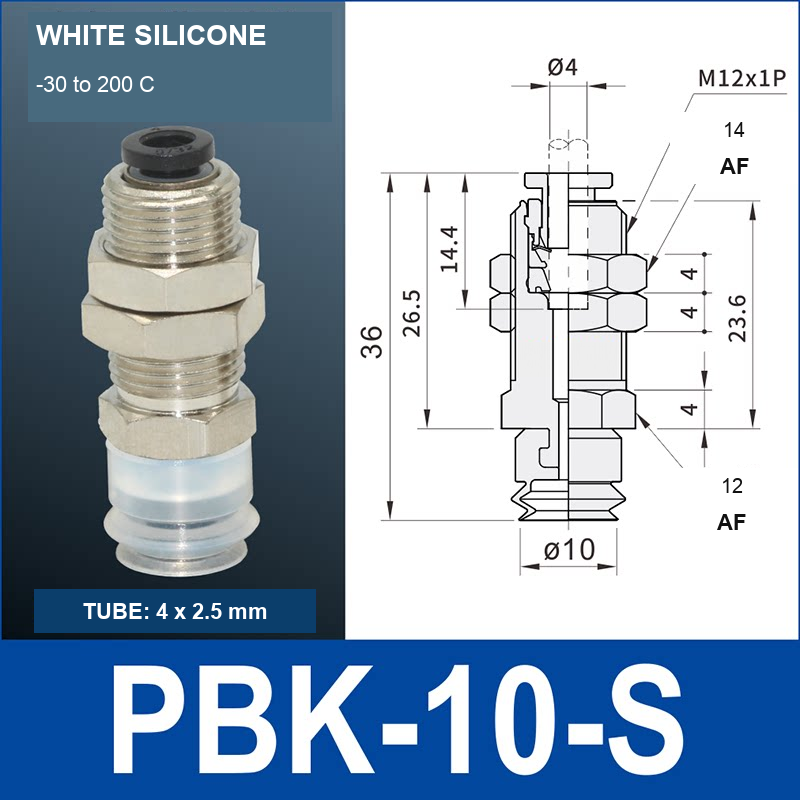

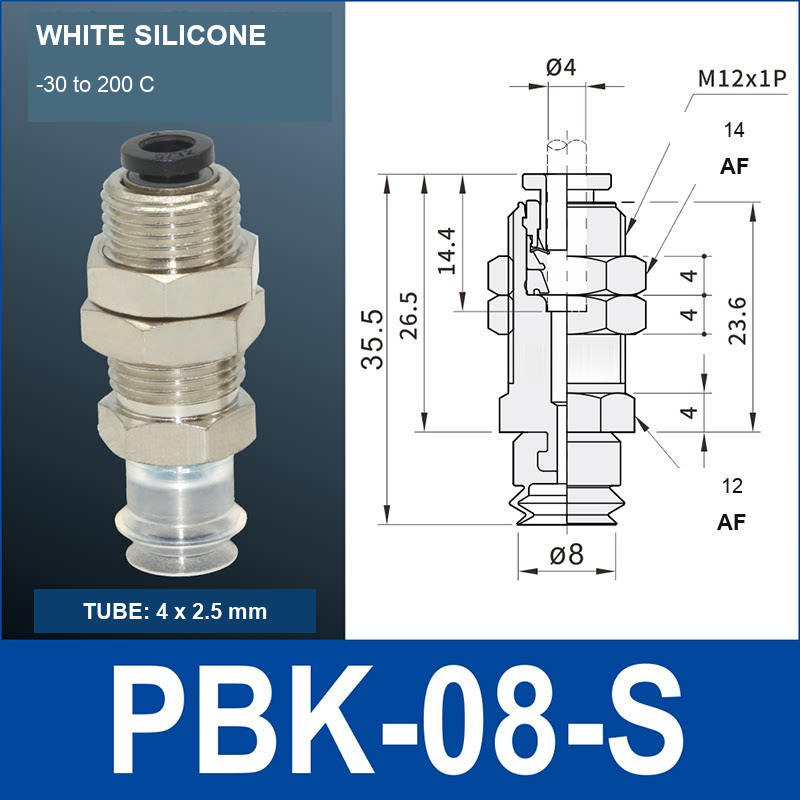

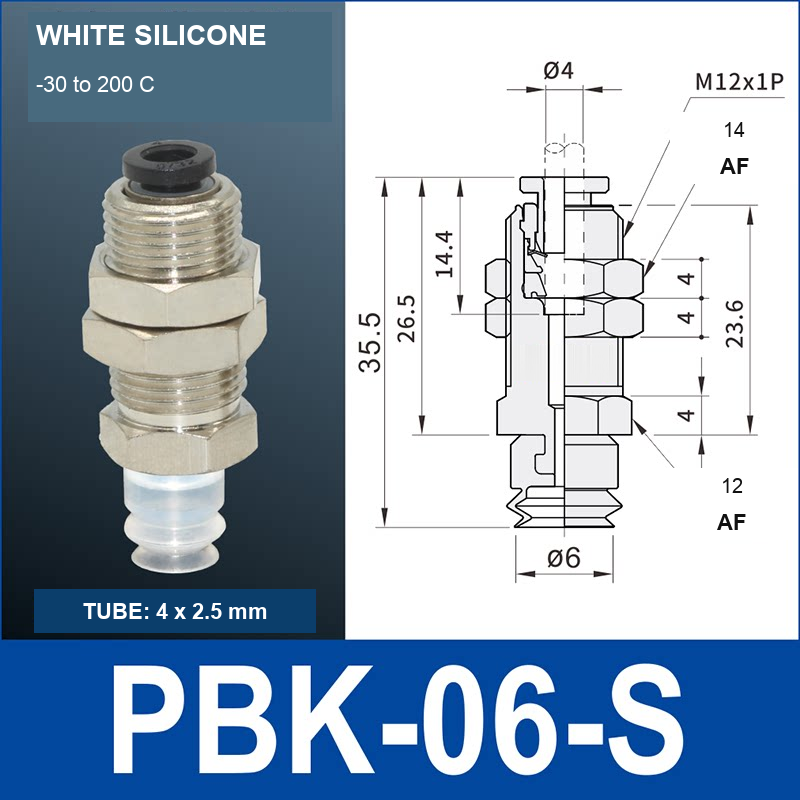

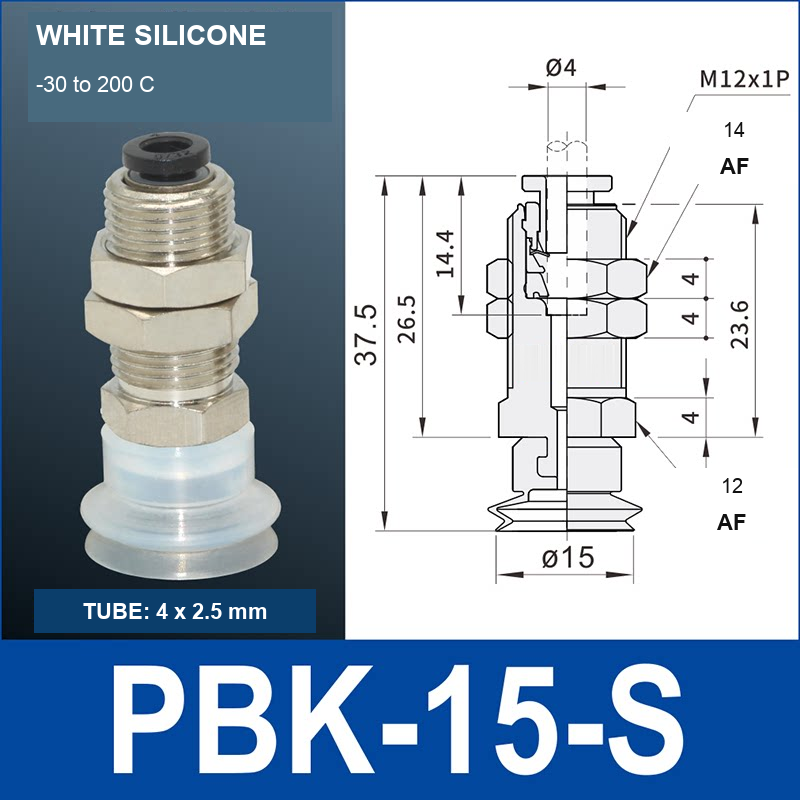

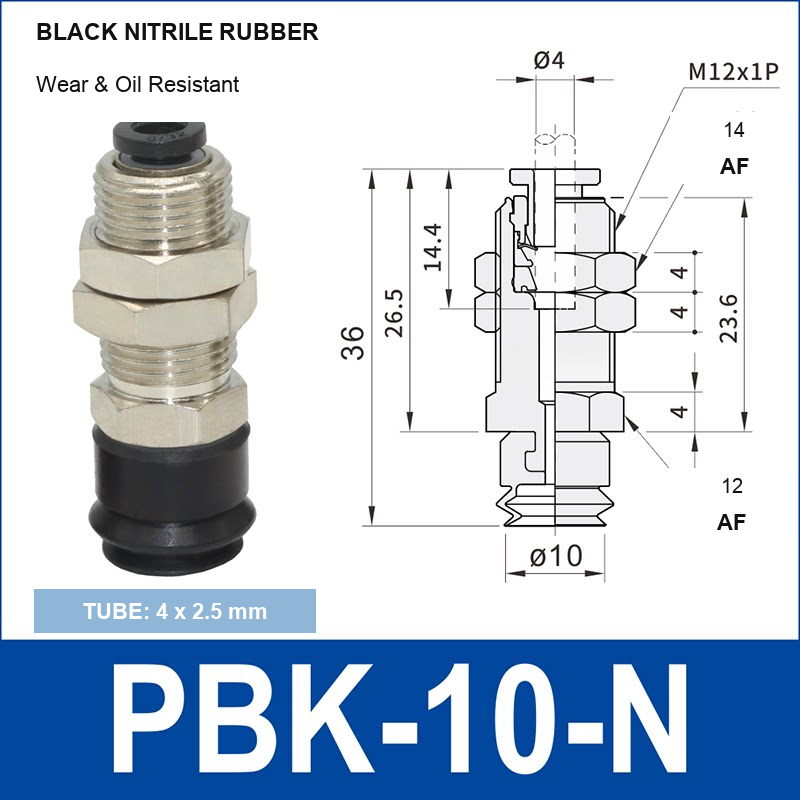

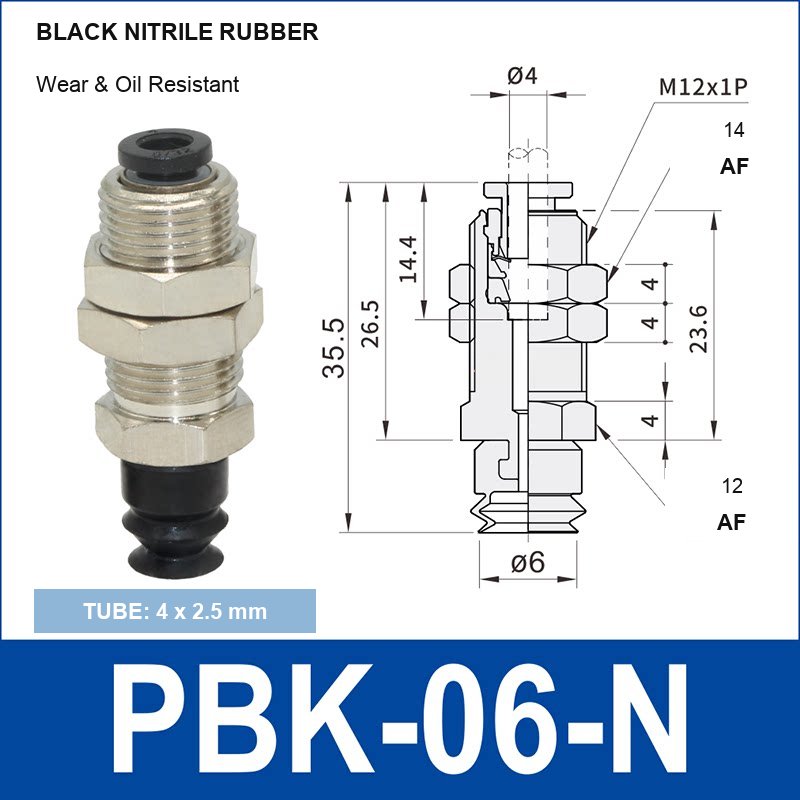

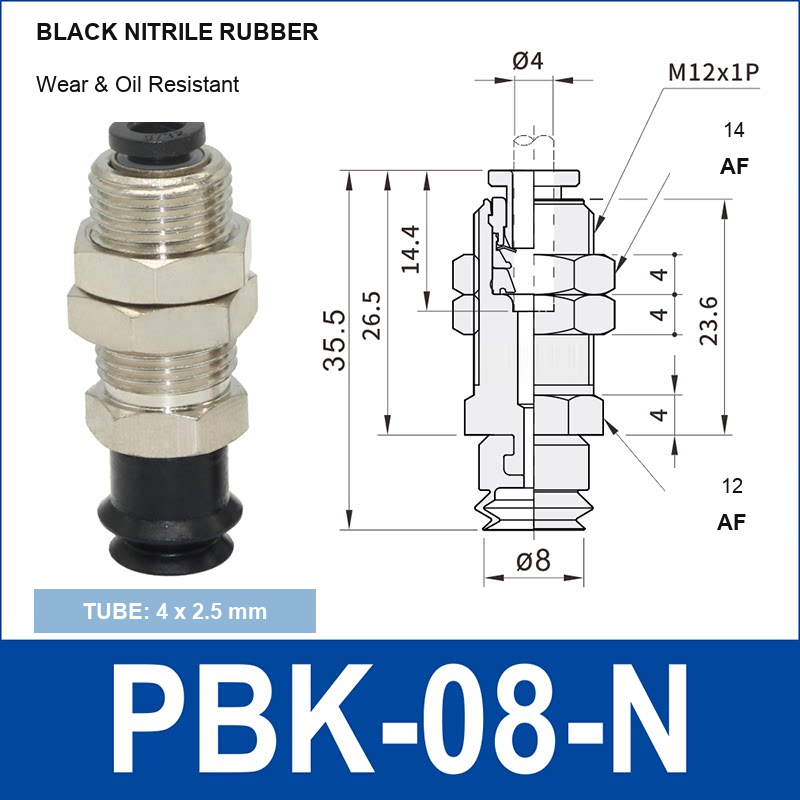

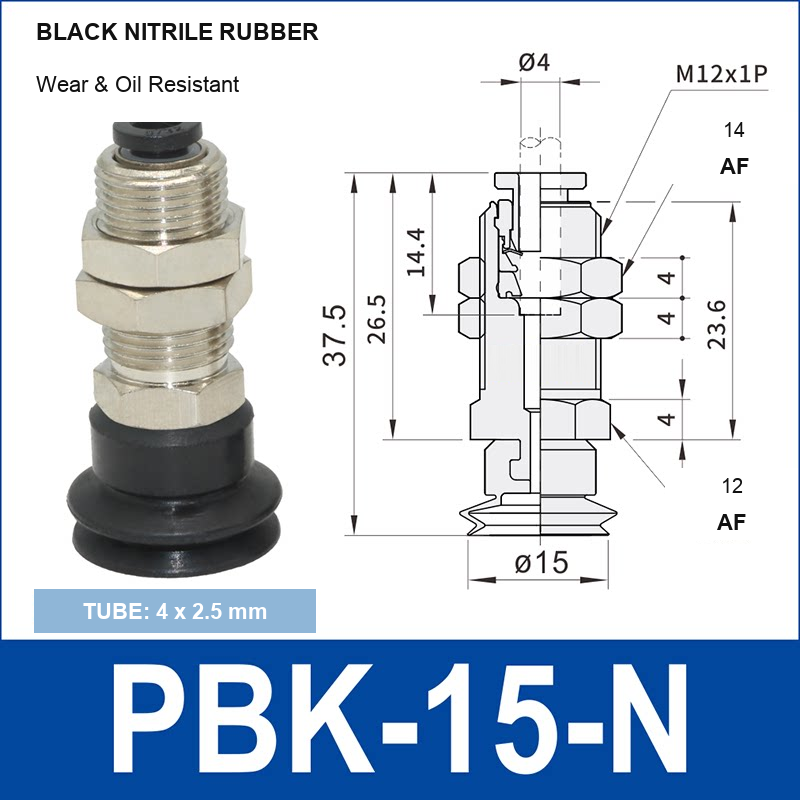

• M12 x 1.0 holders with 4 x 2.5 mm tubing for 6-15 mm cups

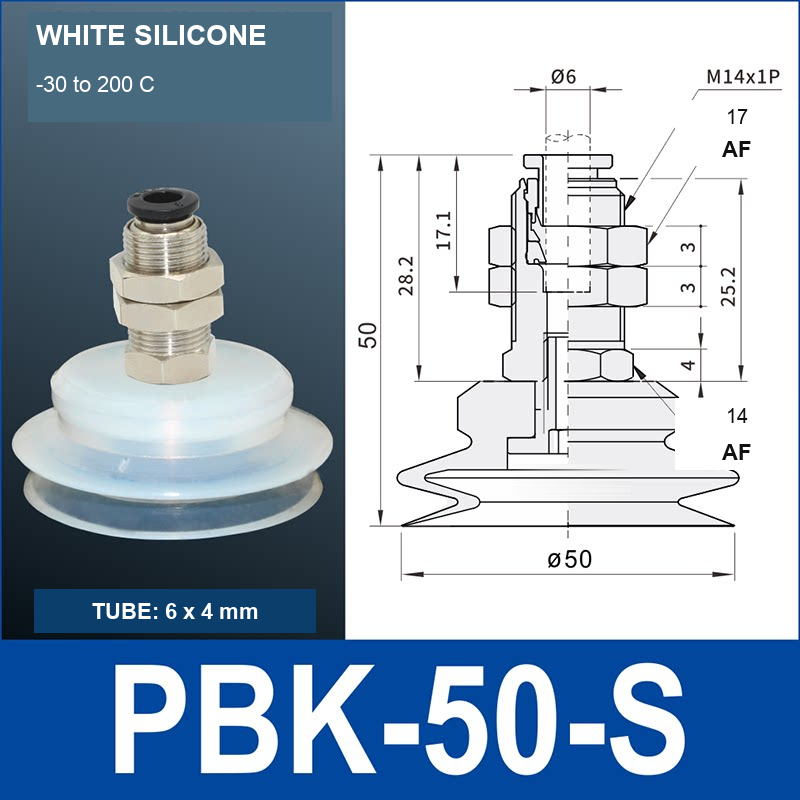

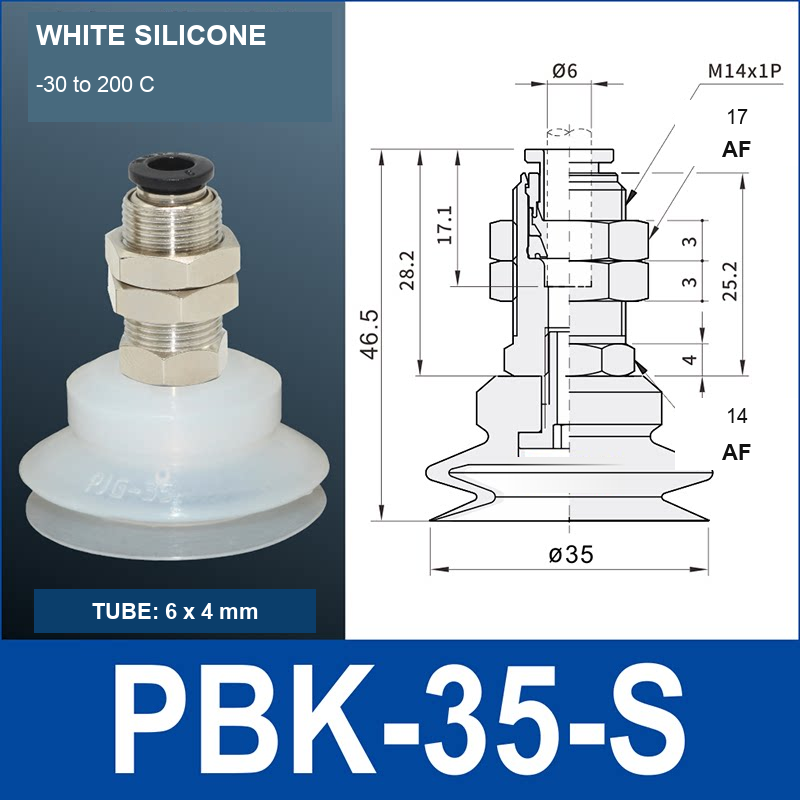

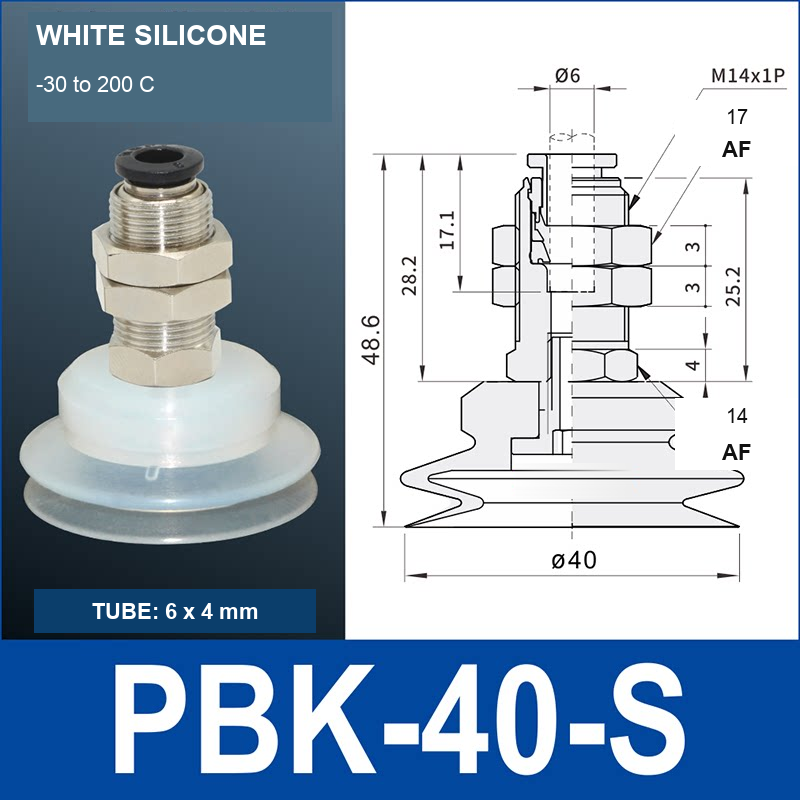

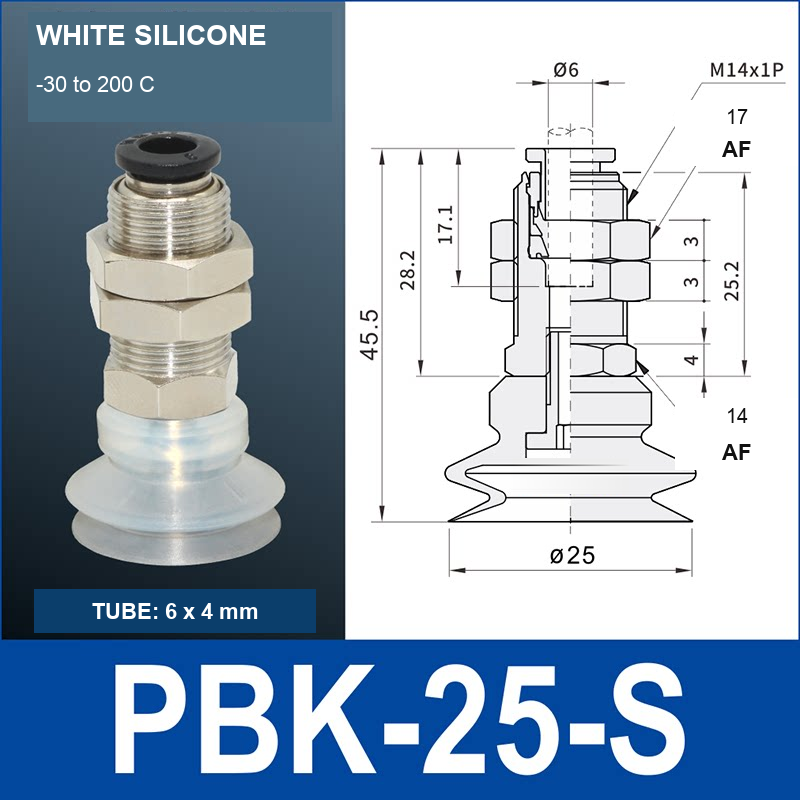

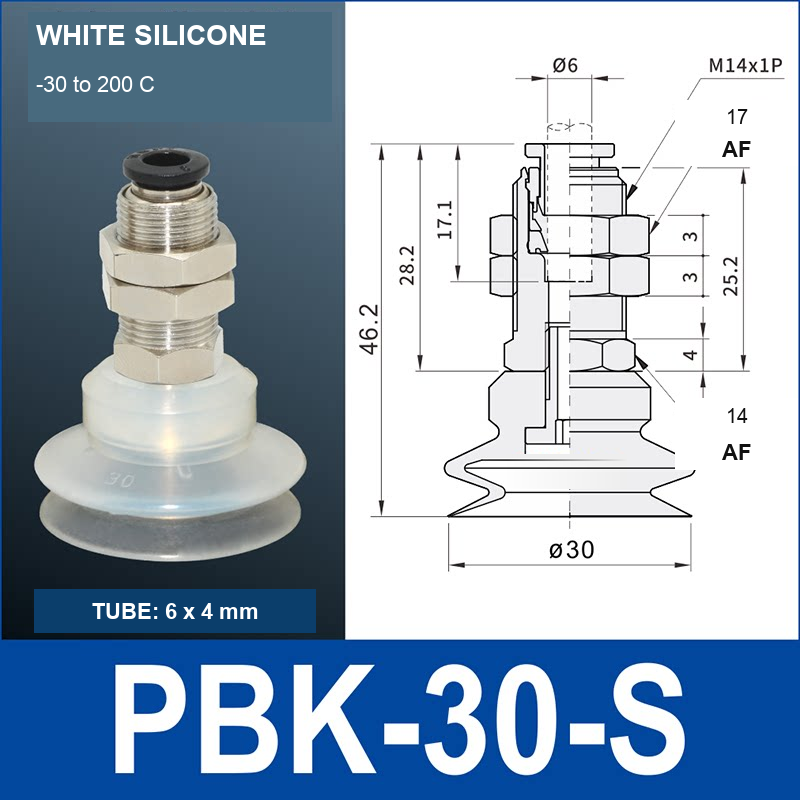

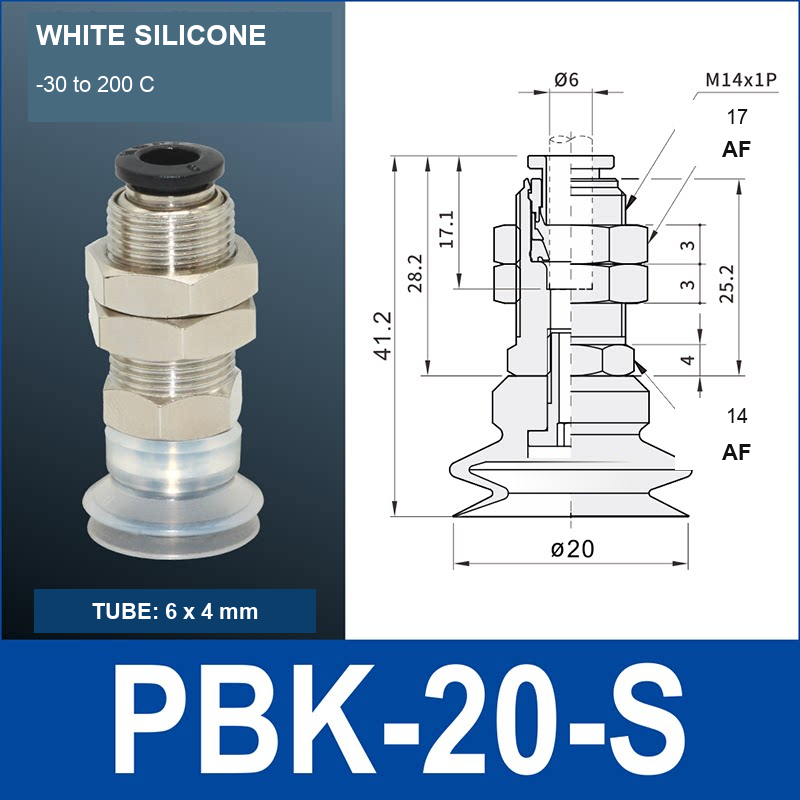

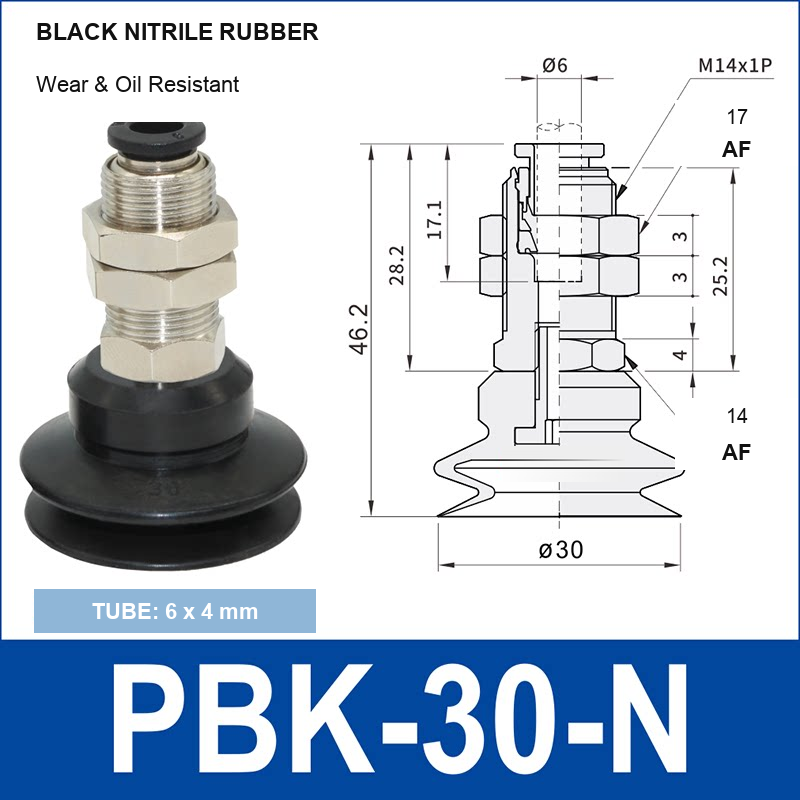

• M14 x 1.0 holders with 6 x 4 mm tubing for 20-50 mm cups

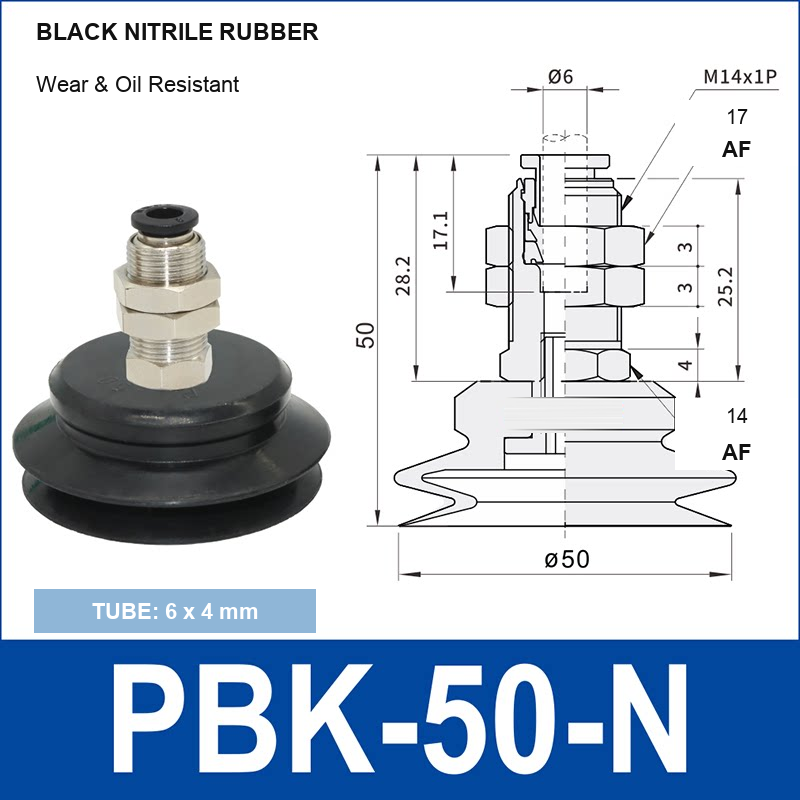

• PBK-50-N-M8 black nitrile configuration with M8 screw option
• Model images show the selected cup, holder and applicable dimensions

Applications / Suitable For

• Robotic pick-and-place and general industrial automation
• Packaging, sorting, transfer and assembly equipment
• Vacuum end-of-arm tooling for compatible workpiece surfaces

Confirm the selected model code, cup diameter, material, mounting thread, tube size, workpiece surface, vacuum level, payload, acceleration and operating environment before use. Temperature and resistance wording describes the listed material option only. No food-contact, medical, lifting-safety or regulatory certification is claimed.
