PAT Side-Port Vacuum Cups — Silicone or NBR, 5–50 mm
PAT Side-Port Vacuum Cups — Silicone or NBR, 5–50 mm
PAT side-port vacuum cup assemblies for industrial vacuum gripping, automated handling and robot end-effectors. Select the full model by cup diameter and material, then confirm the drawing and connection details before ordering.
Quick Model Finder
- Choose the diameter: select PAT-05 through PAT-50 for the required nominal cup diameter shown in the selected drawing.
- Choose the material: models ending in -S are white silicone; models ending in -N are black NBR.

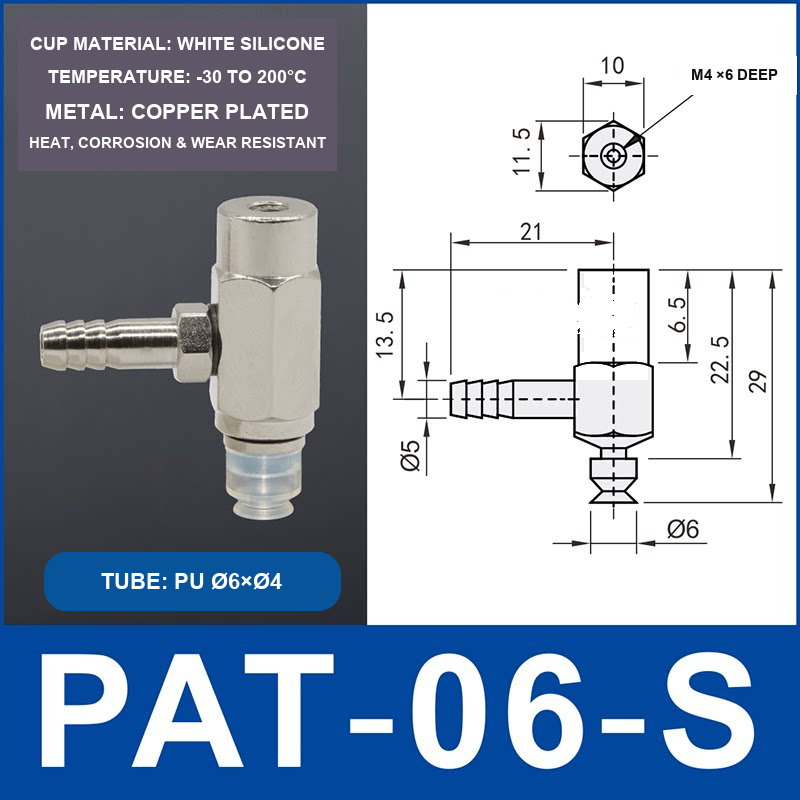

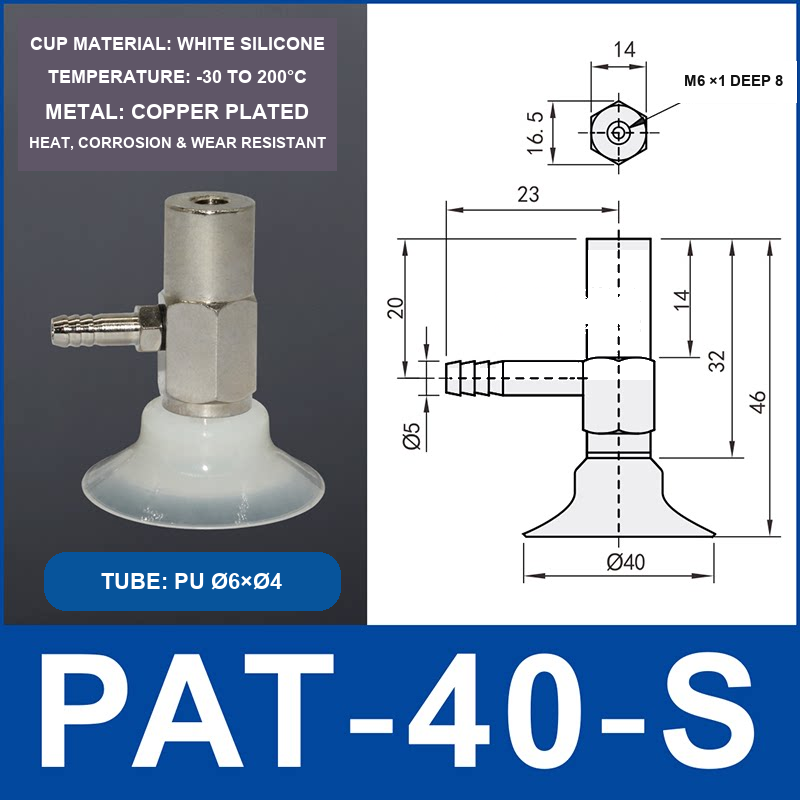

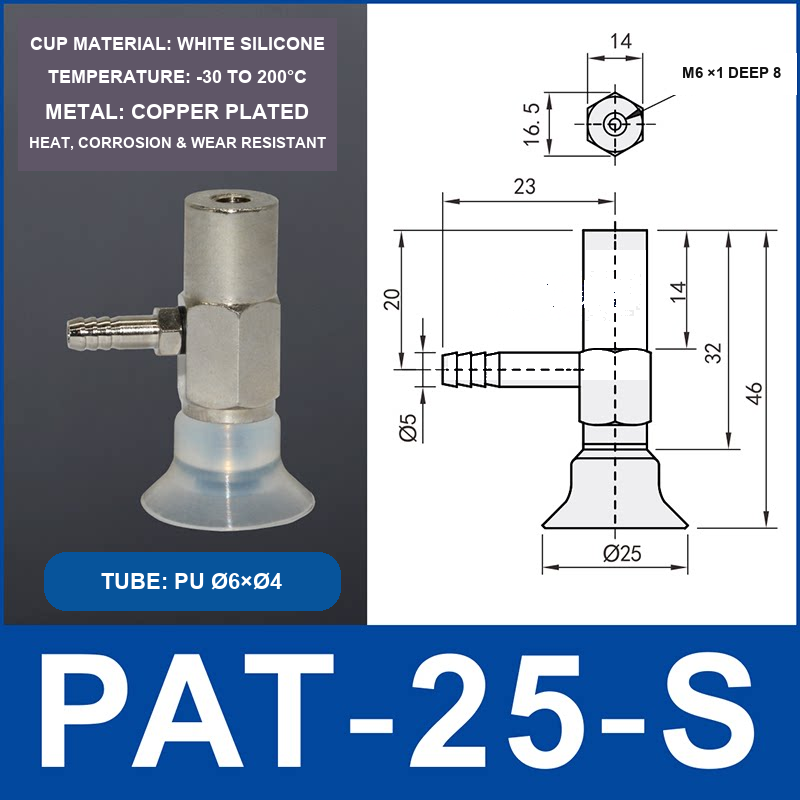

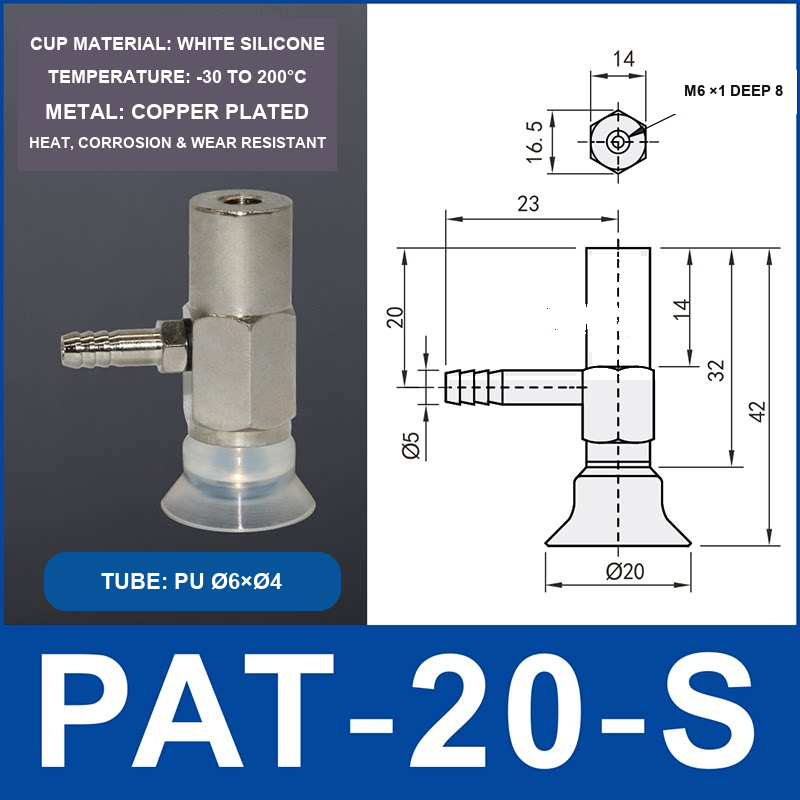

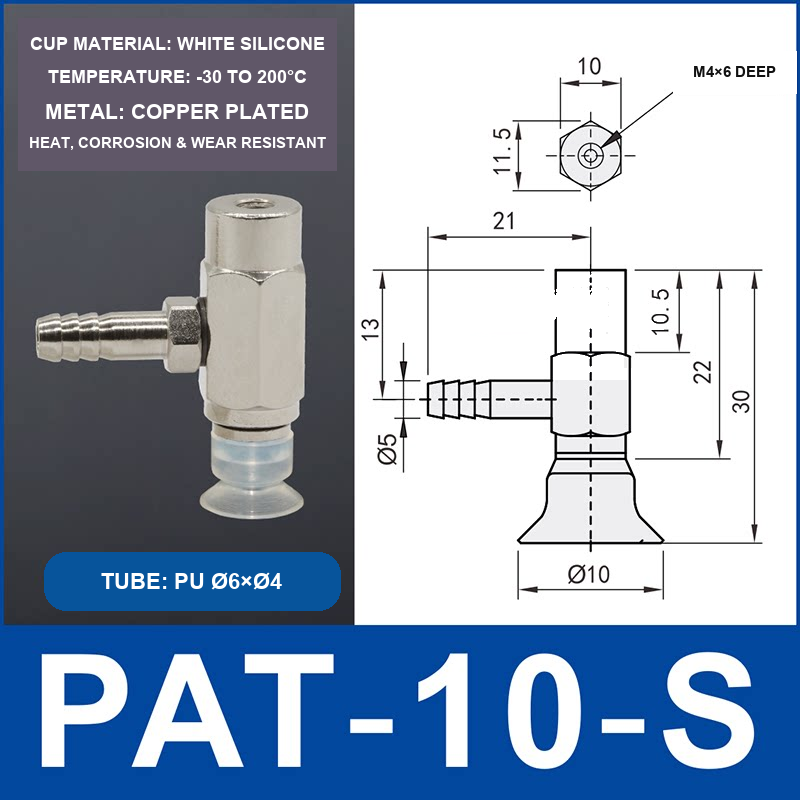

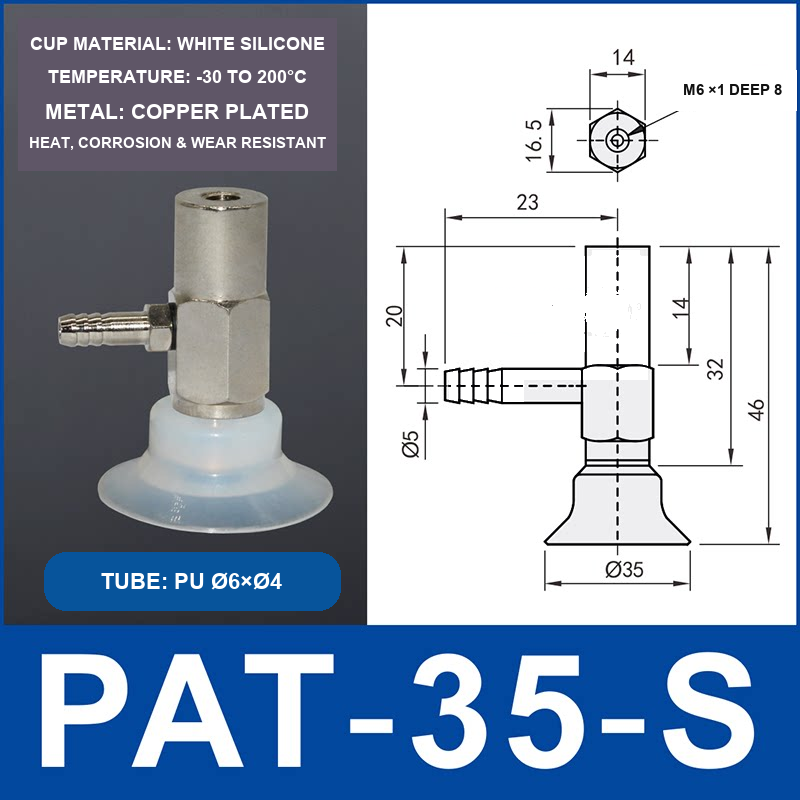

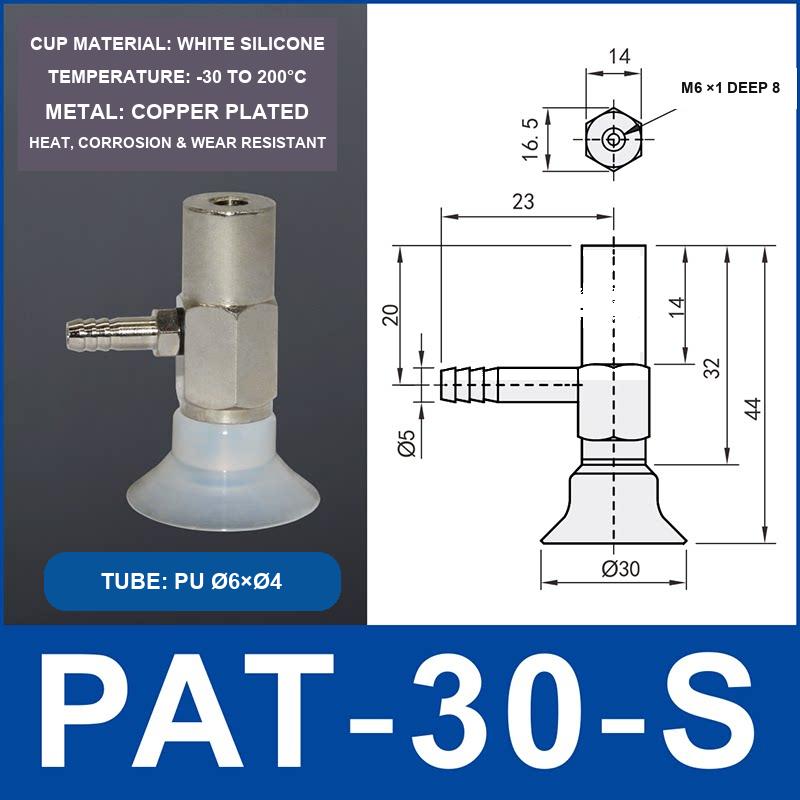

- Confirm the assembly: verify the tube connection, mounting thread, hex size, overall height and all installation dimensions in the matching model image.
Model-code guide
PAT-[diameter]-S identifies a white-silicone selection; PAT-[diameter]-N identifies a black-NBR selection. Every selectable model has its own product view and dimensional drawing. Select the complete code rather than combining values from different models.
Suitable for
- Industrial vacuum pick-and-place and packaging automation
- Robotic end-effectors and vacuum gripping fixtures
- Replacement work where the complete model and connection are confirmed
Before use
Confirm the complete model code, selected drawing, cup material, tube and mounting interfaces, vacuum level, workpiece surface, payload, acceleration, temperature and operating environment before installation. No food-contact, medical, lifting-safety or regulatory certification is claimed.
