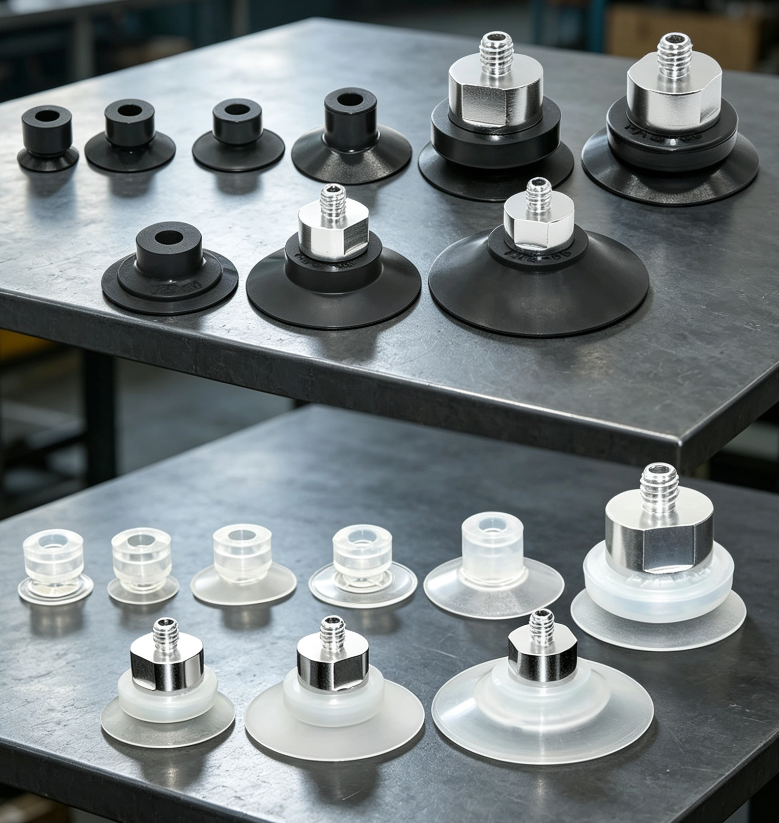

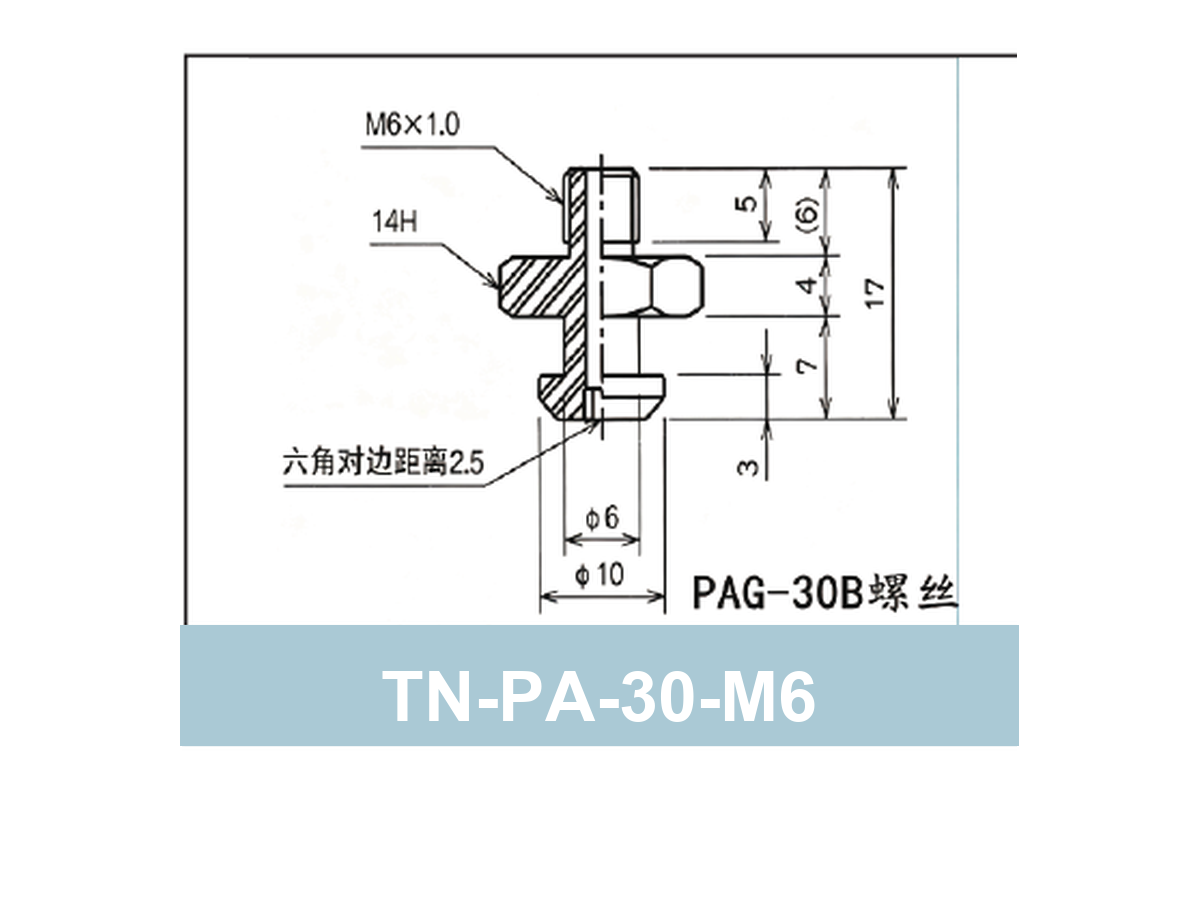

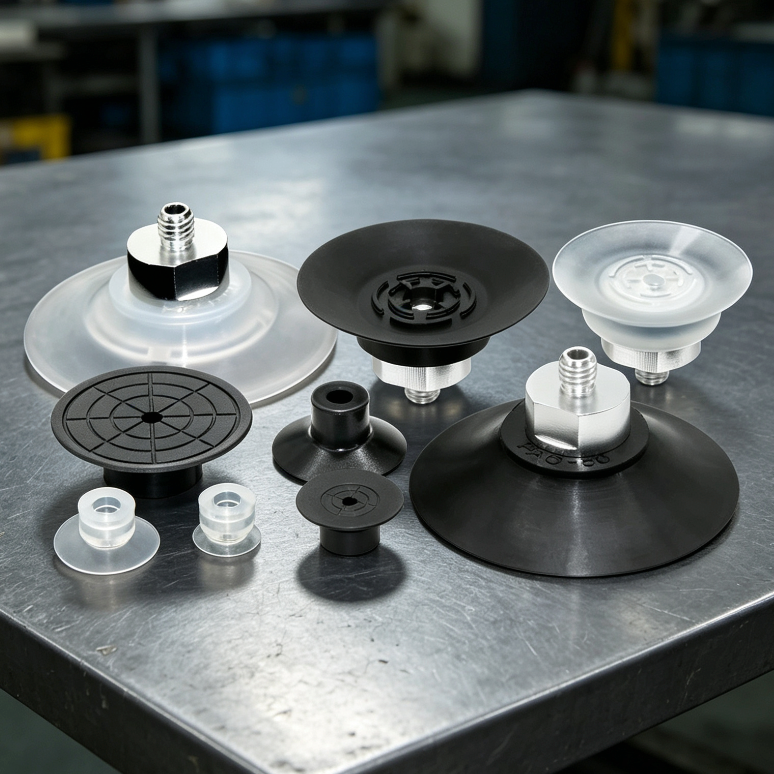

PAG Film Vacuum Suction Cups & Fittings
PAG series vacuum suction cups for film and plastic bag handling, including white silicone, black NBR, antistatic and fitting options.

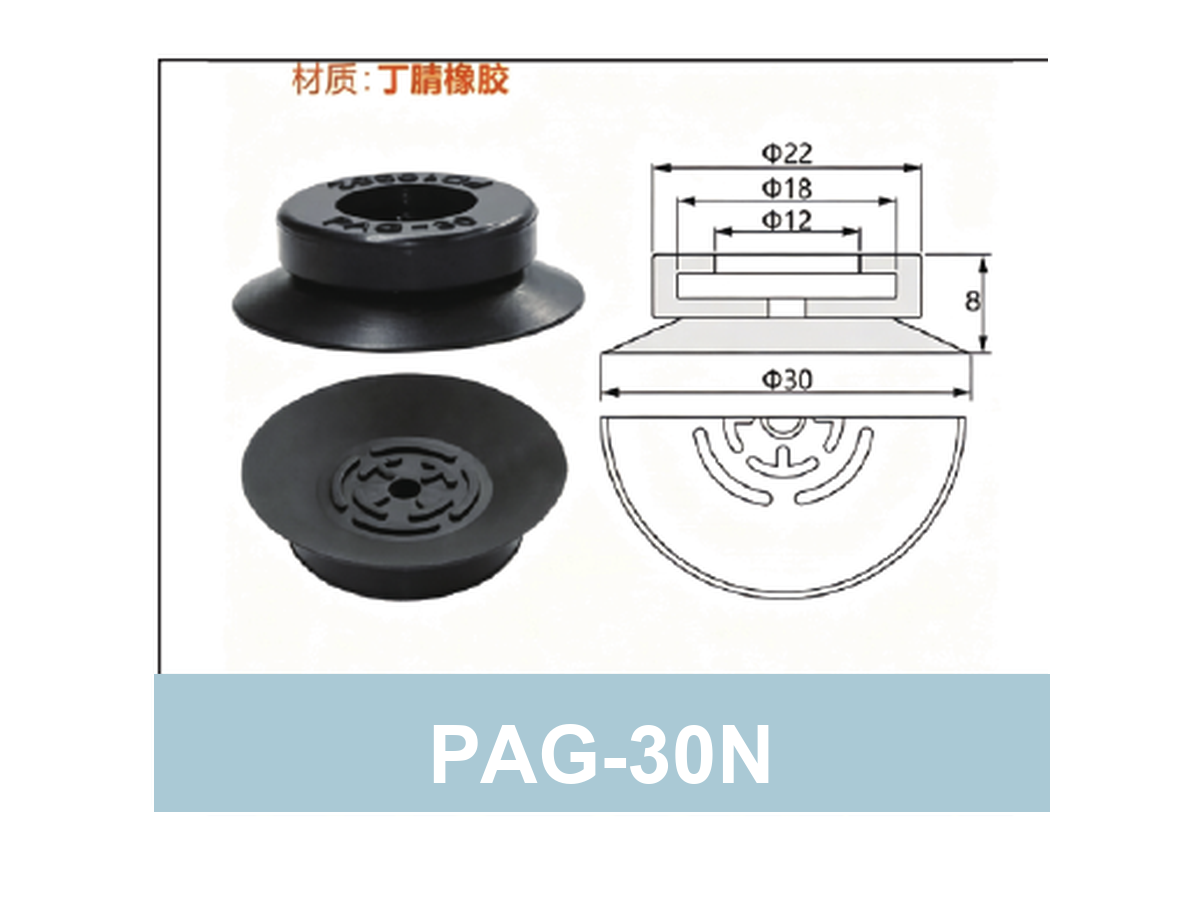

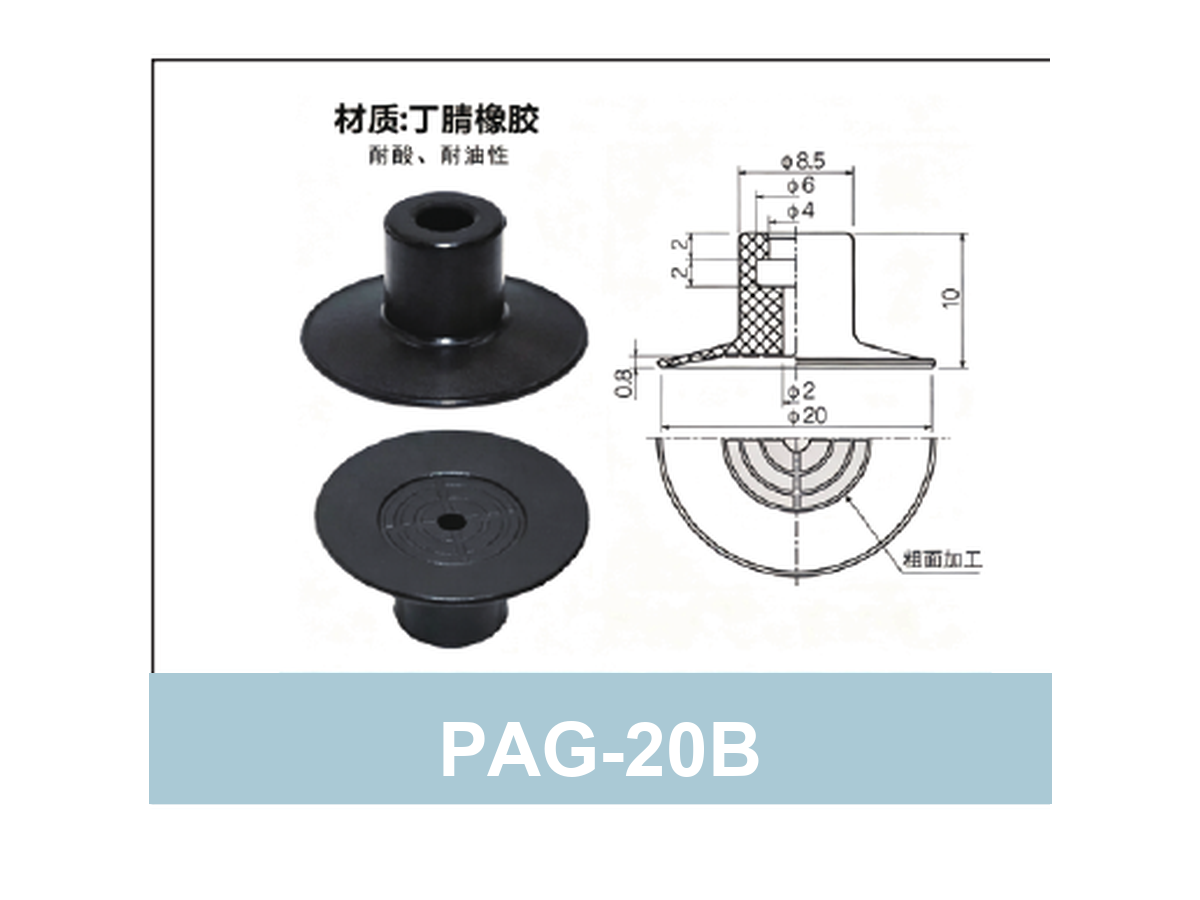

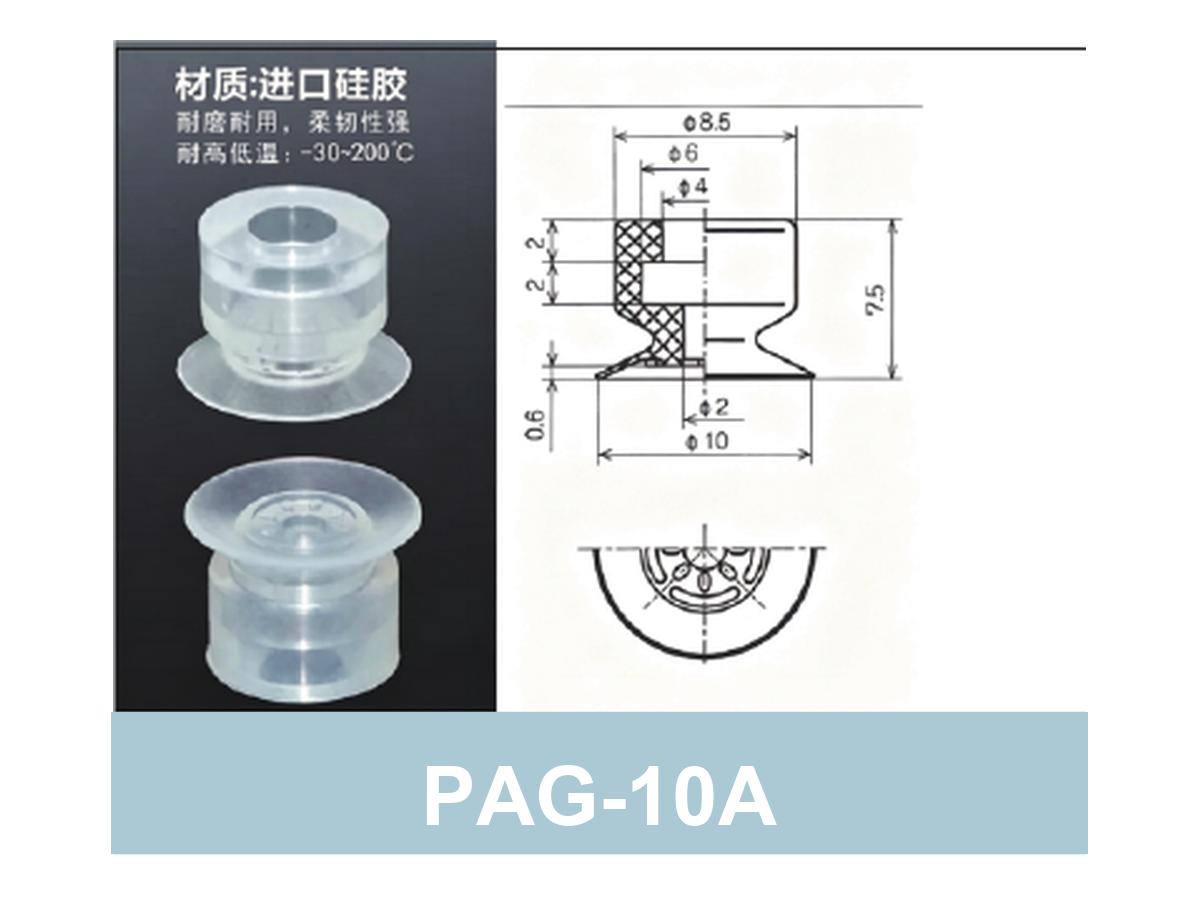

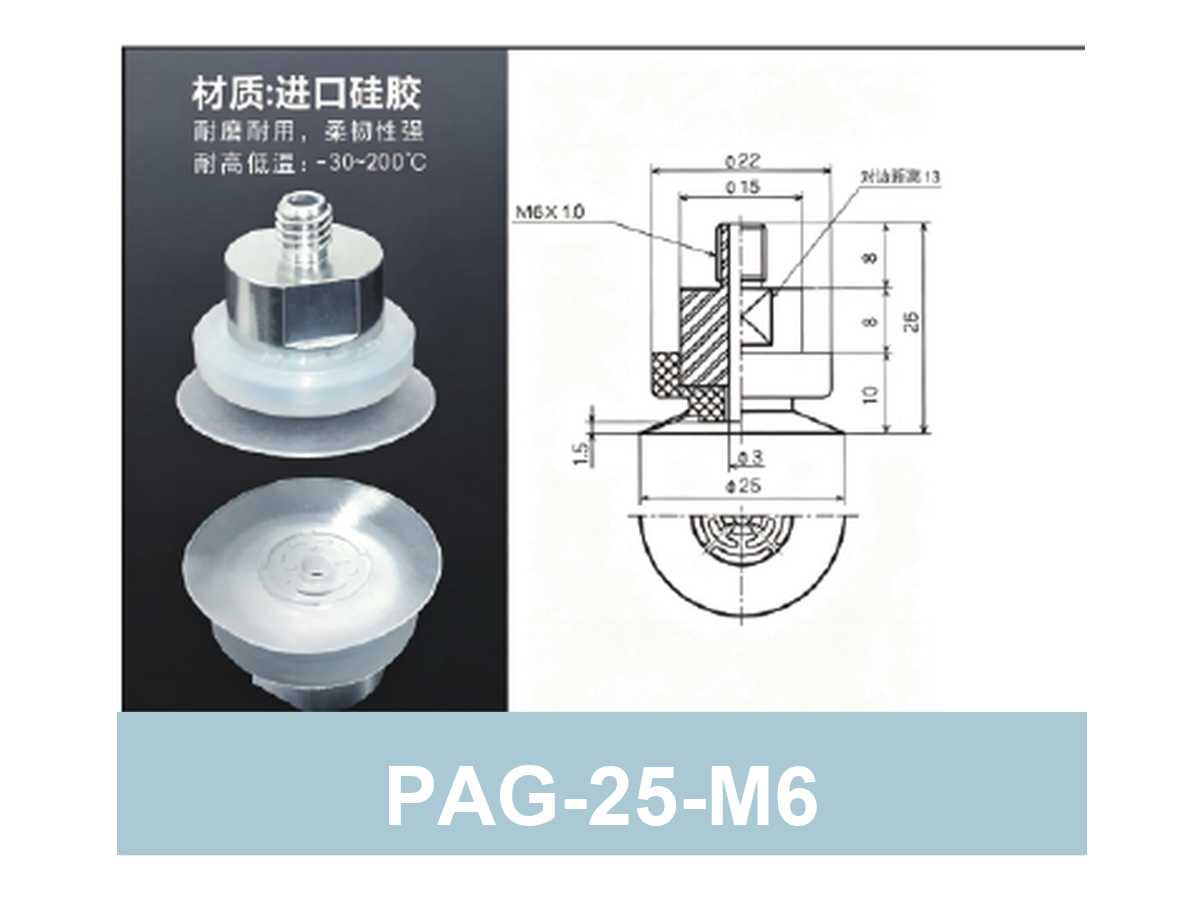

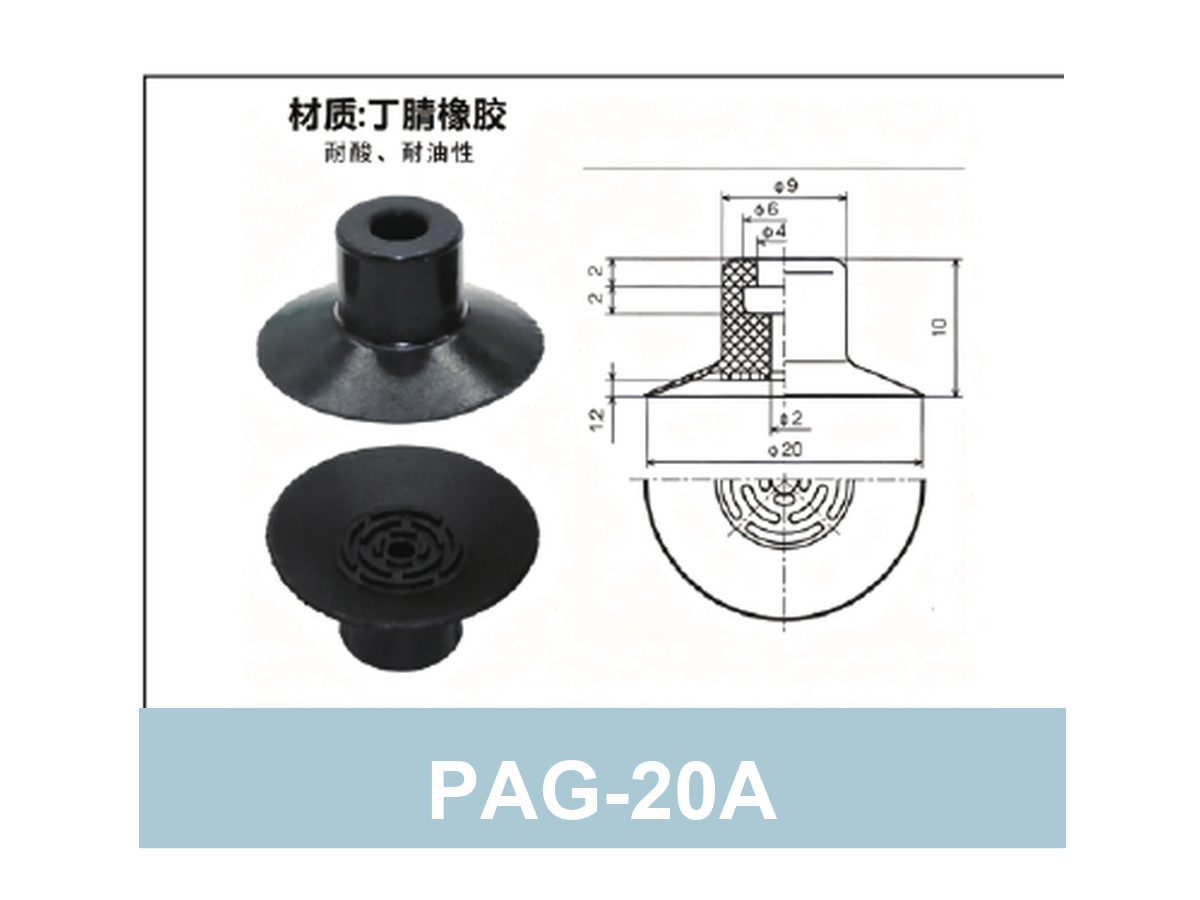

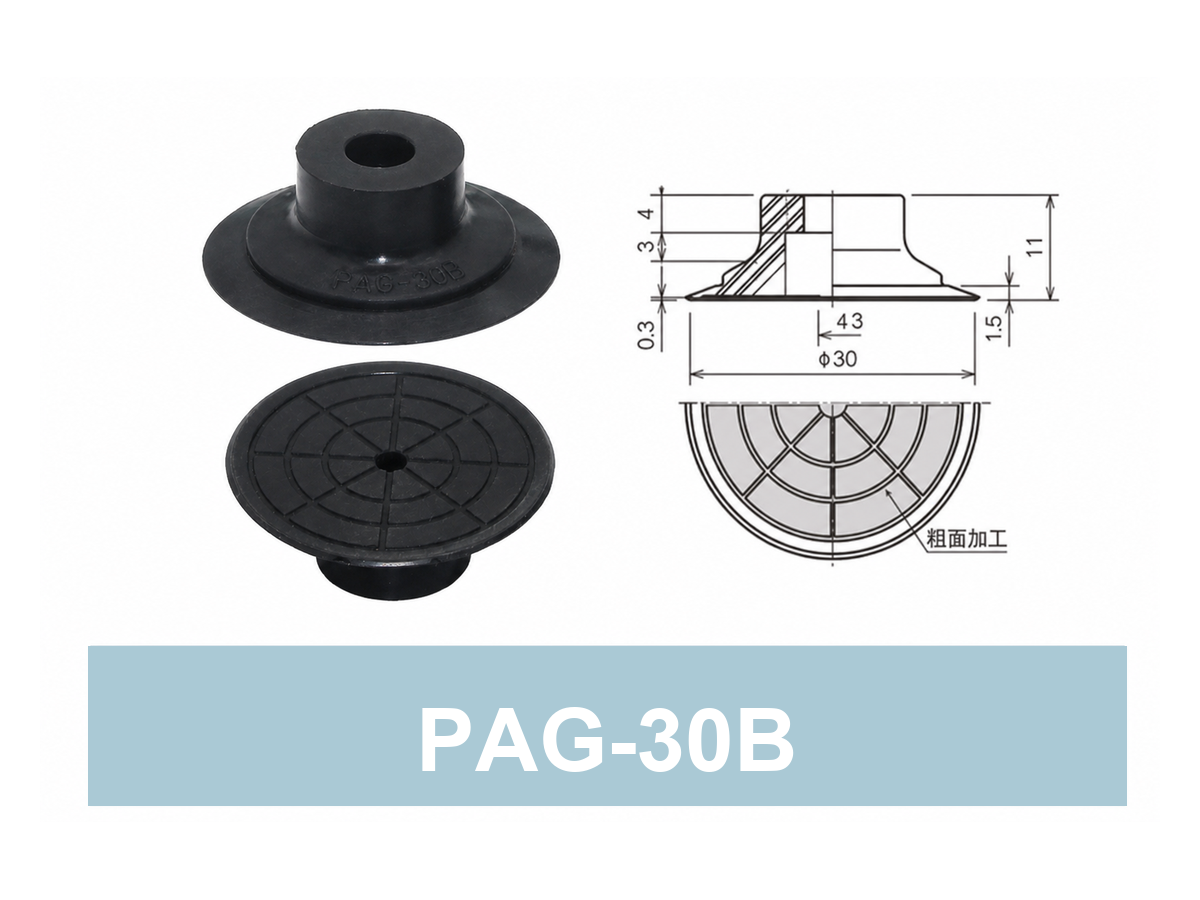

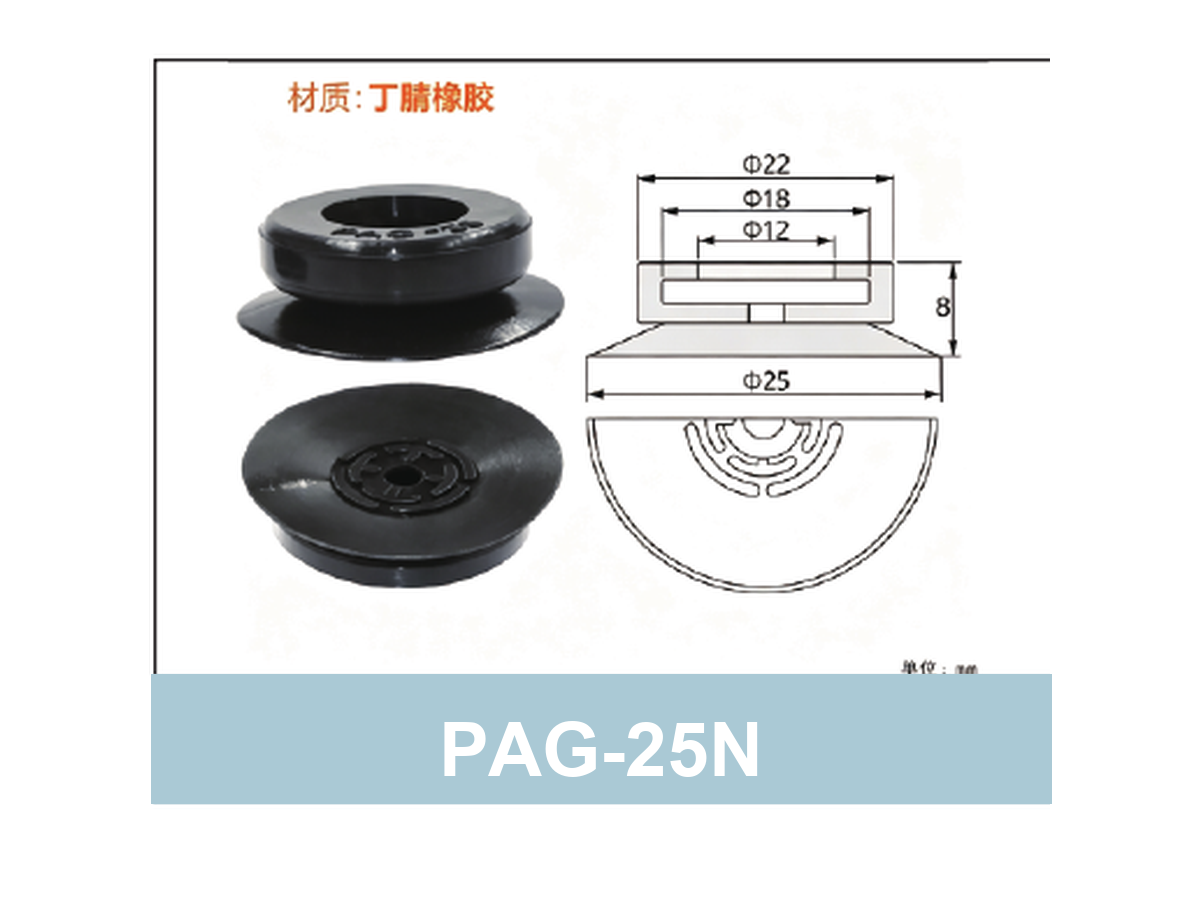

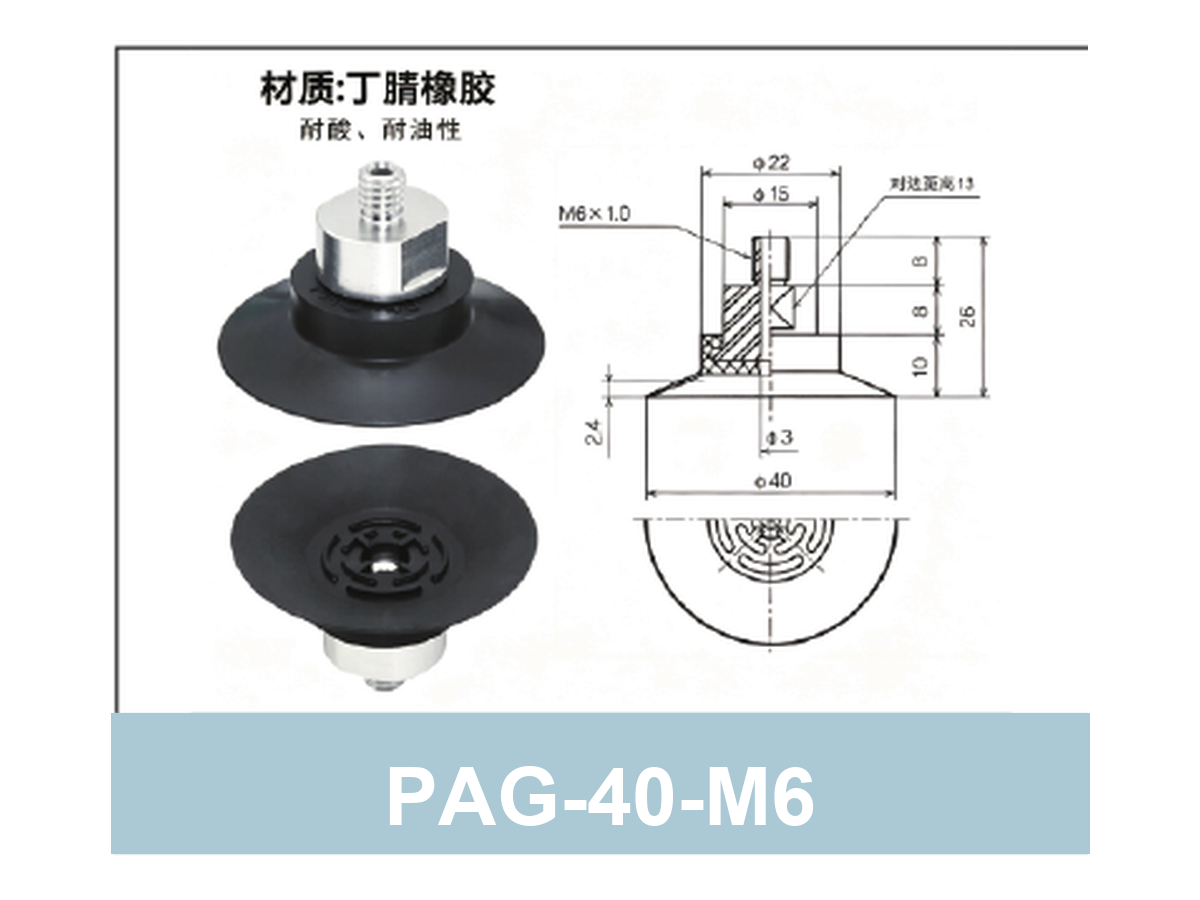

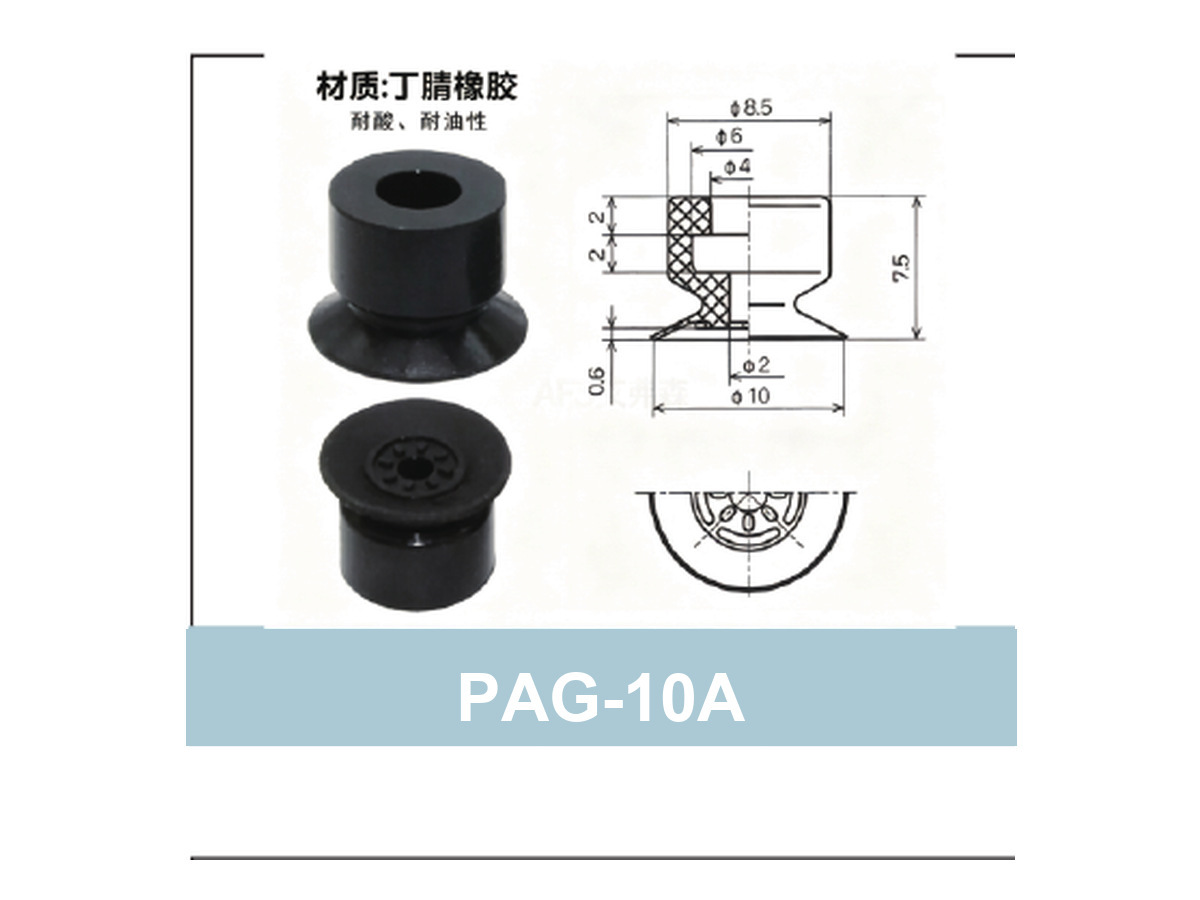

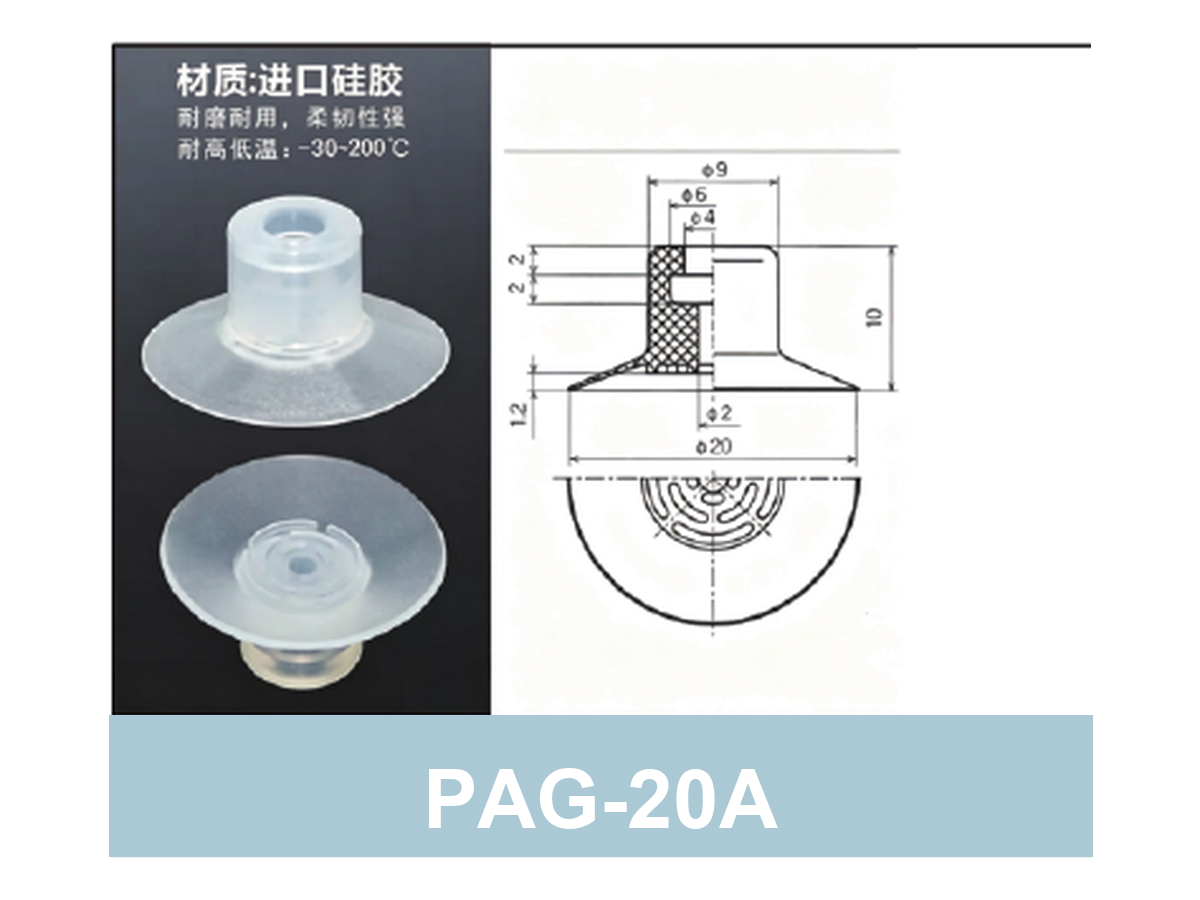

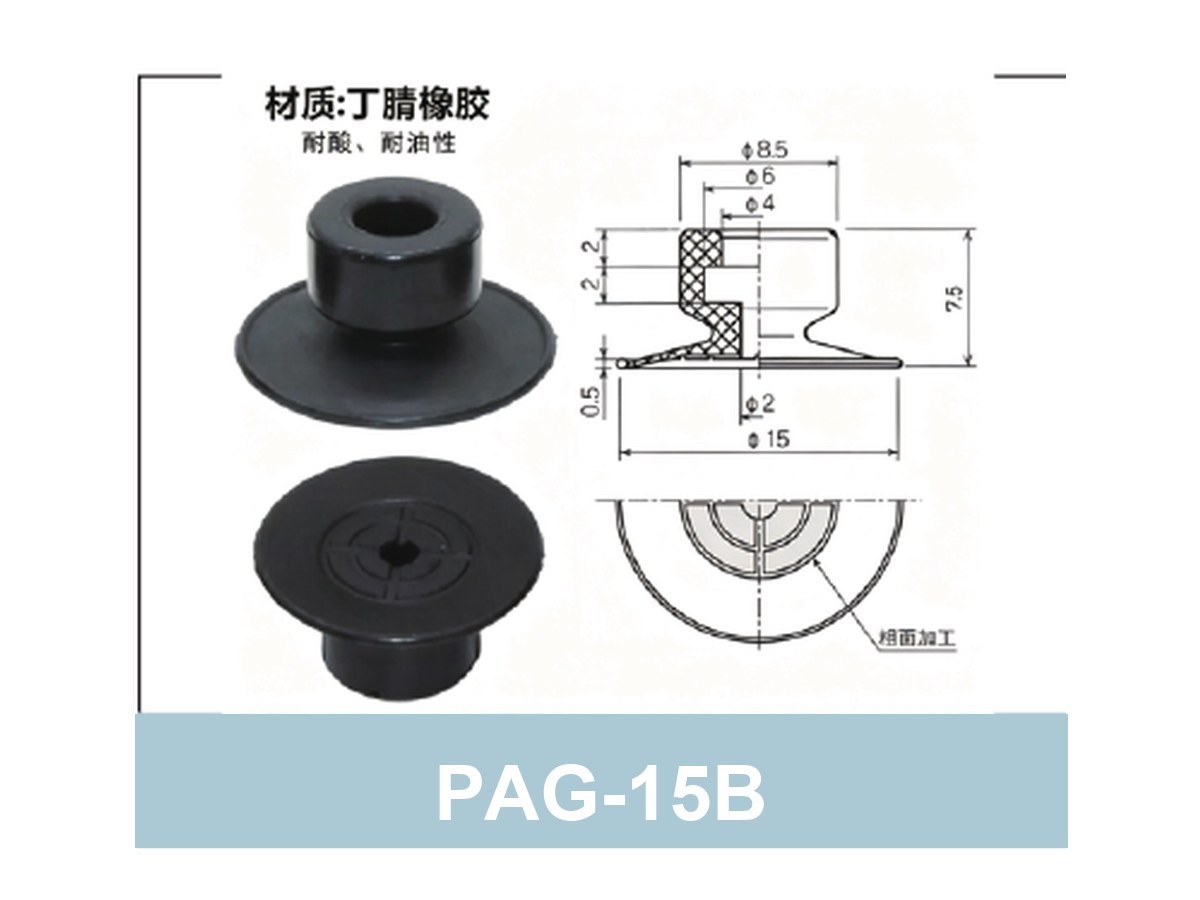

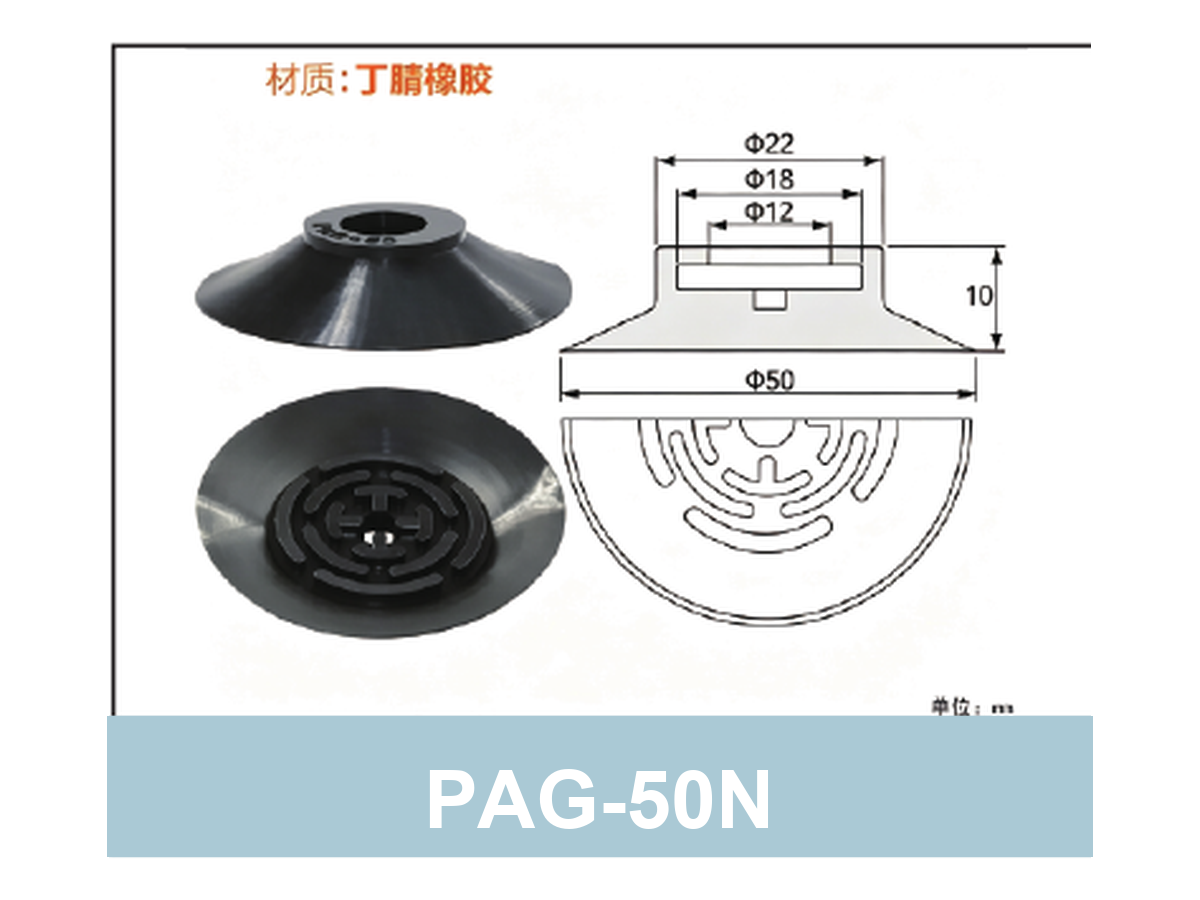

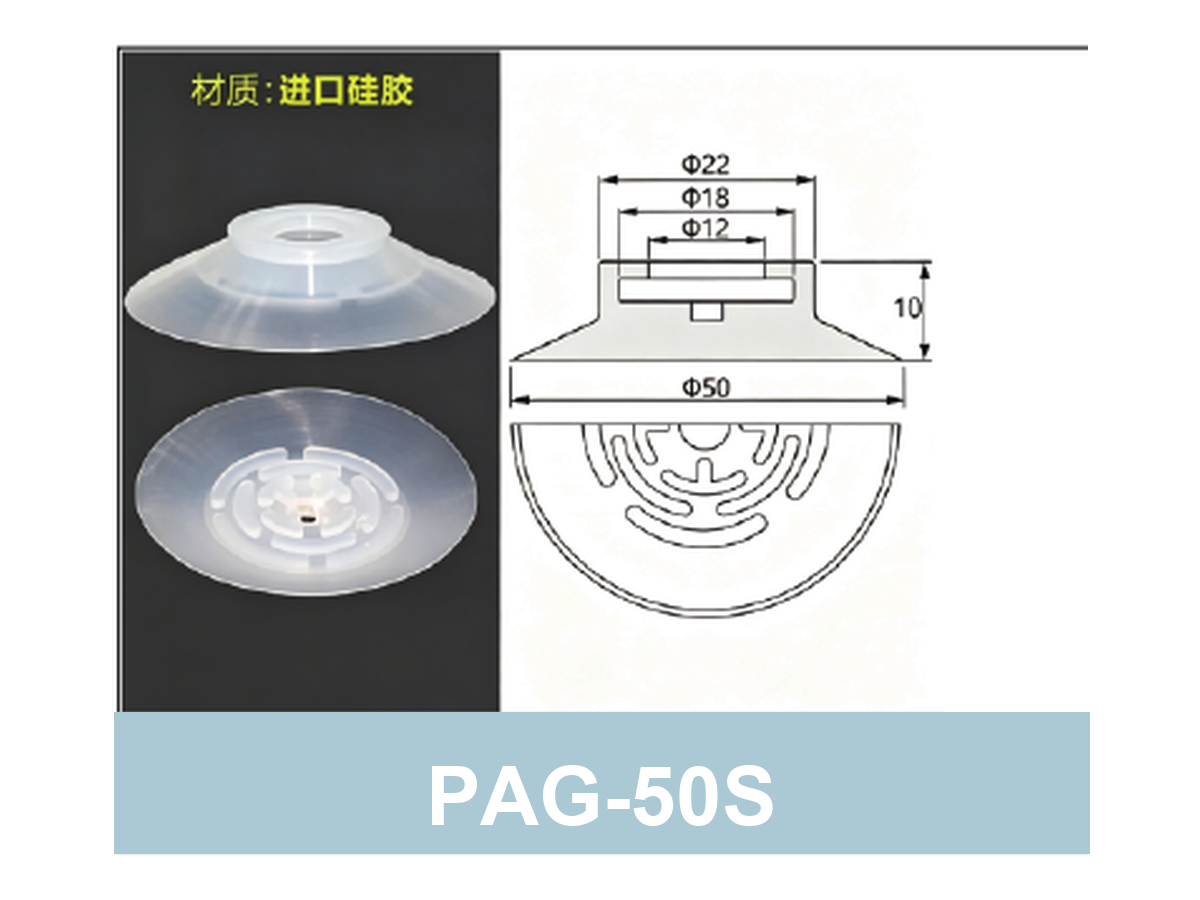

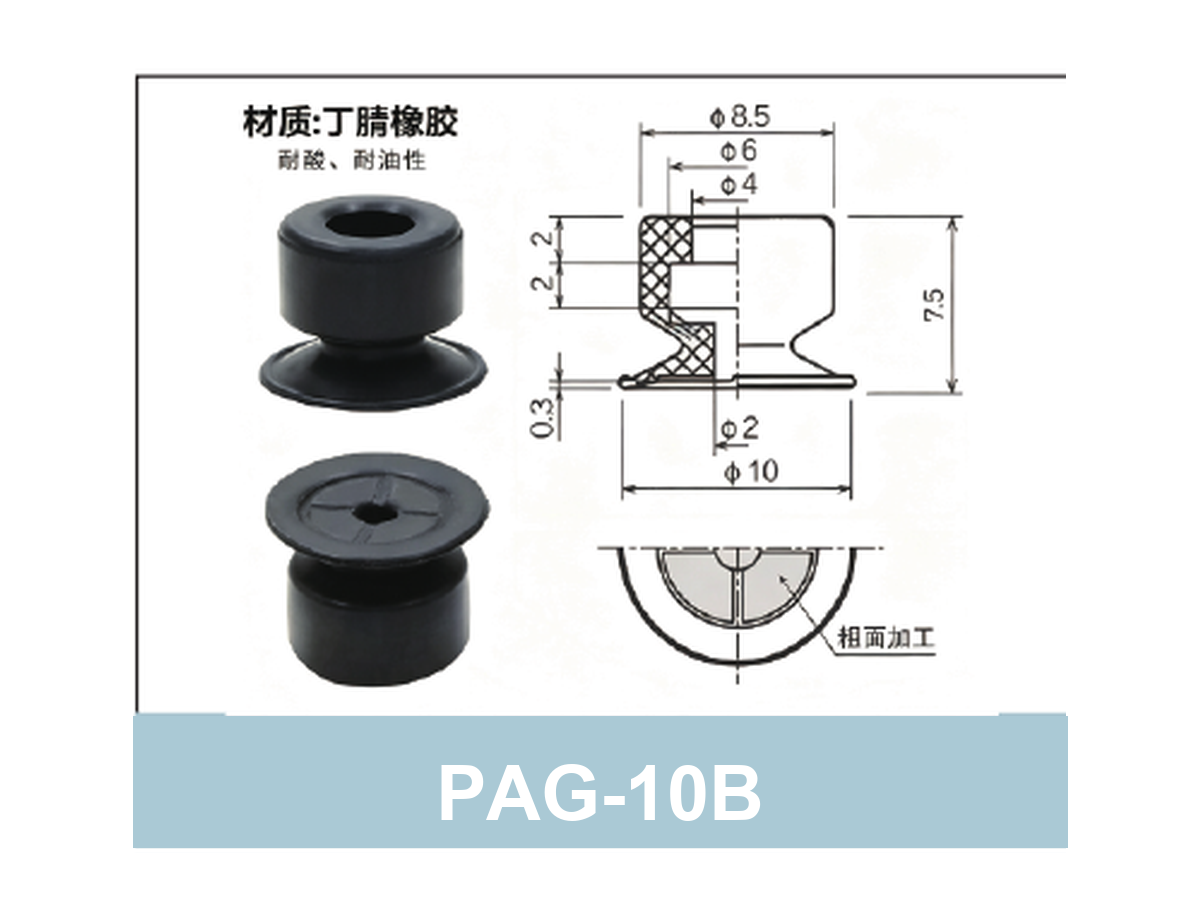

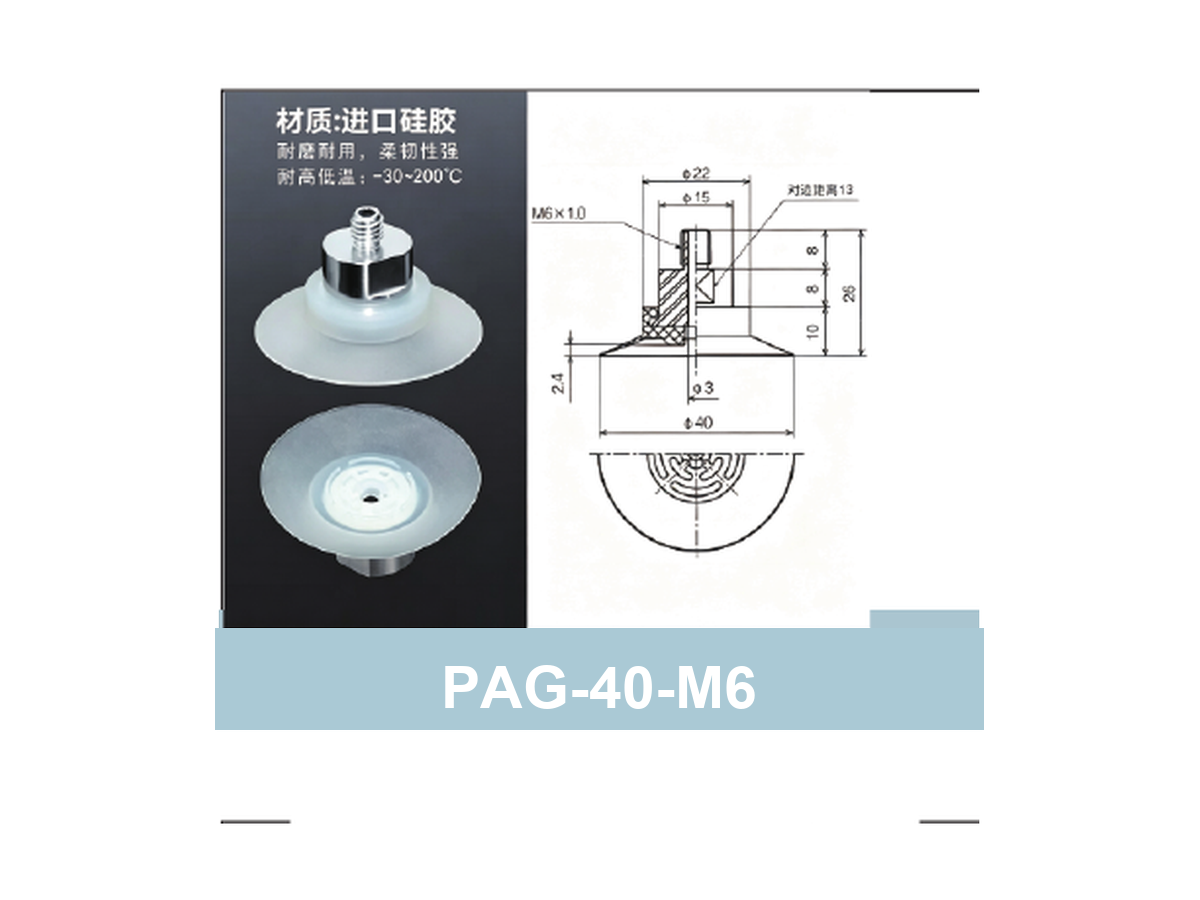

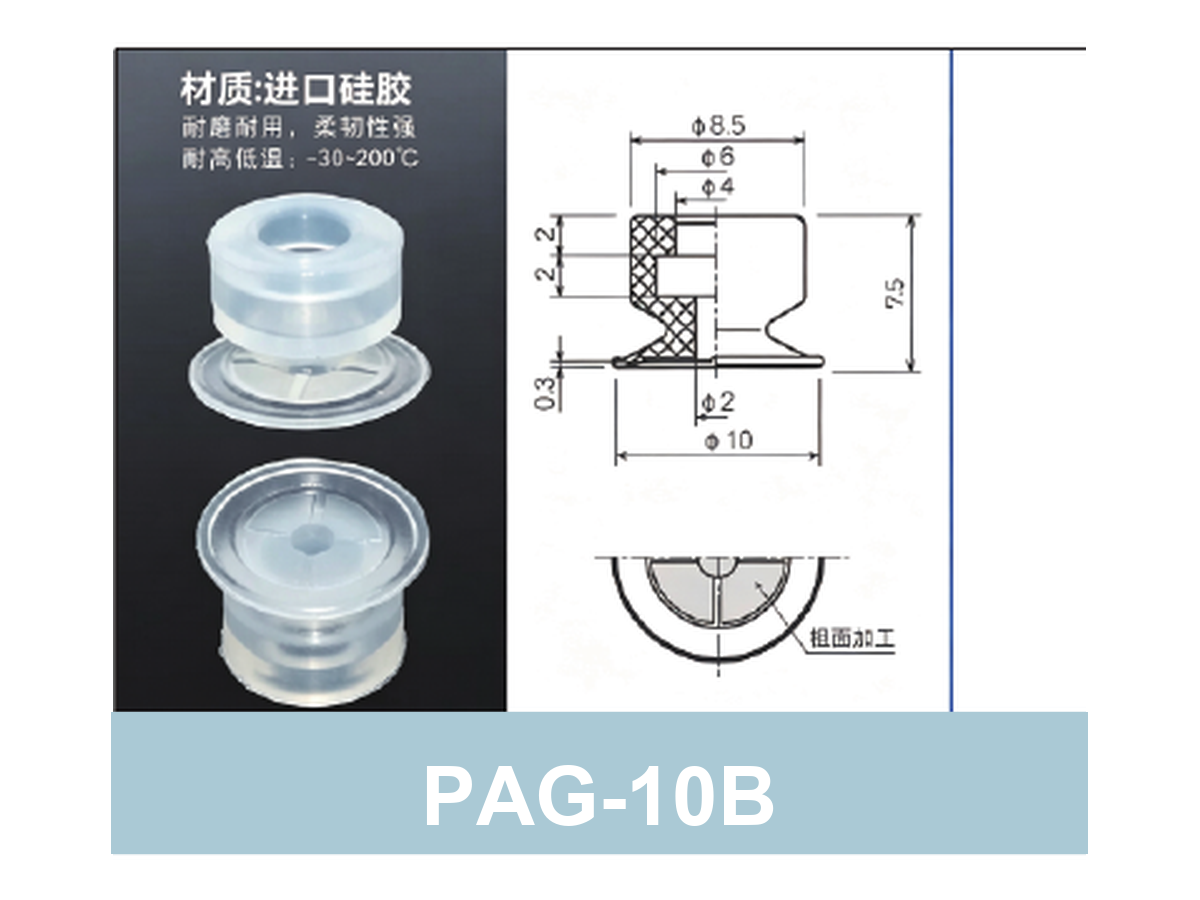

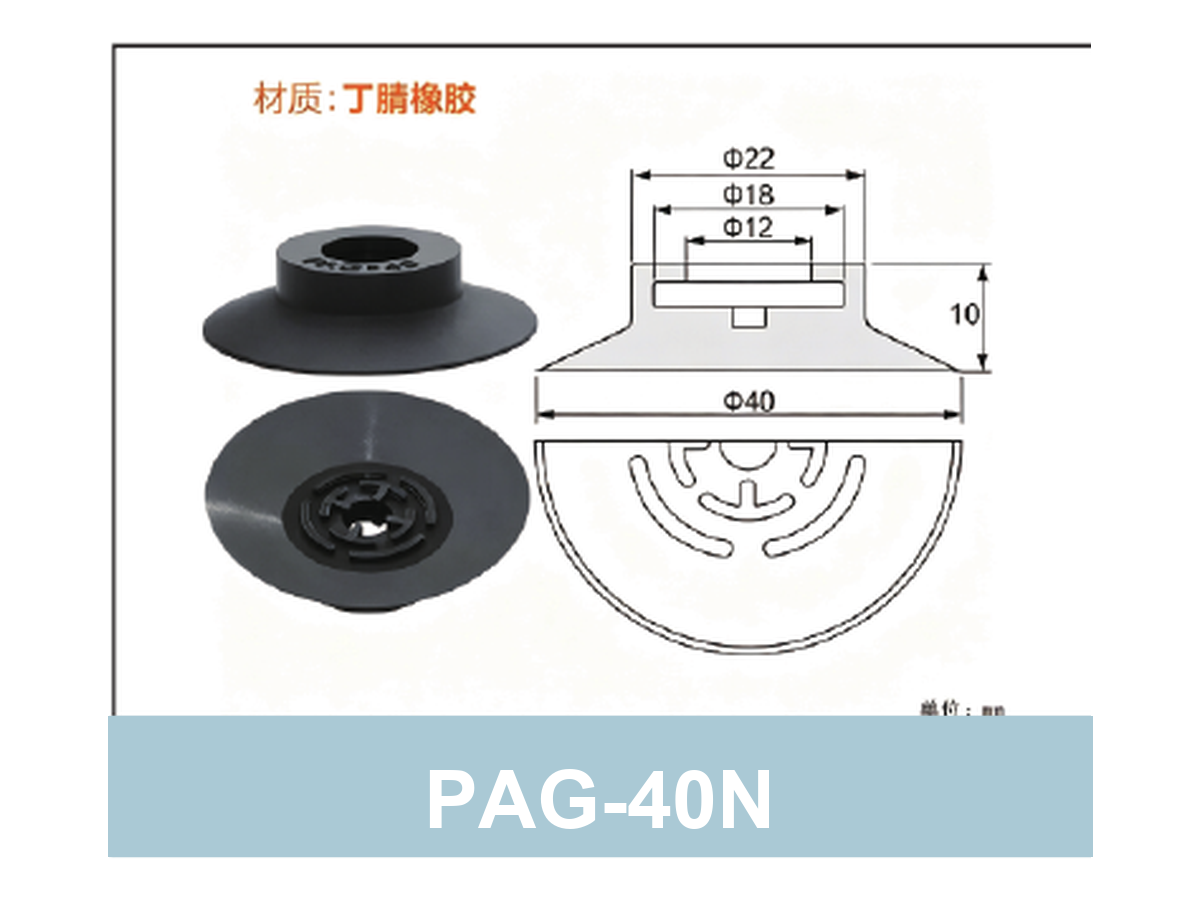

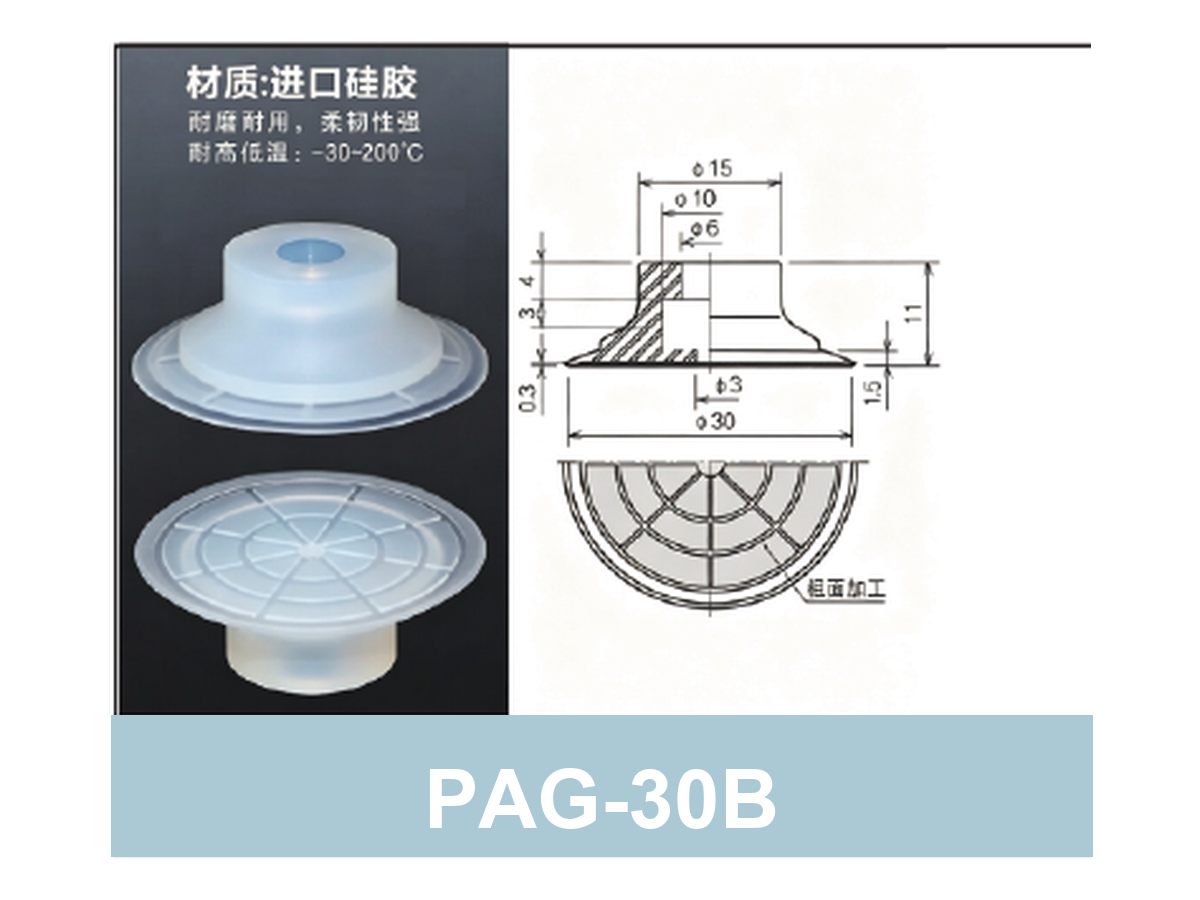

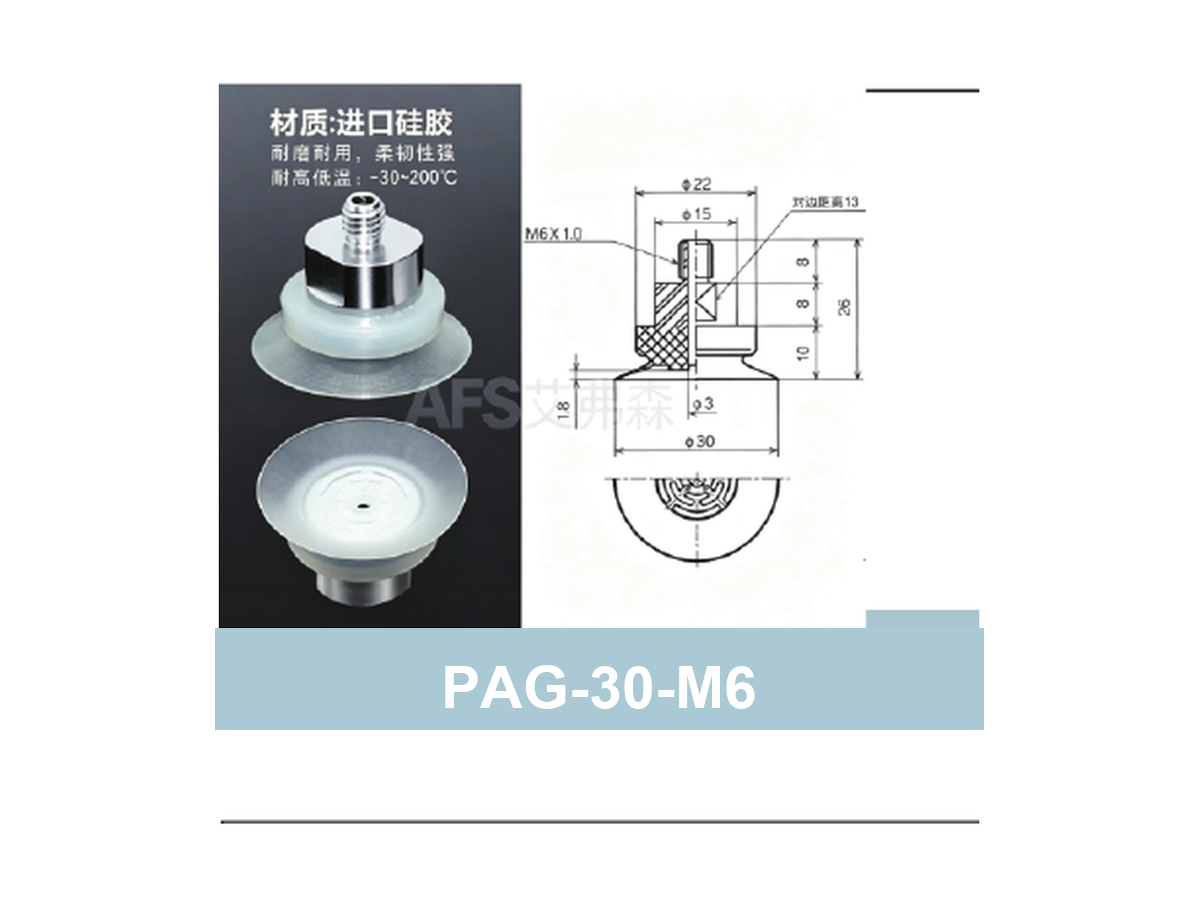

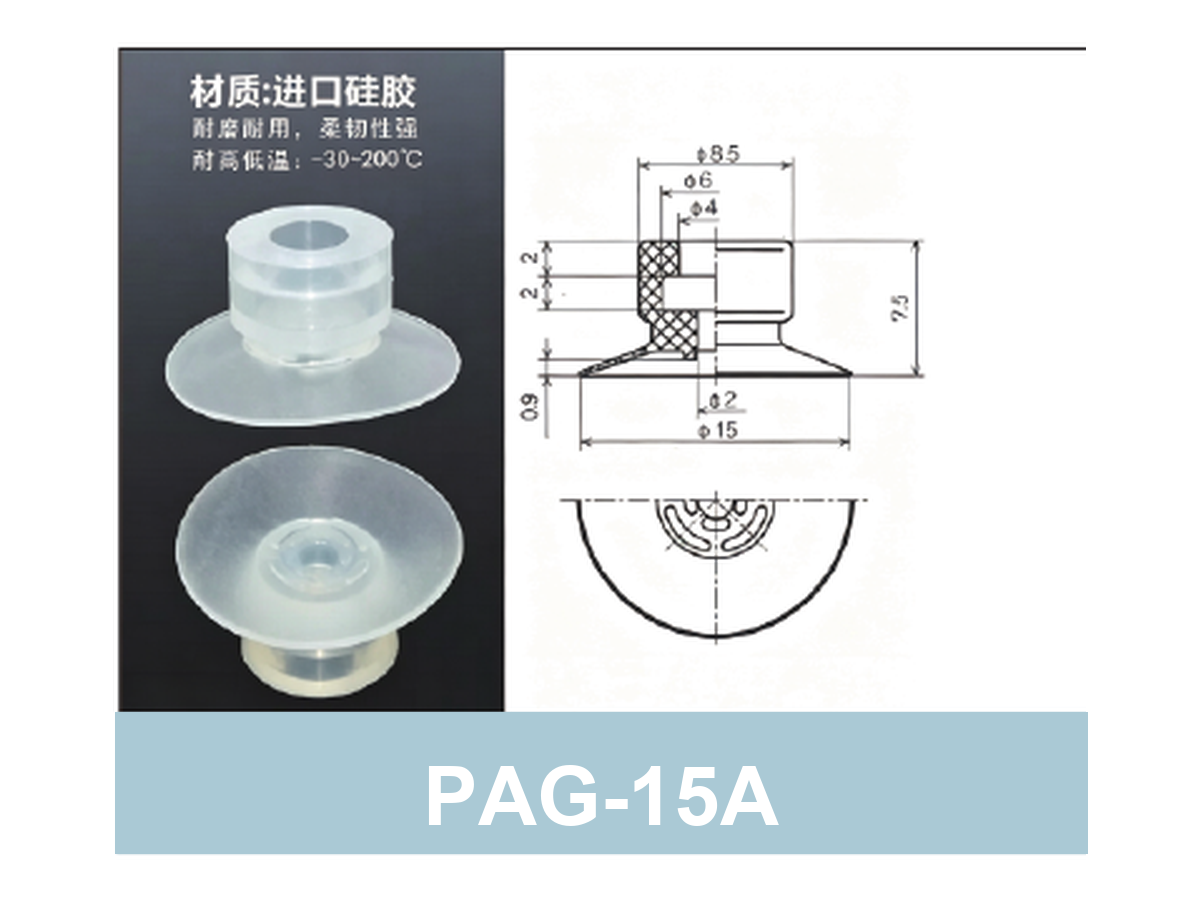

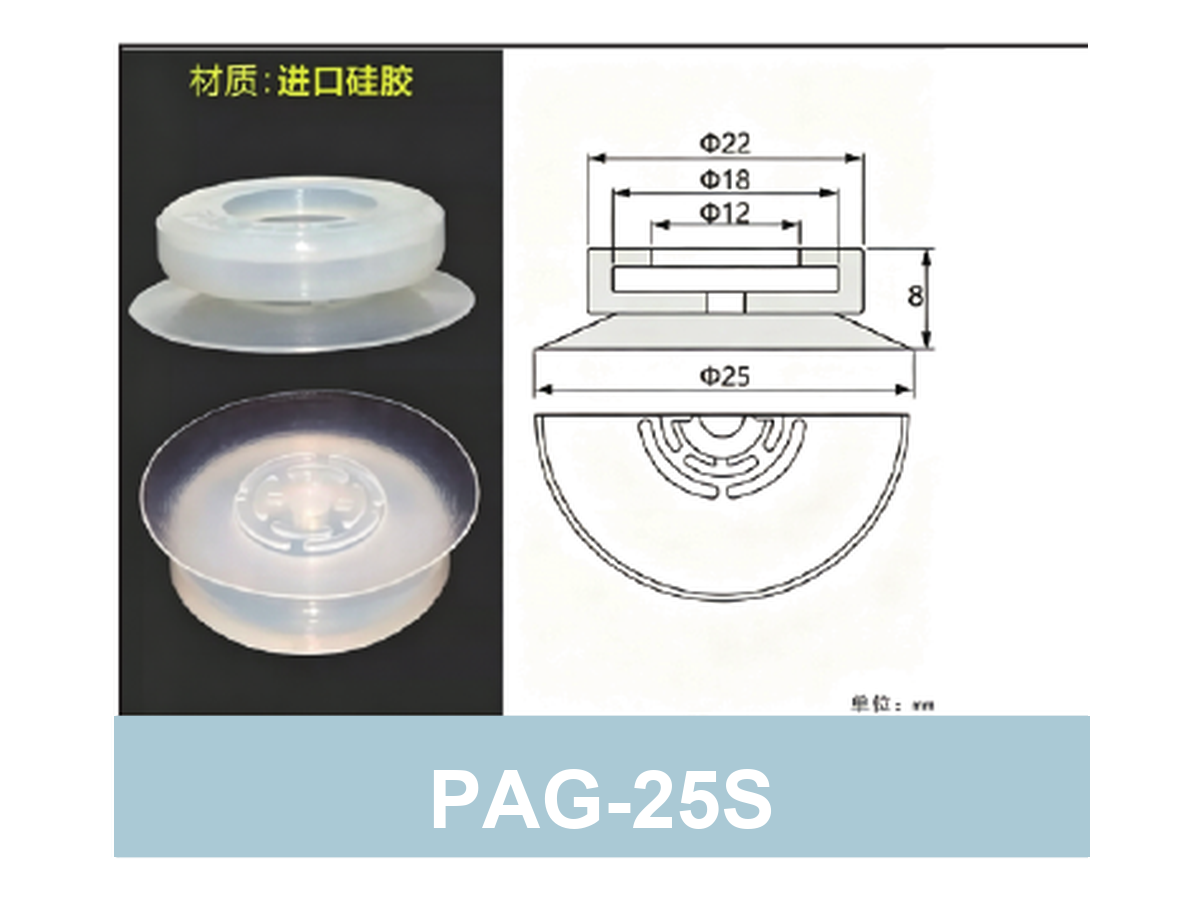

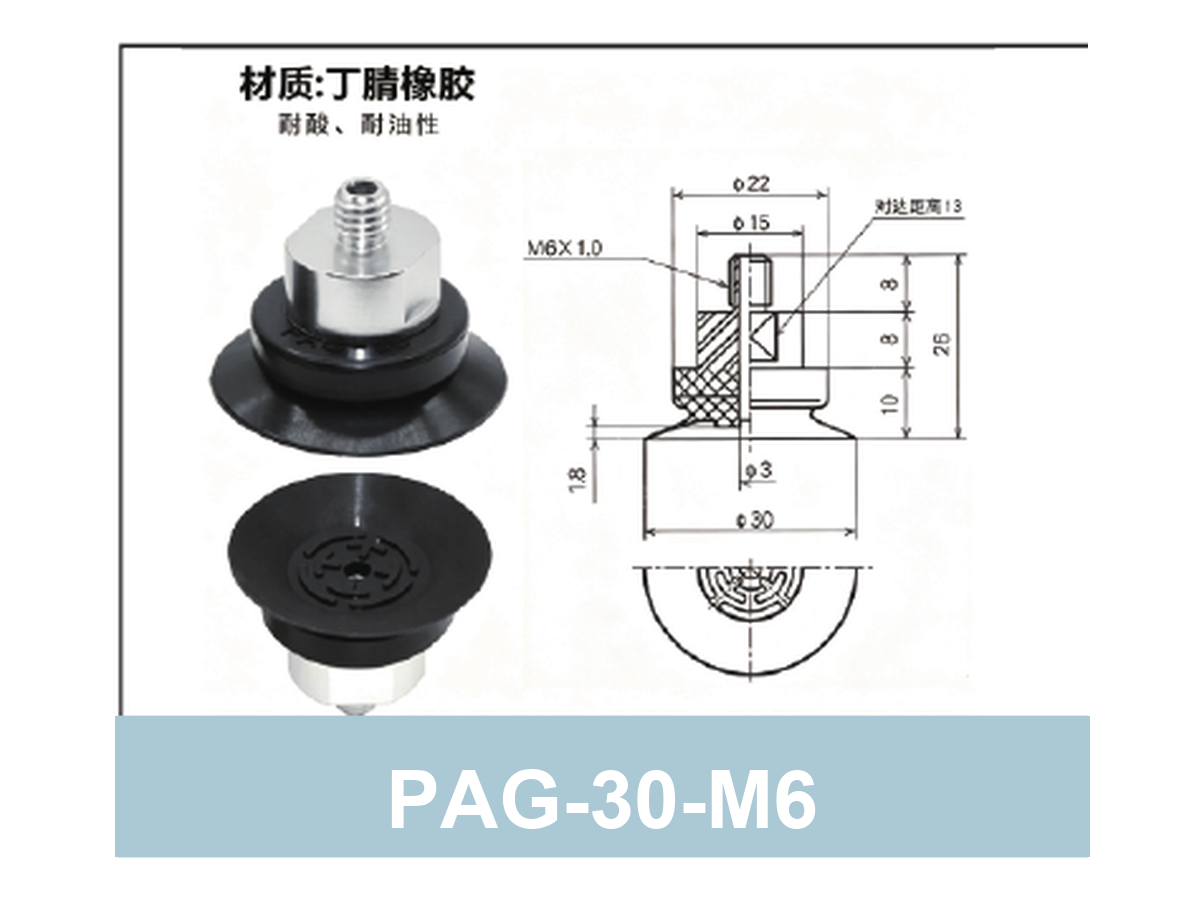

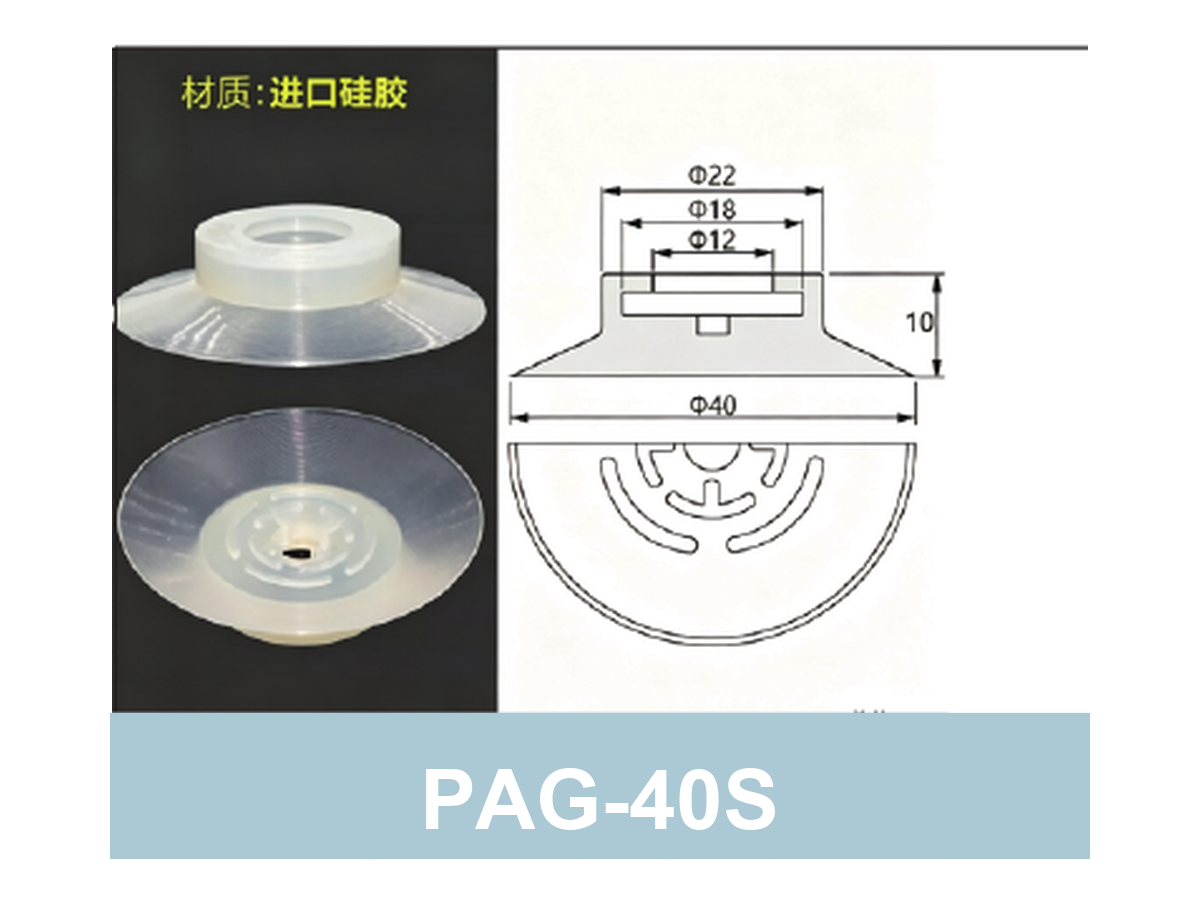

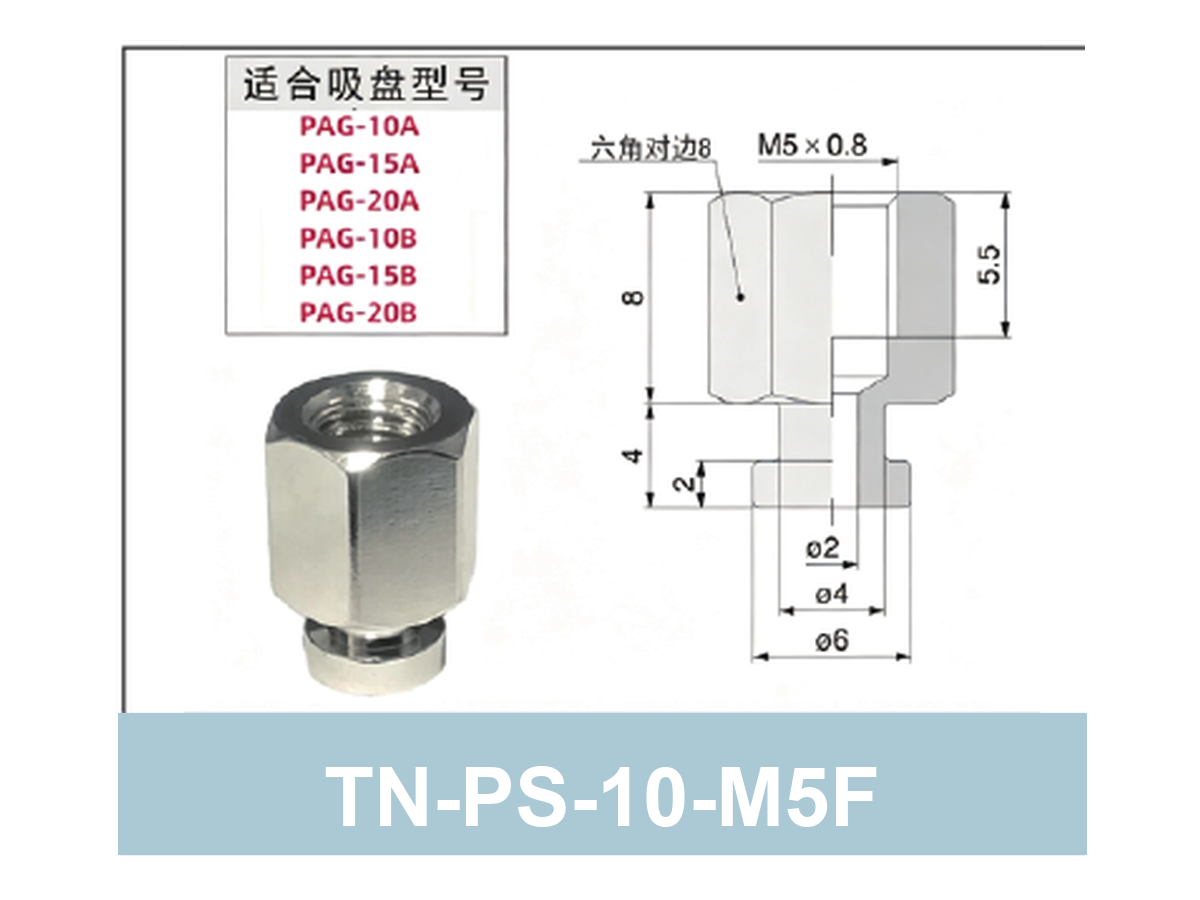

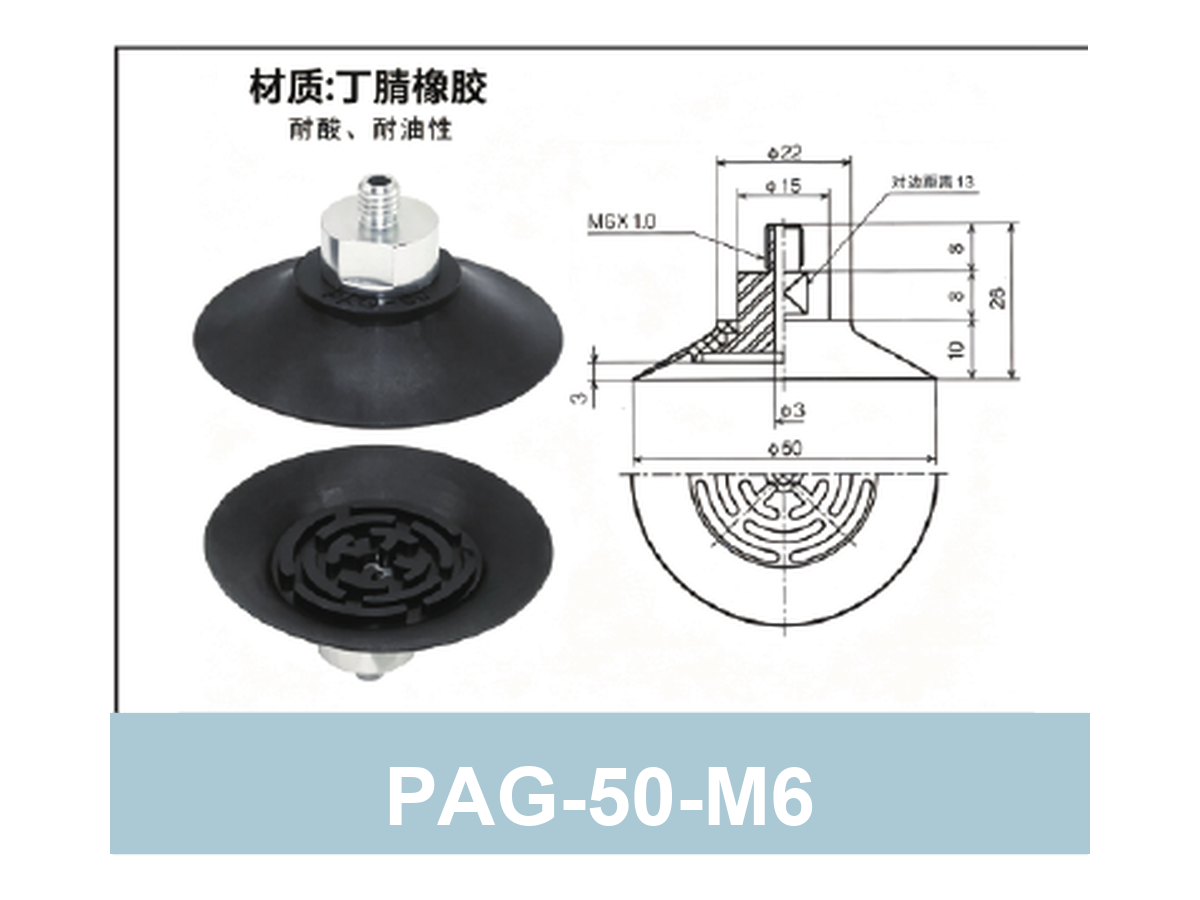

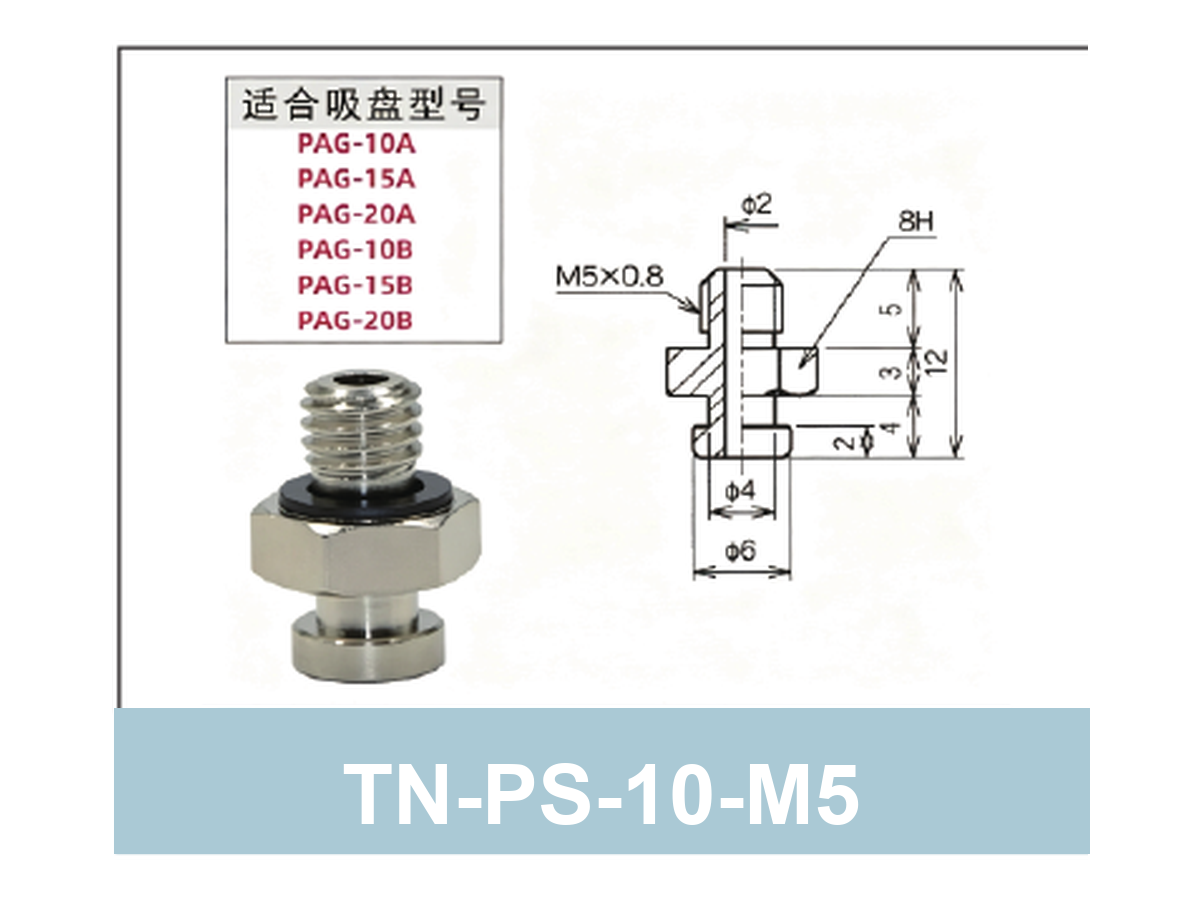

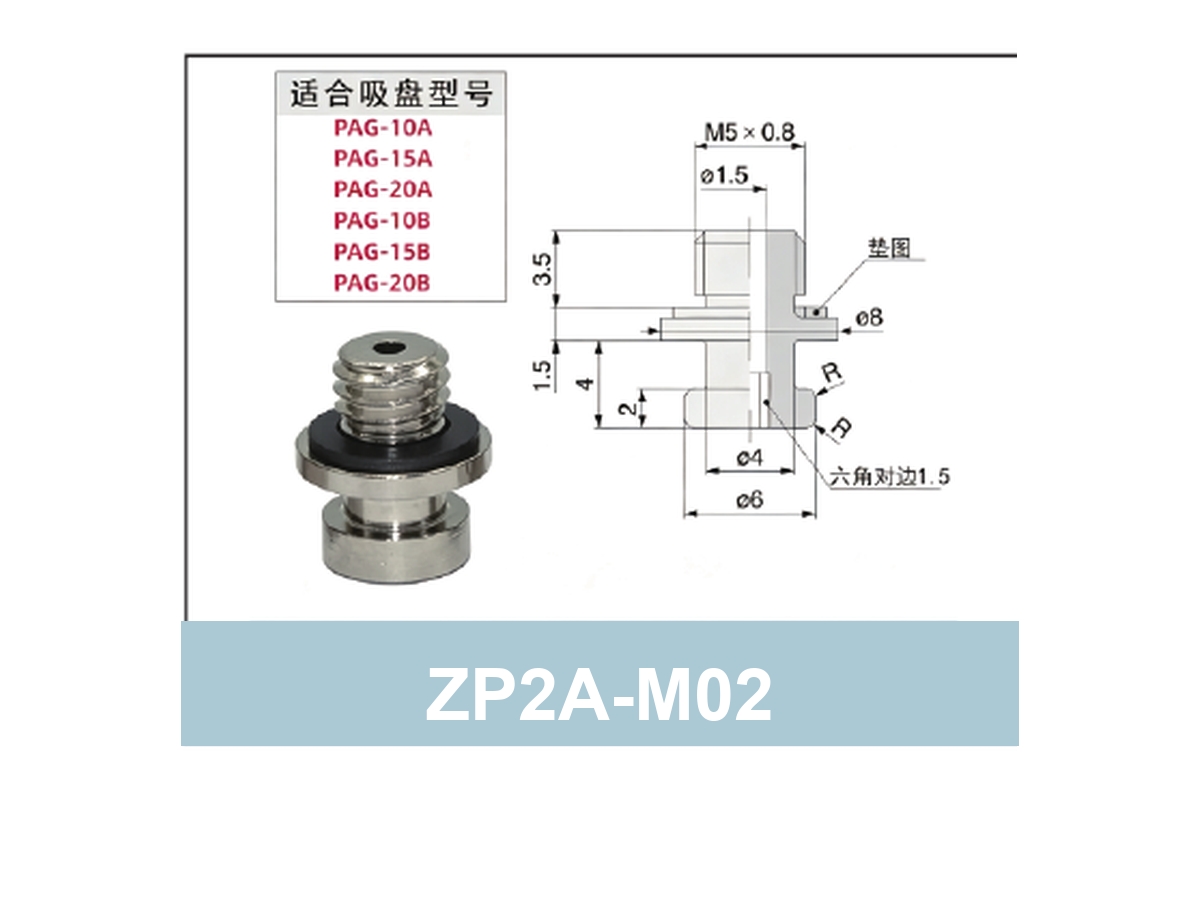

Select the exact model to view its technical drawing and product image.
Applications and Suitable Workpieces
PAG Film Vacuum Suction Cups & Fittings: These cups are designed for opening, separating and transferring flexible film, plastic bags and pouch-type packaging without relying on a rigid flat surface.
Recommended applications
- Plastic bags, flexible film, laminated pouches, stand-up pouches and light packaging materials.
- Bag opening, pouch feeding, filling and sealing machines, packaging robots and automated pick-and-place stations.
- Soft or unstable packaged products where a flexible lip or bellows stroke helps maintain contact.
Model and selection notes

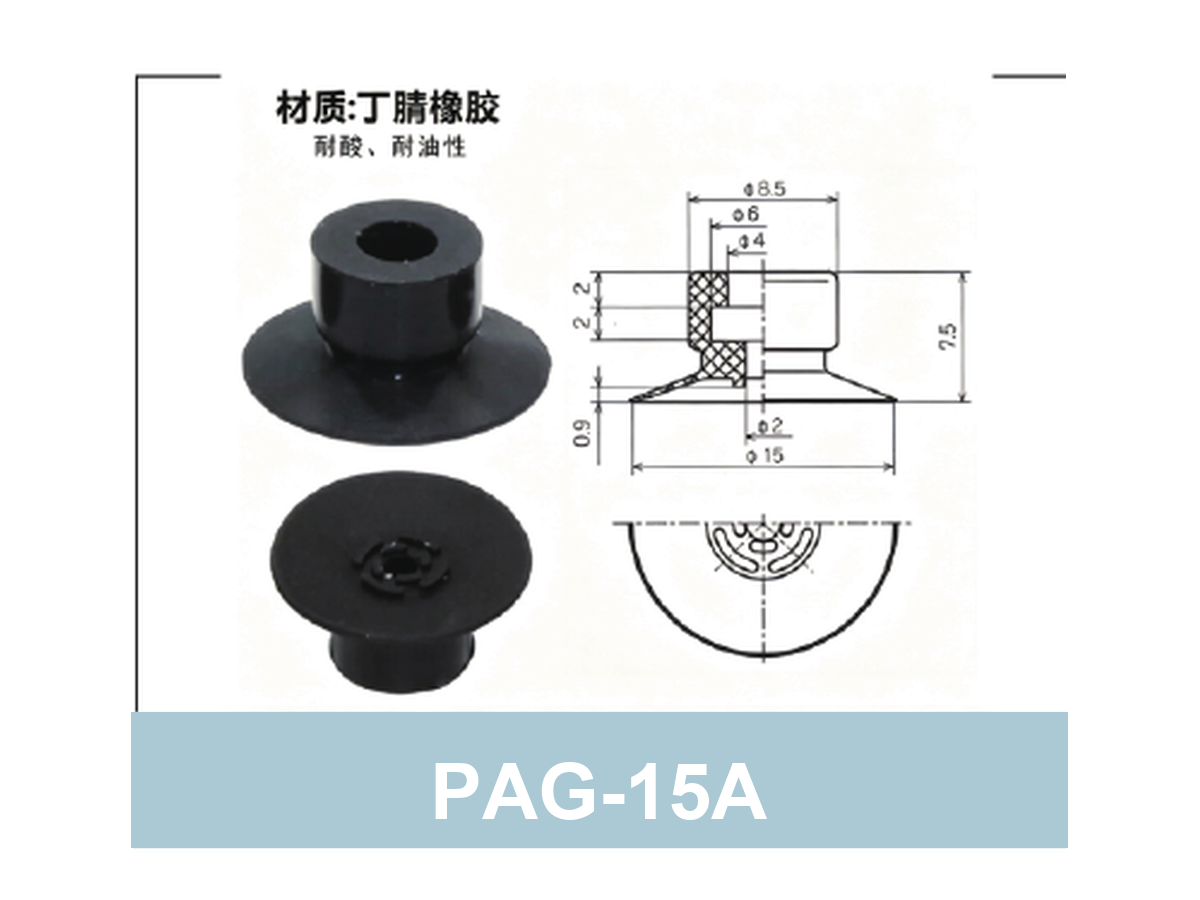

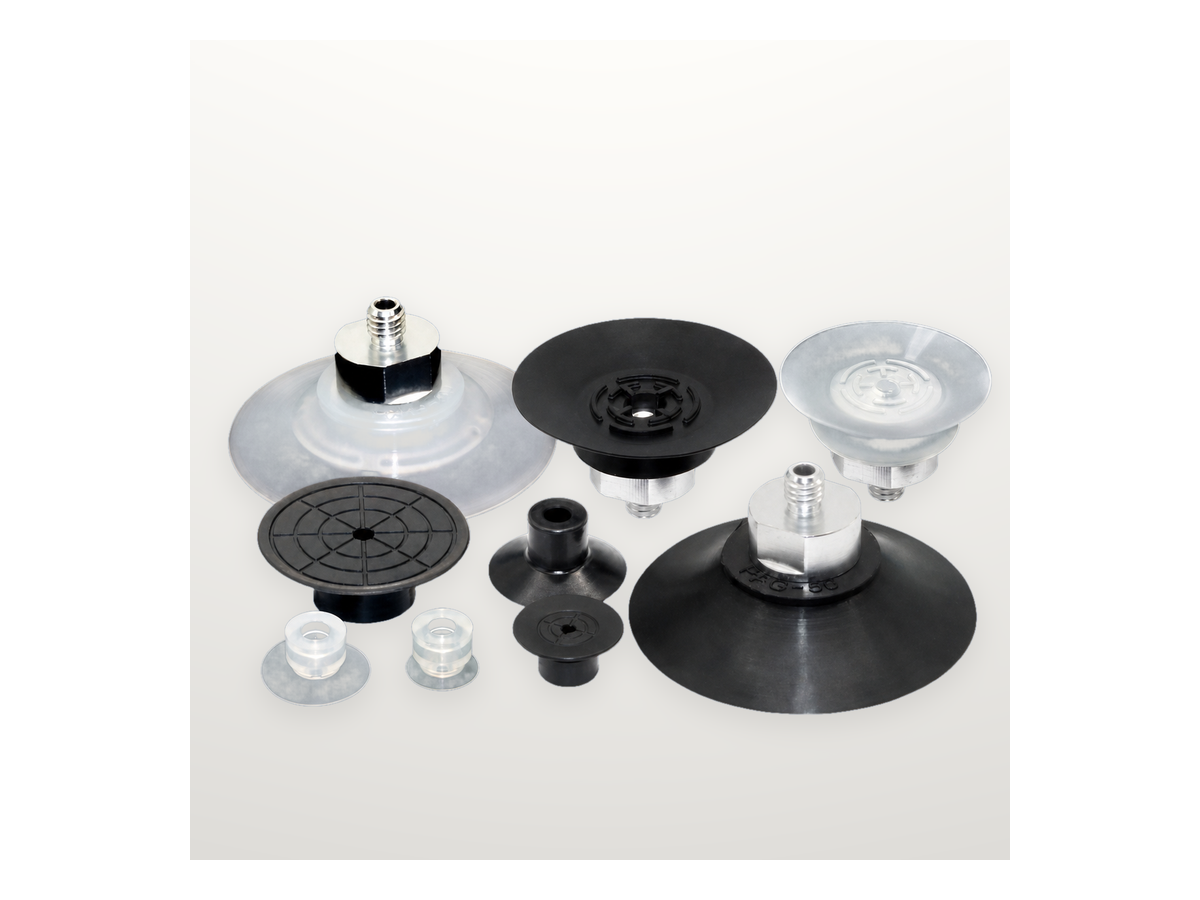

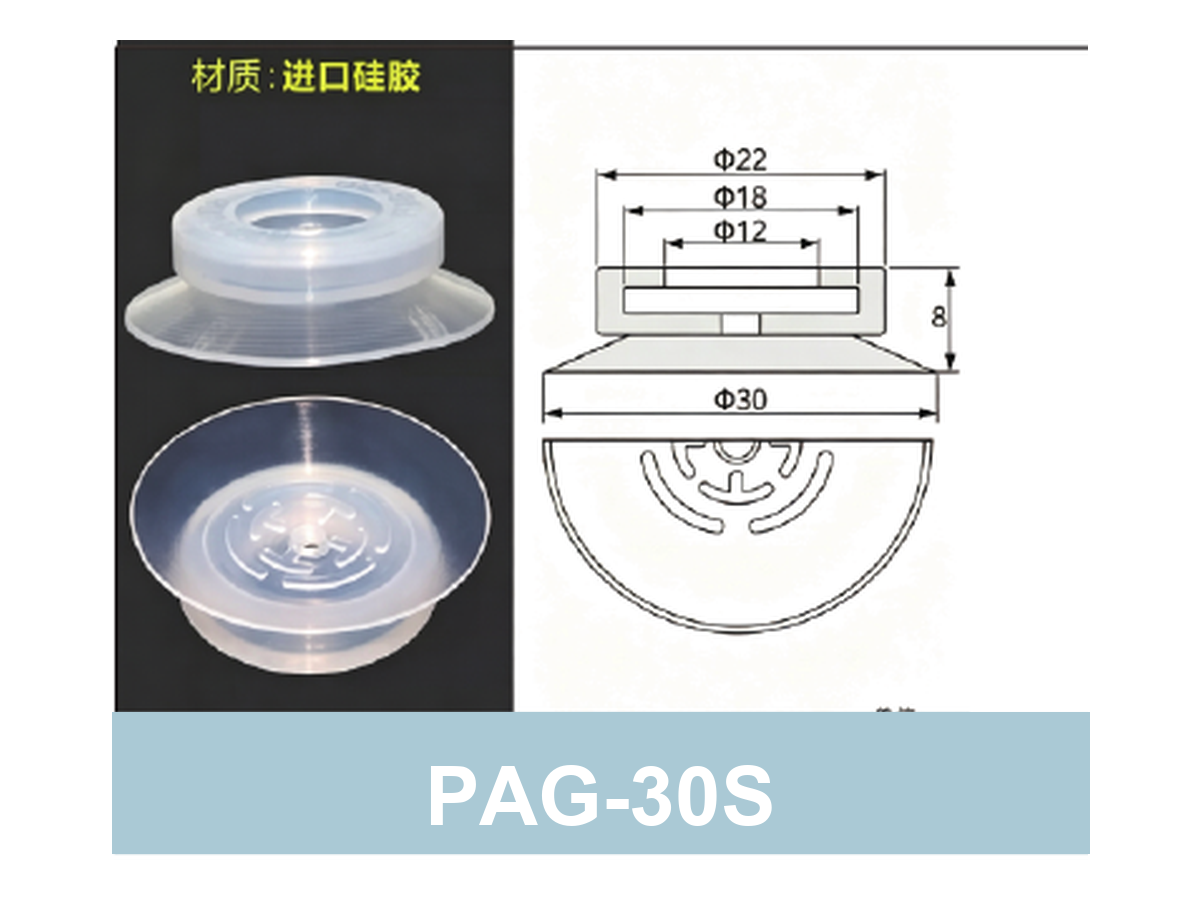

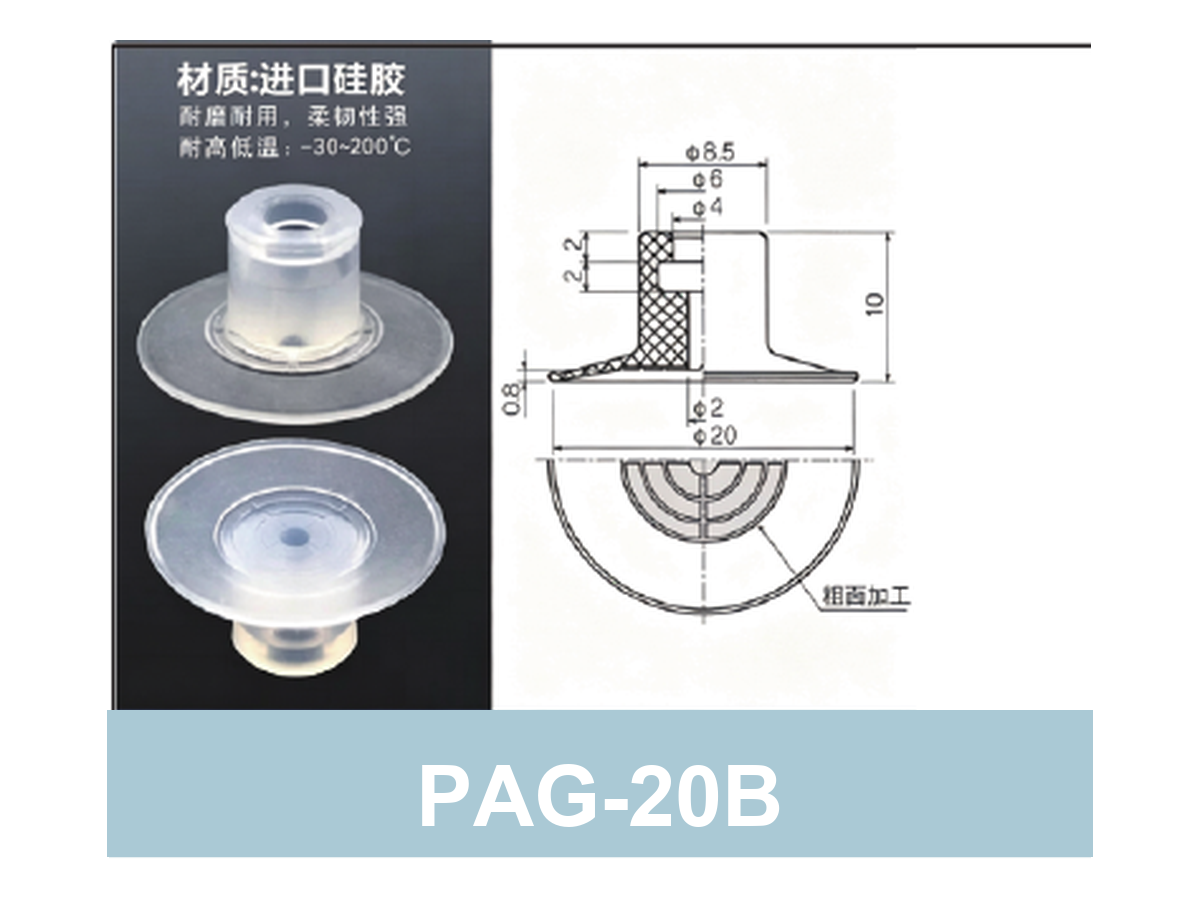

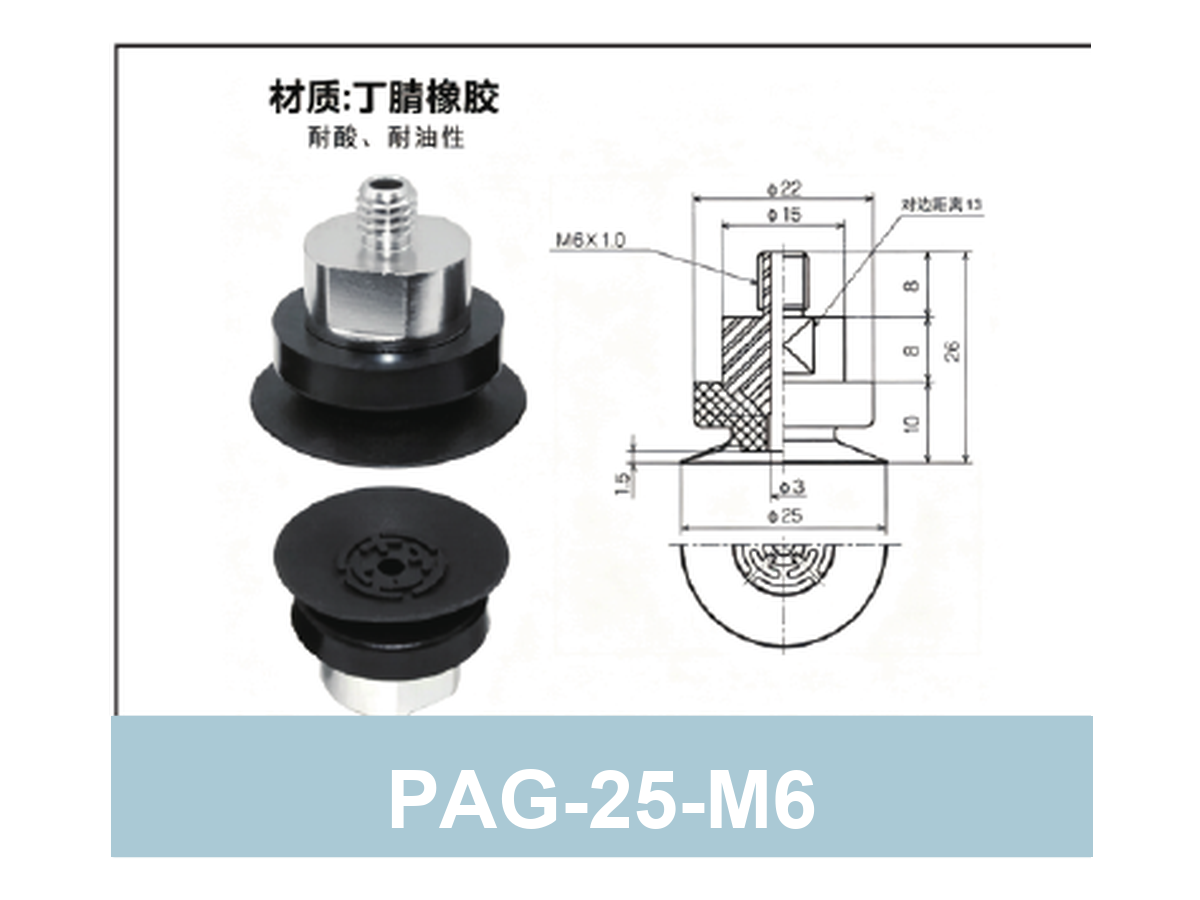

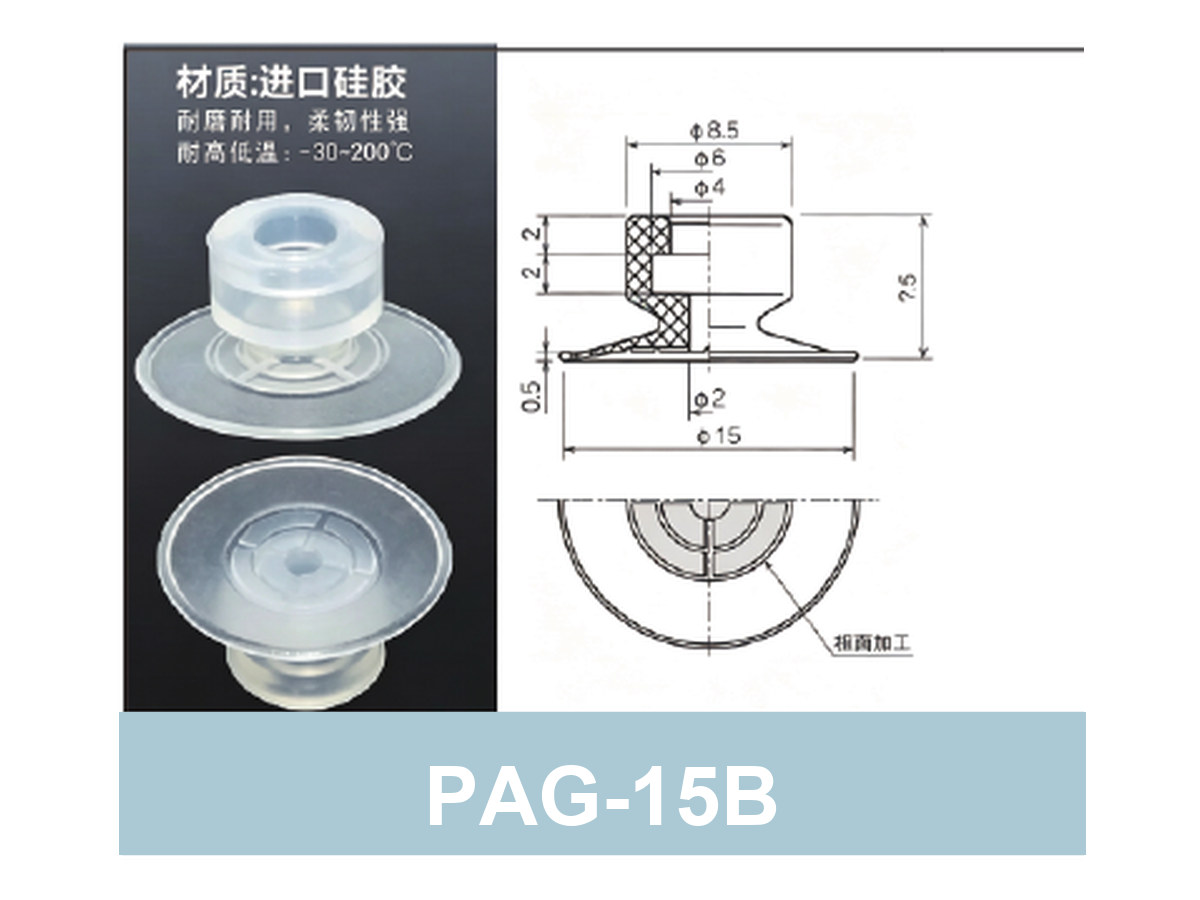

- PAG A/B and size codes identify different lip geometries. White silicone, black NBR and antistatic versions should be selected for the actual film and environment.
- Choose the exact cup geometry and diameter from the model image; small changes in lip shape can affect sealing on thin film.
- Silicone is commonly selected for flexible sealing and wider temperature capability; NBR is useful for wear resistance and lightly oily industrial conditions; conductive models are intended for static-sensitive handling where specified.
- Wrinkling, folds, perforations and very thin film can cause leakage. Test the actual film thickness, vacuum level and cycle speed before production.
