BOLTTE MPTZ Round Flange Graphite Bronze Self-Lubricating Bushings - 6-60 mm Bore

$8.00 USD $6.00 USD 25% OFF
Shipping calculated at checkout.
BOLTTE MPTZ Round Flange Graphite Bronze Self-Lubricating Bushings - 6-60 mm Bore
Size
Quantity
WhatsApp

BOLTTE MPTZ Round Flange Graphite Bronze Self-Lubricating Bushings - 6-60 mm Bore

MPTZ round-flange graphite bronze self-lubricating bushings combine a copper-alloy bearing body with solid graphite lubricant inserts for low-maintenance sliding and guiding applications.

Size selection

  • This product page covers 6-60 mm bore sizes.
  • Each selector entry shows flange diameter and thickness, followed by outside diameter, bore and overall length.

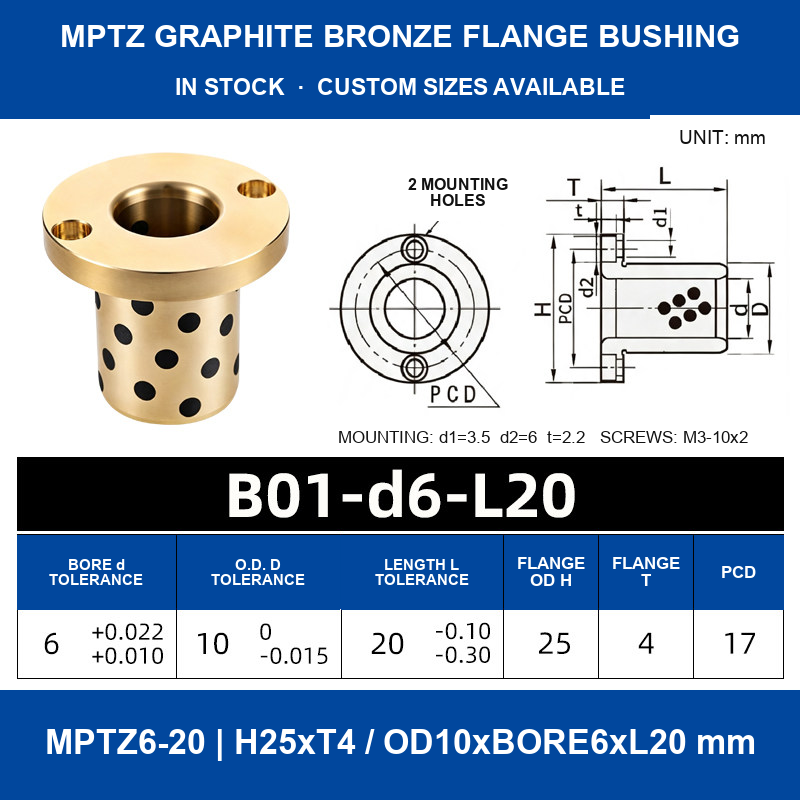

  • The corresponding technical image shows bore and outside-diameter tolerances, length tolerance, flange dimensions, mounting-hole size and pitch-circle diameter.
  • Standard, long and extended configurations are listed as separate selectable sizes.

Ordering and installation

  • Select the exact size shown in the selector and verify every dimension against the mating components.
  • Confirm fit, tolerance, load, speed, temperature, mounting screws, lubrication conditions and operating environment before use.
  • For application-specific dimensions or requirements, include the details in the order requirements field.
MPTZ round-flange graphite bronze bushings MPTZ bushing precision features High-strength brass and wear resistance Graphite plug self-lubricating performance Industrial applications for MPTZ bushings MPTZ round-flange bushing product information MPTZ graphite bronze bushing product details MPTZ bushing on a white background MPTZ graphite bronze bushing performance MPTZ round-flange graphite bronze bushing range High-strength brass MPTZ bushing MPTZ bushing graphite plug performance

Model / configuration / SKU

BOLTTE MPTZ Round Flange Graphite Bronze Self-Lubricating Bushings - 6-60 mm Bore
Model / configurationSKU
MPTZ6-15 | Flange 25 x 4 / OD 10 x Bore 6 x L 15 mm 5889554509441
MPTZ6-20 | Flange 25 x 4 / OD 10 x Bore 6 x L 20 mm 5889554509442
MPTZ6-25 | Flange 25 x 4 / OD 10 x Bore 6 x L 25 mm 5889554509443
MPTZ8-15 | Flange 27 x 4 / OD 12 x Bore 8 x L 15 mm 5889554509444
MPTZ8-20 | Flange 27 x 4 / OD 12 x Bore 8 x L 20 mm 5889554509445
MPTZ8-25 | Flange 27 x 4 / OD 12 x Bore 8 x L 25 mm 5889554509446
MPTZ8-30 | Flange 27 x 4 / OD 12 x Bore 8 x L 30 mm 5889554509447
MPTZ10-15 | Flange 29 x 4 / OD 14 x Bore 10 x L 15 mm 5889554509448
MPTZ10-20 | Flange 29 x 4 / OD 14 x Bore 10 x L 20 mm 5889554509449
MPTZ10-25 | Flange 29 x 4 / OD 14 x Bore 10 x L 25 mm 5889554509450
MPTZ10-30 | Flange 29 x 4 / OD 14 x Bore 10 x L 30 mm 5889554509451
MPTZ12-15 | Flange 36 x 5 / OD 18 x Bore 12 x L 15 mm 5889554509452
MPTZ12-20 | Flange 36 x 5 / OD 18 x Bore 12 x L 20 mm 5889554509453
MPTZ12-25 | Flange 36 x 5 / OD 18 x Bore 12 x L 25 mm 5889554509454
MPTZ12-30 | Flange 36 x 5 / OD 18 x Bore 12 x L 30 mm 5889554509455
MPTZ12-35 | Flange 36 x 5 / OD 18 x Bore 12 x L 35 mm 5889554509456
MPTZ12-40 | Flange 36 x 5 / OD 18 x Bore 12 x L 40 mm 5889554509457
MPTZ13-20 | Flange 37 x 5 / OD 19 x Bore 13 x L 20 mm 5889554509458
MPTZ13-25 | Flange 37 x 5 / OD 19 x Bore 13 x L 25 mm 5889554509459
MPTZ13-30 | Flange 37 x 5 / OD 19 x Bore 13 x L 30 mm 5889554509460
MPTZ13-35 | Flange 37 x 5 / OD 19 x Bore 13 x L 35 mm 5889554509461
MPTZ13-40 | Flange 37 x 5 / OD 19 x Bore 13 x L 40 mm 5889554509462
MPTZ16-15 | Flange 40 x 5 / OD 22 x Bore 16 x L 15 mm 5889554509463
MPTZ16-20 | Flange 40 x 5 / OD 22 x Bore 16 x L 20 mm 5889554509464
MPTZ16-25 | Flange 40 x 5 / OD 22 x Bore 16 x L 25 mm 5889554509465
MPTZ16-30 | Flange 40 x 5 / OD 22 x Bore 16 x L 30 mm 5889554509466
MPTZ16-35 | Flange 40 x 5 / OD 22 x Bore 16 x L 35 mm 5889554509467
MPTZ16-40 | Flange 40 x 5 / OD 22 x Bore 16 x L 40 mm 5889554509468
MPTZ16-50 | Flange 40 x 5 / OD 22 x Bore 16 x L 50 mm 5889554509469
MPTZ20-15 | Flange 49 x 6 / OD 28 x Bore 20 x L 15 mm 5889554509470
MPTZ20-20 | Flange 49 x 6 / OD 28 x Bore 20 x L 20 mm 5889554509471
MPTZ20-25 | Flange 49 x 6 / OD 28 x Bore 20 x L 25 mm 5889554509472
MPTZ20-30 | Flange 49 x 6 / OD 28 x Bore 20 x L 30 mm 5889554509473
MPTZ20-35 | Flange 49 x 6 / OD 28 x Bore 20 x L 35 mm 5889554509474
MPTZ20-40 | Flange 49 x 6 / OD 28 x Bore 20 x L 40 mm 5889554509475
MPTZ20-50 | Flange 49 x 6 / OD 28 x Bore 20 x L 50 mm 5889554509476
MPTZ20-60 | Flange 49 x 6 / OD 28 x Bore 20 x L 60 mm 5889554509477
MPTZ20-70 | Flange 49 x 6 / OD 28 x Bore 20 x L 70 mm 5889554509478
MPTZ20-80 | Flange 49 x 6 / OD 28 x Bore 20 x L 80 mm 5889554509479
MPTZ25-20 | Flange 54 x 6 / OD 33 x Bore 25 x L 20 mm 5889554509480
MPTZ25-25 | Flange 54 x 6 / OD 33 x Bore 25 x L 25 mm 5889554509481
MPTZ25-30 | Flange 54 x 6 / OD 33 x Bore 25 x L 30 mm 5889554509482
MPTZ25-35 | Flange 54 x 6 / OD 33 x Bore 25 x L 35 mm 5889554509483
MPTZ25-40 | Flange 54 x 6 / OD 33 x Bore 25 x L 40 mm 5889554509484
MPTZ25-45 | Flange 54 x 6 / OD 33 x Bore 25 x L 45 mm 5889554509485
MPTZ25-50 | Flange 54 x 6 / OD 33 x Bore 25 x L 50 mm 5889554509486
MPTZ25-60 | Flange 54 x 6 / OD 33 x Bore 25 x L 60 mm 5889554509487
MPTZ25-70 | Flange 54 x 6 / OD 33 x Bore 25 x L 70 mm 5889554509488
MPTZ25-80 | Flange 54 x 6 / OD 33 x Bore 25 x L 80 mm 5889554509489
MPTZ30-25 | Flange 63 x 8 / OD 38 x Bore 30 x L 25 mm 5889554509490
MPTZ30-30 | Flange 63 x 8 / OD 38 x Bore 30 x L 30 mm 5889554509491
MPTZ30-35 | Flange 63 x 8 / OD 38 x Bore 30 x L 35 mm 5889554509492
MPTZ30-40 | Flange 63 x 8 / OD 38 x Bore 30 x L 40 mm 5889554509493
MPTZ30-45 | Flange 63 x 8 / OD 38 x Bore 30 x L 45 mm 5889554509494
MPTZ30-50 | Flange 63 x 8 / OD 38 x Bore 30 x L 50 mm 5889554509495
MPTZ30-60 | Flange 63 x 8 / OD 38 x Bore 30 x L 60 mm 5889554509496
MPTZ30-70 | Flange 63 x 8 / OD 38 x Bore 30 x L 70 mm 5889554509497
MPTZ30-80 | Flange 63 x 8 / OD 38 x Bore 30 x L 80 mm 5889554509498
MPTZ30-90 | Flange 63 x 8 / OD 38 x Bore 30 x L 90 mm 5889554509499
MPTZ35-40 | Flange 69 x 8 / OD 44 x Bore 35 x L 40 mm 5889554509500
MPTZ35-50 | Flange 69 x 8 / OD 44 x Bore 35 x L 50 mm 5889554509501
MPTZ35-60 | Flange 69 x 8 / OD 44 x Bore 35 x L 60 mm 5889554509502
MPTZ35-70 | Flange 69 x 8 / OD 44 x Bore 35 x L 70 mm 5889554509503
MPTZ35-80 | Flange 69 x 8 / OD 44 x Bore 35 x L 80 mm 5889554509504
MPTZ40-30 | Flange 82 x 10 / OD 50 x Bore 40 x L 30 mm 5889554509505
MPTZ40-35 | Flange 82 x 10 / OD 50 x Bore 40 x L 35 mm 5889554509506
MPTZ40-40 | Flange 82 x 10 / OD 50 x Bore 40 x L 40 mm 5889554509507
MPTZ40-45 | Flange 82 x 10 / OD 50 x Bore 40 x L 45 mm 5889554509508
MPTZ40-50 | Flange 82 x 10 / OD 50 x Bore 40 x L 50 mm 5889554509509
MPTZ40-60 | Flange 82 x 10 / OD 50 x Bore 40 x L 60 mm 5889554509510
MPTZ40-70 | Flange 82 x 10 / OD 50 x Bore 40 x L 70 mm 5889554509511
MPTZ40-80 | Flange 82 x 10 / OD 50 x Bore 40 x L 80 mm 5889554509512
MPTZ40-100 | Flange 82 x 10 / OD 50 x Bore 40 x L 100 mm 5889554509513
MPTZ50-30 | Flange 94 x 10 / OD 62 x Bore 50 x L 30 mm 5889554509514
MPTZ50-40 | Flange 94 x 10 / OD 62 x Bore 50 x L 40 mm 5889554509519
MPTZ50-50 | Flange 94 x 10 / OD 62 x Bore 50 x L 50 mm 5889554509520
MPTZ50-60 | Flange 94 x 10 / OD 62 x Bore 50 x L 60 mm 5889554509515
MPTZ50-70 | Flange 94 x 10 / OD 62 x Bore 50 x L 70 mm 5889554509516
MPTZ50-80 | Flange 94 x 10 / OD 62 x Bore 50 x L 80 mm 5889554509517
MPTZ50-100 | Flange 94 x 10 / OD 62 x Bore 50 x L 100 mm 5889554509518
MPTZ6 | Flange 25 x 4 / OD 12 x Bore 6 x L 19 mm 5889554509521
MPTZ8 | Flange 32 x 5 / OD 15 x Bore 8 x L 24 mm 5889554509522
MPTZ10 | Flange 40 x 6 / OD 19 x Bore 10 x L 29 mm 5889554509523
MPTZ12 | Flange 42 x 6 / OD 21 x Bore 12 x L 30 mm 5889554509524
MPTZ13 | Flange 43 x 6 / OD 23 x Bore 13 x L 32 mm 5889554509525
MPTZ16 | Flange 48 x 6 / OD 28 x Bore 16 x L 37 mm 5889554509526
MPTZ20 | Flange 54 x 8 / OD 32 x Bore 20 x L 42 mm 5889554509527
MPTZ25 | Flange 62 x 8 / OD 40 x Bore 25 x L 59 mm 5889554509528
MPTZ30 | Flange 74 x 10 / OD 45 x Bore 30 x L 64 mm 5889554509529
MPTZ35 | Flange 82 x 10 / OD 52 x Bore 35 x L 70 mm 5889554509530
MPTZ40 | Flange 96 x 13 / OD 60 x Bore 40 x L 80 mm 5889554509531
MPTZ50 | Flange 116 x 13 / OD 80 x Bore 50 x L 100 mm 5889554509532
MPTZ60 | Flange 134 x 18 / OD 90 x Bore 60 x L 110 mm 5889554509533
MPTZ6L Extended | Flange 25 x 4 / OD 12 x Bore 6 x L 35 mm 5889554509534
MPTZ8L Extended | Flange 32 x 5 / OD 15 x Bore 8 x L 45 mm 5889554509535
MPTZ10L Extended | Flange 40 x 6 / OD 19 x Bore 10 x L 55 mm 5889554509536
MPTZ12L Extended | Flange 42 x 6 / OD 21 x Bore 12 x L 57 mm 5889554509537
MPTZ13L Extended | Flange 43 x 6 / OD 23 x Bore 13 x L 61 mm 5889554509538
MPTZ16L Extended | Flange 48 x 6 / OD 28 x Bore 16 x L 70 mm 5889554509539
MPTZ20L Extended | Flange 54 x 8 / OD 32 x Bore 20 x L 80 mm 5889554509540
MPTZ25L Extended | Flange 62 x 8 / OD 40 x Bore 25 x L 112 mm 5889554509541
MPTZ30L Extended | Flange 74 x 10 / OD 45 x Bore 30 x L 123 mm 5889554509542
MPTZ35L Extended | Flange 82 x 10 / OD 52 x Bore 35 x L 135 mm 5889554509543
MPTZ40L Extended | Flange 96 x 13 / OD 60 x Bore 40 x L 151 mm 5889554509544
MPTZ50L Extended | Flange 116 x 13 / OD 80 x Bore 50 x L 192 mm 5889554509545
MPTZ60L Extended | Flange 134 x 18 / OD 90 x Bore 60 x L 211 mm 5889554509546
